ABS AND TCS 4F-63

SSANGYONG MY2002

Step

1

2

3

4

5

6

DTC 13/14 - Left Front Inlet and Outlet Valve Solenoid Fault

Action

Go to Step 2

Go to Step 6

Go to Step 7

Go to Step 6

System OK

System OK

Go to Step 6

Go to Step 3

Go to Step 6

Go to Step 5

-

-

-

-

-

-

-

-

1. Raise and suitably support the vehicle at the

corner being tested.

2. Turn the ignition to ON.
3. Install the scan tool to the data link connector

(DLC) and select “Wheel front left” to begin the
solenoid tests at that wheel. This will test both the
inlet and the outlet valves.

4. When the scan tool indicates “Pressure hold”,

press and hold the brake pedal until the end of the
test.

5. Have an assistant attempt to rotate the wheel.
Can the wheel be rotated?
1. Maintain pressure on the brake pedal.
2. When the scan tool indicates “Pressure increase”,

have an assistant attempt to rotate the wheel
again.

Can the wheel be rotated now?
1. Maintain pressure on the brake pedal.
2. When the scan tool indicates “Pressure release

on”, have an assistant attempt to rotate the wheel
again.

Can the wheel be rotated?
1. Release brake pedal pressure when the scan tool

indicates “Pressure release off”.

2. Clear all DTCs.
3. Road test the vehicle.
Does the DTC set again?
1. Check the wiring harness and connector terminals

for an intermittent problem.

2. Repair any problem found.
Is the repair complete?
Replace the ABS unit.
Is the repair complete?

Value(s)

Yes

No

SSANGYONG MY2002

4F-64  ABS AND TCS

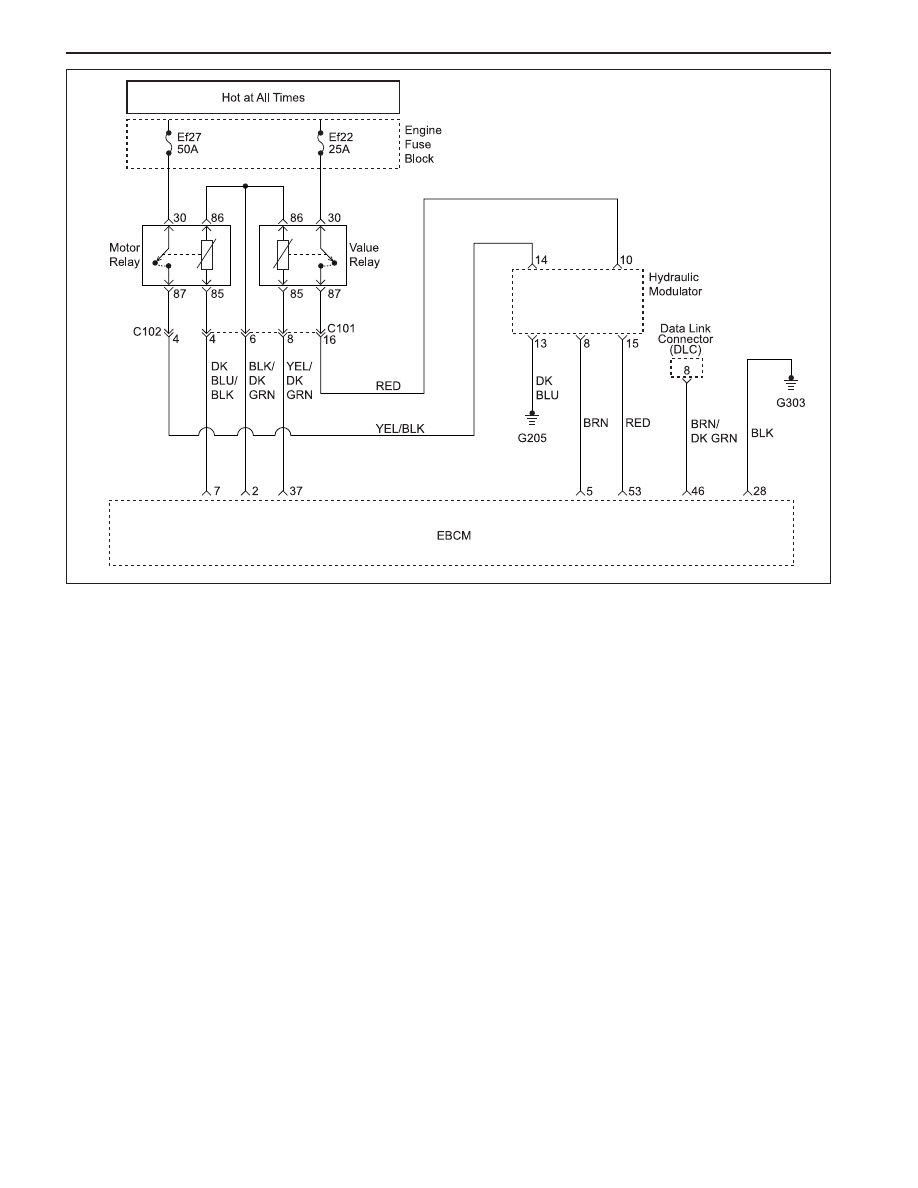

DIAGNOSTIC TROUBLE CODE (DTC) 15/16

RIGHT FRONT INLET AND OUTLET VALVE SOLENOID FAULT

KAA4F200

Circuit Description

The solenoid valve coil circuits are supplied with power
from the battery when the valve relay is energized.
Switched ground is provided by the electronic brake
control module (EBCM) to each coil.

Diagnosis

This procedure checks whether the right front inlet and
outlet valves are functioning.

Cause(s)

•

A valve has failed.

•

A solenoid coil is open or shorted.

Fail Action

ABS is disabled, and the ABS warning lamp is turned
ON for the remainder of the ignition cycle. If the failure
is intermittent, the EBCM will enable the system at the
next ignition cycle and set a history DTC.

Test Description

The number(s) below refer to step(s) on the diagnostic
table.

1. This begins the test of the inlet valve.

3. This tests the outlet valve.

ABS AND TCS 4F-65

SSANGYONG MY2002

Step

1

2

3

4

5

6

Action

Go to Step 2

Go to Step 6

Go to Step 7

Go to Step 6

System OK

System OK

Go to Step 6

Go to Step 3

Go to Step 6

Go to Step 5

-

-

-

-

-

-

-

-

1. Raise and suitably support the vehicle at the corner

being tested.

2. Turn the ignition to ON.
3. Install the scan tool to the data link connector

(DLC) and select “Wheel front right” to begin the
solenoid tests at that wheel. This will test both the
inlet and the outlet valves.

4. When the scan tool indicates “Pressure hold”,

press and hold the brake pedal until the end of the
test.

5. Have an assistant attempt to rotate the wheel.
Can the wheel be rotated?
1. Maintain pressure on the brake pedal.
2. When the scan tool indicates “Pressure increase”,

have an assistant attempt to rotate the wheel
again.

Can the wheel be rotated now?
1. Maintain pressure on the brake pedal.
2. When the scan tool indicates “Pressure release

on”, have an assistant attempt to rotate the wheel
again.

Can the wheel be rotated?
1. Release brake pedal pressure when the scan tool

indicates “Pressure release off”.

2. Clear all DTCs.
3. Road test the vehicle.
Does the DTC set again?
1. Check the wiring harness and connector terminals

for an intermittent problem.

2. Repair any problem found.
Is the repair complete?
Replace the ABS unit.
Is the repair complete?

DTC 15/16 - Right Front Inlet and Outlet Valve Solenoid Fault

Value(s)

Yes

No

SSANGYONG MY2002

4F-66  ABS AND TCS

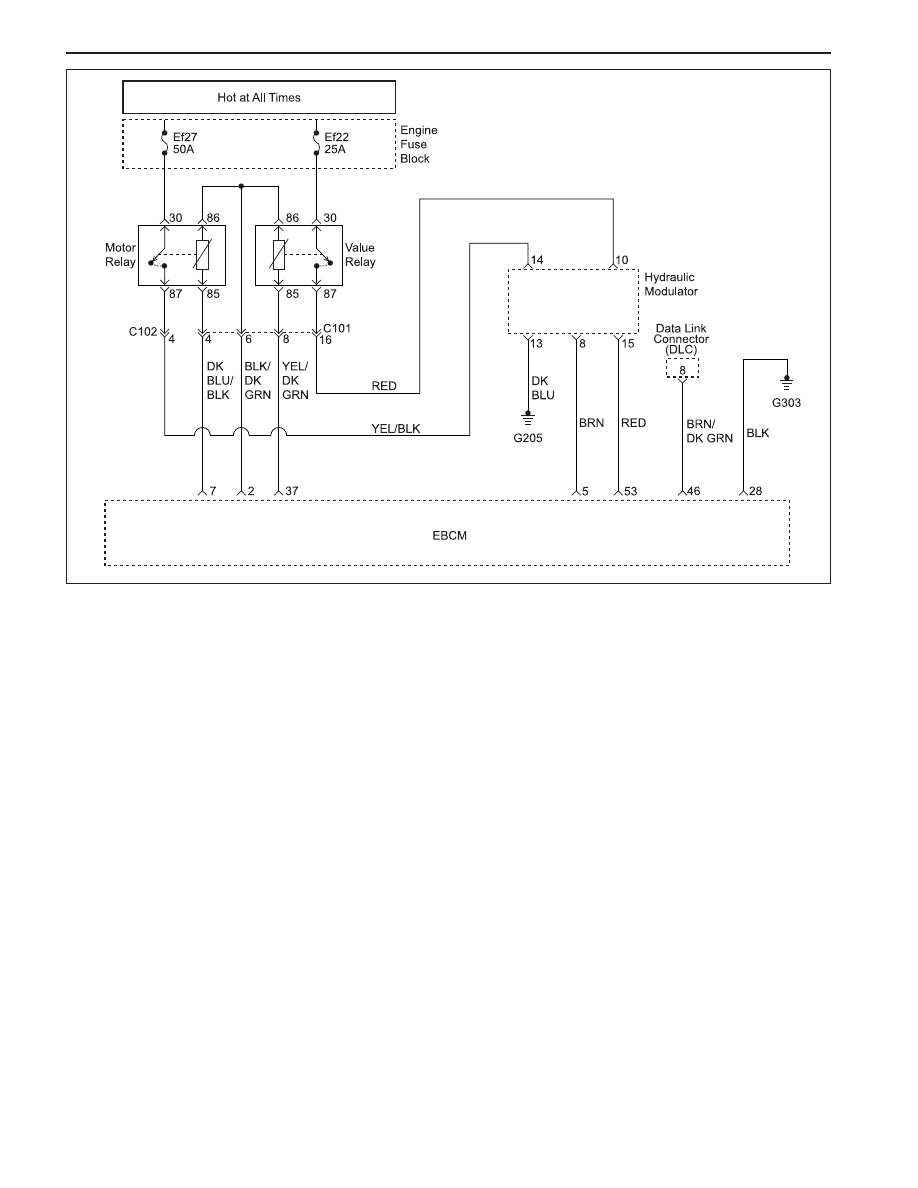

DIAGNOSTIC TROUBLE CODE (DTC) 17/18

LEFT REAR INLET AND OUTLET VALVE SOLENOID FAULT

KAA4F200

Circuit Description

The solenoid valve coil circuits are supplied with power
from the battery when the valve relay is energized.
Switched ground is provided by the electronic brake
control module (EBCM) to each coil.

Diagnosis

This procedure checks whether the left rear inlet and
outlet valves are functioning.

Cause(s)

•

A valve has failed.

•

A solenoid coil is open or shorted.

Fail Action

ABS is disabled, and the ABS warning lamp is turned
ON for the remainder of the ignition cycle. If the failure
is intermittent, the EBCM will enable the system at the
next ignition cycle and set a history DTC.

Test Description

The number(s) below refer to step(s) on the diagnostic
table.

1. This begins the test of the inlet valve.

3. his tests the outlet valve.
