SSANGYONG MY2002

2E-10  TIRE AND WHEELS

psi

30

30

30

kPa

205

205

205

Front

E32

E32

Wheel

Engine

Rear

SPECIFICATIONS

TIRE SIZE AND PRESSURE SPECIFICATIONS

Inflation Pressure at Full Load

psi

30

30

30

Tires

P235/75R15

P255/65R16

P255/70R15

7.0 JJx15

7.0 JJx16

7.0 JJx15

kPa

205

205

205

psi

34

35

36

40

45

50

55

INFLATION PRESSURE CONVERSION SPECIFICATIONS

kPa

140

145

155

160

165

170

180

psi

20

21

22

23

24

25

26

kPa

185

190

200

205

215

220

230

psi

27

28

29

30

31

32

33

kPa

235

240

250

275

310

345

380

FASTENER  TIGHTENING SPECIFICATIONS

89

Wheel Nut (Alloy Wheel)

N

l

m

Application

Lb-In

Lb-Ft

120

-

SECTION 3A

FRONT AXLE

TABLE OF CONTENTS

Specifications ....................................................... 3A-2

General Specifications ......................................... 3A-2

Fastener Tightening Specifications ....................... 3A-2

Component Locator ............................................. 3A-3

Front Axle Assembly ........................................... 3A-3

Auto-Locking Hub ................................................ 3A-4

Maintnance and Repair ........................................ 3A-5

On-Vehicle Service ................................................. 3A-5

Vacuum Line ........................................................ 3A-5

Steering Knuckle and Drive Shaft ......................... 3A-7

Front Axle Assembly ......................................... 3A-12

Unit Repair .......................................................... 3A-16

Axle Housing ..................................................... 3A-16

Outer Joint Seal ................................................. 3A-23

Inner Tripot Seal ................................................ 3A-24

Special Tools and Equipment ............................ 3A-25

Special Tools Table ............................................ 3A-25

SSAMGYONG MY2002

3A-2 FRONT AXLE

M/T

A/T

M/T

A/T

M/T

A/T

M/T

A/T

SPECIFICATIONS

GENERAL SPECIFICATIONS

Application

Drive Shaft Type

Axle Housing Type

Differential Type

Differential Gear

CV Joint

Build - up

Conventional

Hypoid Gear

4.56

5.38

4.27

4.89

4.55

5.86

3.73

4.89

1.3 L

SEA 80W/90, API GL - 5

Description

661LA

662LA

E23

E32

Reduction Ratio

Oil Capacity

Oil Specification

FASTENER TIGHTENING SPECIFICATIONS

Steering Knuckle and Drive Shaft

36.8 - 44.2

18.4 - 25.8

51.6 - 66.3

11.0

-

62.7 - 77.4

Drive Shaft Cover Bolt

Drive Shaft to Front Axle Inner Shaft

Hub Flange Bolt

Hub Nut

Locking Hub Washer Screw

Wheel Speed Sensor

N

z

z

z

z

z

m

Application

Lb-In

Lb-Ft

50 - 60

25 - 35

70 - 90

15

2 - 4

85 - 105

-

-

-

-

17.7 - 35.4

-

FRONT AXLE 3A-3

SSANGYONG MY2002

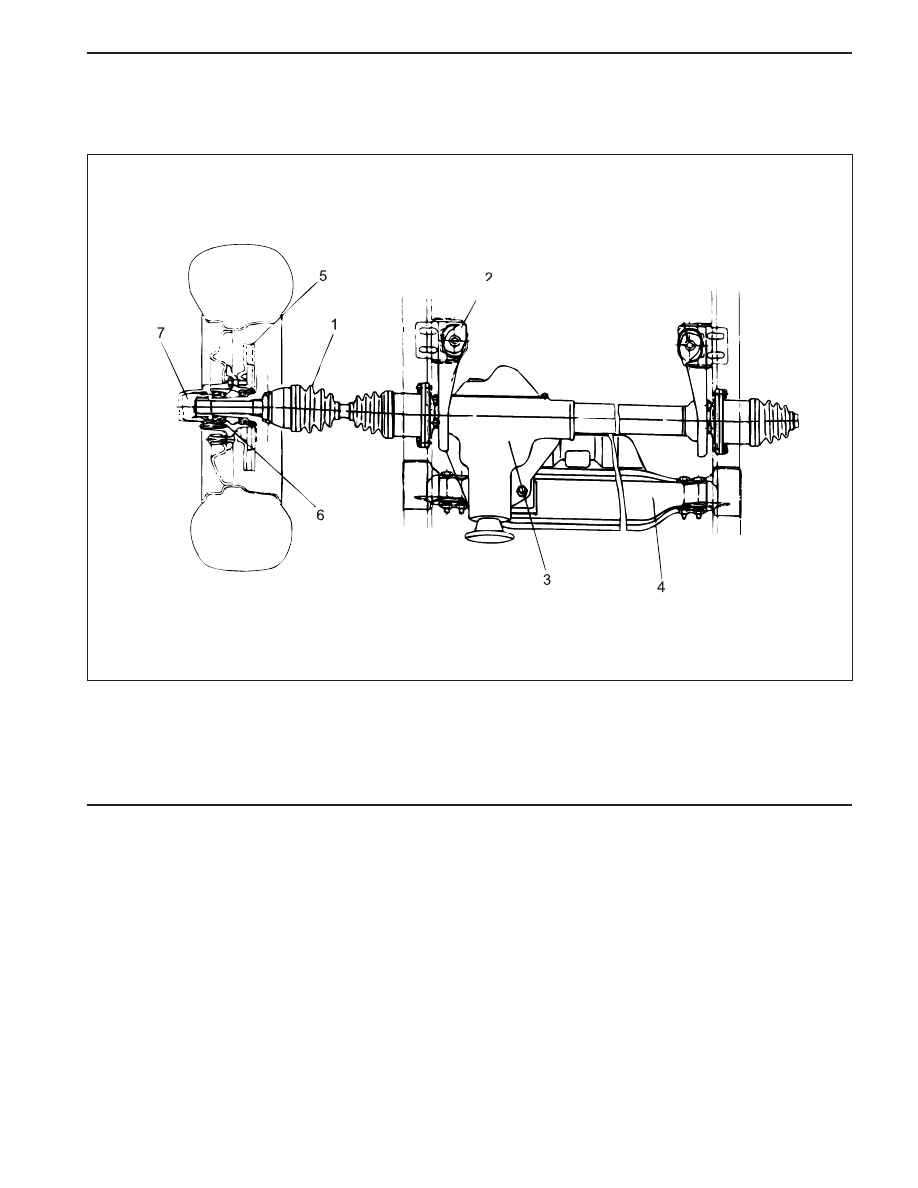

1 Drive Shaft
2 Axle Housing Mounting Bolt
3 Axle Housing
4 Cross Member

COMPONENT LOCATOR

FRONT AXLE ASSEMBLY

5 Brake Disc
6 Hub-Wheel
7 Locking Hub

KAA3A010
