REAR SUSPENSION  2D-5

SSANGYONG  MY2002

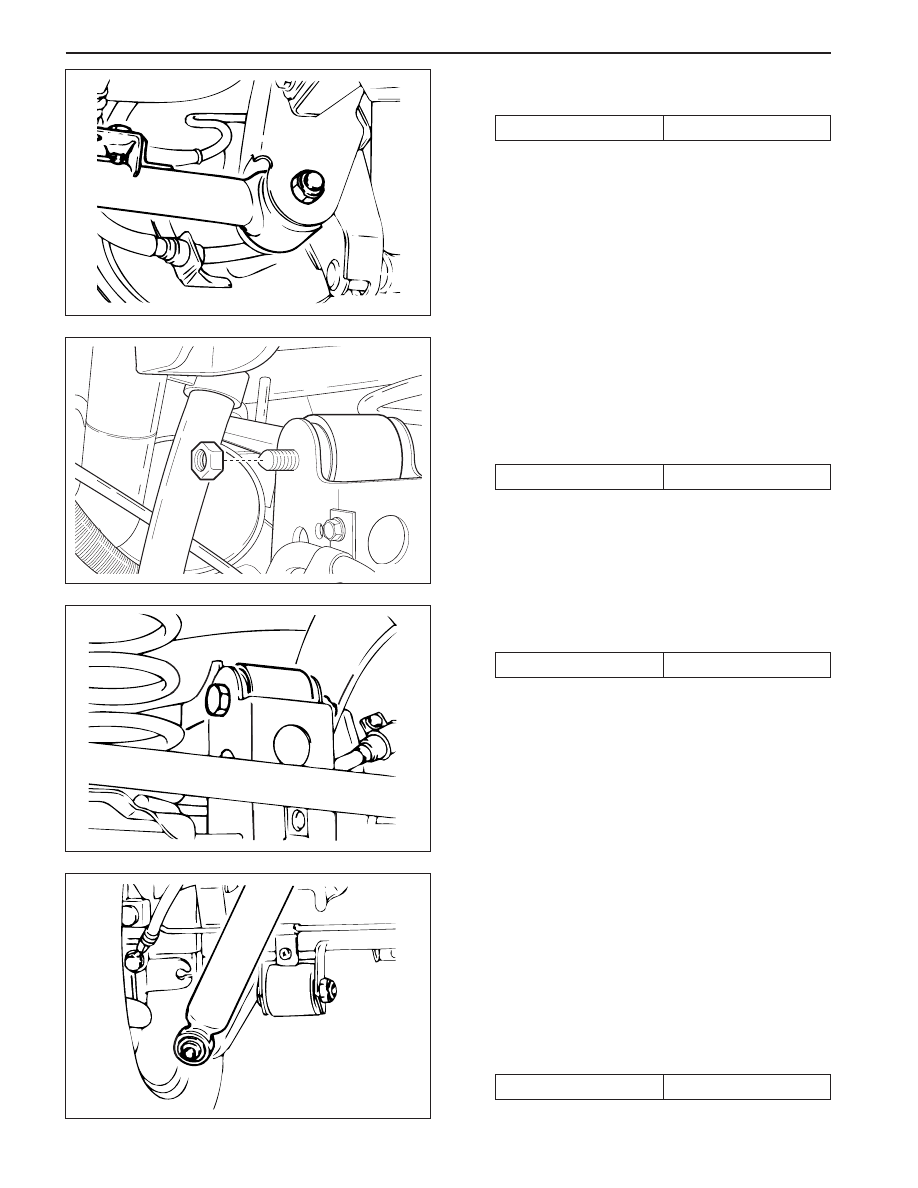

3. Remove the rear stabilizer-to-rear stabilizer link nut.

Installation Notice

KAA2D020

KAA2D050

KAA2D060

REAR SHOCK ABSORBER

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the rear shock absorber lower mounting

nut.

Installation Notice

3. Remove the rear shock absorber upper mounting

nut.

Installation Notice

KAA2D070

LOWER  TRAILING LINK

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the lower trailing link-to-body frame nut.

Installation Notice

Tightening Torque

70  N•m (52 lb-ft)

4. Installation should follow the removal procedure in

the reverse order.

Tightening Torque

38  N•m (43 lb-ft)

Tightening Torque

38  N•m (28 lb-ft)

4. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

165 N•m (122 lb-ft)

SSANGYONG  MY2002

2D-6  REAR SUSPENSION

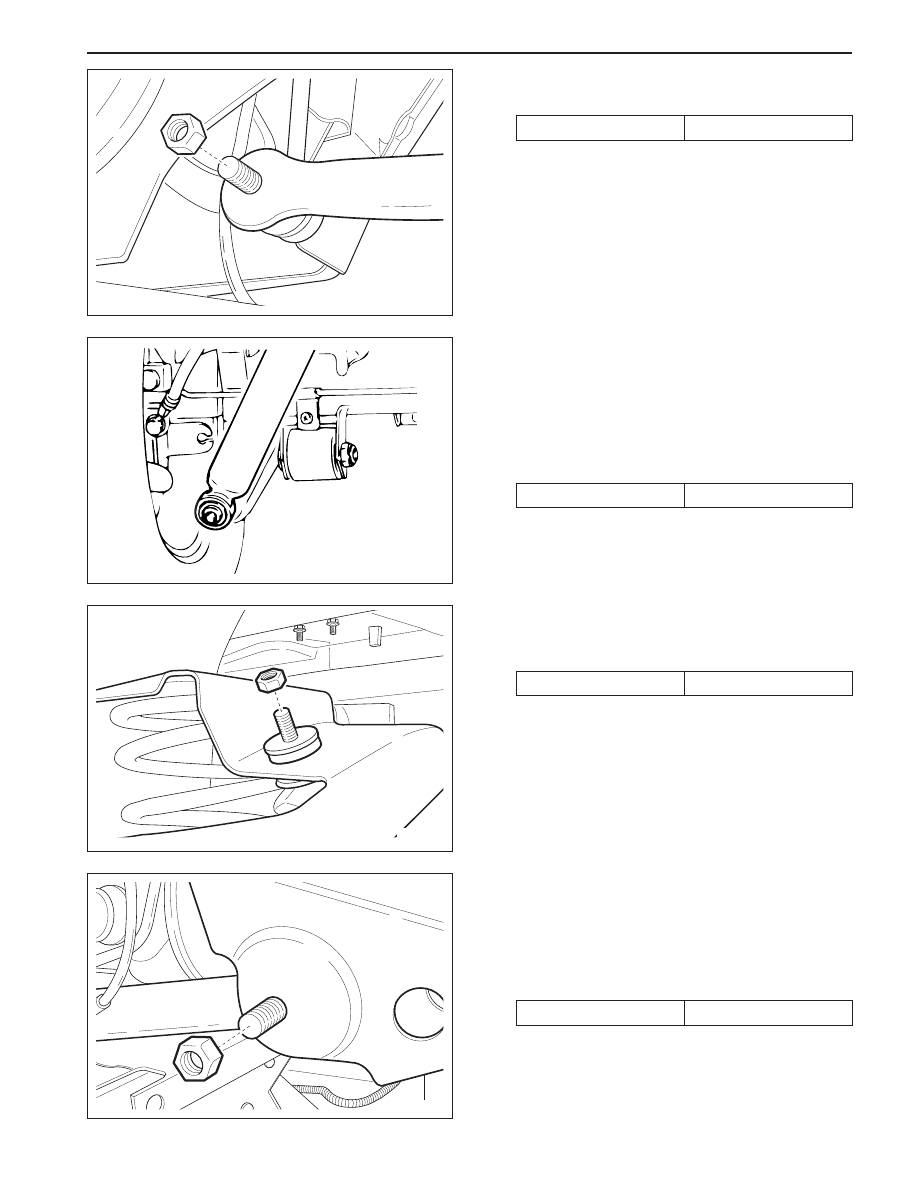

3. Remove the lower trailing link-to-rear axle nut.

Installation Notice

KAA2D080

KAA2D090

KAA2D100

UPPER  TRAILING LINK

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the upper trailing link-to-body frame nut.

Installation Notice

3. Remove the upper trailing link-to-rear axle nut.

Installation Notice

KAA2D050

REAR COIL SPRING

Tools Required

661589 12 33 00  RearSpringCompressor

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the rear shock absorber lower mounting

nuts.

Installation Notice

Tightening Torque

165 N•m (122 lb-ft)

4. Installation should follow the removal procedure in

the reverse order.

Tightening Torque

165 N•m (122 lb-ft)

Tightening Torque

165 N•m (122 lb-ft)

Tightening Torque

58  N•m (43 lb-ft)

4. Installation should follow the removal procedure in

the reverse order.

REAR SUSPENSION  2D-7

SSANGYONG  MY2002

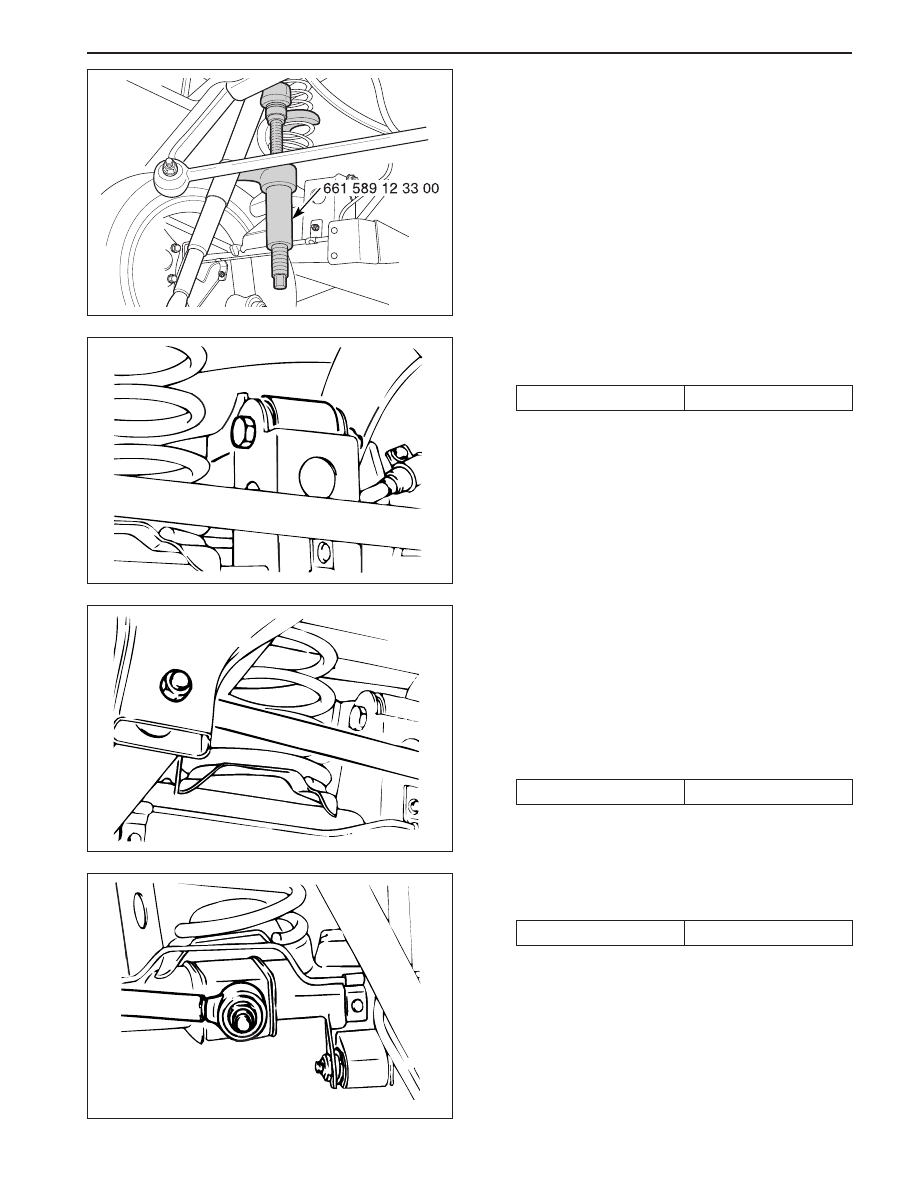

3. Compress the rear coil springs completely using

the rear spring compressor 661 589 12 33 00.

KAA2D110

KAA2D100

KAA2D120

4. Remove the upper trailing link-to-rear axle nuts.

Installation Notice

LATERAL ROD

Removal and Installation Procedure

1. Raise and suitably support the vehicle.

2. Remove the lateral rod-to-body frame nut.

Removal Notice:

• Completely press the coil springs.

Installation Notice

KAA2D130

3. Remove the lateral rod-to-rear axle nut.

Installation Notice

Tightening Torque

165 N•m (122 lb-ft)

Tightening Torque

165 N•m (122 lb-ft)

Tightening Torque

165 N•m (122 lb-ft)

5. Remove the rear coil spring.

6. Installation should follow the removal procedure in

the reverse order.

4. Installation should follow the removal procedure in

the reverse order.

SSANGYONG  MY2002

2D-8  REAR SUSPENSION

122

122

122

122

52

28

28

43

28

122

122

Lateral Rod-to-Body Frame Nut

Lateral Rod-to-Rear Axle Nut

Lower Trailing Link-to-Rear Axle Nut

Lower Trailing Link-to-Body Frame Nut

Rear Stabilizer-to-Rear Stabilizer Link Nut

Rear Stabilizer Mounting Bolts

Rear Stabilizer Link-to-Body Frame Nut

Rear Shock Absorber Lower Mounting Nut

Rear Shock Absorber Upper Mounting Nut

Upper Trailing Link-to-Body Frame Nut

Upper Trailing Link-to-Rear Axle Nut

N

l

m

Application

Lb-In

SPECIFICATIONS

FASTENER  TIGHTENING SPECIFICATIONS

Lb-Ft

165

165

165

165

70

38

38

58

38

165

165

-

-

-

-

-

-

-

-

-

-

-
