(2) Step 2

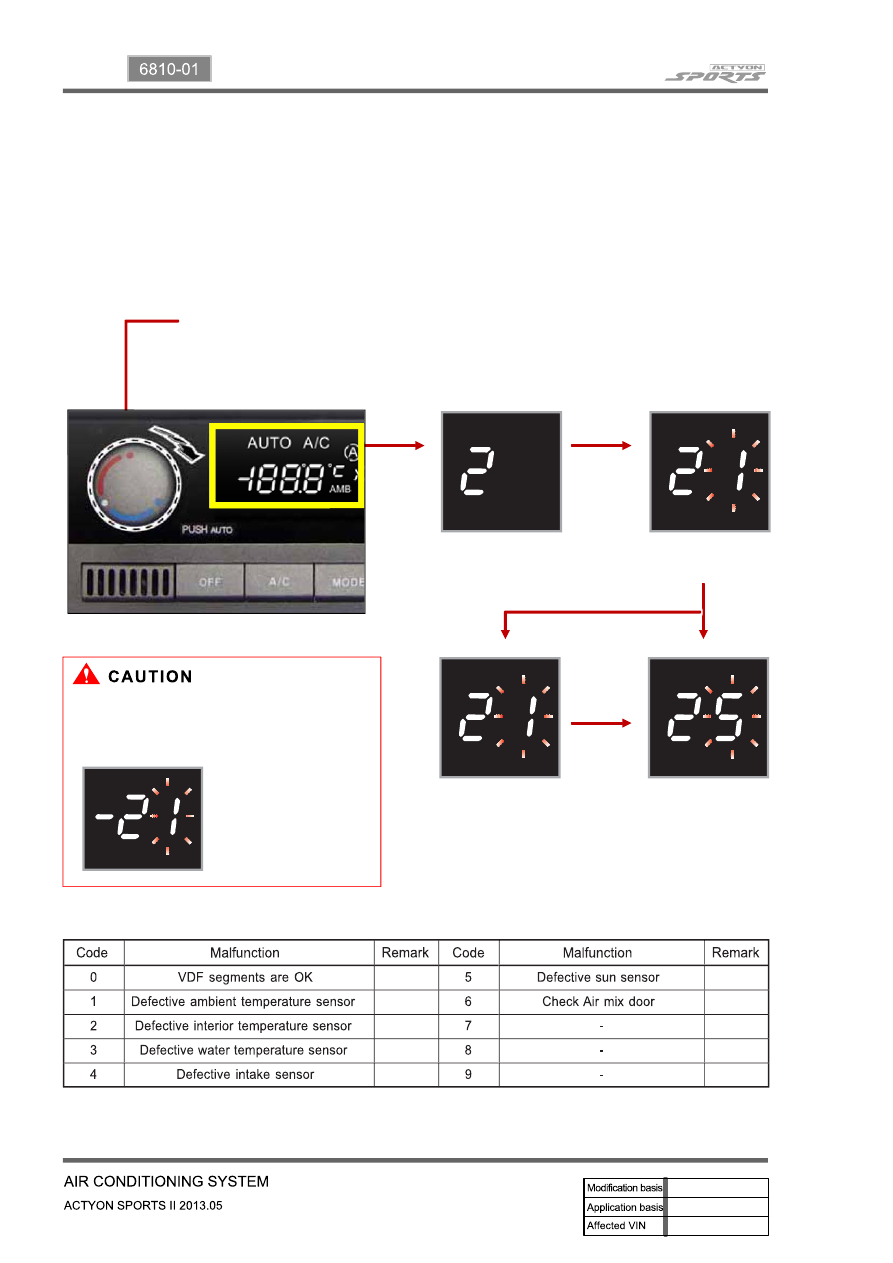

The sensors and air mix door are checked for proper operation in this step. When the step 2 is started,

the number "2", which indicates that the system is in the step 2, apprears on the display and the check

for sensors is performed. Once the check is done (for 10 to 20 sec.), the one digit number between 0

and 8 is added behind "2". "20" means there is no fault code. For the meaning of the rest of the

numbers, refer to the description below.

1. Turn temperature dial lightly toward right to enter step 2

10 to 20

sec.

System starts sensor

check after "2" is displayed

2.

Fault code for sensor

appears and blinks

3.

Fault code no. 1

(ambient temperature

sensor) blinks twice

Fault code no. 5 (sun

sensor) blinks twice

(fault codes appears

sequentially)

If "-" is displayed before "2", it means that

the sensor for that flashing fault code has

a short circuit.

Ambient temperature

sensor short circuited

Refer to the following table for the meaning of the fault code.

01-11

6810-01

(3) Step 3

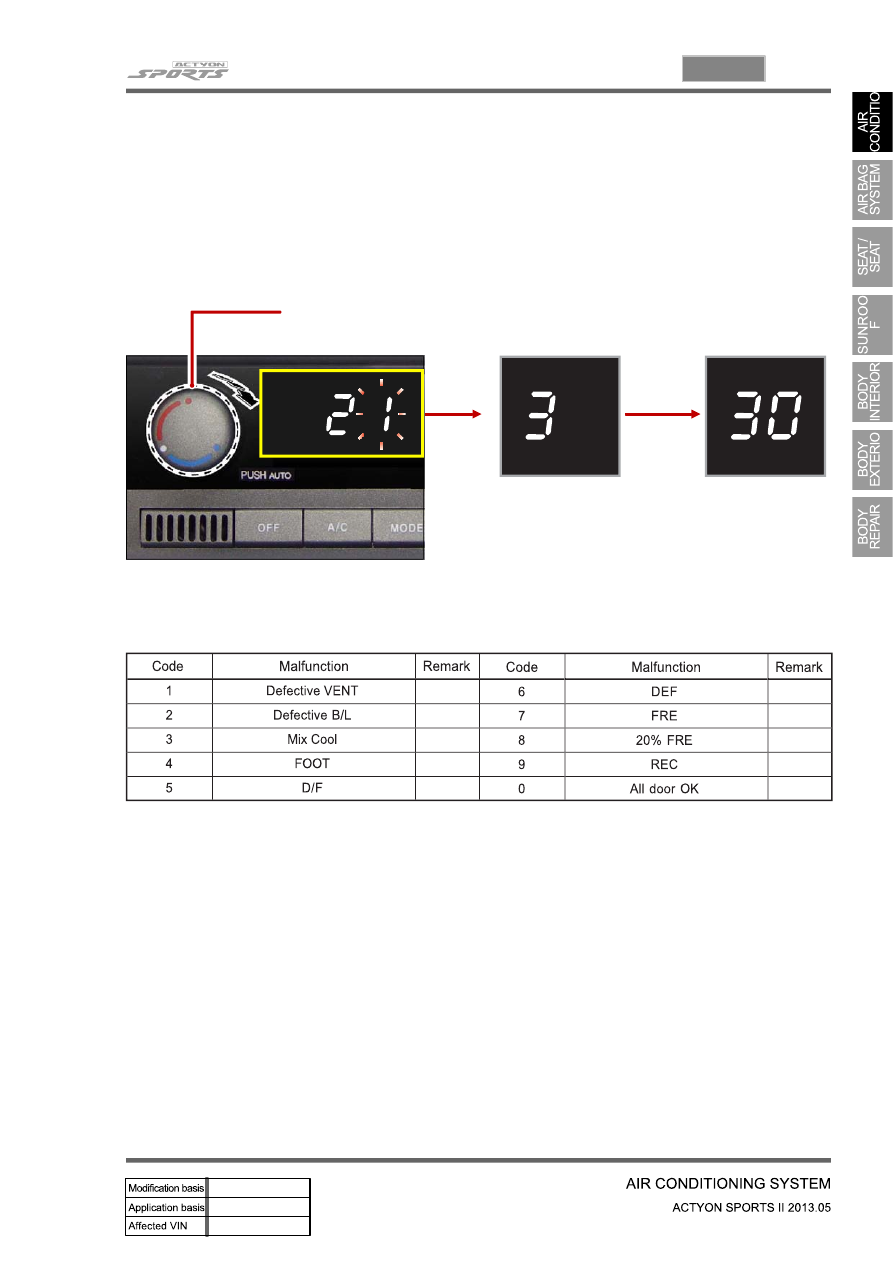

In this step, you can check the position and condition of the air source door and mode door. To start step

3, turn the temperature control dial lightly toward the right and confirm that the number 3 appears on the

display. It takes several tens of seconds to finish the check. If there is no fault code, "30" is displayed.

And if there is a malfunction, the corresponding fault code is added as described in the step 2.

Turn temperature dial lightly toward

right to enter step 3

1.

System starts sensor

check after "3" is

displayed

2.

Fault code for

sensor appears and

blinks (30 is

displayed when

there is no fault)

3.

Refer to the following table for the meaning of the fault code.

01-12

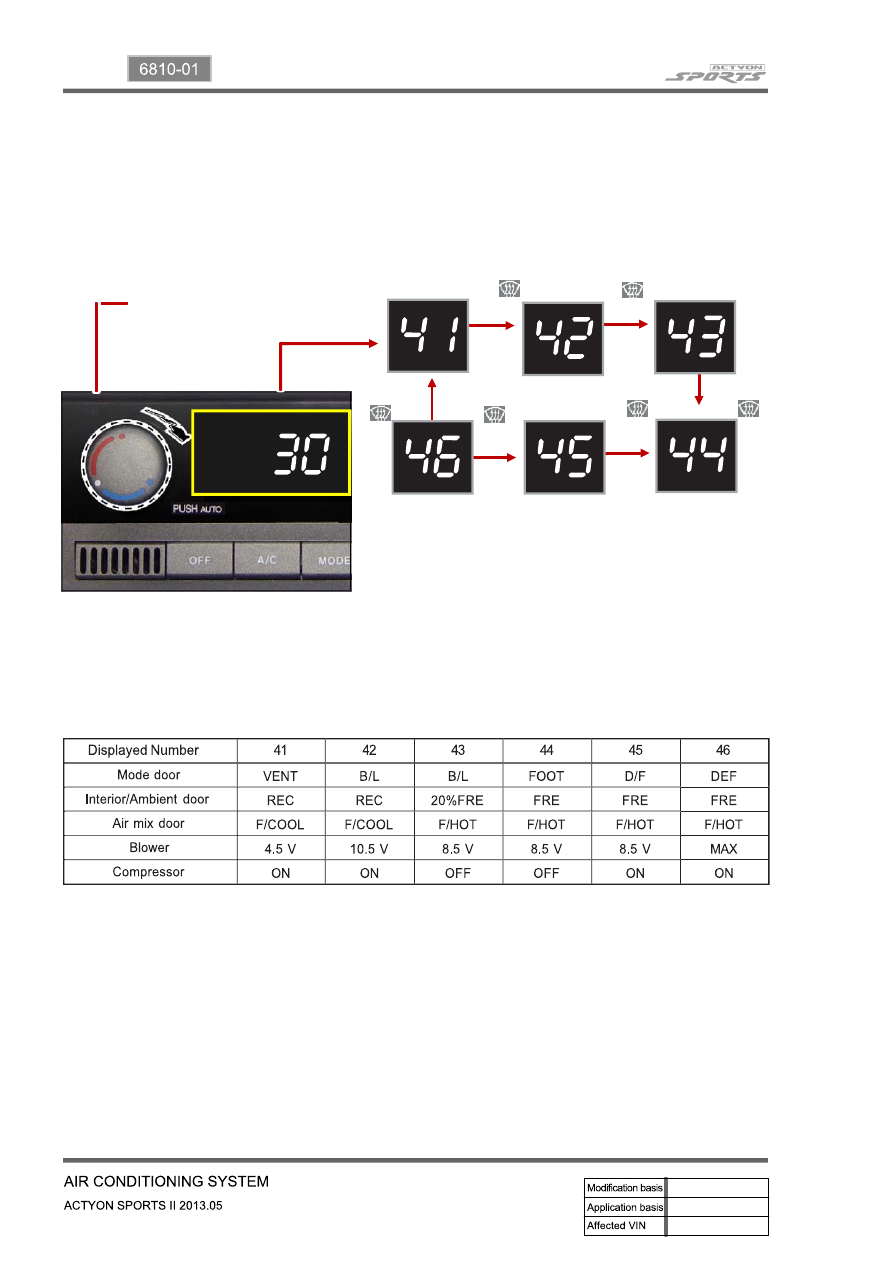

In this step, the door position of each actuator, fan speed and operation of the compressor are checked.

To enter this step, turn the temperature dial to the right in the step 3. The number, "41", appears on the

display as soon as the step 4 is started. Press the defroster switch to change the diagnosis mode.

(4) Step 4

Press

Press

Press

Press

Press

Press

Turn temperature dial lightly

toward right to enter step 4

1.

Below table describes the detailed diagnosis items performed for each number. Check the

corresponding component for proper operation according to the table. The voltage values listed in the

table are the output voltage to operate the blower motor. The higher the voltage, the faster the fan speed

is.

01-13

6810-01

(5) Step 5

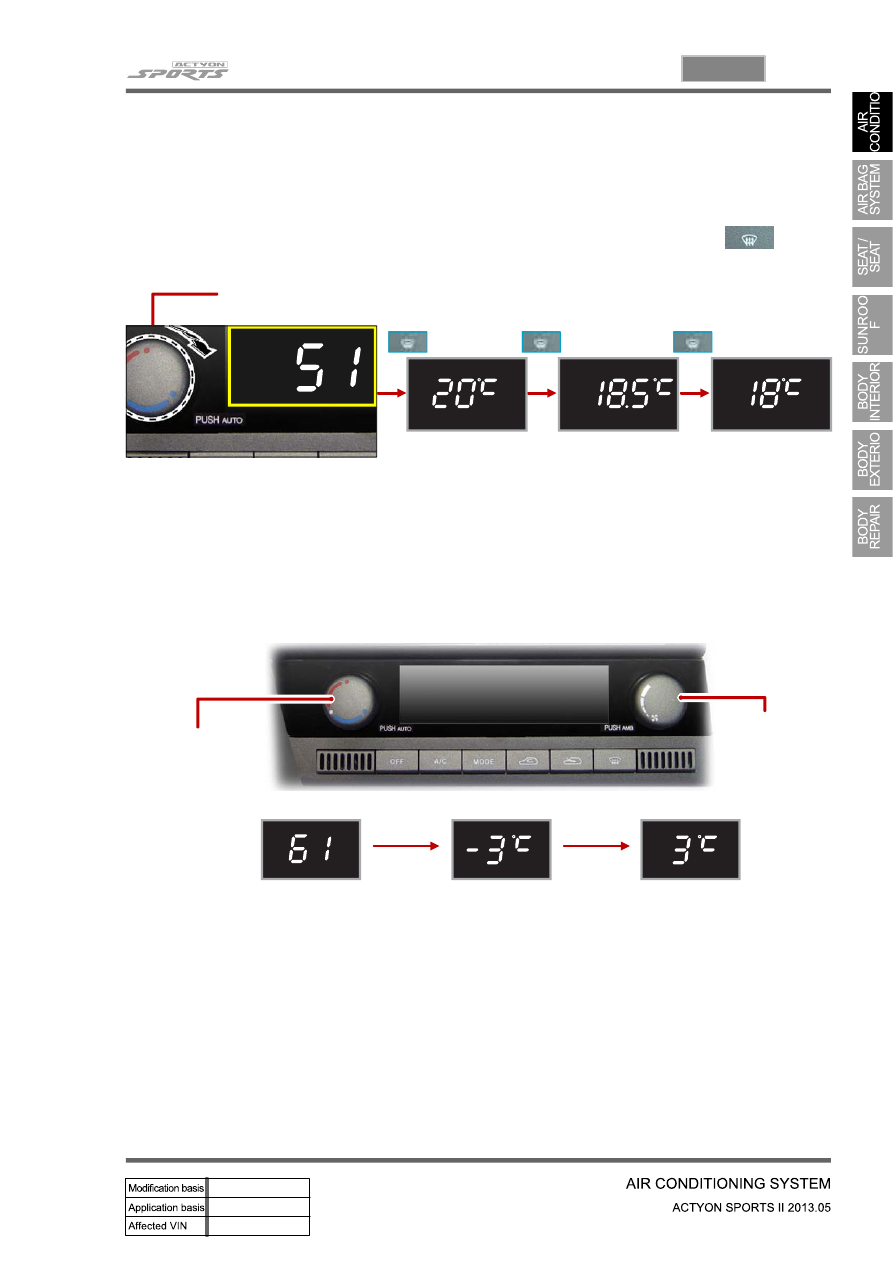

In this step, the system checks the temperature sensors used to control the A/C. To enter this step, turn

the temperature dial to the right in the step 4. The ambient temperature appears on the display first and

the interior temperature appears next and the intake air temperature last. The display changes the

temperature value each time the defroster switch is pressed.

1.  Turn temperature dial lightly toward right to enter step 5

 Press

 Press

 Press

Ambient

temperature

display

Interior

temperature

display

Intake air

temperature

display

(6) Step 6

You can increase or decrease by up to 3 degrees from the set temperature. When entering the step 6

from 5, turn the fan speed dial.

Step 6 starts

Decrease by up to

3 degrees

Increase by up to

3 degrees

Turn fan

speed dial

to enter

step 6

1.

Turn

temperature

control dial to

adjust

temperature

2.
