3. TROUBLE DIAGNOSIS

Problem

Possible Cause

Action

Uneven tire wear

Incorrect tire pressure

Adjust

Unbalanced wheel

Adjust

Improper location change of tire

Change tire location in

specified interval

Incorrect toe adjustmen

Adjust

Incorrect wheel bearing preload adjustment

Adjust

Malfunction of brake syste

Adjust

Tire squeal, vibration

Too low tire pressure

Adjust

Unbalanced wheel or tire

Adjust

Heavy vibration of wheel or tire

Uneven tire wear

Uneven tire wear

Check and adjust

Premature tire wear

Too high tire pressure

Adjust

Fast driving with low pressure tire

Adjust

Overload

Adjust

14-5

4170-09

Symptom

Possible Cause

Wear at tread edge

Insufficient tire inflation pressure
or overload

Wear at tread center

Excessive tire inflation pressure

Excessive wear in the outer side of the
tread than in the inner side

Excessive camber or deflection of
knuckle arm

Excessive wear in the inner side of the
tread than in the outer side

Insufficient camber or deflection of
knuckle arm

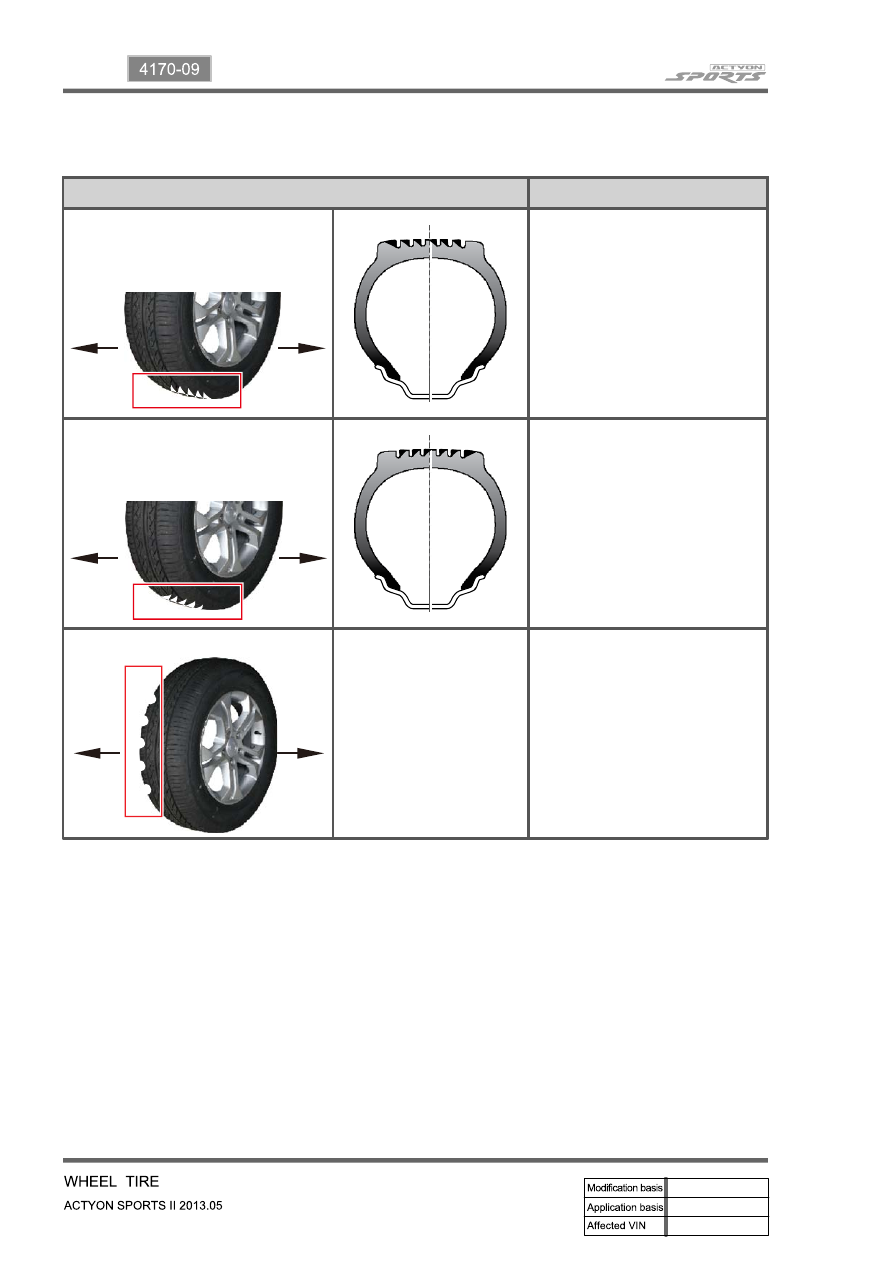

1) Appearance Check

4. INSPECTION

Inside

Outside

Inside

Outside

Inside

Outside

Inside

Outside

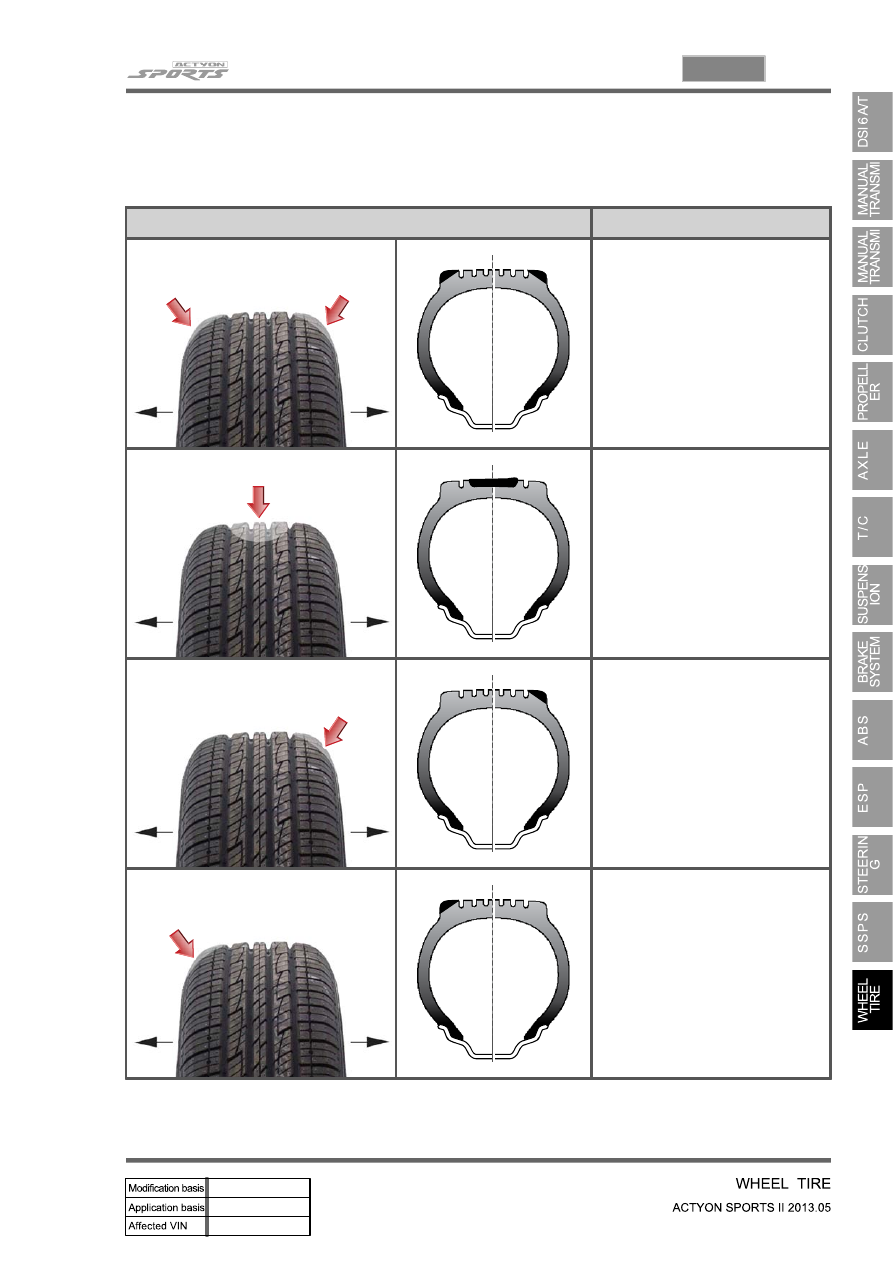

14-6

Symptom

Possible Cause

Blade type wear from outer side
toward inner side of the tread

Excessive toe-in,
Deflection of knuckle arm,
Difference in tie rod length
between left and right sides

Blade type wear from inner side
toward outer side of the tread

Excessive toe-in,
Deflection of knuckle arm,
Difference in tie rod length
between left and right sides

Corrugation wear of tread

Poor wheel balance,
Loose wheel bearing,
poor wheel alignment

Inside

Outside

Inside

Outside

Inside

Outside

14-7

4170-09

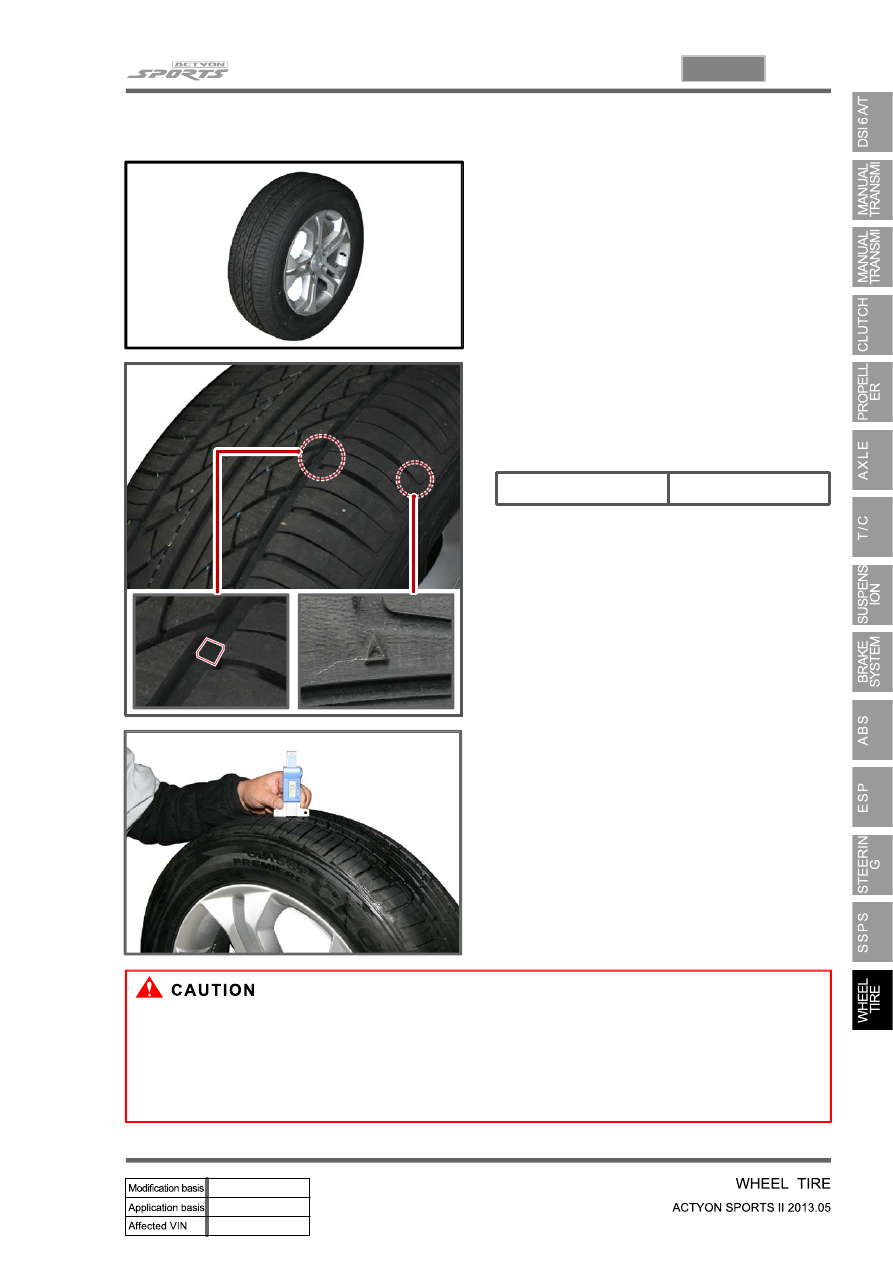

2) Typical Inspection

Tread

Inspect the tread condition on the tire surface

and various damages resulting from the

foreign materials, crack, stone or nail etc. If

there is any damage in the tire, repair or

replace it.

1.

Wear limit

2.

Measure the depth of the tire tread. If the

depth of the tread is below the specified

value, replace the tire

-

You can see the protruded part in the
groove at the point with mark "▲", which

is the indicator of the tread wear limit.

The limit of the tread wear for all season

tires are 1.6 mm, which is the same as the

general tires, but the wear limit mark is
indicated as '↓'.

-

-

Wear limit

1.6 mm

Higher than recommended pressure can cause hard ride, tire bruising or damage and rapid tread

wear at the center of the tire.

Excessive tire wear over the limit of the tread wear (1.6 mm) can cause lower sliding friction due to

longer braking distance, easy tire burst by foreign materials, tire hydroplaning, and tough brake and

steering wheel handling.

-

-
