SsangYong Actyon Sports II. Manual - part 159

12-4

Power steering gearbox &

solenoid valve for SSPS model

2. MAJOR CHANGES

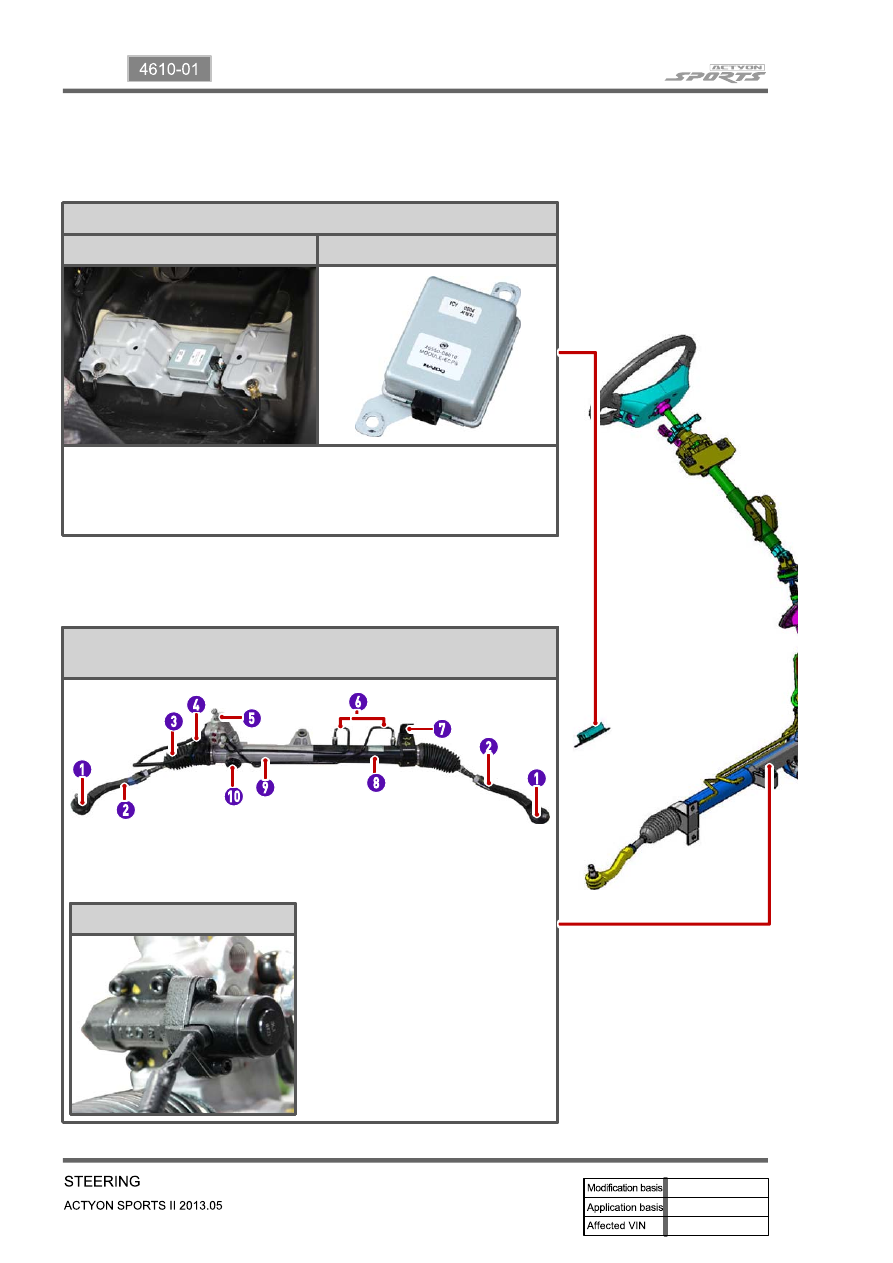

SSPS control unit

Installed view

Unit components

It is installed at the bottom of the ECU inside the passenger's floor mat
foot protector cover and receives data related to the vehicle speed and
throttle position through the CAN communication and controls the
solenoid valves to obtain optimal steering force.

SSPS Solenoid Valve

SSPS (Speed Sensing Power Steering) system adopted

▶

Tie Rod End

Tie Rod

 Bellows

SSPS Solenoid Valve

Valve Assembly

Feed Tube

Mounting Bracket

Cylinder Tube

Rack Housing

Adjusting Plug

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

12-5

4610-01

SSPS warning lamp

Comes on when SSPS system has a fault

Power steering supply hose and return hose for

SSPS model

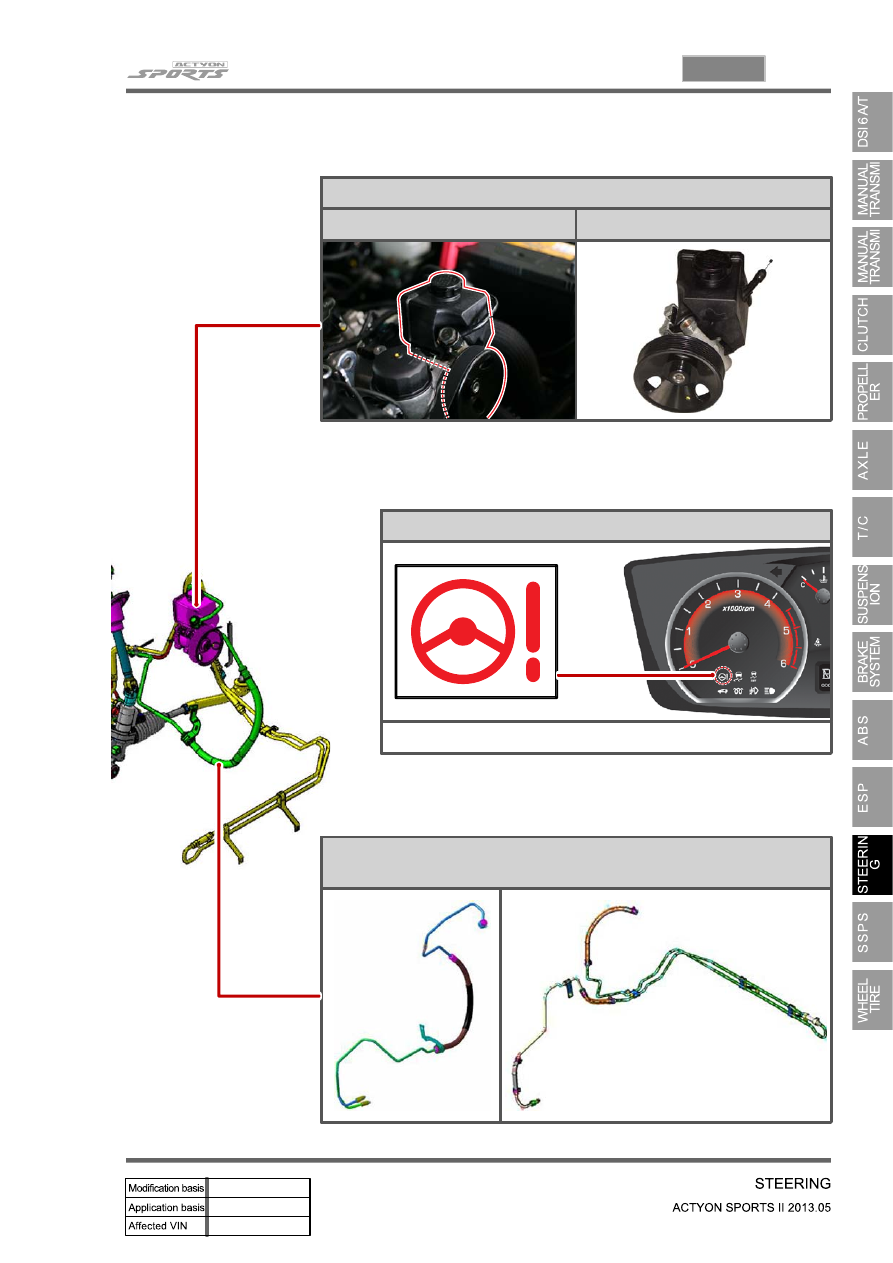

Power steering pump with SSPS

Installed view

Pump components

12-6

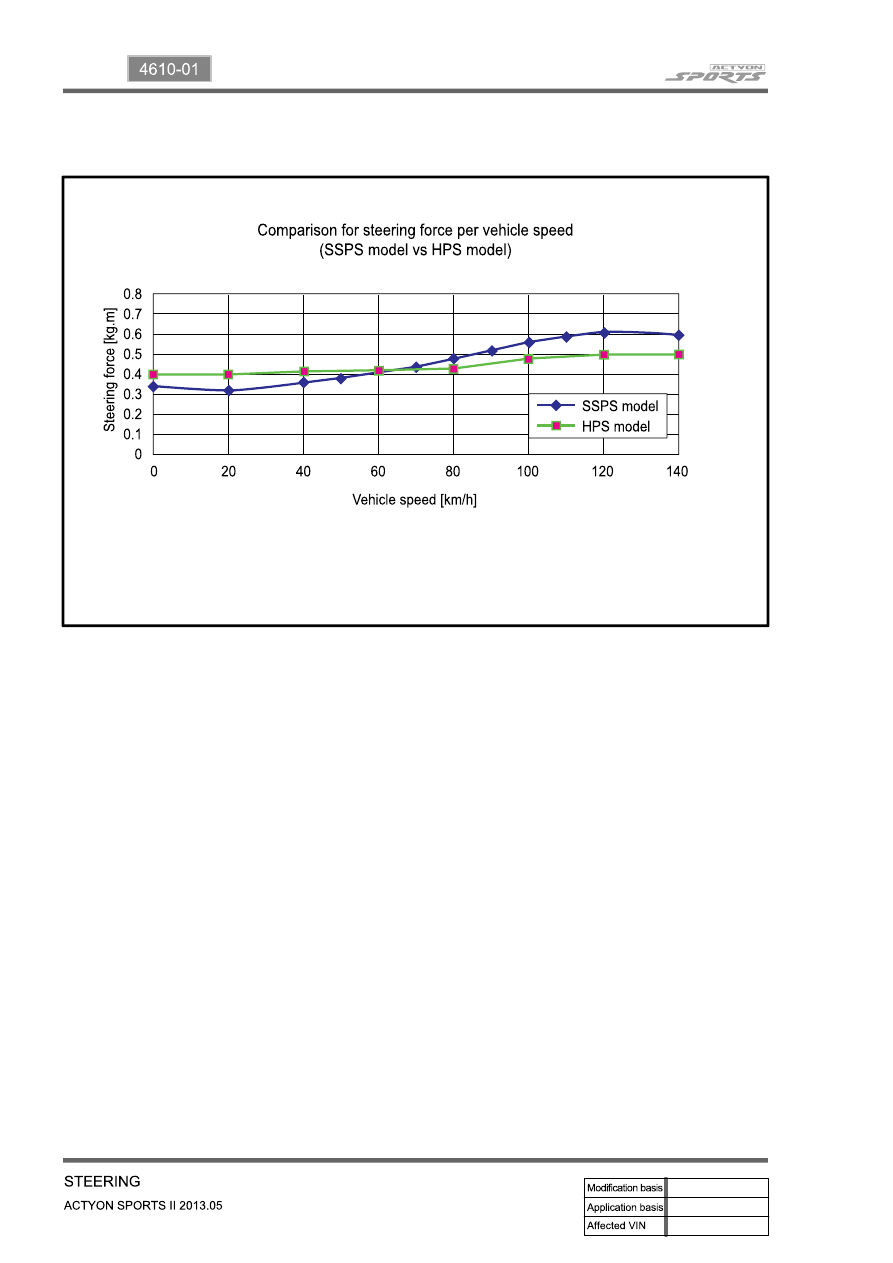

The SSPS system provides an extensive steering force range at high and low speeds,

compared with the general HPS system.

*

12-7

4610-01

Steering Wheel Body & Heated Wire Controller

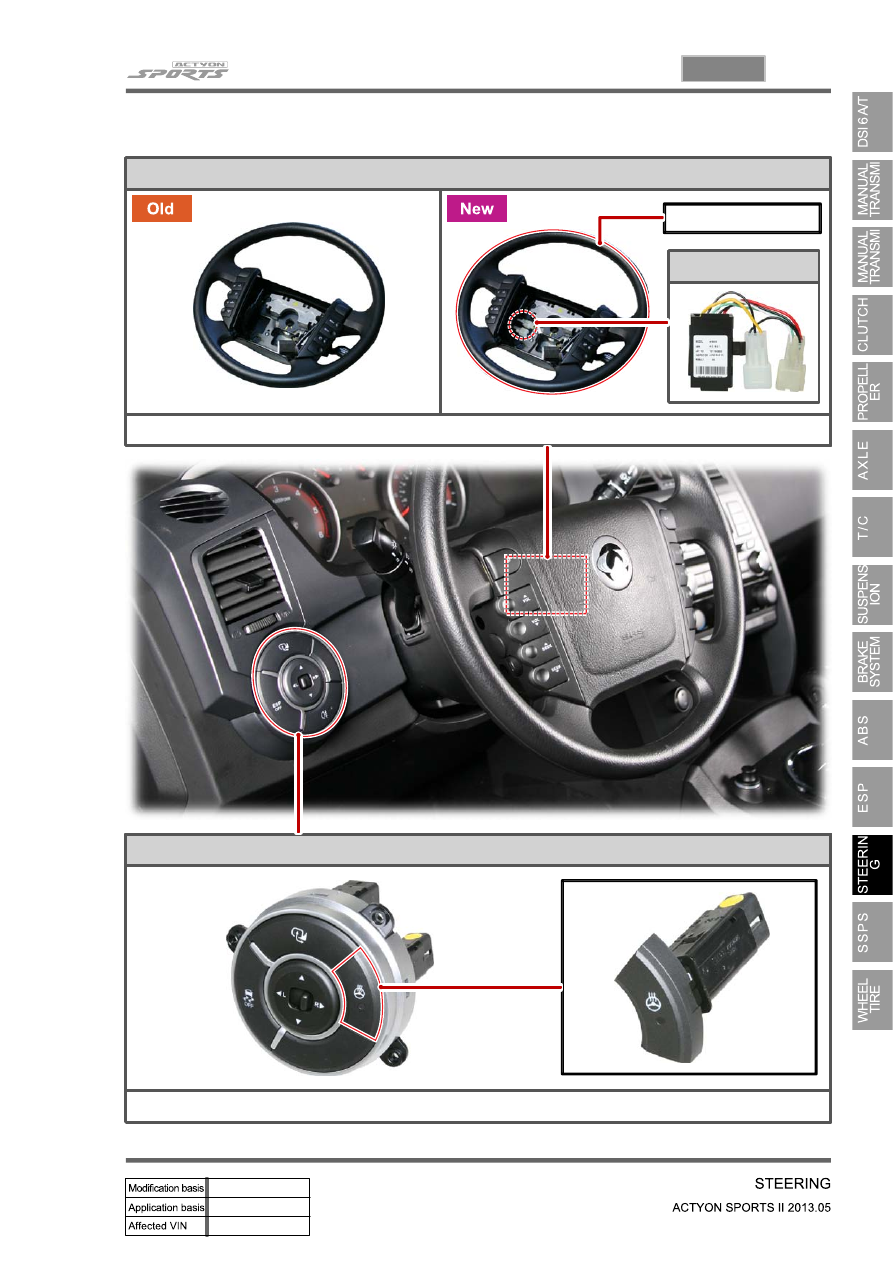

Heated pad and controller added to steering wheel body

Heated Steering Wheel Adopted

▶

HEATED STEERING WHEEL SWITCH

Heated steering wheel switch added to cluster fascia panel switch assembly

Heated pad (inside)

controller
