11-3

4890-10

1. SPECIFICATION

1) Specification of Active Wheel Sensor

Description

Specification

Remark

Supplying voltage

4.5 ~ 16.0V

Output current (at 2.75 km/h of vehicle
speed)

7mA(Lo) ~ 14mA(Hi)

Tightening torque

Front: 7.8 to 11.8 Nm

Rear: 7.8 to 11.8 Nm

Operating temperature

-40 ~ 150℃

Operating frequency

1 ~ 2,500Hz

Unit

Description

Specification

ABS

ESP

HECU

Clock frequency: 32 MHz

Clock frequency: 50 MHz

Memory: 128 KB

Memory: 256 KB

Wheel speed
sensor

Active type

Active type

Output: 7~14 mA

Steering wheel
angle sensor

None

Max. detection angle speed:

1500 °/Sec

Pulse duty:

50±10%

Operating voltage: 9 to 12 V

Sensor cluster

None

Yaw rate sensor + lateral G

sensor + longitudinal G sensor

(4WD)

Mounting

direction should

be kept (CAN

communcation)

Longitudinal G
sensor

4WD only

None

Pressure sensor

None

HECU integrated

11-4

2) Specification of Steering Wheel Angle Sensor

3) Specification of Sensor Cluster

 Description

Specification

Operating voltage

9 to 16 V

Maximum output current

10 mA

Maximum detection angle speed

±100°/Sec

Operating temperature

-30 to 75 ℃

Supplying voltage

9 to 16 V (battery voltage)

Output voltage (HI)

approx. 3.50 V (3.0 to 4.1 V)

Output voltage (LO)

approx. 1.50 V (1.3 to 2.0 V)

Pulses/rev

45 pulses/rev

Description

Specification

Supplying voltage

approx. 12 V (8 to 16 V)

Current consumption

below 250 mA

-

Operating range

Yaw rate sensor

± 75 °/Sec

Lateral/longitudinal sensor

± 14.7m/Sec²

11-5

4890-10

2. MAJOR CHANGES

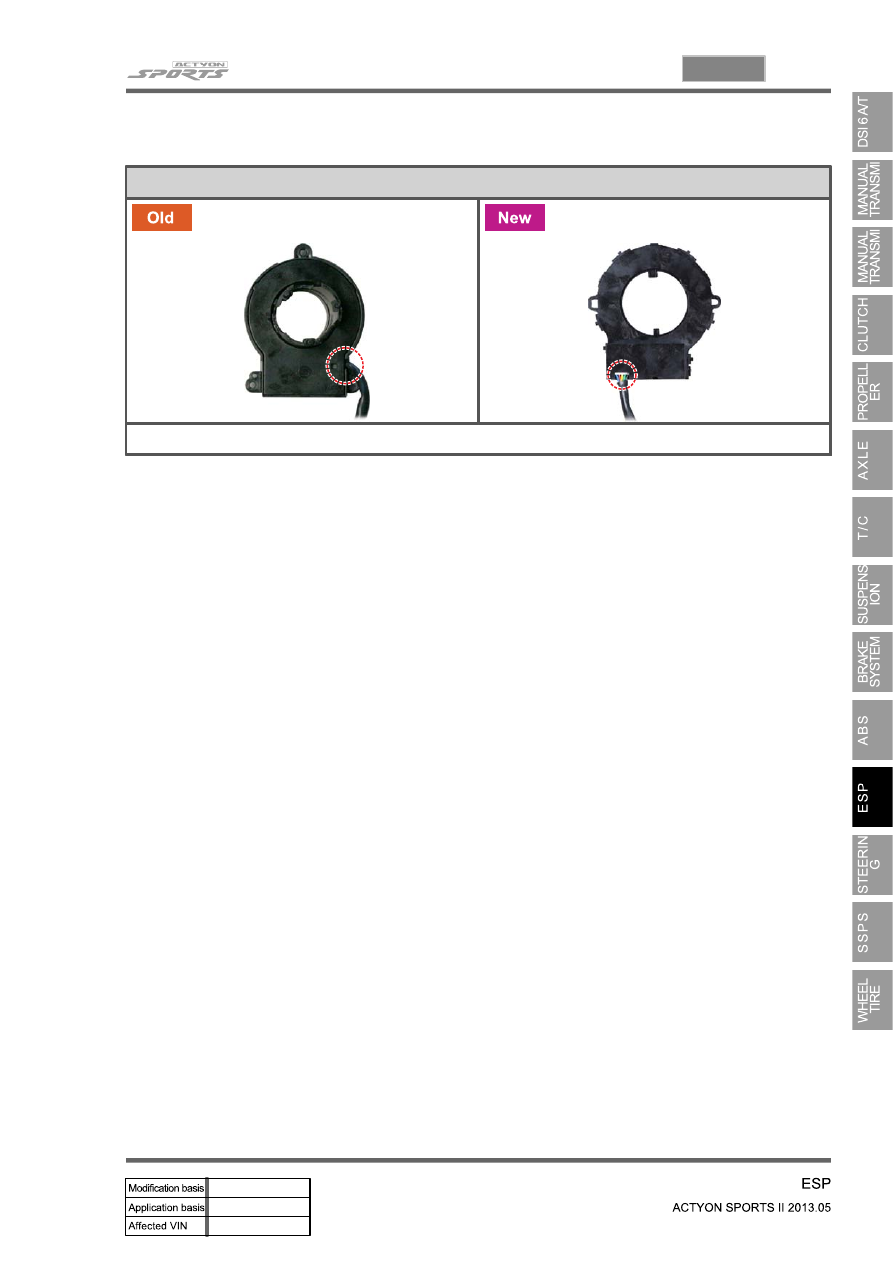

Steering wheel angle sensor

- Steering wheel angle sensor’s appearance and wiring route changed

11-6

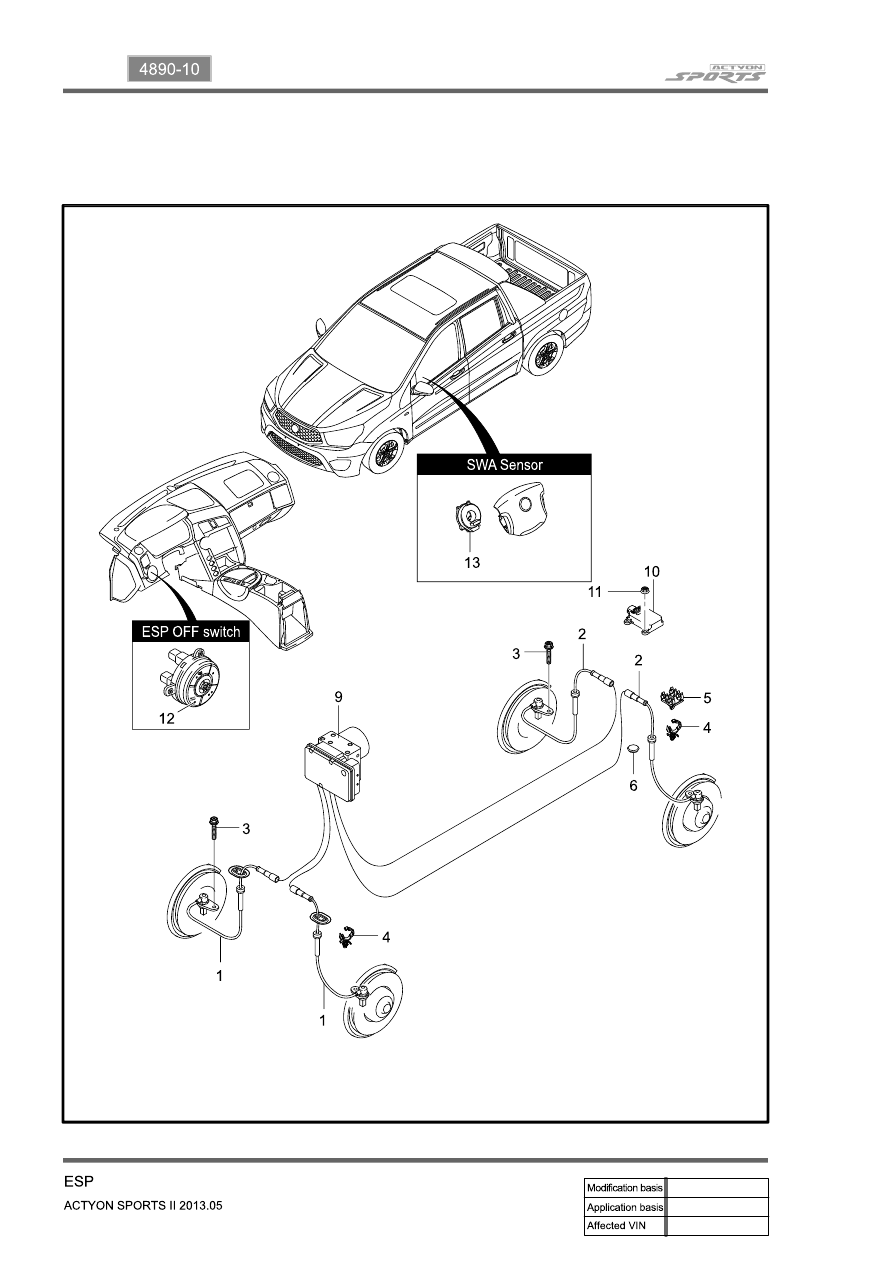

3. SYSTEM LAYOUT

ESP System

▶

Sensor - front wheel speed

Sensor - rear wheel speed

Screw (7.8~11.8 Nm)

Clip - cable holder

Clip - sensor cable mounting rear

Plug - blind

HECU

Sensor - cluster

Nut (9.8~10.8 Nm)

ESP OFF switch

Steering wheel sensor

1.

2.

3.

4.

5.

6.

9.

10.

11.

12.

13.
