SsangYong Actyon Sports II. Manual - part 127

02-7

3170-01

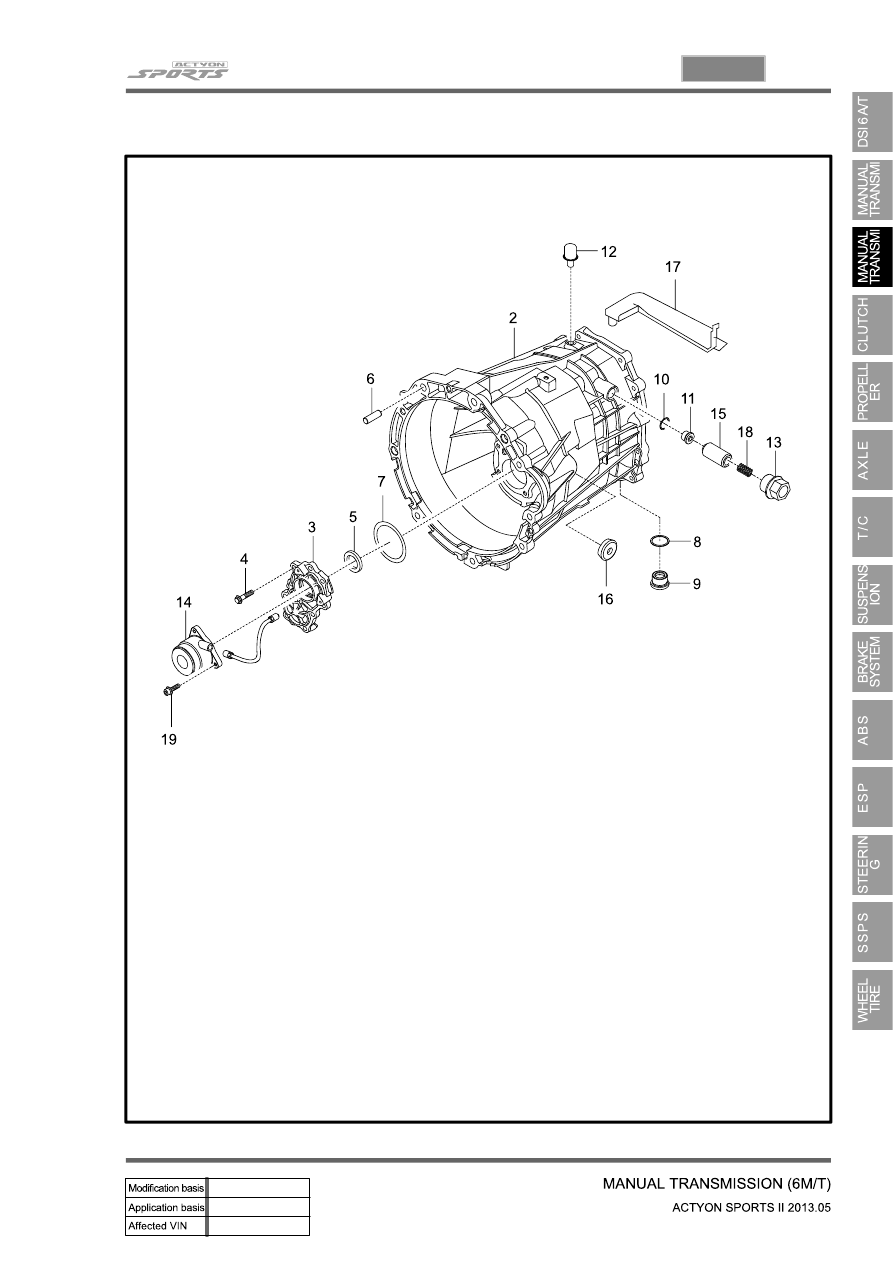

3163161-00 Housing

▶

Case - Transmission

Retainer - Bearing

Bolt - Seal (19.6 ~ 24.5 Nm)

Seal - Oil

Bushing

Spacer

Gasket

Plug (58.8 ~ 78.4 Nm)

Gasket

Plug

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

Breather - Air

Pulg - Seal (53.9 ~ 67.6 Nm)

Cylinder assembly - Concentric slave

Plunger - Rolling

Boot

Guide - Oil

Spring - Guide

Bolt - Flange (42.1 ~ 53.9 Nm)

12.

13.

14.

15.

16.

17.

18.

19.

02-8

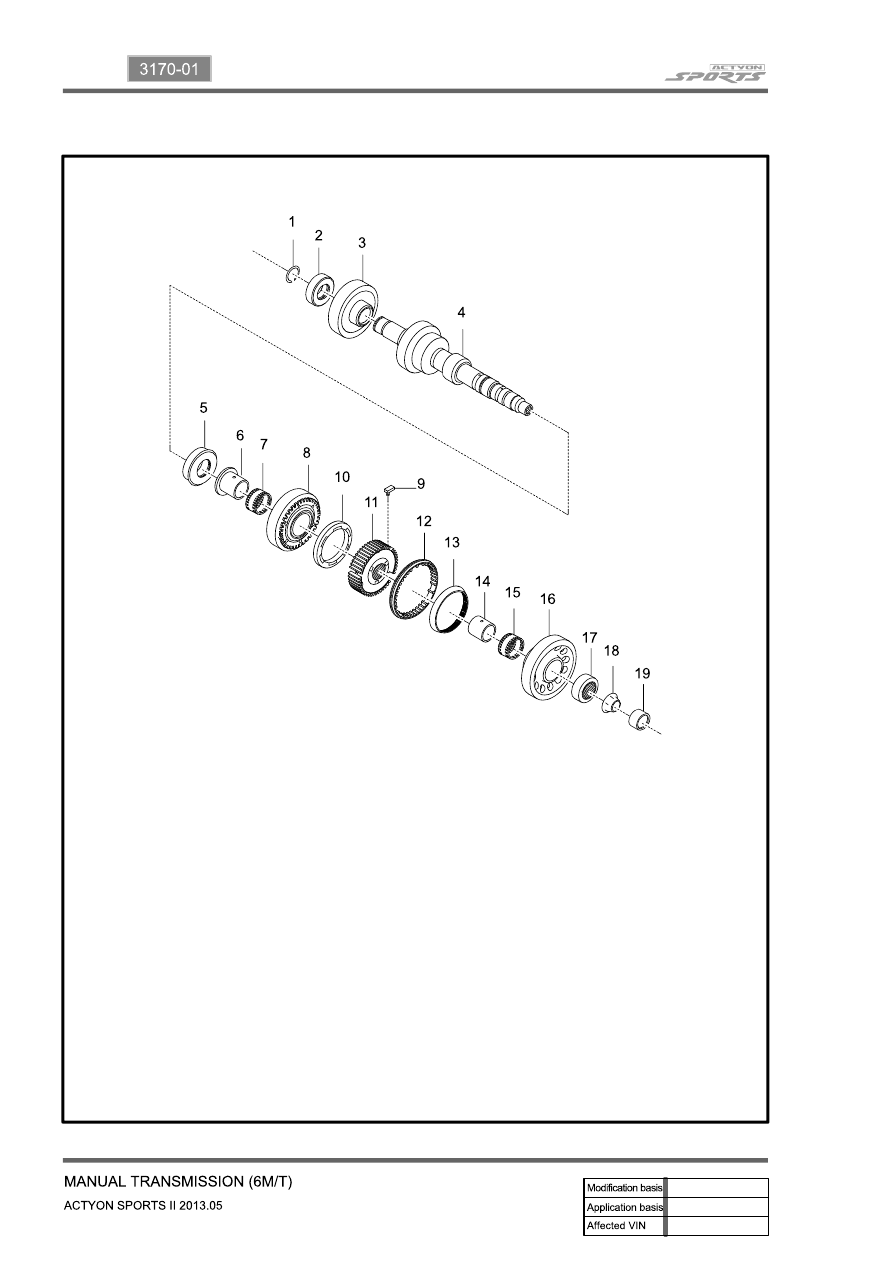

3162-00 Main shaft

▶

02-9

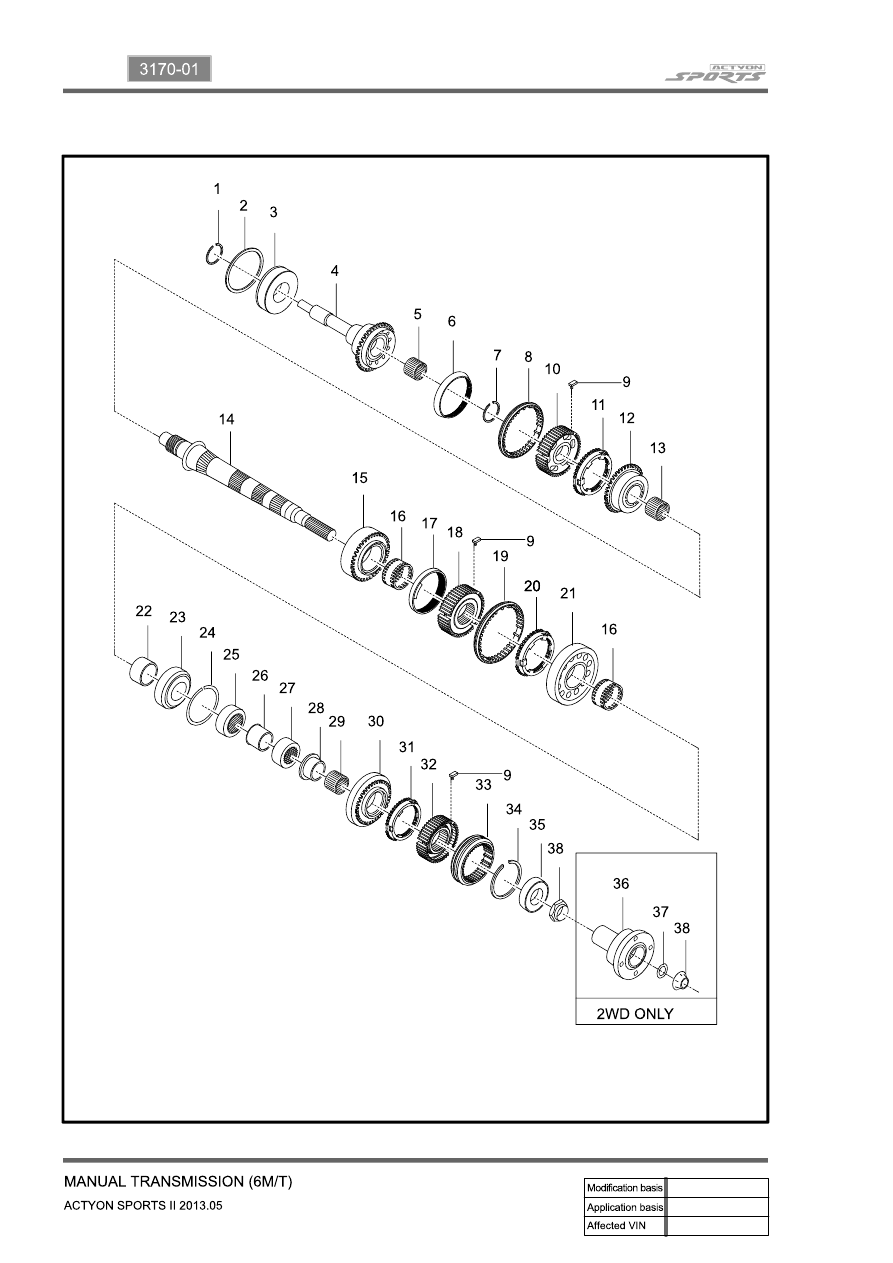

3170-01

Ring - Snap

Ring - Snap

Bearing - Ball

Pinion assembly - Main drive

Bearing - Needle roller

Ring - Synchronizer

Ring - Snap

Sleeve - Synchronizer

Key assembly - Synchronizer

Hub - Synchronizer

Ring assembly - Triple cone

Gear assembly - 3rd speed

Bearing - Needle roller

Shaft - Main

Gear assembly - 2nd speed

Bearing - Needle roller

Ring assembly - Triple cone

Hub - Synchronizer

Sleeve - Synchronizer

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

Ring assembly - Triple cone

Gear assembly - 1st speed

Sleeve - 1st gear

Bearing - Double angular ball

Ring - Snap

Gear - Main shaft 5th

Spacer

Gear - Main shaft 6th

Sleeve - Reverse gear

Bearing - Needle roller

Gear assembly - Reverse speed

Ring assembly - Triple cone

Hub - Synchronizer

Sleeve - Synchronizer

Stopper - Synchronizer key

Bearing - Ball

Flange assembly - Companion

O-ring

Nut - Locking (4WD: 245.1 ~ 264.7 Nm,

2WD: 117.6 ~ 137.2 Nm)

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

02-10

33163-00 Counter shaft

▶

Ring - Snap

Bearing - Roller

Gear - Counter shaft

Gear - Counter shaft cluster

Bearing - Roller

Sleeve - Speed gear

Bearing - Needle roller

Gear assembly - 5th speed

Key assembly - Synchronizer

Ring assembly - Triple cone

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Hub - Synchronizer

Sleeve - Synchronizer

Ring - Synchronizer

Sleeve - Speed gear

Bearing - Needle roller

Gear assembly - 6th speed

Gear - Counter shaft

Nut - Locking (156.9 ~ 186.3 Nm)

Bearing - Needle roller

11.

12.

13.

14.

15.

16.

17.

18.

19.
