01-7

3680-01

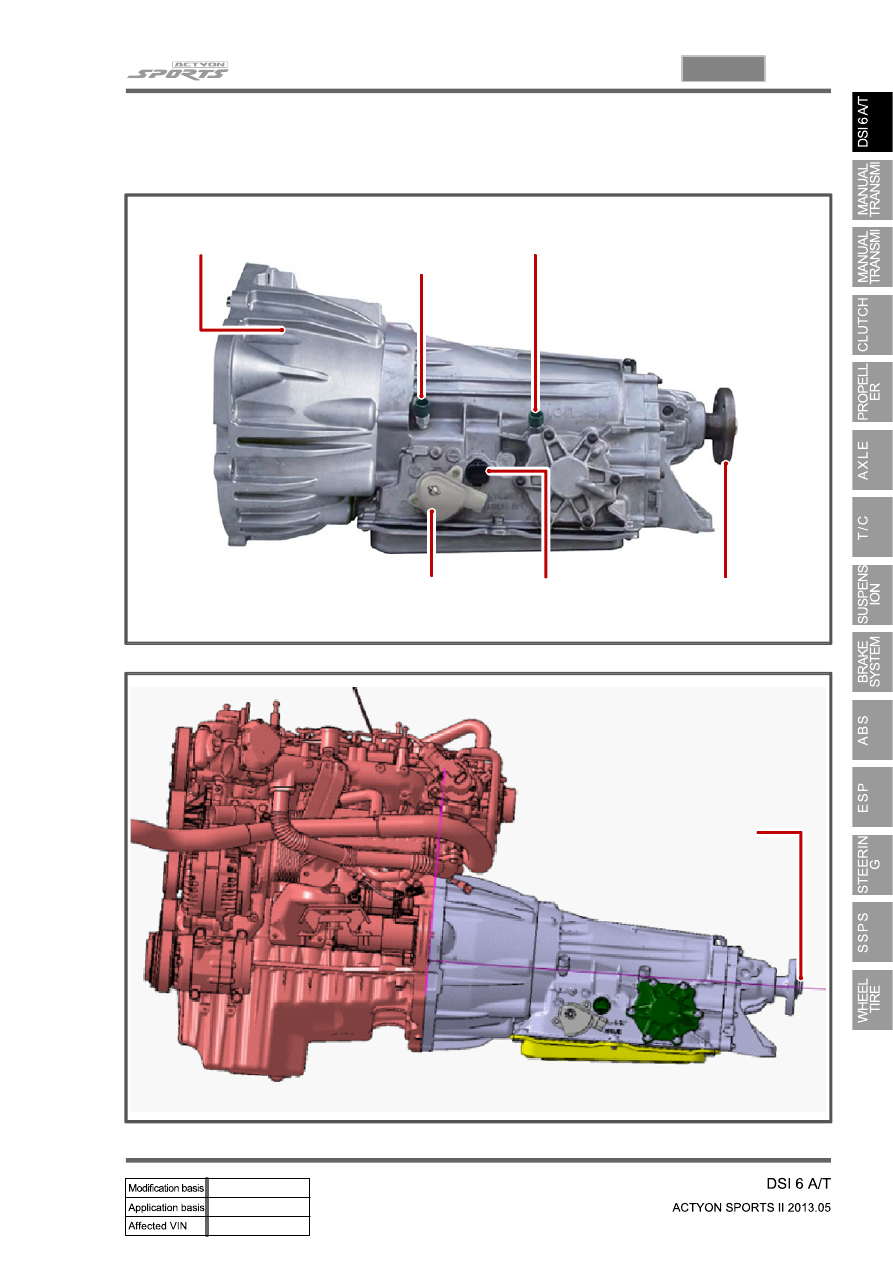

2WD Automatic Transmission

▶

Torque converter

Oil cooler outlet

Oil cooler return

Inhibiter switch

Flange for

propeller shaft

Connector plug

Flange for propeller

shaft

01-8

4WD

2WD

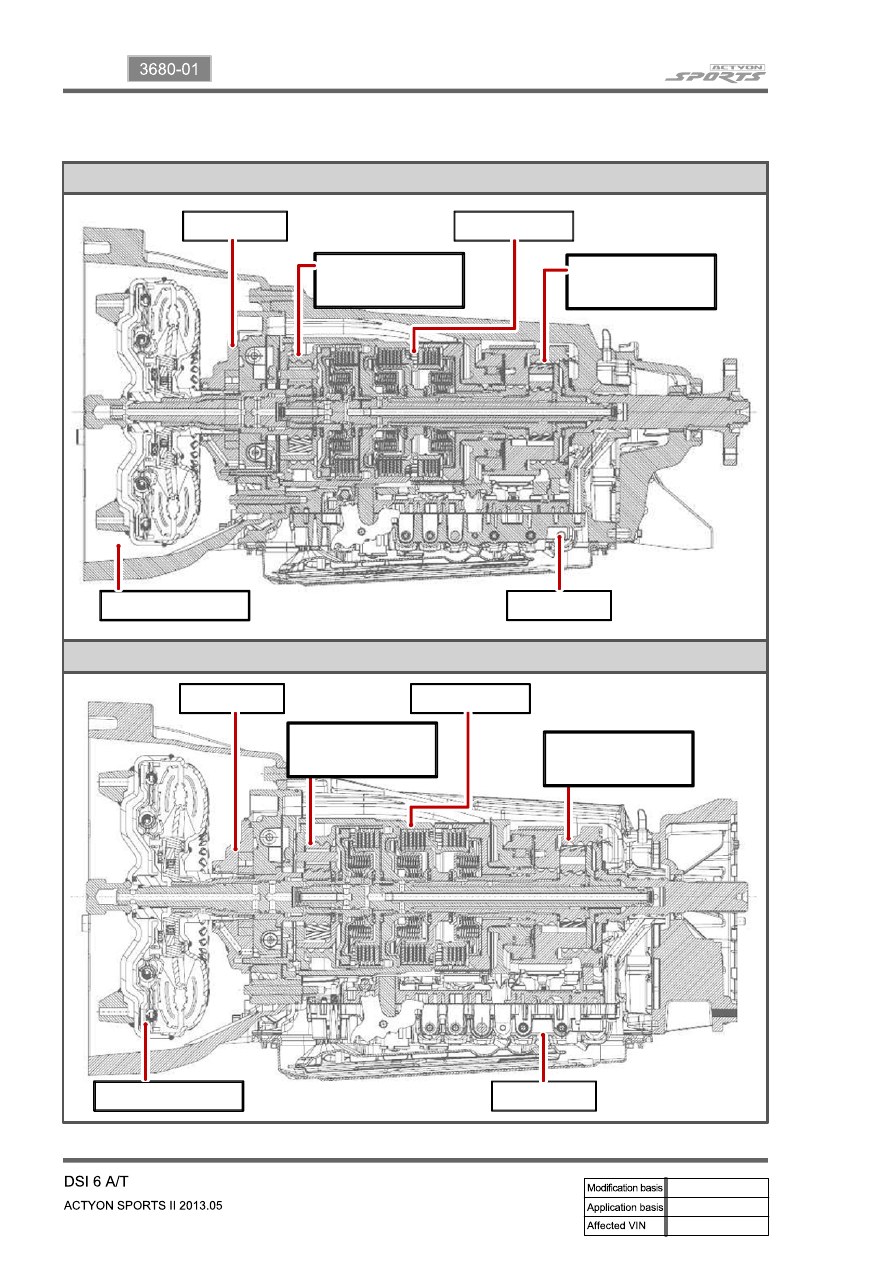

3) Sectional Diagram

Fluid pump

Clutch pack

Double planetary

gear-set

Torque converter

Valve body

Fluid pump

Single planetary

gear-set

Clutch pack

Torque converter

Valve body

Single planetary

gear-set

Double planetary

gear-set

01-9

3680-01

3. TIGHTENING TORQUE

Description

Size x Numbers

Tightening torque

Transfer case housing

M12 x 32

54 ~ 68

Etension housing

M12 x 32

54 ~ 68

Oil pan

M6 x 16

4 ~ 6

Valve body to transmission housing

M6 x 26

8 ~ 13

Valve body to transmission housing

M6 x 45

8 ~ 13

Center support to transmission housing

M10 x 34

20 ~ 27

Output shaft locking nut

M24 x 15

100 ~ 110

Pump cover to oil pump

M8 x 55

24 ~ 27

Pump cover to transmission housing

M8 x 40

24 ~ 34

Pump cover to transmission housing

M8 x 58

24 ~ 34

Upper valve body to lower valve body

M6 x 30

15 ~ 17

Detent spring

M8 x 16

20 ~ 25

Variable bleed solenoid and speed sensor

M4 x 12

2.8 ~ 3.2

Transmission oil level plug

30 ~ 35

Front cooling lines to transmission cooler

25 ~ 35

Rear cooling lines to transmission cooler

25 ~ 35

Drive plate to torque converter

40 ~ 42

Gear select lever to shaft rod

14 ~ 20

01-10

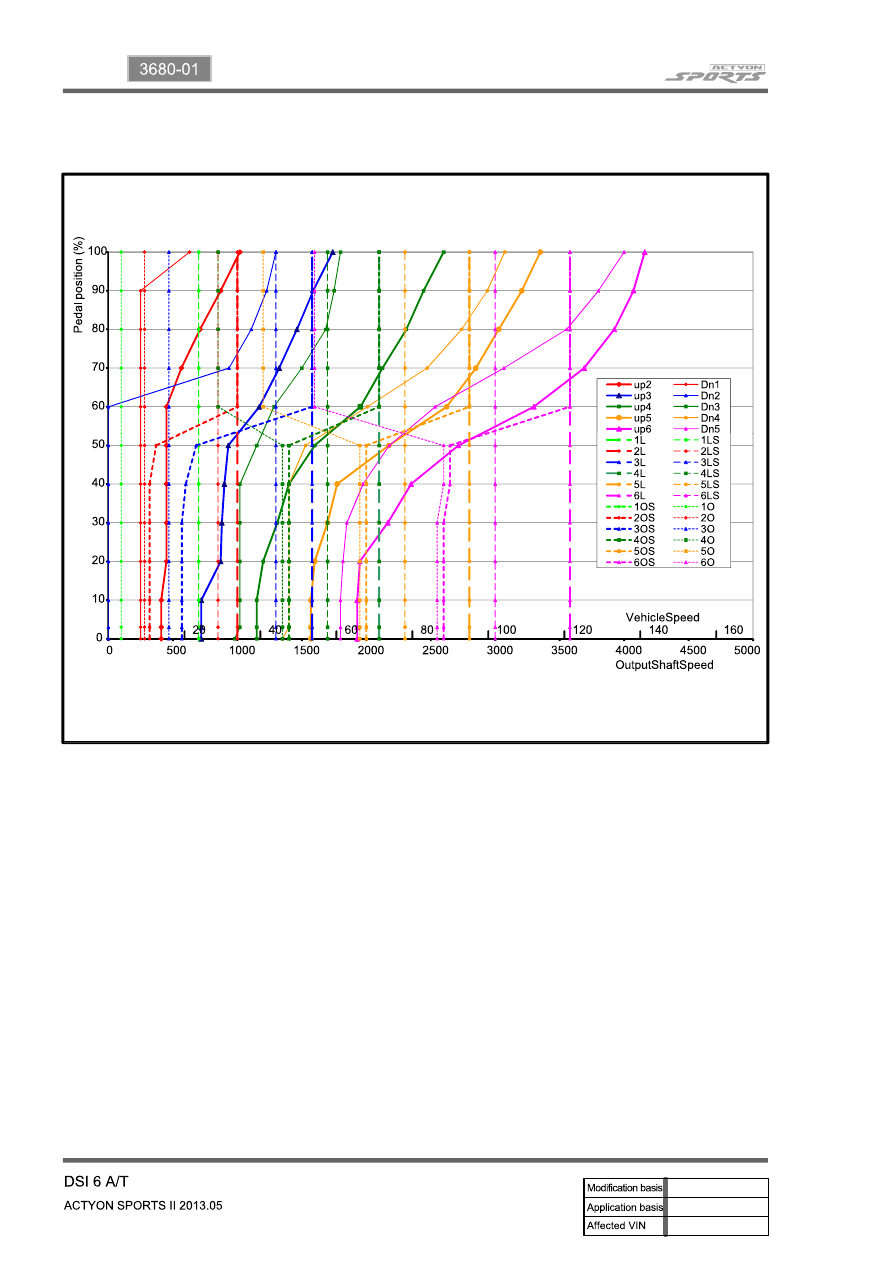

4. SHIFT PATTERN DIAGRAM
