07-7

7810-01

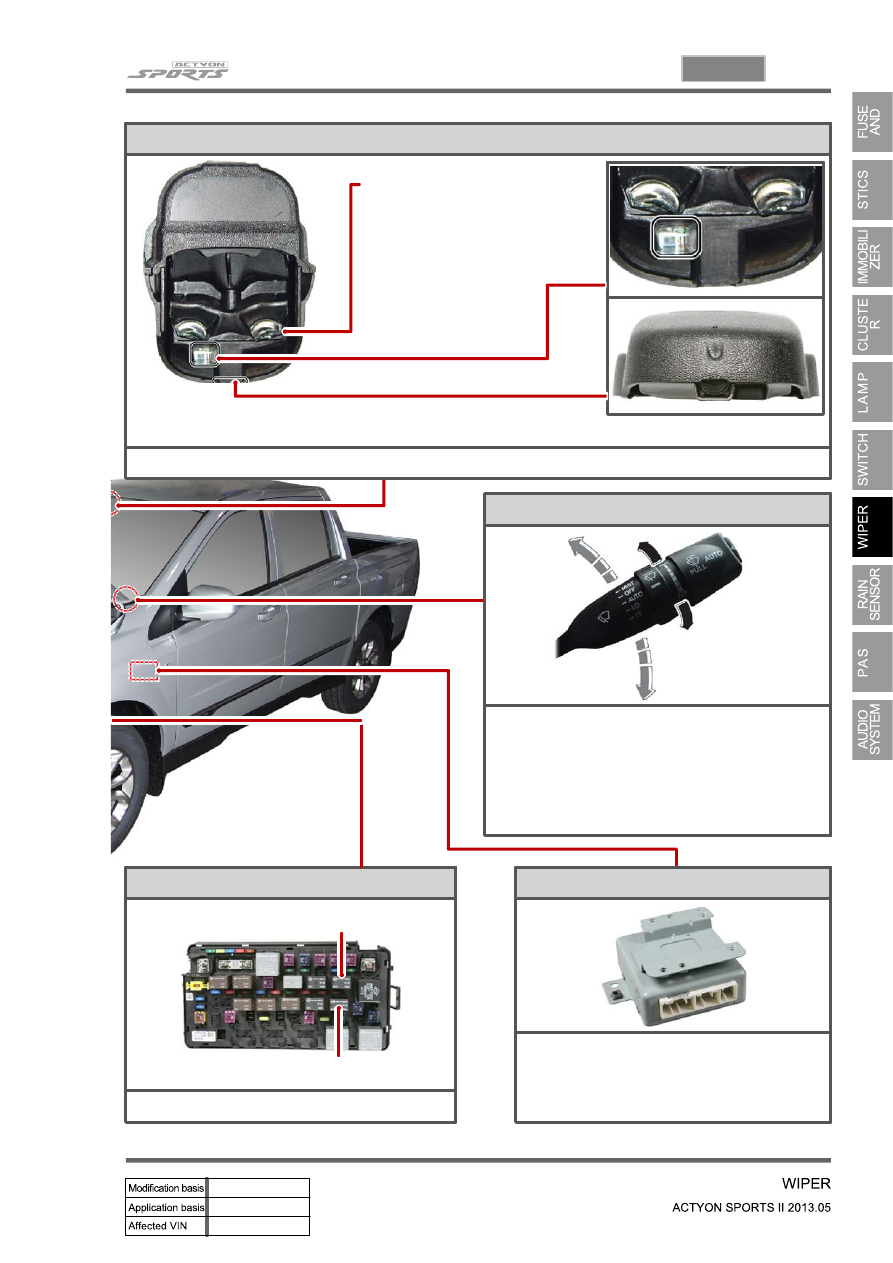

Emitter lens

The LED which is located at

bottom emits the infrared rays and

the lens guides the infrared rays to

target point.

Auto light sensor

Enlarged auto light sensor section

Auto light sensor (Vertical)

Auto light sensor (Horizon)

Wiper (HI, LO) relays

Used 3-way relay consisting of 5-pin

STICS

It receives the signals regarding the rain
sensor, multifunction wiper switch and
vehicle speed to control the wiper system
with the various functions.

Multifunction wiper switches

AUTO: Wiper operates automatically by rain
sensor
FAST to SLOW: Auto delay/auto speed control. A
position that can control sensitivity against rains
on the windshield and transmits wiping demand
signal accordingly.

Wiper relay (LO)

Wiper relay (HI)

Rain sensor unit

Integrated into the auto light sensor. Detects and sends amount of rain drops to STICS

07-8

2. FUNCTIONS

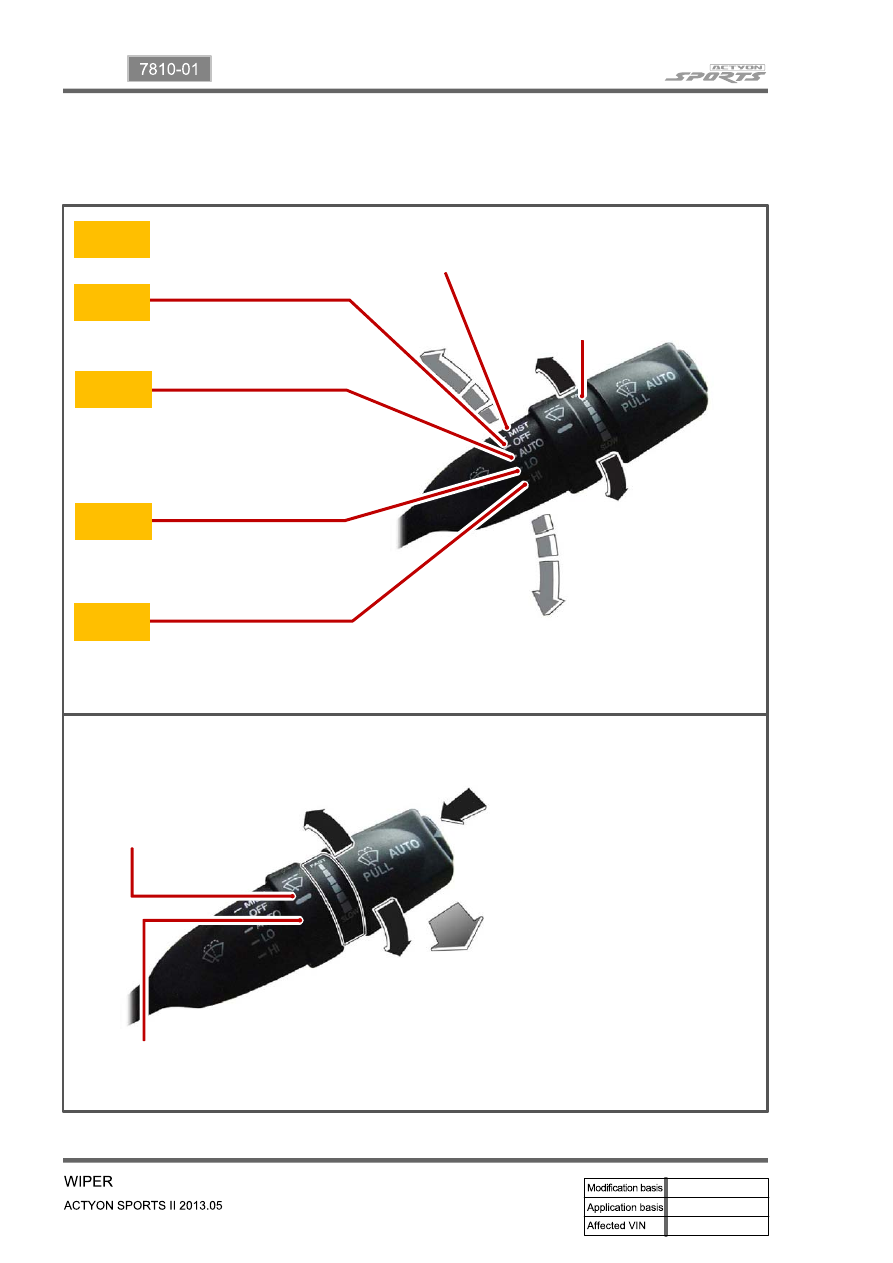

1) Wiper and Washer Fluid Switch Operation

The wiper operates for 1 cycle when pushing

up the lever. The lever will return to the

"OFF" position when released.

Front Automatic Wiping Speed

Control Switch

Fast: Fast interval

Slow: Slow interval

Stop the operation.

Operates automatically

according to the vehicle speed

or amount of rain.

Continuous wipe,

fast operation

Continuous wipe,

slow operation

Front Auto Washer Switch (AFW)

When the front wiper switch is off

and this switch is pressed, washer

fluid will be sprayed and the wiper

will automatically operate 4 times.

Then, the fluid will be sprayed again

and the wiper will automatically

operate 3 times.

Wiper and Washer Coupled Operation

Pull the lever briefly (for less than 0.6 seconds):

One wiping cycle with washer spray Pull and hold the

lever for more than 0.6 seconds: Three wiping cycles with

washer spray

Wiping without

washer spray

Wiping stops

MIST

OFF

AUTO

LO

HI

07-9

7810-01

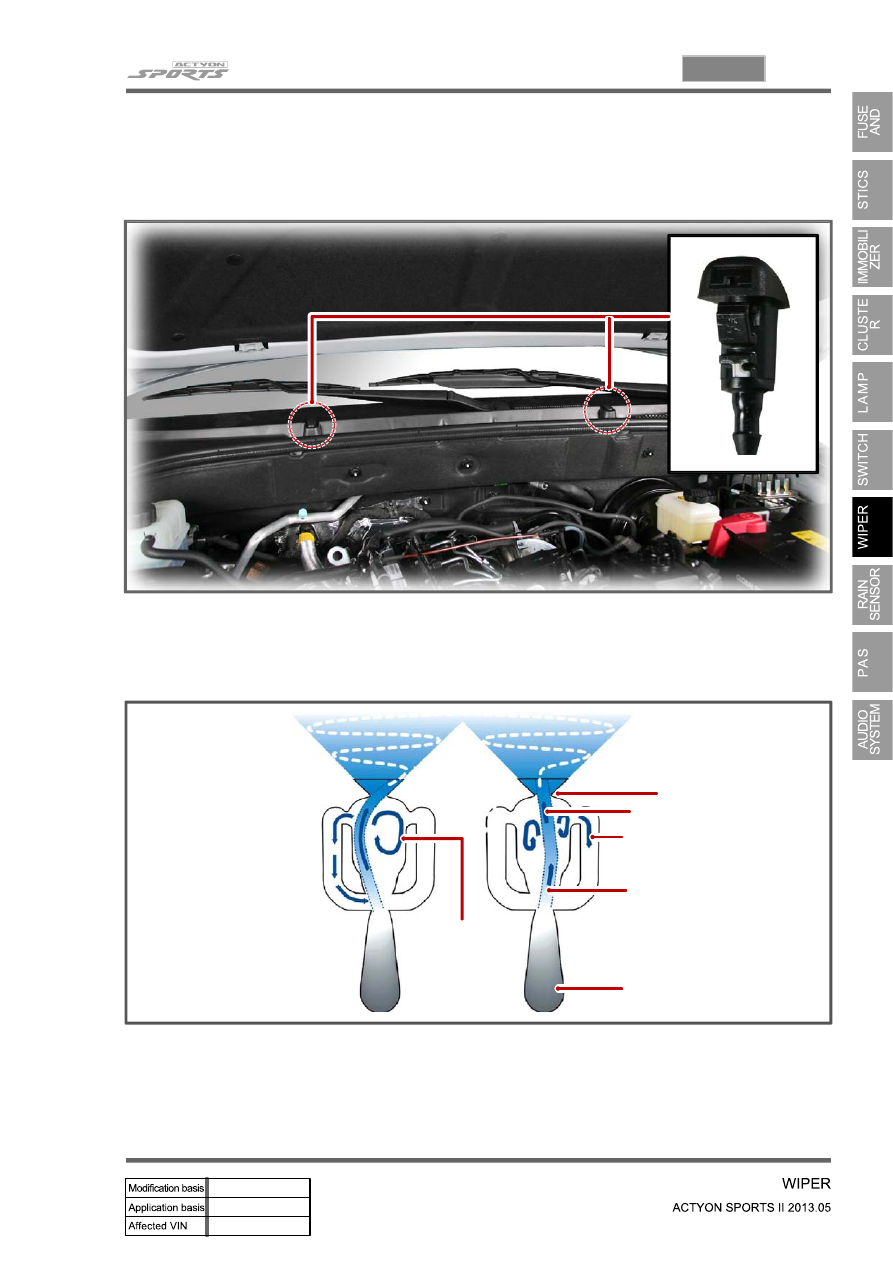

2) Fluidic Washer Nozzle

Fluidic Washer Nozzle is applied to the front washer spray system in this vehicle. The inside of nozzle is

designed to utilize the fluidic movement.

This is a shape of the inside of nozzle. It is designed to change the spraying direction continuously

according to the spraying time (fan-shape). The figure below shows the changes of spraying direction

according to the spraying time.

It is designed to be changed spraying direction using the whirlwind and backflow generated in nozzle.

Washer fluid inlet

Spray passage

Counter-current

Passage

Washer fluid outlet

Whirlwind

07-10

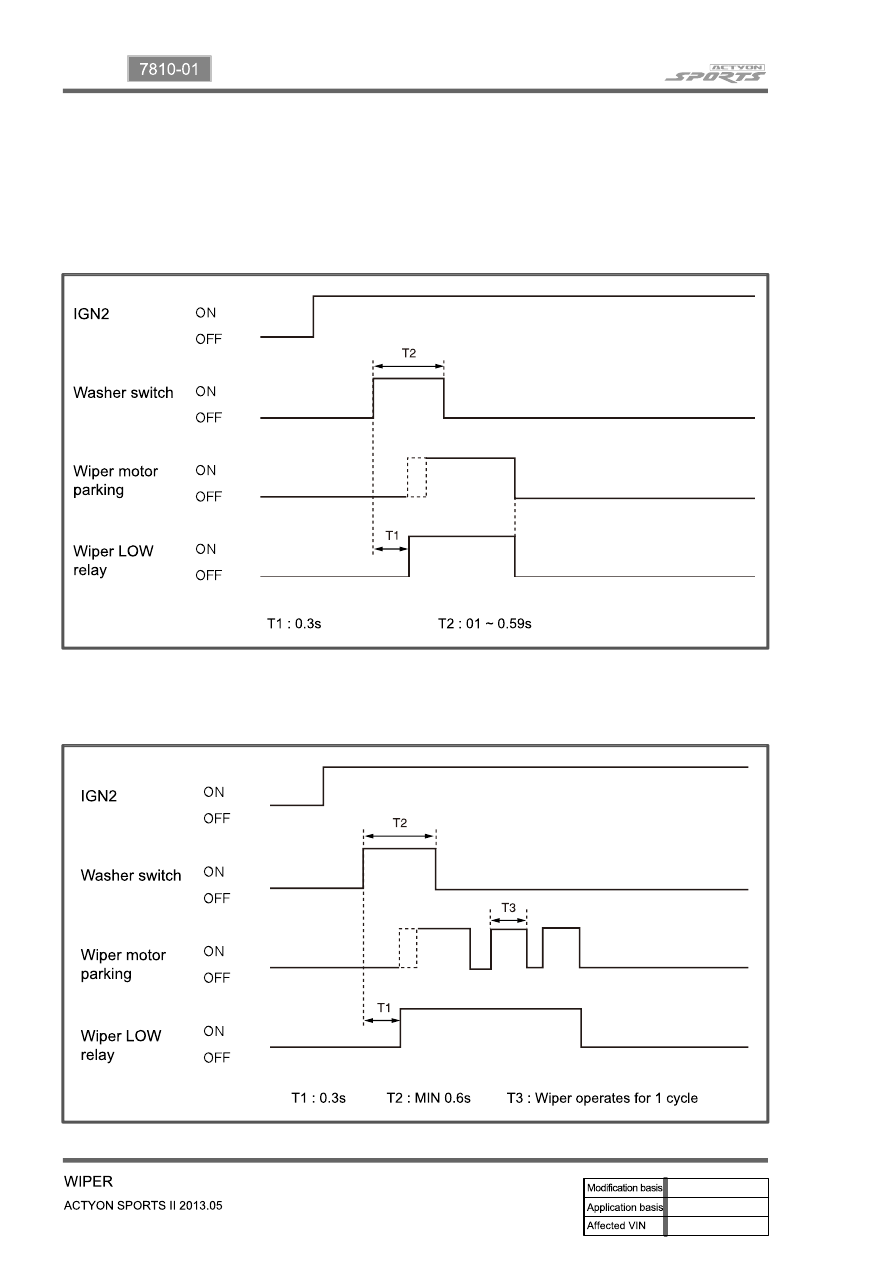

3) STICS Control Logic Related to Wiper and Washer

Wiper MIST and Front Washer Coupled Wiper

▶

The wiper relay is turned on 0.3 seconds after turning "ON" the washer switch for 0.1 ~ 0.59

seconds with the ignition key "ON", and it is turned off when the parking terminal is turned off.

1.

The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is turned

on for more than 0.6 seconds with the ignition switch "ON". The wiper relay gets on 3 times

immediately after turning off the washer switch.

2.
