04-22

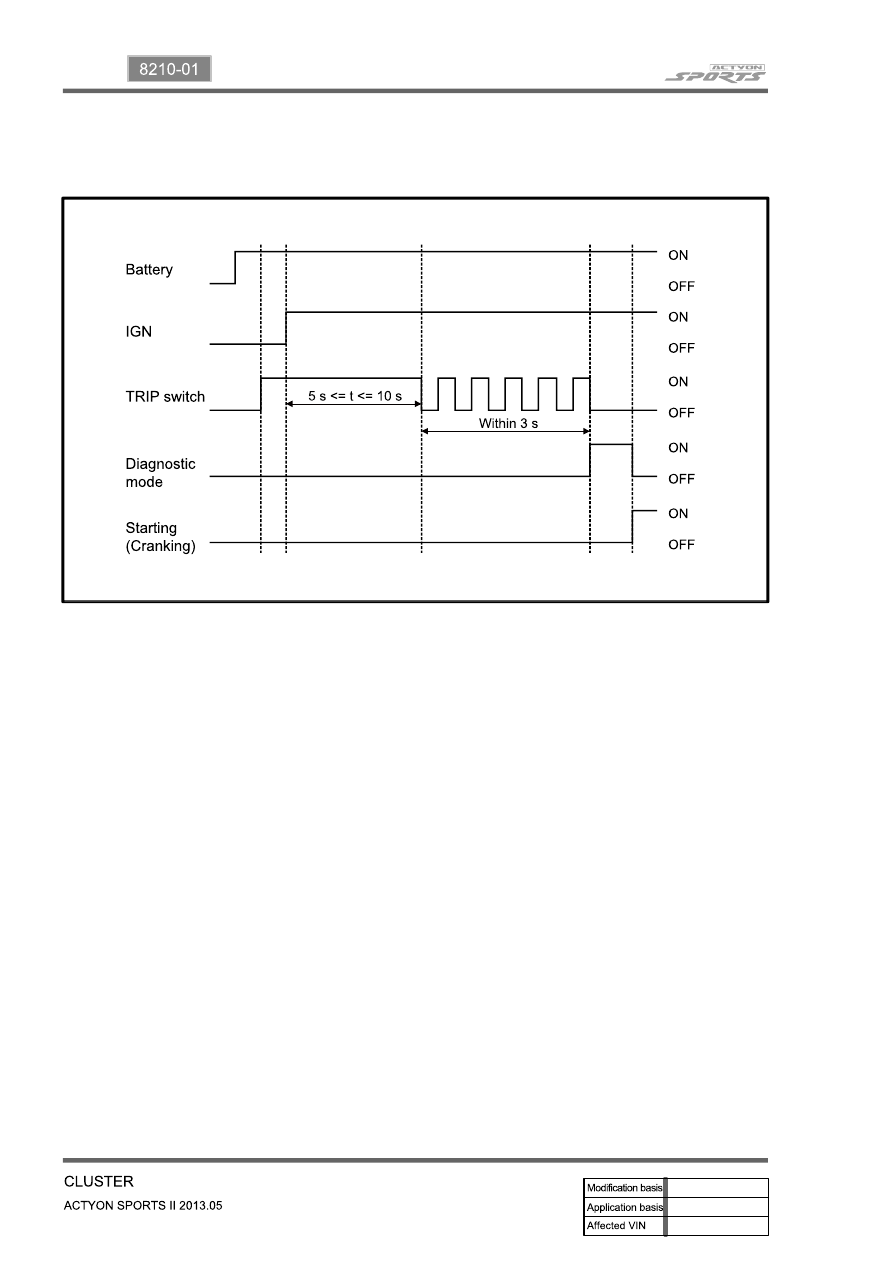

How to enter self-diagnosis mode

▶

Turn the ignition ON with the TRIP switch pressed.

Press and hold the TRIP switch for 5 to 10 sec. with the ignition ON.

Press and hold the TRIP switch for less than 10 sec. and then cycle the switch between ON and

OFF 5 times within 3 sec.

Confirm that the self-diagnosis mode is activated through the instrument cluster.

1.

2.

3.

4.

4. SELF-DIAGNOSIS CHECK

Self-diagnosis OFF

▶

If the engine speed increases to 396 rpm or more while the engine is cranking or the ignition key is

turned OFF in self-diagnosis mode, the self-diagnosis mode is turned OFF automatically.

Operating process

▶

Speed gauge: changes from 0 to 220 km

RPM gauge: changes from 0 to 6,000 rpm

Fuel gauge: changes from E to F

Temperature gauge: changes from C to H

Warning/Indicator lamps: All indicator/warning lamps controlled by MICOM are turned ON.

Dimming: Illuminates at the highest lighting level.

LCD display: All elements are activated.

1.

2.

3.

4.

5.

6.

7.

04-23

8210-01

5. BUZZER OUTPUT

Priority

Item

Buzzer output time

Operating condition

ON

OFF

1

"R" PAS buzzer output

75ms

610ms

610msec delay and then generate
75ms buzzer output

2

Overspeed warning

500ms

200ms

Buzzer on when dial indication
speed exceeds 120km/h

3

ESP buzzer output

100ms

100ms

Interior buzzer (PAS buzzer) ON

4

TEMP warning output

500ms

500ms

Engine overheats

5

Fuel filter

500ms

500ms

Water separator warning light ON
with IGN ON

If the signal with higher priority is activated during the operation of signal with lower priority, the

current operation should be completed before starting the operation with higher priority.

If there are multiple signals at a time, the operation should be completed in order of priority.

-

-

04-24

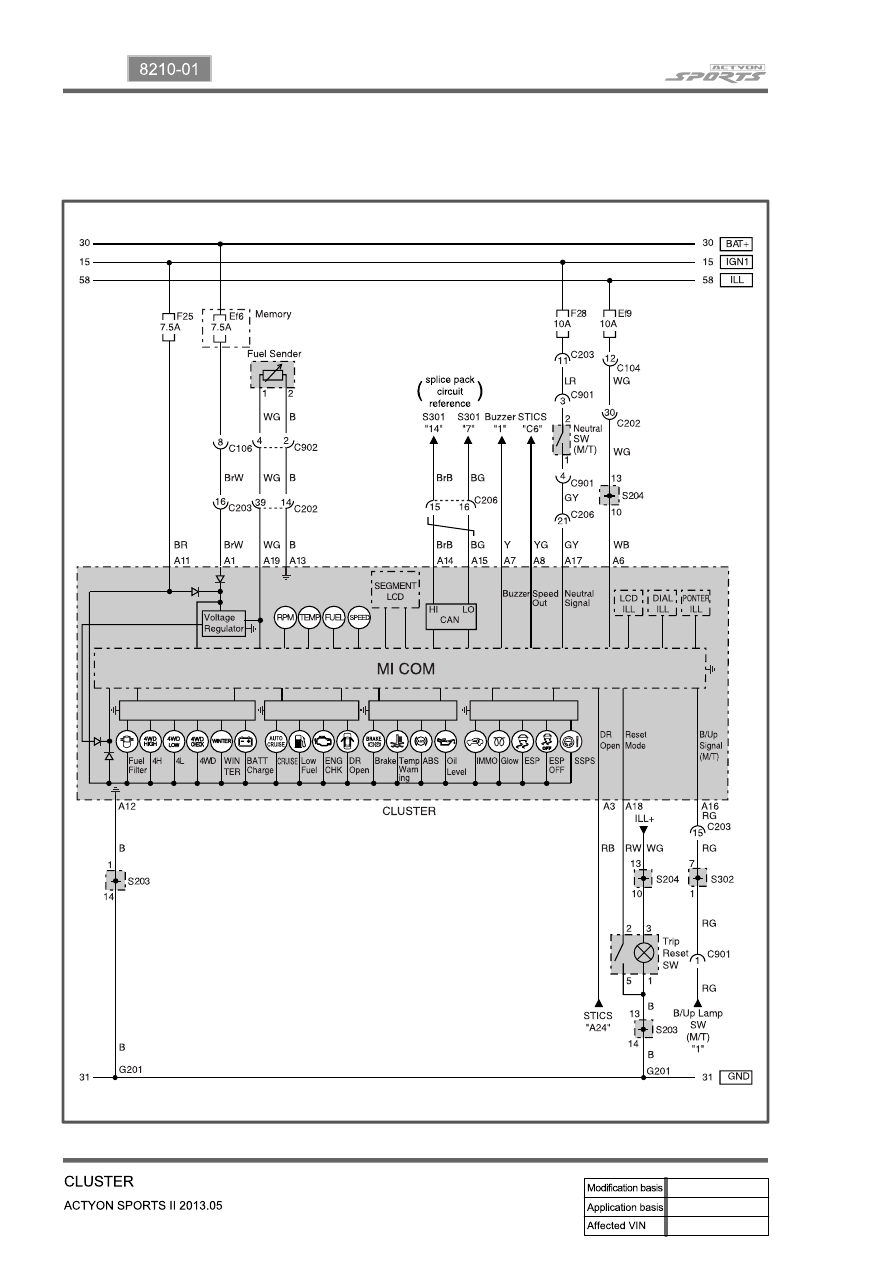

6. CIRCUIT DIAGRAM

GAUGE (SPEED, RPM, FUEL, TEMP), WARNING LAMP (FUEL, FUEL FILTER, ABS, BRAKE, 4WD)

▶

04-25

8210-01

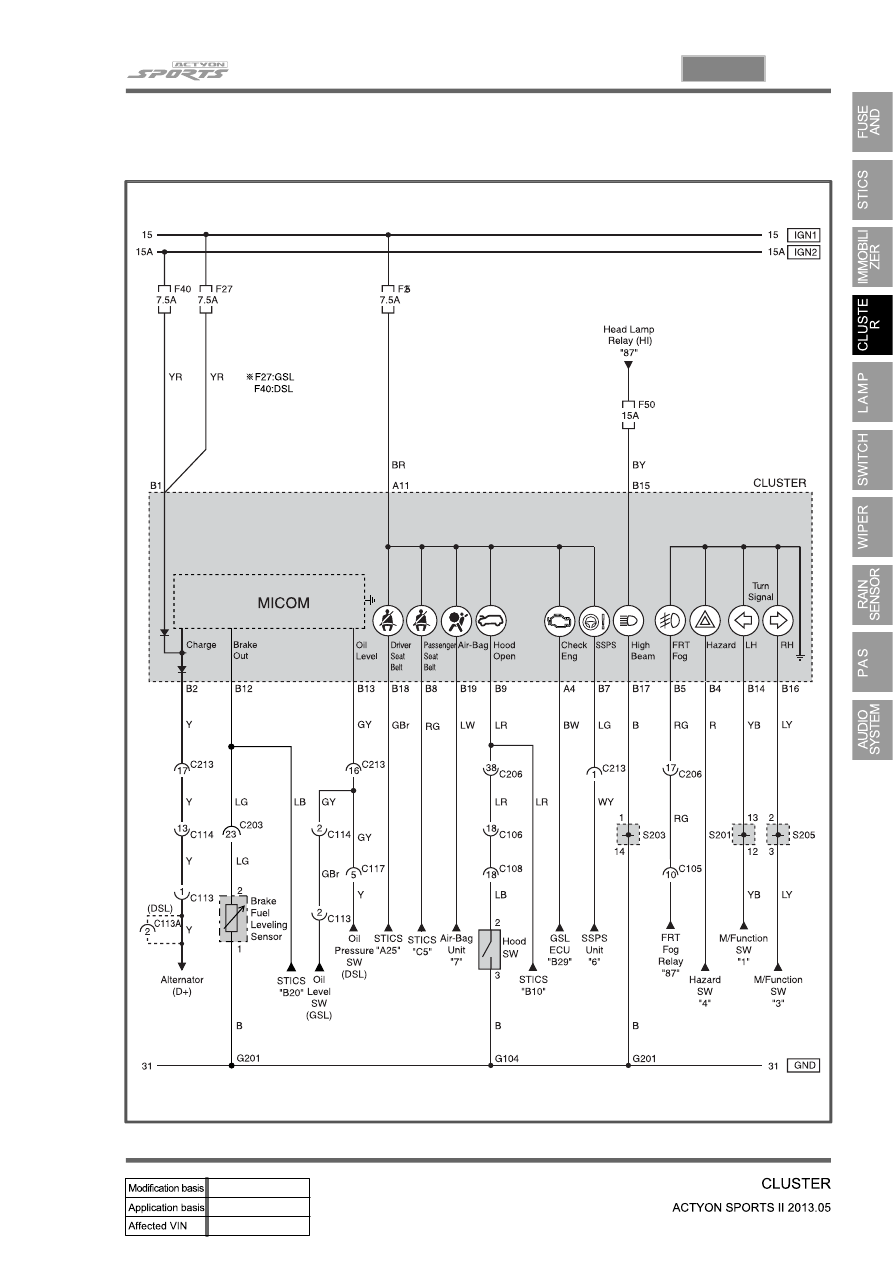

WARNING LAMP (BATT CHARGE, OIL, HOOD, DOOR, ENG CHECK, AIR BAG, SEAT BELT),

TURN SIGNAL, FOG LAMP, HAZARD

▶
