08-3

1520-00

1. SPECIFICATION

Unit

Description

Specification

Cooling system

Type

Water cooling, forced circulation

Coolant

Capacity

approx. 8.5 L

Radiator

Core size

555W x 582.4H x 27T (over 326,250mm2)

Flow type

Cross flow

Min. cooling capacity

over 68,000 kcal/h

Antifreeze

Type

SYC1025 (Long life coolant)

Mixing ratio

(water:antifreeze)

50 : 50

Cooling fan module

Type

Electric

Capacity

Ø472 x 400W x 5B

Control type

PWM type

Coolant reservoir

Capacity

over 1.5 L

Circulation

Closed roof type

Pressure cap

Screw type, 1.4bar

Vacuum valve

Screw type, 1.4bar

Thermostat

Type

Wax pallet type

Opening temperature

90˚C

Fully open temperature

100˚C

Valve lift

8 mm

08-4

2. INSPECTION

Problem

Possible Cause

Action

Coolant level is
too low

- Leak from the radiator
- Leak from the coolant auxiliary tank
- Leak from the heater core

- Change the radiator
- Change the coolant auxiliary tank
- Change the heater

- Leak from the coolant hose
  connections
- Damaged coolant hose

- Reconnect the hose or replace
  the clamp
- Change the hose

- Leak from the water pump gasket
- Leak from the water pump internal
  seal

- Change the gasket
- Change the water pump

- Leak from the water inlet cap
- Leak from the thermostat housing

- Change the water inlet cap
  gasket
- Change the thermostat sealing

- Incorrect tightening torque of the
  cylinder head bolts
- Damaged cylinder head gasket

- Tighten the bolts to the specified
  torque
- Change the cylinder head gasket

Coolant
temperature is
too high

- Coolant leakage (Coolant level is low)
- Improper coolant mixture ratio
- Kinked coolant hose

- Add coolant
- Check the coolant concentration
  (Anti-freeze)
- Repair or replace the hose

- Defective thermostat
- Defective water pump
- Defective radiator
- Defective coolant auxiliary tank or
  tank cap

- Change the thermostat
- Change the water pump
- Change the radiator
- Change the coolant auxiliary tank
  or tank cap

- Cracks on the cylinder block or
  cylinder head
- Clogged coolant passages in the
  cylinder block or  cylinder head

- Change cylinder block or cylinder
  head
- Clean the coolant passage

- Clogged radiator core

- Clean the radiator core

- Improper operation of cooling fan

- Replace the cooling fan or repair
  the related circuit

- Defective temperature sensor or
  faulty wiring

- Replace the sensor or repair the
  related wiring

Coolant
temperature is
too low

- Thermostat is stuck open

- Change the thermostat

- Improper operation of cooling fan

- Replace the cooling fan or repair
  the related circuit

- Defective temperature sensor or
  faulty wiring

- Replace the sensor or repair the
  related wiring

08-5

1520-00

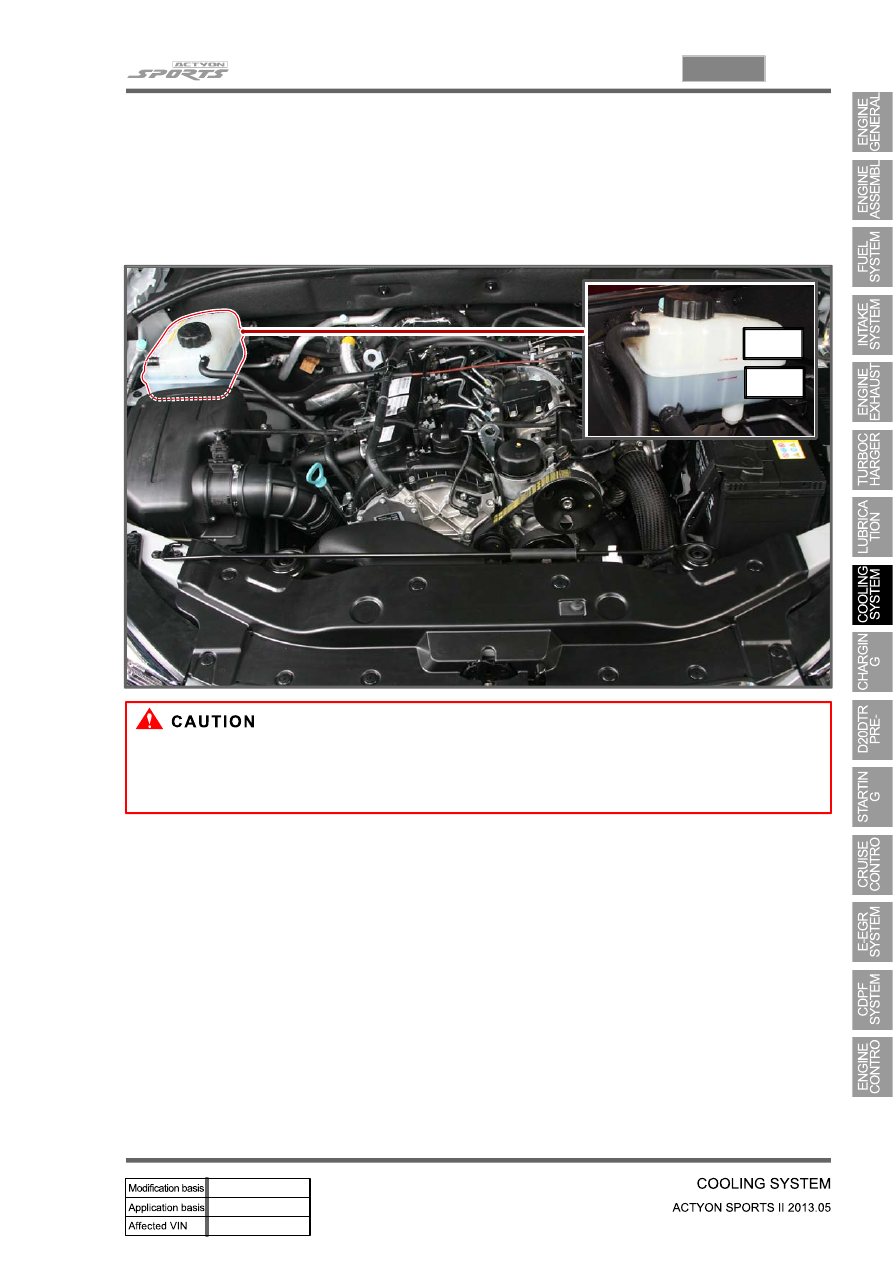

1) Coolant Level Check

Park the vehicle on level ground and apply the parking brake. Stop the engine and wait until it is

cooled down.

The coolant level should be between the MAX and MIN mark on the coolant reservoir.
Check the coolant level. If the level is below the “MIN” mark, immediately add coolant.

1.

2.

Scalding hot coolant and steam could be blown out under pressure, which could cause serious

injury. Never remove the coolant reservoir cap when the engine and radiator are hot.

Avoid any direct contact of the coolant to the painted body of the vehicle.

-

-

MAX

MIN

08-6

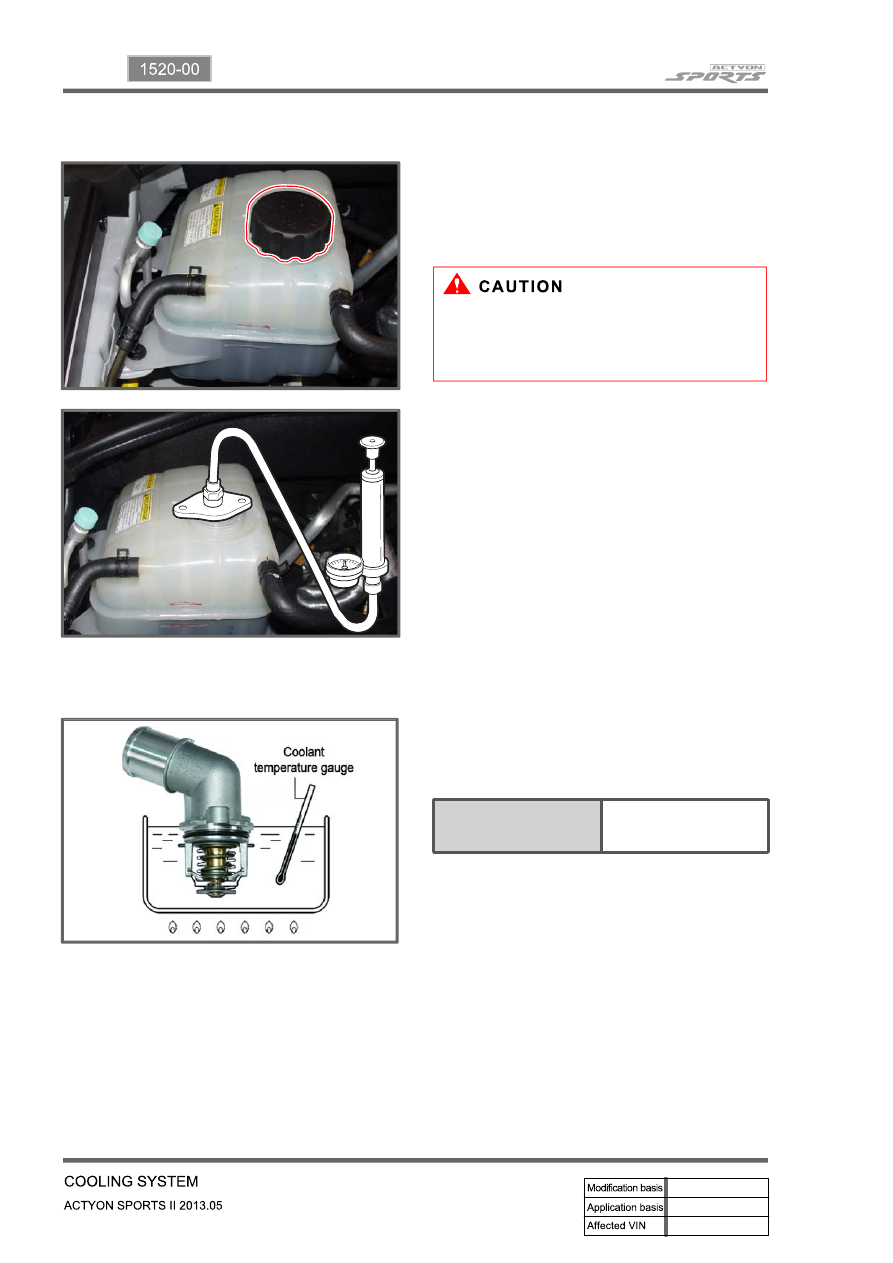

2) Leak Test

Release the pressure in the system by

loosening the pressure cap of the coolant

reservoir slightly. Then, remove the pressure

cap completely.

1.

Never open the cap until the coolant
temperature becomes under 90℃ to

prevent any burn.

Add the coolant so that the coolant level is

between MAX and MIN mark on the coolant

auxiliary tank.

Connect the tester to the tank filler and apply

pressure (1.4 bar).

Check all the coolant hoses, pipes and

connections for leaks when the pressure of

the tester drops, and replace or tighten, if

necessary.

2.

3.

4.

3) Thermostat

Immerse the thermostat into the water. Heat the

water and check the valve opening temperature.

Valve opening

temperature

90±2℃
