02-18

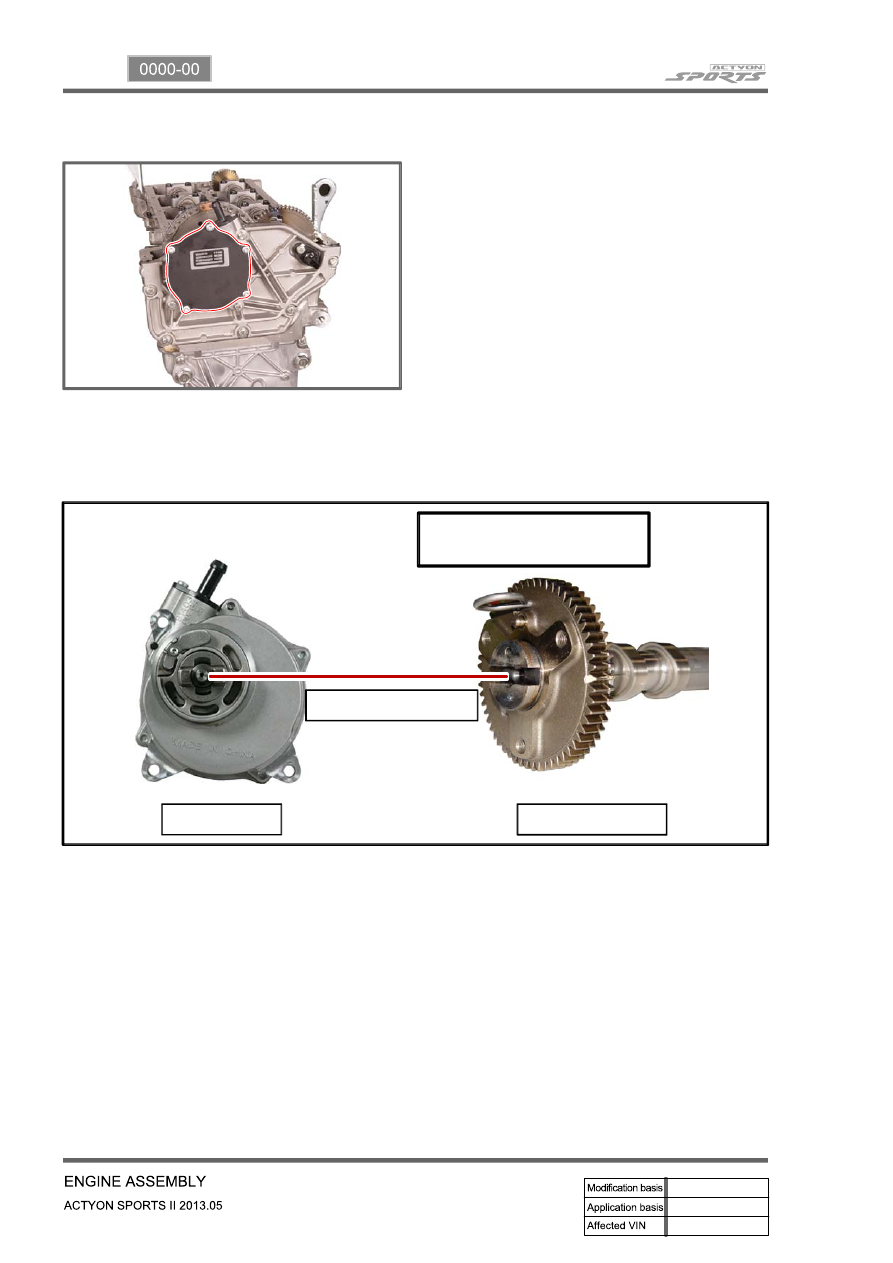

1)  Location

2) Operation

The vacuum pump is engaged to the exhaust camshaft.

Connection between vacuum

pump and exhaust camshaft

Oil supply and driving

Vacuum pump

Exhaust camshaft

02-19

0000-00

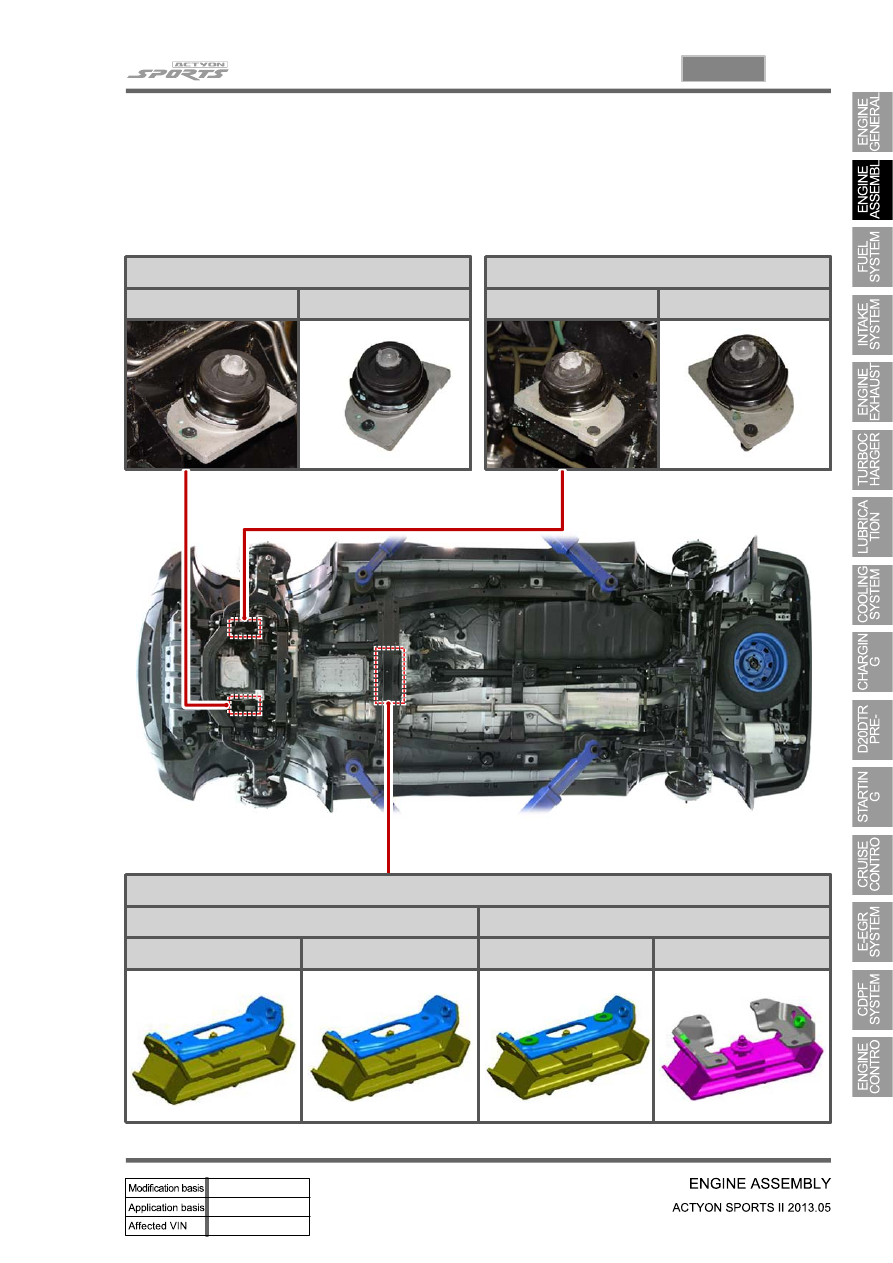

Front mounting insulator (Left side)

Location

Insulator

Front mounting insulator (Right side)

Location

Insulator

3. ENGINE MOUNTING

D20DTR engine uses 3-point mounting type that supports the engine and transmission simultaneously.

Components

▶

Rear mounting insulator

2WD

4WD

A/T

M/T

A/T

M/T

02-20

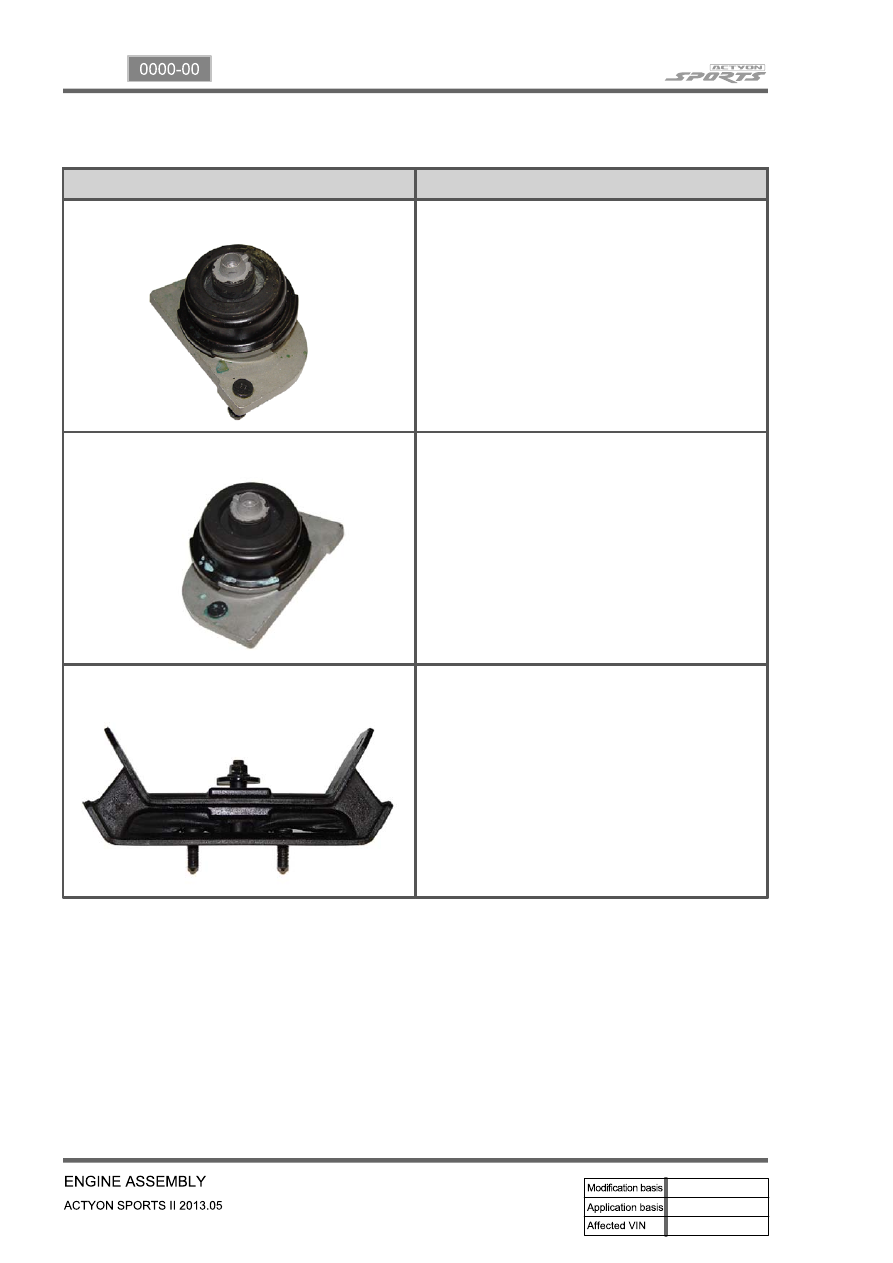

1) Functions

Appearance

Type and function

Front mounting insulator (Right side)

Type: Rubber mounting
Function: Supports the torque reaction

Front mounting insulator (Left side)

Type: Rubber mounting
Function: Supports the torque reaction

Rear mounting insulato

Type: Rubber mounting
Function: Supports the powertrain rod

02-21

0000-00

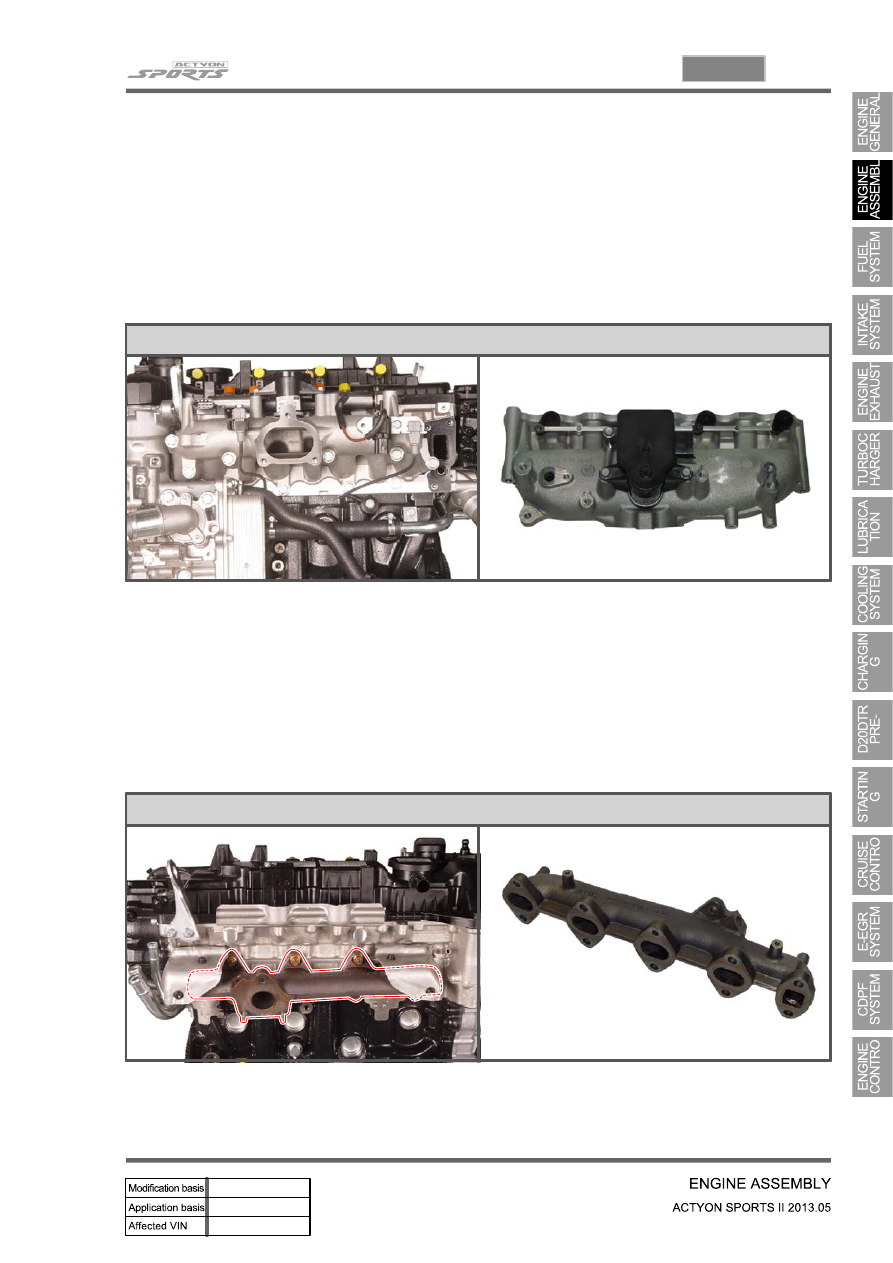

Intake manifold

4. INTAKE/EXHAUST MANIFOLD

1) Intake Manifold

Intake manifold is installed on the cylinder head with 8 bolts. The variable swirl valve is introduced to

improve the EGR gas mixture and turbulence in combustion chamber and to decrease the exhaust gas.

2) Exhaust Manifold

Exhaust manifold is installed on the cylinder head with 10 stud bolts and nuts. EGR port is integrated in

cylinder head.

Components

▶

Components

▶

For detailes, refer to Chapter "Intake System".

*

Exhaust manifold

For detailes, refer to Chapter "Exhaust System".

*
