01-4

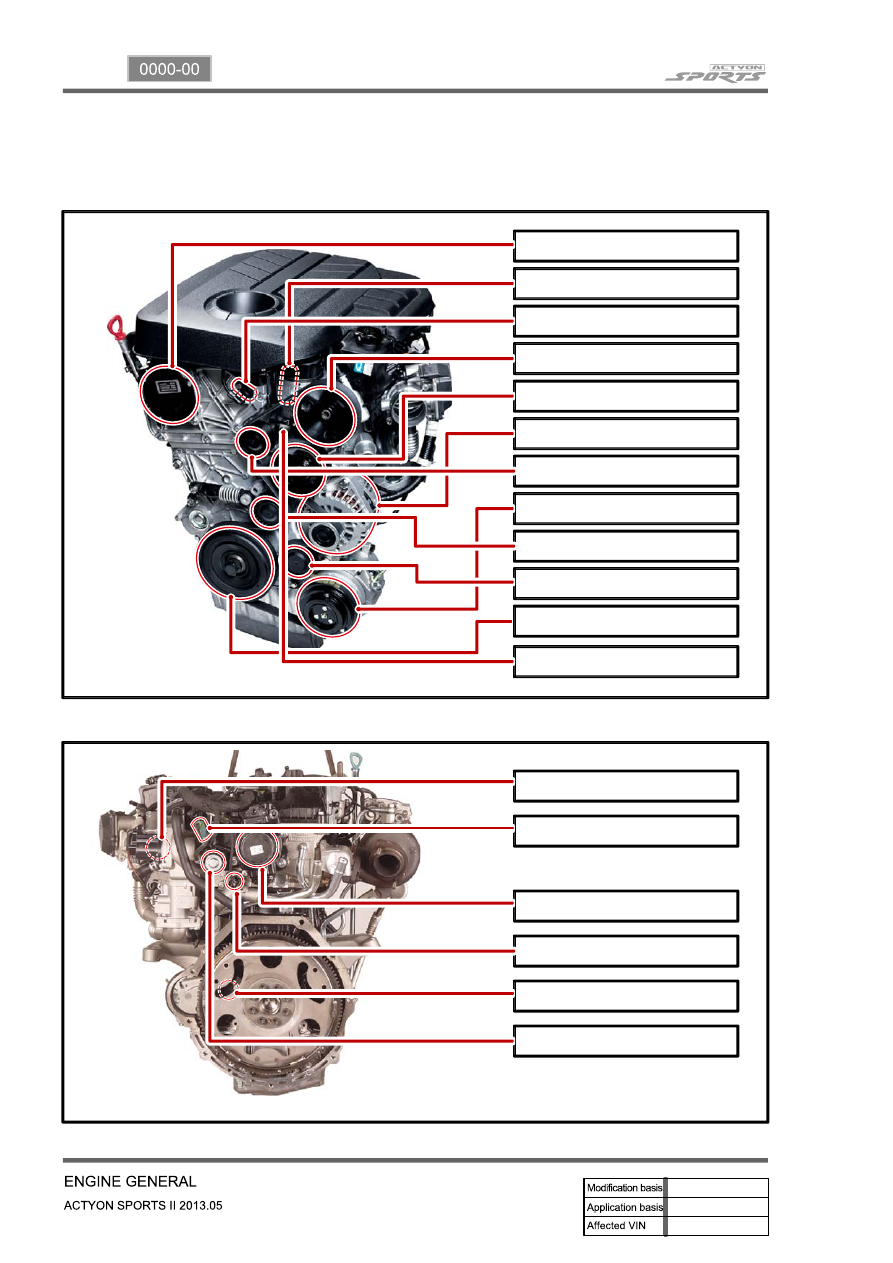

2. MAJOR COMPONENTS

Front view

▶

Vacuum pump

Oil filter assembly

Camshaft position sensor

Power steering pump pulley

Water pump pulley

Alternator pulley

Idler pulley No. 2

A/C compressor pulley

Auto tensioner

Idler pulley No. 1

Isolation damper

Rear view

▶

E-EGR valve

Fuel temperature sensor

Fuel HP pump assembly

Coolant temperature sensor

IMV valve

Crankshaft position sensor

Oil pressure switch

01-5

0000-00

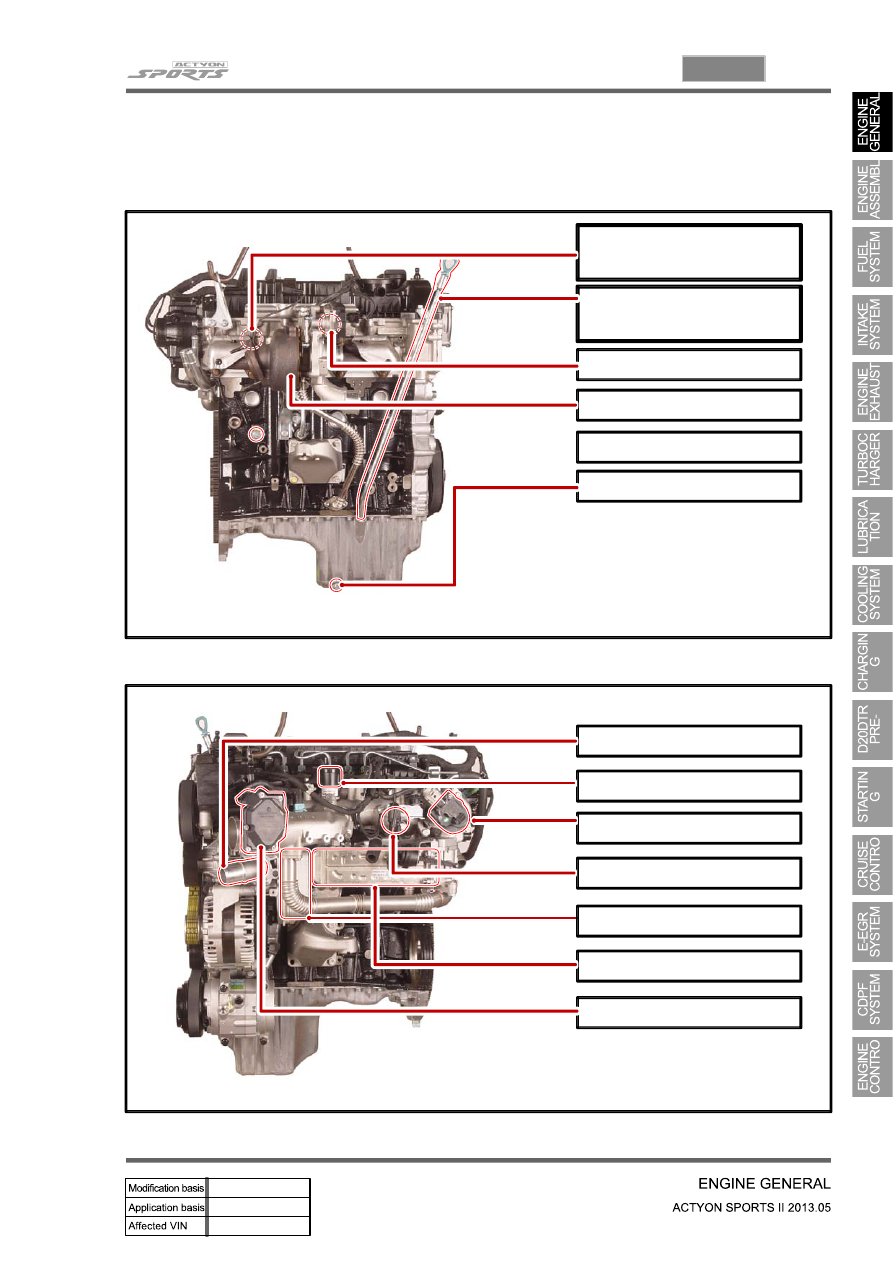

Right view

▶

Front exhaust gas temperature

sensor

Oil dipstick tube &

gauge assembly

E-VGT actuator

E-VGT turbocharger

Coolant screw plug

Oil drain plug

Left view

▶

Thermostat assembly

Variable swirl valve assembly

E-EGR valve

E-EGR solenoid valve

EGR cooler

Electronic throttle body

Oil cooler assembly

01-6

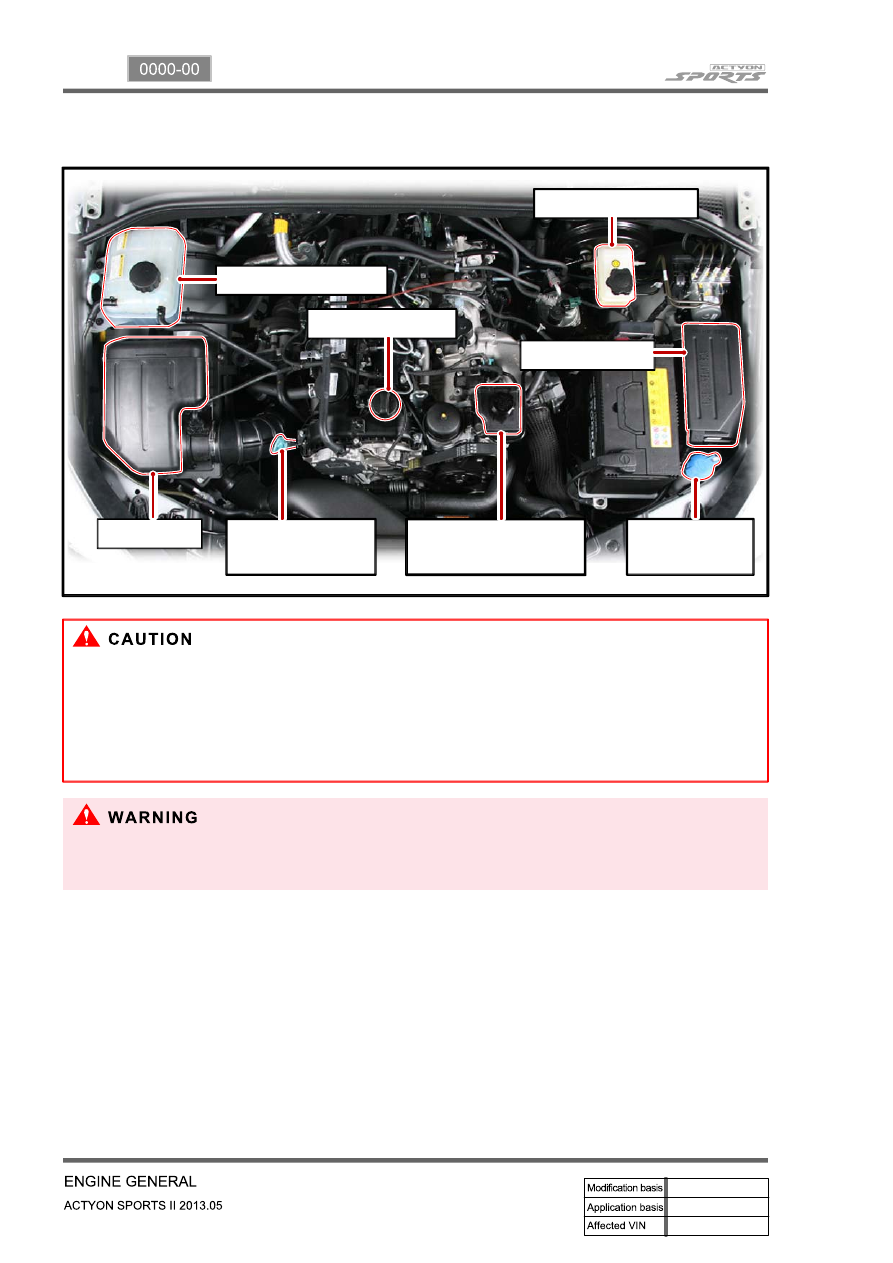

3. ENGINE COMPARTMENT LAYOUT

Do not work on the engine compartment while the engine, radiator, exhaust manifold, muffler or

catalytic converter is hot. Always turn the engine off and allow it to cool before starting the

maintenance.

Regularly check the engine oil level and add Ssangyong genuine engine oil if necessary.

Clean the dipstick with clean cloth so that any foreign materials cannot get into the engine.

-

-

-

Power steering fluid

reservoir

Brake fluid reservoir

Fuse & relay

Engine oil dipstick

gauge

Washer fluid

reservoir cap

Engine oil filler cap

Air cleaner

Operating vehicle with insuffi cient amount of oil can damage the engine. Make sure the engine oil

level is correct and add oil if necessary.

Coolant reservoir

01-7

0000-00

1) Service Interval

2) Specification and Capacity

Engine oil

Specification

Quality class: Ssangyong genuine engine oil (Total Quartz INEO ECS
5W 30, SK ZIC SY 5W 30) or oil Approved by MB Sheet 229.51

Capacity

approx. 6.0 litter

Engine
coolant

Specification

Ssangyong genuine coolant Anti-Freeze SYC-1025

Capacity

approx. 8.5 litter

Severe condition

Frequent stop-and-go traffic, extended idling, short driving distance below 6 km, driving distance below

16 km when the outside temperature remains below freezing

Driving in a hilly or mountainous terrain, sandy, or dusty area

High load driving such as trailer towing

Taxi, patrol service or delivery service (extended idling and excessive driving with low speed)

-

-

-

-

Description

Daily

inspection

Weekly

inspection

Service interval

Engine oil & oil
filter

Inspection

-

EU

Change every 20,000 km or 12 months
(The service interval should be shortened
under severe conditions)

General

Change every 15,000 km or 12 months
(The service interval should be shortened
under severe conditions)

Coolant

Inspection

-

Change every 200,000 km or 5 years

Air cleaner
element

-

Inspection

Diesel

EU

Change every 20,000 km (The
service interval should be
shortened under severe
conditions)

General

Clean every 7,500 km, change
every 15,000 km (The service
interval should be shortened
under severe conditions)

Gasoline

Clean every 15,000 km, replace every
60,000 km (The service interval should be
shortened under severe conditions)

Fuel filter

-

-

EU

Change every 40,000 km (Draining water
from fuel filter: whenever replacing the
engine oil)

General

Change every 45,000 km (Draining water
from fuel filter: whenever replacing the
engine oil)
