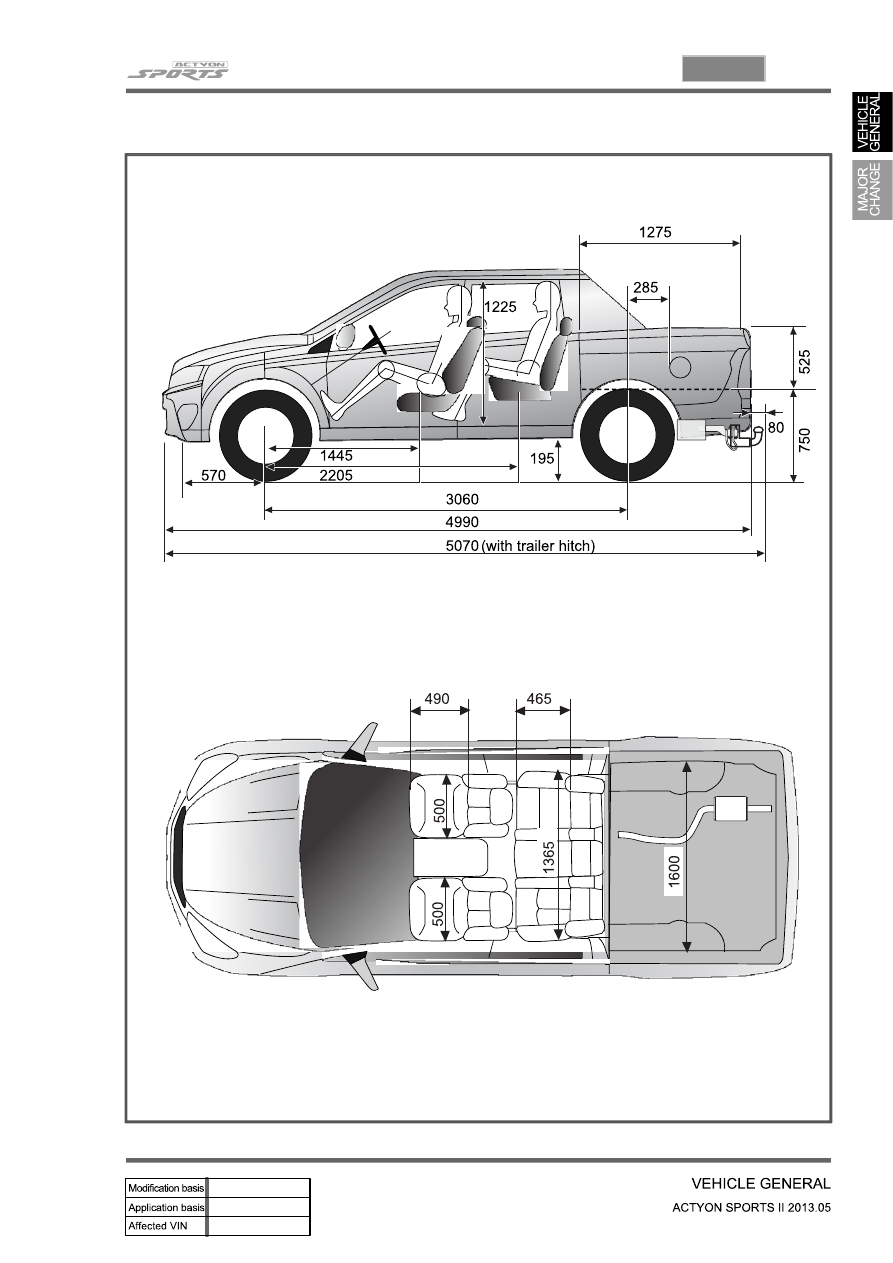

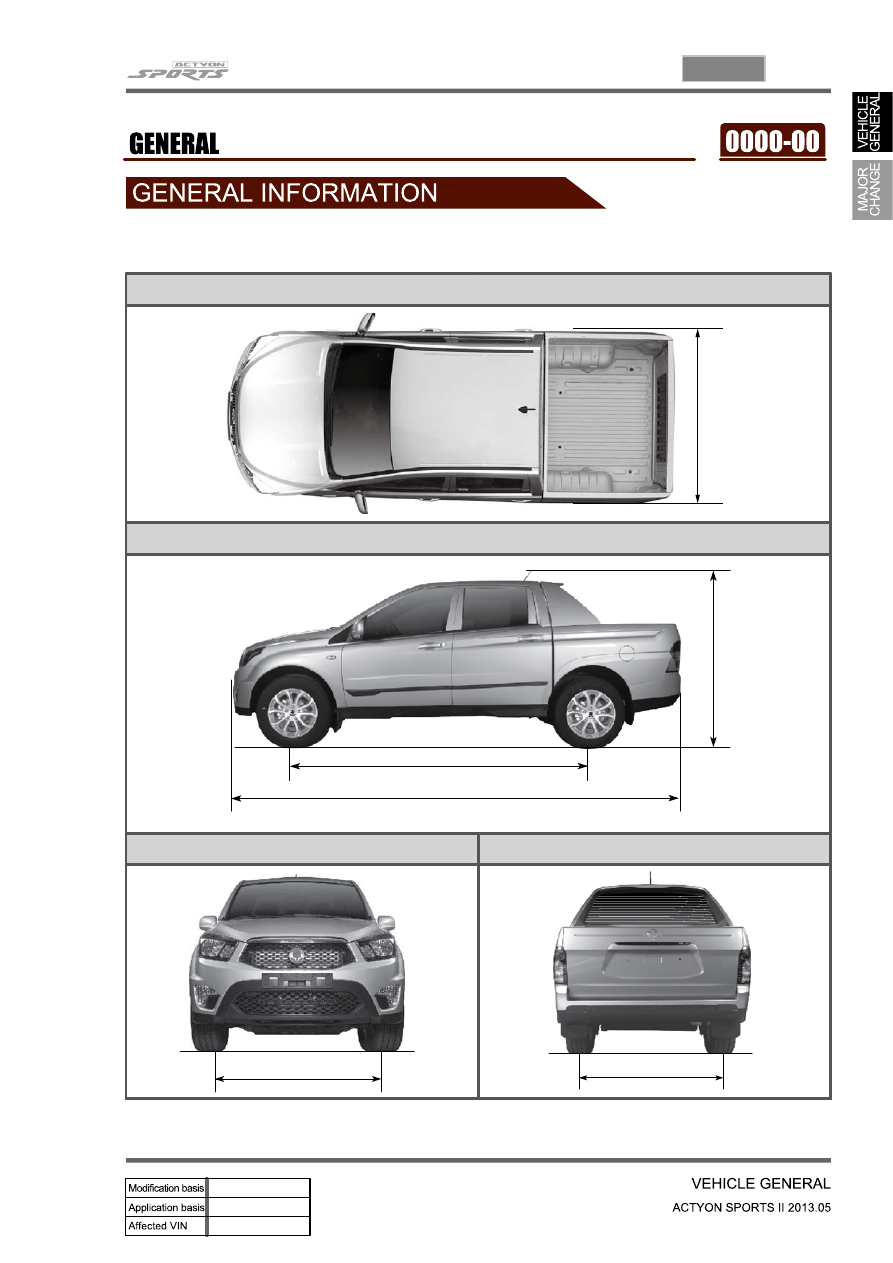

1. DIMENSIONS

Unit: mm

1910

1790

3060

4990

1570

1570

01-4

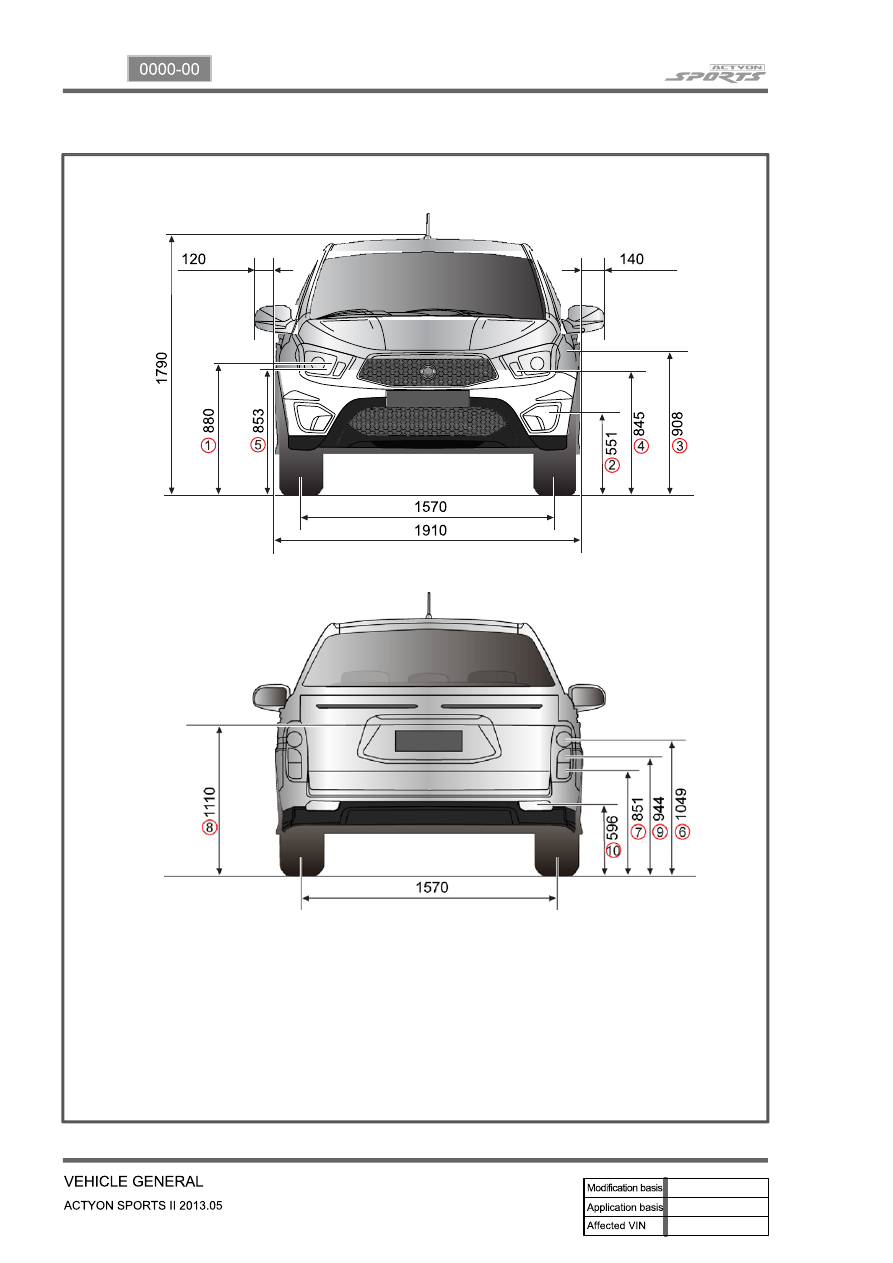

Detailed Dimensions

▶

Unit:mm

Headlamp

Front fog lamp

Side repeater

Tun signal lamp (front)

Position lamp

1.

2.

3.

4.

5.

Stop/Tail lamp

Back-up lamp

License plate lamp

Turn signal lamp (rear)

Reflector

6.

7.

8.

9.

10.

01-5

0000-00

Unit:mm

01-6

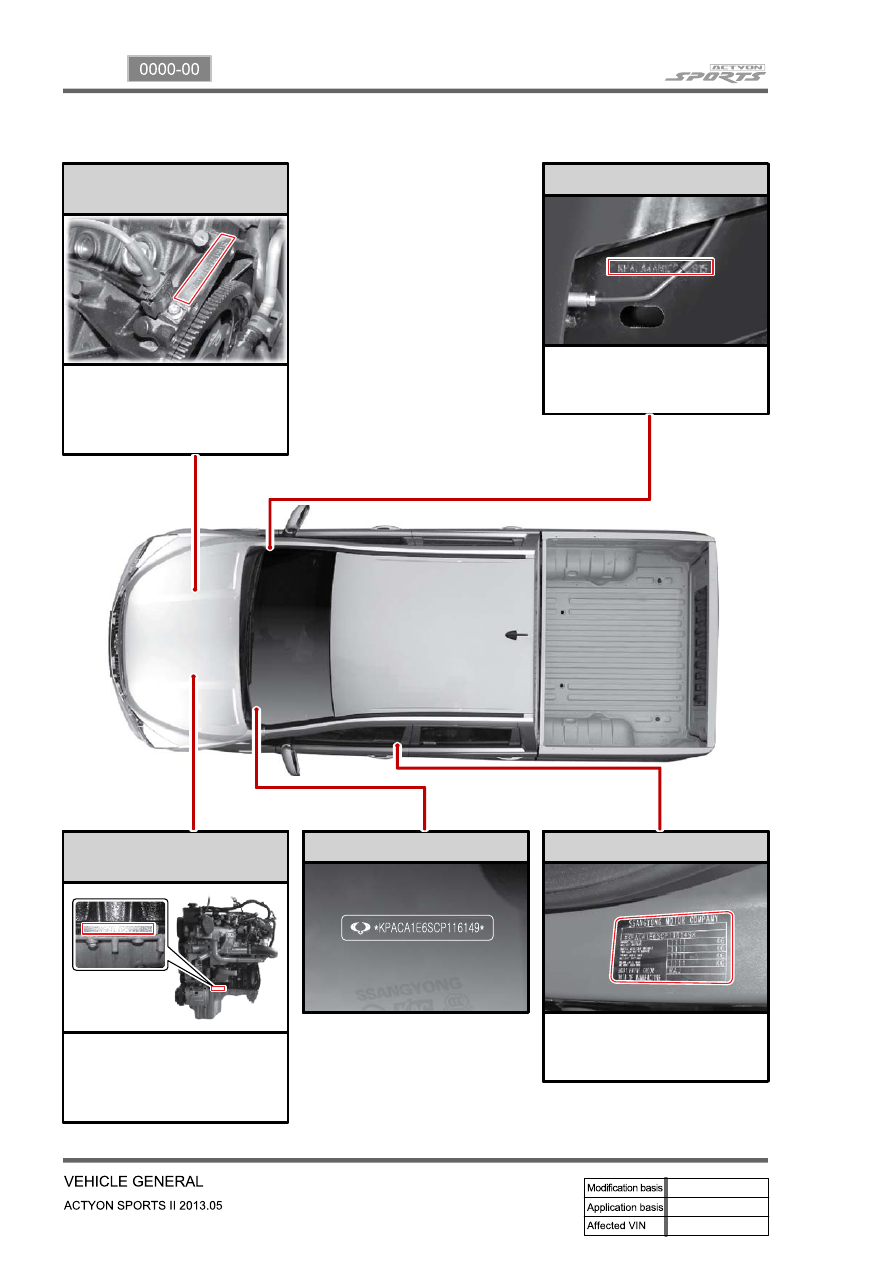

2) Vehicle Identification

Engine Number

(Gasoline Engine)

The engine number is stamped
on the upper rear left-hand side
of the cylinder block.

Engine Number

(Diesel Engine)

The engine number is stamped
on the lower area of cylinder
block behind the Intake
manifold.

Vin Label

Chassis Number

The chassis number is
stamped on the frame behind
the front right tire.

Certification Label

The certification label is located
on the driver’s door sill.
