Helpful hints   10
29

Battery

Jump starting
If your battery is flat and the car will not
start, another vehicle may be able to help
you start.
Start your car's engine with the aid of

 jumper cables and

 another vehicle's battery.
Observe the following instructions when
doing this:

쮿

Switch off the engine of the second
vehicle.

쮿

Open the front luggage compartment.
(see page 8
8)

쮿

Turn the four retaining screws
anticlockwise to remove.

쮿

Remove the storage tray.

쮿

Remove the positive terminal covers.

쮿

First, connect the positive terminal
(A) with the red jumper cable.

쮿

Then connect the negative terminal (B)
of the second car's battery to the
engine block (ground point/unpainted)
of your car.

쮿

Deactivate the electronic immobiliser
(see 7
5).

쮿

Start your car's engine.

쮿

If the engine does not start straight
away, leave about 30 seconds between
starting attempts.
> If the engine will not start, call a

breakdown recovery service,
e.g. smartmove Assistance or a
qualified specialist workshop,
such as a smart center.

Danger of acid poisoning!
Do not lean over the battery while

jump starting the car or recharging the
battery.

Danger of explosion!
Avoid causing sparks. Do not use

any naked flames or smoke within the
vicinity of the battery.
Observe the safety notes and protective
measures when handling the battery!

10
30   Helpful hints

Battery

Removing the jumper cables

쮿

Do not switch on electrical consumers
such as the blower or the rear window
heater until the engine is running.
Do not switch the lights on!
> This helps reduce the danger of any

sparking when removing the jumper
cables.

쮿

Start by removing the jumper cable
connected to the negative terminal,
then remove the cable connected to the
positive terminal.

Things you need to know

 Only use batteries with identically

rated voltages (12 volt).

 Use jumper cables of a suitable cross

section and insulated cable clamps;
these are available from a qualified
workshop, such as a smart center.

 The vehicles must not touch each other

during starting attempts.

 Switch off electrical consumers in

both vehicles.

 Switch off the engine of the second

vehicle.

Helpful hints   10
31

Battery

Charging the battery

 Only use chargers of a correct or

suitable voltage.

 Never attempt to recharge a frozen

battery. Have the battery checked by a
qualified specialist workshop, e.g. a
smart center. The housing could be
damaged.

>Note!
Disconnect the battery for rapid
charging prior to using the charger.

Danger of injury!

Danger of explosion!

While the battery is being charged, the
oxyhydrogen gas generated by the
battery represents an explosion risk.
Avoid causing sparks. Do not use any
naked flames or smoke within the
vicinity of the battery. Do not touch the
battery terminal with metal objects and
do not remove the battery charger's
terminal clamps until the battery
charger has been switched off and no
further gas is being discharged by the
batteries. Charge the battery in a well

ventilated area. Do not lean over the
battery during charging, and do not
breathe in the gases. You are otherwise
at risk of injury.

Danger of injury!
 Never attempt to charge the

installed battery. Doing so could lead
to the expulsion of gases and
deflagration, causing damage to
paintwork or corrosion on the vehicle
and ultimately injuring you and others.

10
32   Helpful hints

Roll starting

Roll starting

If the starter is faulty, you can try to
start the car by letting it run down a
steep hill.

Preparations

쮿

Switch on the ignition.

쮿

Apply the handbrake.

쮿

Apply the footbrake.

쮿

Move the gearshift lever to position

+

and hold it there.

Roll starting

쮿

Release the footbrake.

쮿

Push the accelerator pedal to the floor.

쮿

Release the handbrake.
> As the speed of the car increases the

clutch is automatically engaged and
the engine starts.

쮿

Release the gearshift lever.

쮿

Apply pressure to the accelerator
pedal.

Helpful hints   10
33

Towing

Towing

You will need a towing lug to tow another
vehicle or have your vehicle towed.

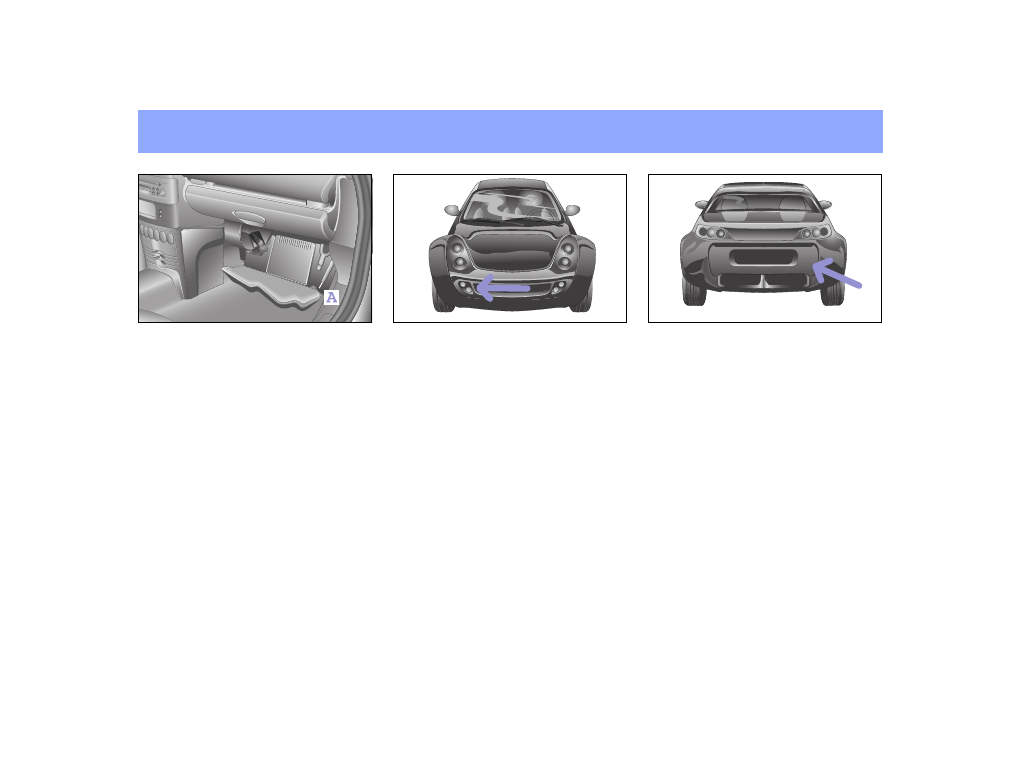

The towing lug (A) is located in the
passenger
side footwell below the
carpet. The lug always must be stored at
this location in the vehicle when it is not
being used.

쮿

Open the passenger door.

Fixing points for the towing lug

The front fixing point is for towing the
vehicle.

The rear fixing points are for towing
other vehicles.

10
34   Helpful hints

Towing

Attaching the towing lug

쮿

Take the towing lug out of the foot
support in the passenger
side
footwell.

쮿

Remove the cover on the vehicle.

쮿

Screw in the towing lug as far as it will
go and then tighten it.

쮿

Attach the tow rope or the tow bar to the
towing lug.

Towing

쮿

Switch on the ignition.

쮿

Apply the footbrake.

쮿

Move the gearshift lever to position

N.

>

N appears in the display.

>Important!
The vehicle may only be towed when

 the gearshift lever is in position

N,

 the display shows

N,

 you are certain that no gear is

engaged.

This is especially the case when the
battery is completely depleted,
for example.
Towing now can begin under
consideration of the following notes.

Accident risk!
Have the car towed away with a

tow bar if the engine cannot be started.
If the engine cannot be started, there
is no power assistance for the electric
power steering system*. You will then
need to use considerably more effort to
steer and brake the car.
If you are tow
starting or towing away
another car, its weight must not exceed
the permissible gross vehicle weight
of your car.

Helpful hints   10
35

Towing

>Towing notes!

 Only people with a certain amount of

experience should tow.

 Ideally, you should have your car towed

by a vehicle from a qualified
specialist workshop, such as a smart
center.

 Observe the national statutory

regulations concerning the towing of
vehicles.

 The maximum towing speed should not

exceed 50 km/h (approx. 30 mph).

 The maximum towing distance should

not exceed 50 km (approx. 30 miles).

 When towing the car it is preferable to

use a tow bar.

 The towing lugs on both vehicles

involved in the towing process must be
on the same side.

 The car should only be towed or tow

another vehicle by means of the towing
lug.

 The towed vehicle may not be heavier

than the towing vehicle.

 The vehicle may not be hauled by its

towing fittings.

 The towing fitting may be used for

lashing down the vehicle.

10
36   Helpful hints

Fire extinguisher*

Fire extinguisher*

The fire extinguisher is located in the
front passenger footwell of your car.

You should be aware of the following:

쮿

You should read the operating
instructions before using the fire
extinguisher to ensure that you can use
it properly and safely at any given time.

쮿

Have your fire extinguisher regularly
checked, i.e. every 2 years.

Note!
If you mount a fire extinguisher, you must
use specially cut floor mats* in the
footwell.

Danger of injury!
The fire extinguisher must

always be locked firmly in place. Loose
objects could cause serious injury if
propelled around the passenger
compartment when the brakes are
applied.

>>Data transfer.

Now, to finish off, you should take another few minutes to go through your car's technical data and soak them in.
Have fun in doing so.

Contents

>Information signs

>Model plate

>Technical data

>Homologation numbers

>Official homologation

11
2   Reference

Information signs (example: left
hand drive version)

e

Information signs (example: left
hand drive
version)

a smartmove Assistance (glove box)

b Airbag information signs (sun visor/roof rail)

c Model plate with vehicle ident. no.

(B
post on passenger side)

d Refuelling sign (on inside of filler flap)

e Anti
theft wheel studs information sign

Danger of injury!
Various warning labels are attached to your

vehicle. These labels are designed to make you and other
persons aware of possible dangers. Therefore, do not
remove any of the warning labels (unless otherwise
stated). Removing warning labels can lead to you or other
persons not recognising potential dangers and ultimately
inflicting personal injury.

Reference 11
3

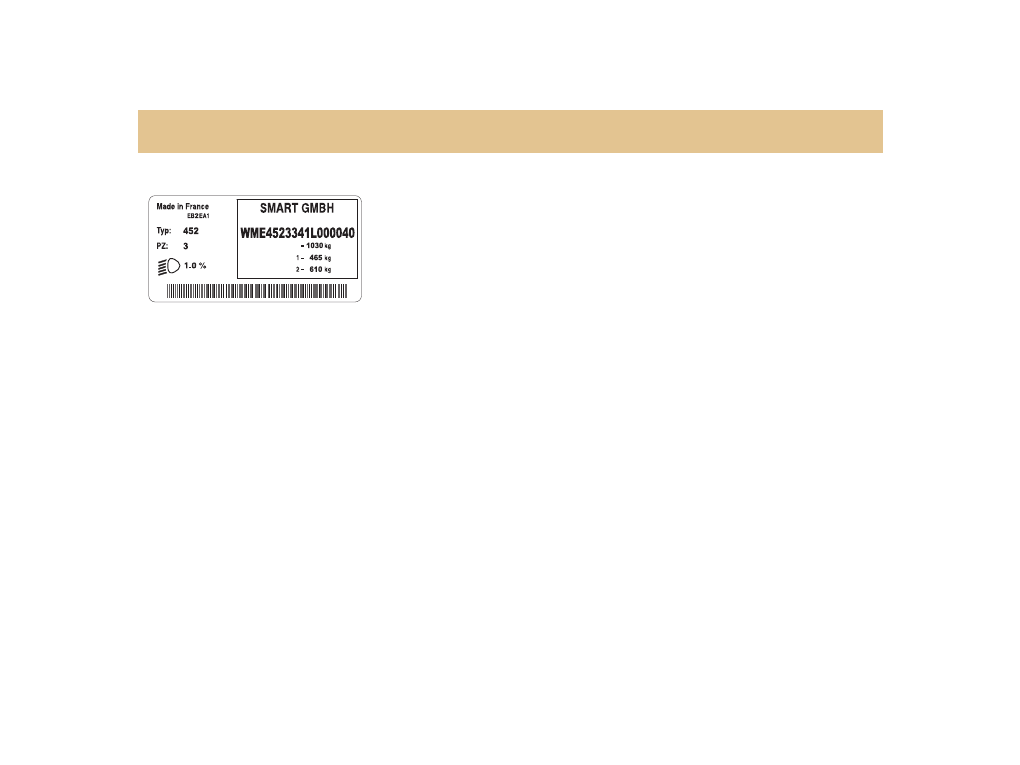

Model plate

Model plate

Vehicle identification number

The vehicle identification number is
found on the floor plate and can be seen
when the tailgate is opened and the floor
carpet and engine cover are lifted.

11
4   Reference

Technical data

Technical data

The technical data are valid for all
standard equipped vehicles.
We recommend that you use original smart
parts and accessories.

Engine specifications

Petrol engines

roadster/
roadster
coupé

roadster/
roadster
coupé

roadster/
roadster
coupé

BRABUS roadster/
BRABUS roadster

coupé

Rated output (kW)

45

60

74

74

At engine speed (rpm)

5250

5250

5600

5600

Nominal torque (Nm)

95

110

130

130

At engine speed (rpm)

2000
4000

2250
4500

2500
5300

2500
5300

Number of cylinders

3

3

3

3

Valves per cylinder

2

2

2

2

Spark plugs per cylinder

2

2

2

2

Total displacement (cm³)

698

698

698

698

Engine weight acc. to DIN 70020 A (kg)

60

60

60

60

Maximum climbing capacity at
permissible gross vehicle weight

20%

20%

20%

20%

Reference 11
5

Technical data

Fuel consumption in
accordance with EC Directive 1999/
100/EC

The following data were evaluated in
accordance with the EC Directive (1999/
100/EC). All data are valid for basic
version vehicles with catalytic
converter.

In practice, fuel consumption may be
higher than the values determined and
cited in the EC guidelines (1999/100/EC),
as in everyday use different operating
conditions may prevail, such as individual
driving styles, additional equipment,
different road surfaces and weather
conditions. The fuel consumption values
given by the EC Directive (1999/100/EC)
serve solely as a means of comparison in

certain given conditions.
Any qualified specialist workshop such as
a smart center will be able to provide
further details.
Refer to the COC papers (EC
CERTIFICATE
OF CONFORMITY) for the currently
applicable fuel consumption ratings.
These papers are handed to you at the
point of vehicle delivery.

Fuel consumption in accordance
with EC Directive 1999/100/EU

Petrol engines

45 kW

60 kW

74 kW

74 kW

roadster/

roadster
coupé

roadster

roadster

coupé

roadster

roadster

coupé

roadster

BRABUS

roadster

coupé

BRABUS

softip

softouch

softouch

softouch

Inner urban (ltrs./100 km)

6.2

6.3

6.4

6.4

6.4

6.4

6.4

Extra urban (ltrs./100 km)

4.2

4.3

4.3

4.5

4.5

4.5

4.5

Combined (ltrs./100 km)

4.9

5.1

5.1

5.2

5.2

5.2

5.2

Driving range (km)

714

686

686

673

673

673

673

Exhaust cleaning/emissions
standard

EU4

EU4

EU4

EU4

EU4

EU4

EU4

CO2 emissions (g/km)

117

122

122

122

122

122

122

11
6   Reference

Technical data

Acceleration/maximum speed

Petrol engines

45 kW

60 kW

74 kW

74 kW

roadster

roadster

coupé

roadster

roadster

coupé

roadster

roadster

coupé

roadster

BRABUS

roadster

coupé

BRABUS

Acceleration, flexibility in 5th gear

0 to 100 km/h (s)

15.5

15.5

10.9

10.9

9.8

9.8

9.8

9.8

Maximum speed (km/h)

160

165

175

180

190

195

190

195

Reference 11
7

Technical data

Wheels and tyres

>Notes on wheels and tyres!

 Use only wheels and tyres approved by

smart gmbh.
This way you ensure that your car will
handle optimally, which in turn
guarantees the driving safety of your
vehicle.

 Change over to winter tyres at an early

date, preferably in the autumn.

 The vehicle operating approval status

is rendered null and void if other wheel/
tyre combinations are used.

 Replace worn tyres in good time.

Every qualified specialist workshop (e.g.
a smart center) will be glad to provide you
with details and information concerning
the wheels and tyres recommended for
your smart.

>Note!
Freedom of motion can only be guaranteed
if the manufacturer's recommended
wheels and tyres are used. Other wheel
and tyre sizes may damage the braking
system.

Wheels* and tyres*

roadster

roadster
coupé

Optional extra for

both versions

roadster

BRABUS

1

roadster
coupé

BRABUS

2

Tyres, front

185/55 R15

205/50 R15

205/45 R16

205/40 ZR17

205/40 ZR17

Tyres, rear

185/55 R15

205/50 R15

205/45 R16

225/35 ZR17

225/35 ZR17

Wheels, front

5J x 15 ET24

6J x 15 ET24

6.5J x 16 ET24

7J x 17 ET20

7J x 17 ET20

Wheels, rear

6J x 15 ET
20

7J x 15 ET
15.5

7J x 16 ET
20

8J x 17 ET
15

8J x 17 ET
15

1 Also applies for the 74 kW roadster.
2 Also applies for the 74 kW roadster
coupé.

11
8   Reference

Technical data

Snow chains*

Only original smart accessory snow
chains (part no. 001 4816 V001) are
approved for use on the smart.
Snow chains are only permitted on tyre
size 185/55 R15.
Only fit snow chains on the rear tyres of
your vehicle.

>Notes on the use of non
original smart
snow chains
If other
make snow chains are used:

 the vehicle operating approval status

is rendered null and void,

 the car could sustain damage,

 handling can be greatly impaired.

Accident risk!
When fitting or removing snow

chains, always park your car on a level
surface and switch the engine off. The
vehicle could otherwise slide and
injure yourself or other road users.

Accident risk!
When fitting and removing snow

chains, ensure that you and your
vehicle are at a safe distance from
moving traffic. Not doing so could
endanger other road users or even lead
to you being injured by the vehicles
behind you.

Accident risk!
The car's handling changes when

driving with snow chains on any kind of
road surface. Always adapt your driving
style and speed to the weather, road and
traffic conditions, to reduce the risk
of accidents.

Accident risk!
Do not forget to retighten the

snow chains. Otherwise they may work
their way loose from the tyres.

Accident risk!
Only use original smart snow

chains. Otherwise there is an accident
risk!
