Smart roadster and smart roadster coupe. Manual - part 12

Routines  9
3

Refuelling

Refuelling properly



쮿

Switch both the engine and ignition
off.

쮿

Open the fuel filler flap.
> The fuel filler flap is located on the

right
hand side of the car and is
locked and unlocked via the central
locking system.

쮿

Turn the filler cap anticlockwise.

쮿

You should fill up with fuel until the
nozzle cuts out.

쮿

Turn the filler cap clockwise until it
is tight and the handle grip overturns.

쮿

Close the fuel filler flap.

>Note!
If you wish to fill the fuel tank to its
maximum level,

 wait for a period of 30 seconds after

the first switch off,

 then start filling the tank with the fuel

pump nozzle again until it switches
off.

Tank fluid capacity

 Fuel tank capacity approx. 35 ltrs.,

 including a reserve of approx. 5 ltrs.

Danger of injury!
Petrol is highly inflammable.

Fire, naked flames and smoking are
therefore prohibited when handling
petrol.
Avoid allowing petrol to come into
contact with your skin or clothes. You
will damage your health if

 your skin comes directly into contact

with petrol.

 you inhale petrol vapours.

Danger of poisoning!
Keep children away from fuel. If

any fuel is swallowed, consult a doctor
immediately.

Environment!
Never allow fuel to spill over.

Never overfill the fuel tank.
Fuel that has spilled over onto the
ground pollutes the environment.

9
4   Routines

Engine oil level

Engine oil level



>Note!
Check the engine oil level at regular
intervals when the engine is warm.

쮿

Park the car on a level surface.

쮿

Switch both the engine and ignition
off.

쮿

Apply the handbrake.

>Important!

 Observe the scheduled service

intervals. Failure to do so may destroy
your engine.

 Observe the information in the service

interval display.

 An oil level above the MAX mark may

result in engine or catalytic converter
damage. Oil quantities above the MAX
mark have to be siphoned off.

 An oil level below the MIN mark may

result in your engine being damaged.

Danger of poisoning!
Keep oil away from children. If

oil has been swallowed, consult a
doctor immediately.

Routines  9
5

Engine oil level

Checking engine oil level

쮿

Wait a few minutes until the oil has
settled.

쮿

Open the rear luggage compartment.

쮿

Fold the carpet back (A).

쮿

Remove the fastening screw (B) for the
engine compartment cover in the
anticlockwise direction.

쮿

Remove the engine compartment cover
(C).

쮿

Pull the dipstick out and wipe it with a
clean cloth.

쮿

Reinsert the dipstick.

쮿

Wait for at least one minute.

쮿

Pull the dipstick out again.
> The oil level must lie between the

markings MIN and MAX on both sides
of the dipstick.

쮿

Reinsert the dipstick.

9
6   Routines

Engine oil level

If your car has too little engine oil

You must top up the engine oil!

쮿

Unscrew the cap.

쮿

Use a funnel to top the engine oil up.

쮿

When the MIN oil level is reached, top
up with no more than 0.5 litres.

쮿

Wait 1 minute until the oil has run into
the oil pan.

쮿

Check the engine oil level again.

쮿

Screw the cap on tightly in the
clockwise direction.

쮿

Slide the engine compartment covers
forward into the tabs provided, place
to the side and retighten the fastening
screw.

쮿

Return the carpet to its position.

쮿

Close the rear luggage compartment.

>Note!
The engine oil level should only be
checked when the engine is still warm.

Fire hazard!
When topping up the engine oil,

take care to ensure that no oil is spilt
on any hot parts such as the exhaust
system or catalytic converter.
If this should however happen, the
engine must be thoroughly cleaned off
before you continue your journey. The
oil could otherwise ignite.

Routines  9
7

Engine oil level

Choosing the right type of oil
Use only oils approved by smart gmbh
(acc. to MB sheet 229.5). The MB sheet
number is marked on the oil containers. A
list of the approved engine oils can be
obtained from any smart center or
smart service.

>Important!
Do not use special additives. They may
lead to increased wear or engine damage.
A qualified specialist workshop such as a
smart center will be able to provide
further details.

Engine oil viscosity
The SAE class (viscosity) has to be chosen
in accordance with the average outside
air temperature for each current season.
Exact adherence to the SAE classes
according to the outside temperatures
would, however, necessitate frequent oil
changes. The temperature limits for the
SAE classes therefore should be viewed as
guidelines which can be temporarily
exceeded or undercut.

Environment!
One drop of oil will contaminate

1,000 litres of water.
Take care not to spill oil when topping
up. Spilled oil could seep into the
groundwater and cause considerable
damage to the environment.

9
8   Routines

Checking fluids

Checking fluids

Location of the fluid reservoirs

 Coolant:

Beneath the rear luggage compartment
in the engine compartment.

 Brake  fluid:

In the front luggage compartment,
beneath the storage tray.

 Windscreen washer fluid:

In the front luggage compartment on
the left.

Check the fill levels at regular intervals.

Before checking the fluid levels

쮿

Park the car on a level surface.

쮿

Switch both the engine and ignition
off.

쮿

Apply the handbrake.

Coolant level, checking

It is necessary to check the coolant level
to ensure that the engine does not
overheat.

>Important!
The cooling system is maintenance free
under normal operating conditions. A
drop in the coolant level indicates
leakage.

If the coolant level has fallen

쮿

top up the coolant.

쮿

Have the reason for the loss of coolant
investigated by a qualified specialist
workshop, e.g. a smart center.

Danger of injury!
The cooling system is

pressurised. Allow the engine to cool
down again before unscrewing the cap.
Allow it to cool down for at least
30 minutes. You could otherwise be
scalded by hot coolant when the cap is
released.

Routines  9
9

Checking fluids

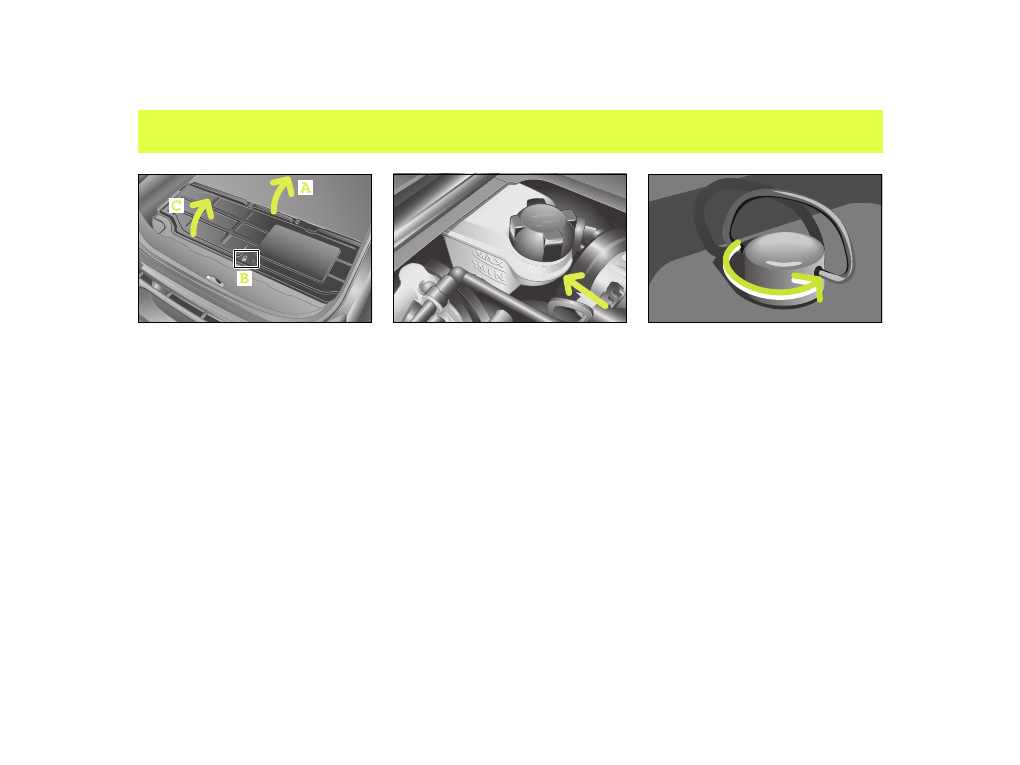

Determining the coolant level

쮿

Open the rear luggage compartment.

쮿

Fold the carpet back (A).

쮿

Remove the fastening screw (B) for the
engine compartment cover.

쮿

Remove the engine compartment cover
(C).

쮿

Check the level in the reservoir by
looking at it side
on.
> The fluid level must lie between the

MIN and MAX marks.

>Note!
Warm coolant expands, which is why it
may extend beyond the maximum filling
level.

Topping up coolant

쮿

Let the radiator cool down for at least
30 minutes.

쮿

Cover the cap for the coolant expansion
reservoir with a cloth before touching
it.

쮿

Turn the cap one complete revolution
in order to allow the excess pressure to
escape.

쮿

Unscrew the cap and remove it.

쮿

You should only top up the coolant as
far as the maximum filling level.

쮿

Replace the cap and tighten when
finished.

9
10   Routines

Checking fluids

Topping up the windscreen washer system
The windscreen washer reservoir has an
approximate capacity of 3 litres. The
headlight washer system* also is supplied
by the windscreen washer reservoir.

쮿

Open the front luggage compartment.

쮿

Pull up the reservoir cap at the tab.
> You can now add washer fluid.

>Note!
In order to clean the windscreen
optimally, use smartcare windscreen
cleanser concentrate for summer or
winter.

Compare with notes for use on packaging.

Fire hazard!
Windscreen wash concentrate is

highly inflammable. When handling the
concentrate, avoid smoking, fire or
naked flames.

Dosage for total filling quantity of 3 litres
depending on the outside temperature

Above 0 °C

10 °C

20 °C

smartcare windscreen cleanser concentrate, summer: water

1:100

smartcare windscreen cleanser concentrate, winter: water

1:2

1:1

Routines  9
11

Checking fluids

Checking the brake fluid

A constant fluid level is necessary to
ensure that the car's brake system
remains in perfect working order.

Checking the brake fluid level

쮿

Open the front luggage compartment.

쮿

Turn the four retaining screws
anticlockwise to remove.

쮿

Remove the storage tray.

쮿

Look down into the reservoir for a
visual check.
> The fluid level must lie between the

MIN and MAX marks.

>Important!
Have the brake fluid topped up only by a
qualified specialist workshop, e.g. in a
smart center.

쮿

If the level is slightly below the MIN
mark, take your car to a qualified
specialist workshop, e.g. a smart
center.

쮿

If the level is significantly below the
MIN mark, call a breakdown recovery
service, e.g. smartmove Assistance or a
qualified specialist workshop, such as a
smart center.

Accident risk!
If the boiling point of the brake

fluid is too low, vapour bubbles could
form in the brake system when the
brakes are subjected to high loads
(e.g. when driving down mountain
passes). This will impair the
effectiveness of the brakes.
Have the brake fluid changed every two
years!

9
12   Routines

Tyre inflation pressure

Tyre inflation pressure

Tyres are a particularly important aspect
of the car's operating safety and
roadworthiness. For this reason, you must
check the tyre inflation pressure, tyre
tread and tyre condition on a regular
basis.

Accident risk!
If the inflation pressure of a tyre

falls repeatedly,

 investigate the tyre for foreign

objects.

 check whether there is a leak at the

rim or valve.

Accident risk!
Insufficient tyre pressure leads

to

 excessive tyre heat build
up,

 increased tyre wear and an increased

risk of causing an accident due to
tyre pressure loss and changes to
driving stability,

 increased fuel consumption.
High tyre pressure leads to

 a longer brake distance,

 poorer traction from all tyres and

 increased, uneven wear.
Tyres that are inflated too high are
moreover more susceptible to damage
and therefore increase the general risk
of accidents.

Accident risk!
Always inflate your car's tyres to

the specified pressures. The
temperature and pressure of the tyres
rise during operation. For this reason,
never reduce the tyre pressure of tyres
while warm. The pressure of the tyres
would then be too low once they had
cooled down. If tyre inflation pressure
is too low, tyres could be damaged,
particularly if the car is carrying a
high load and is travelling at high
speed.
Tyre damage could e.g. result in a tyre
bursting, causing you to lose control
over your car; you or others could be
injured as a result.
You should therefore check the tyre
inflation pressure regularly, but at
least every 14 days.

Routines  9
13

Tyre inflation pressure

Check the tyre inflation pressure before
the start of your journey. There is a table
showing the tyre inflation pressure on
your car's fuel filler flap.

>Note!
Tyre inflation pressures change by about
0.1 bar per 10 °C change in the air
temperature. Always keep the tyre
inflation pressure at the recommended
level.

9
14   Routines

Tyre inflation pressure

Checking the tyre inflation pressure

쮿

Allow the tyres to cool down.

쮿

Unscrew the valve protective cap (A).

쮿

Check the tyre pressure (B).
> The tyre inflation pressure values

are printed on the inside of the
filler cap and in the table below.

쮿

Screw the protective cap back onto the
valve.

>Important!
The protective cap protects the valve
against dirt and leakage.

Tyre inflation pressure

All vehicles

Tyre inflation pressure (summer and winter)

Front wheels, unladen/fully laden (bar)

2.0

Rear wheels, unladen/fully laden (bar)

2.0

Routines  9
15

Wiper blades

Wiper blades

To have a clear view of things,

 wiper blades that are in perfect shape

are absolutely indispensable,

 clean the wiper blades regularly with a

cleaner and

 remove any tough dirt stains with a

sponge or brush.

>Note!
Original wiper blades for your car are
available from a qualified specialist
workshop, e.g. a smart center.

Changing the wiper blades

쮿

Take the keys out of the ignition switch.

쮿

Fold the wiper blade arm up and turn the
wiper blade until it is horizontal.

쮿

Press the retaining spring (A).

쮿

Slide the wiper blade toward the wiper
arm (B).

쮿

Remove the used wiper blade.

쮿

Slide the new wiper blade onto the wiper
blade arm (C).
> The retaining spring must audibly

engage in the wiper arm.

Danger of injury!
Before changing the wiper

blades, remove the key from the
ignition switch. The windscreen
wipers could otherwise be set in motion
and injure you.

9
16   Routines

Adjusting the wiper nozzles

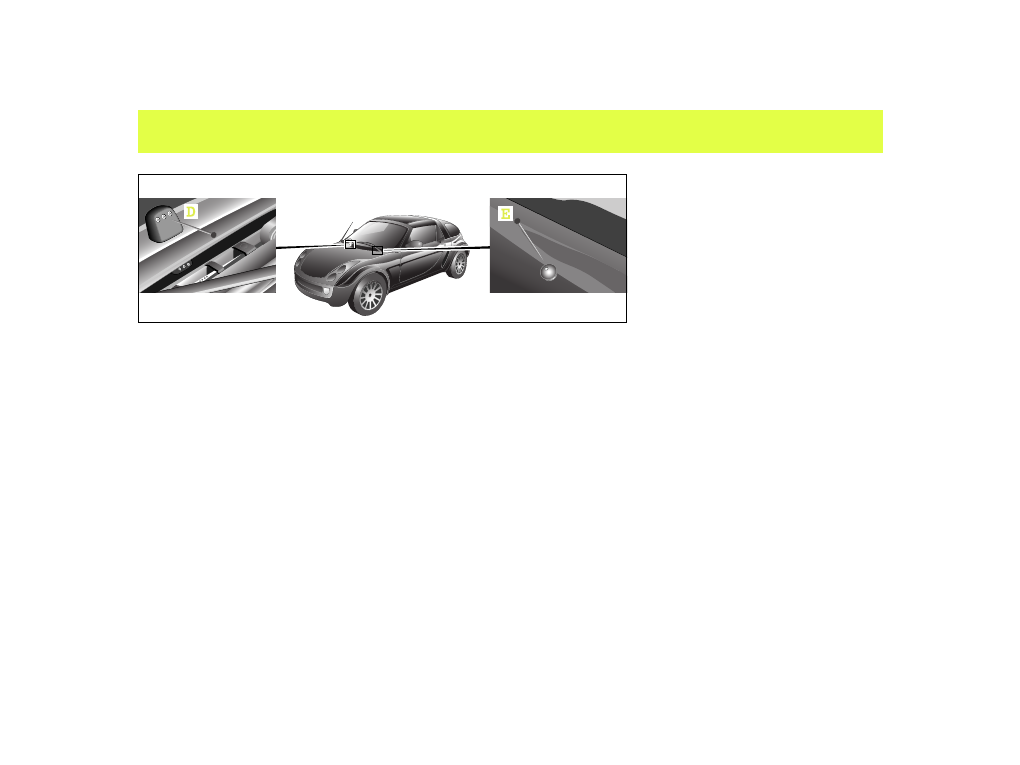

Adjusting the wiper nozzles

The wiper nozzles are positioned below
the windscreen (D and E).

쮿

Use a needle to adjust the spraying
range of the wiper nozzles.

>Note!
The wiper nozzles are correctly adjusted
if the jet of water strikes approximately
the centre of the windscreen.

Routines  9
17

Care notes

Care notes

Regular care will protect your car from
external influences both on the outside
and in the inside and will help it to
retain its value.

>Important!
Please observe the instructions for use
printed on the packaging of the cleaning
agents.

We recommend that you use smartcare
products, as

 they exhibit excellent cleaning

capability and provide an optimum
level of protection,

 the products have been specifically

designed with the smart's materials in
mind and

 all smartcare products are free of dyes

and fragrances.

>Note!
All smartcare products are available
from a qualified specialist workshop,
e.g. a smart center.

The following types of dirt should be
removed immediately:

 Bird droppings

 Tree resins

 Dead insects etc.

>Note!
Failure to remove such dirt immediately
can cause damage to the paint. These
factors are environmental influences
that are not covered by warranty.

9
18   Routines

Care notes

Washing the car

Things you should watch out for before
washing your car!

쮿

Remove caked
on grime such as

 dead insects, bird droppings and

tree resins,

 oils, grease, fuel and tar.

쮿

Do not aim the high
pressure cleaning
jet directly on the vehicle's seals.

Removing insects
Remove insects before you start to wash
the car.

쮿

Use the smartcare insect remover
spray.

쮿

After this, allow the insect remover to
work itself in for a few minutes.

쮿

Rub it in lightly with a damp cloth or
sponge.

쮿

Rinse off thoroughly with a generous
supply of water.

쮿

Apply hard wax to the cleansed surface.

Removing tar
Remove any tar marks before washing the
car.

쮿

Apply the tar remover with a damp
cloth.

쮿

After this, allow the tar remover to
work itself in for a few minutes.

쮿

Rub it in lightly.

쮿

Rinse off thoroughly with a generous
supply of water.

쮿

Apply hard wax to the cleansed surface.
