Skoda Fabia (2019 year). Manual - part 15

No.

Power consumer

37

Radar

38

Not assigned

39

Not assigned

40

Databus

41

Rear window heating

42

Power windows - front passenger

43

Tow hitch

44

Cigarette lighter, 12-volt power socket

45

Power windows - rear right

46

Front and rear window washer, operating lever under the steering

wheel

47

Tow hitch

48

Tow hitch

49

Fuel pump

50

Infotainment

51

Heating of the external mirror

52

KESSY

53

KESSY steering lock

54

Not assigned

55

Not assigned

56

Not assigned

57

Not assigned

58

Not assigned

59

Not assigned

Fuses in the engine compartment

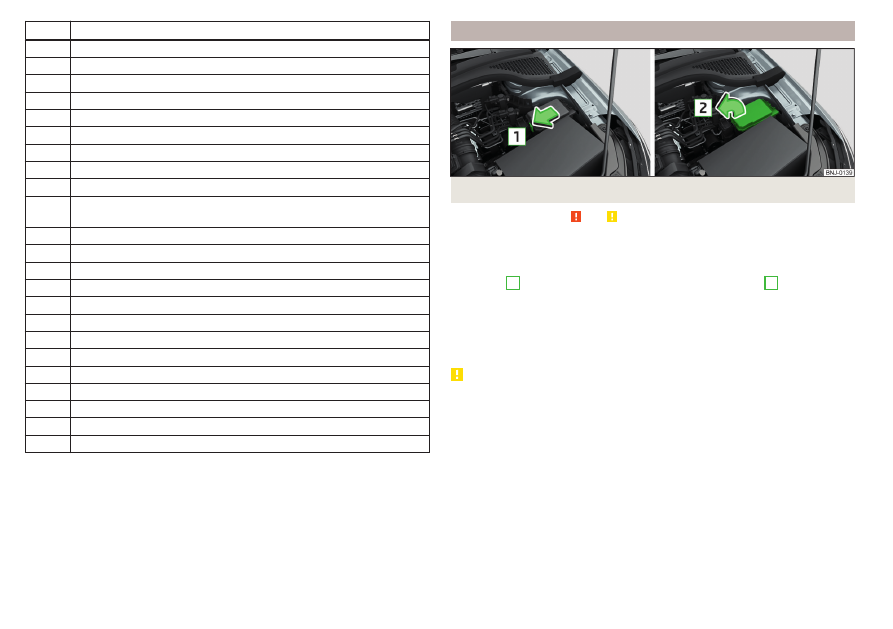

Fig. 283  Remove the cover



Read and observe   and   on page 234 first.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Press together the lock buttons of the cover simultaneously in the direction

of arrow

1

 and remove the cover in the direction of arrow

2



» Fig. 283

.

›

Remove the plastic clip from the holder on the cover of the fuse box in the

dash panel.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Replace the cover, push the lock buttons of the cover together and lock.

›

Replace the clamp in the original position.

CAUTION

The cover of the fuse box in the engine compartment must always be used

correctly, otherwise water may penetrate into the fuse box – there is a danger

of damage to the vehicle!

236

Do-it-yourself

Fuse assignment in engine compartment

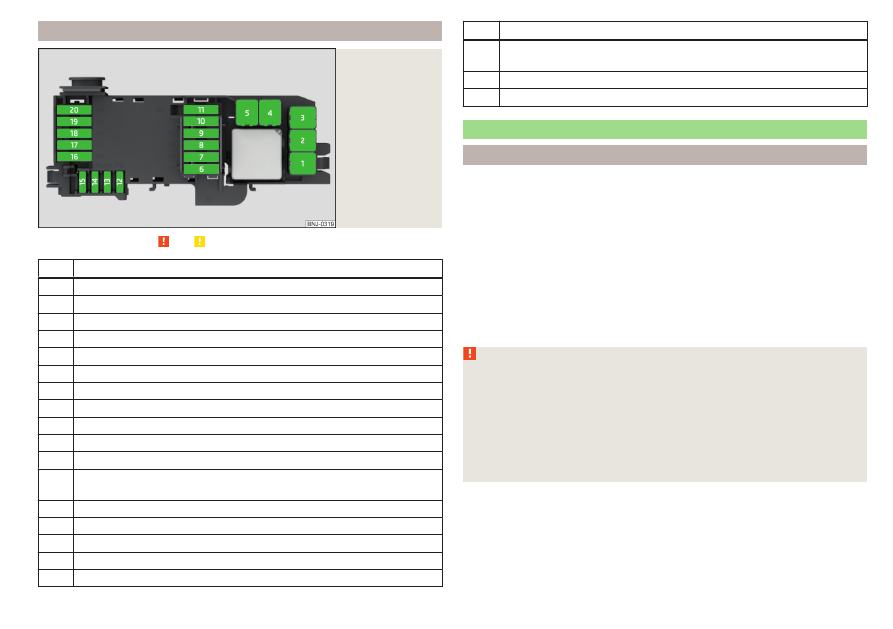

Fig. 284

Fuses



Read and observe   and   on page 234 first.

No.

Power consumer

1

Radiator fan

2

Not assigned

3

ABS or ESC

4

Not assigned

5

Not assigned

6

Automatic gearbox

7

Engine control system

8

Windscreen wipers

9

Battery data module

10

ABS or ESC

11

Vacuum pump for the brake system

12

Injectors, valve for fuel metering, control valve for oil pressure, valve

for exhaust gas recirculation cooler, negative pressure pump

13

Brake pedal switch

14

Fuel pump, coolant pump

15

Engine control system

16

Starter

17

Engine control system

No.

Power consumer

18

Radiator fan, wastegate, oil temperature sensor, valve for activated

charcoal filter, valve for intake manifold

19

Lambda probe

20 Ignition coils

Bulbs



Introduction

This Owner's Manual only describes the replacement of bulbs where it is possi-

ble to replace the bulbs on your own without any complications arising. Other

bulbs or LED lights must be replaced by a specialist garage.
We recommend having bulbs replaced by a specialist garage or seeking other

expert help in the event of any uncertainties.

▶

Switch off the ignition and all of the lights before replacing a bulb.

▶

Faulty bulbs must only be replaced with the same type of bulbs. The designa-

tion is located on the light socket or the glass bulb.

We recommend having the headlight settings checked by a specialist garage

after replacing a bulb in the low, high or fog beam.

WARNING

■

Always read and observe the warnings before completing any work in the

engine compartment

» page 209

.

■

Accidents can be caused if the road in front of the vehicle is not suffi-

ciently illuminated and the vehicle cannot or can only be seen with difficulty

by other road users.

■

H7 and H8 bulbs are pressurised and may burst when changing the bulb -

risk of injury! We therefore recommended wearing gloves and safety

glasses when changing a bulb.



237

Fuses and light bulbs

CAUTION

■

Do not take hold of the glass bulb with naked fingers (even the smallest

amount of dirt reduces the working life of the light bulb). Use a clean cloth,

napkin, or similar.

■

The cap of the filament bulb must always be seated correctly in the head-

light, otherwise this may allow water and debris to enter the headlight - risk of

damage to the headlights.

Note

We recommend that a box of replacement bulbs always be carried in the vehi-

cle.

Bulb arrangement in the front headlights

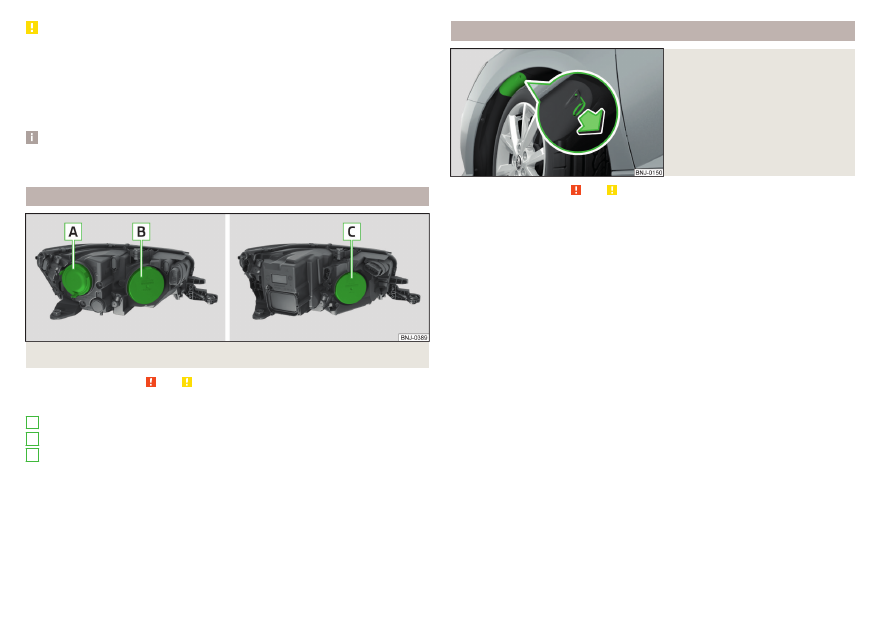

Fig. 285  Left headlight: Halogen / LED



Read and observe   and   on page 237 first.

Bulb arrangement

» Fig. 285

Low beam
High beam and flashing light
Flashing

A
B
C

Cover the front wheel Removing / replacing

Fig. 286

Remove plastic cover



Read and observe   and   on page 237 first.

The cover in the front wheel well must be removed in order to change certain

light bulbs.
Details about removing the cover if needed, are given in the description of

each lamp change.

Removal

›

Set the front wheels so that the respective cover is accessible.

›

Insert the clamp for removing the full wheel covers

» page 222

, Vehicle tool

kitinto the recess in the cover.

›

Remove the cover by pulling the hook in the direction of arrow

» Fig. 286

.

Inserting

›

Insert and push the cover into the corresponding opening.

The cover must engage securely.

238

Do-it-yourself

Remove/replace the mounting for the mopping water container

nozzle

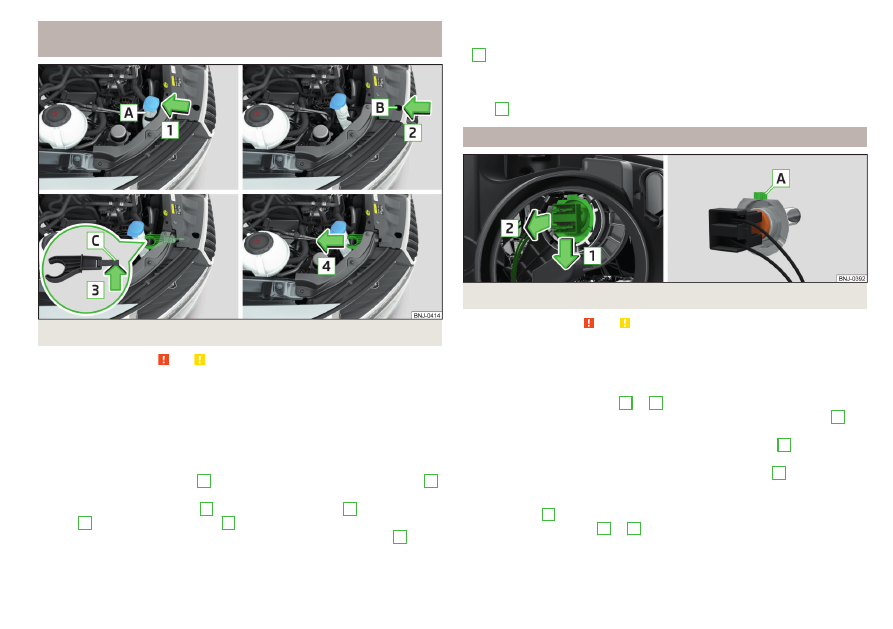

Fig. 287  Remove the mounting for the mopping water container nozzle



Read and observe   and   on page 237 first.

The mounting for the mopping water container nozzle must be removed in or-

der to replace some light bulbs. The holder is located in the engine compart-

ment, front right.
Details about removing the mounting, if needed,are given in each lamp re-

placement description.

Removal

›

Remove the container nozzle

A

 from the holder in the direction of arrow

1

» Fig. 287

.

›

Insert a finger into the recess

B

 in the direction of arrow

2

 and lift the

catch

C

 in the direction of arrow

3

.

›

Remove the holder of the container nozzle in the direction of arrow

4

.

Inserting

›

Slide the holder of the container nozzle in the opposite direction to the arrow

4



» Fig. 287

.

The holder must engage firmly.

›

Push the container nozzle into the holder in the opposite direction to the ar-

row

1

.

Changing bulbs for low and main beam (Halogen headlights)

Fig. 288  Removing bulbs for low and main beam



Read and observe   and   on page 237 first.

›

Before changing the light bulb for dimmed headlights, remove the associ-

ated cover in the front wheel arch

» page 238

.

›

Before changing the light bulb for high beam in the right headlight, first re-

move the bracket of the wash water tank support

» page 239

.

›

Remove the protective caps

A

 or

B

» Fig. 285

 on page 238.

›

Disconnect the connector with the light bulb in the direction of arrow

1

» Fig. 288

.

›

Remove the connector to the bulb in the direction of arrow

2

.

›

Remove the connector.

›

Plug the connector into the new bulb so that the fixing lug

A

 on the bulb

points upwards.

›

Insert the connector, with the bulb, into the headlight opposite to the direc-

tion of arrow

2

 until you feel it lock into place.

›

Use the protective caps

A

 or

B

» Fig. 285

 on page 238.

›

After changing the light bulb for high beam in the right headlight, replace

the bracket of the wash water tank support

» page 239

.



239

Fuses and light bulbs

›

After changing the light bulb for dimmed headlights, replace the cover in the

front wheel arch

» page 238

.

Changing the bulb for the front turn signal light

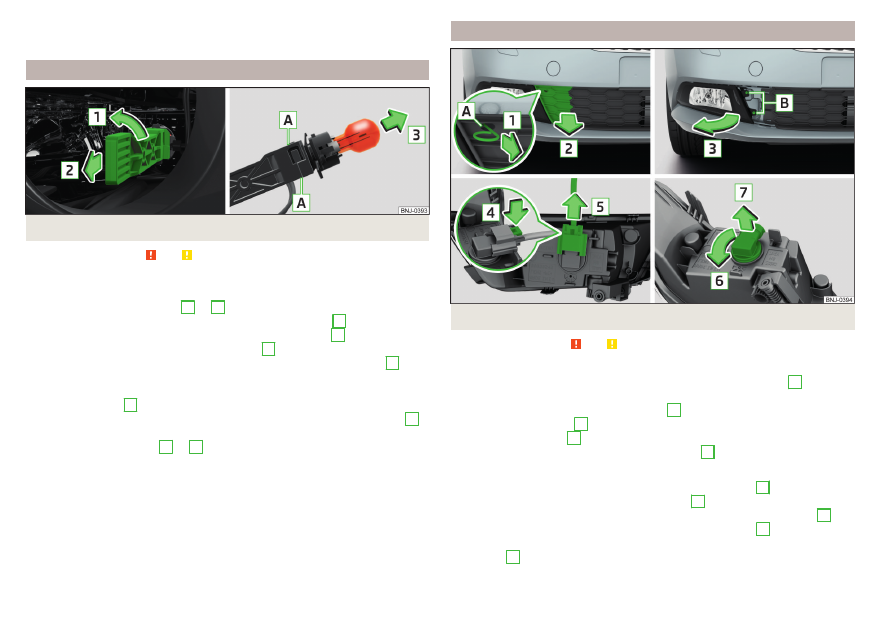

Fig. 289  Changing the bulb for the front turn signal light



Read and observe   and   on page 237 first.

›

Before changing the lamp in the right headlight, first remove water container

nozzle bracket

» page 239

.

›

Remove the protective caps

B

 or

C

» Fig. 285

 on page 238.

›

Turn the holder with the bulb in the direction of the arrow

1



» Fig. 289

.

›

Remove the holder with the bulb in the direction of arrow

2

 .

›

Hold the housing containing the bulb in area

A

.

›

Remove the faulty bulb from the holder in the direction of the arrow

3

.

›

Insert a new bulb in the holder until it stops.

›

Insert the holder with the new bulb into the headlight in the opposite direc-

tion to the arrow

2

.

›

Turn the holder with the new bulb in the opposite direction to the arrow

1

until it stops.

›

Use the protective caps

B

 or

C

» Fig. 285

 on page 238.

›

After changing the bulb in the right headlamp, reuse the bracket for the

wash water container nozzle

» page 239

.

Changing light bulbs for fog lights

Fig. 290  Removing the number plate light / replacing the bulb



Read and observe   and   on page 237 first.

Remove the protective grille and headlight

›

Insert the clamps for removing the full wheel trims into opening

A

» Fig. 290

.

›

By pulling the hook in direction of arrow

1

, remove the protective grille in

the direction of arrow

2

.

›

Unscrew the screws

B

 using the screwdriver from the tool kit.

›

Remove the headlight in the direction of arrow

3

.

Replacing the light bulb

›

Press the latch on the connector in the direction of arrow

4

.

›

Remove the key in the direction of the arrow

5

.

›

Turn the holder with the bulb to the stop in the direction of the arrow

6

.

›

Remove the holder with the bulb in the direction of arrow

7

 .

›

Insert a new holder with the bulb in the headlamp and turn it in the direction

of arrow

6

 as far as the stop.

›

Attach the connector.



240

Do-it-yourself

Refit the headlight and grille

›

Replace the fog light by inserting it in the opposite direction of the arrow

3

» Fig. 290

 and tighten.

›

Insert the guard and push it gently until it locks into place.

Removing/installing tail light

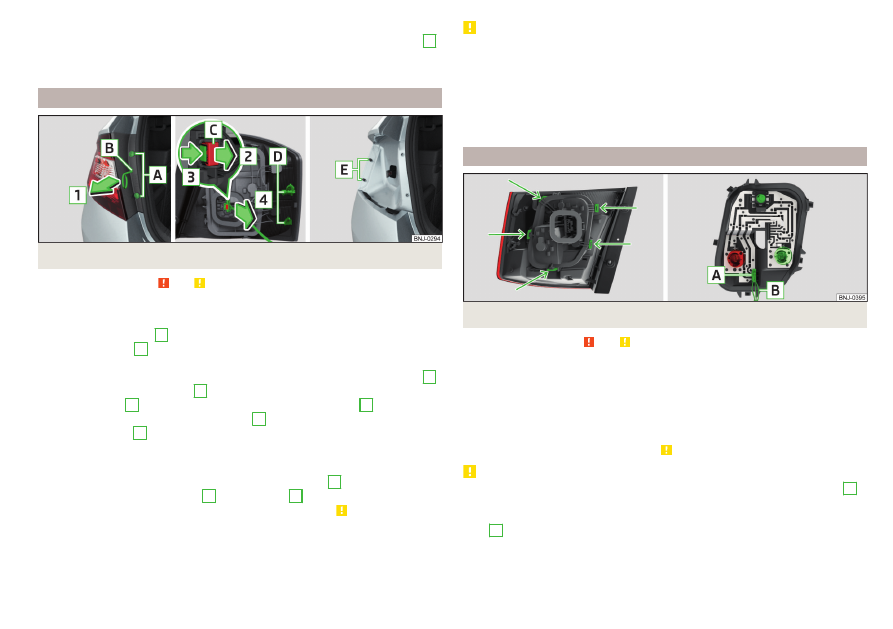

Fig. 291  Remove light / pull out connector



Read and observe   and   on page 237 first.

Removing

›

Open the tailgate.

›

Unscrew the screws

A



» Fig. 291

 with the screwdriver from the tool kit.

›

Into the opening

B

 insert the clamps for removing the full wheel trims, di-

rected with the eyelet downward (in the right light with the eyelet upward).

›

Grasp the light with the palm of your hand and remove carefully from pin

D

in the direction of the arrow

1

.

›

Press the latch

C

 on the holder in the direction of the arrow

2

.

›

Press the latch in the direction of arrow

3

 and pull out the holder in the di-

rection of arrow

4

.

Fitting

›

Insert the bulb holder into the lamp.

›

Tighten the lock in the opposite direction to the arrow

2



» Fig. 291

.

›

Insert the lamp with the holes

D

 onto the pins

E

 in the body.

›

Carefully press the light into the pins on the bodywork

»

.

›

Screw the light into place.

›

Shut the boot lid.

CAUTION

■

Ensure that the cable bundle does not become stuck between the body and

the lamp when it is being refitted – or there is a risk of damage to the electrical

installation and risk of water ingress.

■

If you are not sure whether the wiring harness has become pinched, we rec-

ommend that you have the light connection checked by a specialist garage.

■

Ensure that the vehicle paintwork and the tail lamp are not damaged when

removing and installing the tail lamp.

Replacing bulbs in the rear lamp - Option 1 (with LED lamps)

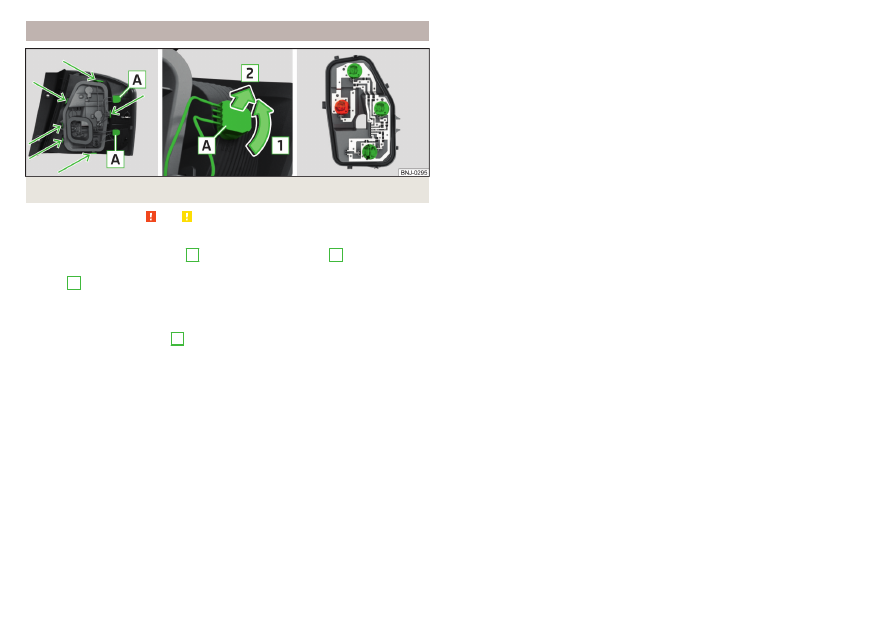

Fig. 292  Outer part of the lamp/holder with bulbs



Read and observe   and   on page 237 first.

›

Unlock the bulb holder at the areas marked with arrows

» Fig. 292

 and re-

move from the light.

›

Turn the respective light bulb counter-clockwise to the stop and remove it

from the bulb holder.

›

Insert a new bulb into the holder and turn in a clockwise direction to the

stop.

›

Insert the bulb holder into the light

»

. The holder must engage securely.

CAUTION

■

Before inserting the bulb holder into the light , check that the connector

A

» Fig. 292

 is fitted correctly between the light and the bulb holder.

■

Make sure that when refitting the bulb holder into the light, the wiring har-

ness

B

 is not pinched - otherwise there is a risk of damage to the electrical

installation.

241

Fuses and light bulbs

Replacing the bulbs in the tail lamp assembly - Variant 2

Fig. 293  Outer part of the lamp / removing the bulb / lamp holder



Read and observe   and   on page 237 first.

Outer part of the lamp

›

Turn the holder with the bulb

A

 in the direction of arrow

1



» Fig. 293

.

›

Remove the socket with the bulb from the lamp housing in the direction of

arrow

2

.

›

Jiggle the bulb to remove.

›

Insert a new bulb into the socket.

›

Reinsert the holder with the bulb into the lamp housing and turn in the oppo-

site direction of the arrow

1

 to the stop.

Inner part of the light

›

Unlock the bulb holder at the areas marked with arrows

» Fig. 293

 and re-

move the bulb holder from the light.

›

Turn the respective light bulb counter-clockwise to the stop and remove it

from the bulb holder.

›

Insert a new bulb into the holder and turn in a clockwise direction to the

stop.

›

Insert the bulb holder in the light. The holder must engage securely.

242

Do-it-yourself

Technical data

Technical data

Basic vehicle data



Introduction

The details given in the vehicle's technical documentation always take prece-

dence over the details in the Owner's Manual.
The performance values listed were determined without performance-reduc-

ing equipment, e.g. air conditioning system.
The specified values have been determined in accordance with rules and under

conditions set out by legal or technical requirements for determining opera-

tional and technical data for motor vehicles.
The listed values are for the basic model without optional equipment.

Vehicle data

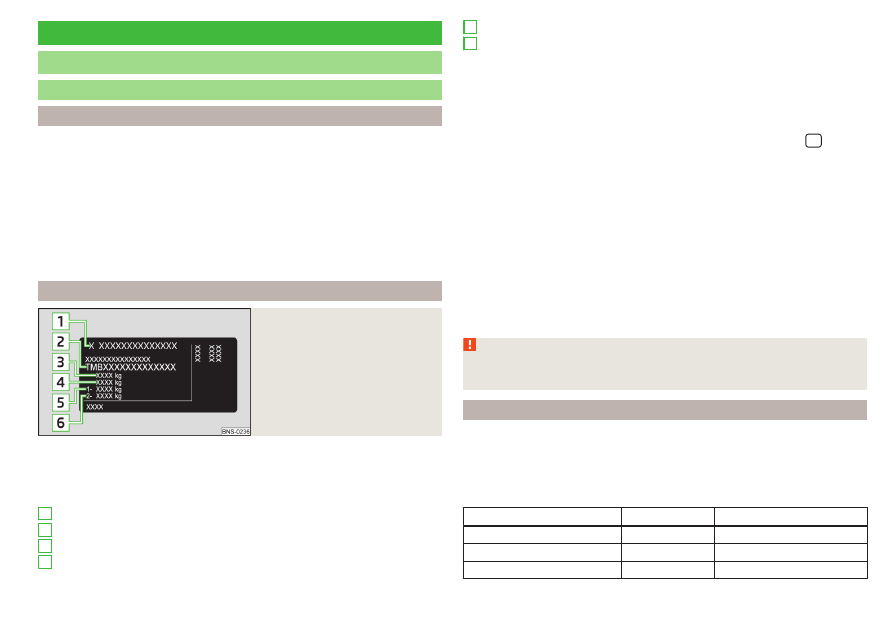

Fig. 294

Type plate

Type plate

The type plate

» Fig. 294

 is located at the bottom of the B-pillar on the right-

hand driver's side.
The type plate contains the following data.

Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)

1

2
3
4

Maximum permissible front axle load
Maximum permissible rear axle load

Vehicle identification number (VIN)

The vehicle identification number - VIN (vehicle body number) is stamped on

the right hand suspension strut dome in the engine compartment. This number

is also located on a sign on the lower left hand edge below the windscreen (to-

gether with a VIN bar code), together with a nameplate.
In Infotainment, the VIN number can also be displayed in the menu



 →  →

Service.

Engine number

The engine number is embossed in the engine block.

Maximum permissible trailer weight

The listed maximum permissible trailer weight is only valid for altitudes up to

1000 m above sea level.
The engine output falls as altitude increases, as does the ability to climb.

Therefore, for every additional 1,000 m in height (or part), the maximum per-

missible towed weight must be reduced by 10 %.
The towed weight comprises the actual weights of the (loaded) towing vehicle

and the (loaded) trailer.

WARNING

Do not exceed the specified maximum permissible weights – risk of an ac-

cident and damage.

Operating weight

This value is only a guide value and corresponds to the lowest possible operat-

ing weight without further weight-reducing equipment (e.g. spare wheel etc.).

This includes 75 kg driver's weight, the weight of the operating fluids and the

on-board tool kit and a fuel tank filled to min. 90%.

Operating weight - Fabia

Engine

Gearbox

Operating weight (kg)

1.0 l/44 kW MPI

MG

1086

1.0 l/55 kW MPI

MG

1086

1.0 l/70 kW TSI

MG

1121



5
6

243

Technical data

Engine

Gearbox

Operating weight (kg)

1.0 l/81 kW TSI

MG

1132

DSG

1165

1.6 l/66 kW MPI

MG

1105

1.6 l/81 kW MPI

AG

1142

Operating weight - Fabia Combi

Engine

Gearbox

Operating weight (kg)

1.0 l/55 kW MPI

MG

1106

1.0 l/70 kW TSI

MG

1141

1.0 l/81 kW TSI

MG

1152

DSG

1185

1.6 l/66 kW MPI

MG

1125

1.6 l/81 kW MPI

AG

1162

Note

If required, you can find out the precise weight of your vehicle by contacting a

specialist garage.

Payload

It is possible to calculate the approximate loading capacity from the difference

between the permissible total weight and the operating weight.
The payload consists of the following weights.

▶

The weight of the passengers.

▶

The weight of all items of luggage and other loads.

▶

The weight of the roof, including the roof rack system.

▶

The weight of the equipment that is excluded from the operating weight.

▶

Trailer bearing load for trailer towing

» page 195

.

measurement of fuel consumption and CO

2

 emissions according to

ECE Regulations and EU Directives

The data on fuel consumption and CO

2

 emissions were not available at the

time of going to press.

The valid specifications for your vehicle can be found in the technical vehicle

documentation (e.g. vehicle approval documentation, the COC document) or

at a ŠKODA partner.

Note

■

The emission and fuel consumption values have been determined in accord-

ance with rules and under conditions set out by legal or technical requirements

for determining operational and technical data for motor vehicles.

■

Depending on the range of equipment, style of driving, traffic situation,

weather influences and vehicle condition, consumption values may deviate

from the indicated values.

244

Technical data

Dimensions

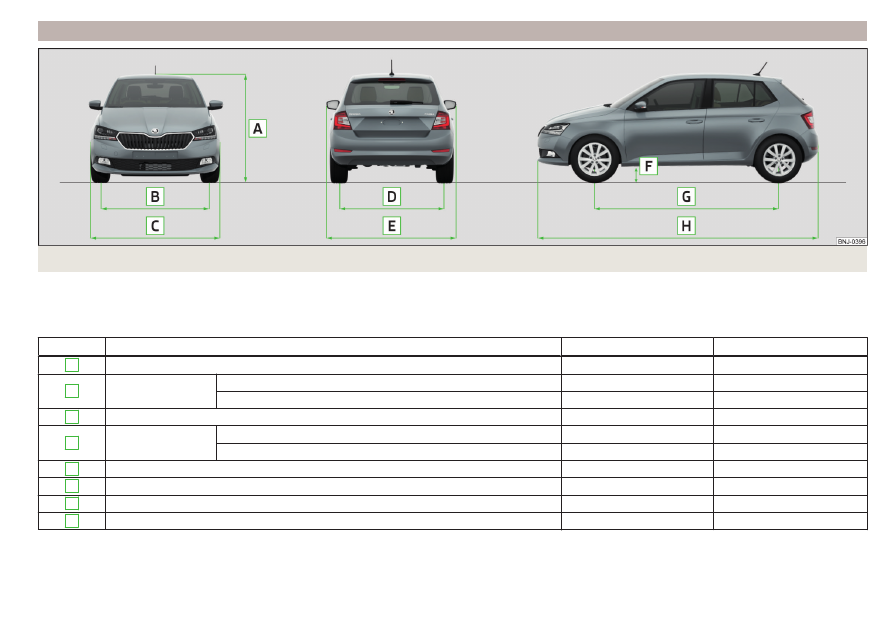

Fig. 295  Vehicle dimensions

The vehicle dimensions given in the vehicle's technical documentation always take precedence over the details in the Owner's Manual.
The dimensions listed below are for the basic model without any optional equipment.

Vehicle dimensions by operating weight without driver (in mm)

» Fig. 295

Specification

Fabia

Fabia Combi

A

Height

1467

1467

B

Front track

Basic dimension

1463

1463

Vehicles with 1.0 l/81 kW TSI engine

1457

1457

C

Width

1732

1732

D

Rear track

Basic dimension

1457

1457

Vehicles with 1.0 l/81 kW TSI engine

1451

1451

E

Width including exterior mirrors

1958

1958

F

Clearance

133

135

G

Wheelbase

2470

2470

H

Length

3997

4262

245

Technical data

Departure angle

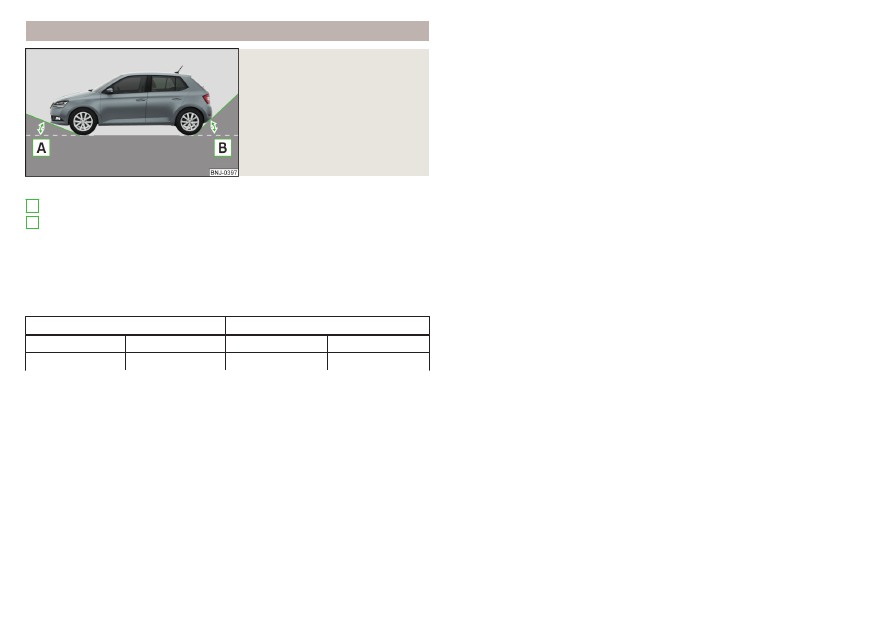

Fig. 296

Overhang angle

Angle

» Fig. 296

Overhang angle, front
Overhang angle, rear

The overhang angle values indicate the maximum incline of a slope, up which

the vehicle can drive at a slow speed without the bumper or underbody mak-

ing contact with the slope. The values listed correspond to the maximum axle

load, front or back.

Overhang angle (°)

Overhang angle, front

Overhang angle, rear

Fabia

Fabia Combi

Fabia

Fabia Combi

14.4

14.4

17.4

12.7

A
B

246

Technical data

Vehicle-specific details per engine type



Introduction

The specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational

and technical data for motor vehicles.
The exhaust gas standard is specified in the vehicle's technical documentation, as well as in the declaration of conformity (in so-called COC document). The

declaration of conformity (the so-called. COC document) can be obtained from a ŠKODA Partner (only valid for some countries and some models).

1.0 l/44 kW MPI engine

Output (kW at 1/min)

44/5000-6000

Maximum torque (Nm at rpm)

95/3000-4300

Number of cylinders/displacement (cm

3

)

3- 999

Body

Fabia

Gearbox

MG

Top speed (km/h)

with the mentioned gear engaged

157

(5)

Acceleration 0-100 km/h (s)

16.6

1.0 l/55 kW MPI engine

Output (kW at 1/min)

55- 6200

Maximum torque (Nm at rpm)

95/3000-4300

Number of cylinders/displacement (cm

3

)

3- 999

Body

Fabia

Fabia Combi

Transmission

MG

MG

Top speed (km/h)

with the mentioned gear engaged

168

(5)

169

(5)

Acceleration 0-100 km/h (s)

14.9

15.2

247

Technical data

1.0 ltr./70 kW TSI engine

Output (kW at 1/min)

70/5000-5500

Maximum torque (Nm at rpm)

160/1500-3500

Number of cylinders/displacement (cm

3

)

3- 999

Body

Fabia

Fabia Combi

Transmission

MG

MG

Top speed (km/h)

with the mentioned gear engaged

184

(4)

185

(4)

Acceleration 0-100 km/h (s)

10.8

10.9

1.0 ltr./81 kW TSI engine

Output (kW at 1/min)

81/5000-5500

Maximum torque (Nm at rpm)

200/2000-3500

Number of cylinders/displacement (cm

3

)

3- 999

Body

Fabia

Fabia Combi

Gearbox

MG

DSG

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

195

(5)

194

(6)

196

(5)

195

(6)

Acceleration 0-100 km/h (s)

9.6

10.1

9.7

10.2

1.6 l/66 kW MPI engine

Output (kW at 1/min)

66/4250-6000

Maximum torque (Nm at rpm)

155/3800-4000

Number of cylinders/displacement (cm

3

)

4- 1598

Body

Fabia

Fabia Combi

Transmission

MG

MG

Top speed (km/h)

with the mentioned gear engaged

180

(5)

182

(5)

Acceleration 0-100 km/h (s)

10.8

10.9

248

Technical data

1.6 l/81 kW MPI engine

Output (kW at 1/min)

81- 5800

Maximum torque (Nm at rpm)

155/3800-4000

Number of cylinders/displacement (cm

3

)

4- 1598

Body

Fabia

Fabia Combi

Transmission

AG

AG

Top speed (km/h)

with the mentioned gear engaged

188

(5)

190

(5)

Acceleration 0-100 km/h (s)

11.1

11.3

249

Technical data
