WARNING

If the tilt / slide sunroof is closed, by pulling on the recess of the switch in
the direction of arrow

2

,

» Fig. 40

 on page 56 and the closing process is

hindered by an obstacle, then at the third attempt at closing, the force limi-
tation will cease to function (if less than 5 s passes between the individual
attempts to close). The tilt / slide sunroof closes with full force - There is a
risk of injury.

Convenience operation of sliding / tilting roof

Read and observe   and   on page 56 first.

The convenience operation makes it possible to open or close the sliding/tilt-
ing roof using the key or the KESSY system via the sensor in the door handle of
the front door.

›

To open out, press and hold the  button on the key.

›

Or Hold the key in the unlock position in the driver's door lock.

›

To close, press and hold the  button on the key. In the KESSY system, hold
your finger on the sensor on the outside of the front door handle

» Fig. 31

 on

page 49.

›

Or Hold the key in the lock position in the driver's door lock.

By interrupting the locking process, the closing operation is interrupted.

Activate operation of the tilt / slide sunroof

Read and observe   and   on page 56 first.

If the tilt / slide sunroof stops working (e.g. after disconnecting and connecting
the battery), then the operation must be reactivated.

›

Turn on the ignition and set the switch to position 

» Fig. 40

 on page 56.

›

Press the switch on the recess E down and pull forwards.

The tilt / slide sunroof opens and closes again after around 10 seconds.

›

Release the lever.





Sunshade with electric operation

Fig. 41
Button for operating the sun-
shade

Read and observe   and   on page 56 first.

Operation of the sunblind

» Fig. 41

Open - by pressing (press again - sunshade stops moving)
Close - by pressing (press again - sunshade stops moving)

The sunshade can also be operated by pressing and holding the appropriate
button (starts movement of the sunshade) and releasing it when the sunshade
reaches the desired position.

Activating operation of the sunshade

Read and observe   and   on page 56 first.

If the operation of sunshade is deactivated (e.g. after disconnecting and con-
necting the battery), then the operation will have to be activated.

›

Turn on the ignition and set the switch to position 

» Fig. 41

 on page 57.

›

Press the button  and hold down.

The sunshade opens and closes again after around 10 seconds.

›

Release the button.









57

Unlocking and opening

Lights and visibility

Lights



Introduction

This chapter contains information on the following subjects:
Operating the lights

58

Daylight running lights (DAY LIGHT)

59

Turn signal and main beam

59

Automatic driving light control

60

Xenon headlight

60

Fog lights/rear fog light

60

Fog lights with the CORNER function

61

COMING HOME / LEAVING HOME

61

Hazard warning light system

61

Parking lights

61

Driving abroad

62

Unless otherwise stated, the lights only work when the ignition is switched on.
The layout of the controls on right-hand drive vehicles differs partially from
that shown in this layout

» Fig. 42

 on page 58.

WARNING

The automatic driving lamp control  only operates as a support and
does not release the driver from his responsibility to check the lights and, if
necessary, to switch on the light depending on the prevailing light condi-
tions.

Note

The headlights may mist up temporarily. When the light is on, the light-emit-
ting surface demists after a short time.

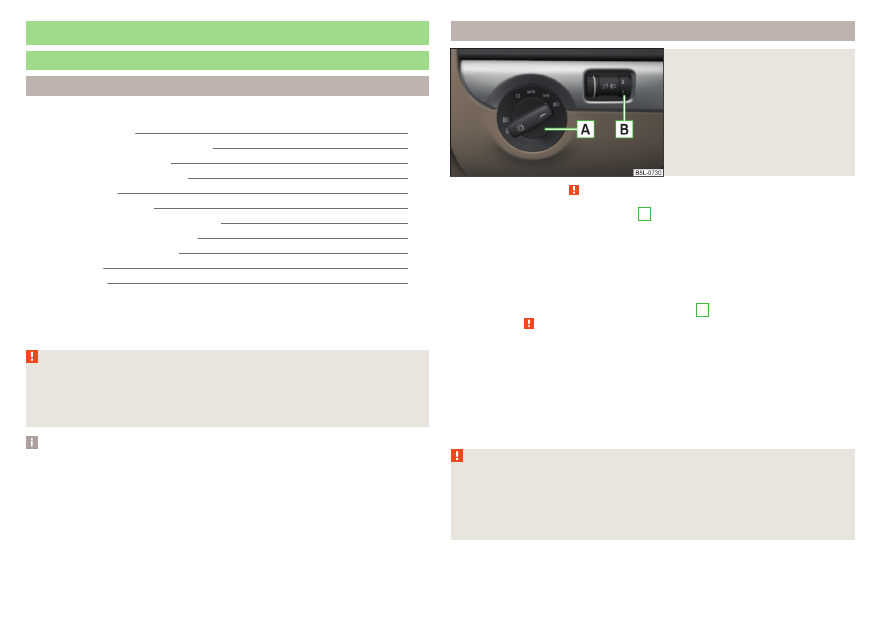

Operating the lights

Fig. 42
Light switch and control dial for
the headlight beam range regu-
lation

Read and observe   on page 58 first.

To switch on/off the lights, turn the

A



» Fig. 42

 switch to one of the following

positions (equipment-dependent).

Switching off lights (except daytime running lights)

Switching lights on/off automatically

» page 60

Switching on the parking lights or parking lights on both sides

» page 61

Switching on the low beam

To adjust the headlight range control, turn dial

B



» Fig. 42

 in line with the

vehicle load

»

.

Front seats occupied, boot empty
All seats occupied, boot empty
All seats occupied, boot loaded
Driver seat occupied, boot loaded

The Xenon headlights feature no manual headlight range control. After
switching on the ignition, adjust these automatically to the load and driving
condition of the vehicle.

WARNING

Always adjust the headlight beam to meet the following conditions - other-
wise there is a risk of an accident.

■

The vehicle does not dazzle other road users, especially oncoming vehi-

cles.

■

The beam range is sufficient for safe driving.





















58

Using the system

Note

■

If, with a low beam, the ignition is turned off, then the dipped beam will au-

tomatically switch off

1)

 and the parking lights illuminate. The parking lights are

switched off when the ignition key is removed (for vehicles with the KESSY
system, after opening the driver's door).

■

If there is a fault in the light switch, the low beam comes on automatically.

Daylight running lights (DAY LIGHT)

Read and observe   on page 58 first.

The daytime running light (hereinafter referred to as "function") lights the
front and rear vehicle area (only valid for some countries).
The daytime running lights are switched on automatically if the following
conditions are met.

The light switch is in the position  or .
The ignition is switched on.
The function is activated.

Function for vehicles with MAXI DOT display disable / enable
The function menu item Daytime driving light can be deactivated / activated

» page 43

, Menu item Settings.

Disable function for vehicles with segment display

›

Pull the indicator / main beam lever towards the steering wheel, push down
and hold in this position.

›

Switch on the ignition and hold the lever in the above position until you hear
a signal (about 3 s).

Enable function for vehicles with segment display

›

Pull the indicator / main beam lever towards the steering wheel, push up and
hold in this position.

›

Switch on the ignition and hold the lever in the above position until you hear
a signal (about 3 s).

WARNING

Always switch on the low beam when visibility is poor.









Turn signal and main beam

Fig. 43

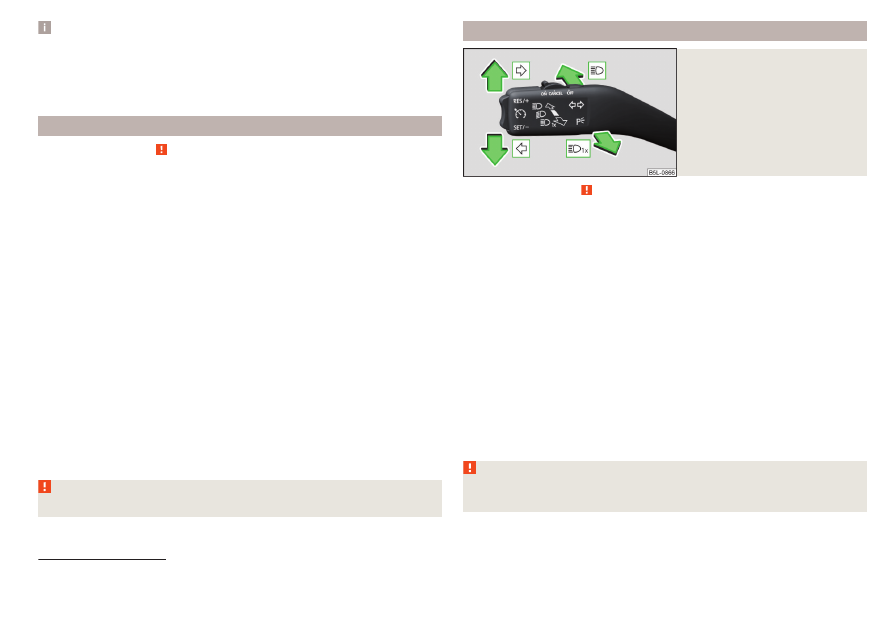

Operating lever: Turn signal and
main beam operation

Read and observe   on page 58 first.

Control stalk positions

» Fig. 43

Switch on right turn signal
Switch on left turn signal
Switch on main beam (spring-tensioned position)

Switching off main beam / switching on headlamp flasher (spring-loaded

position)

The main beam can only be switched on when the low beam lights are on.
The headlight flasher can be operated even if the ignition is switched off.
The turn signal switches off automatically, depending on the steering angle
after completing the turn.

Comfort signalling
When the operating lever is pressed lightly up or down, the indicator in ques-
tion flashes three times.
Comfort signalling can be activated / deactivated via the Maxi DOT display in
the Comfort Signalling

» page 43

, Menu item Settings menu item.

WARNING

Only turn on the main beam or the headlight flasher if other road users will
not be dazzled.











1)

Does not apply to the position , as long as the conditions are met for the COMING HOME function

» page 61

.

59

Lights and visibility

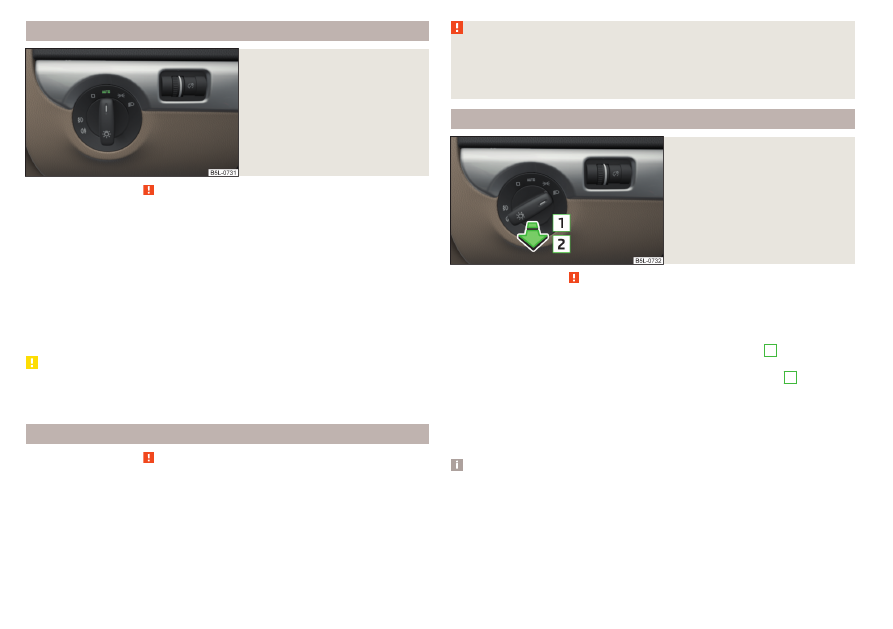

Automatic driving light control

Fig. 44
Light switch: AUTO position

Read and observe   on page 58 first.

The light switch is in position 

» Fig. 44

 then depending on the equipment

the automatic switch on / off the lights corresponding to the light or weather
conditions (rain) takes place.

Automatic driving light control during rain
The daytime running lights are switched on automatically if the following con-
ditions are met:

The light switch is in the position .
The windscreen wipers are on for more than 15 s.

The light turns off automatically about 4 minutes after turning off the wipers.

CAUTION

Poorer visibility is evaluated by a sensor mounted below the windscreen in the
holder of the rear-view mirror. Do not cover the sensor - the system function
can be disrupted.

Xenon headlight

Read and observe   on page 58 first.

The Xenon headlights (hereinafter referred to as just system) use the driving
data to automatically ensure the for the best possible light cone in front of the
vehicle.
The system automatically operates in the following modes: urban, extra urban,
motorway, rain, adjusting the lighting direction of the headlights on the road
illumination on bends.
The system works as long as the light switch is in position .









WARNING

If there is a system malfunction the headlights are automatically lowered
to the emergency position, which prevents a possible dazzling of oncoming
traffic. This reduces the cone of light in front of the vehicle. Seek help from
a specialist garage.

Fog lights/rear fog light

Fig. 45
Light switch: Switch on fog
lights / rear fog light

Read and observe   on page 58 first.

Switching on the fog lights / rear fog lights is possible if the following condi-
tions apply.

The light switch is in the position  or 

» Fig. 45

.

›

To switch on the fog lights, pull the light switch in position

1

; the warning

light



 illuminates in the instrument cluster.

›

To switch on the rear fog light, pull the light switch to position

2

, the indi-

cator light



 will light up in the instrument cluster.

If the vehicle is not fitted with fog lights, the rear fog light is switched on by
pulling out the light switch to the only possible setting.
The fog lights/rear fog light are switched off in the reverse order.

Note

While driving with an accessory connected to the trailer socket (e.g. trailer,
bike carrier) only the equipment is illuminated by the fog light. The towing de-
vice must be installed at the factory or from the ŠKODA original accessories.





60

Using the system

Fog lights with the CORNER function

Read and observe   on page 58 first.

The CORNER function automatically switches on the fog lights on the respec-
tive side of the vehicle (e.g. when cornering), if the following conditions are ful-
filled.

The turn signal is switched on or the front wheels are turned sharply

1)

.

The vehicle speed is below 40 km/h.
The low beam is switched on.
The fog lights are not switched on.

The two fog lights are switched on when you shift into the reverse gear.

COMING HOME / LEAVING HOME

Read and observe   on page 58 first.

The function COMING HOME ensures that the vehicle's environment is illumi-
nated after switching off the ignition and opening the driver's door.
The function LEAVING HOME ensures that the vehicle's environment is illumi-
nated after unlocking the vehicle with the radio remote control unit.
The function switches the light on only if there is poorer visibility and the light
switch is in the position .

The functions and settings of the illumination time can be via the MAXI DOT
display in the menu items Coming Home or Leaving Home activated / deactivated
and set up

» page 43

, Menu item Settings.

CAUTION

■

Poorer visibility is evaluated by a sensor mounted below the windscreen in

the holder of the rear-view mirror. Do not cover the sensor - the system func-
tion can be disrupted.

■

If this option is always enabled, then the battery is heavily loaded.













Hazard warning light system

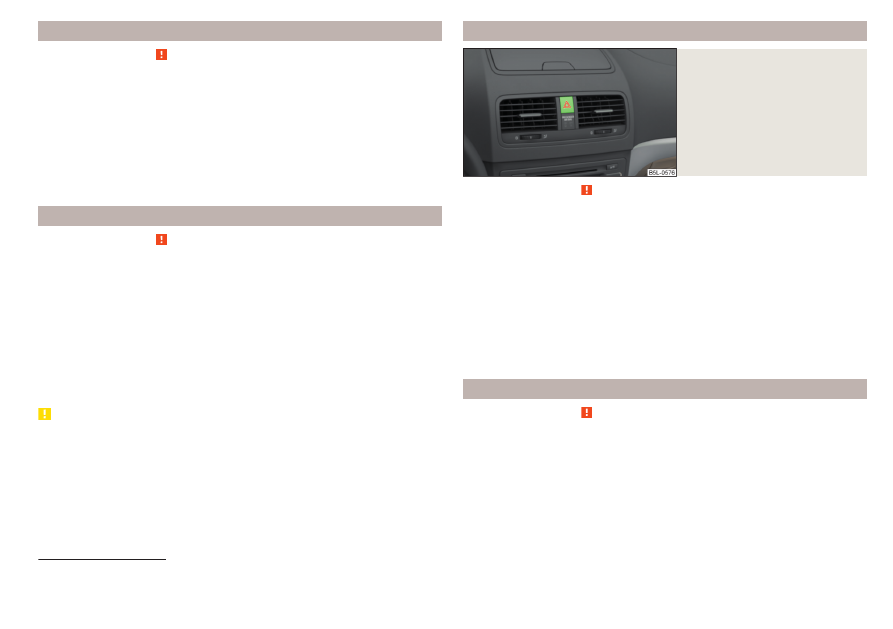

Fig. 46
Button for hazard warning light
system

Read and observe   on page 58 first.

›

To switch on/off, press the



 button

» Fig. 46

.

When switched on, the turn signal lights and the warning light



 buttons all

flash at the same time as the warning lights







 in the instrument cluster.

The hazard warning light system can also be operated if the ignition is switch-
ed off.
If one of the airbags is deployed, the hazard warning light system will switch
on automatically.
When the hazard warning system is on and the indicator light is switched on
(e.g. when turning), the hazard warning lights are switched off temporarily and
only the turn signal flashes on the relevant side of the vehicle.

Parking lights

Read and observe   on page 58 first.

The side light is provided for lighting of the parked vehicle.

Switching on the side light  on one side

›

Switch off the ignition.

›

Press the control lever all the way into position  or  until it stops

» Fig. 43

on page 59.

The parking light is turned on on the relevant side of the vehicle.







1)

If the two switch-on variants are conflicting (e.g. if the front wheels are turned to the left and the right
turn signal light is switched on), the turn signal light has the higher priority.

61

Lights and visibility

Switching on the side light on both sides 

›

Switch on the ignition and turn the light switch to position

» page 58

, the

parking lights are turned on.

›

Switch off the ignition and lock the car.

After pulling out the ignition key and opening the driver's door, an audible
warning sounds. After a few seconds or after closing the driver's door, the au-
dible warning is turned off.

CAUTION

■

Turning on the parking light means the battery is heavily loaded.

■

The parking lights may switch off automatically due to a low battery charge.

If the two-sided parking lights are switched on when the ignition is off, the
parking lights will not switch on automatically!

Driving abroad

Read and observe   on page 58 first.

When driving in countries with opposing traffic system (traffic on the
left/right), your headlights may dazzle oncoming traffic. Therefore, it is neces-
sary to have the headlights adapted by a specialist garage.
You can adjust the settings of the Xenon headlights for a reverse traffic sys-
tem in the menu of the MAXI DOT display under the Travel modemenu
item

» page 43

, Menu item Settings. In this mode, no automatic beam adjust-

ment is made ahead of the vehicle. When switching on the ignition the warn-
ing light



 flashes for 10 seconds.

Interior lighting



Introduction

This chapter contains information on the following subjects:
Front interior light

62

Interior lighting, rear

63

The inner lighting also works if the ignition is switched off. With the ignition
switched off, the lights will automatically switch off after approximately after
10 minutes.



Front interior light

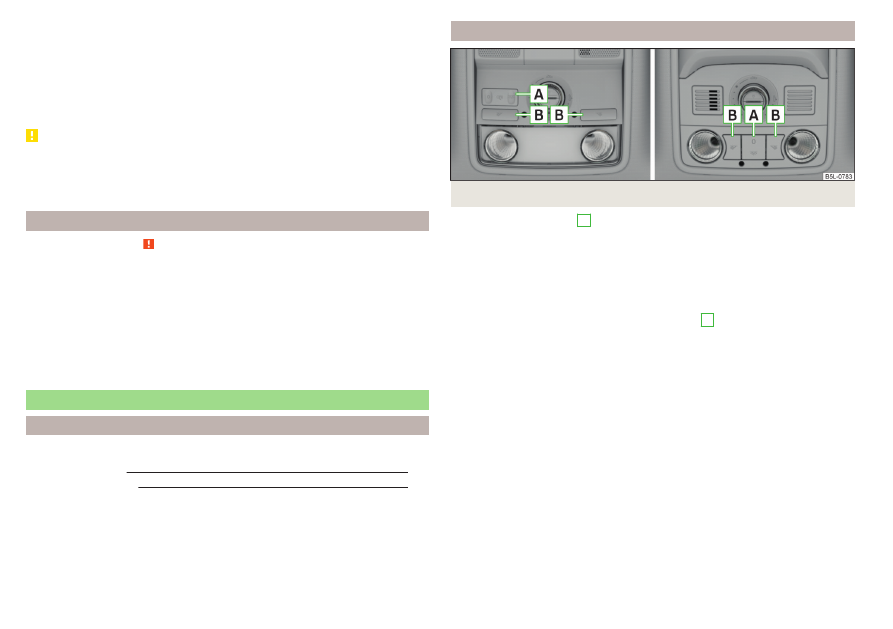

Fig. 47  Front interior lights: Version 1/version 2

Toggle switch positions

A



» Fig. 47

Switching on
Automatic operation (centre position)
Switching off

There is no icon available for the centre position (automatic operation) in Ver-
sion 2.
Switch on / off (by pressing the relevant switch

B

)

» Fig. 47

Reading lamp left
Reading lamp right

Automatic operation - position 
The system is turned on when any of the following is present.

▶

The vehicle is unlocked.

▶

One of the doors or the luggage compartment lid is being opened.

▶

The ignition key is removed.

The system is turned off when any of the following is present.

▶

The vehicle is locked.

▶

The ignition is switched on.

▶

About 30 seconds after all the doors have been closed.











62

Using the system

Interior lighting, rear

Fig. 48
Interior lights at the rear

Operation (by moving the lens

A

)

» Fig. 48

Switching on
Automatic operation (centre position)

1)

Switching off

Visibility



Introduction

This chapter contains information on the following subjects:
Windscreen and rear window heating

63

Front sun visors

64

WARNING

No objects should be attached to the sun visor that could restrict the view
or endanger the vehicle occupants during sudden braking or in a collision.







Windscreen and rear window heating

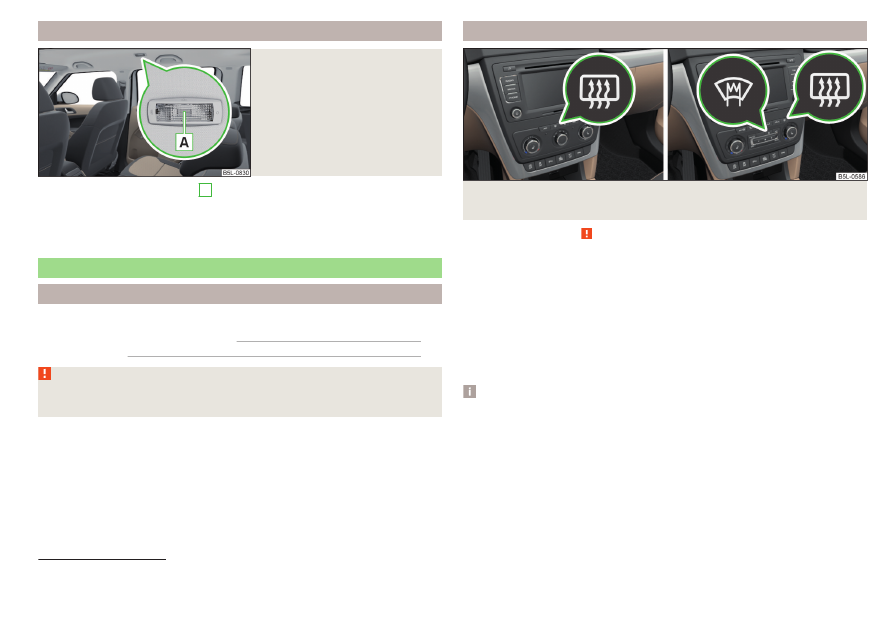

Fig. 49  Buttons for rear and front window heating: Manual air condition-
ing / Climatronic

Read and observe   on page 63 first.

The heating for quick defrosting and ventilation of the front /and rear window.
The heating only works when the engine is running.
Buttons for the heating (depending on vehicle equipment)

» Fig. 49

Switching the rear window heater on/off
Switching the windscreen heater on/off

When the heater is switched on, a lamp lights up inside the button.

The heating automatically switches off after 10 minutes.

Note

■

If the on-board voltage decreases, the heating switches off automatically

» page 147

, Automatic shutdown of consumers - vehicle battery discharge

protection.

■

If the light is flashing inside the button, the heater will not function due to

low battery.

■

The location of the button can be different depending on the equipment fit-

ted.







1)

In this position, the same rules apply to the rear interior light as for the front interior light

» page 62

,

Front interior light.

63

Lights and visibility

Front sun visors

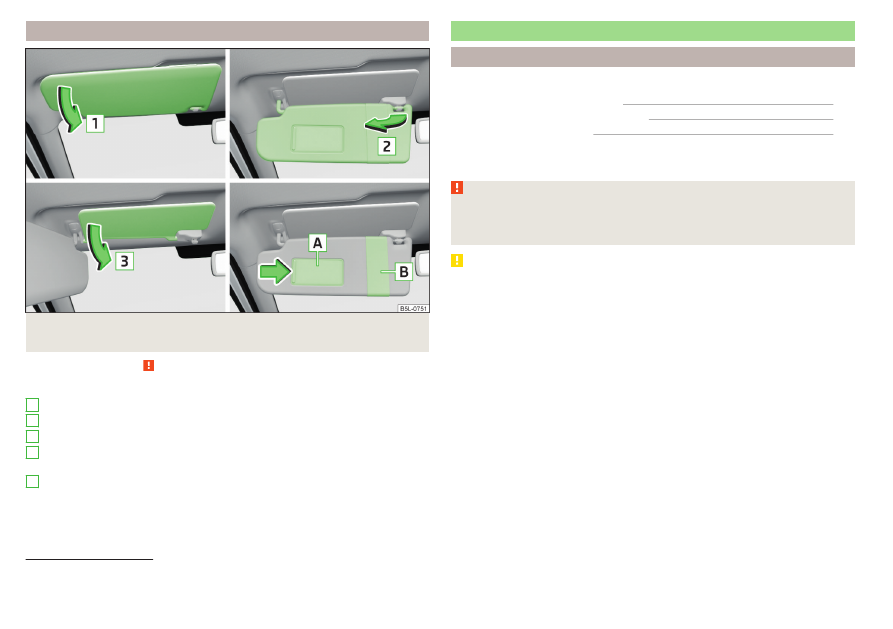

Fig. 50  Fold down the cover / fold up cover / fold down secondary visor /
make-up mirror and tape

Read and observe   on page 63 first.

Operation and description of the sun visor

» Fig. 50

Swivel cover towards the windscreen
Swivel cover towards the door
Swivel the assist cover towards the windscreen
Make-up mirror with cover (the cover can be pushed in the direction of the
arrow)
Tape for storage of small light objects



1

2
3

A

B

Windscreen wipers and washers



Introduction

This chapter contains information on the following subjects:
Windscreen wipers and washers

65

Rear windscreen wipers and washers

65

Headlight cleaning system

66

The windscreen wipers and the wash system only operate if the ignition is
switched on and the bonnet and boot are closed

1)

.

WARNING

Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. The window washer fluid could other-
wise freeze on the windscreen and restrict the view to the front.

CAUTION

■

If the windscreen wipers are in rest position, they cannot be folded out from

the windscreen. The wipers must be set to the service position to raise them
off the windscreen

» page 166

.

■

In cold temperatures and during the winter, check before switching on the

ignition that the wiper blades are not frozen to the windscreen. If the wind-
screen wipers are switched on when the blades are frozen to the windscreen,
this may damage both the blades and windscreen wiper motor!

■

Carefully separate frozen windscreen wiper blades from the windscreen and

free from snow and ice.

■

Handle the windscreen wipers with care - there is a risk of damage to the

windscreen by the windscreen wiper arms.

■

Do not switch on the ignition when the wiper arm is raised from the wind-

screen - there is a risk of damage to the bonnet by the wiper arms.

■

If there is an obstacle on the windscreen, the wipers will try to push away

the obstacle five times. The wipers then stop to prevent themselves from be-
ing damaged. Only switch the wipers on again after the obstacle has been re-
moved.



1)

On vehicles which do not have a contact switch for the bonnet, the windshield wiper and wash system
operates also when the bonnet is opened.

64

Using the system

Note

■

Each time the ignition switches off for the third time, the position of the

windscreen wipers changes. This counteracts an early fatigue of the wiper rub-
bers.

■

The windscreen washer nozzles for the windscreen are heated when the en-

gine is running and the outside temperature is less than +10 °C.

Windscreen wipers and washers

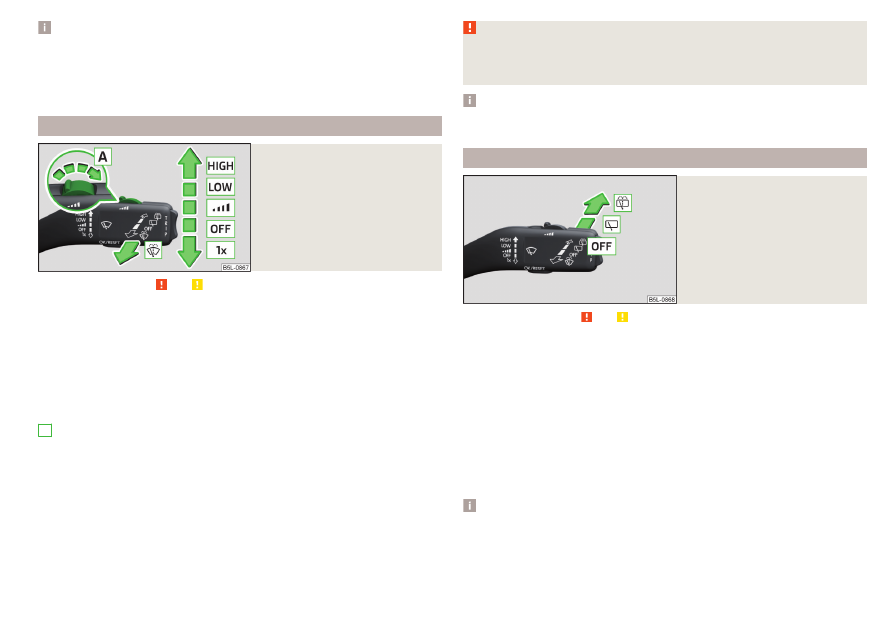

Fig. 51
Operating the windscreen wipers
and washer system

Read and observe   and   on page 64 first.

The lever can be moved to the following positions

» Fig. 51

High-speed wiping

Slow-speed wiping

Depending on equipment fitted:

▶

Intermittent wiping

▶

Automatic windscreen wiping in the rain

Wipers and washers off
Single wipe of the windscreen (spring-loaded position)
Setting of windscreen wiper interval for the position  - by setting the
switch in the direction of the arrow, the windscreen wipers will wipe more
often
Spraying and wiping the windscreen (sprung position)

Spraying and wiping the window 
After releasing the operating lever, the wipers will make from 3 to 4 wiper
strokes.
At a speed of more than 2 km/h, the wiper wipes once again 5 seconds after
the last wiper stroke in order to wipe the last drops from the windscreen. This
function can be activated/deactivated by a specialist garage.













A



WARNING

Automatic wiping during rain is only a support. The driver is not released
from the responsibility to set the function of the windscreen wipers man-
ually depending on the visibility conditions.

Note

If the wiping is carried out without interruption, the wiping speed varies de-
pending on the vehicle speed.

Rear windscreen wipers and washers

Fig. 52
Operation of the rear wiper and
washer system

Read and observe   and   on page 64 first.

The lever can be moved to the following positions

» Fig. 52

Spraying and wiping the disc (spring-loaded position) - after releasing the
operating lever the wipers continue for another 2 to 3 strokes.
Rear screen wiping
Wipers and washers off

Automatic rear wiper
If the windscreen wiping is performed without interruption, then the automat-
ic regular intermittent wiping of the rear window takes place.
This mode can be enabled or disabled via the Maxi DOT display in the Rear wip-
er

» page 43

, Menu item Settings menu option.

Note

The rear window is wiped once automatically if the windscreen wipers are on
when reverse gear is selected.









65

Lights and visibility

Headlight cleaning system

Read and observe   and   on page 64 first.

The headlights are cleaned with every first and after every fifth spraying of the
windscreen under the following conditions.

The ignition is switched on.
The low beam is switched on.
The outside temperature is about -12° C to +39° C.

To ensure the correct functioning of the system, even in winter, this needs to
be regularly cleared of snow and ice (e.g. using the de-icing spray).

Rear view mirror



Introduction

This chapter contains information on the following subjects:
Interior mirror dimming

66

Mirrors

67

WARNING

Exterior mirrors increase the field of view, however, they make objects ap-
pear smaller and further away. Therefore, use the interior mirror whenever
possible, for assessing the distances to the vehicles following behind.

WARNING

■

The mirrors with automatic dimming contain electrolyte fluid which may

leak if the mirror glass is broken - this can irritate skin, eyes and the respi-
ratory system.

■

If your eyes or skin come into contact with the electrolytic fluid, immedi-

ately wash the affected area for a few minutes long with a lot of water. If
necessary get medical assistance.









Interior mirror dimming

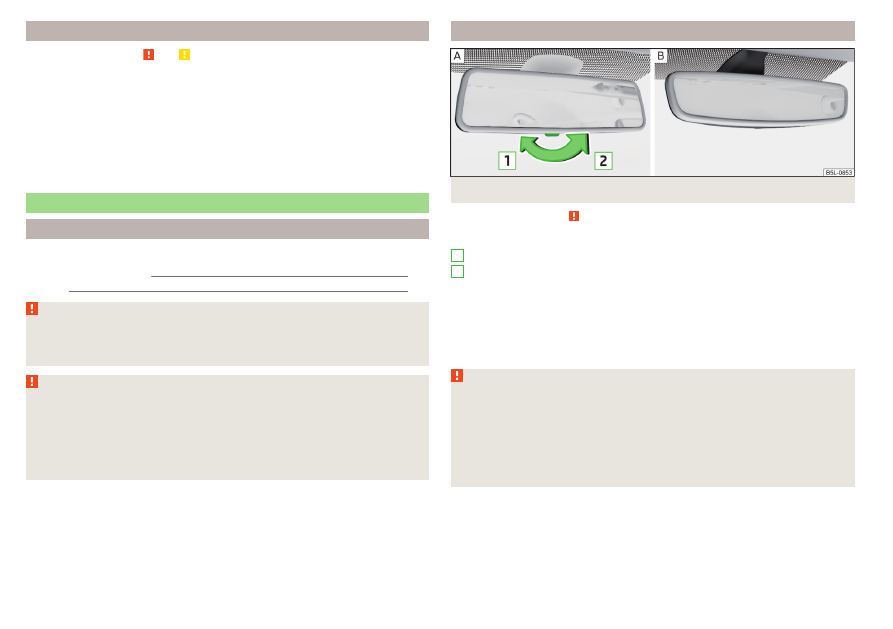

Fig. 53  Interior mirror: manual dimming/auto-darkening

Read and observe   on page 66 first.

Mirrors with manual dimming

» Fig. 53

 - 

Basic mirror position (not darkened)
Mirror blackout

Mirror with automatic dimming
The mirror dimming

» Fig. 53

 -  is automatically controlled after the engine

start.
When the interior lights are switched on or the reverse gear is engaged, the
mirror moves back into the basic position (not dimmed).

WARNING

■

Attach external devices (e.g. navigation system) not in the vicinity of the

mirror with automatic dimming. The illuminated display of an external de-
vice can affect the function of the rear-view mirror -There is a risk of an ac-
cident.

■

Automatic mirror dimming only operates correctly if the light striking the

sensor is not affected by other objects. The sensors are located on the
front and back of the mirror.



1

2

66

Using the system

Mirrors

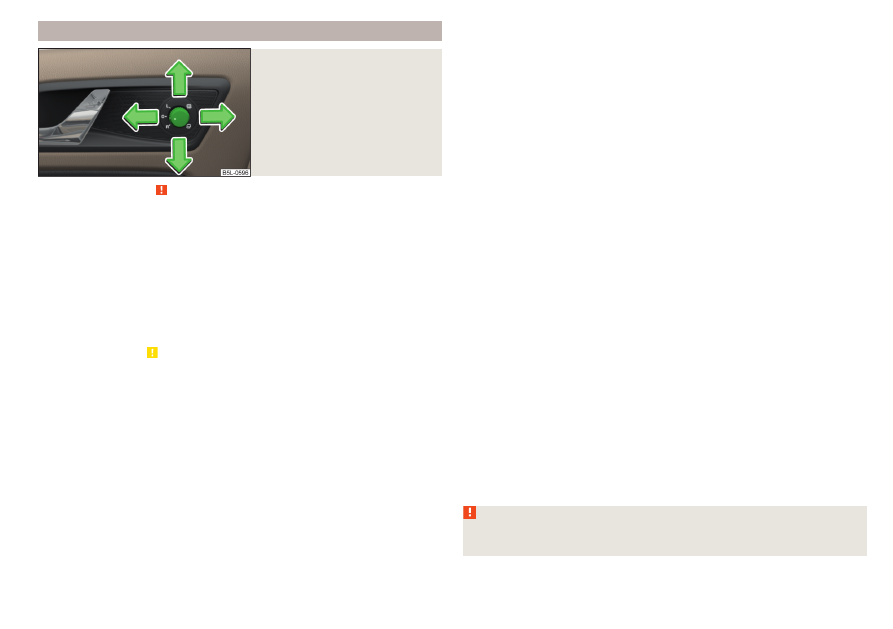

Fig. 54
Exterior mirror operation

Read and observe   on page 66 first.

The exterior mirrors can (depending on vehicle equipment) have a manual or
electric fold-in function, automatic dimming and memory function.
The rotary knob can be moved into the following positions (depending on ve-
hicle equipment)

Adjust the left-hand exterior mirror
Switch off mirror control
Adjust the right-hand exterior mirror
Exterior mirror heater (only operates when the engine is running)
Folding in the mirrors electrically (to fold back, move the rotary knob to an-
other position)

»

Setting the mirror area

›

Move the rotary knob in the direction of arrows

» Fig. 54

.

If the mirror setting fails at any time, the mirrors can be adjusted manually by
pressing on the edge of the mirror area.

Setting the mirror surfaces synchronously
This function allows the simultaneous adjustment of the two mirror areas. This
mode can be enabled or disabled via the Maxi DOT display in the Adjust mir-
rors

» page 43

, Menu item Settings menu item.

›

Turn the knob for the mirror control to the position for the driver mirror ad-
justment.

›

Adjust the mirror areas to the desired position.













Manual folding mirrors
The mirror can be manually folded in towards the side window. To put it back
into its original position, it should be folded back from the side window until it
audibly clicks into place.

Folding-in both of the exterior mirrors using the remote control key

›

Close all windows and hold the button  on the remote control key.

The exterior mirror is folded back into the driving position when the ignition is
switched on.

Mirror with automatic dimming
The exterior mirror dimming is controlled together with the automatic rear-
view mirror dimming

» page 66

.

Memory function for mirror (vehicles with electrically adjustable driver's
seat)
It is possible to save the current setting of the exterior mirror when saving the
driver's seat position with

» page 69

, Memory Function of the electrically ad-

justable seator

» page 70

, Memory function of the remote control key.

Tilting the mirror area of the front passenger mirror (vehicles with
electrically adjustable driver's seat)
The front passenger mirror area can be tilted to the stored position to improve
the view to the curb when reversing.
Operating conditions.

The function is activated via the MAXI DOT display in the menu item Mirror
down

» page 43

, Menu item Settings.

The setting of the mirror area has been previously stored

» page 69

,

Memory Function of the electrically adjustable seat or.

» page 70

, Memo-

ry function of the remote control key.
The reverse gear is engaged.
The knob for the mirror control is in the position for the passenger mirror
adjustment.

The mirror area returns to its initial position after the rotary knob is set to an-
other position or if the speed is greater than 15 km/h.

WARNING

Do not touch the exterior mirror surfaces, if the exterior mirror heating is
switched on - hazard of burning.











67

Lights and visibility

CAUTION

■

Never manually fold in/out the electrically folding exterior mirrors - there is a

risk of damage to the mirror!

■

When the mirror is swung by external influences (due to impact during ma-

noeuvring, for example), then first fold-in the mirror by turning the knob and
wait for a loud clapping noise.

Seats and head restraints

Front seats



Introduction

This chapter contains information on the following subjects:
Manual adjustment

68

Electrical adjustment

69

Memory Function of the electrically adjustable seat

69

Memory function of the remote control key

70

Folding front passenger seat

70

Armrest setting

71

WARNING

■

Only adjust the driver's seat when the vehicle is stationary – otherwise

there is a risk of accident!

■

Caution when adjusting the seat! You may suffer injuries or bruises as a

result of adjusting the seat without paying proper attention.

Manual adjustment

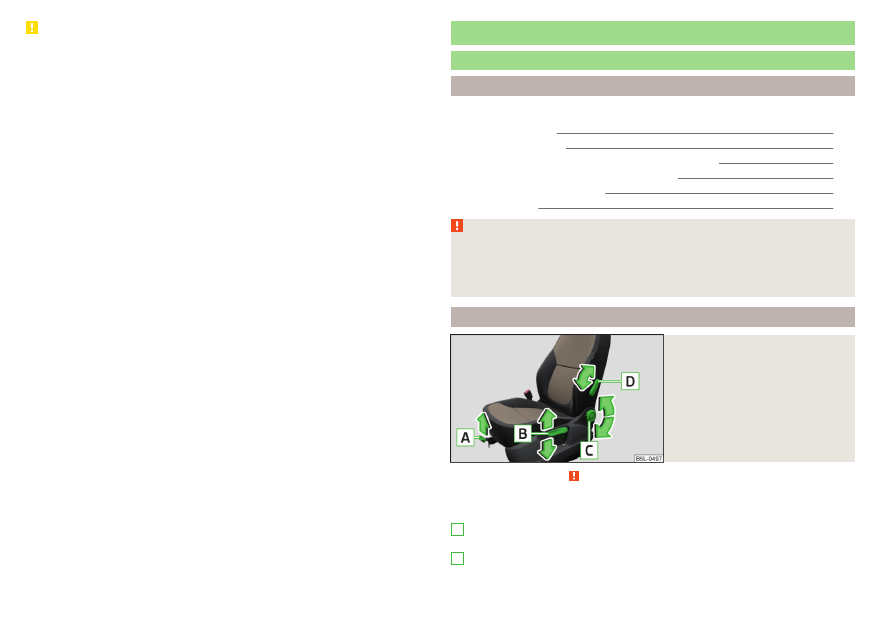

Fig. 55
Control elements on the seat

Read and observe   on page 68 first.

The seats can be adjusted by the respective operating element being pulled,
pressed or turned in the direction of the arrows

» Fig. 55

.

Adjusting the seat in the longitudinal direction (after releasing the control
lever, locking must be audible)
Adjusting the seat height





A

B

68

Using the system

Adjusting the tilt of the backrest (do not lean on the backrest when ad-
justing)
Setting the extent of the curvature of the lumbar support

Note

After a certain time, play can develop within the adjustment mechanism of the
backrest angle.

Electrical adjustment

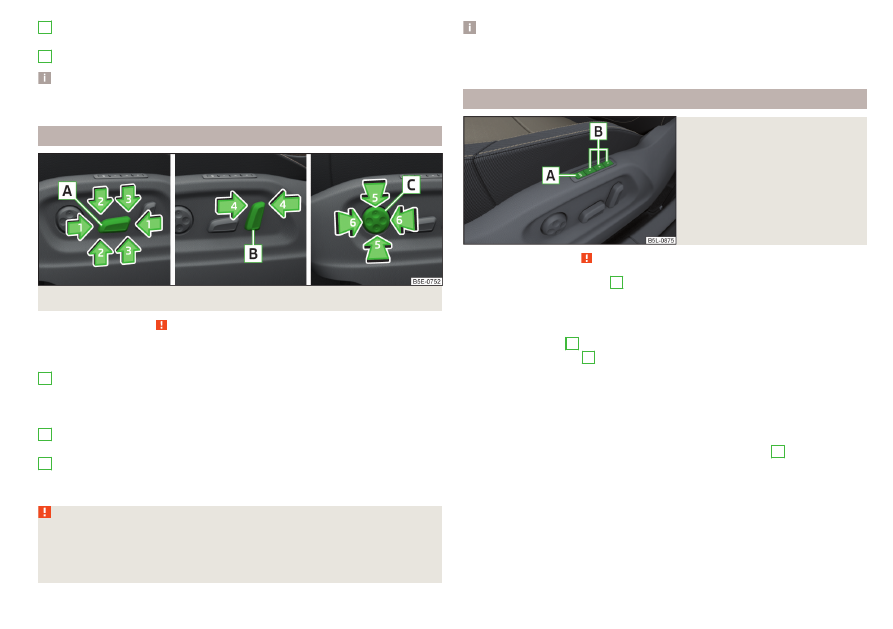

Fig. 56  Control elements on the seat

Read and observe   on page 68 first.

The seats can be adjusted by the respective operating element being pressed
in the direction of area of the arrow

» Fig. 56

.

seat adjustment

▶

1 - Move in the longitudinal direction

▶

2 - Change in inclination

▶

3 - Change in height

Adjusting the seat backrest

▶

4 - Change in inclination

Adjusting lumbar support

▶

5 - Change curvature

▶

6 - The degree of curvature change

WARNING

The electric front seat adjustment is functional even with the ignition off.
Therefore, when leaving the vehicle, never leave people who are not com-
pletely independent, such as children, unattended in the vehicle - there is a
risk of injury!

C

D



A

B

C

Note

If the inclination angle of the seat backrest relative to the seat surface is
greater than 102 °, then it is not possible for safety reasons to save this setting
in the memory of the electrically adjustable seats or the remote control key.

Memory Function of the electrically adjustable seat

Fig. 57
SET button and memory buttons

Read and observe   on page 68 first.

Among the memory buttons

B

 on the driver's seat, a setting for the driver´s

seat and exterior mirror position can be saved

» Fig. 57

.

Storing driver's seat and exterior mirror settings for the forwards drive

›

Switch on the ignition, adjust the seat and the exterior mirrors.

›

Hold down the 

A



» Fig. 57

 button and within 10 seconds press the de-

sired memory button

B

 at the same time. Storing is confirmed by an acous-

tic signal.

Storing front passenger´s exterior mirror settings for reversing
Above the MAXI DOT display in the Mirror down menu item, the lowering func-
tion for the mirror on the passenger side must be enabled for reversing

» page 43

, Menu item Settings.

›

Turn on the ignition and press the desired memory button

B



» Fig. 57

.

›

Turn the rotary knob for the exterior mirror control to the position for the
front passenger mirror area

» page 67

.

›

Engage reverse gear.

›

Adjust the front passenger's mirror to the desired position.

›

Disengage reverse gear. The set position of the exterior mirror is stored.





69

Seats and head restraints

Retrieving the saved setting
The retrieval is possible when turned the ignition is switched on and the vehi-
cle speed is less than 5 km/h or when the ignition key is inserted in the igni-
tion lock.

›

Hold the desired memory button

B



» Fig. 57

 .

Stopping the ongoing adjustment

›

Press any button on the driver's seat or the  button on the remote control
key.

Note

Every time you save new seat and exterior mirror settings for driving forwards,
you must also save the front passenger mirror setting for reversing again.

Memory function of the remote control key

Read and observe   on page 68 first.

Every time the vehicle is locked, the driver´s seat and exterior mirror settings
are saved and assigned to the key with which the vehicle was locked.
After the following unlocking of the vehicle with the same key, the driver´s
seat and exterior mirrors that are saved to this key will be adopted.

Activating the function

›

Unlock the vehicle with the corresponding remote control key and open the
driver door.

›

Press and hold any memory button

B



» Fig. 57

 on page 69.

›

After the seat has assumed the position stored under this button, at the
same time press the button on the remote control key within 10 seconds.
Activation is confirmed by an acoustic signal.

Storing front passenger´s exterior mirror settings for reversing
Above the MAXI DOT display in the Mirror down menu item, the lowering func-
tion for the mirror on the passenger side must be enabled for reversing

» page 43

, Menu item Settings.

›

Unlock the vehicle with the remote control key and switch on the ignition.

›

Turn the rotary knob for the exterior mirror control to the position for the
front passenger mirror area

» page 67

.

›

Engage reverse gear.

›

Adjust the front passenger's mirror to the desired position.

›

Disengage reverse gear. The adjusted position of the exterior mirror is stored
in the remote control key memory.



Deactivating the function

›

Unlock the vehicle with the remote control key.

›

Press and hold down the 

A



» Fig. 57

 on page 69button. At the same time,

press the button on the remote control key within 10 seconds. Deactivation
is confirmed by an acoustic signal.

Stopping the ongoing adjustment

›

Press any button on the driver's seat or the  button on the remote control
key.

Folding front passenger seat

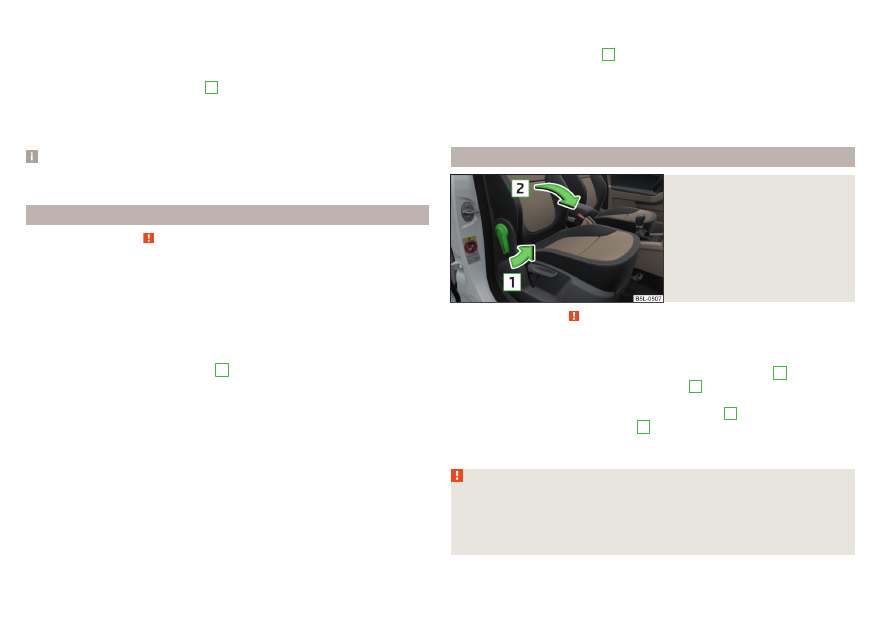

Fig. 58
Folding the front passenger seat
forward

Read and observe   on page 68 first.

The front passenger seat can, depending on specification, be folded forward
into a horizontal position.

›

To fold the seat down, pull the lever in the direction of arrow

1

 and fold

down the seat back in the direction of arrow

2



» Fig. 58

. The locking mecha-

nism must audibly snap into place.

›

To fold back, pull the lever in the direction of arrow

1

 pull and fold back the

seat back in the direction of arrow

2

. The locking mechanism must audibly

snap into place.

›

Check this by pulling on the seat backrest.

WARNING

■

If the seat backrest is folded down, only the seat behind the driver´s seat

can be used to transport passengers.

■

The front passenger airbag should be switched off when transporting ob-

jects on the seat which was folded forwards

» page 20

, Deactivating the

front passenger airbag.





70

Using the system

WARNING (Continued)

■

Do not adjust the seat back while driving - There is a risk of injury and ac-

cidents!

■

When moving the seat backrest, keep limbs out of the area between the

seat and seat backrest – risk of injury!

■

Never transport the following items on the seat backrest when folded

forwards.

■

Objects that could restrict the driver's view.

■

Objects which make it impossible for the driver to control the vehicle

(e.g. if they roll under the pedals, or protrude into the driver's zone).

■

Objects which could lead to injury to passengers (e.g. if accelerating

sharply, braking or changing direction).

Armrest setting

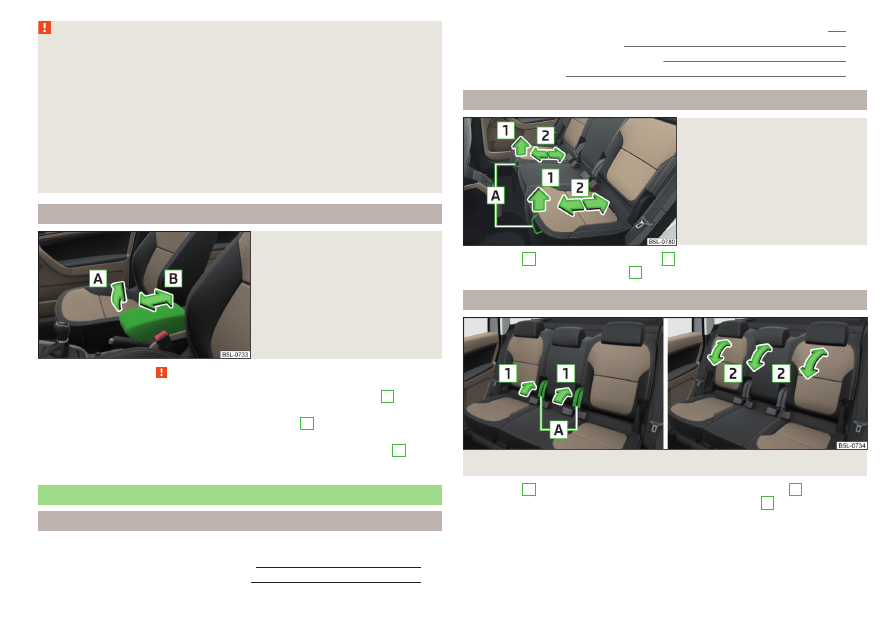

Fig. 59
Adjust armrest

Read and observe   on page 68 first.

›

To adjust the height, lift the armrest in the direction of the arrow

A

 into one

of the six locking positions

» Fig. 59

.

›

To close, lift the armrest in the direction of arrow

A

 until the stop and then

fold down again.

›

To longitudinally adjust move the armrest in the direction of arrow

B

 to the

desired position.

Rear seats



Introduction

This chapter contains information on the following subjects:
Adjusting seats in forward/back direction

71

Adjusting the angle of the seat backrest

71



Folding the seat backrest forwards and folding the seat fully forwards

72

Unlock and removing the seat

72

Adjusting seats in crosswise direction

73

Folding back seats

73

Adjusting seats in forward/back direction

Fig. 60
Adjusting seats in forward/back
direction

›

Pull lever

A

in the direction of arrow

1

and move the seat to the desired po-

sition in the direction of arrow

2



» Fig. 60

.

Adjusting the angle of the seat backrest

Fig. 61  Adjusting the seat backrest

›

Pull lever

A

 lever on the bottom in the direction of the arrow

1

 pull and set

the desired tilt of the seat back in the direction of arrow

2

» Fig. 61

.

›

Check for yourself that the seat backrest is engaged by pulling on it.

71

Seats and head restraints

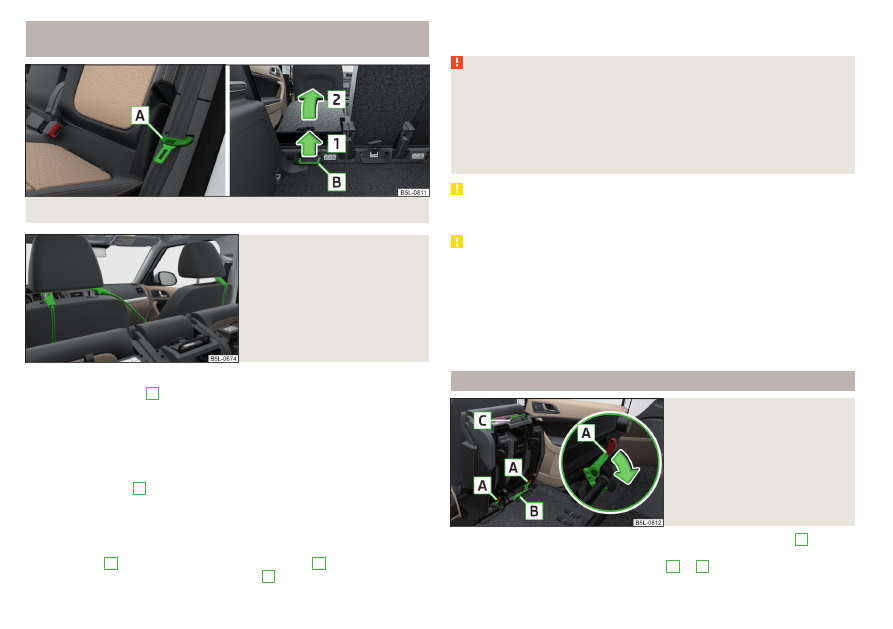

Folding the seat backrest forwards and folding the seat fully
forwards

Fig. 62  Safety position of seat belt / folding the seat completely forward

Fig. 63
Lock forward folded seats

Folding the seat backrest forwards

›

Insert the belt buckle

A

of the seat belt into the opening in the side pan-

el

» Fig. 62

.

›

Remove the head restraint from the rear middle seat.

›

Push the outer rear seats towards the rear as far as they will go

» Fig. 60

 on

page 71.

›

Fold the outer rear seat backrests and the center seat to the stop on the
seat surface

» Fig. 61

 on page 71.

›

Then pull the lever

A



» Fig. 61

 on page 71 again and push the seat back

down until it clicks into place in a lower position.

Folding seats fully forwards and locking them

›

If the outer rear seat is fully folded forward, push it towards the rear as far as
it can go.

›

Pull the lever

B



» Fig. 62

 in the direction of the arrow

1

 and push the seat

completely forward in the direction of arrow

2

.

›

Secure the folded forward seat with the aid of the fixing belt B to a guide rod
of the head restraint in the front seat

» Fig. 63

.

WARNING

■

The seat backs in occupied rear seats must be properly engaged.

■

When transporting objects in the luggage compartment that has been en-

larged by folding the backrest forward, ensure the safety of the passengers
transported on the other rear seats.

■

The seat backrests must be securely locked in position so that no objects

in the luggage compartment can slide into the passenger compartment on
sudden braking – There is a risk of injury.

CAUTION

When moving the seat backrest, the seat belts should not be trapped - there is
a risk of damage to the seat belts.

CAUTION

■

Before folding the rear middle seat forward, make sure that the storage com-

partment, the ashtray and the cup holder in the rear part of the centre console
are closed - risk of damage.

■

Only keep the seats in the folded forward position for as long as necessary to

transport cargo - there is a risk of damaging the front seat backrests. The
seats must be folded back once the cargo has been transported.

■

If the outer seat is not in the rear end position when folding forward, damage

can occur to the locking bolts when unlocking the seat.

Unlock and removing the seat

Fig. 64
Unlocking the folded forward
seat and carrying handles on the
seat surface

›

Unlock the folded seat by pressing seat locks

» Fig. 62

 on page 72

A

 in the

direction of arrow

» Fig. 64

.

›

Remove the seat on the carrying handle

B

 or

C

.



72

Using the system
