Technical data

Technical data

Indications about the
technical data

Important information

Introduction

The values indicated in the technical data
may differ depending on optional equipment
or version of the model, as well as in the case
of special vehicles and equipment for certain
countries.

The information in the official vehicle docu-
mentation takes precedence at all times.

Abbreviations used in the Technical Speci-
fications section

kW

Kilowatt, engine power measurement.

PS

Pferdestärke (horsepower), formerly

used to denote engine power.

rpm, 1/min

Revolutions per minute - engine speed.

Nm

Newton metres, unit of engine torque.

CZ

Cetane number, indication of the die-
sel combustion power.

RON

Research octane number, indication of
the knock resistance of petrol.

Vehicle identification data

Vehicle ID number

The vehicle ID number can be found in the
following places:

One the vehicle's data label.

In front, under the windscreen.

To the right in the engine compartment.

Type plate

The type plate is located on the vehicle’s right
hand door frame. Vehicles for certain export
countries do not have a type plate.

Fuel consumption

Approved consumption values are derived
from measurements performed or supervised
by certified EU laboratories, according to the
legislation in force at the time (for more infor-
mation, see the Publications Office of the Eu-
ropean Union on the EUR-Lex website: © Eu-
ropean Union, http://eur-lex.europa.eu/) and
apply to the specified vehicle characteristics.

The values relating to fuel consumption and
CO

2

 emissions can be found in the documen-

tation provided to the purchaser of the vehi-
cle at the time of purchase.

Fuel consumption and CO

2

 emissions de-

pend on the equipment/features of each indi-

vidual vehicle, as well as on the driving style,
road conditions, traffic conditions, environ-
mental conditions, load or number of passen-
gers.

Filling capacities

Tank level

Petrol engines

40 l, 7 l reserve

Natural gas en-
gine

a)

approx. 13.8 kg

Additional petrol tank: 9 l, of

which approx 7.6 l is a reserve

a)

The capacity depends on the efficacy and charac-

teristics of the natural gas pumps. The capacity indi-
cated is based on a minimum loading pressure of 200
bar.

Capacity of the windscreen washer fluid con-
tainer

Windscreen washer

fluid container

approx. 3 litres

Weights

Load on the roof

The maximum authorised roof load for your
vehicle is 75 kg.

316

Indications about the technical data

Empty weight, total weight, axle loads

The empty weight of the vehicle with driver
(75 kg) was calculated according to the (EU)
1230/2012 standard. Optional equipment can
increase the empty weight, which means that
the possible useful load decreases propor-
tionally.

Trailer weight

The maximum permitted drawbar load on the
ball head of the towing bracket is

55 kg

.

WARNING

The values indicated for the maximum per-
mitted weights must not be exceeded.
There is a risk of accident and damage!

317

Technical data

Engine specifications

Petrol engines

1.0 TSI Start-Stop

Power output in kW (PS) at 1/min

70 (95)/5,000-5,500

81 (110)/5,500

Maximum torque (Nm at 1/min)

175/1,600-3,500

200/2,000-3,000

No. of cylinders/displacement (cm

3

)

3/999

3/999

Fuel

Super 95 / Normal 91 (with a slight power loss) ROZ

Gearbox

manual

manual

DSG

Top speed (km/h)

182 (V)

190 (V)

190 (VI)

Acceleration from 0-100 km/h (seconds)

11.4

10.3

10.1

Maximum authorised weight (kg)

1,700

a)

1,720

a)

1,740

a)

a)

Varies depending on the features.

Petrol engines

1.5 TSI Start-Stop

1.6 MPI

Power output in kW (PS) at 1/min

110 (150)/5,000-6,000

81 (110)/5,800

Maximum torque (Nm at 1/min)

250/1,500-3,500

152/3,800-4,000

No. of cylinders/displacement (cm

3

)

4/1,498

4/1,598

Fuel

Super 95 / Normal 91 (with a slight power loss) ROZ

Gearbox

DSG

manual

automatic

Top speed (km/h)

210 (V)

181 (IV)

181 (IV)

Acceleration from 0-100 km/h (seconds)

8.4

11

11.5

Maximum authorised weight (kg)

1,760

a)

1,680

a)

1,720

a)

a)

Varies depending on the features.

318

Indications about the technical data

Natural gas / petrol engine

1.0 TGI Start-Stop

Power output in kW (PS) at 1/min

66 (90)/4,000-5,500

Maximum torque (Nm at 1/min)

160/1,800-3,800

No. of cylinders/displacement (cm

3

)

3/999

Fuel

CNG

Super 95 / Normal 91 (with a slight power loss) ROZ

Gearbox

manual (VI)

Top speed (km/h)

178 (IV)

Acceleration from 0-100 km/h (seconds)

13.2

Maximum authorised weight (kg)

1710

319

Technical data

Dimensions.

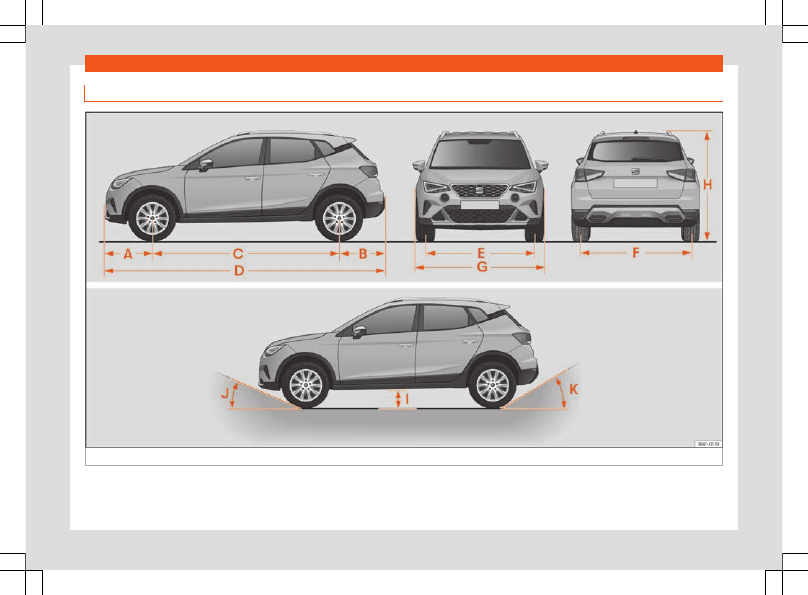

Fig. 205

Dimensions and angles.

320

Indications about the technical data

›››

Fig. 205



ARONA

A

Front projection (mm)

809

B

Rear projection (mm)

779

C

Wheelbase (mm)

2,566

D

Length (mm)

4,154

E

Front

a)



track (mm)

1,513

F

Back

a)



track (mm)

1,495

G

Width (mm)

1,780

H

Height at kerb weight (mm)

1,537

b)

I

Ground clearance between the axles (mm)

173

J

Front projection angle limited by the bumper

maximum 18.1°

K

Rear projection angle limited by the bumper

maximum 28.1°



Turning radius (m)

10.6

a)

This data will change depending on the type of wheel rim.

b)

Dimension to the roof bars.
