Driving

After hooking up the trailer and connect-

ing the socket, check that all the trailer's
rear lights are working properly.

Note

If there is any fault in the trailer's lighting,

check the fuses on the instrument panel

›››

page 55

.

The contact between the retainer cable

and the safety lug may give cause wear in
the lug. This wear does not stop it from op-
erating properly and is not a fault. It is ex-
cluded from the warranty.

When hitching and unhitching the trailer,

the vehicle's handbrake should be applied.

Installing a bicycle carrier on the
tow bar

The maximum permitted weight of the bicy-
cle carrier system, including the load, is

50

kg. The bicycle carrier system may not pro-
trude more than 700 mm behind the ball
head. Only bicycle carrier systems for a max-
imum of 2 bicycles are allowed to be instal-
led. Heavier bicycles must be carried as
close to the vehicle (tow hook) as possible.

WARNING

The incorrect use of the towing device with
a bicycle carrier mounted on the tow hook
can cause accidents and injury.

Never exceed the maximum weight or the

limits indicated above.

The bicycle rack may not be mounted to

the neck of the hook below the ball be-
cause, due to the shape of the neck and
depending on the rack model, the rack
could be incorrectly mounted on the vehi-
cle.

Always read and take the manufacturer

assembly instructions into account.

CAUTION

If the maximum weight and limits indicated
above are exceeded, the vehicle may suf-
fer considerable damage.

Never exceed the values indicated!

Note

SEAT recommends removing, as far as pos-
sible, all removable parts of the bicycles
before setting off. These parts include, for
example, baskets and saddlebags, child
seats or batteries. This improves aerody-
namics and the centre of gravity of the rack
system.

Retrofitting a towing bracket

Description

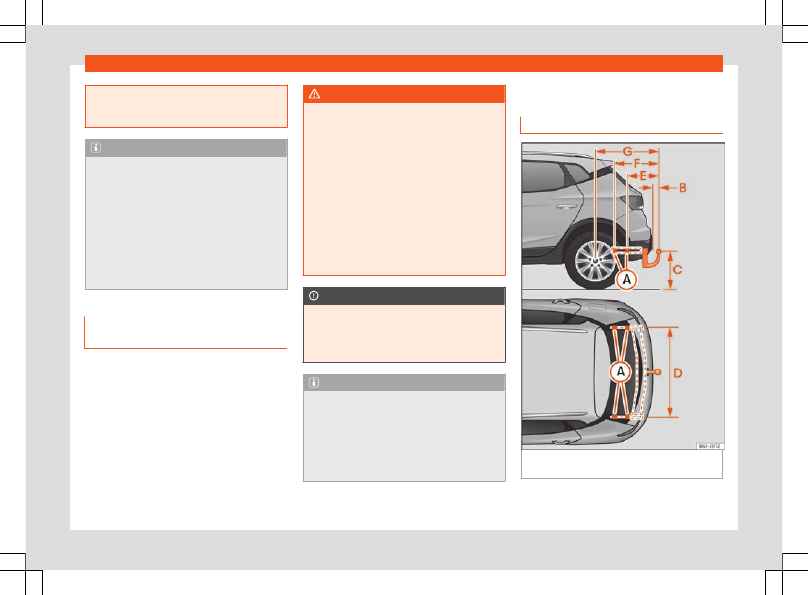

Fig. 185

Limits and attachment points for ret-

rofitting a towing bracket.

SEAT recommends that towing brackets be
retrofitted at a specialised workshop. For

268

Towing bracket device

example, it may very well be necessary to
adjust the cooling system or mount thermal
protection plates. SEAT recommends visiting
a SEAT dealership for this.

If a towing bracket is retrofitted, the distance
specifications should always be kept in mind.

The distance between the centre of the ball
head and the road

›››

Fig. 185



C

 must never

be less than that indicated. This also applies
when the vehicle is fully loaded, including the
technically permissible maximum vertical
load on the coupling device.

Distance specifications



›››

Fig. 185

:

Attachment points (lower part of the vehi-
cle)
65 mm (minimum)
350 mm to 420 mm (fully laden vehicle)
1,025 mm
322 mm
448 mm
854 mm

WARNING

If the cables are improperly or incorrectly
connected, this may lead to malfunctions
in the entire vehicle electronic system, as
well as to accidents and serious injuries.

Never connect the trailer's electric sys-

tem to the electrical connections of the tail
lights or any other unsuitable power sour-

A

B

C

D

E

F

G

ces. Only use suitable connectors to con-
nect the trailer.

The towing bracket should be retrofitted

only at a specialised workshop.

WARNING

If the towing bracket is badly fitted or un-
suitable, the trailer may separate from the
vehicle while driving. This could cause seri-
ous accidents and fatal injuries.

Note

According to regulation EU2021_535 it is

not permitted to install a towing device that
cannot be removed or retracted.

Only use towing brackets that have been

approved by SEAT for the model in ques-
tion.

In some versions, the fitting of a conven-

tional towing hook solution is not recom-
mended. Please consult your Technical
Service.

269

Practical tips

Practical tips

Checking and refilling lev-
els

Refuelling

Refuelling

Fig. 186

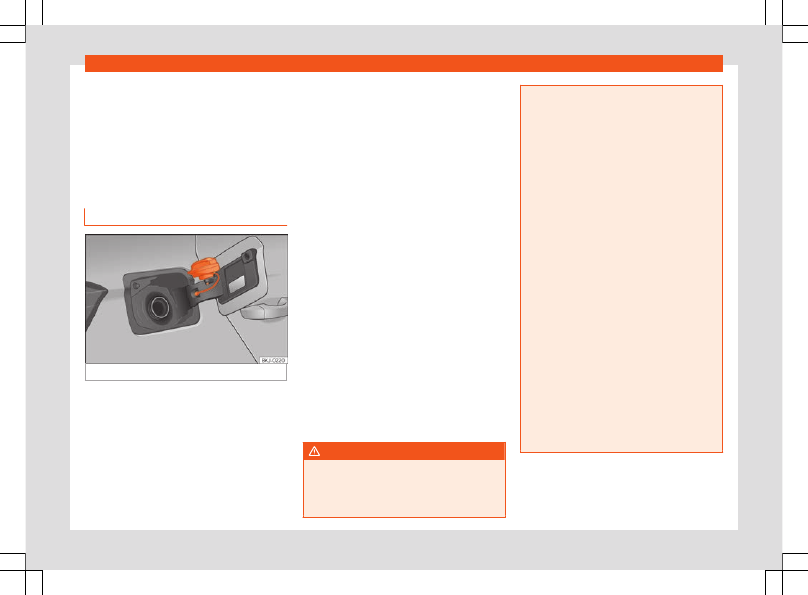

Fuel tank flap with tank cap attached.

The fuel tank flap is on the rear right of the
vehicle.

The tank flap is unlocked when the car is un-
locked using the central locking remote con-
trol

›››

page 96

.

Open the fuel tank flap by pressing on the

retainer zone.

Unscrew the cap by turning it to the left.

Place it in the space on the hinge of the

open flap

›››

Fig. 186

.

Start refuelling. The tank is full as soon as

the pump’s automatic nozzle cuts off the fuel
supply. Do not try to put in more fuel after the
nozzle cuts out, as this will fill the expansion
chamber in the fuel tank.

Unscrew the cap by turning it to the right as

far as it will go.

Close the lid.

The correct fuel grade for your vehicle is giv-
en on a sticker on the inside of the fuel tank
flap. Further notes on fuel can be found at

›››

page 272

.

The capacity of your vehicle's fuel tank is giv-
en in

›››

page 316

.

Vehicles with natural gas engines and hy-
brids

Every 6 months it is necessary to run on pet-
rol until the control lamp

 switches off, and

then the tank must be refilled. This is neces-
sary to ensure that the system works proper-
ly, as well as the fuel quality required for driv-
ing with petrol.

WARNING

Fuel is highly flammable and can cause se-
rious burns and other injuries.

When refuelling, turn off the engine and

turn off the ignition for safety reasons.

Do not smoke when filling the fuel tank or

a canister. Naked flames are forbidden in
the vicinity due to the risk of explosion.

Observe legislation governing the use,

storage and carrying of a spare fuel canis-
ter in the vehicle.

For safety reasons we do not recommend

carrying a spare fuel canister in the vehi-
cle. In an accident the canister could be
damaged and could leak.

If, in exceptional circumstances, you

have to carry a spare fuel canister, please
observe the following points:

Never fill fuel into the spare fuel canis-
ter if it is inside or on top of the vehicle.
This could cause an explosion. Always
place the canister on the ground to fill
it.

Insert the filling nozzle as far as possi-
ble into the spare fuel canister.

If the spare fuel canister is made of
metal, the filling nozzle must be in con-
tact with the canister during filling. This
helps prevent an electrostatic charge
building up.

Never spill fuel in the vehicle or in the
luggage compartment. Fuel vapour is
explosive. Risk of fatal accident!

270

Checking and refilling levels

CAUTION

If any fuel is spilt onto the vehicle, it

should be removed immediately. It could
otherwise damage the paintwork.

Never run the tank completely dry. The

catalytic converter can be damaged.

For the sake of the environment

Do not overfill the fuel tank, it may cause
the fuel to overflow if it becomes warm.

Note

There is no emergency mechanism for the
manual release of the fuel tank flap. If nec-
essary, request assistance from special-
ised personnel.

Note

If the pump nozzle is worn, damaged, or if

it is very small, it is possible that it will not
be able to open the protective device. Be-
fore trying to insert the pump nozzle by
turning it, try a different pump or request
specialist help.

If you fill the tank from a reserve fuel can-

ister, the protective device will not open.
One way to resolve this is to pour the fuel in
slowly.

Refuelling natural gas

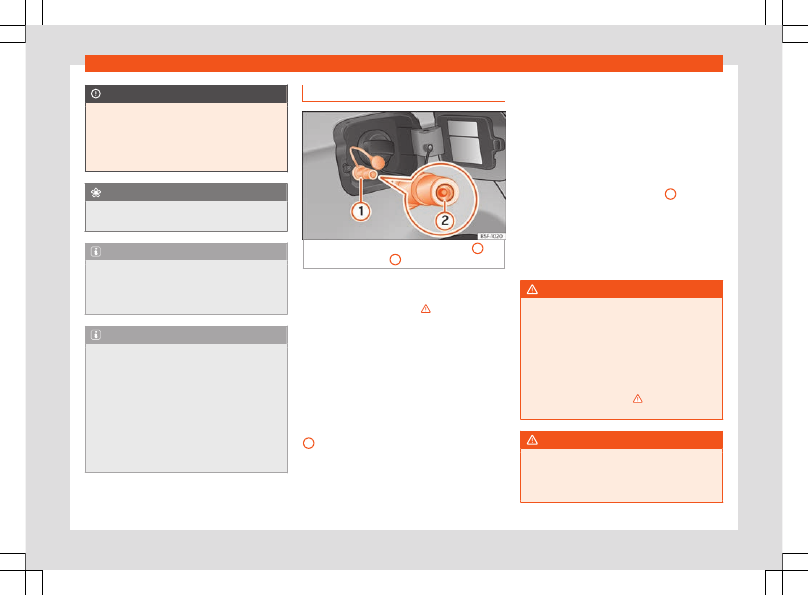

Fig. 187

Tank cap open: gas filler mouth

1

,

filler mouth retainer

2

.

Before

 refuelling, the engine and the ignition,

mobile telephone and heating must be
switched off separately

›››

.

Read the instructions on how to use the natu-
ral gas pump carefully.

Refuelling

The natural gas filler mouth is behind the fuel
tank cap, next to the petrol filler mouth

›››

Fig. 187

.

Remove the plug from the gas filler mouth

1

.

Connect the pump filling nozzle to the gas

filler mouth.

The fuel tank will be

full

 when the pump

compressor automatically cuts the supply.

If you wish to finish refuelling in advance,

press the button on the pump to stop the flow.

If the ambient temperature is very high, the
natural gas pump’s overheating protection
disconnects it automatically.

Closing the fuel tank cap

Check that the mouth retainer

2

 of the gas

filler is not trapped with the filler. If this hap-
pens, replace it in the filler mouth.

Insert the plug in the filler mouth.

Close the tank flap. Make sure you hear it

click into place.

WARNING

Natural gas is a highly explosive, easily
flammable substance. Incorrect handling
of the natural gas can cause accidents se-
rious burns and other injuries.

Before refuelling with natural gas, en-

gage the filling mouth correctly. If you can
smell gas, stop refuelling immediately.

Read and take note

›››

 in Natural gas

on page 274

.

WARNING

The vehicle is not suitable for liquefied nat-
ural gas (LNG) or liquefied petrol gas (LPG),
so LNG or LPG should not be used under
any circumstances. Liquid gas can cause

»

271

Practical tips

an explosion of the natural gas tanks and
cause severe injuries! .

WARNING

If the vehicle underbody touches the
ground or in the event of a rear collision,
there could be damage to the natural gas
tanks. If damaged, natural gas tanks are
full of fuel and can explode, causing seri-
ous or fatal injuries.

Even if you don't notice the smell of gas,

take the vehicle to a specialised workshop
immediately and have the natural gas sys-
tem checked. Do not refuel natural gas
again until the natural gas system has been
inspected.

Note

The filling nozzles of natural gas pumps

can differ in the way they are operated. Ask
a qualified employee at the petrol station
to do the refuelling if you do not know how.

Noises heard when refuelling are normal

and do not indicate damage in the system.

The vehicle natural gas system is pre-

pared both for refuelling with a small com-
pressor (slow refuel) and a large compres-

sor (fast refuel) at natural gas service sta-
tions.

Fuel types

Identification of fuels

1)

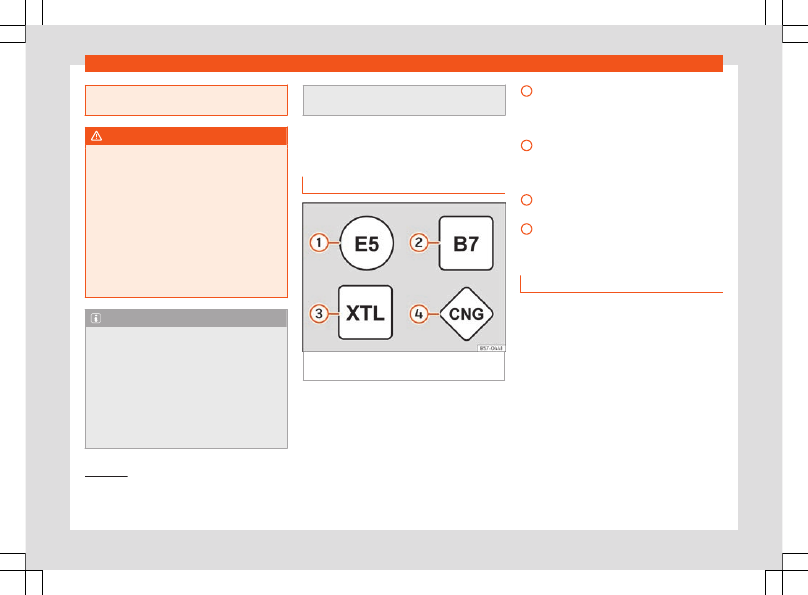

Fig. 188

Identification of fuels according to

European Union (EU) Directive 2014/94/

Fuels are identified by different symbols on
the pump and on your vehicle's tank flap. The
identification serves to prevent confusion
when choosing the fuel.

Petrol

 with ethanol (“E” stands for

E

tha-

nol). The number indicates the percent-
age of ethanol in the petrol. “E5” means,
for example, an ethanol ratio of 5% max.

Diesel

 according to the EN590 standard.

The number indicates the maximum per-
centage of Biodiesel in the fuel. “B7”
means a maximum of 7% Biodiesel.
Synthetic

diesel

 according to the

EN15940 standard.

Natural gas

: “CNG” means

C

ompressed

N

atural

G

as.

Type of petrol

3

 Valid for: vehicles with petrol engines

The correct grade of petrol is listed inside the
fuel tank flap.

The vehicle is equipped with a catalytic con-
verter and must only be run on

unleaded

petrol

. The petrol must comply with the

standard EN 228 and be

sulphur-free

. Fuels

with a 10% ethanol ratio can be refuelled
(E10)

2)

. The types of petrol are differentiated

by using the

octane numbers (RON)

 or via

the

anti-knock index (AKI)

.

1

2

3

4

1)

Depending on country

2)

Follow the regulations of the country you are

driving in.

272

Checking and refilling levels

Super unleaded petrol 95 octane petrol or
normal 91 octane petrol at least

We recommend refuelling with super 95 oc-
tane petrol (91 AKI). If not available, normal 91
octane petrol (87 AKI) (with a slight power
loss) may be used.

Super unleaded petrol, 95 octanes at
least

You should use super 95 octane petrol (91
AKI) at least.

If super is not available,

if necessary

, use nor-

mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
throttle. Refuel with super as soon as possi-
ble.

Unleaded super plus 98 octane petrol or
super 95 octane petrol at least

We recommend refuelling with super plus 98
octane petrol (93 AKI). If not available: super
95 octane petrol (91 AKI) (with a slight power
loss).

If super is not available,

if necessary

, use nor-

mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
throttle. Refuel with super as soon as possi-
ble.

CAUTION

Fuels high percentage of ethanol, e.g.

E30 - E100 button must not be used. The
fuel system would be damaged. Exception:
vehicles with Totalflex engine

›››

page 273,

Ethanol fuel

.

A single refuelling with leaded fuel or

other metal additives entails a permanent
deterioration of the effectiveness of the
catalytic converter.

Only use fuel additives that have been

approved by SEAT. The products that con-
tain substances to increase the octane rat-
ing or decrease knocking may contain met-
al additives that damage the engine and
catalytic converter. This type of products
must not be used.

Do not use fuels shown in the pump as

containing metals. LRP (

lead replacement

petrol

) fuels contain high concentrations of

metal additives. Risk of engine damage!

High engine speed and full throttle can

damage the engine when using petrol with
an octane rating lower than the correct
grade for the engine.

Note

Fuel with an octane rating higher than the

one required by the engine can be used.

In countries in which there is no sulphur-

free fuel, it is also allowed to use low sul-
phur content fuel.

Ethanol fuel

3

 Valid for: vehicles with Totalflex engines

You can recognise vehicles with Totalflex en-
gines

1)

 by label on the fuel tank lid with the

marking “Petrol/ethanol”.

Vehicles with Totalflex engine can run with
unleaded petrol (95 octane / 91 AKI) accord-
ing to ANP No. 57 and with fuels with any high
percentage of ethanol. The vehicle is refuel-
led in the same way as petrol refuelling.

Also consider that

›››

page 272, Type of pet-

rol

Note

SEAT recommends filling the tank exclu-
sively with petrol every 10,000 km to de-
crease impurities that using E100 ethanol
fuel might have left in the engine.

1)

This motor is only available in some markets.

273

Practical tips

Natural gas

3

 Valid for: vehicles with natural gas engines

Natural gas can be compressed or in liquid
form, addition to others.

Use of compressed natural gas (CNG)

Vehicles with a natural gas engine must only
be working with

CNG

 (

C

ompressed

N

atural

G

as

CNG

 ), or with a mixture of

biomethane

if it complies with Regulation EN 16723-2.

Fuels such as liquefied natural gas (LNG), liq-
uefied petroleum gas (LPG) or hithane (mix-
ture of hydrogen and methane) should not be
used to fill the tank.

Natural gas quality and consumption

Natural gas is divided into the groups H and L
depending on its quality.

Gas type H has a superior heating power and
inferior nitrogen and carbon dioxide content
than type L. The higher the heating power of
the natural gas, the lower the consumption
will be.

The engine management automatically
adapts to the natural gas used according to
its quality. Therefore, different quality gases
can be mixed in the tank, without the need for
comprehensive draining before applying a
different quality gas.

Updated information relating to natural gas
quality is displayed on the instrument panel

›››

page 72

.

Regular checks of the natural gas system

The natural gas tanks may be damaged or
corroded by external factors. The walls of the
gas tanks are weakened by deformations,
damage or corrosion. The vehicle owner must
have a specialised workshop check (visual
check)

the gas system at least once every

4 years

. Natural gas tanks must be replaced

at a specialised workshop.

WARNING

Failure to act when you can smell gas in the
vehicle or when refuelling can cause seri-
ous injuries.

Stop the vehicle immediately.

Switch the ignition off.

Open the doors to appropriately venti-

late the vehicle.

Extinguish cigarettes immediately.

Move away from the vehicle or switch off

objects that may cause sparks or a fire.

If you continue to smell gas, do not con-

tinue driving!

Seek specialist assistance. Have the fault

repaired.

If necessary, warn the emergency serv-

ices.

WARNING

Damaged, corroded or rusted tanks can re-
sult in serious injury or even death.

Have the natural gas deposits checked at

least every 4 years (visual check).

Natural gas tanks have a limited service

life. Have the natural gas tanks replaced
when required. You can obtain further infor-
mation about this at SEAT dealers or speci-
alised workshops.

Engine management and
emissions control system

Introduction

WARNING

Due to the high temperatures reached by

the exhaust gas scrubbing system, you
should not park your vehicle near a surface
that can catch fire easily. Fire hazard!

Do not apply wax underneath the vehicle

around the area of the exhaust system: Fire
hazard!

274

Checking and refilling levels

Control lamps

It lights up

Fault in the emission control system.
Reduce speed and drive carefully to the nearest spe-

cialised workshop to have the engine checked.

Flashes

Combustion failures that can damage the catalytic

converter.

Reduce speed and drive carefully to the nearest spe-

cialised workshop to have the engine checked.

It lights up

Particulate filter blocked

›››

page 275

.



It lights up

Fault in the petrol engine management.
Have the engine checked as soon as possible by a
specialised workshop.

When the ignition is switched on, the



 (Electronic

Power Control) lights up and should go off once the
engine has started.

Note

While the indicator lamps

 or



 are

on, there might be faults in the engine, fuel
consumption may go up and the engine
might lose power.

Catalytic converter

To maintain the useful life of the catalytic
converter

Always use unleaded petrol.

Never run the fuel tank dry.

When changing or adding engine oil, do not

exceed the necessary amount

›››

page 281,

Topping up the engine oil

.

Never tow the vehicle to start it, use jump

leads if necessary

›››

page 49

.

If you should notice misfiring, uneven running
or loss of power when the car is moving, have
the vehicle inspected by a specialised work-
shop. In general, the emissions warning lamp

 will light up when any of these symptoms

occur. If this happens, any unburnt fuel can
enter the exhaust system and escape into the
atmosphere. The catalytic converter can also
be damaged by overheating.

CAUTION

Never run the fuel tank completely dry be-
cause an irregular fuel supply can cause
ignition faults. This allows unburnt fuel to
enter the exhaust system, which could
cause overheating and damage the cata-
lytic converter.

For the sake of the environment

Even when the emission control system is
working perfectly, there may be a smell of
sulphur from the gases on occasions. This
depends on the sulphur content of the fuel
used. This can quite often be avoided by
changing to another brand of fuel.

Particulate filter

The particulate filter eliminates most of the
soot from the exhaust gas system. Under nor-
mal driving conditions the filter cleans itself. If
the filter does not clean itself (e.g. if short
journeys are made continuously), it becomes
blocked with soot and the following indica-
tion is displayed to the driver:



Particu-

late filter: cleaned while the vehi-
cle is moving. See Manual.

 The partic-

ulate filter needs cleaning (regeneration).

Regeneration of the particulate filter

Requirements for the regeneration journey:

the engine is at operating temperature.

Drive at a speed of between 50-120 km/h

(31-75 mph). This increases the temperature
and burns the soot in the filter

›››

.

Consider the legal speed limits as well as

the recommended gears.

End the regeneration journey once the con-

trol warning lamp has gone out.

»

275

Practical tips

If the warning lamp stays on after 30 minutes
of running in regeneration mode, have a spe-
cialised workshop repair the fault

WARNING

Always adjust your speed to suit the weath-
er conditions, roads, braking distance and
traffic if the particulate filter is in its regen-
eration phase. Route recommendations
should never make you disregard each
country's specific traffic regulations.

CAUTION

When the exhaust system detects that

the particulate filter is close to saturation,
the self-cleaning function of this system
recommends optimal driving for this func-
tion.

Due to the high temperatures caused by

the regeneration of the particulate filter, it
is possible that the radiator fan will acti-
vate after stopping the engine, even it its
operating temperature has not been
reached.

Noise, smells and high idle speeds can

occur during regeneration.

Always use the correct engine oil and the

correct fuel to make sure the useful life of
the particulate filter is not affected. Also
avoid making short trips all the time.

Engine compartment

Working in the engine compart-
ment

Always be aware of the danger of injury and
scalding as well as the risk of accident or fire
when working in the engine compartment
(e.g. when checking and refilling fluids).

Always observe the warnings listed below
and follow all general safety precautions.

The vehicle's engine compartment is a po-
tentially hazardous area

›››

.

WARNING

When work is done in the engine compart-
ment, injuries, burns, accidents and even
fires can occur.

Switch the engine off, remove the key

from the ignition and apply the electronic
parking brake. If the vehicle has a manual
gearbox, place the lever in neutral; if it has
an automatic gearbox, place the selector
lever in position P. Wait for the engine to
cool down.

Never open the bonnet if you see steam

or drips of coolant being released from the
engine compartment. Wait until no steam
or coolant can be seen before opening the
bonnet.

Keep children away from the engine

compartment.

Never spill liquids used for vehicle opera-

tion on the engine compartment, as these
may catch fire (e.g. the antifreeze in cool-
ant).

Avoid causing short-circuits in the elec-

trical system, particularly at the points
where the jump leads are attached

›››

page 49

. The battery could explode.

If working inside the engine compart-

ment, remember that, even when the igni-
tion is switched off, the radiator fan may
start up automatically, and therefore there
is a risk of injury.

Never cover the engine with additional in-

sulating materials such as a blanket. Risk of
fire!

Do not unscrew the cap on the coolant

expansion tank when the engine is hot. The
cooling system is under pressure.

Protect face, hands and arms by cover-

ing the cap with a large, thick rag to protect
against escaping coolant and steam.

Always make sure you have not left any

objects, such as cleaning cloths or tools, in
the engine compartment.

If you have to work underneath the vehi-

cle, you must use suitable stands addition-
ally to support the vehicle, there is a risk of
accident!. A hydraulic jack is insufficient for
securing the vehicle and there is a risk of
injury.

If any work has to be performed when the

engine is started or with the engine running,

276

Checking and refilling levels

there is an additional, potentially fatal,
safety risk from the rotating parts, such as
the drive belts, alternator, radiator fan, etc.,
and from the high-voltage ignition system.
You should also observe the following:

Never touch the electrical wiring of the
ignition system.

Ensure that jewellery, loose clothing
and long hair do not get trapped in ro-
tating engine parts. Danger of death.
Before starting any work remove jewel-
lery, tie back and cover hair, and wear
tight-fitting clothes.

Never accelerate with a gear engaged
without taking the necessary precau-
tions. The vehicle could move, even if
the handbrake is applied. Danger of
death.

Observe the following additional warn-

ings if work on the fuel system or the elec-
trical system is necessary:

Always disconnect the battery from the
on-board network.

Do not smoke.

Never work near naked flames.

Always keep an approved fire extin-
guisher immediately available.

For the sake of the environment

Inspect the ground underneath your vehi-

cle regularly so that any leaks are detec-
ted at an early stage. If you find spots of oil

or other fluids in the area where it was
parked, have your vehicle inspected at the
workshop.

Service fluids leaks are harmful to the en-

vironment. For this reason you should make
regular checks on the ground underneath
your vehicle. If you find spots of oil or other
fluids, have your vehicle inspected in a
specialised workshop.

Opening and closing the bonnet

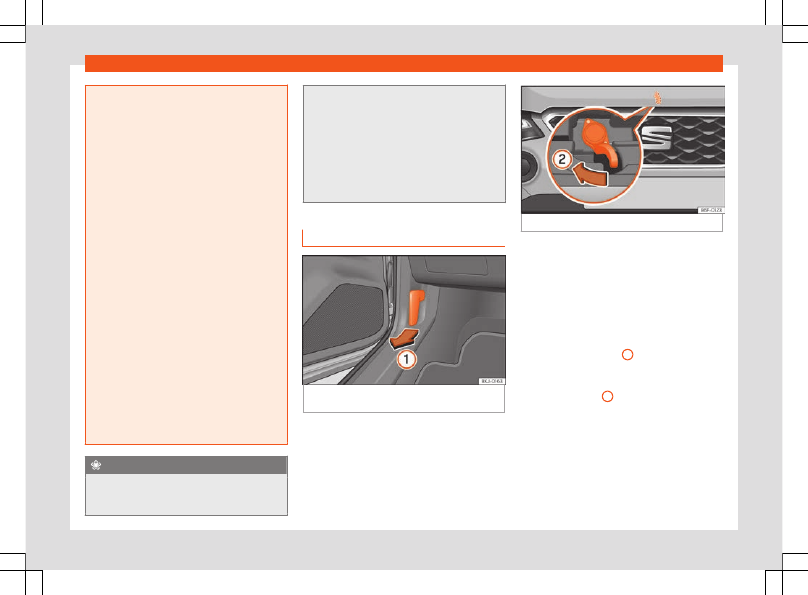

Fig. 189

Release lever in the driver's footwell

area.

Fig. 190

Lever under the bonnet.

Opening the bonnet

The bonnet is released from inside the vehi-
cle.

Before opening the bonnet, make sure that
the windscreen wiper arms are in place
against the windscreen.

Open the door and pull the lever under the

dashboard

›››

Fig. 189



1

.

To lift the bonnet, press towards the left on

the lever located under the bonnet, in the
centre

›››

Fig. 190

2

. The arrester hooks are

released.

The bonnet can be opened. Release the

bonnet stay and secure it in the fixture de-
signed for this in the bonnet.

Closing the bonnet

Slightly lift the bonnet.

»

277

Practical tips

Release the bonnet stay and replace it in its

support.

At a height of approximately 20 cm let it fall

so it locks.

If the bonnet does not close, do not press
downwards. Open it again and let it fall as
mentioned above.

WARNING

Make sure that the bonnet is properly
closed. If it opens when driving, it can
cause an accident.

CAUTION

To avoid damage to the bonnet and to the
windscreen wiper arms, only open it when

the windscreen wipers are in place against
the windscreen.

Checking levels

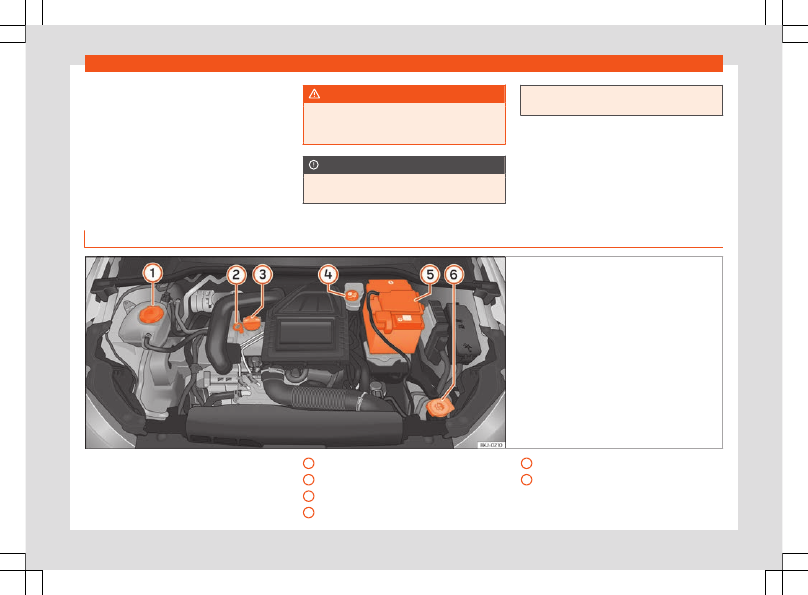

Fig. 191

Diagram for the location of the various el-

ements.

From time to time, the levels of the different
fluids in the vehicle must be checked. Never
fill with incorrect fluids, otherwise serious
damage to the engine may be caused.

Coolant expansion tank

›››

page 282

Engine oil level dipstick

›››

page 280

Engine oil filler cap

›››

page 281

Brake fluid reservoir

›››

page 284

1

2

3

4

Battery

›››

page 285

Windscreen washer reservoir

›››

page 285

5

6

278

Checking and refilling levels

Note

The layout of parts may vary depending on
the engine.

Engine oil

General notes

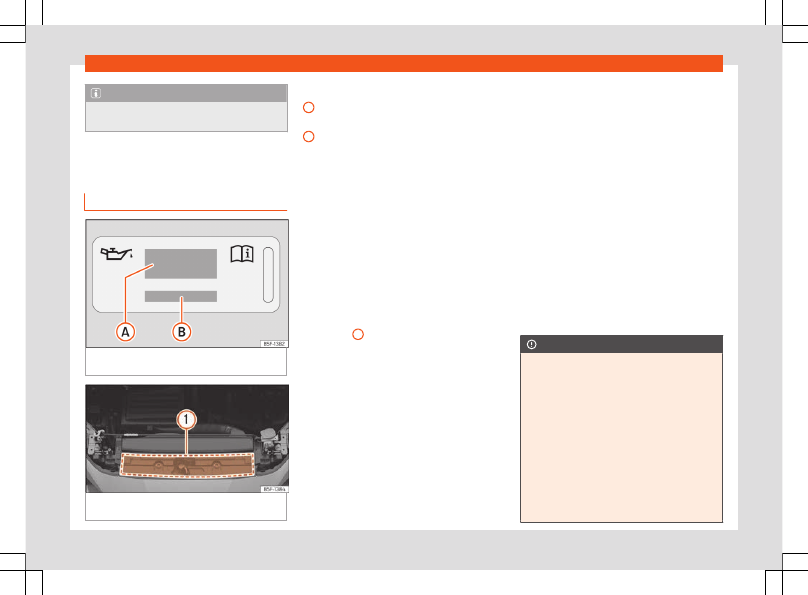

Fig. 192

In the engine compartment: engine oil

label

Fig. 193

In the engine compartment: area

where the engine oil label is located

Key to the

›››

Fig. 192

:

Information about the engine oil stand-
ard.
Information about engine oil viscosity.

The engine comes with a special, multi-grade
oil that can be used all year round.

Because the use of high-quality oil is essen-
tial for the correct operation of the engine
and its long useful life, when topping up or
changing oil, use only those oils that comply
with VW standards.

For vehicles with an engine oil label

If the engine oil has to be topped up, use one
of the oils shown on the label

›››

Fig. 192

. The

label with the prescribed standard is located
at the front of the engine compartment

›››

Fig. 193

1

. If you use the recommended

engine oil, you can top up the oil as often as
necessary.

For vehicles without an engine oil label

Contact a specialised workshop or SEAT offi-
cial service for information about the corre-
sponding standard.

If the engine oil level is too low

If the recommended engine oil is not availa-
ble, in the event of an

emergency

 you can

change the oil

once

 with a maximum of 0.5 L

of the next oil until the next oil change:

A

B

Petrol and CNG engines:

 VW 504 00,

ACEA C3 or API SN standard.

SEAT recommends changing the oil at a spe-
cialised workshop. SEAT recommends an Of-
ficial SEAT Service.

SEAT recommends the use of engine oils ap-
proved according to the appropriate VW
standard. Use of engine oils that do not meet
these quality requirements can cause engine
damage.

SEAT recommends the use of Original SEAT
Spare Part engine oils.

Engine oil additives

No type of additive should be mixed with the
engine oil. The deterioration caused by these
additives is not covered by the warranty.

CAUTION

Take the following into account if you have
refilled with an engine oil different to those
specified in the aforementioned standards,
or by your SEAT technical service centre:

There is no way of completely avoiding

the danger of causing damage to the en-
gine and particulate filter.

You can continue driving with the vehicle

if the refill was no more than 0.5 l of engine
oil. Go to a specialised workshop as soon
as possible and request an oil change. Oth-
erwise, there is a danger of engine dam-
age.

»

279

Practical tips

If you have topped up more than 0.5 l of

engine oil, drive with the engine at low load
levels and within the medium RPM range as
a maximum. Do not drive at more than 80
km/h and do not travel more than 300 km
(approximately). Go to a specialised work-
shop as soon as possible and request an oil
change. Otherwise, there is a danger of en-
gine damage.

You are responsible for the risk of possi-

ble damage to the vehicle (engine, exhaust
system). If in doubt, do not start the engine
and request assistance from the technical
service centre.

Do not start the engine if you have top-

ped up with a fluid other than engine oil.
Request assistance from the technical
service centre. Danger of engine damage!

Note

Before a long trip, we recommend finding
an engine oil that conforms to the corre-
sponding VW specifications and recom-
mend keeping it in the vehicle. This way, the
correct engine oil will always be available
for a top-up if needed.

Warning lamp

It lights up red



Do not carry on driving!

Engine oil pressure too low.

Switch off the engine. Check the engine oil level.

If this warning lamp

 starts to flash, and is accom-

panied by three

audible warnings

, switch off the en-

gine and check the oil level. If necessary, add more
oil

›››

page 281

.

If the warning lamp

 flashes although the oil level

is correct,

stop

 driving. Do not even run the engine at

idle speed! Obtain technical assistance.

It lights up yellow

Check the engine oil level as soon as possible.
Replace oil as soon as you have the opportunity to
do so

›››

page 281

.

It flashes yellow

Fault in the oil level sensor.
Have the check done by a specialised workshop. Un-
til then it is advisable to check the oil level every time

you refuel.

WARNING

Observe the safety warnings

›››

 in Con-

trol and warning lamps on page 87

.

Checking the engine oil level

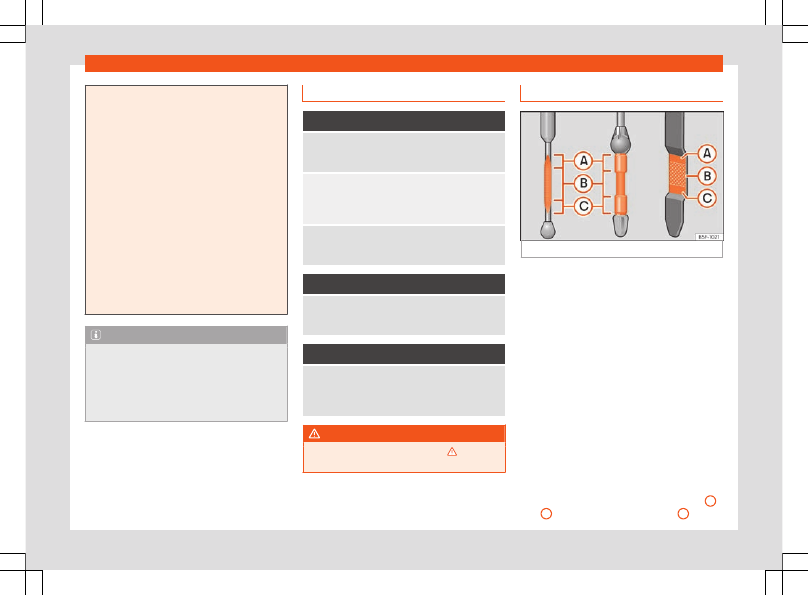

Fig. 194

Engine oil dipstick.

The engine oil dipstick indicates the level of
the oil.

Checking oil level

Park the vehicle in a horizontal position.

Briefly run the engine at idle speed until the
operating temperature is reached and then
stop.

Wait for about two minutes.

Pull out the dipstick. Wipe the dipstick with
a clean cloth and insert it again, pushing it
in as far as it will go.

Then pull it out once more and check the oil
level

›››

Fig. 194

. Top up with engine oil if

necessary.

The oil must leave a mark between zones

A

and

C

. It can never go above zone

A

.

280

Checking and refilling levels

Zone

A

: do not add oil.

Zone

B

: you can add oil but keep the level

in that zone.

Zone

C

: add oil until zone

B

.

Depending on how you drive and the condi-
tions in which the vehicle is used, oil con-
sumption can be up to 0.5 l/1000 km. Oil
consumption is likely to be higher for the first
5,000 km. For this reason the engine oil level
must be checked at regular intervals, prefera-
bly when filling the tank and before a journey.

WARNING

Any work carried out in the engine com-
partment or on the engine must be carried
out cautiously.

When working in the engine compart-

ment, always observe the safety warnings

›››

page 276

.

CAUTION

If the oil level is above area

A

, do not start

the engine. This could result in damage to
the engine and catalytic converter. Con-
tact a Technical Service.

Topping up the engine oil

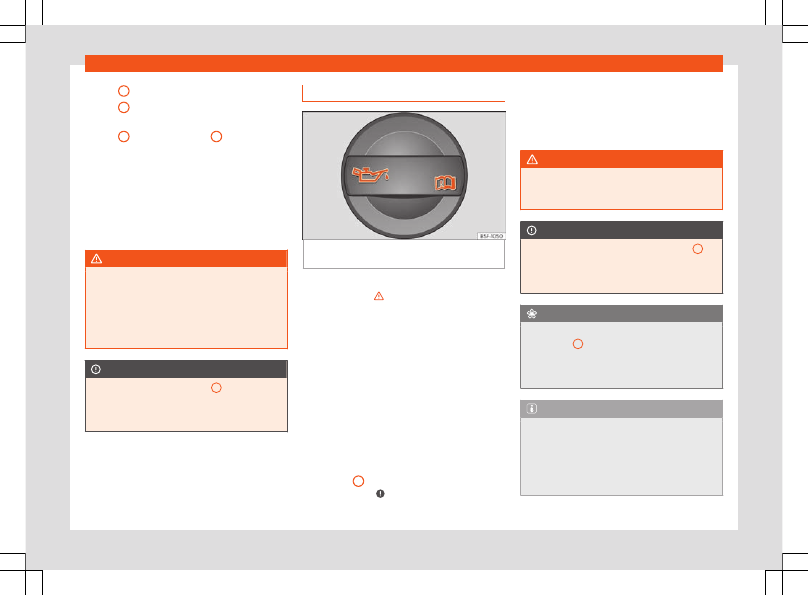

Fig. 195

In the engine compartment: Engine oil

filler cap.

Before opening the bonnet, read and observe
the warnings

›››

 in Working in the engine

compartment on page 276

.

Topping up engine oil

Unscrew cap from engine oil filler opening

›››

Fig. 195

.

Carefully add oil in small quantities (no

more than 0.5 l).

To avoid adding too much oil, whenever you

add a certain amount, wait about 2 minutes
and recheck the oil level

›››

page 280

.

If necessary, add some more oil.

When the oil level reaches at least zone

›››

Fig. 194



B

, unscrew the engine oil filler

cap carefully

›››

.

The position of the oil filler opening is shown
in the corresponding engine compartment il-
lustration

›››

page 278

.

Engine oil specification

›››

page 279

.

WARNING

Oil is highly inflammable! Ensure that no oil
comes into contact with hot engine compo-
nents when topping up.

CAUTION

If the oil level is above area

›››

Fig. 194

A

,

do not start the engine. This could result in
damage to the engine and catalytic con-
verter. Contact a specialised workshop.

For the sake of the environment

The oil level must never be above zone

›››

Fig. 194

A

. Otherwise oil can be drawn in

through the crankcase breather and leak
into the atmosphere via the exhaust sys-
tem.

Note

Before a long trip, we recommend finding
an engine oil that conforms to the corre-
sponding VW specifications and recom-
mend keeping it in the vehicle. This way, the
correct engine oil will always be available
for a top-up if needed.

281

Practical tips

Engine oil change

We recommend that you have the engine oil
changed by a Technical Service.

WARNING

Only change the engine oil yourself if you
have the specialist knowledge required!

Before opening the bonnet, read and ob-

serve the warnings

›››

page 276

.

Wait for the engine to cool down. Hot oil

may cause burn injuries.

Wear eye protection to avoid injuries,

such as acid burns, caused by splashes of
oil.

When removing the oil drain plug with

your fingers, keep your arm horizontal to
help prevent oil from running down your
arm.

Wash your skin thoroughly if it comes into

contact with engine oil.

Engine oil is poisonous! Used oil must be

stored in a safe place out of the reach of
children.

CAUTION

No additives should be used with engine oil.
This could result in engine damage. Any
damage caused by the use of such addi-
tives would not be covered by the factory
warranty.

For the sake of the environment

We recommend that you change the en-

gine oil and the filter at a technical service
centre.

Never pour oil down drains or into the

ground.

Use a suitable container when draining

the used oil. It must be large enough to hold
all the engine oil.

Cooling system

Coolant specifications

The engine cooling system is supplied from
the factory with a specially treated mixture of
water and at least 40 % of the additive

G12evo

 (TL-VW 774 J), purple. This mixture

gives the necessary frost protection down to
-25°C (-13°F) and protects the light alloy
parts of the engine cooling system against
corrosion. It also prevents scaling and con-
siderably raises the boiling point of the cool-
ant.

To protect the cooling system, the percent-
age of additive must always be at least 40 %,
even in warm climates where anti-freeze pro-
tection is not required.

If for weather reasons further protection is
necessary, the proportion of additive may be

increased, but only up to 60 %; otherwise an-
tifreeze protection will diminish and this will
worsen cooling.

When the coolant is topped up, use a mixture
of

distilled water

 and at least 40 % of the

additive

G12evo

 for optimal protection

against corrosion. Mixing

G12evo

 with G13

(TL-VW 774 J), G12 plus-plus (TL-VW 774 G),
G12 plus (TL-VW 774 F), G12 (red) or G11
(green blue) engine coolants decreases pro-
tection again corrosion and should be avoi-
ded.

WARNING

If there is not enough anti-freeze in the
coolant system, the engine may fail lead-
ing to serious damage.

Ensure that the percentage of additive is

correct for the lowest expected ambient
temperature in the zone in which the vehi-
cle is to be used.

When the outside temperature is very

low, the coolant could freeze and the vehi-
cle would be immobilised.

CAUTION

The original additives should never be
mixed with coolants which are not ap-
proved by SEAT.

If the fluid in the expansion tank is not

purple but is, for example, brown, this indi-
cates that the G12evo additive has been

282

Checking and refilling levels

mixed with an inadequate coolant. The
coolant must be changed as soon as possi-
ble if this is the case!

For the sake of the environment

Coolants and additives can contaminate
the environment. If any fluids are spilled,
they should be collected and correctly dis-
posed of, with respect to the environment.

Refilling coolant

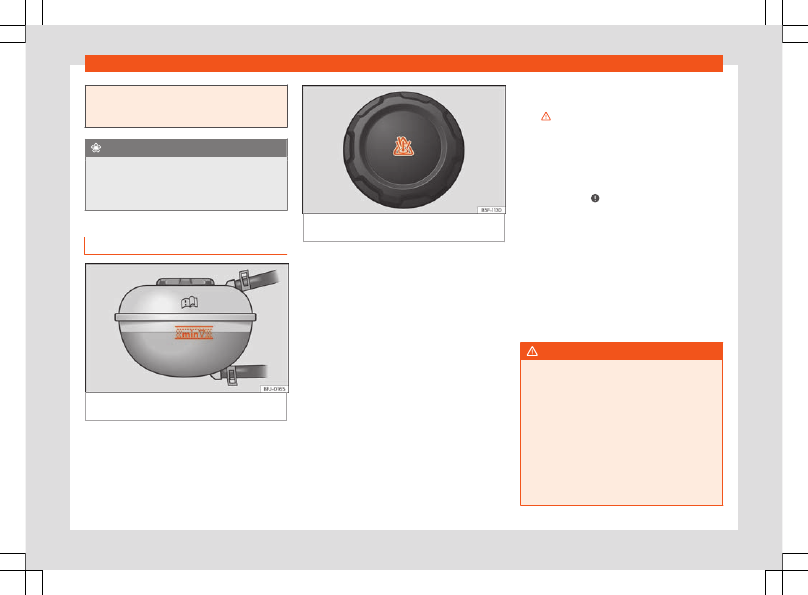

Fig. 196

In the engine compartment: marking

on coolant expansion tank.

Fig. 197

Engine compartment: coolant expan-

sion tank cap.

The coolant tank is located in the engine
compartment

›››

page 278

.

Top up coolant when the level is below the



(minimum) mark.

Checking coolant level

Park the vehicle in a horizontal position.

Switch the ignition off.

Read off the coolant level on coolant ex-
pansion tank. When the engine is cold, the
coolant level should be between the marks

›››

Fig. 196

. When the engine is hot, it may

be slightly above the upper mark.

Topping up coolant

Wait for the engine to cool down.

Cover the coolant expansion tank cap with
a cloth and carefully unscrew it to the left

›››

.

Top up the coolant only if there is still cool-
ant in the expansion tank, otherwise you
could

damage the engine

. If there is no

coolant in the expansion tank, do not con-
tinue driving. You should obtain professional
assistance

›››

.

If there is still some coolant in the expansion
tank, top up to the upper mark.

Top up with coolant until the level becomes
stable.

Screw the cap back on correctly.

If there is a coolant leak, take the vehicle spe-
cialised workshop to have the cooling system
examined.

WARNING

The cooling system is under pressure. Do

not unscrew the cap on the coolant expan-
sion tank when the engine is hot: risk of
burns!

Store the antifreeze in its original con-

tainer and keep it out of reach of children.

If working inside the engine compart-

ment, remember that, even when the igni-
tion is switched off, the radiator fan may
start up automatically, and therefore there
is a risk of injury.

»

283















Content      ..     15      16      17      18     ..
