TYRE PRESSURE KIT (2/3)
With the engine running and the
If a minimum pressure of 1.8 bar is
parking brake applied,
not reached after 15 minutes, repair
is not possible; do not drive the ve-
- Disconnect any accessories previ-
hicle but contact an approved dealer.
ously connected to the vehicle’s ac-
cessories sockets;
- Refer to the information on the in-
flation kit compressor located in
the boot of the vehicle and follow the
instructions;
- Inflate the tyre to the recommended
1
pressure ➥ 4.8;
2
Before using this kit, park
- After a maximum of 15 minutes, stop
the vehicle at a sufficient
inflating and read the pressure (on
distance from traffic, switch
pressure gauge 2);
on the hazard warning
Depending on the vehicle, in the event
Note: while the bottle is emptying (ap-
lights, apply the handbrake, ask all
of a puncture, use the kit located in the
proximately 30 seconds), the pressure
passengers to leave the vehicle and
boot or underneath the luggage com-
gauge 2 will indicate briefly a pressure
keep them away from traffic.
partment carpet.
of 6 bar, then the pressure drops.
Vehicle fitted with a tyre pressure
- Adjust the pressure: to increase
loss warning system
it, continue inflation with the kit; to
reduce it, press button 1.
In the event of under-inflation (punc-
If the vehicle is parked on
tures, under-inflation etc.), the
the hard shoulder, you must
warning light appears on the instrument
warn other road users of
panel. ➥ 2.18.
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
5.4
TYRE PRESSURE KIT (3/3)
- Start immediately and drive at a
speed between 12 to 37 mph (20 to
60 km/h) in order to distribute the
3
product evenly in the tyre; after driv-
ing a distance of 2 miles (3 km), stop
and check the pressure.
- If the pressure is higher than 1.3 bar
Please be aware that a
but lower than the recommended
poorly tightened or miss-
pressure (refer to the label affixed to
ing valve cap can make the
the edge of the driver’s door), adjust
tyres less airtight and may
it. Otherwise, contact an approved
lead to pressure loss.
dealer: the tyre cannot be repaired.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Precautions when using the
kit
Once
the
tyre is
correctly inflated,
The kit should not be operated for more
remove the kit: unscrew the inflation
than 15 consecutive minutes.
adapter slowly from the container 3 to
The container must be replaced after
Following repair with the kit,
prevent any product spatter and store
the first use even if liquid remains
do not travel further than
the container in plastic packaging to
inside.
120 miles (200 km). In addi-
prevent product leaks.
tion, reduce your speed and
- Affix the driving recommendation
under no circumstances exceed
label (located under the container) to
48 mph (80 km/h). The sticker,
the dashboard where the driver can
which you must affix in a prominent
see it.
position on the dashboard, reminds
- Put the kit away.
you of this.
Nothing should be placed
- At the end of this initial inflation op-
Depending on the country or local
around the driver’s feet
eration, air will still escape from the
legislation, a tyre repaired with the
as such objects may slide
tyre. You must drive a short distance
inflation kit may need to be replaced.
under the pedals during
in order to seal the hole.
sudden braking manoeuvres and
obstruct their use.
5.5
TYRES (1/4)
The tyres are the only contact between
When the tyre tread has been worn to
the vehicle and the road, so it is essen-
1
the level of the wear indicators, they
tial to keep them in good condition.
become visible2: it is then necessary
You must make sure that your tyres
to replace your tyres because the tread
conform to local road traffic regulations.
rubber is no more than 1.6 mm deep,
resulting in poor roadholding on wet
roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
2
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
that are indicators moulded into the
tread at several points.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
5.6
TYRES (2/4)
Tyre pressures
Pressures should be checked when the
Vehicle fitted with a tyre pressure
tyres are cold; ignore higher pressures
monitoring system
Adhere to the tyre pressures. The tyre
which may be reached in hot weather
pressures should be checked at least
In the event of under-inflation (punc-
or following a fast journey.
once a month and additionally before
tures, under-inflation, etc.), the
any long journey (refer to the label af-
If tyre pressures cannot be checked
warning light appears on the instrument
fixed to the edge of the driver’s door)
when the tyres are cold, the normal
panel ➥ 2.18.
➥ 4.8.
pressures must be increased by 0.2 to
0.3 bar (or 3 PSI).
Never deflate a hot tyre.
Changing wheels around
This practice is not recommended.
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
For safety reasons, it is for-
These are factors which
bidden to exchange the 17”
may seriously affect safety and lead
front wheels (tyres and/or
to:
rims) with the rear wheels.
- poor road holding;
- risk of bursting or tread separa-
tion.
Please be aware that a
The pressure depends on the load
poorly tightened or miss-
and the speed of use. Adjust the
ing valve cap can make the
pressure according to the condi-
tyres less airtight and lead
tions of use (refer to the label affixed
to pressure loss.
to the edge of the driver’s door).
Always use valve caps identical to
those fitted originally and tighten
them fully.
5.7
TYRES (3/4)
Fitting new tyres
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
For your safety, please re-
Snow or Winter tyres
spect the speed limit.
We would recommend that these be
When they need to be re-
fitted to all four wheels to ensure that
17” wheels cannot be
placed, only tyres of the
your vehicle retains maximum adhe-
fitted with chains.
same make, size, type and profile
sion.
should be used on a single axle.
If you wish to use special
Warning: These tyres sometimes have
equipment, consult an ap-
They must: either have a load ca-
a specific direction of rotation and a
proved dealer.
pacity and a speed capacity at
maximum speed index which may be
least equal to the original tyres,
lower than the maximum speed of your
or correspond to those recom-
vehicle.
mended by your authorised
dealer.
Chains may only be fitted
Failure to heed these instructions
to tyres of the same size
could endanger your safety and
as those originally fitted to
affect your vehicle’s roadworthi-
your vehicle.
ness.
Chains may be fitted, provided that
Risk of loss of control of the ve-
they are specific chains. We would
hicle.
advise you to consult an approved
dealer.
5.8
TYRES (4/4)
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces-
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
NB:
The use of snow tyres, winter tyres or
studded tyres significantly reduces the
vehicle range.
In all cases, we would recommend
that you contact an approved Dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
5.9
FRONT HEADLIGHTS: replacing the bulbs
LED front fog lights/
cornering lights 3
(depending on the vehicle)
1
Consult an authorised dealer.
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
2
3
LED daytime running lights/
side lights 1
(depending on the vehicle)
Please see an authorised dealer.
Direction indicators/dipped
Any operation on (or modi-
fication to) the electrical
beam headlights/LED main
system must be performed
beam headlights 2
by an approved dealer
Please see an authorised dealer.
since an incorrect connection might
damage the electrical equipment
(harness, components and in par-
ticular the alternator). In addition,
your Dealer has all the parts re-
quired for fitting these units.
5.10
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (1/2)
Reversing lights and rear fog
lights 3
1
Access bulb holder via the underneath
of the vehicle, then unscrew it by turn-
ing towards the centre of the vehicle.
Fog light
Bulb type: PR21W.
2
Reversing light
Bulb type: P21W.
3
High level brake light 1
Consult an approved dealer.
Direction indicator/brake and
side lights 2
Consult an approved dealer.
5.11
REAR AND SIDE LIGHTS: changing bulbs (2/2)
4
6
5
Number plate lights 4
Indicator lights 6
- Unclip light 4 by pressing tab 5;
Consult an approved dealer.
- remove the light cover to gain access
to the bulb.
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
5.12
INTERIOR LIGHTING: changing bulbs (1/2)
2
1
Map reading lights 1
Courtesy mirror lights 2
Consult an authorised dealer.
Please consult an authorised dealer.
5.13
INTERIOR LIGHTING: changing bulbs (2/2)
4
5
6
3
Luggage compartment light
Disconnect the light.
Unclip the light 3 by pressing the tab on
Press tab 4 to release lens
6 and
its left side (using a flat-bladed screw-
access bulb 5.
driver or similar).
Bulb type: W5W.
Remove the bulb concerned.
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
5.14
“HANDS-FREE” CARD: battery (1/2)
1
A
The batteries are available from ap-
proved Dealers, and their service
life approximately two years. Check
that there is no dye on the battery:
risk of an incorrect electrical con-
tact.
2
When they need to be re-
Replacing the battery
When refitting, proceed in the reverse
placed, be sure to use
order, then press one of the buttons on
When the message “Keycard Battery
the same or equivalent
the card four times, close to the vehicle:
Low” appears on the instrument panel,
type of battery (consult an
the next time the vehicle is started, the
replace the battery in the card:
Approved Dealer).
message will disappear.
- slide the rear casing 1 downwards
while pressing on zone A;
Check that the cover is clipped shut.
- remove the battery cover 2;
Note: Do not touch the electronic circuit
- remove the battery by pressing on
or contacts on the card when replacing
one side and lifting the other;
the battery.
When replacing:
- replace it according to the direc-
tion and template shown inside the
- make sure that the batter-
cover.
ies are correctly inserted.
Risk of explosion.
- if the flap does not close cor-
rectly, do not use and keep out of
reach of children.
5.15
“HANDS-FREE” CARD: battery (2/2)
Operating faults
If the battery is too weak to ensure cor-
rect operation, you will still be able to
start and lock/unlock the vehicle
➥ 1.30.
Precautions relating to
batteries:
- keep (new or used) bat-
teries out of reach of chil-
dren;
- do not swallow batteries;
Risk of chemical burns which
may lead to death.
- if ingested or inserted into any
part of the body, consult a doctor
as soon as possible.
Do not throw away your used bat-
teries; give them to an organisation
responsible for collecting and recy-
cling batteries.
5.16
FUSES (1/2)
5
1
3
A
2
4
Fuse box
Tweezers 1
Refitting the flap A
If any electrical component does not
Remove the fuse using tweezers 1, lo-
Bring the flap A towards the dashboard.
work, check the condition of the fuses.
cated at the back of flap A.
Insert the 2 component into the slot 3.
Unclip the access flap A.
To remove the fuse from the tweezers,
Slide the 2 component into the slot 3 to-
slide the fuse to the side.
wards the left, then downwards so that
the clips 4 of the flap are opposite the
It is not advisable to use the free fuse
mountings 5.
locations.
Press on the flap to clip it.
In accordance with local legislation
or as a precautionary measure:
Obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
5.17
FUSES (2/2)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
Symbol
Allocation
Use the fuse allocation label in the
H
Windscreen washer
storage compartment to identify the
fuses.
Multimedia accessories socket, multimedia
î
Certain fuses should only be re-
screen
placed by a qualified professional.
Front cigarette lighter, front and rear second row
These fuses are not listed on the
Æ
accessories socket
label.
Only change the fuses represented
Ì
Horn
on the label.
Heated rear view mirrors
×
Brake lights, passenger compartment central unit
Check the fuse in question
Passenger compartment centre unit, rear wiper,
and replace it, if neces-
rear fog light
sary, by a fuse of the same
rating.
Direction indicator lights, hazard warning lights,
If a fuse is fitted where the rating is
D
too high, it may cause the electrical
high level brake lights
circuit to overheat (risk of fire) in the
event of an item of equipment using
Electric window
an excessive amount of current.
5.18
FITTING A RADIO
1
2
-
In all cases, it is very important to
follow the manufacturer’s instruc-
tions carefully.
Radio location 1
Door speakers 2
-
The specifications of the brack-
Unclip the blanking cover. The aerial, +
To install any equipment, please con-
ets and wires (available from our
and - supply and speaker wire connec-
sult an authorised dealer.
network) vary depending on the
tions are located behind it.
equipment level of your vehicle
and the type of radio. Consult an
approved Dealer to find out the
correct part number.
-
No work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
dealers: an incorrectly connected
system may result in damage
being caused to the electrical
equipment and/or the compo-
nents connected to it.
5.19
ACCESSORIES
Electrical and electronic accessories
Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-
sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.
Connect accessories with a maximum power of 120 Watts only. Fire hazard. When several accessory sockets are
used at the same time, the total power of the connected accessories must not exceed 180 watts.
No work may be carried out on the vehicle’s electrical or radio circuits, except by approved Dealers: an incorrectly connected
system may result in damage being caused to the electrical equipment and/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.
Establish the rating and position of this fuse.
Using the diagnostic socket
The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electronic systems.
For your safety we recommend that you use only electronic accessories approved by the manufacturer, consult an Approved
Dealer. Serious accident risk.
Use of transmission/receiving devices (telephones, CB equipment etc.).
Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessories
If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your
vehicle, which are the only accessories for which the manufacturer will provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-
larly. Do not lay one mat on top of another. There is a risk of wedging the pedals
5.20
WINDSCREEN WIPER BLADES (1/2)
A
B
1
2
3
4
Replacing windscreen wiper
To refit
blades 2
To refit the wiper blade 2, insert it in its
housing in the arm 3, then clip it until
To replace the wipers, first put them in
you hear a click. Make sure that the
the service position B.
blade is correctly locked in position.
With the ignition on and the engine
To return the blades to lowered posi-
Keep monitoring the condition of the
stopped:
tion, make sure that the blades are
wiper blades. How long they last de-
- lower the windscreen wiper stalk
folded down onto the windscreen then
pends on you:
fully (fast continuous wipe position).
set the 1 stalk to position A (single
The wiper arms stop in a position B
- clean the blades and the wind-
sweep): the windscreen wiper blades
away from the bonnet;
screen regularly with soapy
will fold into the bonnet when the igni-
water;
- press the button 4 firmly then remove
tion is switched on.
the blade upwards.
- do not use them when the wind-
screen is dry;
- free them from the windscreen
when they have not been used
for a long time.
5.21
WINDSCREEN WIPER BLADES (2/2)
To refit
To refit the wiper blade, proceed in re-
5
verse order to removal. Make sure that
the blade is correctly locked in position.
C
- In frosty weather, make
sure that the wiper blades
are not stuck by ice
(to
avoid the risk of the motor
6
overheating).
- Check the condition of the wiper
blades.
They should be replaced as soon
Rear screen wiper blade 5
as they become less efficient: ap-
proximately once a year.
Stalk in stop position (deactivated):
When changing the blade, when it
-
lift the wiper arm 6;
has been removed, do not let the
-
pivot the rear screen wiper blade 5
wiper arm fall against the window:
(C movement) until it unclips;
risk of breaking the window.
Keep monitoring the condition of the
-
release rear screen wiper blade 5 by
wiper blades. How long they last de-
pulling on it.
pends on you:
- clean the blades and the wind-
screen regularly with soapy
water;
Before changing the rear
- do not use them when the wind-
wiper blade, make sure the
screen is dry;
stalk is in the stop position
(deactivated).
- free them from the windscreen
when they have not been used
Risk of injury.
for a long time.
5.22
TOWING, BREAKDOWN (1/3)
Choice of breakdown service
In the event of an energy fault
In the event of a fully discharged trac-
tion battery, any type of towing is per-
mitted: towing on a flatbed truck or
towing on the road using the tow eye
(please see following pages). It is es-
sential to wait approximately 5 minutes
after locking the doors to start towing.
All other cases

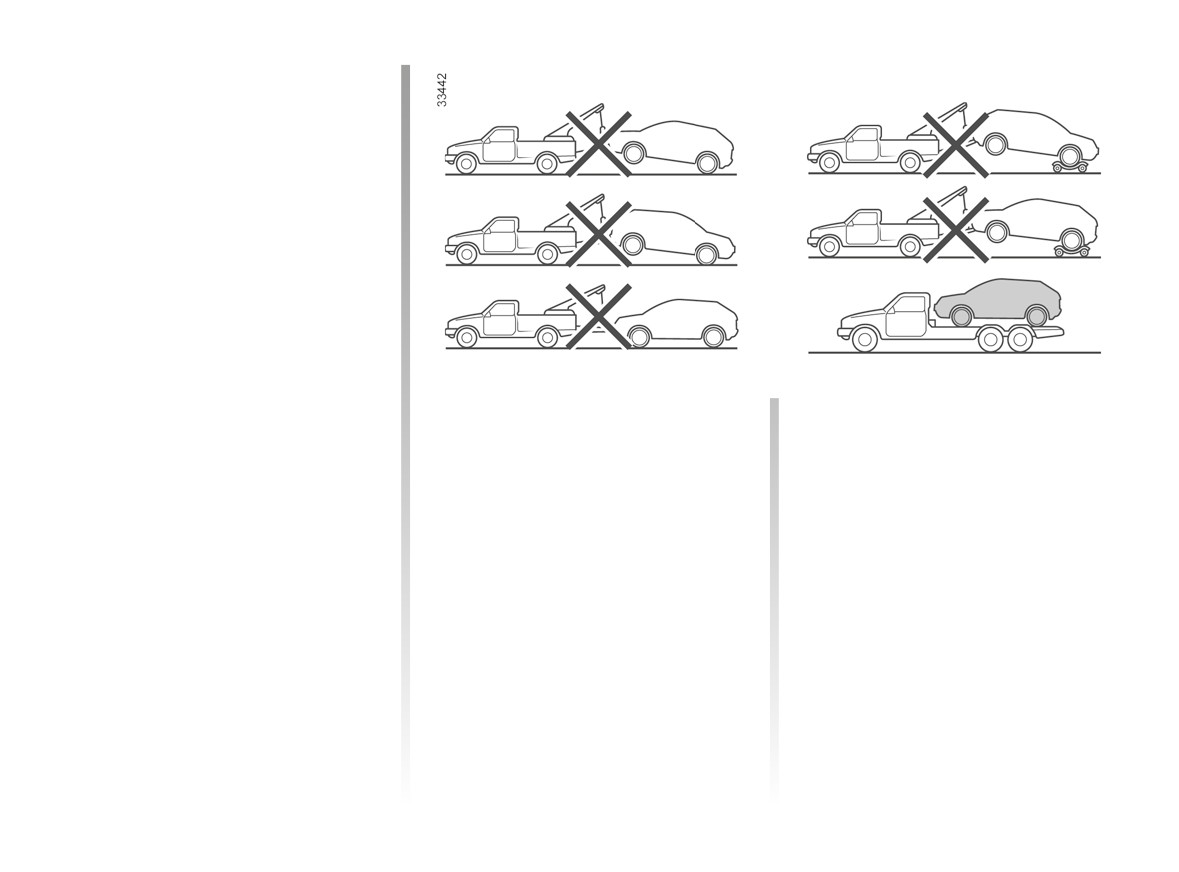

Only towing on a flatbed truck is per-
mitted.
Towing on a flatbed truck
Before any recovery, unlock the steer-
ing column: with the card in the pas-
Breakdown recovery must be per-
senger compartment, engage the gear
formed on a flat surface under all cir-
selection lever in position N then press
cumstances except where the vehicle
the engine starting button for approxi-
is immobilised following a full discharge
mately two seconds.
of the traction battery. In the event of a
total energy loss, please see the follow-
The regulations in force for breakdown
ing pages.
recovery must always be observed.
5.23
TOWING, BREAKDOWN (2/3)
Before towing, unlock the steering
column: with the card in the passenger
compartment, engage lever 4 in posi-
tion N, then press the engine start
button for approximately two seconds.
The column is unlocked, the acces-
sory functions are supplied: the vehi-
cle lights can be used (hazard warn-
2
ing lights, brake lights etc.). The towed
vehicle’s lights must be switched on at
night.
1
The speed specified by current legis-
lation for towing must always be ob-
served.
Once you have finished towing, press
In the event of an energy
the engine start button twice (risk of
fault: towing
running down the 12 V battery).
In the event of a fully discharged trac-
tion battery:
- warning light
2
flashes in
yellow;
- the indicator 1 shows an empty bat-
tery.
It is possible to recover on a flatbed
truck or tow the vehicle using the tow
eye, following the instructions below.
When the engine is stopped,
power-assisted steering is
no longer operational.
5.24















Content      ..     10      11      12      13     ..
