Renault Megane Electric (2022 year). Manual in english - page 1





Section 1: Getting to know your Vehicle
Electric vehicle: presentation, important recommendations, charging, programming
1.2
Card: general information, use, deadlocking
1.21
Opening and closing the doors
1.30
Locking, unlocking the opening elements
1.34
Automatic locking when driving
1.36
Headrests, seats
1.37
Seat belts
1.44
Additional methods of restraint
1.49
in addition to the front seat belts
1.49
to the rear seat belts
1.55
side protection
1.56
passenger detection system
1.58
Child safety: General information
1.62
choosing a child seat mounting
1.65
fitting a child seat
1.68
Child seats: attachment by seat belt or by ISOFIX system
1.70
Child safety: deactivating, activating the front passenger AIRBAG. .
1.76
Steering wheel/power-assisted steering
1.79
Rear view mirrors, camera rear view
1.81
Driving position
1.88
Warning lights
1.92
Displays and indicators
1.96
Trip computer
1.100
Vehicle settings personalisation menu
1.108
Clock and outdoor temperature
1.110
Audible and visual signals
1.111
Exterior lighting and signals
1.112
Headlight beam adjustment
1.119
Washers, wipers
1.121
1.1

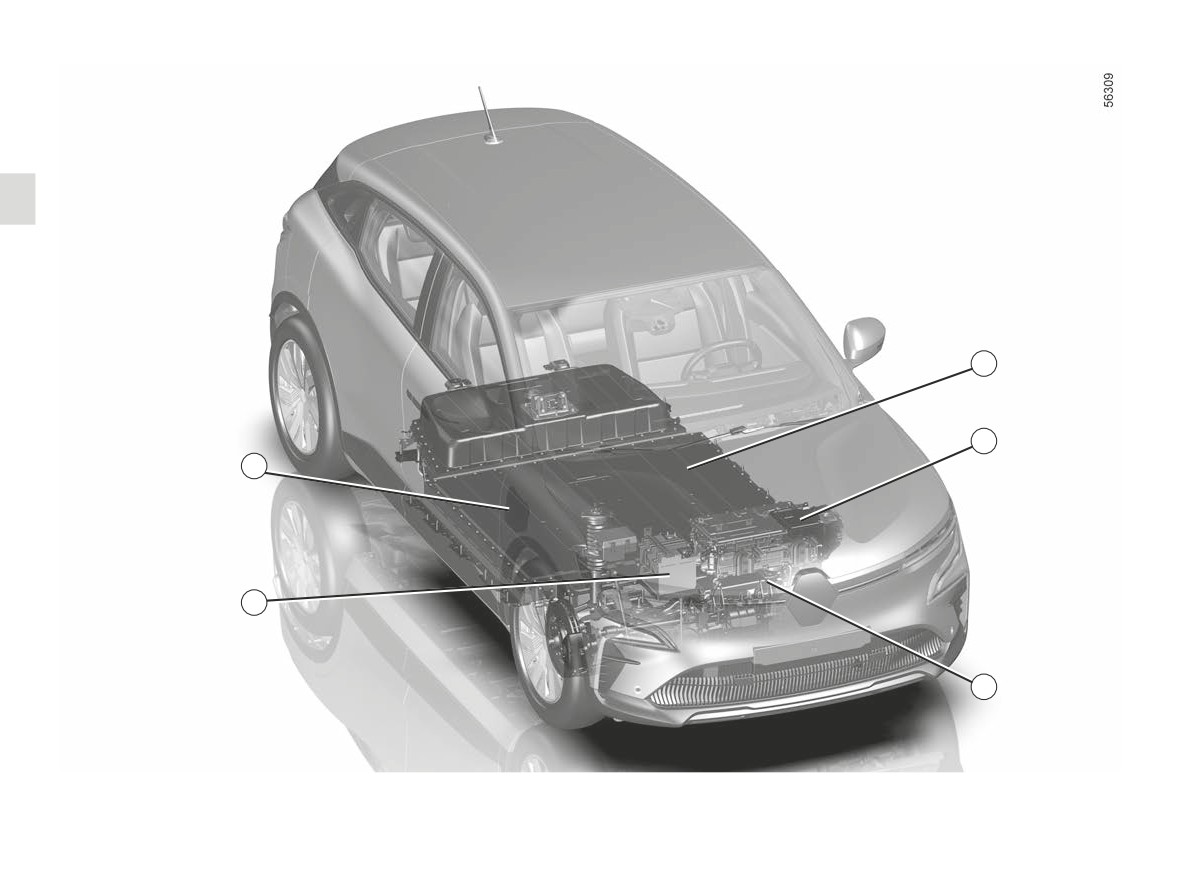

ELECTRIC VEHICLE: introduction (1/5)
1 Electric charging connection (passenger
side)
2 400 V traction battery
3 Electric motor
4 Orange electrical power cables
5 Secondary 12 V battery
2
3
1
5
4
1.2
ELECTRIC VEHICLE: introduction (2/5)
Electric vehicles have special features,
but operate in a similar manner to con-
6
7
ventional vehicles.
The main difference in electric vehicles
is the exclusive use of electric energy
instead of fuel, as used in convention
vehicles.
We therefore recommend that you read
these instructions describing your elec-
tric vehicle carefully.
8

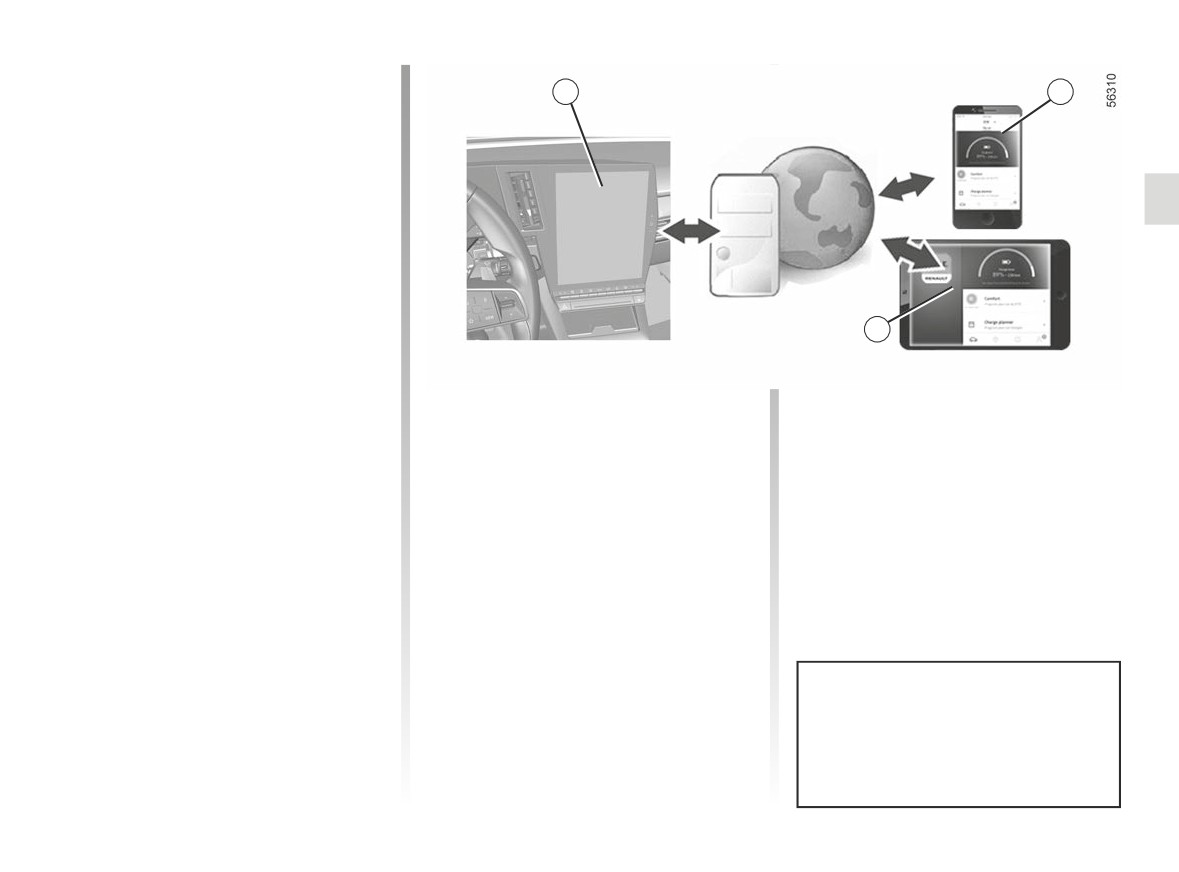

Connected services
You can access these services by:
Your electric vehicle has connected
- external digital devices (mobile tele-
services that provide information and/
phones 7, tablets 8 etc.);
or control:
- the vehicle multimedia screen 6.
- your vehicle’s charging status with
For more information, refer to the mul-
low battery warning;
timedia equipment instructions or con-
- the traction battery charging pro-
tact an Approved Dealer.
gramming, based on certain choices
on offer;
- remaining vehicle range;
- ...
You can subscribe to a connected
service or extend it at any time by
consulting an authorised dealer.
1.3
ELECTRIC VEHICLE: introduction (3/5)
Batteries
400 V traction battery
Secondary 12V battery
Your electric vehicle has two types of
This battery stores the energy neces-
The second battery on your vehicle is
battery:
sary to operate the motor in your elec-
a secondary 12 V battery: this supplies
tric vehicle properly. As with any bat-
the energy required to operate vehicle
- a 400V traction battery;
tery, it discharges after use, and must
equipment (lights, windscreen wipers,
- secondary 12 V battery.
be regularly recharged.
ABS, etc).
You do not have to wait until the traction
battery hits the reserve level in order to
recharge it.
Charging times vary depending on the
type of specific wall unit socket or public
terminal you connect to.
Your vehicle range will depend on the
charge level of the traction battery, and
also on your driving style ➥ 2.20.
1.4

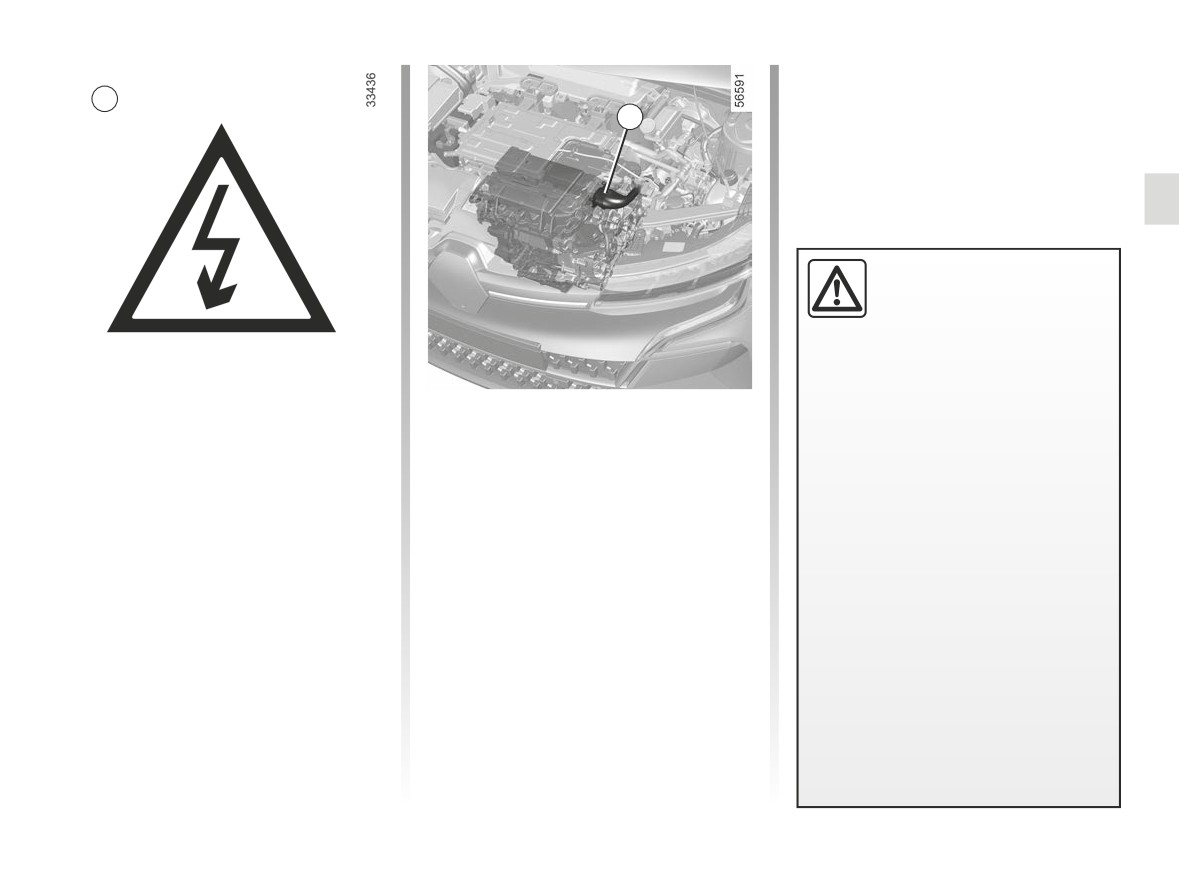

ELECTRIC VEHICLE: introduction (4/5)
A
9
The vehicle drive system
in an electric vehicle uses
a direct voltage of approxi-
mately 400 volts.
This system can get hot during
and after switching off the ignition.
The A symbol denotes the electrical el-
“400 volt” electrical circuit
Respect warning messages given
ements of your vehicle which may pres-
on the labels in the vehicle.
The 400 V electrical circuit is denoted
ent health risks.
All interventions or modifications to
by orange cables 9 and parts bearing
the 400V electrical system (com-
the symbol.
ponents, cables, connectors, trac-
tion battery) are strictly prohibited
due to the risks they present to your
safety. Please contact an authorised
dealer.
The risk of serious burns or elec-
tric shocks can lead to death.
1.5
ELECTRIC VEHICLE: introduction (5/5)
Driving
Noise
Pedestrian horn
As with a car with an automatic gear-
Electric vehicles are particularly quiet.
The pedestrian horn enables you to
box, you will have to get used to not
You will not yet necessarily be used to
warn others of your presence - espe-
using your left foot, and not using this
it, and neither will other road users. It
cially pedestrians and cyclists.
foot to brake.
is difficult for them to hear the vehicle
When the engine is started, the pedes-
when it is moving.
When driving, if you lift your foot off the
trian horn is activated automatically.
accelerator pedal or depress the brake
As the motor is silent, you will hear
The sound is triggered when the vehi-
pedal, the motor generates electrical
noises that you are not used to hearing
cle speed is between about 1 and
current during deceleration, and this
(aerodynamic noises, tyre noise, etc.).
19 mph (1 and 30 km/h).
energy is used to brake the vehicle and
Each time the ignition is switched off,
For further information on the pedes-
recharge the traction battery ➥ 2.17.
the ventilation will be switched off after
trian horn, refer to the multimedia in-
Bad weather, flooded roads:
about ten seconds.
structions.
In the event of a fault with the pedes-
Do not drive through floods
if the depth of water is
trian horn, the warning light
is
above the lower edge of
displayed on the instrument panel,
the wheel rims.
together with the message “Failure
Outside sound”.
Consult an approved dealer.
Obstructions to the driver
On the driver’s side, only
use mats suitable for the
vehicle, attached with the
pre-fitted components, and check
Your electric vehicle is
the fitting regularly. Do not lay one
silent. Before leaving it, with
mat on top of another.
your foot on the brake, stop
The engine brake should
There is a risk of wedging the
the engine.
under no circumstances be
pedals
RISK OF SERIOUS INJURY
used as a substitute for the
brake pedal.
1.6
ELECTRIC VEHICLE: important recommendations
Please read these instructions carefully. Failure to follow these instructions may lead to a risk of fire, serious injury
or electric shock which may present a risk to life.
In the event of an accident or impact
In the event of an accident or an impact to the underside of the vehicle (e.g.: striking a post, raised kerb or other street furni-
ture), this may damage the electric circuit or the traction battery.
Have the vehicle checked by an authorised dealer.
Never touch the “400 volt” components or orange cables which are exposed and visible inside or outside the vehicle.
In the event of serious damage to the traction battery, leaks may occur:
- never touch the liquids (fluids, etc.) coming from the traction battery;
- in the event of contact with the body, wash the affected area with plenty of water and consult a doctor as soon as possible.
In the event of an impact, even slight, against the charging flap and/or valve, have them checked by an authorised dealer as
soon as possible.
In the event of fire
In the event of fire, make everyone evacuate the vehicle immediately and contact the emergency services, informing them that
this is an electric vehicle.
Only use extinguishing agents ABC or BC that are permitted for use with electrical fires. Do not use water or other extinguish-
ing agents.
In the event of damage to the electrical circuit, please call an authorised dealer.
All towing operations
➥ 5.22.
Washing the vehicle
Never wash the engine compartment, the charging connection or the traction battery with a high-pressure jet.
This risks damaging the electric circuit.
Never wash the vehicle while it is charging.
Risk of electric shock and a risk to life.
1.7
ELECTRIC VEHICLE: charging (1/12)

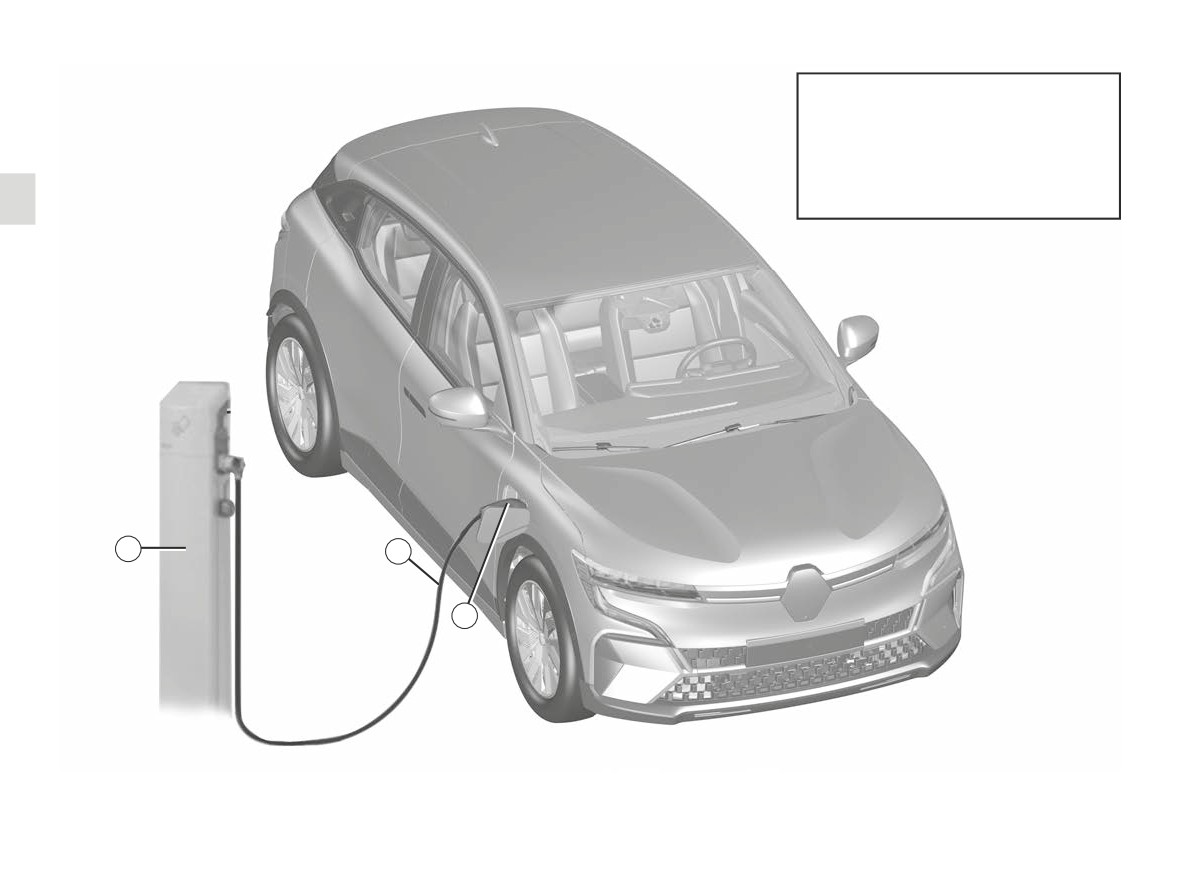

Charging schematic diagram
1 Specific wall socket or recharging ter-
minal
If you have any questions regarding
the equipment needed for charging,
2 Charging cord
please ask an authorised dealer.
3 Electric charging connection
(passenger side)
1
2
3
1.8
ELECTRIC VEHICLE: charging (2/12)
Important recommendations for charging your vehicle
Please read these instructions carefully. Failure to follow these instructions may lead to a risk of fire, serious injury
or electric shocks which could result in death.
Charging
Do not do anything to the vehicle during charging (washing, working in the engine compartment, etc.).
In the event of the presence of water, signs of corrosion or foreign bodies in the charging cord connector or in the vehicle charg-
ing socket, do not charge the vehicle. Fire hazard.
Do not attempt to touch the cord contacts, the domestic socket or the vehicle charging socket, or introduce objects into them.
Never plug the charging cord into an adapter, multiple socket or extension lead.
The use of generators is prohibited.
Do not remove or change the vehicle charging socket or the charging cord. Fire hazard.
Do not modify or perform any action on the installation during charging.
In the event of an impact, even slight, against the charging socket or valve, have them checked by an authorised dealer as
soon as possible.
Take care of the cord: do not tread on it, immerse it in water or pull on it or let anything knock against it.
Check regularly that the charging lead is in good condition.
In the event of damage to the charging lead (corrosion, browning, cuts, etc.), to the unit or to the vehicle's electrical charging
socket, do not use them. Please see an authorised dealer to replace them.
In the event of non-activation of the charging flap locking mechanism and/or unlocking of the vehicle's electric charging socket,
please contact an approved dealer.
1.9

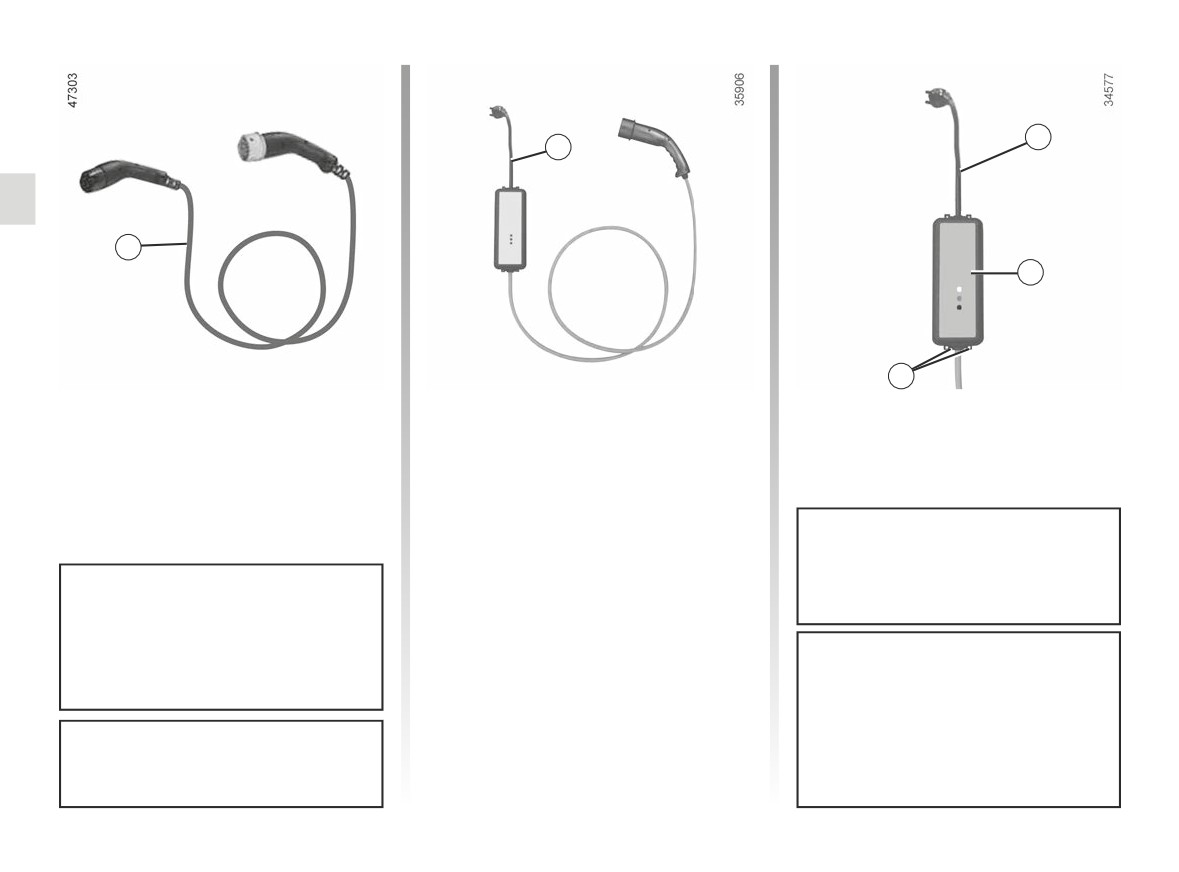

ELECTRIC VEHICLE: charging (3/12)
B
B
A
D
C
Charging cord A
Charging cord B
Always read the charging cord instruc-
tions carefully before using it B.
This lead is specific to your vehicle and
This cord allows:
designed for connecting to wall sockets
- in normal use, on a socket used only
or public terminals to enable standard
for the vehicle (14 A/16 A charge);
charging of the traction battery.
- occasional charge using a domestic
socket, (8 A charge) when you are
Never leave the socket hanging by
not at home, for example.
the cord. Use the hooks C to attach
Sockets must be fitted as stated in the
it.
We recommend that you use a
instructions in the instructions supplied
charging cord that enables a stand-
with the charging cord B.
ard charge to charge the traction
battery.
If a charging cord malfunctions
during the charging process (red
warning light on the unit D), stop
Each charging lead is stored in the
charging immediately. Please refer
luggage compartment of the vehicle
to the cord instructions.
➥ 3.34.
1.10
ELECTRIC VEHICLE: charging (4/12)
Important recommendations for charging your vehicle
Please read these instructions carefully. Failure to follow these instructions may lead to a risk of fire, serious injury
or electric shocks which could result in death.

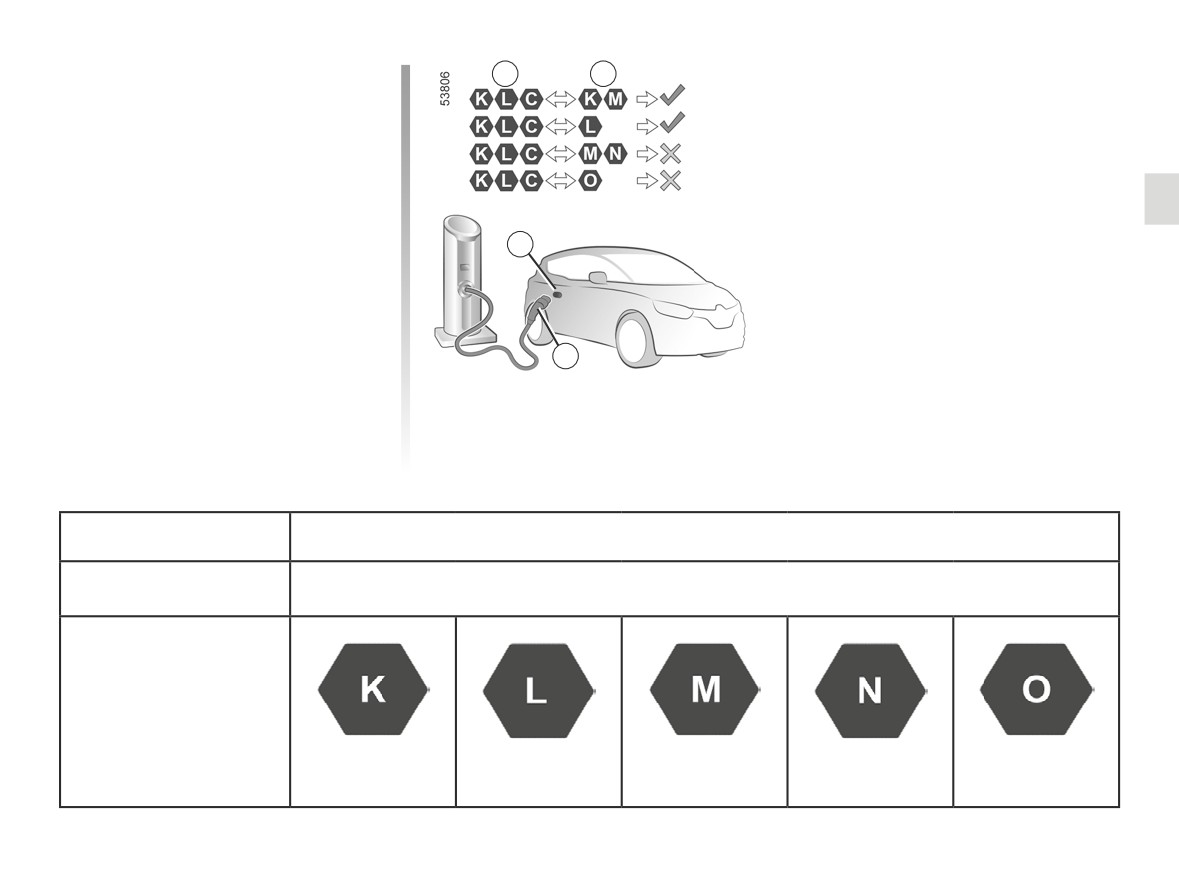

Choice of charging cord
The standard charging cords supplied with the vehicle have been designed specifically for this vehicle. It is designed to protect
you against the risks of electric shock that can lead to death or fire.
Do not use with the charging leads of previous vehicles as they are not adapted.
For safety reasons, the use of a charging cord not recommended by the manufacturer is strictly forbidden. Failure to follow
this instruction can lead to risks of fire or electric shock that can prove fatal. For information on a charging cord suited to your
vehicle, please consult an authorised dealer.
Using the charging lead B
Please read the instructions that come with the charging lead carefully to learn about the precautions you must take when
using the product and the technical specifications required for fitting the socket.
Installation
Power supply systems
Only use charging terminals which conform to the IEC 61851-1 standard and connecting points protected by:
- a type A 30 mA residual differential current system specific to the socket used;
- an overcurrent protection device;
- protection against overvoltage relating to lightning in exposed areas (IEC 62305-4).
Wall socket
Have a special wall socket installed by a qualified professional.
In the case of domestic charging
Have a qualified professional check that each socket to which you will connect the charging cord complies with the standards
and regulations in force in your country and that it complies with the specifications described previously in the information on
“Power supply systems”.
1.11

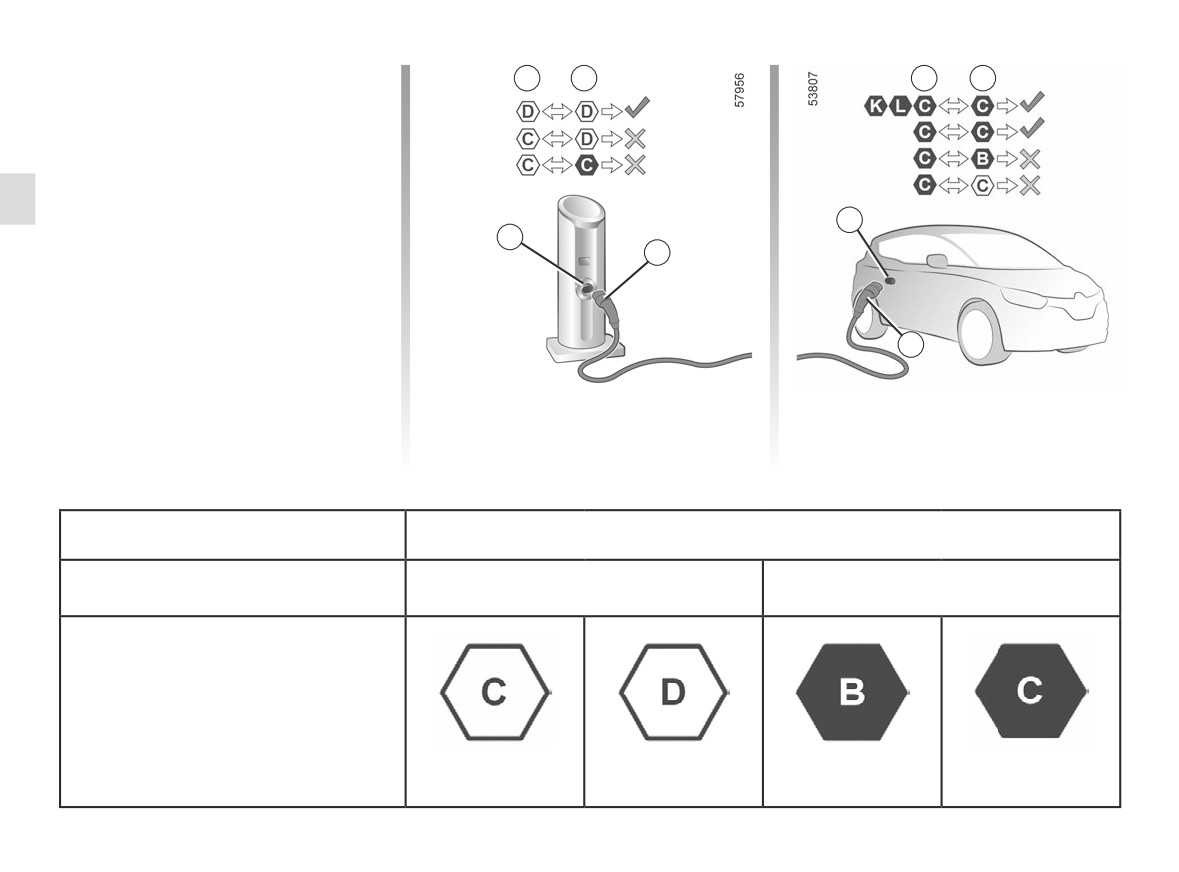

ELECTRIC VEHICLE: charging (5/12)
Charging types that conform
1
4
3
5
to European standards
Alternating current (AC)
If the information is displayed on the
vehicle charging flap, follow the instruc-
tions below.
Before plugging in a charging lead,
3
check that:
1
4
– the colour and one of the letters of
the inlet socket 1 correspond to the
colour and one of the letters on the
end 4 of the lead;
- the colour and one of the letters of
5
the inlet socket 3 correspond to the
colour and one of the letters on the
end 5 of the lead.
Charging type
Alternating current (AC)
Connection
Charging terminal 1/Charging lead 4
Vehicle 3/Charging lead 5
Charging types that conform to
European standards
(for all other
cases, please consult an approved
dealer).
1.12
ELECTRIC VEHICLE: charging (6/12)
Charging types that conform
3
5
to European standards
(continued)
Direct current (DC)
If the information is displayed on the
vehicle charging flap, follow the instruc-
tions below.
Before plugging in a charging lead,
3
make sure that the colour and one of
the letters of the inlet socket 3 corre-
spond to the colour and one of the let-
ters on the end 5 of the charging lead.
5
Charging type
Direct current (DC)
Connection
Vehicle 3/Charging lead 5
Charging types that con-
form to European stand-
ards (for all other cases,
please consult an ap-
proved dealer).
1.13

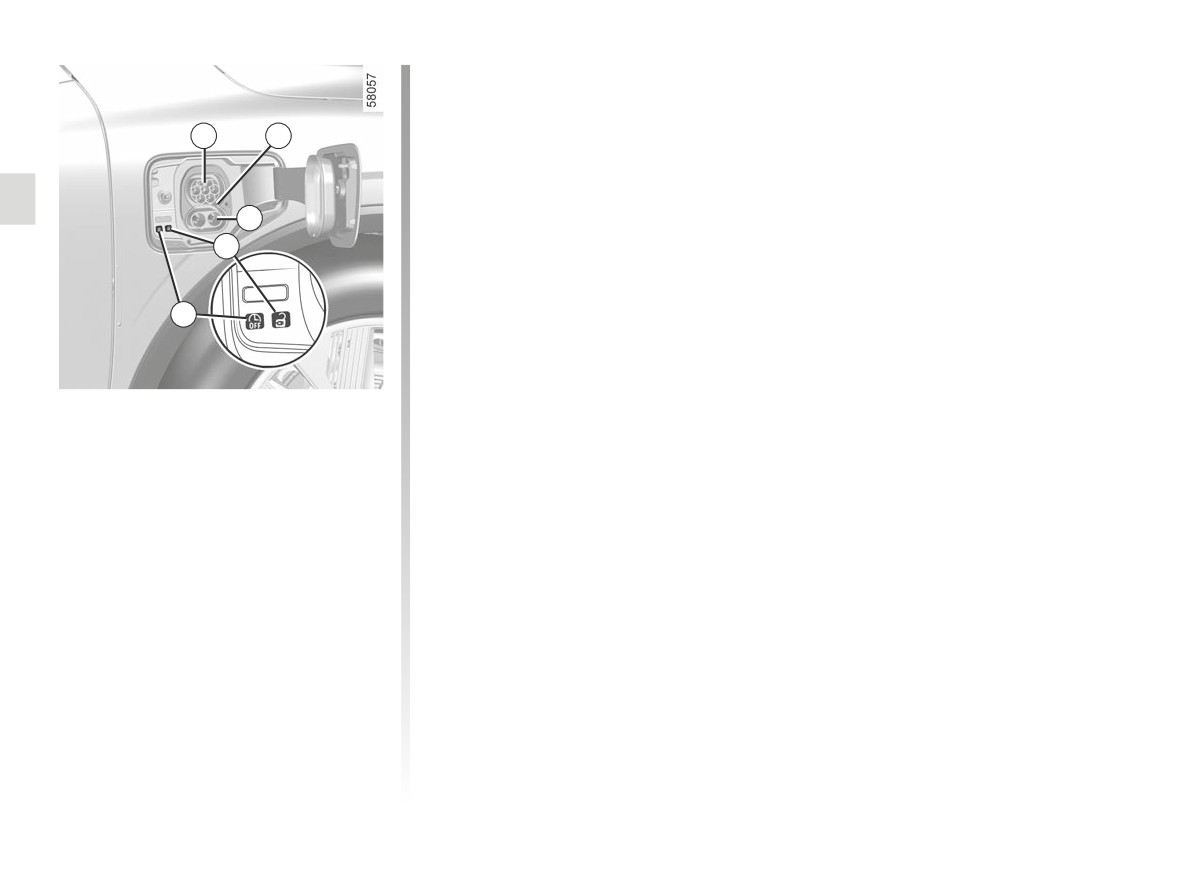

ELECTRIC VEHICLE: charging (7/12)
The vehicle is equipped with two charg-
ing connections located on the passen-
ger side at the front of the vehicle:
E
3
E socket for charging up to 22 kW;
- F socket, depending on the vehicle,
for rapid charging.
F
There are also two buttons located
6
inside the charging flap:
- the button
6
unlocks the
charging cable;
7
- the button 7
launches imme-
diate charging of the vehicle.
Electric charging
connection 3
Note: if in a snowy environment,
remove snow from the vehicle charg-
ing area on the passenger side before
plugging in or disconnecting.
Snow in the socket may block the inser-
tion of the charging cord plug.
1.14
ELECTRIC VEHICLE: charging (8/12)
Precautions
The energy level available depends on
Recommendations
the battery temperature. It may there-
For daily use, it is recommended that
-
In high temperatures, try to park and
fore vary between stopping and restart-
you charge your vehicle to 80% full to
recharge the vehicle in a shaded/
ing the vehicle if the battery is cold or
improve the battery service life.
covered location;
warm.
Avoid charging and parking your ve-
-
charging can be performed in the
To preserve the service life of your trac-
hicle in extreme temperatures (hot or
rain or snow;
tion battery, avoid parking the vehi-
cold).
cle for more than one month with high
-
activating the air-conditioning in-
Under extreme conditions, charging
charge, especially when the weather is
creases the charging time required.
may take several minutes before start-
very hot.
ing (time required for the traction bat-
Favour charging the traction battery
tery to cool down or warm up).
after driving and/or in mild tempera-
When the vehicle is parked for more
tures. Otherwise, charging may take a
than seven days in temperatures below
longer period of time or even become
about -25°C, charging the traction bat-
impossible.
tery can become impossible.
It is preferable to recharge the vehicle
When the vehicle is parked for more
after driving if the charge level is low
than three months with near zero
(< 25%) and when temperatures are
charge, charging the battery can
negative.
become impossible.
In the absence of any protection
against overvoltage, you are recom-
mended not to charge the vehicle in
stormy weather (lightning, etc).
1.15

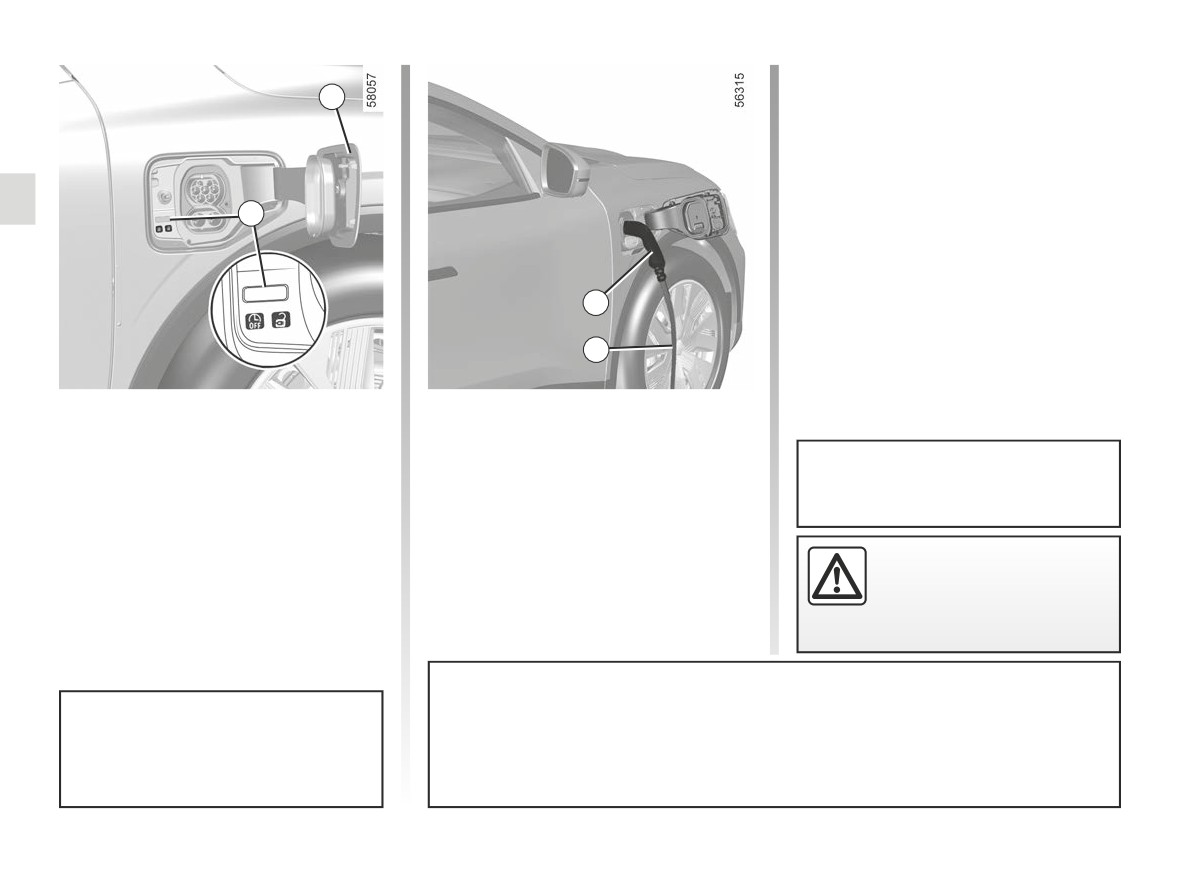

ELECTRIC VEHICLE: charging (9/12)
- after you hear a locking click, check
8
that the charging cord is properly
plugged in. To check the locking, pull
gently on the handle 10;
- if you have programmed a deferred
charge and you wish to start charg-
ing immediately, press the button 7
9
to start charging ➥ 3.17.
The charging cord is automatically
locked with the vehicle. This will make it
impossible to unplug the cord from your
10
vehicle.
2
Recharging the traction
A message appears on the instrument
panel to indicate that the charging flap
battery
is open. The 9 warning light is white:
Vehicle stationary, ignition off:
- plug in the end of the cord to the
Make sure you fully uncoil the charg-
- take the charging cable 2 located in
power supply;
ing cord to limit its heating.
the storage compartment in your ve-
hicle's luggage compartment;
- grab the handle 10;
– press the charging flap 8 to unlock it.
- plug in the vehicle cord. The warning
Do not use an extension
light 9 flashes in yellow;
lead, multiple socket or
adapter.
Fire hazard.
If you have just accepted a system update via the multimedia system, the traction
battery charging will be delayed or cancelled.
Do not use the charging flap 8 to
Wait for the update to be completed before connecting the charging lead to the
suspend the charging cord 2 while
vehicle. For more information on system updates, please refer to the multimedia
recharging the vehicle.
instructions.
1.16

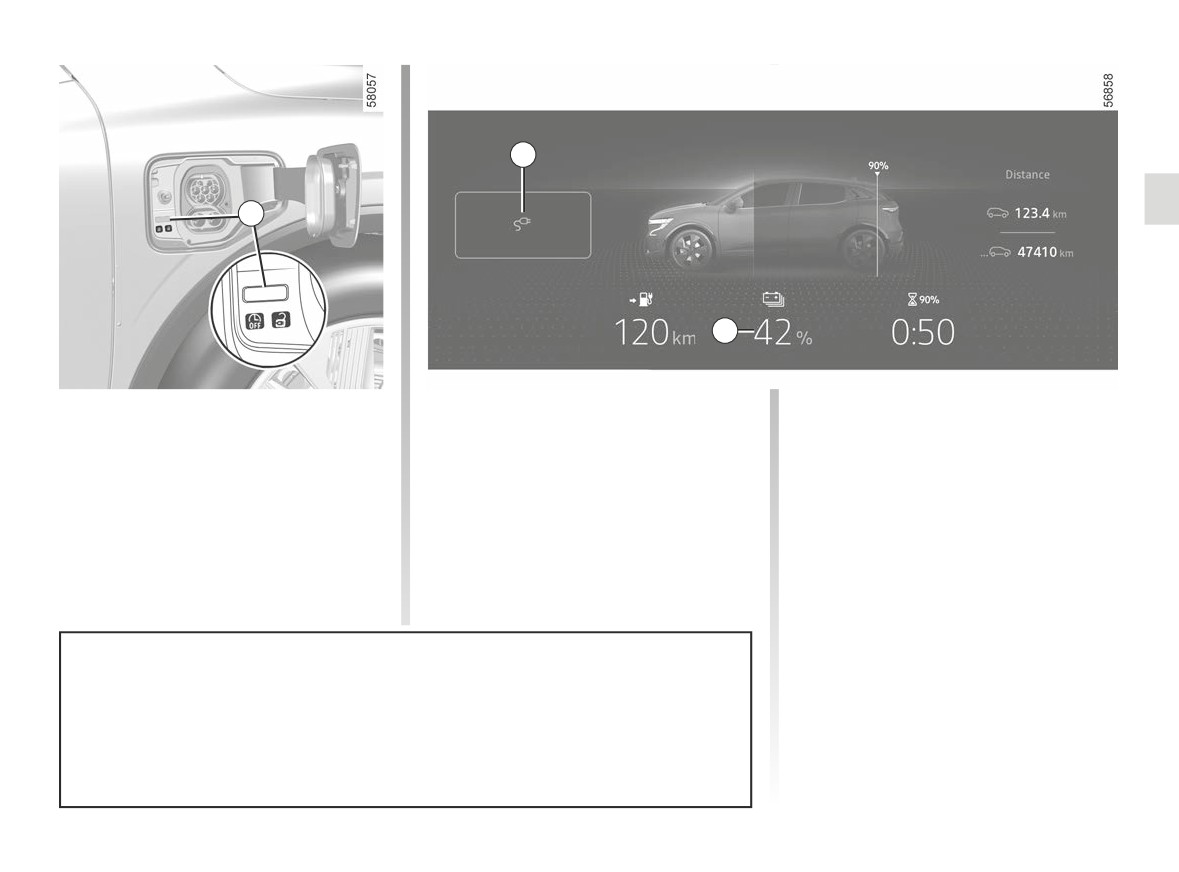

ELECTRIC VEHICLE: charging (10/12)
11
9
12
During charging, the warning light 9
- an estimate of the remaining charg-
The display on the instrument panel
flashes in blue.
ing time (this is not displayed after
disappears after a few seconds. It reap-
about 95% charge);
pears on the instrument panel when a
When charging starts, the following
- the warning light 11 indicates that
door is opened.
information is displayed on the instru-
the vehicle is connected to a power
Once charging is complete, the warning
ment panel:
supply;
light 9 appears continuously in green.
- the energy level on the battery warn-
- your vehicle range will vary accord-
ing light 12;
You do not need to wait until the charge
ing to the charge level.
– the battery refill rate;
is at reserve levels to recharge your ve-
hicle.
Operating faults
If the warning light 9 appears contin-
The traction battery charging time depends on the amount of energy remaining
uously in red, please contact an ap-
and the power delivered by the charging terminal. The information is displayed on
proved dealer.
the instrument panel during charging ➥ 1.96.
In the event of a problem, we recommend that you replace it with an identical
cord. Please see an authorised dealer.
1.17
ELECTRIC VEHICLE: charging (11/12)

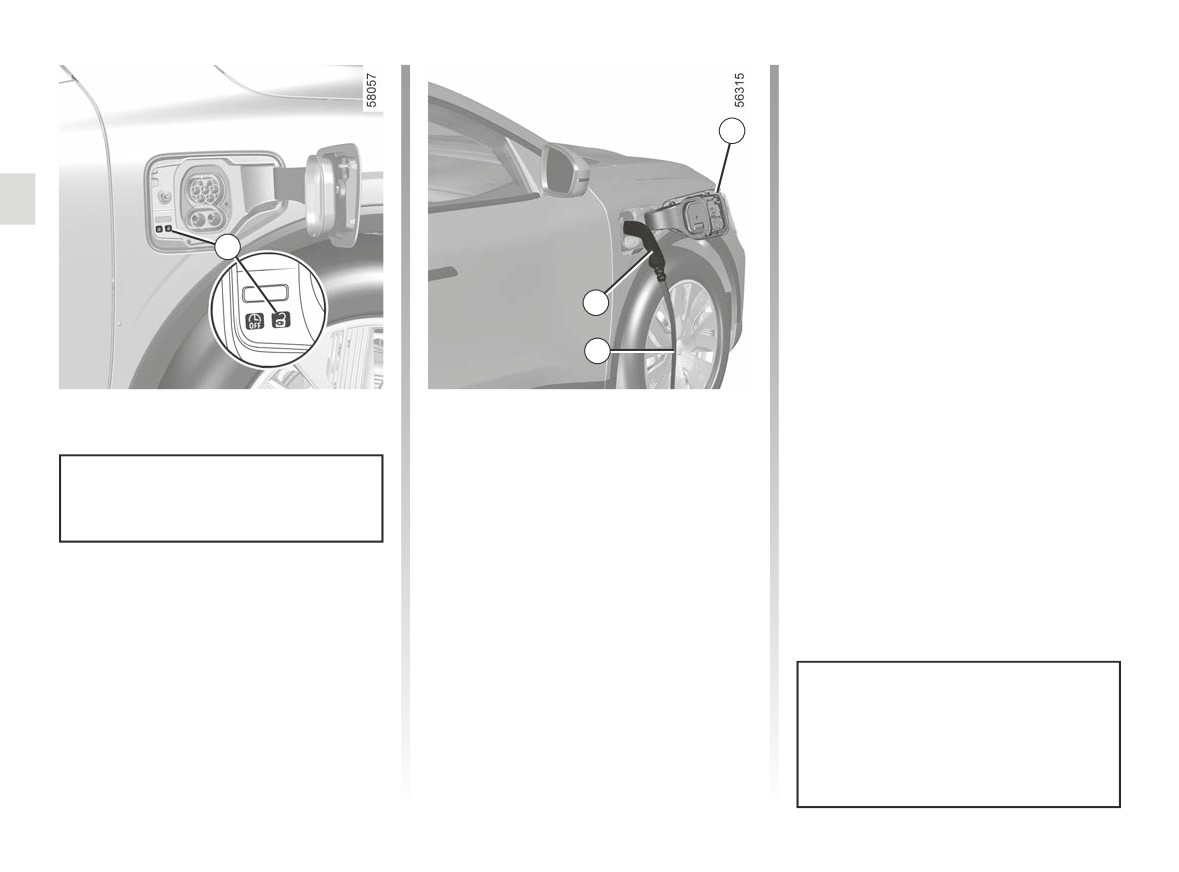

Note: immediately after a long charge
of the traction battery, the cable may be
hot. Please use the handles.
8
6
10
2
Precautions to take when removing
- unplug the charging lead 2 from the
from the socket
vehicle;
- you must close the 8 charging flap
and press on it in order to lock it;
It is imperative to follow the unplug-
ging steps in order.
- unplug the lead 2 from the power
supply 1;
- Press the 6 button or press and
- store the cord 2 in the storage com-
hold the door unlocking button on
partment of your luggage compart-
the card in order to release the vehi-
ment.
cle charging lead;
- grab the handle 10;
After pressing the charging cable
release button, you will have around
30 seconds to unplug it before it is
locked once again.
1.18

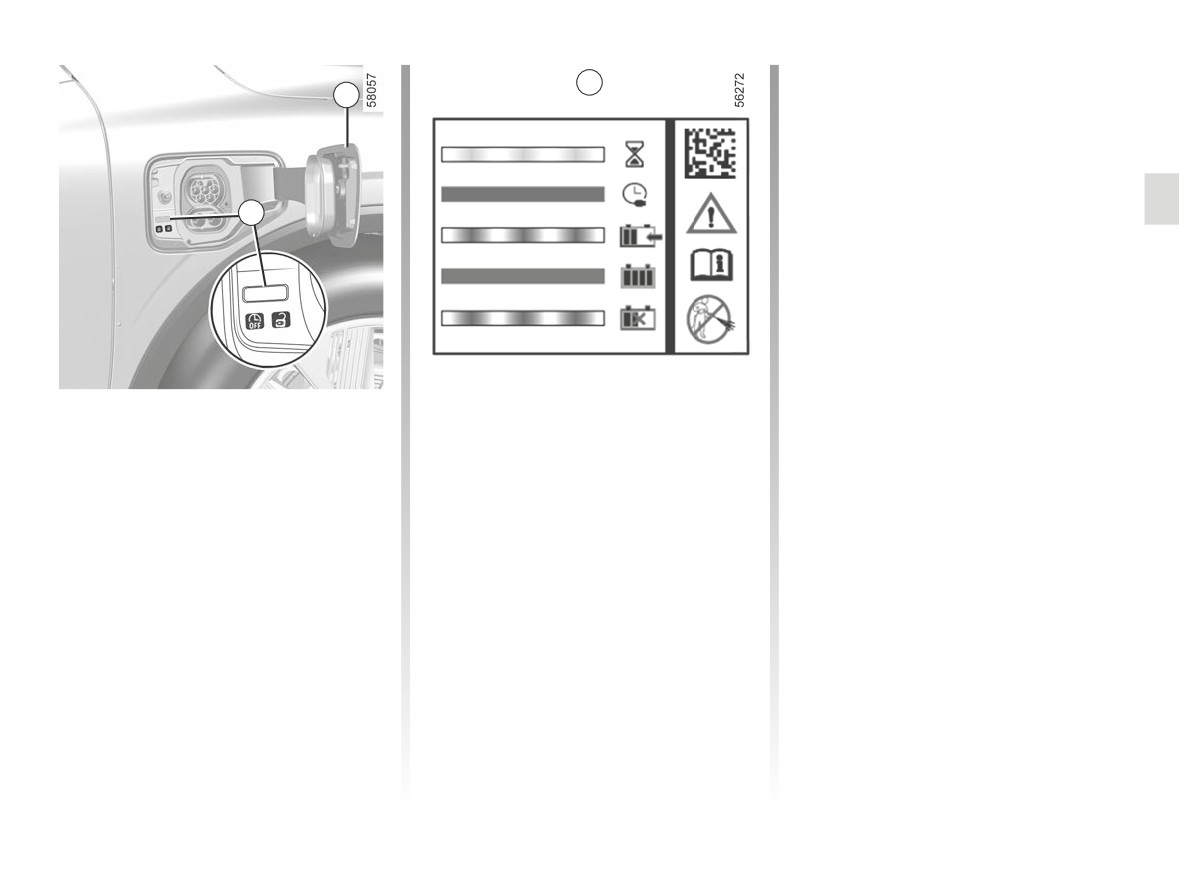

ELECTRIC VEHICLE: charging (12/12)
- connect to a domestic socket, an al-
13
8
ternating voltage charging terminal
or a quick charging terminal;
- for any information on charging,
please consult your vehicle user
manual.
9
Label 13
The label 13 located on the right-hand
side reminds you of the following in-
The label 13 located on the charg-
structions:
ing flap 8 displays details on how the
- do not wash the charging flap using
charging operation is indicated by the
a high-pressure water jet;
status of the warning light 9:
- with the vehicle stationary, the valve
- flash in yellow: the lead is plugged
and the charging flap can be open;
into the vehicle and the system car-
- when the vehicle is being driven, the
ries out its checks;
valve and the charging flap must be
- flashing in blue: charging is in pro-
closed;
gress;
- open the flap to connect the charging
- illuminated continuously in blue:
lead;
charge programming is activated;
- close the flap again once discon-
- illuminated continuously in green:
nected;
the vehicle is fully charged;
- flashing in red: operating fault.
1.19

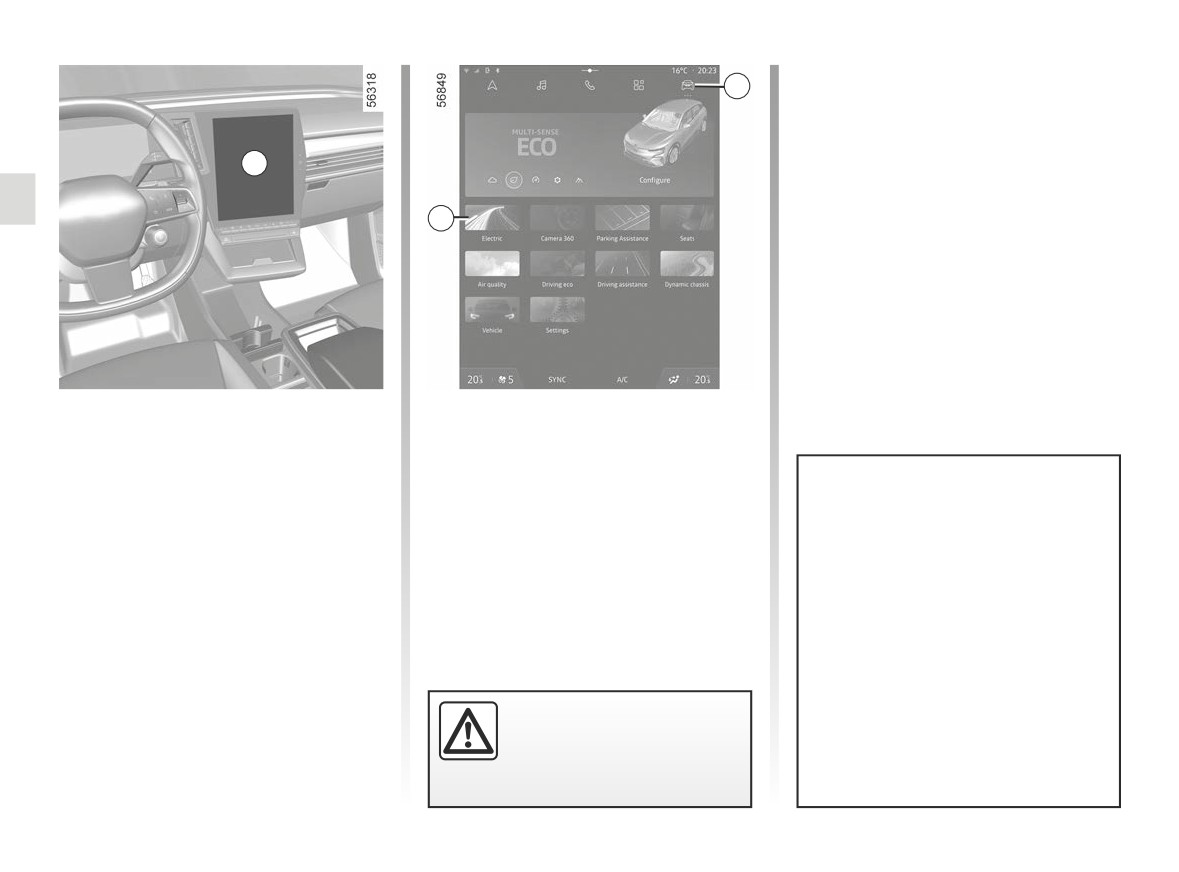

ELECTRIC VEHICLE: programming charging
When the programming is confirmed,
2
lights up on
the indicator light
the instrument panel.
Note: charging will start if the engine is
1
shut down and the vehicle is connected
to a power supply and access is author-
3
ised.
Charging programming
You can choose from several charging
modes:
With the vehicle stationary, engine run-
ning, “Vehicle” 2 Mode of the multime-
- “Instant charge”;
dia screen 1, select “Electric” 3 menu,
- “Delayed charge”;
then the “Charge & Climate” tab set up
- “Program”.
charging for your vehicle.
If you have just accepted a system
Please refer to the multimedia instruc-
update via the multimedia system,
tions for further information.
the traction battery charging will be
delayed or cancelled.
Wait for the update to be completed
before connecting the charging lead
to the vehicle.
For more information on system up-
For safety reasons, carry
dates, please refer to the multime-
out these operations when
dia instructions.
the vehicle is stationary.
1.20

















Content      ..      1       2         ..





///////////////////////////////////////
