ACCESSORIES (1/2)
Electrical and electronic accessories
Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-
sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.
To install an accessory requiring intervention with the vehicle’s 12V electrical circuit, please follow these instructions:
- disconnect the charging cord from the traction battery;
- switch off the ignition;
- disconnect the 12V battery.
Risk of serious injury.
Before connecting an accessory to a socket, please ensure that it does not exceed the maximum power authorised for the
socket. For more information, please refer to the “Multimedia equipment” and “Ashtrays, cigarette lighter, accessories sockets”
information in Section 3.
Fire hazard.
No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected
system may result in damage being caused to the electrical equipment and/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.
Establish the rating and position of this fuse.
5.30
ACCESSORIES (2/2)
Using the diagnostic socket
The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electro-
nic systems. For your safety we recommend that you use only electronic accessories approved by the manufacturer,
consult an Approved Dealer. Serious accident risk.
Use of transmission/receiving devices (telephones, CB equipment etc.).
Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessories
If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your
vehicle, which are the only accessories for which the manufacturer will provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-
larly. Do not lay one mat on top of another. There is a risk of wedging the pedals
5.31
RADIO FREQUENCY REMOTE CONTROL: batteries (1/2)
1
2

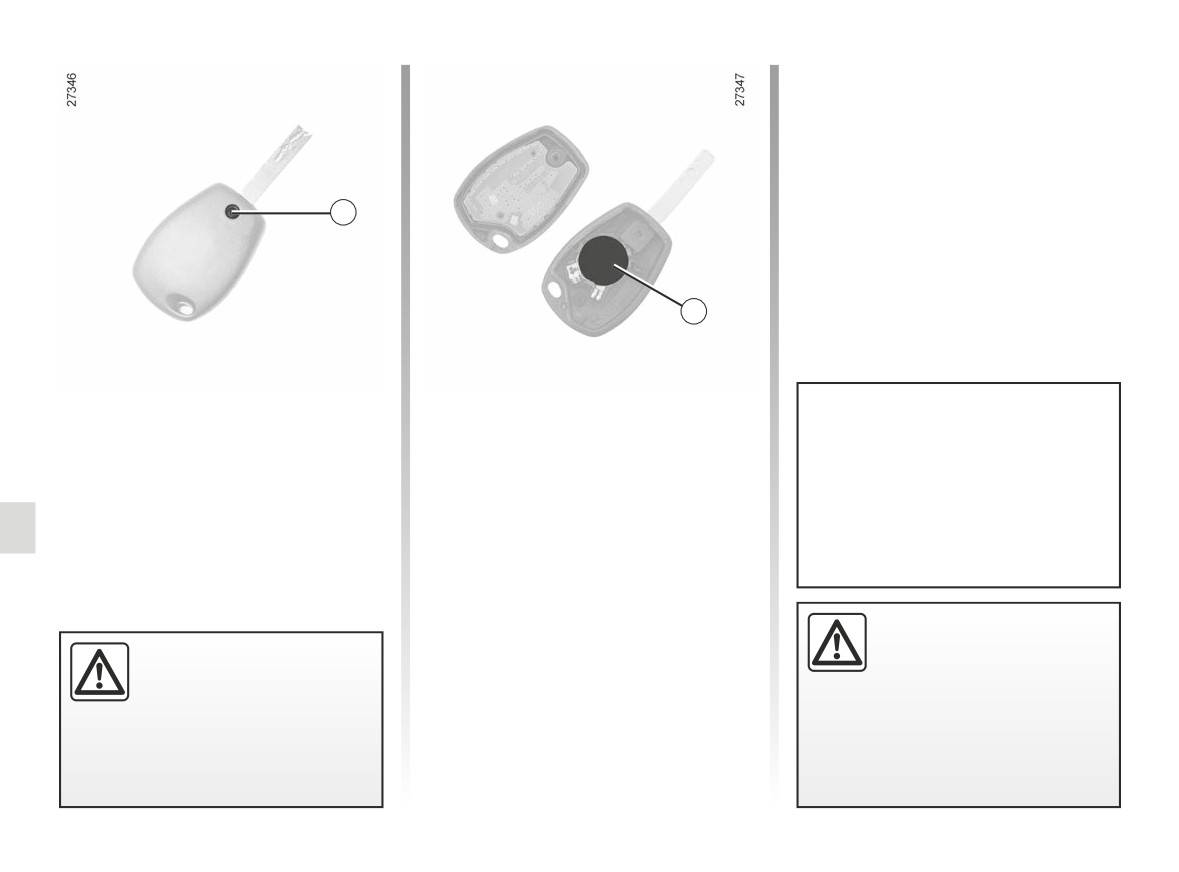

Replacing the remote control
Replace battery 2 according to the di-
rection marked on the cover.
The batteries are available from ap-
battery
proved Dealers, and their service
Ensure that the cover is correctly
Undo screw 1 to remove the remote
life approximately two years.
clipped on and the screw tightened.
control cover.
Note: It is not advisable to touch the
Check that there is no dye on the
electronic circuit in the key cover when
battery: risk of an incorrect electri-
replacing the battery.
cal contact.
When replacing:
- make sure that the batter-
If they need to be replaced,
ies are correctly inserted.
be sure to use the same
There is a risk of explo-
or equivalent type of bat-
sion.
tery (consult an Approved
- if the flap does not close cor-
Dealer).
rectly, do not use and keep out of
reach of children.
5.32
RADIO FREQUENCY REMOTE CONTROL: batteries (2/2)
Operating faults
Precautions relating
If the battery is too weak to ensure cor-
to batteries:
rect operation, you can still start and
lock/unlock the vehicle (please refer to
- keep (new or used) bat-
the information on “Locking/unlocking
teries out of reach of children;
the doors” in Section 1).
- not to swallow the batteries.
Risk of chemical burns which
may led to death.
- if ingested or inserted into any
part of the body, consult a doctor
as soon as possible.
Do not throw away your used bat-
teries; give them to an organisation
responsible for collecting and recy-
cling batteries.
5.33
OPERATING FAULTS (1/6)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
Using the remote control
POSSIBLE CAUSES
ACTION REQUIRED
The remote control does not lock or The remote control battery is flat.
Use the emergency key.
unlock the doors.
Use of appliances operating on the same
Stop using the devices or use the key.
frequency as the remote control (mobile
phone, etc.).
Vehicle located in a high electromagnetic
Replace the battery. You will still be able
radiation zone.
to lock, unlock, and start your vehicle.
Discharged battery.
If needed, please refer to the informa-
tion on “Starting, stopping the engine” in
Section 2.
The vehicle is started.
With the engine running, the key’s locking/
unlocking device is blocked. Turn off the
ignition.
Desynchronisation of the remote control.
Unlock the driver’s door using the key in
the door lock, then start the engine to syn-
chronise the remote control.
5.34
OPERATING FAULTS (2/6)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons, you should always contact
an approved Dealer as soon as possible.
FAULTS
POSSIBLE CAUSES
WHAT TO DO
Impossible to charge the traction bat-
No electrical current in domes-
Check your installation (circuit breaker, pro-
tery.
tic sockets or poor connection of
grammer, etc.).
cable to domestic socket.
Check the connections (charging socket
etc.). Please refer to
“Electric vehicle:
charging” in Section 1.
The outdoor temperature is lower
Recharge your vehicle in a more suitable
than -26°C.
environment. If necessary, refer to the para-
graph on “Towing, breakdown” in Section 5.
The cord is defective.
Please see an authorised dealer to replace
it.
5.35
OPERATING FAULTS (3/6)
FAULTS
POSSIBLE CAUSES
WHAT TO DO
The additional heating does not work.
Fill up the fuel tank.
Top up the tank. See the “Additional heat-
ing tank” paragraph in Section 1.
The programmable heating does not
One of the usage conditions is not
See information on “Heating, air condi-
work.
complied with (the traction battery is
tioning: programming” in Section 3.
not charged, etc.).
The vehicle clock is poorly adjusted
Adjust the clock on the instrument panel -
or not adjusted.
see the information on “Clock and exterior
temperature” in Section 1.
5.36
OPERATING FAULTS (4/6)
On the road
POSSIBLE CAUSES
WHAT TO DO
Steering becomes heavy.
Assistance overheating.
Drive carefully at reduced speed, be aware
of the level of force in the steering wheel
needed to turn the wheels.
Fault with the electric assistance
Consult an approved Dealer.
motor.
Fault in the assistance system
Vibrations.
Tyres not inflated to the correct pres-
Check tyre pressures. If this is not the prob-
sure, incorrectly balanced or dam-
lem, have them checked by an authorised
aged.
dealer.
Coolant leaks.
Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
authorised dealer as soon as possible.
5.37
OPERATING FAULTS (5/6)
Electrical equipment
POSSIBLE CAUSES
WHAT TO DO
The wipers do not work.
Wiper blades stuck.
Free the blades before using the wipers.
Faulty electrical circuit.
Consult an approved Dealer.
Fuse damaged.
Replace the fuse (see information on “Fuses”
in Section 5).
The wiper does not stop.
Faulty electrical controls.
Consult an approved Dealer.
Direction indicators flashing more
Blown bulb.
Replace the bulb.
quickly.
The direction indicators do not
Faulty electrical circuit.
Consult an approved Dealer.
work.
Fuse damaged.
Replace the fuse (see information on “Fuses”
in Section 5).
5.38
OPERATING FAULTS (6/6)
Electrical equipment
POSSIBLE CAUSES
WHAT TO DO
The headlights do not switch on or
Faulty electrical circuit or control.
Consult an approved Dealer.
off.
Fuse damaged.
Replace the fuse (see information on “Fuses”
in Section 5).
Traces of condensation in the
Traces of condensation may be a natu-
headlights or rear lights.
ral phenomenon caused by variations
in temperature and humidity.
In this case, the traces will disappear
slowly once the lights are switched
on.
5.39
Section 6: Technical specifications
Vehicle identification plates
6.2
Technical Information for the emergency services
6.3
Engine identification
6.4
Engine specification
6.4
Dimensions
6.5
Weights
6.7
Replacement parts and repairs
6.8
Service sheets
6.9
Anticorrosion check
6.15
6.1
VEHICLE IDENTIFICATION PLATES
A
1
2
3
4
5
A
9
6
7
8

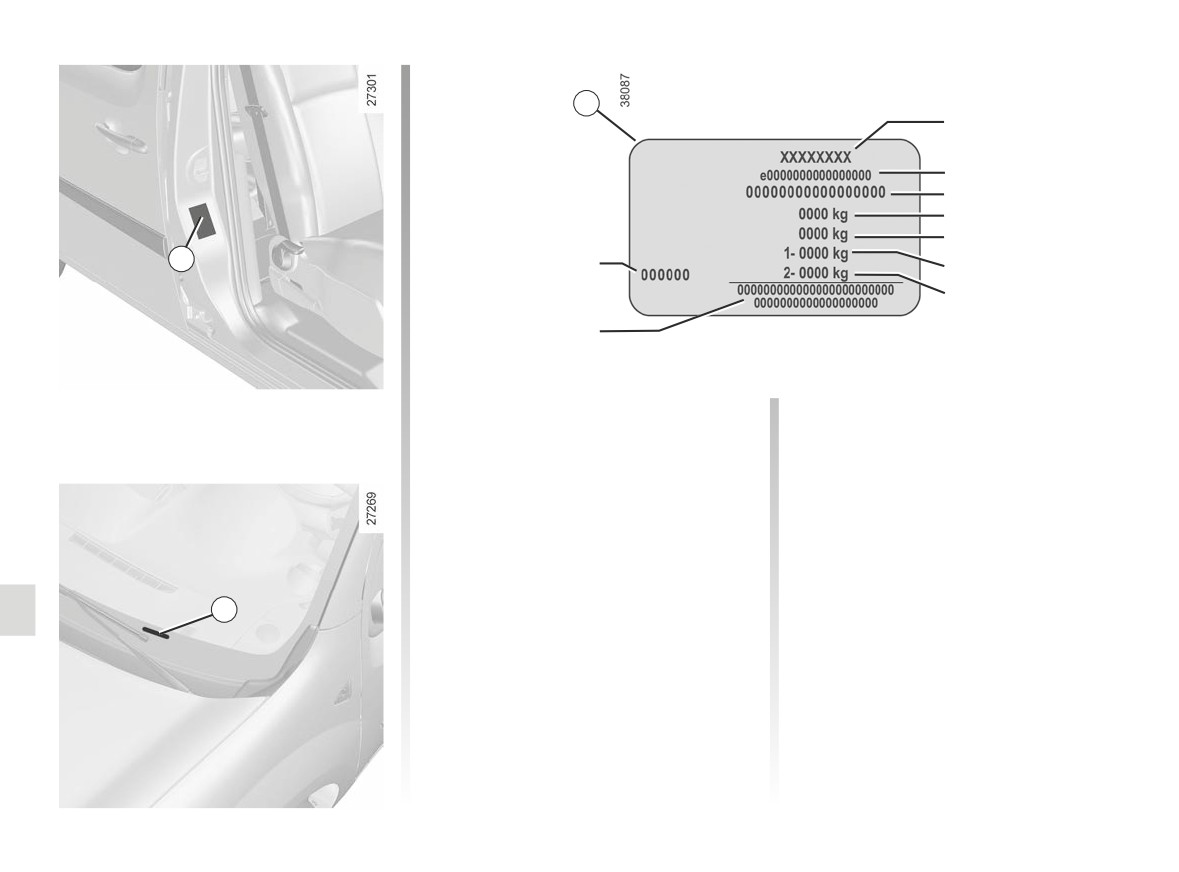

The information shown on the ve-
5
GTW (Gross train weight: vehicle
hicle identification plate should be
fully loaded, with trailer).
quoted on all correspondence or
orders.
6
MPAW (Maximim Permissible
Weight) for front axle.
Vehicle identification plate A
1
Manufacturer name.
7
MPAW on rear axle.
2
EC design number or approval
number.
8
Reserved for related or additional
3
Identification number.
entries.
B
Depending on the vehicle, this
information is also given on
9
Paint reference (colour code).
markingB.
4
MAM
(Maximum Authorised
Mass).
6.2
TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES
A
A

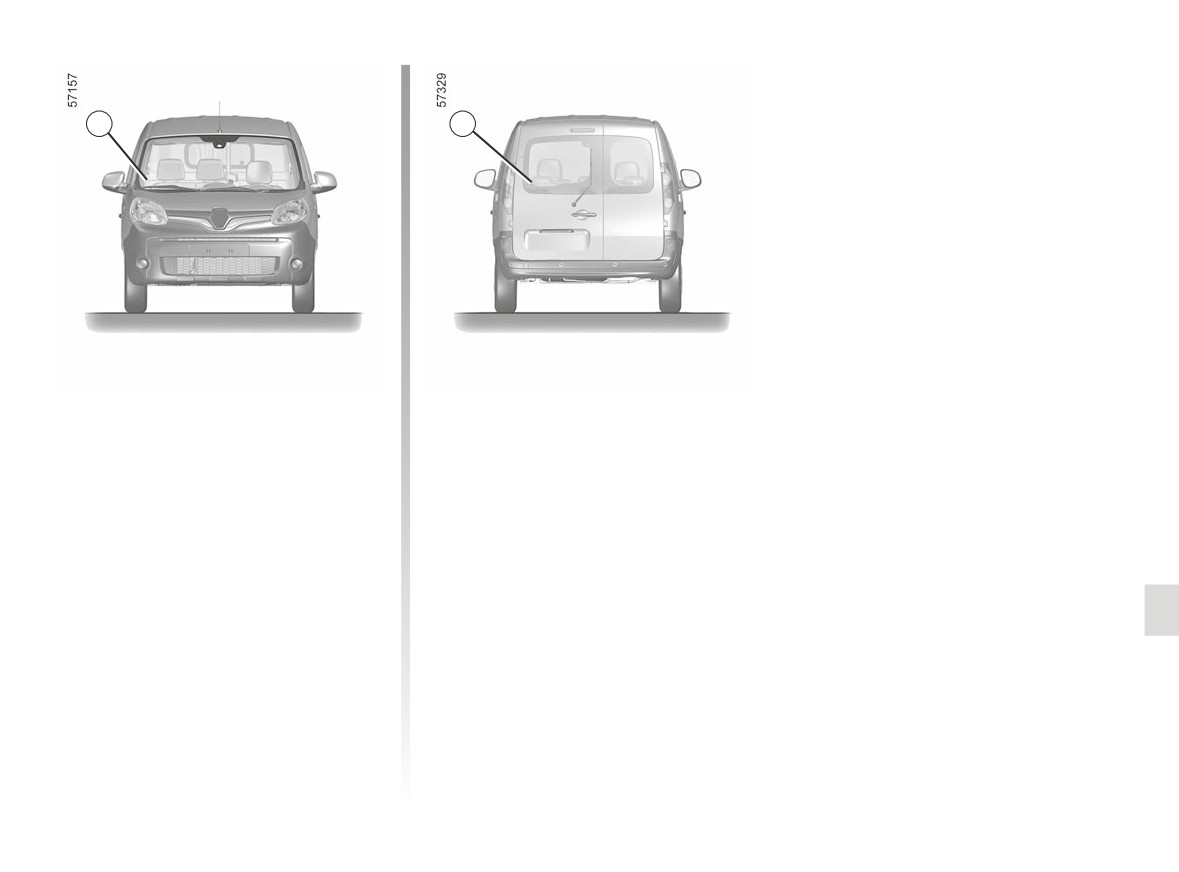

The QR Code on the A label allows
Ensure that the A label is always visible
emergency workers using a tablet or
and present on the windscreen as well
smartphone to immediately access the
as the rear screen.
technical information useful for working
Any modification or damage would
on the vehicle in the event of an acci-
prevent access to the information.
dent.
Note: on versions not fitted with a rear
window, the A label is only present on
the windscreen at the front.
6.3
ENGINE IDENTIFICATION, ENGINE SPECIFICATIONS
A
1
2
3
A

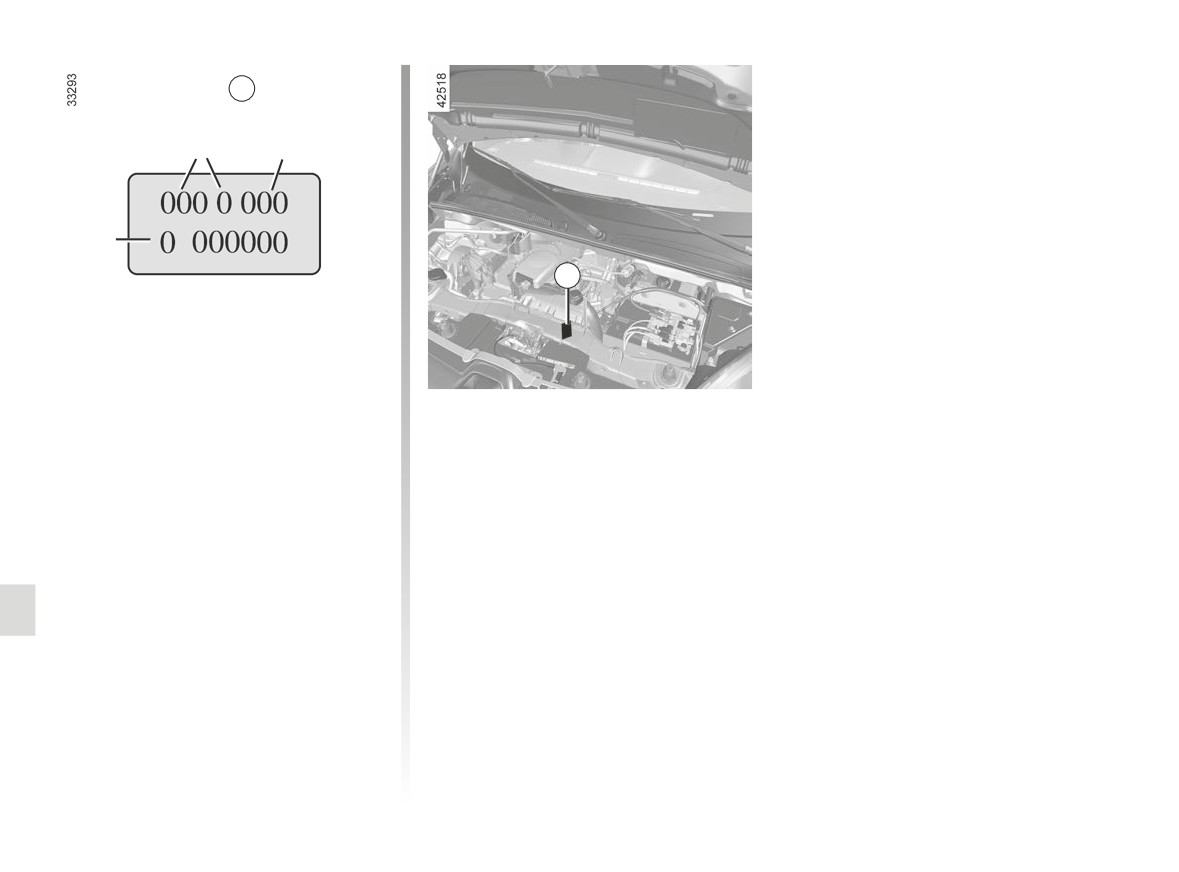

Engine identification plate
Engine specification
Please quote the engine identifica-
Engine type 1: 5AM
tion information in area A in all cor-
respondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine serial number.
6.4

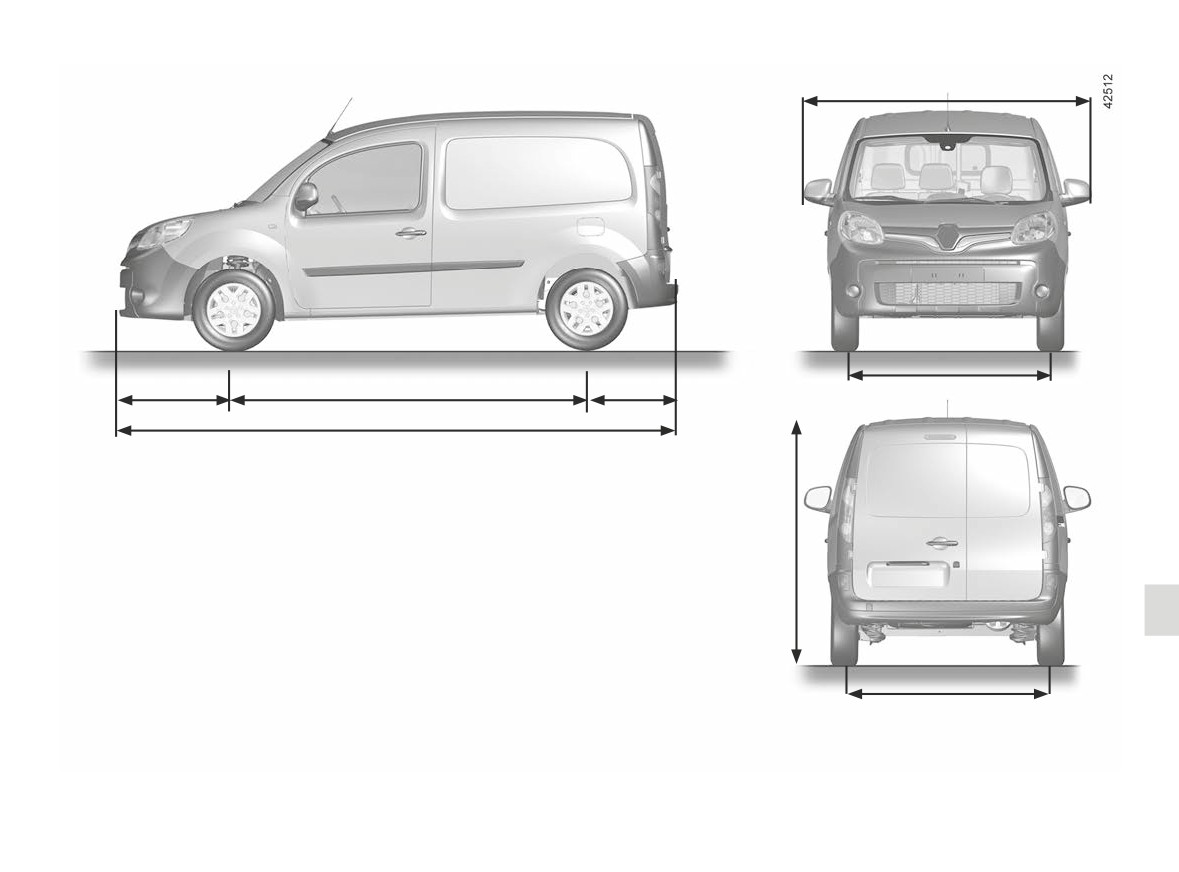

DIMENSIONS (in metres) (1/2)
E
F
A
B
C
D
H
G
6.5
DIMENSIONS (in metres) (2/2)
2 seater
5 seater
Medium
Long
A
0,9
B
2.7
3,1
C
0.7
D
4,3
4,7
E
2.1
F
1.5
G
1.5
H (unladen)
1.8
Turning circles between kerbs
10.7
11.9
Turning circles between walls
11.2
12.4
6.6
WEIGHTS (in kg)
The weights indicated are for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
Contact an approved Dealer.
Medium
long
Maximum permissible all-up weight (MMAC)
Total train weight (MTR)
Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight *
found by calculating: MTR - MMAC
Unbraked trailer weight *
374
322
Permissible nose weight *
75
Maximum permissible load on roof
80 (including the carrying device)
* Towing weight (Towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or when the GTW is equal to zero (or is not listed) on the
identification plate.
It is important to respect local towing regulations in force, specifically those set out in the Highway Code. Contact an approved
Dealer for any modifications to towing equipment.
6.7
REPLACEMENT PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
6.8















Content      ..     8      9      10
