SEAT BELTS (2/6)
Unfastening
Press button 4 on catch 5, and the seat
A
belt will be rewound by the inertia reel.
Guide the belt.
Driver’s seat belt reminder
ß
and, depending on the vehi-
cle, front passenger seat belt re-
1
minder
This appears on the central display A
when the ignition is switched on and
3
4
if the driver’s and/or front passenger’s
seat belt(s) (if the passenger seat is
occupied) is not fastened. If one of
5
5
these seat belts is not fastened while
the vehicle is moving at a speed over
Locking
12 mph (20 km/h), the warning flashes
Unwind the belt slowly and smoothly
and an audible warning sounds during
and ensure that buckle 3 locks into
120 seconds.
catch 5 (check that it is locked by pull-
Note: an object placed on the front pas-
ing on buckle 3).
senger seat may activate the warning
If the belt jams, allow it to return slightly
light in some cases.
before attempting to unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
1.21
SEAT BELTS (3/6)
When the vehicle speed is below ap-
proximately
12 mph (20 km/h), the
graphic 6 or 7 appears during approx-
imately 60 seconds every time one of
the rear seat belts is fastened or unfas-
tened.
6
7
When the vehicle speed is above ap-
proximately 12 mph (20 km/h), if one of
the rear seat belts is or becomes unfas-
tened, the ß
warning light flashes
on the central display A and the indi-
cator for the seat concerned appears
in black and a beep sounds during ap-
proximately 30 seconds.
In all cases, check that the rear pas-
Rear seat belt reminder (depending
Understanding the graphic 6 or 7:
sengers are wearing seat belts and that
on vehicle)
- white symbol: seatbelt fastened;
the number of seat belts shown as fas-
The ß
warning light is displayed on
- black symbol: seatbelt unfastened.
tened matches the number of rear seat
the central display A when the ignition
places occupied.
Note: depending on the version, the
is switched on. Depending on the ve-
Note: an object placed on one of the
number of marks indicated on graphic 6
hicle, it may be accompanied by the 6
rear seats may activate the warning
or 7 may vary according to the number
or 7 graphic which indicates the fasten-
lights in some cases.
of rear seats fitted in the vehicle.
ing status of each of the rear seat belts
each time:
The ß
warning light and the
- switching on the ignition;
graphic 6 or 7 switch off after approx-
- opening a door;
imately 60 seconds.
- fastening or unfastening of a rear
seat belt.
1.22
SEAT BELTS (4/6)
8
9
Adjusting the height of the
Rear side seat belts 9
front seat belts
The belts are locked and unlocked in
Press button 8 to adjust the seat belt
the same way as the front seat belts.
Make sure that the rear bench seat
height so that shoulder strap 1 is worn
is locked in position correctly so that
as shown previously:
the rear seat belts will operate cor-
Press button 8 and raise or lower the
rectly. ➥ 3.24.
seat belt.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1.23
SEAT BELTS (5/6)
10
11
15
14
12
13
Five-seater version
Four-seater version:
This version differs in that it has rear
Centre seat belt
seatbelts and headrests on the rear
Unwind belt 15 slowly from its hous-
side seats only.
ing 10.
Pass the two buckles and the belt 15 in
the belt guide 11.
Click the smallest buckle into the catch
with the black locking button 12.
Fasten the largest buckle and slide 14
in the catch with the red unlocking
Check that the rear seat
button 13.
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1.24
SEAT BELTS (6/6)
The following information applies to the vehicle’s front and rear seat belts.
- No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.
- Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.), as a seat belt which is worn too
loosely may cause injury in the event of an accident.
-
Never wear the shoulder strap under your arm or behind your back.
Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
- The belt should never be twisted.
Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
-
When positioning the rear bench seat, make sure that the seat belts and buckles are correctly positioned so that they can
be used properly.
-
Make sure that the buckle is inserted into the appropriate catch.
Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
-
Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).
1.25
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)
Depending on the vehicle, they are
- Have the entire restraint
composed of:
system checked following
- seat belt pretensioners;
an accident.
- chest force limiters;
- No operation whatsoever
- airbags driver and passenger
is permitted on any part of the
front.
system (airbag, electronic units,
wiring) and the system compo-
These systems are designed to act in-
nents must not be reused on any
dependently or together when the vehi-
other vehicle, even if identical.
cle is subjected to a frontal impact.
-
To avoid premature triggering
Depending on the severity of the
of the system which may cause
impact, the system can trigger:
1
injury, only qualified Network per-
- seat belt locking;
sonnel are authorisedto work on
the methods of restraint in addi-
- the seat belt pretensioner (which en-
tion to the front seat belt.
gages to correct seat belt slack);
Pretensioners
-
The electric trigger system may
- the front airbag;
The pretensioners hold the seat belt
only be tested by a specially
- the force limiter, in the most severe
against the body, holding the occupant
trained technician using special
impacts.
more securely against the seat, thus in-
equipment.
creasing the seat belt’s efficiency.
-
When the vehicle is scrapped,
With the ignition on, following a signif-
contact an approved dealer for
icant frontal impact and depending on
disposal of the gas generators for
the severity of the impact, the system
the pretensioners and airbags.
may trigger the seat belt inertia reel
pretensioner 1, which instantly retracts
the seat belt.
1.26
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)
Load limiter
Each airbag system consists of:
Above a certain severity of impact, this
- an airbag and its gas generator fitted
mechanism is used to limit the force of
on the steering wheel for the driver
the belt against the body so that it is at
and, depending on the vehicle, in the
1
an acceptable level.
dashboard for the front passenger;
- an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
- remote sensors;
å
warning light on the
- a single
instrument panel.
driver and passenger front
Airbags
They are fitted on the driver’s side and,
depending on the vehicle, on the pas-
senger side.
The presence of this equipment is indi-
The airbag system uses py-
cated by the word “Airbag” on the steer-
rotechnic principles. This
ing wheel, dashboard (in area airbag 1)
explains why, when the
and, depending on the vehicle, a label
airbag inflates, it will gener-
on the lower section of the windscreen.
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a banging noise. In a situ-
ation where an airbag is required, it
will inflate immediately and this may
cause some minor, superficial graz-
ing to the skin or other problems.
1.27
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)
Operating faults
å
This warning light comes on
when the engine is started and then
goes out after approximately three sec-
onds.
If it does not come on when the ignition
is switched on or if it stays on, there is a
fault in the system.
Contact your approved Dealer as soon
as possible;
Your protection will be reduced until this
fault is rectified.
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the airbag(s)
inflate rapidly, cushioning the impact of
the driver's head and chest against the
The airbag system uses py-
steering wheel and of the front passen-
rotechnic principles. This
ger against the dashboard. They then
explains why, when the
deflate immediately so that the passen-
airbag inflates, it will gener-
gers are not in any way hindered when
ate heat, produce smoke (this does
leaving the vehicle.
not mean that a fire is about to start)
and make a banging noise. In a situ-
ation where an airbag is required, it
will inflate immediately and this may
cause some minor, superficial graz-
ing to the skin or other problems.
1.28
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

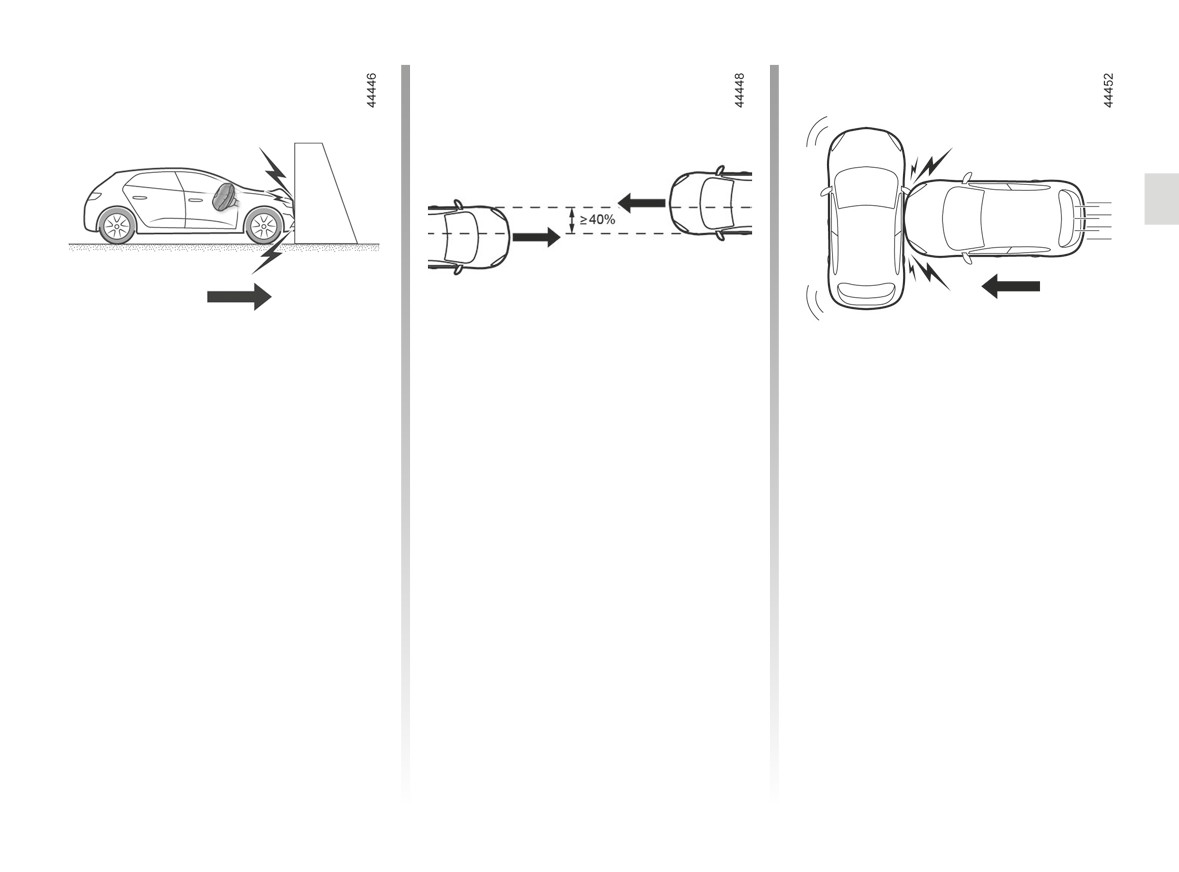

The following cases trigger the pre-
In a frontal impact with another vehi-
In a side impact with another vehicle
tensioners or airbags.
cle of an equivalent or higher category,
of an equivalent or higher category, at
with an impact area equal to or greater
an impact speed equal to or greater
In a frontal impact against a rigid
than 40%, where the speed of both ve-
than 31 mph (50 km/h).
(non-deformable) surface at an impact
hicles is equal to or greater than
speed equal to or greater than 16 mph
25 mph (40 km/h).
(25 km/h).
1.29
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

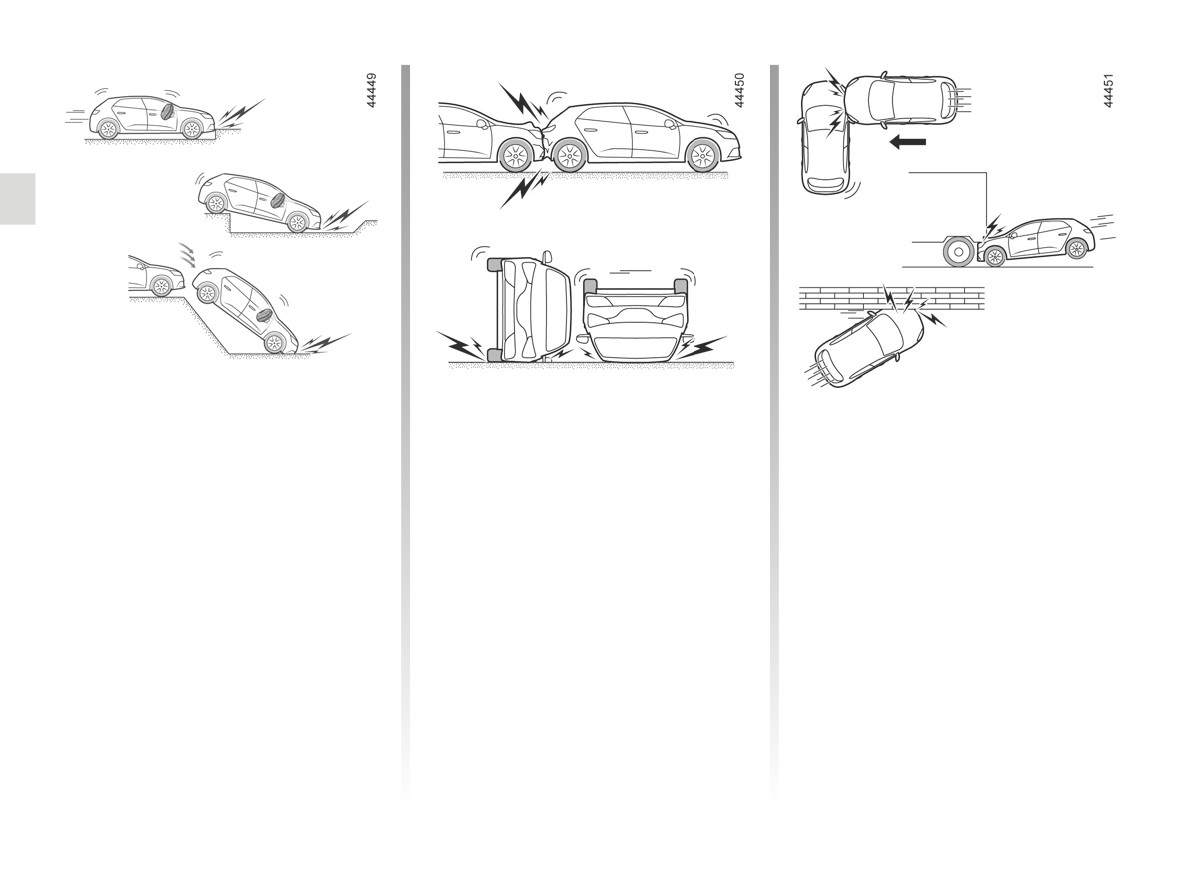

In the following examples, the pre-
In the following examples, the pre-
- side impact to the front or rear of the
tensioners and airbags could oper-
tensioners and airbags might not
vehicle;
ate:
operate:
- frontal impact, under the tail of a
- impact under vehicle such as pave-
- rear impact, however severe;
lorry;
ment;
– the vehicle overturning;
- frontal impact against an obstacle
- potholes;
with a sharp angle;
- drop or hard landing;
- ...
- stones;
– ...
1.30
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
Warnings concerning the driver’s airbag
- Do not modify the steering wheel or the steering wheel boss.
- Do not cover the steering wheel boss under any circumstances.
- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
- You must not remove the steering wheel (such work must only be performed by trained personnel from our Network).
- Do not sit too close to the steering wheel: adopt a driving position whereby your arms are slightly folded ➥ 1.15. This will
allow sufficient space for the air bag to deploy correctly and to be fully effective.
Warnings concerning the passenger airbag
- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, all parts of the body should be kept away from the dashboard (knees, hands, head etc.).
- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.52.
1.31
SIDE PROTECTION DEVICES
Depending on the vehicle, this is com-
posed of:
Side Airbags
This airbag may be fitted to each of the
front seats and is activated at the sides
of the seats (door side) to protect the
occupants in the event of a severe side
impact.
Curtain Airbags
These are airbags fitted along the sides
Warning relating to the side airbag
of the vehicle in the ceiling which trig-
ger along the front door side windows
- Fitting seat covers: seats equipped with an airbag require covers spe-
to protect the passengers in case of a
cifically designed for your vehicle. Contact an approved dealer to find
severe side impact.
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the airbag and reduce your protection.
-
Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the airbag is deployed.
-
No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved Dealer.
-
This airbag operates through slits in the front seatbacks (door side): never
Depending on the vehicle, a mark-
insert any objects in these slits.
ing on the windscreen informs you
of the presence of additional means
of restraint (airbags, pretensioners
etc.) in the passenger compartment.
1.32
ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the airbag is not obstructed in any
way when it is inflated and also to prevent the risk of serious injuries caused
by items which may be dislodged when it inflates.
The airbag is designed to complement the action of the seat belt, the
airbag and the seat belt are integral parts of the same protection system.
It is therefore essential to wear seat belts at all times. If seat belts are not
worn, the occupants are exposed to the risk of serious injury in the event
of an accident. It may also increase the risk of minor superficial injuries occurring
when the airbag is deployed, although such minor injuries are always possible
with airbags.
If the vehicle should overturn or suffer a rear impact, however severe, the preten-
sioners and airbags are not always triggered. Shocks to the underbody of the ve-
hicle, from pavements, potholes, stones etc. can all trigger these systems.
- No work or modification whatsoever may be carried out on any part of the
driver or passenger airbag system (airbag, computer, wiring harness etc.),
Operating faults
except by qualified network personnel.
- To ensure that the system is in good working order and to avoid accidental trig-
å
This warning light comes on
gering of the system which may cause injury, only qualified Network personnel
when the engine is started and then
may work on the airbag system.
goes out after approximately three sec-
- As a safety precaution, have the airbag system checked if your vehicle has
onds.
been involved in an accident, or is stolen or broken into.
If it does not come on when the ignition
- When selling or lending the vehicle, inform the user of these points and hand
is switched on or if it stays on, there is a
over this handbook with the vehicle.
fault in the system.
- When scrapping your vehicle, contact an approved Dealer for advice on dis-
Contact your approved Dealer as soon
posing of the gas generator and air bags.
as possible;
Your protection will be reduced until this
fault is rectified.
1.33
CHILD SAFETY: General information (1/2)
Carrying children
Please ensure that you comply with the
legislation of your country.
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin-
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
A collision at
30 mph
(50 km/h) is the same as fall-
ing a distance of 10 metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth-
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
To prevent the doors being
the child, even if you yourself are
opened, use the “Child lock”
wearing a seat belt.
feature. ➥ 1.9.
If your vehicle has been involved in
a road accident, replace the child
seat and have the seat belts and
ISOFIX anchorage points checked.
1.34
CHILD SAFETY: General information (2/2)
Using a child seat
Set a good example by always fas-
The level of protection offered by the
tening your seat belt and teaching
child seat depends on its ability to re-
your child:
strain your child and on its installation.
- to strap themselves in correctly;
Incorrect installation compromises the
- to always get in and out of the car
protection it offers the child in the event
at the kerb, away from busy traf-
of harsh braking or an impact.
fic.
Before purchasing a child seat, check
Driver’s responsibility
Do not use a second-hand child
that it complies with the regulations for
when parking or stopping
seat or one without an instruction
the country you are in and that it can
the vehicle
manual.
be fitted in your vehicle. Consult an ap-
Never leave an animal,
Check that there are no objects in
proved dealer to find out which seats
child or adult who is not self-suffi-
the vicinity of the child seat which
are recommended for your vehicle.
cient alone on your vehicle, even for
could impede its operation.
Before fitting a child seat, read the
a short time.
manual and respect its instructions. If
They may pose a risk to themselves
you experience any difficulties during
Never leave a child unat-
or to others by starting the engine,
installation, contact the manufacturer
tended in the vehicle.
activating equipment such as the
of the equipment. Keep the instructions
Check that your child is
electric windows or by locking the
with the seat.
always strapped in and that
doors.
the belt or safety harness used is
Also, in hot and/or sunny weather,
correctly set and adjusted. Avoid
please remember that the tempera-
wearing bulky clothing which could
ture inside the passenger compart-
cause the belts to slacken.
ment increases very quickly.
Never let your child put their head or
RISK OF DEATH OR SERIOUS
arms out of the window.
INJURY.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
1.35

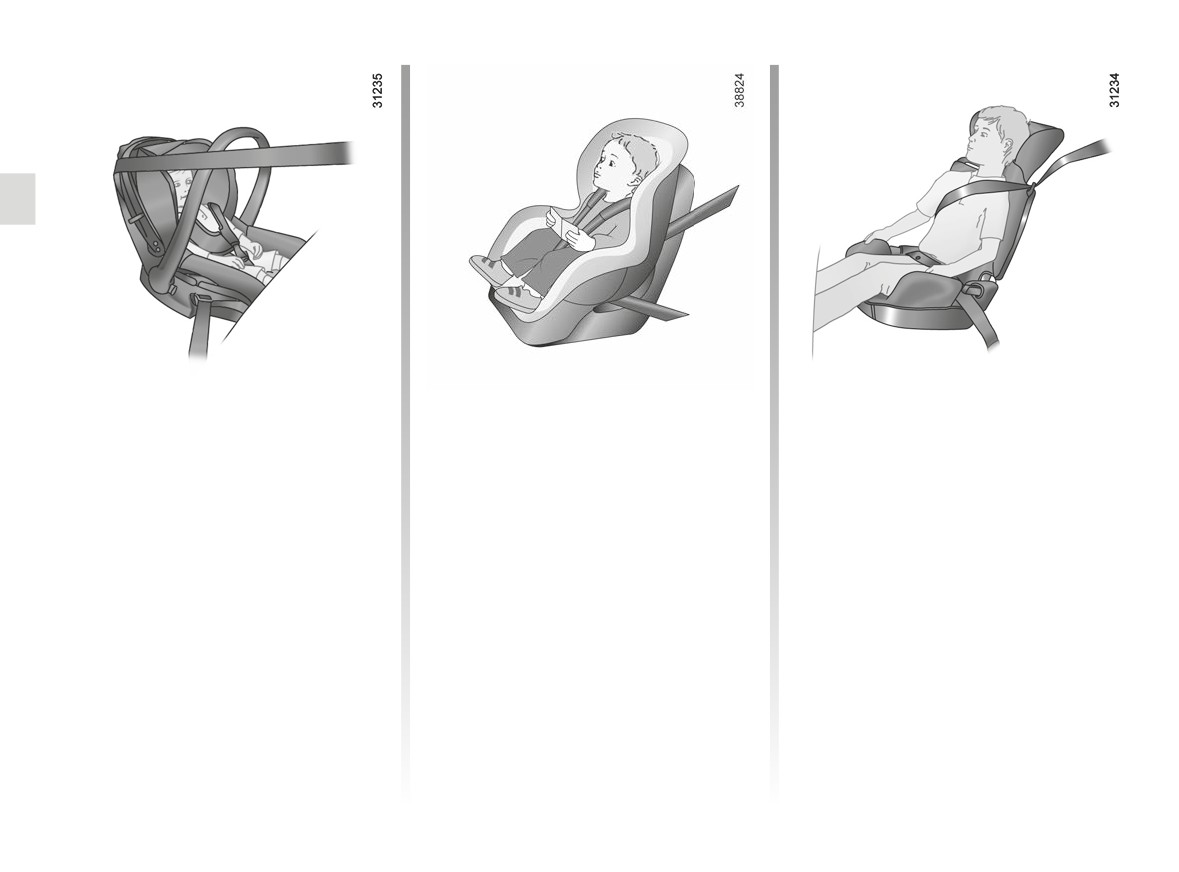

CHILD SAFETY: choosing a child seat
Rear-facing child seats
Forward-facing child seats
Booster cushions
A baby’s head is, proportionally, heavier
Up to 18 kg or 4 years, the child may
From 15 kg or 4 years, the child can
than that of an adult and its neck is very
travel on a forward-facing seat.
travel using a booster seat, which will
fragile. Transport the child in this posi-
enable the seat belt to be adapted to
Choose your seat according the child’s
tion as long as possible (until the age of
suit his size and shape. The booster
size: their head and abdomen are the
2 at the very least). It supports both the
seat cushion must be fitted with guides
areas which must be most protected. A
head and the neck. Choose a bucket
to position the seat belt on the child’s
forward-facing child seat which is firmly
type seat for best side protection and
thighs rather than the stomach. It is
attached to the vehicle will reduce the
change it as soon as the child’s head is
recommended that you use a seatback
risk of impact to the head.
higher than the shell.
which can be adjusted in terms of height
Ensure your child travels in a for-
to position the seat belt in the centre of
ward-facing seat with a harness for as
the shoulder. It must never rest on the
long as their size permits. Choose a
neck or on the arm. Choose a bucket
bucket type seat for optimum side pro-
type seat for optimum side protection.
tection.w
1.36
CHILD SAFETY: choosing a child seat mounting (1/3)
There are two ways of attaching child
Attachment via the seat belt
seats: via the seat belt or using the
The seat belt must be adjusted to
ISOFIX system.
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
The seat belt must never
resting against a window.
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Do not use the child seat
Consult an approved Dealer. Do not
if it may unfasten the seat
use this seat until the seat belt has
belt restraining it: the base
been repaired.
of the seat must not rest on
the buckle and/or catch of the seat
belt.
1.37
CHILD SAFETY: choosing a child seat mounting (2/3)
Attachment using the ISOFIX
Attach the child seat with the ISOFIX
system
locks, if these are provided. The ISOFIX
system allows quick, easy and safe fit-
Authorised ISOFIX child seats are ap-
ting.
proved in accordance with current reg-
ulations if any of the three cases below
The ISOFIX system consists of 2 rings
1
applies:
and, in some cases, a third ring.
- universal ISOFIX
3-point for-
ward-facing seat;
- semi-universal ISOFIX 2-point seat;
- specific.
For the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
The two rings 1 ISOFIX are located be-
tween the seatback and the seat base
and are identified by a marking ü
Check that the seatback
of the forward-facing child
Before using an ISOFIX
seat is in contact with the
child seat that you pur-
back of the vehicle seat.
chased for another vehicle,
In this case, the child seat may not
check that its installation is
always rest on the base of the vehi-
authorised. Consult the list of ve-
No modifications may be
cle seat.
hicles which can be fitted with the
made to the component
seat with the equipment manufac-
parts of the restraint system
turer.
(seat belts, ISOFIX, seats
and their mountings) originally fitted.
1.38
CHILD SAFETY: choosing a child seat mounting (3/3)
Anchorages 2 must be used
2
to attach the child seat’s
upper strap.
It is forbidden to use other
mounting points to attach this strap.
Attachment using the ISOFIX
system (continued)
The ISOFIX anchorage
The third ring 2 of each rear seat is
points have been exclu-
used to attach the upper strap on some
sively designed for child
child seats.
seats with the ISOFIX
Attach the hook on the belt to one of the
system. Never fit a different type of
rings 2, as indicated by the mark ,
child seat, seat belt or other objects
located behind the rear seats at the
to these fittings.
base of each seatback.
Check that nothing is obstructing
Pull the belt so that the back of the child
the anchorage points.
seat comes into contact with the back
If your vehicle has been involved in
of the vehicle seat.
a road accident, have the ISOFIX
anchorage points checked and re-
place your child seat.
1.39
CHILD SAFETY: fitting a child seat: general information (1/2)
Some seats are not suitable for fitting
The types of child seats indicated may
After installing the child seat, when this
child seats. The diagrams on the fol-
not be available. Before using a differ-
is possible, you can move the vehi-
lowing pages show you how to attach
ent child seat, check with the manufac-
cle seat forward if necessary (so as to
a child seat.
turer that it can be fitted.
leave enough space in the rear seats
for passengers or other child seats).
In the front seat
For a rear-facing child seat, do not let
The laws concerning children travel-
it touch the dashboard or move it to the
Fit the child seat in a rear
ling in the front passenger seat differ in
furthest forward position.
seat wherever possible.
every country. Consult the legislation in
Do not change other settings after in-
Make sure the child seat or
force and follow the indications on the
stalling the child seat.
the child’s feet do not pre-
diagram on the following page.
vent the front seat from locking cor-
Before fitting a child seat in this seat (if
rectly. ➥ 1.15.
authorised):
Check that when installing the child
- deactivate the front passenger
seat in the vehicle it is not at risk of
airbag;
coming loose from its base.
- lower the seat belt as far as possible;
If you have to remove the headrest,
- move the seat as far back as pos-
check that it is correctly stored so
sible;
that it does not come loose under
- gently tilt the seatback away from
harsh braking or impact.
vertical (approximately 25°);
- on equipped vehicles, raise the seat
Always attach the child seat to the
base as far as possible.
vehicle even if it is not in use so that
it does not come loose under harsh
Always fully raise the seat headrest so
braking or impact.
that it does not interfere with the child
seat ➥ 1.14.
RISK OF
DEATH
OR
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.52.
1.40
CHILD SAFETY: fitting a child seat: general information (2/2)
In the rear side seat
Always remove the headrest from the
Rear centre seat
rear seat on which the child seat is po-
(depending on the vehicle)
A carrycot can be installed across the
sitioned. ➥ 3.22. This must be done
vehicle and will take up at least two
A child seat may only be fitted in this
before fitting the child seat. Check that
seats. Position the child with his or her
seat if it is equipped with an inertia-reel
the child seat is resting against the
feet nearest the door.
seat belt.
back of the rear seat.
Move the front seat as far forward as
Check that the belt is suitable for se-
possible to install a rear-facing child
curing your child seat. Consult an ap-
seat, then move back the seat in front
proved dealer.
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing position:
- move the relevant seat backwards
as far as possible;
- move the seat in front of the child
forwards, and set the position of the
seatback to avoid contact between
the seat and the child’s legs.
When fitting a child seat
(Group 2 or 3 booster seat),
A child seat with a floor sup-
check that the seat belts
port must never be installed
Ensure that the child seat
operate
(wind) correctly
on the rear centre seat.
or the child’s feet do not
➥ 1.20.
prevent the front seat from
RISK OF DEATH OR
If necessary, adjust the position of
locking correctly. ➥ 1.15.
SERIOUS INJURY.
the vehicle seat.
1.41















Content      ..      1      2      3      ..
