FRONT SEATS (1/2)
To tilt the seatback
Lift the 2 or 4 handle and tilt the seat-
back to the desired position. Release
the handle at the desired position and
5
make sure that it is locked.
4
3
1
2
After making adjustments,
make sure that the seat-
backs are correctly locked
in place.
To move the seat forwards or
Central armrest 5
For safety reasons, carry
backwards
(depending on the vehicle)
out any adjustments
Lift and hold the handle 1 to unlock the
when the vehicle is not
To adjust the position of the armrest,
seat. Release the handle once the seat
being driven.
slide it forwards or backwards until it
is in the correct position and ensure
reaches the stop.
We would advise you not to recline
that the seat is locked.
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
To raise or lower the seat
base
Nothing should be placed on the
floor (area in front of driver) as such
Move the lever 3 as many times as nec-
objects may slide under the pedal
essary upwards or downwards until the
during braking manoeuvres, thus
required position is reached.
obstructing its use.
1.21
FRONT SEATS (2/2)
Operating faults
When an operating fault is detected,
the warning lights of the 6 switch for the
seat concerned go out after approxi-
mately five seconds.
Consult an approved dealer.
6
Heated seats
With the ignition on:
- Pressing the switch 6 on the required
seat for the first time activates the
heating system on high. Both inte-
grated switch warning lights come
on;
- pressing the switch for the second
time changes the heating to low. One
integrated warning light comes on;
- pressing for the third time turns the
heating off.
1.22
SEAT BELTS (1/5)
Always wear your seat belt when trav-
Adjusting your driving
elling in your vehicle. You must also
position
comply with the legislation of the par-
- Sit well back in your seat (having
ticular country you are in.
first removed your coat or jacket).
Before starting, first adjust your driv-
This is essential to ensure your back
ing position, then ask all occupants
is positioned correctly;
to adjust their seat belts to ensure
- adjust the distance between the
optimum protection.
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
Make sure that the rear bench seat
should be adjusted so that your arms
is locked in position correctly so that
are slightly bent when you hold the
the rear seat belts will operate cor-
steering wheel;
rectly. ➥ 3.34.
- adjust the position of your head-
rest. For maximum safety, your head
must be as close as possible to the
headrest;
Incorrectly adjusted or
– adjust the height of the seat. This
twisted seat belts may
adjustment allows you to select the
cause injuries in the event
seat position which offers you the
of an accident.
best possible view;
Use one seat belt per person,
- adjust the position of the steering
whether child or adult.
wheel.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
1.23
SEAT BELTS (2/5)
Locking
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull-
ing on buckle 3).
If the belt jams, allow it to return slightly
before attempting to unwind it again.
1
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
3
before attempting to unwind it again.
4
If there is still a problem, contact an ap-
5
5
proved dealer.
2
Adjusting the seat belts
Unlocking
Sit with your back firmly against the
Press button 4 and the seat belt will be
seatback.
rewound by the inertia reel. Guide the
Shoulder strap 1 should be as close as
belt.
possible to the base of the neck but not
on it.
Lap belt 2 should be worn flat over the
thighs and against the pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.:
avoid wearing heavy clothing or keep-
ing bulky objects under the belts, etc.
1.24
SEAT BELTS (3/5)
Driver’s seat belt reminder
It is accompanied by the 6 symbol which
ß
and, depending on the vehi-
appears for approximately 60 seconds
cle, front passenger seat belt re-
each time one of the rear seat belts is
minder
fastened or unfastened.
This appears on the central display
When the vehicle speed reaches or ex-
when the ignition is switched on and
ceeds 12 mph (20 km/h), if one of the
if the driver’s and/or front passenger’s
rear seat belts is or becomes unfas-
seat belt(s) (if the passenger seat is
tened during the journey:
occupied) is not fastened. Depending
on the vehicle, if the seat is occupied
- the
warning light flashes on
and one of these seat belts is not fas-
the central display;
tened or becomes unfastened while
6
and
the vehicle is moving at a speed over
approximately 12 mph (20 km/h), the
- a beep is emitted for 30 to 120 sec-
onds (depending on the version);
warning light flashes and a beep
and
sounds for approximately 120 seconds.
playback of 6 graphic:
- indicator green: seatbelt fastened;
- the 6 symbol is displayed for at least
Note: an object placed on the passen-
- indicator in red: the seat is occupied
approximately
60 seconds and
ger seat may activate the warning light
and the seat belt is not fastened;
the symbol for the seat concerned
in some cases, depending on the ve-
- indicator grey: seat not occupied.
changes to red.
hicle.
Depending on the vehicle, the
Always make sure that the rear pas-
Rear seat belt reminder (depending
warning light on the central display also
sengers are properly fastened and that
on the vehicle)
appears when the ignition is switched
the number of fastened seat belts in-
The 6 graphic is displayed on the in-
on, if a rear seat is occupied and the
dicated corresponds to the number of
strument panel when the ignition is
seat belt is not fastened.
rear seats occupied.
switched on. This informs the driver of
the fastening status of each of the rear
When the vehicle speed is less than
Note: in some cases the warning light
seat belts every time:
approximately 12 mph (20 km/h), the
may be activated if an object is placed
- the ignition is switched on;
on one of the rear seats, depending on
warning light on the central dis-
- a door is opened;
the vehicle.
play appears if a rear seat belt is un-
- fastening or unfastening of a rear
fastened.
seat belt.
1.25
SEAT BELTS (4/5)
7
8
8
Adjusting the height of the
Rear seat belts 8
front seat belts
The belts are locked, unlocked and
Use button 7 to adjust the seat belt
adjusted in the same way as the front
height so that the shoulder strap is worn
belts.
as shown previously. Press the button 7
and raise or lower the seat belt. Make
sure that the seat belt is locked in posi-
tion correctly after you have adjusted it.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1.26
SEAT BELTS (5/5)
The following information applies to the vehicle’s front and rear seat belts.
- No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.
- Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
- Never wear the shoulder strap under your arm or behind your back.
- Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
- The belt should never be twisted.
- Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
- When the rear bench seat is being put back, make sure that the seat belts and buckles are correctly positioned so that they
can be used properly.
- Make sure that the buckle is inserted into the appropriate catch.
- Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly secured.
- Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).
1.27
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)
Depending on the vehicle, they will con-
- Have the entire restraint
sist of:
system checked following
- seat belt inertia reel pretension-
an accident.
ers;
- No operation whatso-
- central seat belt pretensioners;
ever is permitted on any part
- chest-level load limiters;
of the system
(pretensioners,
airbags, computers, wiring) and
- airbags driver and passenger
the system components must not
front.
be reused on any other vehicle,
These systems are designed to act in-
even if identical.
dependently or together when the vehi-
-
Only qualified personnel from our
cle is subjected to a frontal impact.
2
Network may work on the airbags;
Depending on the severity of the
otherwise the system may trigger
1
impact, the system can trigger:
accidentally and cause injury.
-
seat belt locking;
Pretensioners
-
The electric trigger system may
only be tested by a specially
the seat belt inertia reel pretensioner
The pretensioners hold the seat belt
trained technician using special
(which engages to correct seat belt
against the body, holding the occupant
equipment.
slack);
more securely against the seat, thus in-
-
When the vehicle is scrapped,
-
lap seat belt pretensioners to hold
creasing the seat belt’s efficiency.
contact an approved dealer for
the occupant in their seat;
In the event of a severe frontal impact
disposal of the pretensioner and
-
the front airbag.
and if the ignition is switched on, the
airbags gas generators.
system may engage the following de-
pending on the force of the impact:
- the seat belt inertia reel preten-
sioner 1 which instantly retracts the
seat belt;
- the lap seat belt inertia reel preten-
sioner 2 on the front seats.
1.28
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)
Load limiter
driver and passenger front
Above a certain severity of impact, this

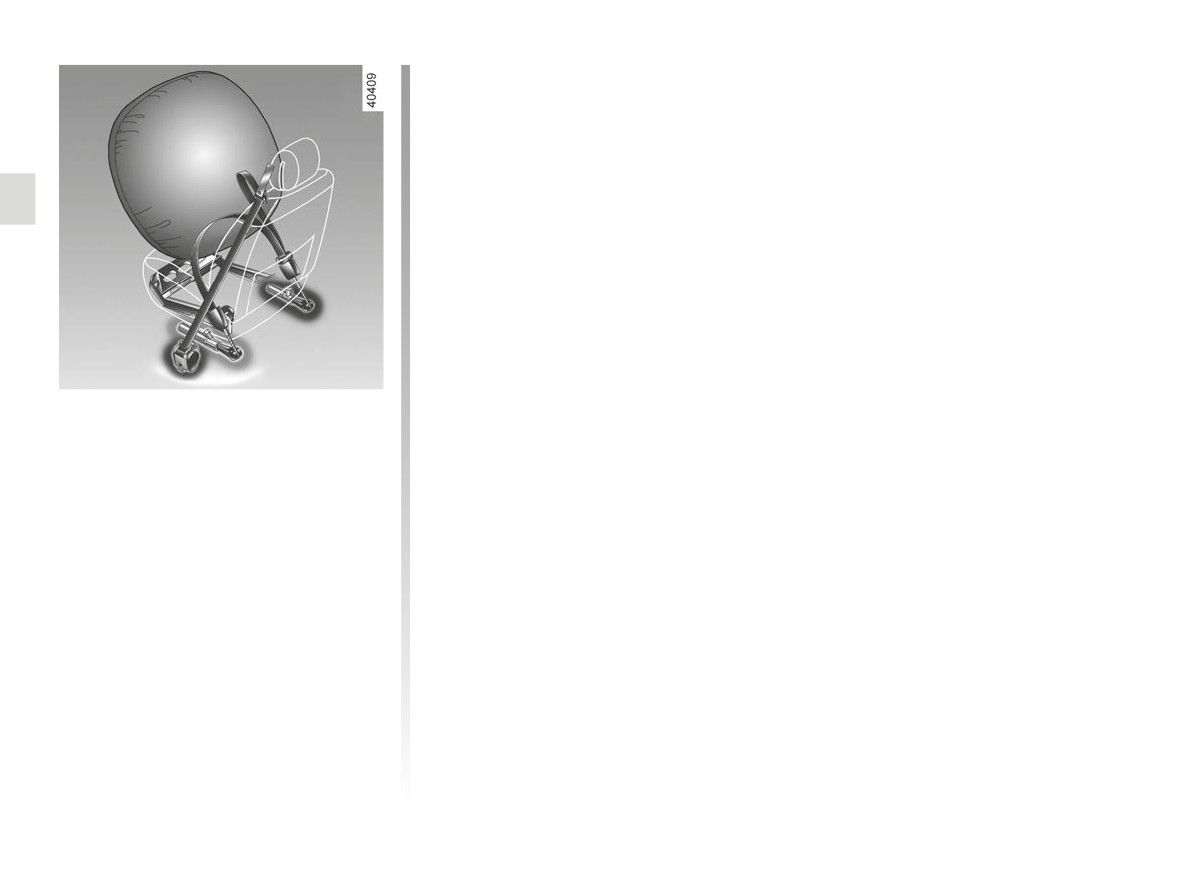

Airbags
mechanism is used to limit the force of
Fitted to the driver and passenger
the belt against the body so that it is at
sides.
an acceptable level.
A symbol on the lower section of the
windscreen indicates if this equipment
is present (depending on the vehicle).
Each airbag system consists of:
- an airbag and gas generator fitted on
the steering wheel for the driver and
in the dashboard for the passenger;
- an electronic unit for monitoring the
system controlling the gas generator
electrical trigger;
- remote sensors;
- a single warning light å
on the
instrument panel.
The airbag system uses py-
rotechnic principles. This
explains why, when the
airbag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a banging noise. In a situ-
ation where an airbag is required, it
will inflate immediately and this may
cause some minor, superficial graz-
ing to the skin or other problems.
1.29
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)
Operating faults
å
This warning light comes on
when the engine is started and then
goes out after approximately three sec-
onds.
If it does not come on when the ignition
is switched on or if it stays on, there is a
fault in the system.
Contact your approved Dealer as soon
as possible.
Your protection will be reduced until this
fault is rectified.
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the airbags
inflate rapidly, cushioning the impact
of the driver's head and chest against
the steering wheel and of the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
1.30
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

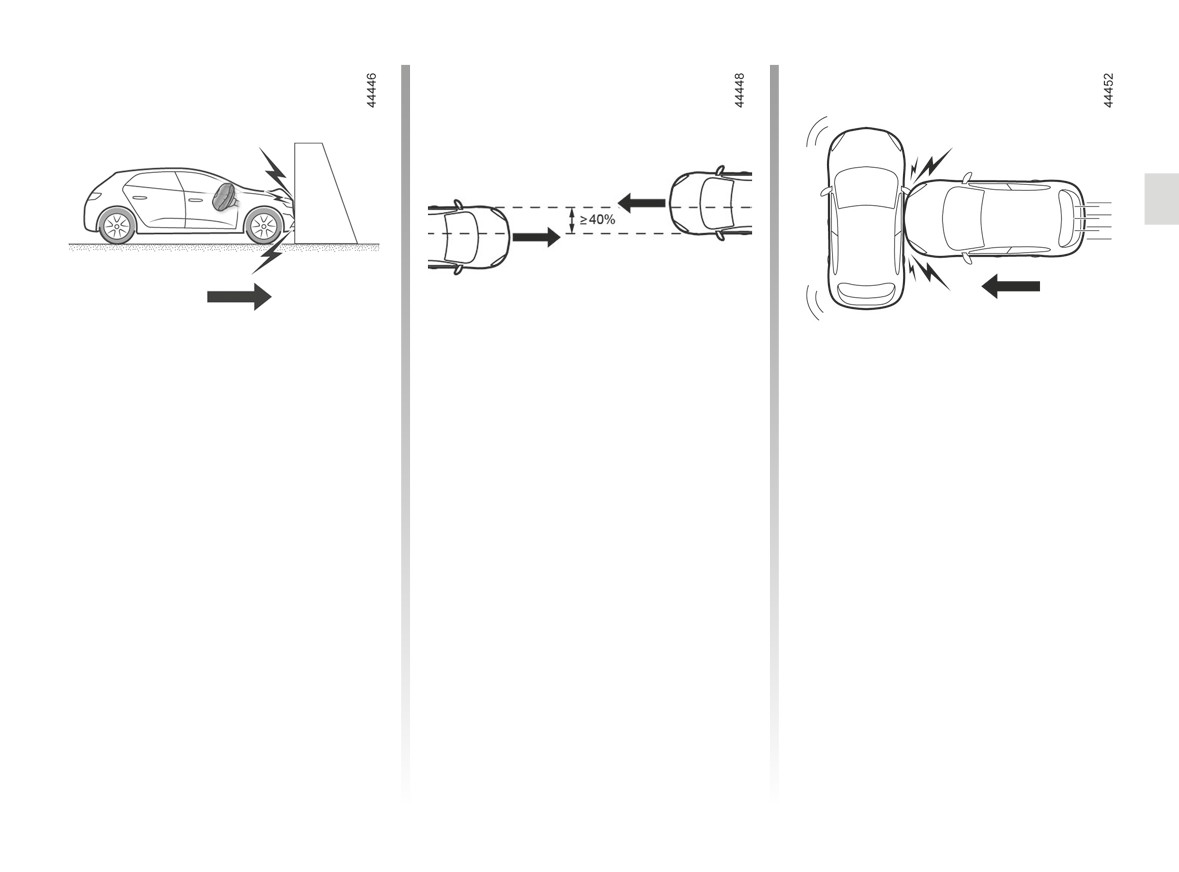

The following cases trigger the pre-
In a frontal impact with another vehi-
In a side impact with another vehicle
tensioners or airbags.
cle of an equivalent or higher category,
of an equivalent or higher category, at
with an impact area equal to or greater
an impact speed equal to or greater
In a frontal impact against a rigid
than 40%, where the speed of both ve-
than 31 mph (50 km/h).
(non-deformable) surface at an impact
hicles is equal to or greater than
speed equal to or greater than 16 mph
25 mph (40 km/h).
(25 km/h).
1.31
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)
In the following examples, the pre-
In the following examples, there is a
- side impact to the front or rear of the
tensioners or the airbags could op-
risk that pretensioners orairbags may
vehicle;
erate:
not be triggered:

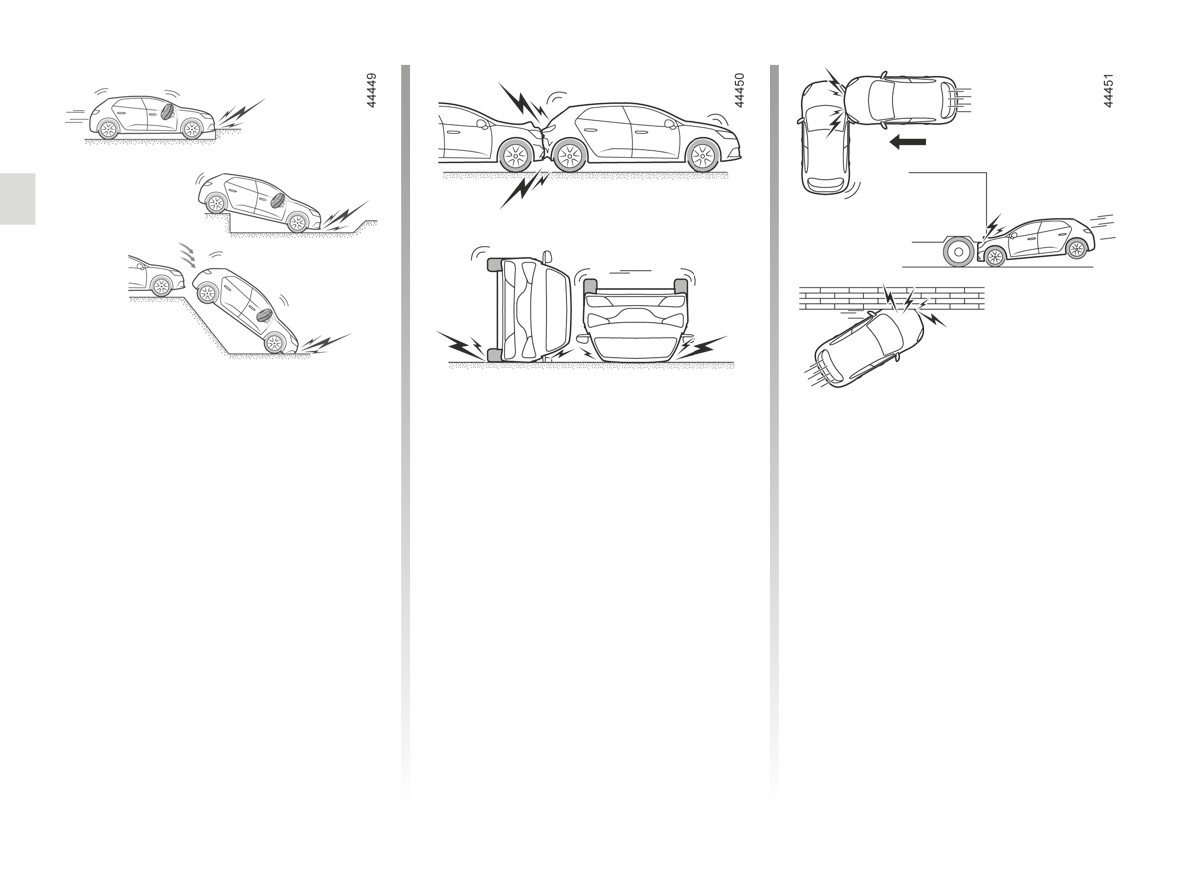

- frontal impact, under the tail of a
- impact under vehicle such as pave-
- rear impact, however severe;
lorry;
ment;
- the vehicle overturning;
- frontal impact against an obstacle
- potholes;
with a sharp angle;
– ...
- drop or hard landing;
- ...
- stones;
– ...
1.32
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
Warnings concerning the driver’s airbag
- Do not modify the steering wheel or the steering wheel boss.
- Do not cover the steering wheel boss under any circumstances.
- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
- The steering wheel must not be removed (except by qualified personnel from our Network).
- Do not sit too close to the steering wheel when driving: sit with your arms slightly bent (see “Adjusting your driving position”
➥ 1.23). This will allow sufficient space for the airbag to deploy correctly and be fully effective.
Warnings concerning the passenger airbag
- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).
- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.57.
1.33
METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS
Depending on the vehicle, they will con-
- Have the entire restraint
sist of:
system checked following
- side seat belt inertia reel preten-
an accident.
sioners;
- No operation whatso-
- chest force limiters.
ever is permitted on any part
These systems are designed to act in-
of the system
(pretensioners,
dependently or together when the vehi-
airbags, computers, wiring) and
cle is subjected to a frontal impact.
the system components must not
be reused on any other vehicle,
Depending on the severity of the
even if identical.
impact, the system can trigger:
1
-
Only qualified personnel from our
- seat belt locking;
Network may work on the airbags;
- the seat belt inertia reel pretensioner
otherwise the system may trigger
(which engages to correct seat belt
accidentally and cause injury.
slack).
Side seat belt pretensioners
-
The electric trigger system may
only be tested by a specially
The pretensioners hold the seat belt
Force limiter
trained technician using special
against the body, holding the occupant
equipment.
Above a certain severity of impact, this
more securely against the seat, thus in-
-
When the vehicle is scrapped,
mechanism is used to limit the force of
creasing the seat belt’s efficiency.
contact an approved dealer for
the belt against the body so that it is at
With the ignition on, following a signif-
disposal of the pretensioner and
an acceptable level.
icant frontal impact and depending on
airbags gas generators.
the severity of the impact, the system
may trigger the seat belt inertia reel
pretensioner 1, which instantly retracts
the seat belt.
1.34
SIDE PROTECTION DEVICES
Side Airbag
This airbag may be fitted to each of the
front seats and is activated at the sides
of the seats (door side) to protect the
occupants in the event of a severe side
impact.
Curtain Airbag
This is an airbag fitted (depending on
the vehicle) along the upper sides of
the vehicle - they inflate along the front
and rear door side windows to protect
the passengers in the event of a severe
side impact.
Warning relating to the side airbag
- Fitting seat covers: seats equipped with an airbag require covers spe-
cifically designed for your vehicle. Contact an approved dealer to find
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the airbag and reduce your protection.
-
Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the airbag is deployed.
-
No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved Dealer.
-
This airbag operates through slits in the front seatbacks (door side): never
insert any objects in these slits.
1.35
ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
The airbag is designed to complement the action of the seat belt. Both the airbag and the seat belt are integral parts
of the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the oc-
cupants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor su-
perficial injuries occurring when the airbag is deployed, although such minor injuries are always possible with airbags.
If the vehicle should overturn or in the event of a rear impact, however severe, the pretensioners and airbags are not always
triggered. Impacts to the underside of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
- No work or modification whatsoever may be carried out on any part of the airbag system (airbags, pretensioners, computer,
wiring harness, etc.), except by qualified Network personnel.
- To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,
only qualified Network personnel may work on the airbag system.
- As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, or is stolen or
broken into.
- When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
- When scrapping your vehicle, contact your approved Dealer for disposal of the gas generator(s).
1.36
CHILD SAFETY: General information (1/2)
Carrying children
Special features of LPG
Please ensure that you comply with the
versions
legislation of your country.
The vehicle’s LPG installa-
Children, and adults, must be correctly
tion may lead to changes to
seated and strapped in for all journeys.
the vehicle’s features compared to
The children being carried in your vehi-
the petrol version.
cle are your responsibility.
This may relate to the number of
Driver’s responsibility
A child is not a miniature adult. Children
seats and the installation of child
when parking or stopping
are at risk of specific injuries as their
seats.
the vehicle
muscles and bones have not yet fin-
Please contact an authorised dealer.
ished growing. The seat belt alone
Never leave an animal,
would not provide suitable protection.
child or adult who is not self-suffi-
Use an approved child seat and ensure
cient alone on your vehicle, even for
you use it correctly.
a short time.
They may pose a risk to themselves
or to others by starting the engine,
A collision at 30 mph (50
activating equipment such as the
km/h) is the same as fall-
electric windows or by locking the
ing a distance of 10 metres.
doors.
Transporting a child without
Also, in hot and/or sunny weather,
a restraint is the equivalent of allow-
please remember that the tempera-
ing him or her to play on a fourth-
ture inside the passenger compart-
floor balcony without railings.
ment increases very quickly.
Never travel with a child held in your
RISK OF DEATH OR SERIOUS
arms. In the event of an accident,
INJURY.
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
To prevent the doors being
a road accident, replace the child
opened, use the “Child lock”
seat and have the seat belts and
feature. ➥ 1.18.
ISOFIX anchorage points checked.
1.37
CHILD SAFETY: General information (2/2)

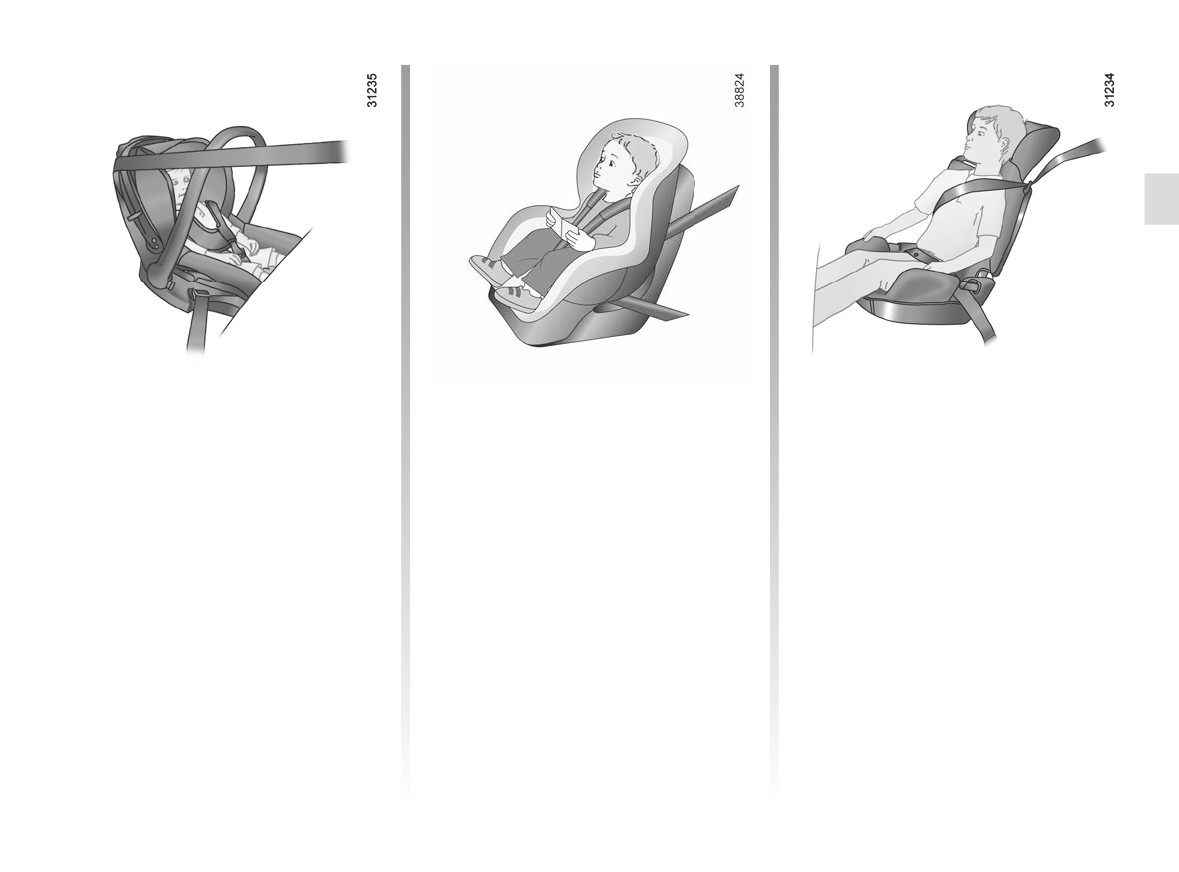

Using a child seat
Set a good example by always fas-
The level of protection offered by the
tening your seat belt and teaching
child seat depends on its ability to re-
your child:
strain your child and on its installation.
- to strap themselves in correctly;
Incorrect installation compromises the
- to always get in and out of the car
protection it offers the child in the event
at the kerb, away from busy traf-
of harsh braking or an impact.
fic.
Before purchasing a child seat, check
Do not use a second-hand child
that it complies with the regulations for
seat or one without an instruction
the country you are in and that it can
manual.
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
Check that there are no objects in
are recommended for your vehicle.
the vicinity of the child seat which
could impede its operation.
Before fitting a child seat, read the
manual and respect its instructions. If
you experience any difficulties during
Never leave a child unat-
installation, contact the manufacturer
tended in the vehicle.
of the equipment. Keep the instructions
Check that your child is
with the seat.
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
1.38
CHILD SAFETY: choosing a child seat
Rear-facing child seats
Forward-facing child seats
Booster cushions
A baby’s head is, proportionally, heavier
Up to 18 kg or 4 years, the child may
From 15 kg or 4 years, the child can
than that of an adult and its neck is very
travel on a forward-facing seat.
travel using a booster seat, which will
fragile. Transport the child in this po-
enable the seat belt to be adapted
Choose your seat according the child’s
sition for as long as possible (until the
to suit his/her size and shape. The
size: their head and abdomen are the
age of 2 at the very least). It supports
booster seat cushion must be fitted with
areas which must be most protected. A
both the head and the neck.
guides to position the seat belt on the
forward-facing child seat which is firmly
child’s thighs rather than the stomach.
Choose a bucket type seat for best side
attached to the vehicle will reduce the
It is recommended that you use a seat-
protection and change it as soon as the
risk of impact to the head. Ensure your
back fitted with a belt strap guide which
child’s head is higher than the shell.
child travels in a forward-facing seat
can be adjusted in terms of height to
with a harness for as long as their size
position the seat belt in the centre of the
permits.
shoulder. It must never rest on the neck
Choose a bucket type seat for optimum
or on the arm.
side protection.
Choose a bucket type seat for optimum
side protection.
1.39
CHILD SAFETY: choosing a child seat mounting (1/3)
There are two ways of attaching child
Attachment via the seat belt
seats: via the seat belt or using the
The seat belt must be adjusted to
ISOFIX system.
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
The seat belt must never
resting against a window.
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Do not use the child seat
Consult an approved dealer. Do not
if it may unfasten the seat
use this seat until the seat belt has
belt restraining it: the base
been repaired.
of the seat must not rest on
the buckle and/or catch of the seat
belt.
1.40
CHILD SAFETY: choosing a child seat mounting (2/3)
Attachment using the ISOFIX
Attach the child seat with the ISOFIX
system
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
Approved child seats ISOFIX are stand-
ardised in accordance with current reg-
The ISOFIX system consists of 2 rings
ulations if any of the four cases below
and, in some cases, a third ring.
applies:
- ISOFIXuniversal 3-point forward-fac-
ing seat;
- ISOFIXsemi-universal 2-point seat;
- specific;
- i-Size which has either:
1
- a strap which attaches to the third
ring of the seat concerned;
The ISOFIX anchorage
- or a strut that rests on the vehi-
points have been exclu-
cle floor, compatible with the ap-
sively designed for child
proved seat i-Size, the role of
seats with the ISOFIX
The two rings 1 are located between the
which is to prevent the child seat
system. Never fit a different type of
seatback and the seat base of the seat
from moving in the event of a col-
child seat, seat belt or other objects
lision.
and are identified by a
symbol.
to these anchorage points.
In the latter three cases check that your
Check that nothing is obstructing
child seat can be installed by consulting
the anchorage points.
the list of compatible vehicles.
If your vehicle has been involved in
a road accident, have the ISOFIX
anchorage points checked and re-
place your child seat.
No modifications may be
made to the component
Before using an ISOFIX child seat that you purchased for another vehi-
parts of the restraint system
cle, check that its installation is authorised. Consult the list of vehicles
(seat belts, ISOFIX and
which can be fitted with the seat from the equipment manufacturer.
seats and their mountings) originally
fitted.
1.41















Content      ..      1      2      3      ..
