MAINTENANCE AND ANTIPOLLUTION ADVICE
Your vehicle complies with criteria for
In addition, replacing engine, fuel
- Air filter, fuel filter: a choked ele-
recycling and recovering vehicles at the
supply system and exhaust compo-
ment will reduce efficiency. It must
end of their service life, which entered
nents with parts other than those origi-
be replaced.
into force in 2015.
nally recommended by the manufac-
turer may alter your vehicle so that it
Some parts of your vehicle have there-
Exhaust gas monitoring
no longer complies with anti-pollution
fore been designed to facilitate future
regulations.
system
recycling.
Have your vehicle adjusted and
The exhaust gas monitoring system will
These parts are easy to remove so
checked by an authorised dealer, in ac-
detect any operating faults in the vehi-
that they can be recovered and repro-
cordance with the instructions given in
cle’s antipollution system.
cessed by recycling companies.
your maintenance schedule: they will
If this system malfunctions, toxic sub-
By virtue of its design, moderate fuel
have all the equipment necessary for
stances may be released into the at-
consumption and initial settings, your
ensuring that your vehicle is maintained
mosphere or damage may occur.
vehicle also conforms to current an-
to its original standard.
This warning light on the in-
tipollution regulations. The manufac-
Ä
strument panel will indicate if
turer is actively striving to reduce pol-
there are any faults in the system:
lutant exhaust gas emissions and to
Engine adjustments
This lights up when the ignition is
save energy. But the fuel consumption
- Spark plugs: for optimum condi-
switched on and goes out when the
of your vehicle and the level of pollutant
tions of use, output and performance
engine is started.
exhaust gas emissions are also your
the specifications laid down by our
- If it lights up continuously, consult an
responsibility. Ensure that it is main-
Design Department must be strictly
approved Dealer as soon as possi-
tained and used correctly.
applied.
ble;
If the spark plugs have to be changed,
- if it flashes, reduce the engine speed
use the make, type and gap specified
until the light stops flashing. Contact
Maintenance
for your vehicle’s engine. Contact an
an authorised dealer as soon as pos-
It is important to remember that fail-
authorised dealer for this.
sible.
ure to respect antipollution regulations
- Ignition and idle speed: no adjust-
➥ 1.113
could lead to legal action being taken
ment is needed.
against the vehicle owner.
2.38
ENVIRONMENT
Your vehicle has been designed with
Emissions
- At the end of the vehicle’s service
respect for the environment in mind for
life, it should be sent to approved
Your vehicle has been designed to emit
its entire service life: during production,
centres to ensure that it is recycled.
fewer greenhouse gases (CO2) while in
use and at the end of its life.
use, and therefore to consume less fuel
- In all cases, comply with local legis-
(eg. 140 g/km, equivalent to 5.3 l/100
lation.
Manufacture
km for a diesel vehicle).
Your vehicle has been manufactured at
Our vehicles are also equipped with a
Recycling
a factory which complies with a policy
particle filter system including a cata-
Your vehicle is 85% recyclable and
to reduce the environmental impact
lytic converter, an oxygen sensor and
95% recoverable.
on the surrounding areas (reduction of
an active carbon filter (the latter pre-
water and energy consumption, visual
vents vapour from the fuel tank being
To achieve these objectives, many of
and noise pollution, atmospheric emis-
released into the open air).
the vehicle components have been de-
sions and waste water; sorting and re-
signed to enable them to be recycled.
For certain diesel vehicles, this system
using waste).
The materials and structures have
also has a particle filter to reduce the
been carefully designed to allow these
volume of soot particles emitted.
components to be easily removed and
reprocessed by specialist companies.
Please make your own
In order to preserve raw material re-
contribution towards
sources, this vehicle incorporates nu-
protecting the environment
merous parts made from recycled plas-
tics or renewable materials (vegetable
too
or animal-derived materials such as
- Worn parts replaced in the course of
cotton or wool).
routine vehicle maintenance (vehi-
cle battery, oil filter, air filter, batter-
ies, etc.) and oil containers (empty or
filled with used oil) must be disposed
of through specialist organisations.
2.39
TYRE PRESSURE LOSS WARNING (1/6)
1
2
1
When fitted to the vehicle, this system
Operating principle
notifies the driver if one or more tyres
This system detects a loss of pressure
lose pressure.
in one of the tyres by measuring the
The system can be identified by the 1
wheel speed while driving.
label in the vehicle.
Warning light
2 comes on to
alert the driver in the event of insuffi-
cient pressure (deflated wheel, punc-
tured tyre, etc.).
2.40
TYRE PRESSURE LOSS WARNING (2/6)
Operating conditions
-
significant change in load or distribu-
Resetting the standard level
tion of load on one side of the vehi-
The system should be reset with a
for the tyre pressures
cle;
pressure equal to that stated on the tyre
This should be done:
-
sporty driving with strong accelera-
pressure label (refer to the information
tion;
- after each re-inflation or resetting of
on “Tyre Pressures” in section 4), other-
-
driving on snowy or slippery surface;
tyre pressure;
wise it may not give a reliable warning
driving with snow chains;
in the event of significant pressure loss.
- after changing a wheel;
fitting a single new tyre;
Resetting should always be carried
-
use of tyres not approved by the net-
– after changing wheels around.
out after checking the tyre pressure
work.
Tyre pressures must correspond to the
of all four tyres when cold.
current usage of the vehicle (empty,
In the following situations, the system
carrying a load, motorway driving, etc.).
risk coming into action late or not func-
tioning correctly:
- system not reset after reinflation or
any operation on the wheels;
- system badly reset: different inflation
pressures from the recommended
pressures;
This function is an addi-
tional driving aid.
The function does not take
the place of the driver. It
cannot, therefore, under any cir-
cumstances replace the vigilance
or the responsibility of the driver.
Check the tyre pressures, including
The sudden loss of pressure in a
the emergency spare wheel, once a
tyre (burst tyre, etc.) cannot be de-
month.
tected by the system.
2.41
TYRE PRESSURE LOSS WARNING (3/6)
Hold down the
5 switch until the
B
“Operation completed” message ap-
pears. You can now drive.
7
6
3
4
5
Resetting procedure
- briefly press the 3 or 4 switch to
reach the “Tyre pressure init. long
Ignition on, vehicle stopped:
press” page;
- for vehicles fitted with a type A or C
- press and hold the 5 OK switch to
instrument panel (➥ 1.71, repeatedly
launch the reset.
tap the 6 switch as many times as
necessary to reach the “vehicle” tab
;
- for vehicles fitted with a type B in-
strument panel, tap the switch 6 to
reach the 7 area of the instrument
panel;
If the vehicle is equipped with a nav-
igation system, the resetting proce-
dure may also be carried out using
the multimedia screen: please see
the equipment instructions.
2.42
TYRE PRESSURE LOSS WARNING (4/6)
The table below shows the possible messages related to the tyre resetting procedure.
Steps
Messages
Readings
Tyre pressure init. at stop
The message is displayed during driving. If you want to reset the pressure of the
four tyres, stop the vehicle.
1
Tyre pressure init. long press
To reset the pressure of all four tyres, with the vehicle stopped, press and hold
the 5 OK switch to launch resetting until the “If pressure OK [hold on]” message
is displayed.
2
If pressure OK [hold on]
The message flashes to indicate that the system has registered the resetting
procedure. If all four tyres have been correctly adjusted to match the tyre pres-
sure values recommended on the tyre pressure label ➥ 4.11, press and hold
switch 5 OK until the message “Operation completed” appears.
3
Operation completed
The resetting procedure has been completed successfully. You can now drive.
2.43
TYRE PRESSURE LOSS WARNING (5/6)
Readjustment of tyre
After each change of wheel/tyre, read-
just the tyre pressure and launch the
8
pressures
reset of the tyre pressure reference
The pressure of the four tyres must
value.
be set when cold (refer to the label lo-
cated on the edge of the driver’s door).
Emergency spare wheel
If tyre pressures cannot be checked
when the tyres are cold, the recom-
If fitted on the vehicle, readjust the tyre
mended pressures should be increased
pressure and launch the reinitialisation
by 0.2 to 0.3 bar (3 PSI).
of the tyre pressure reference value.
Never deflate a hot tyre.
After each reinflation or readjustment of
Tyre repair product and
the tyre pressure, launch the reinitiali-
inflation kit
sation of the tyre pressure reference
value.
Only use equipment approved by the
Network, otherwise the system risks
late activation or incorrect operation.
Tyre pressure faults
Replacing wheels/tyres
➥ 5.4. After using the tyre inflation kit,
The table on the following page lists
Only use equipment approved by the
readjust the tyre pressure and launch
the warning messages which appear
network, otherwise the system risks
the resetting of the tyre pressure refer-
on the instrument panel 8 when the
late activation or incorrect operation.
ence value.
system detects a tyre pressure fault.
➥ 5.12.
2.44
TYRE PRESSURE LOSS WARNING (6/6)
The information on the instrument panel signals any potential tyre pressure faults (e.g. deflated or punctured tyre).
Indicator
Messages
Readings
lights
This indicates that tyre under-inflation or puncture has been detected.
Inflate tyres and init.
Check and adjust the pressure of the four tyres when cold and reset the
system.
This indicates that the reset has been unsuccessful. Check and readjust
Check tyre press and init.
the tyre pressure before re-launching the resetting procedure.
This indicates that the last system reset was carried out over 6 months
Check tyre press and init.
ago or over approximately 6,214 miles (10,000 km). Check and readjust
the tyre pressure before re-launching another resetting procedure.
Check TPW
This indicates a fault in the system. Consult an approved dealer.
This indicates that an emergency spare wheel different in size to the other
four wheels has been fitted to the vehicle. The system remains unavail-
TPW not available
able until a wheel identical in size to the other wheels has been fitted and
the resetting procedure has been carried out.
2.45
DRIVING CORRECTION DEVICES AND AIDS (1/5)
Depending on the vehicle, this is com-
Anti-lock braking system
posed of:
(ABS)
– anti-lock braking system (ABS);
Under heavy braking, the ABS prevents
- electronic stability program (ESC)
the wheels from locking, allowing the
with understeer control and trac-
stopping distance to be managed and
tion control;
keeping control of the vehicle.
- emergency brake assist;
In these circumstances, the vehicle can
- hill start assistance.
be steered to avoid an obstacle whilst
Other driving assistance systems are
braking. In addition, this system can
detailed on the following pages.
increase stopping distances, particu-
larly on roads with low surface grip (wet
ground etc.).
You will feel a pulsation through the
These functions are an ad-
brake pedal each time the system is
ditional aid in the event of
activated. The ABS does not in any
critical driving conditions,
way improve the vehicle's physical per-
enabling the vehicle behav-
formance relating to the road surface
iour to be adapted to suit the driving
and road-holding. It is still essential to
conditions.
follow the rules of good driving practice
(such as driving at a safe distance from
These functions do not take the
the vehicle in front etc.).
place of the driver. They do not
increase the vehicle’s limits and
should not encourage you to
drive more quickly. Under no cir-
cumstances should they replace
the vigilance or responsibility of the
driver when manoeuvring the vehi-
cle (the driver must always be ready
In an emergency, apply firm and
for sudden incidents which may
continuous pressure to the brake
occur when driving).
pedal. There is no need to pump
it repeatedly. The ABS will modu-
late the force applied in the braking
system.
2.46
DRIVING CORRECTION DEVICES AND AIDS (2/5)
Operating faults:
-
and x
lit up on the in-
strument panel accompanied
by the messages: “Check ABS”,
“WARNING: Check Braking System”
and “Check ESC”: this indicates
that the ABS, ESC and emergency
brake assist are disabled. Braking
is always enabled;
- x
, D
,
and
®
lit on the instrument panel accom-
panied by the message “WARNING:
Braking System”: this indicates a
fault with the braking system.
In both cases, please consult an
Authorised Dealer.
Your braking system is par-
tially operational. However,
it is dangerous to brake
suddenly and it is essen-
tial to stop immediately, as soon as
traffic conditions allow. Call an ap-
proved Dealer.
2.47
DRIVING CORRECTION DEVICES AND AIDS (3/5)
Electronic stability program
Understeer control
Operating faults
(ESC) with understeer control
This system optimises the action of the
When the system detects an operat-
and traction control
ESC in the case of pronounced under-
ing fault the message “Check ESC”
steering (loss of front axle road hold-
and warning lights
and
Electronic stability program ESC
ing).
appear on the instrument panel. In
This system helps you to keep control
Traction control
this case, the ESC and traction control
of the vehicle in critical driving condi-
system are deactivated.
tions (avoiding an obstacle, loss of grip
This system helps to limit wheelspin of
on a bend, etc.).
the drive wheels and to control the ve-
Consult an approved dealer.
hicle when pulling away, accelerating or
Operating principle
decelerating.
A sensor in the steering wheel detects
Operating principle
the direction selected by the driver.
Using the wheel sensors, the system
measures and compares the speed of
Other sensors fitted throughout the ve-
the drive wheels at all times and slows
hicle measure the actual direction.
down their over-rotation. If a wheel is
The system compares driver input to
starting to slip, the system brakes au-
the actual trajectory of the vehicle and
tomatically until the drive supplied be-
corrects the trajectory if necessary by
comes compatible with the level of grip
controlling the braking of certain wheels
under the wheel again.
and/or engine power. In the event that
The system also adjusts the engine
the system is triggered, the
speed to the grip available under the
warning light flashes on the instrument
wheels, independently of the pressure
panel.
exerted on the accelerator pedal.
In some situations (driving on very wet
ground: snow, mud, etc. or driving with
snow chains fitted), the system may
reduce the engine output to limit wheel-
spin.
2.48
DRIVING CORRECTION DEVICES AND AIDS (4/5)
Emergency brake assist
Braking anticipation
This system supplements the ABS
Depending on the vehicle, when you
and helps reduce vehicle stopping dis-
rapidly release the accelerator, the
tances.
system anticipates the braking ma-
noeuvre in order to reduce stopping
Operating principle
distances.
The system enables detection of an
Special cases
emergency braking situation. In this
case, the braking system immediately
When using the cruise control:
develops maximum power and may
- if you use the accelerator, when you
trigger ABS regulation.
release it, the system may be trig-
gered;
ABS braking is maintained as long as
- if you do not use the accelerator, the
the brake pedal is applied.
system will not be triggered.
These functions are an ad-
ditional aid in the event of
Brake lights come on
Operating faults
critical driving conditions,
Depending on the vehicle, these may
enabling the vehicle behav-
When the system detects an operating
light up and flash in the event of sudden
iour to be adapted to suit the driving
fault the message “WARNING: Check
deceleration.
conditions.
Braking System” appears on the instru-
These functions do not take the
ing light.
place of the driver. They do not
increase the vehicle’s limits and
Consult an approved dealer.
should not encourage you to
drive more quickly. Under no cir-
cumstances should they replace
the vigilance or responsibility of the
driver when manoeuvring the vehi-
cle (the driver must always be ready
for sudden incidents which may
occur when driving).
2.49
DRIVING CORRECTION DEVICES AND AIDS (5/5)
Hill start assistance
The hill start assistance
Depending on the gradient of the in-
system cannot completely
cline, this system assists the driver
prevent the vehicle from
when starting on a hill. It prevents the
rolling backwards in all sit-
vehicle from rolling backwards by au-
uations (extremely steep gradients
tomatically applying the brakes when
etc.).
the driver lifts his/her foot off the brake
In all cases, the driver may depress
pedal to depress the accelerator pedal.
the brake pedal to prevent the vehi-
cle from rolling backwards.
System operation
The hill start assistance function
It only operates when the gear lever is
should not be used for prolonged
in a position other than neutral (other
stops: use the brake pedal.
than N or P on automatic gearboxes)
and the vehicle is completely stationary
This function is not designed to im-
(brake pedal depressed).
mobilise the vehicle permanently.
The system holds the vehicle for ap-
If necessary, use the brake pedal to
proximately 2 seconds. The brakes are
stop the vehicle.
then gradually released (the vehicle will
The driver must remain particularly
move according to the slope).
vigilant when driving on slippery or
low-grip surfaces.
Risk of serious injury.
2.50
LANE DEPARTURE WARNING (1/5)

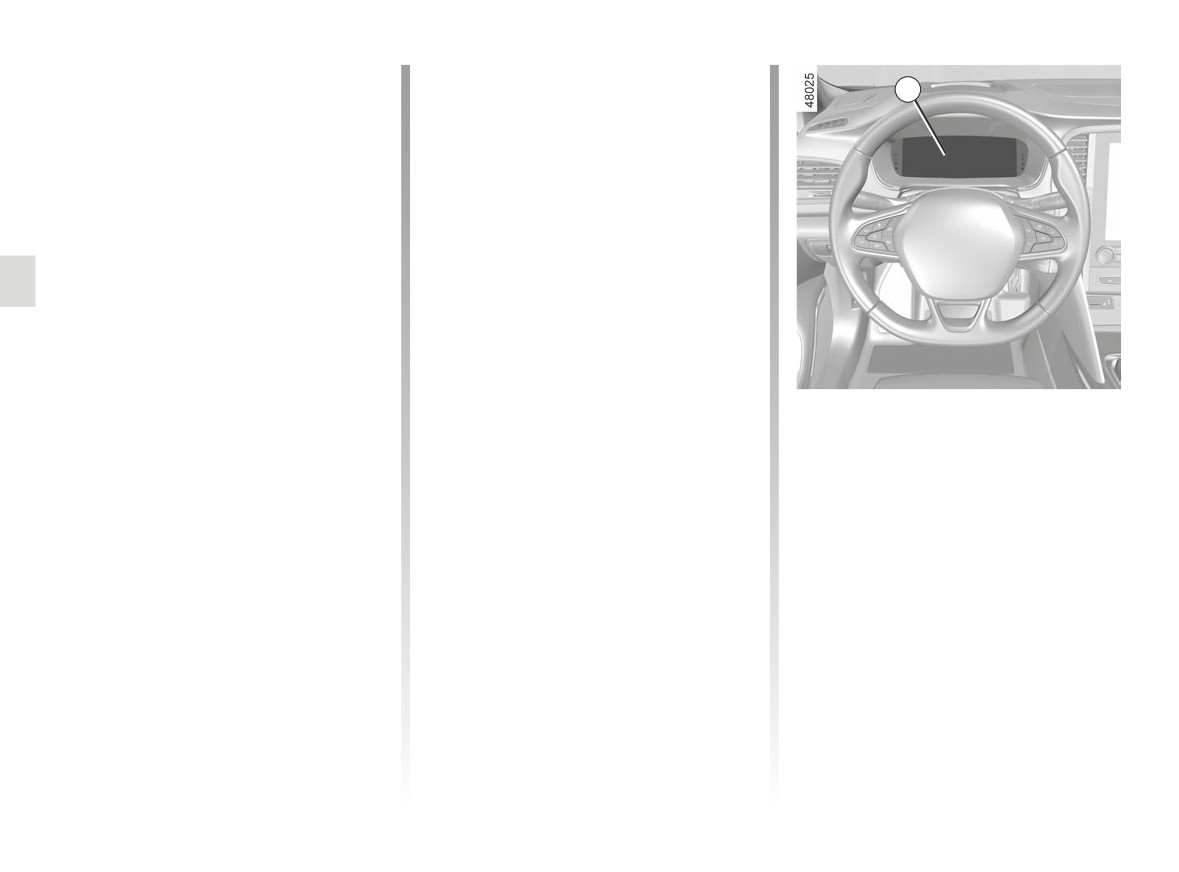

Location of the camera 1
1
Make sure the windscreen is not ob-
scured (dirt, mud, snow, condensation
etc.).
Using information from the 1 camera,
the function warns the driver when a
continuous or broken line is crossed
or when approaching the roadside (di-
vider, barrier, pavement, embankment,
etc.) without the direction indicator
lights being activated.
This function is an addi-
tional driving aid. This func-
tion is not under any cir-
cumstances intended to
replace the due care and attention
of the driver, who should at all times
be in control of the vehicle.
The lane departure warning func-
tion does not correct the vehi-
cle’s trajectory.
2.51
LANE DEPARTURE WARNING (2/5)
Operation
When the function is activated, the
warning light and the left and
right lines 3 are displayed in grey on the
instrument panel.
The function is set to notify the
3
driver if:
- speed is between approximately
2
43 mph (70 km/h) and 112 mph
(180 km/h);
and
warning light and left/right
- the
line indicators 3 are coloured white.
The warning function is triggered
Activation/deactivation
The function alerts the driver:
if the vehicle breaches a line or ap-
To activate the function, press the 2
- by a vibration in the steering wheel;
proaches a roadside (divider, barrier,
switch as many times as required to
and
pavement, embankment, etc.) without
select “Lane Departure Warning” on
the direction indicator lights being ac-
- the
warning light and 3 the in-
the instrument panel. The “Lane depar-
tivated.
dicator for the crossed line turn red.
ture warning on” message and “
warning light are displayed on the in-
strument panel.
To disable the function, press the 2
switch as many times as required to
select
“Lane departure warning off”
(or, depending on the vehicle “Lane
Keeping deactivated”) on the instru-
ment panel. Warning light
goes
Each time the vehicle is started,
out on the instrument panel.
the function continues the mode
saved the last time the engine was
stopped.
2.52
LANE DEPARTURE WARNING (3/5)
Temporarily not available
Conditions for non-activation
4
- very fast lane departure;
of the system
The system cannot be activated when:
- driving continuously on a line;
- four seconds approximately after
- reverse gear is engaged;
changing lanes;
- the field of vision of the camera is ob-
- tight bends;
structed;
- impaired visibility;
- the û
warning light is displayed.
- activation of one of the direction indi-
cator lights;
The
warning light and the left/
right line indicators turn to grey on the
- strong acceleration;
instrument panel.
- ...
When the function is not available, the
Adjustment
-
“Alert”: adjust the line detection sen-
warning light and the left/right in-
sitivity level. To do this select:
Vehicles fitted with a multimedia
dicators turn to grey on the instrument
screen.
- “Late”: line detected when cross-
panel.
ing;
To access the multimedia screen func-
tion settings 4, refer to the multimedia
- “Standard”: line detected on ap-
instructions:
proach;
- “Vibration”: adjust the steering wheel
- “Early”: line detected nearby.
vibration level;
Please refer to the multimedia instruc-
tions for further information.
2.53
LANE DEPARTURE WARNING (4/5)
- press control 6 or 7 repeatedly to
Operating faults
reach the “DRIVING ASSIST” menu.
In the event of a malfunction, the left
Press the switch 8 OK;
and right line indicators (and, depend-
- press the 6 or 7 control repeat-
edly to reach the “Lane Departure
ing on display style, the
warning
Sensitivity” or
“Lane Departure
light) disappear or stay grey on the in-
Vibration” menu. Press the switch 8
strument panel.
OK;
In some cases, they are accompanied
- press the 6 or 7 control repeatedly
by the message “Check Front camera”
6
5
to adjust the setting. Press the 8 OK
or the
warning light on the in-
button.
strument panel.
Consult an approved dealer.
8
7
Adjustments (continued)
Vehicles not fitted with a multimedia
screen
- With the vehicle stopped, press the
switch 5 as many times as required
to reach the “Vehicle” tab;
- press the 6 or 7 control repeatedly to
reach the “Settings” menu. Press the
switch 8 OK;
2.54
LANE DEPARTURE WARNING (5/5)
This function is an additional driving aid. This function is not under any circumstances intended to replace the due care
and attention of the driver, who should at all times be in control of the vehicle.
System servicing/repairs
- In the event of an impact, the camera alignment may be changed, and its operation may consequently be affected. Deactivate
the function, then consult an authorised dealer.
- Any work in the area where the camera is located (repairs, replacements, windscreen modifications etc.) must be carried
out by a qualified professional.
Only an authorised dealer is qualified to service the system.
In the event of system disturbance
Some conditions can disturb or damage the operation of the system, such as:
- windscreen obscured (by dirt, ice, snow, condensation etc.);
- a complex environment (tunnel etc.);
- poor weather conditions (snow, rain, hail, black ice etc.) ;
- poor visibility (night, fog etc.);
- the road markings are irregular or difficult to distinguish (e.g. partially erased, excessive spacing, distorted road surface) ;
- being dazzled (glaring sun, lights of vehicles travelling in the opposite direction etc.);
- the road is narrow, winding or undulating (tight bends etc.);
- closely following a vehicle travelling in the same lane.
Risk of false alarms or absence of warnings
2.55
LANE KEEPING ASSIST (1/6)
Location of the camera 1
1
Make sure the windscreen is not ob-
scured (dirt, mud, snow, condensation
etc.).
Using information from the 1 camera,
the function triggers corrective action
on the vehicle steering system when
a continuous or broken line is crossed
or when approaching the roadside (di-
vider, barrier, pavement, embankment,
etc.) without the direction indicator
lights being activated.
This function is an addi-
tional driving aid. This func-
tion is not under any circum-
stances intended to replace
the due care and attention of the
driver, who should at all times be
in control of the vehicle.
You can retake control of the ve-
hicle at any time by operating the
steering wheel.
2.56
LANE KEEPING ASSIST (2/6)
To disable the function, press the 2
switch as many times as required to
select “Lane Keeping deactivated” on
the instrument panel.
Warning light
goes out on the in-
strument panel.
Note: deactivating the “Lane Keeping
Assist” function causes deactivation of
2
the “Lane Departure Warning” function.
Activation/deactivation
To activate the function, press the 2
switch as many times as required to
select “Lane Keeping Assist” on the in-
strument panel.
The “Lane Keeping activated” message
and “
” warning light are displayed
on the instrument panel.
When Lane Keeping Assist is activated,
the “Lane Departure Warning” function
is automatically activated. ➥ 2.51.
Each time the vehicle is started,
the function continues the mode
saved the last time the engine was
stopped.
2.57
LANE KEEPING ASSIST (3/6)
In these cases:
Special cases
- the function triggers an action on the
When using the function:
vehicle’s steering system to correct
-
If the system can no longer detect
the vehicle trajectory;
any action by the driver on the steer-
- the warning light
and the indi-
ing wheel, the
warning light
cator 3 on the side of the breached
appears in yellow on the instrument
3
line turns to yellow on the instrument
panel, accompanied by the message
panel.
“Keep hands on steering wheel” and
an audible warning.
Note: on bends, the function allows for
slightly cutting the bend.
The audible warning is emitted along
with the warning light and message
If the corrective action on the steer-
until the driver takes control;
ing system is not sufficient, the
-
if the system is active for too long,
warning light and the indicator 3 on the
an audible warning is emitted and
Operation
side of the breached line turn to red on
the indicator 3 on the side of the line
When the function is activated, the
the instrument panel, accompanied by
concerned flashes until the driver
a vibration on the steering wheel.
takes control.
warning light and the left and
right lines 3 are displayed in grey on the
instrument panel.
The function is set to operate when
the vehicle speed is between approxi-
mately 43 mph (70 km/h) and 112 mph
(180 km/h) and if the
warning
light and left-hand and right-hand line
indicators 3 appear in white.
The function operates if the vehicle
breaches a line or if the vehicle ap-
proaches the roadside (divider, barrier,
pavement, embankment, etc.) without
You can interrupt the trajectory cor-
the direction indicator lights being ac-
rection at any time by moving the
tivated.
steering wheel.
2.58
LANE KEEPING ASSIST (4/6)
Temporarily not available
Conditions for non-activation
4
– Very fast lane departure;
of the system
The system cannot be activated when:
- driving continuously on a line;
- reverse gear is engaged;
- four seconds approximately after
- the field of vision of the camera is ob-
changing lanes;
structed;
- tight bends;
- the û
warning light is displayed.
- impaired visibility;
The
warning light and the left/
- activation of one of the direction indi-
right line warning lights are displayed in
cator lights;
grey on the instrument panel.
- strong acceleration;
- emergency braking;
Adjustment
– ...
Vehicles fitted with a multimedia
-
“Alert”: adjust the line detection sen-
screen.
If the function is unavailable, the
sitivity level. To do this, select:
warning light and the left/right correc-
To access the multimedia screen func-
- “Late”: line detected when cross-
tion warning lights 3 appear in grey on
tion settings 4, refer to the multimedia
ing;
the instrument panel.
instructions:
- “Standard”: line detected on ap-
- “Vibration”: adjust steering wheel
proach;
vibration for the
“Lane Departure
Warning” function;
- “Early”: line detected nearby.
Please refer to the multimedia instruc-
tions for further information.
2.59















Content      ..     6      7      8      9     ..
