Renault Scenic (2018 year). Instruction - part 21





5.36

TOWING: breakdown

(1/2)

Before towing, put the gearbox in neu-

tral, unlock the steering column and re-

lease the parking brake.

For vehicles fitted with an automatic

gearbox, if it is not possible to put the

gear lever into position N, please con-

sult an authorised dealer.

Steering column unlocking
Insert the key into the ignition or, de-

pending on the vehicle, with the

RENAULT card on you, press the

engine start button for approximately

2 seconds.

Reposition the lever to neutral (posi-

tion N for vehicles fitted with an auto-

matic gearbox).

The steering column unlocks, the ac-

cessory functions are powered: you

can use the vehicle’s lights (direction

indicators, brake lights, etc.). At night

the vehicle must have its lights on.

Depending on the vehicle, once you

have finished towing, press the engine

start button twice (risk of running down

the battery).

The speed specified by current legis-

lation for towing must always be ob-

served. If your vehicle is the towing

vehicle, do not exceed the maximum

towing weight for your vehicle (refer to

the information on “Weights” in

Section 6).

Towing a vehicle with an

automatic gearbox

Transport the vehicle on a trailer or tow

it with the front wheels off the ground.
In exceptional circumstances, you

may tow it with all four wheels on the

ground, only in a forward gear, with the

gear lever in neutral position N over a

maximum distance of 50 miles (80 km)

and at a maximum speed of 16 mph

(25 km/h).

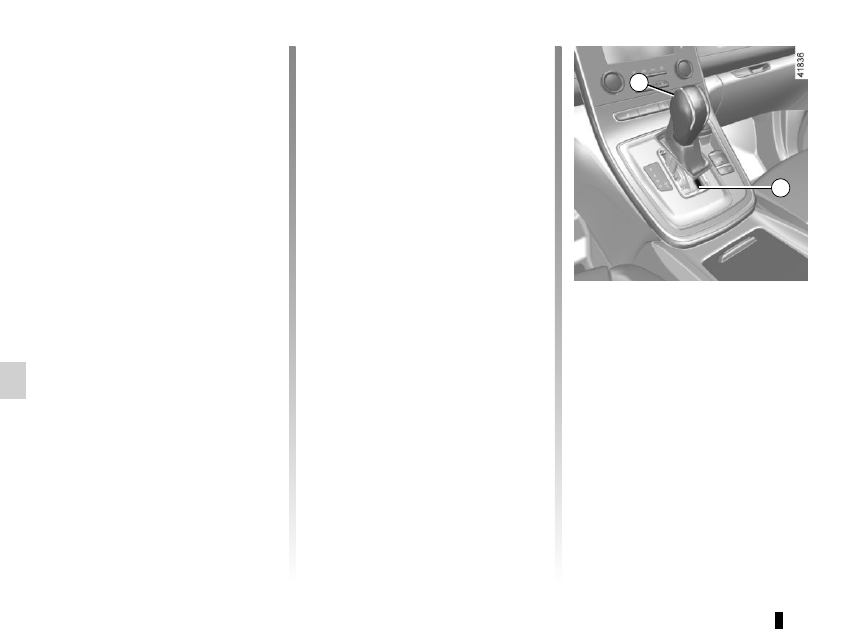

When activated, in the event that the

lever is stuck in P, depress the brake

paddle. It is possible to free the lever

manually. To do this, unclip the base of

the lever, then insert a tool (rigid rod)

into the slot 2 (located on the right of

the lever) and press simultaneously on

the button 1 to unlock the lever.
Contact an authorised dealer as soon

as possible.

2

1

5.37

TOWING : breakdown

(2/2)

Only use the front 3 and rear towing

points (never use the driveshafts or any

other part of the vehicle). These towing

points may only be used for pulling.

They must never be used for lifting the

vehicle directly or indirectly.

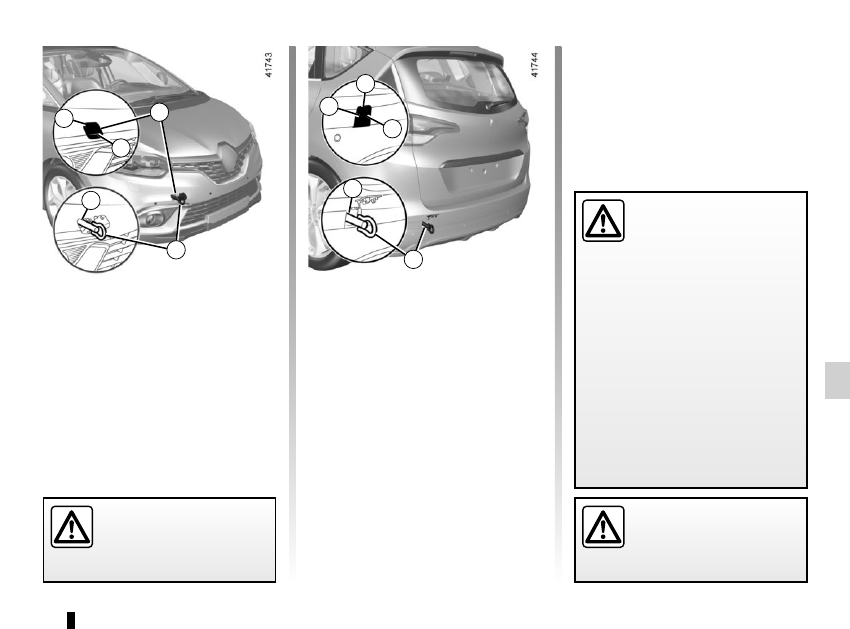

Access to towing points

Front towing point
Press zone A and keep depressed

while pulling zone B to open flap 4.
Rear towing point

Press zone C and keep depressed

while pulling zone D to open flap 6.
Tighten the towing hitch 5 fully: first

by hand until it stops then finish by lock-

ing it with the wheel brace.

Do not leave the tools unse-

cured inside the vehicle as

they may come loose under

braking.

Use the towing hitch 5 only (refer to the

information on “Tools” in Section 5).

B

A

C

D

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

–  A vehicle must not be towed if it is

not fit to be driven.

– Avoid accelerating or braking

suddenly when towing, as this

may result in damage being

caused to the vehicle.

–  In all cases, it is advisable not to

exceed 15.5 mph (25 km/h).

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

3

7

5

5

6

4

5.38

OPERATING FAULTS

(1/7)

Using the RENAULT card

POSSIBLE CAUSES

WHAT TO DO

The RENAULT card does not lock or

unlock the doors.

Card battery is flat.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the

information on “Locking/unlocking the

doors” in Section 1 and “Starting/Stopping

the engine” in Section 2).

Use of appliances operating on the

same frequency as the card (mobile

phone, etc.).

Stop using the equipment or use the in-

tegrated key (refer to the information on

“Locking, unlocking the opening elements”

in Section 1).

Vehicle located in a high electromag-

netic radiation zone.
Vehicle battery flat.

Use the key integrated in the card (refer to

the information on “Locking, unlocking the

opening elements” in Section 1).

The message “Place card close to

START button” appears on the instru-

ment panel.

Hold the start button card close until the

instrument panel message stops being dis-

played, then press the same button within

2 seconds of the message going out.

The vehicle is started.

With the engine running, the card’s locking/

unlocking device is blocked. Turn off the ig-

nition.

5.39

The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved dealer as soon as possible.

Using the remote control

POSSIBLE CAUSES

ACTION REQUIRED

The remote control does not lock or

unlock the doors.

The remote control battery is flat.

Use the emergency key.

Use of appliances operating on the same

frequency as the remote control (mobile

phone, etc.).

Stop using the devices or use the key.

Vehicle located in a high electromagnetic

radiation zone.

Discharged battery.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the

information on “Locking/unlocking the

doors” in Section 1 and “Starting/Stopping

the engine” in Section 2).

The vehicle is started.

With the engine running, the key’s locking/

unlocking device is blocked. Turn off the

ignition.

OPERATING FAULTS

(2/7)

5.40

OPERATING FAULTS

(3/7)

The starter is activated

POSSIBLE CAUSES

WHAT TO DO

The instrument panel indicator lights

are weak or fail to light up and the

starter does not turn.

Battery terminals not tight, bat-

tery terminals disconnected or

oxidised.

Retighten or reconnect the terminals, or clean them

if they are oxidised.

Discharged battery or not opera-

tional.

Connect another battery to the faulty battery. Refer

to the paragraph “Battery: troubleshooting” in sec-

tion 5 or replace the battery if necessary.

Do not push the vehicle if the steering column is

locked.

Faulty circuit.

Consult an approved dealer.

The engine will not start.

Starting conditions are not ful-

filled.

Please refer to the information on “Starting, stopping

the engine” in Section 2.

The RENAULT “hands-free” card

does not work.

Please refer to the information on “Starting, stopping

the engine” in Section 2.

The engine cannot be switched off.

Card not detected.

Press and hold the start button.

Electronic fault.

Press the start button quickly five times.

The steering column remains locked.

Steering wheel locked.

Move the steering wheel while pressing the engine

start button (please refer to Section 2 “Starting, stop-

ping the engine”).

Faulty circuit.

Consult an approved dealer.

5.41

OPERATING FAULTS

(4/7)

On the road

POSSIBLE CAUSES

WHAT TO DO

Vibrations.

Tyres not inflated to correct pres-

sures, incorrectly balanced or dam-

aged.

Check the tyre pressures: if this is not the

problem, have them checked by an ap-

proved Dealer.

White smoke from the exhaust.

In the diesel version, this is not neces-

sarily a fault. Smoke may be caused

by particle filter regeneration.

Refer to the information on “Special fea-

tures of diesel versions” in Section 2.

Smoke under the bonnet.

Short-circuit or cooling system leak.

Stop, switch off the ignition, stand away

from the vehicle and contact an approved

dealer.

The oil pressure warning light comes

on:

while cornering or braking

The level is too low.

Top up the engine oil level (refer to the in-

formation on “Engine oil level: topping up/

filling” in Section 4).

is slow to go out or remains lit

under acceleration

Loss of oil pressure.

Stop the vehicle and contact an approved

Dealer.

5.42

OPERATING FAULTS

(5/7)

On the road

POSSIBLE CAUSES

WHAT TO DO

Steering becomes heavy.

Assistance overheating.
Fault with the electric assistance

motor.
Fault in the assistance system.

Drive carefully at reduced speed, be aware

of the level of force in the steering wheel

needed to turn the wheels. Consult an ap-

proved dealer

The engine is overheating. The cool-

ant temperature indicator is in the

warning zone and warning light

®

 comes on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

authorised dealer as soon as possible.

Coolant boiling in the coolant reser-

voir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved dealer.

Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by our Technical Department may be used for this purpose.

5.43

OPERATING FAULTS

(6/7)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown bulb.

See information on “Headlights: changing

bulbs” in section 5.

The direction indicators do not work.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

5.44

OPERATING FAULTS

(7/7)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

Traces of condensation in the head-

lights or rear lights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature and humidity.
In this case, the traces will disappear

slowly once the lights are switched

on.

The front seat belt reminder light

comes on when the seat belts are

fastened.

An object is stuck between the floor

and the seat and is disrupting the op-

eration of the sensor.

Remove all objects from underneath the

front seats.

6.1

Section 6: Technical specifications

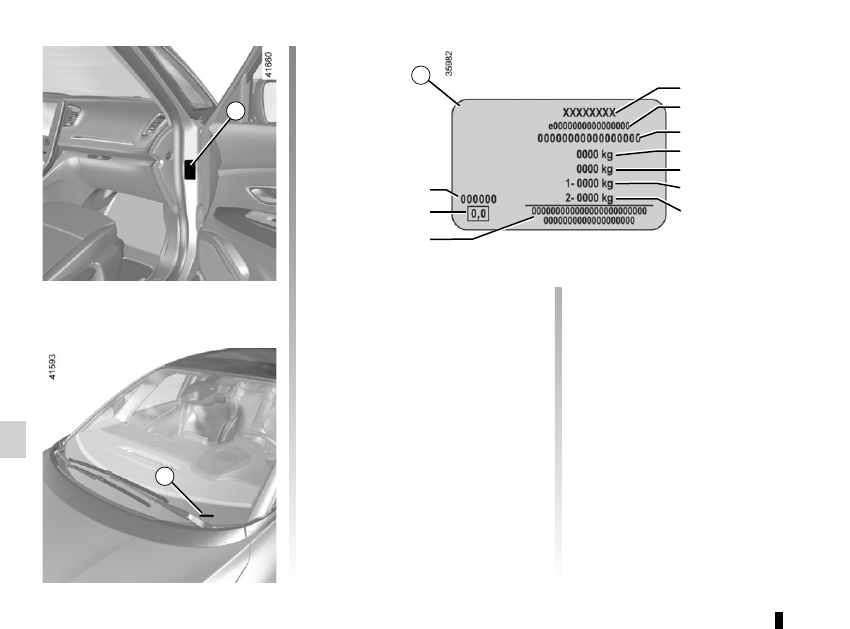

Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2

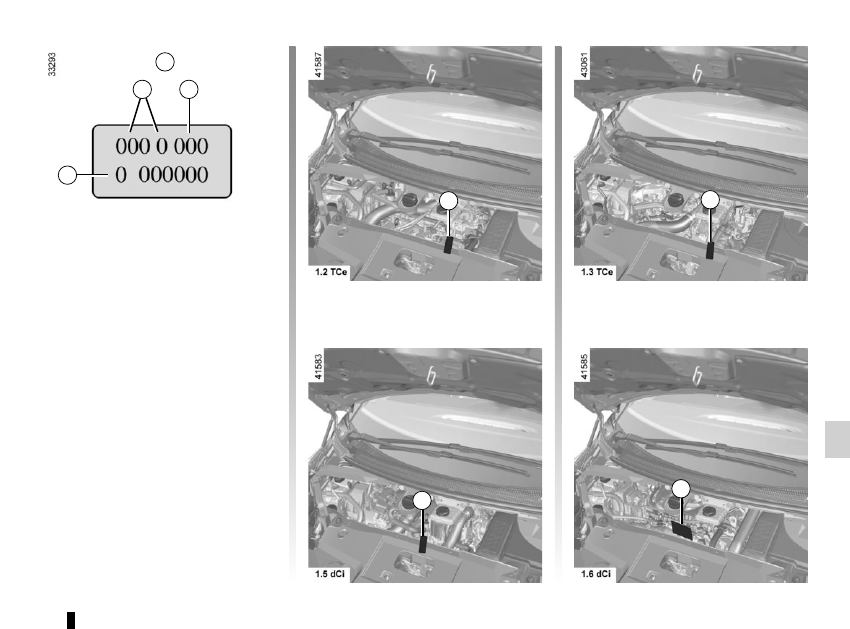

Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3

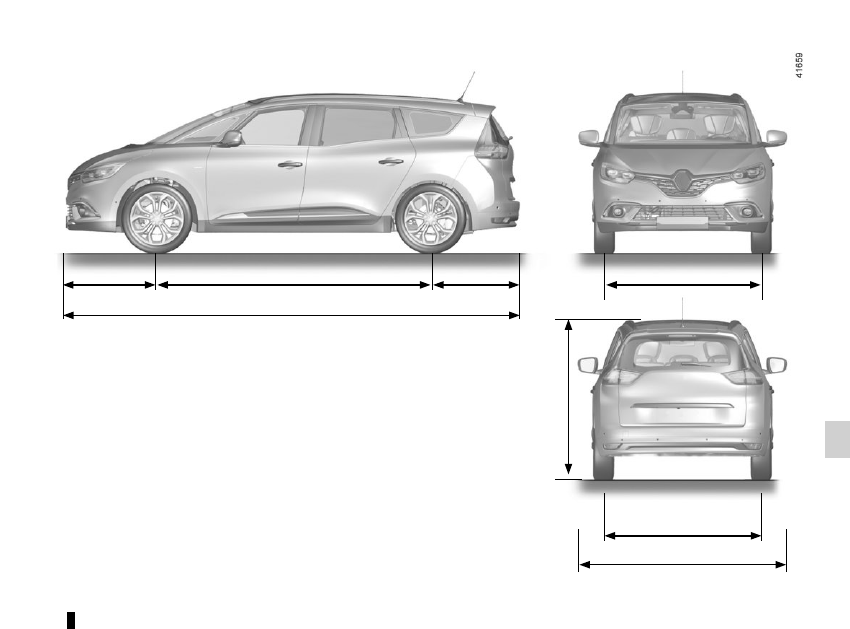

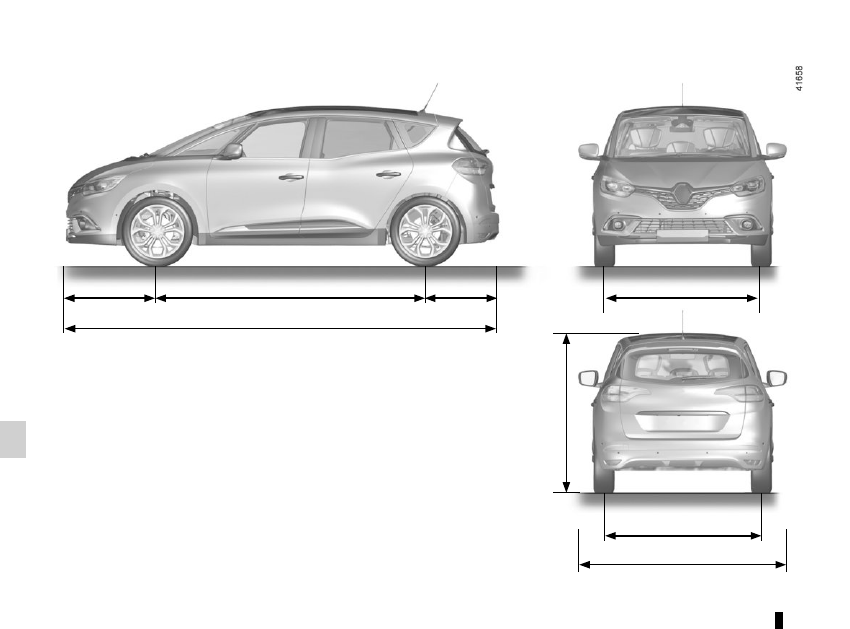

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.4

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.6

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.7

Towing weights  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.7

Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.8

Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.9

Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   6.15

6.2

VEHICLE IDENTIFICATION PLATES

A

B

A

9

7

8

10

5

1
2
3
4

6

The information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
The presence and location of the in-

formation depends on the vehicle.

Vehicle identification plate A

  1 Manufacturer name.

  2  EC design number or approval

number.

  3 Identification number.

Depending on the vehicle, this

information is also given on

marking B.

  4 MMAC (Maximum permissible

all-up weight).

  5  MTR (Gross train weight: vehicle

fully loaded, with trailer).

  6 MMTA (Maximum Permissible

Weight) front axle.

  7  MMTA rear axle.

  8  Reserved for related or additional

entries.

  9  Diesel exhaust emissions.

 10  Paint reference (colour code).

6.3

ENGINE IDENTIFICATION PLATES

Please quote the information on the

engine plate or label A in all corre-

spondence or orders.

(Location varies depending on engine)

  1 Engine type.

  2 Engine suffix.

  3 Engine number.

A

1

2

3

A

A

A

A

6.4

DIMENSIONS (in metres)

(1/2)

0,934

2,734

0,739

1,600

4,407

1,653*

1,597

2,128

* Unladen

Short chassis

6.5

DIMENSIONS (in metres)

(2/2)

0,934

2,804

0,897

1,600

4,635

1,660*

1,597

2,128

* Unladen

Long chassis

6.6

ENGINE SPECIFICATIONS

Versions

1.2 TCe

1.3 TCe

1.5 dCi

1.6 dCi

Engine type

(see engine plate)

H5F Turbo

H5H Turbo

K9K

R9M

Cubic capacity  (cc)

1 197

1 333

1 461

1 598

Type of fuel

Octane rating

It is essential that you use unleaded petrol of the

octane rating stated on the label inside the fuel filler

flap.

Diesel

The label located in the fuel filler

flap indicates authorised fuels.

Spark plugs

Only use the spark plugs specified for your vehi-

cle’s engine.

The type should be marked on a label affixed inside

the engine compartment. If it is not then contact an

approved Dealer.

Fitting spark plugs which are not to specification

may damage the engine.

6.7

WEIGHTS (in kg)

The weights indicated are for a basic vehicle without options: they may vary depending on your vehicle’s equipment.

Consult an approved Dealer.

Maximum Permissible All-Up Weight (MMAC)

Gross Train Weight (MTR)

Maximum permissible all-up weight (MMTA)

Weights are indicated on the vehicle identification plate (refer

to the information on “Vehicle identification plates” in Section 6)

Braked Trailer Weight*

found by calculating: MTR - MMAC

Unbraked Trailer Weight*

740

Permissible nose weight*

75

Permissible load on the roof with the carrying device

80 (including the carrying device)

* Towing weight (Towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on the

identification plate.

–  It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in

the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.

–  For vehicles fitted with a trailer, the total train weight (vehicle + trailer) must never be exceeded. However, for vehicles with

a long chassis, the following conditions are permitted:

–  rear axle MMTA exceeded by no more than 15%,

–  maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).

  In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must

be increased by 0.2 bar (3 PSI).

–  The engine output and climbing capability are reduced with altitude. You need to reduce the total train weight by 10% at an al-

titude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

Weight transfer

If the Maximum Authorised Mass of the vehicle has not been reached, up to 350 kg can be transferred to the braked trailer, within

the limits of the Gross Train Weight.















Content   ..  19  20  21  22   ..
