Renault Master (2018 year). Instruction

1.50

CHILD SEATS: attachment by seat belt

(11/18)

6-seater Combi version

Front seats

Rear seats

Child seat group

Weight of

the child

WITH PASSENGER

AIRBAG (3)

WITHOUT

PASSENGER

AIR BAG

2nd row side seats

2nd row

centre seat

central

side

central

side

Behind

driver

Behind front

passenger

Carrycot fitted

across the vehi-

cle

Group 0

< 10 kg

Rear-facing shell

seat

Group 0 or 0 +

< 13 kg

U (1)

Rear-facing seat

Group 0+ and 1

< 13 kg and

9 to 18 kg

U (1)

Forward-facing

seat

Group 1

9 to 18 kg

U (2)

UF (2)

Booster seat

Group 2 and 3

15 kg to

25 kg and

22 to 36 kg

U (2)

UF (2)

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.51

CHILD SEATS: attachment by seat belt

(12/18)

(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that the

airbag has been deactivated (refer to “Child safety: front passenger airbag deactivation, activation” Section 1).

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

UF = Seat which only allows a forward-facing seat with “Universal” approval to be attached with a seat belt; check that it can be

fitted.

(1) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(2) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners

and do not recline the seatback more than 25°.

1.52

CHILD SEATS: attachment by seat belt

(13/18)

8-seater Combi version

Front seats

Rear seats

Child seat group

Weight of

the child

WITH PASSENGER

AIRBAG (1)

WITHOUT

PASSENGER

AIR BAG

2nd row side seats

2nd row

centre

seat

3rd

row

central

Behind

driver

Behind front

passenger

Carrycot fitted

across the vehi-

cle

Group 0

< 10 kg

Rear-facing shell

seat

Group 0 or 0 +

< 13 kg

U (1)

Rear-facing seat

Group 0+ and 1

< 13 kg and

9 to 18 kg

U (2)

Forward-facing

seat

Group 1

9 to 18 kg

U (2)

UF (2)

Booster seat

Group 2 and 3

15 kg to

25 kg and

22 to 36 kg

U (2)

UF (2)

The table below summarises the information already shown on the diagram on the next page, to ensure the regulations

in force are respected.

1.53

CHILD SEATS: attachment by seat belt

(14/18)

(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that the

airbag has been deactivated (refer to “Child safety: front passenger airbag deactivation, activation” Section 1).

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

UF = Seat which only allows a forward-facing seat with “Universal” approval to be attached with a seat belt; check that it can be

fitted.

(1) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(2) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners

and do not recline the seatback more than 25°.

1.54

Check the status of the air bag

before fitting a child seat or al-

lowing a passenger to use the seat.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a rear-facing child

seat on the front passen-

ger seat, check that the air bag has

been deactivated (refer to the infor-

mation on “Deactivating the front

passenger air bag” in Section 1).

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be

attached by a seat belt;

Seat not suitable for fitting

child seats.



Seat which only allows a for-

ward-facing seat with

“Universal” approval to be attached

with a seat belt.

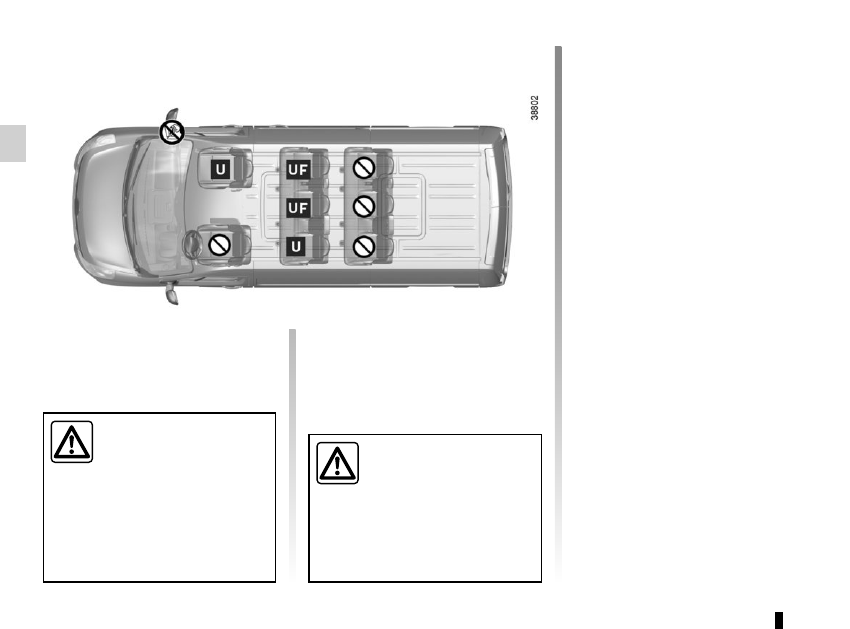

8-seater Combi version

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

CHILD SEATS: attachment by seat belt

(15/18)

1.55

CHILD SEATS: attachment by seat belt

(16/18)

Check the status of the air bag

before fitting a child seat or al-

lowing a passenger to use the seat.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a rear-facing child

seat on the front passen-

ger seat, check that the air bag has

been deactivated (refer to the infor-

mation on “Deactivating the front

passenger air bag” in Section 1).

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be

attached by a seat belt;

Seat not suitable for fitting

child seats.



Seat which only allows a for-

ward-facing seat with

“Universal” approval to be attached

with a seat belt.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

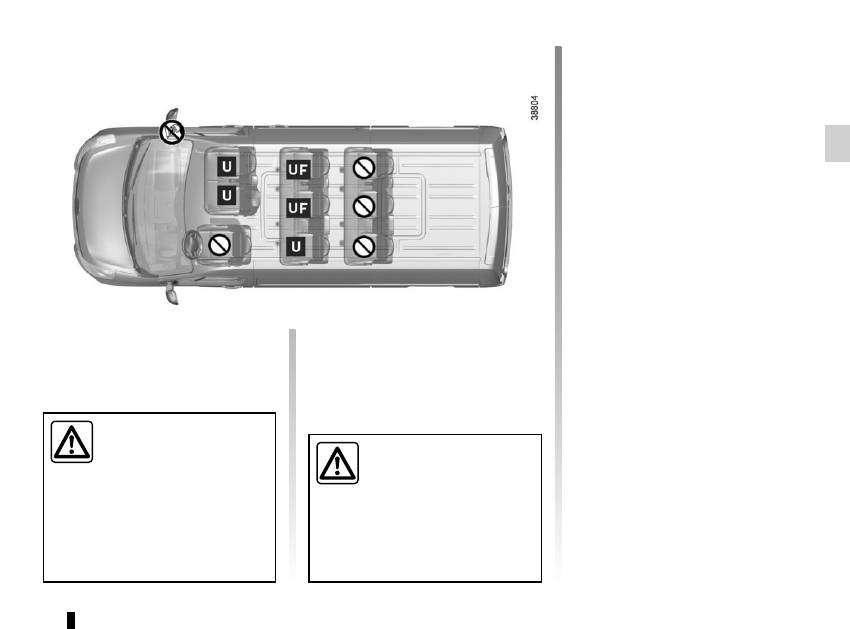

9-seater Combi version

1.56

CHILD SEATS: attachment by seat belt

(17/18)

9-seater Combi version

Front seats

Rear seats

Child seat

group

Weight of

the child

WITH PASSENGER

AIRBAG (3)

WITHOUT

PASSENGER

AIR BAG

2nd row side seats

2nd row

centre

seat

3rd

row

central

side

central

side

Behind

driver

Behind

front

passenger

Carrycot fitted

across the ve-

hicle

Group 0

< 10 kg

Rear-facing

shell seat

Group 0 or 0 +

< 13 kg

U (1)

Rear-facing

seat

Group 0+ and 1

< 13 kg and

9 to 18 kg

U (1)

Forward-facing

seat

Group 1

9 to 18 kg

U (2)

UF (2)

Booster seat

Group 2 and 3

15 kg to

25 kg and

22 to 36 kg

U (2)

UF (2)

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.57

CHILD SEATS: attachment by seat belt

(18/18)

(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that the

airbag has been deactivated (refer to “Child safety: front passenger airbag deactivation, activation” Section 1).

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

UF = Seat which only allows a forward-facing seat with “Universal” approval to be attached with a seat belt; check that it can be

fitted.

(1) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(2) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners

and do not recline the seatback more than 25°.

1.58

CHILD SEATS: attachment using the ISOFIX system

(1/12)

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

5-seater Combi version

Front seats

Rear seats

Child seat group

Weight of

the child

Size of

Isofix seat

2nd row side seats

2nd row

centre seat

Behind driver

Behind front

passenger

Carrycot fitted across

the vehicle

Group 0

< 10 kg

F, G

Rear-facing shell seat

Group 0 or 0 +

< 13 kg

IL (1)

Rear-facing seat

Group 0+ and 1

< 13 kg and

9 to 18 kg

C, D

IL (1)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL (2)

Booster seat

Group 2 and 3

15 kg to

25 kg and

22 to 36 kg

1.59

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be

attached using the ISOFIX system; check that it can be fitted.

(1) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(2) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situa-

tions, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat

(please refer to the section entitled “Rear headrests” in Section 3). Do not push the seat in front of the child more than halfway

back on its runners and do not recline the seatback more than 25°.

CHILD SEATS: attachment using the ISOFIX system

(2/12)

1.60

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

CHILD SEATS: attachment using the ISOFIX system

(3/12)

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

Seat which does not allow a

child seat to be fitted.

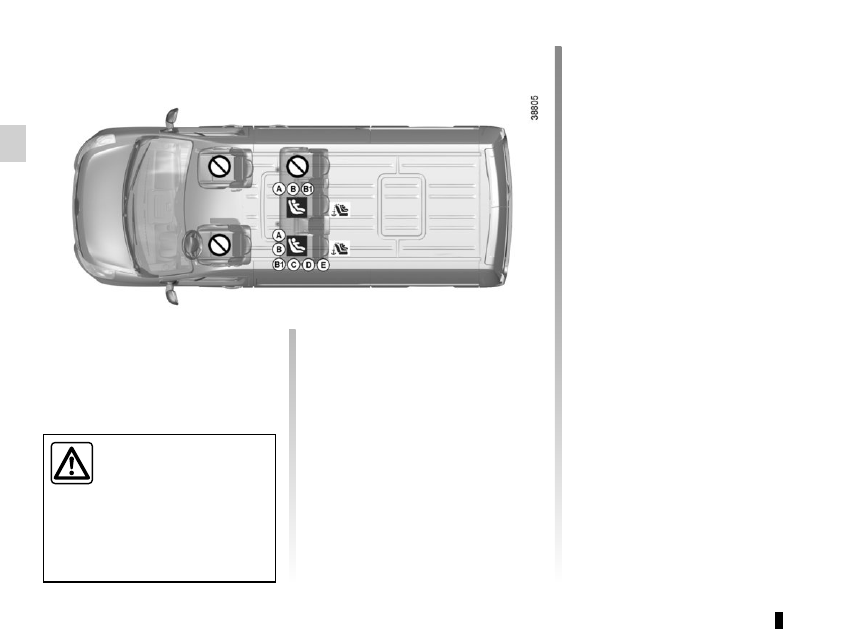

5-seater Combi

1.61

CHILD SEATS: attachment using the ISOFIX system

(4/12)

Child seat attached using the ISOFIX

mounting

Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:

– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

Seat which does not allow a

child seat to be fitted.

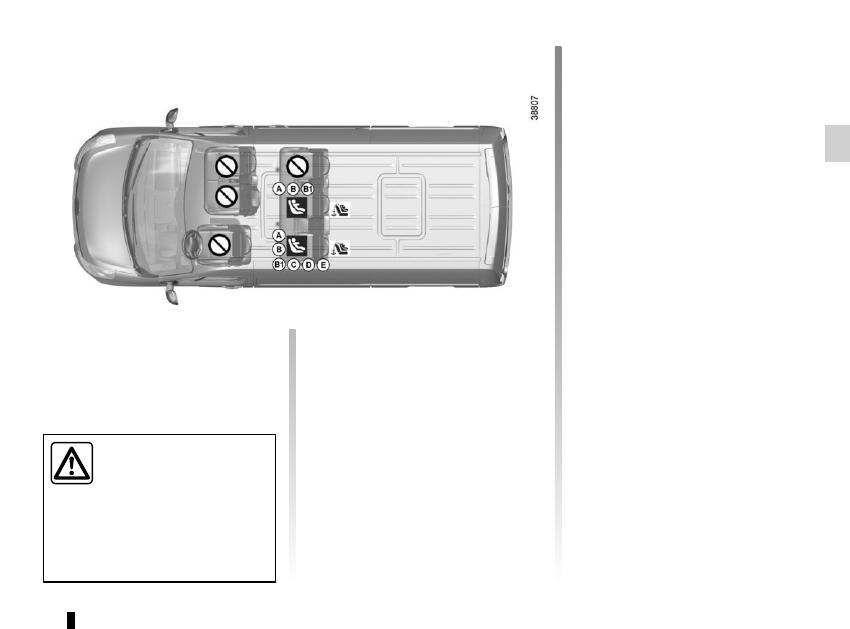

6-seater Combi

1.62

CHILD SEATS: attachment using the ISOFIX system

(5/12)

The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-

ble regulations are respected.

6-seater Combi version

Front seats

Rear seats

Child seat group

Weight of

the child

Size of

Isofix

seat

central

side

2nd row side seats

2nd row

centre seat

Behind

driver

Behind front

passenger

C a r r y c o t f i t t e d

across the vehicle

Group 0

< 10 kg

F, G

Rear-facing shell

seat

Group 0 or 0 +

< 13 kg

IL (1)

Rear-facing seat

Group 0+ and 1

< 13 kg and

9 to 18 kg

C, D

IL (1)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL (2)

Booster seat

Group 2 and 3

15 kg to

25 kg and

22 to 36 kg
