Renault Kadjar (2018 year). Instruction - part 18





5.38

OPERATING FAULTS

(5/7)

On the road

POSSIBLE CAUSES

WHAT TO DO

Steering becomes heavy.

Assistance overheating.
Fault with the electric assistance

motor.
Fault in the assistance system.

Drive carefully at reduced speed, be aware

of the level of force on the steering wheel

needed to turn the wheels. Consult an ap-

proved dealer.

The engine is overheating. The cool-

ant temperature indicator is in the

warning zone and warning light

®

 comes on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

approved dealer as soon as possible.

Coolant boiling in the coolant reser-

voir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved dealer.

Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by our Technical Department may be used for this purpose.

5.39

OPERATING FAULTS

(6/7)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown bulb.

See information on “Headlights: changing

bulbs” or “Rear and side lights: changing

bulbs”.

The direction indicators do not work.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse or have it replaced; refer

to the information on “Fuses” in section 5.

5.40

OPERATING FAULTS

(7/7)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

Traces of condensation in the head-

lights or rear lights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature and humidity.
In this case, the traces will disappear

slowly once the lights are switched

on.

The front seat belt reminder light

comes on when the seat belts are

fastened.

An object is stuck between the floor

and the seat and is disrupting the op-

eration of the sensor.

Remove all objects from underneath the

front seats.

6.1

Section 6: Technical specifications

Vehicle identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.2

Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.3

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.4

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.5

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.6

Towing weights  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.7

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.7

Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.8

Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.9

Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   6.15

6.2

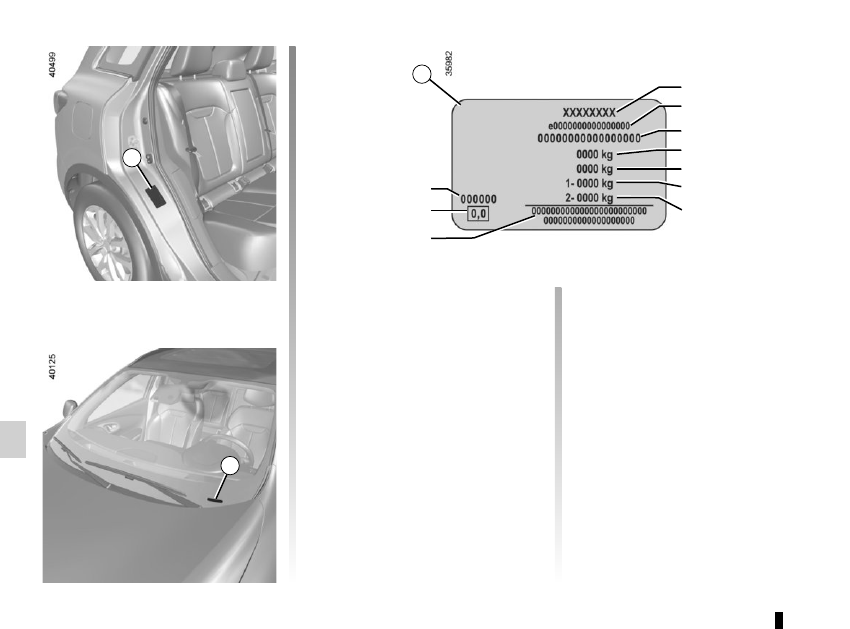

VEHICLE IDENTIFICATION PLATES

A

B

The information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
The presence and location of the in-

formation depends on the vehicle.

Vehicle identification plate A

  1 Manufacturer name.

  2  EC design number or approval

number.

  3 Identification number.

Depending on the vehicle, this

information is also given on

marking B.

  4 MAM  (Maximum  Authorised

Mass).

  5  GTW (Gross train weight: vehicle

fully loaded, with trailer).

  6 MPAW (Maximim Permissible

Weight) for front axle.

  7  MPAW on rear axle.

  8  Reserved for related or additional

entries.

  9 Not used.

 10  Paint reference (colour code).

A

9

7

8

10

5

1
2
3
4

6

6.3

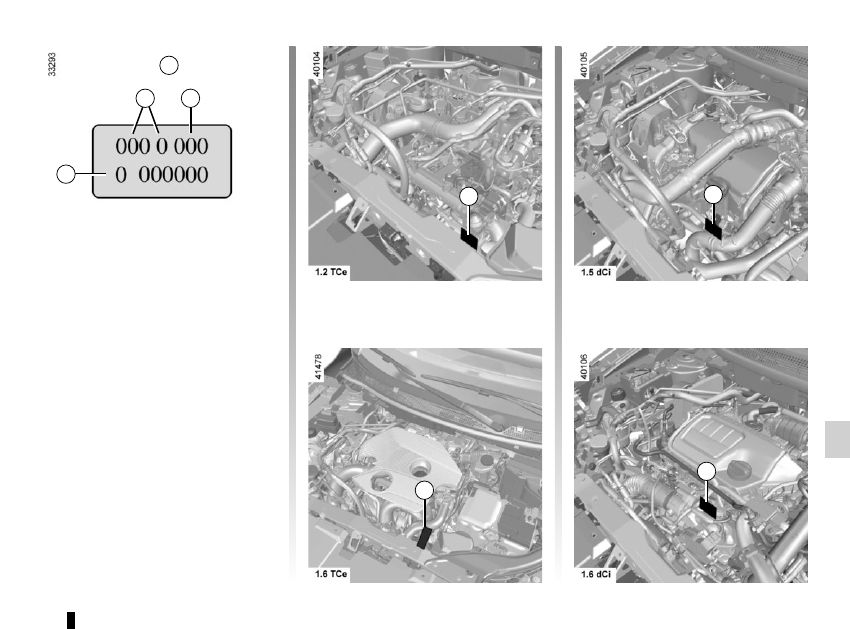

Please quote the information on the

engine plate or label A in all corre-

spondence or orders.

(Location varies depending on engine)

  1 Engine type.

  2 Engine suffix.

  3 Engine number.

ENGINE IDENTIFICATION PLATES

A

A

A

2

1

3

A

A

6.4

1,607-1,621*

1,561

0,899

2,647

0,903

4,449

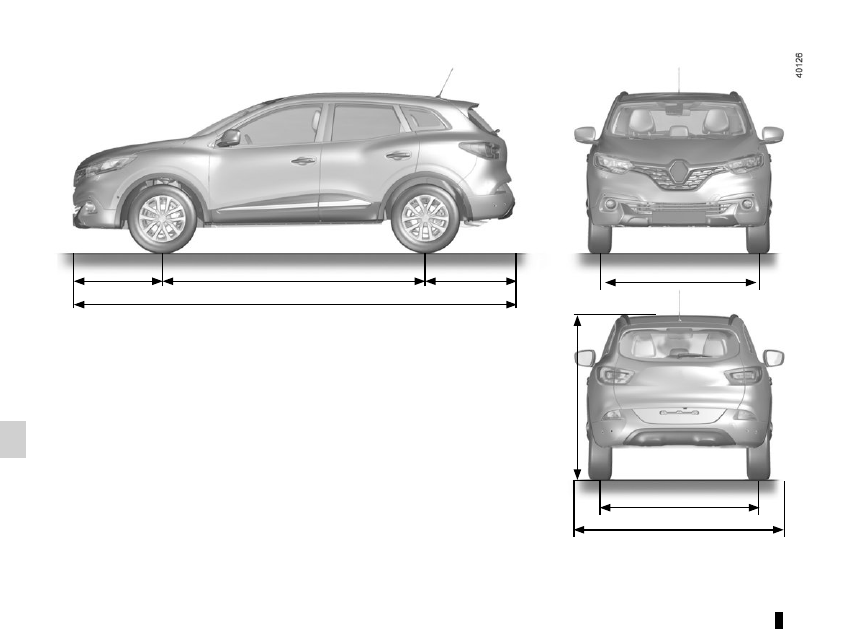

DIMENSIONS (in metres)

1,560

2,064

* Unladen, with or without longitudinal roof bar

6.5

ENGINE SPECIFICATIONS

(1/2)

Versions

1.2 Tce

1.6 Tce

1.5 dCi

1.6 dCi

Engine type

(see engine plate)

H5F Turbo

M5M Turbo

K9K

R9M

Cubic capacity  (cc)

1 197

1 618

1 461

1 598

Type of fuel

Octane rating

Petrol
It is essential that you use unleaded petrol of

the octane rating stated on the label inside the

fuel filler flap.
Refer to «Fuel tank» in Section 1.

Diesel
The label located in the fuel filler flap indicates

the authorised fuels.

Fuel types that meet

European standards and are

compatible with the engines

of vehicles sold in Europe

(in any other case, contact an

Approved Dealer).

Unleaded petrol compliant with

standard  EN 228 contains up to

5 % ethanol in volume.

Diesel fuel compliant with

standard  EN 590 contains up

to 7 % fatty acid methyl ester in

volume.

Unleaded petrol compliant with

standard  EN 228 contains up to

10 % ethanol in volume.

Diesel fuel compliant with

standard EN 16734 contains up

to 10 % fatty acid methyl ester in

volume.

6.6

ENGINE SPECIFICATIONS

(2/2)

Versions

1.2 Tce

1.6 Tce

1.5 dCi

1.6 dCi

Engine type

(see engine plate)

H5F Turbo

M5M Turbo

K9K

R9M

Cubic capacity  (cc)

1 197

1 618

1 461

1 598

Spark plugs

Only use the spark plugs specified for your vehi-

cle’s engine.
The type should be marked on a label affixed

inside the engine compartment. If it is not then

contact an approved Dealer.
Fitting spark plugs which are not to specification

may damage the engine.

6.7

WEIGHTS (in kg)

The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. Consult

your approved Dealer.

Maximum permissible all-up weight (MMAC)

Maximum permissible all-up weight (MMTA)

Gross Train Weight (MTR)

Weights are indicated on the vehicle identification plate (refer to

the information on “Vehicle identification plates” in Section 6)

Braked Trailer Weight*

found by calculating: MTR - MMAC

Unbraked Trailer Weight*

690

Permissible nose weight*

75

Maximum permissible load on roof

75 kg (including carrying device)

* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on

the identification plate.

–  It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in

the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.

–  When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is

permitted:

–  rear axle MMTA exceeded by no more than 15%,

–  maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).

  In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must

be increased by 0.2 bar (3 PSI).

–  The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by

10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

6.8

Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same

level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out

within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the

repair order.

REPLACEMENT PARTS AND REPAIRS

6.9

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

 VIN: ..................................................................................

SERVICE SHEETS

(1/6)

6.10

SERVICE SHEETS

(2/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

6.11

SERVICE SHEETS

(3/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

6.12

SERVICE SHEETS

(4/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

6.13

SERVICE SHEETS

(5/6)

 VIN: ..................................................................................

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page

Date:                        Miles (Km):                                   Invoice number:

Comments/miscellaneous

Type of operation:

Stamp

Service                                 □
.......................................      □
Anti-corrosion check:
OK □  Not

OK*

*See specific page















Content   ..  16  17  18  19   ..
