Renault Duster (2016 year). Instruction - part 3

1.34

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

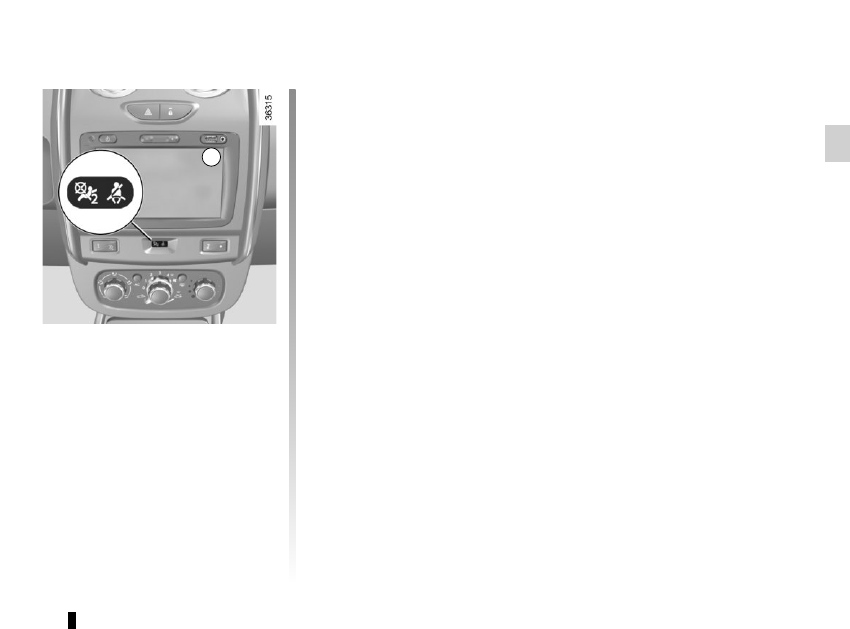

CHILD SAFETY: deactivating/activating the front passenger air bag

(2/3)

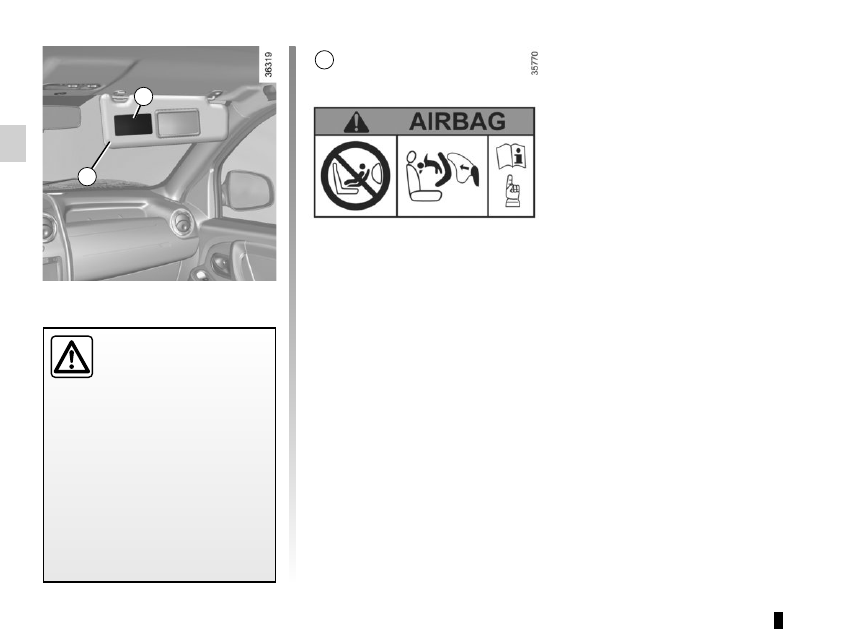

The markings on the dashboard and

labels A on each side of the passenger

sun visor 3 (as shown above) repeat

these instructions.

1.35

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

air bag activation/deactivation system

is faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

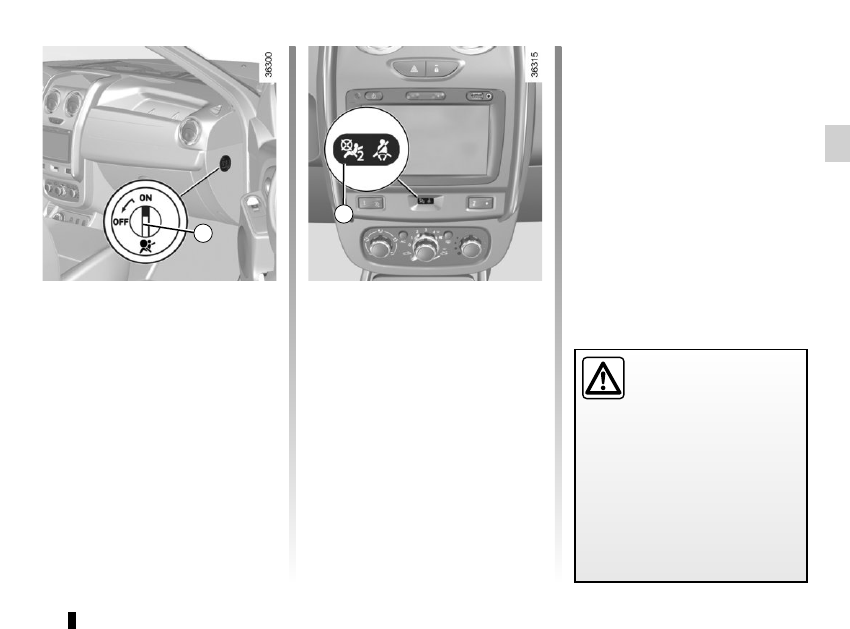

Activation of the front

passenger air bag

(depending on vehicle)
You should reactivate the airbag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.
To reactivate the airbag: with the vehi-

cle at a standstill and with the ignition

switched off, press and turn button 1 to

the ON position.
With the ignition switched on, it is es-

sential to check that warning light 2,

]

, is off.

CHILD SAFETY: deactivating/activating the front passenger air bag

(3/3)

The passenger air bag must

be activated or deactivated

with the ignition off.
If handled when the igni-

tion is on, the warning light

comes on.
Switch the ignition off then on again

to reset the air bag in accordance

with the lock position.

1.36

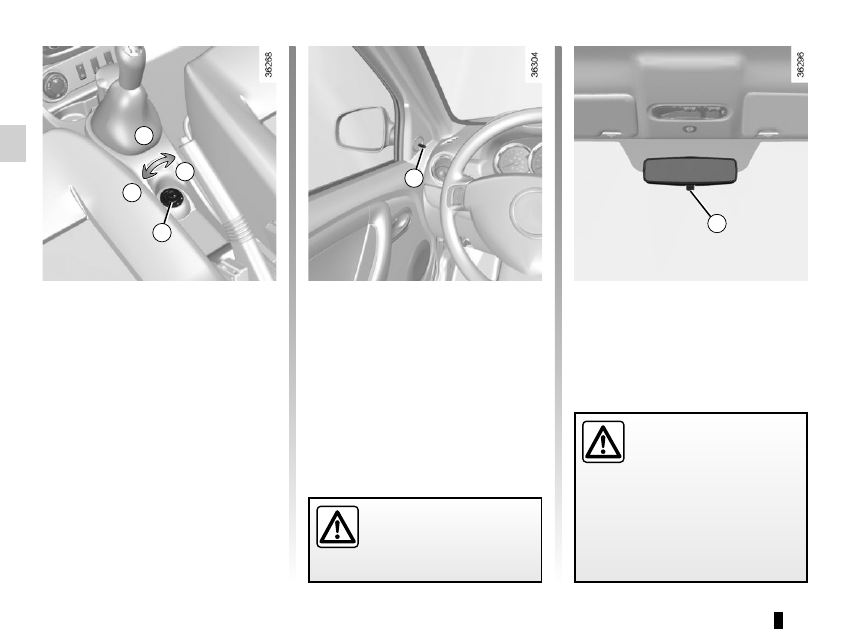

REAR VIEW MIRRORS

Door mirrors with electrical

adjustment:

With the ignition on, move button 1:

– position A to adjust the left-hand

door mirror;

– position B to adjust the right-hand

door mirror;

0 is the neutral centre position.

Heated door mirrors

With the engine running, de-icing is per-

formed when the rear screen is de-iced/

demisted; refer to the information in the

paragraph on “Heated rear screen”.

Interior rear view mirror

The interior rear-view mirror is adjusta-

ble. When driving at night, tilt lever 3 to

avoid being dazzled by the headlights

of the vehicle behind.

Door mirrors with manual

adjustment

To adjust the door mirror, move

switch 2.

Folding door mirrors

Fold the door mirror manually against

the door window.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

Objects observed in the

door mirror glass are actu-

ally closer than they appear.
For your safety, take this

into account in order to correctly

assess the distance before any ma-

noeuvre.

1.37

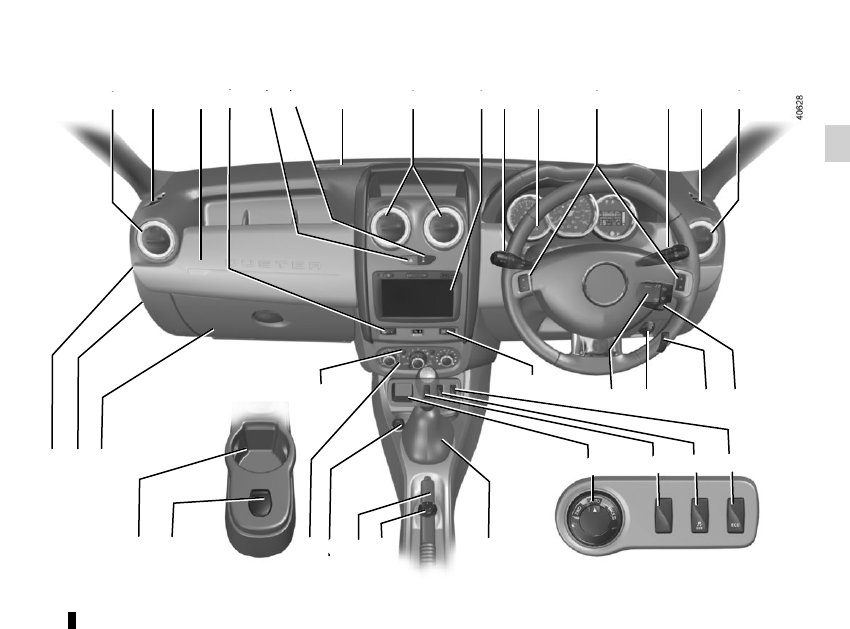

DRIVER’S POSITION, LEFT-HAND DRIVE

(1/2)

7 8

37 36

34 33

27 26

31 30

1.38

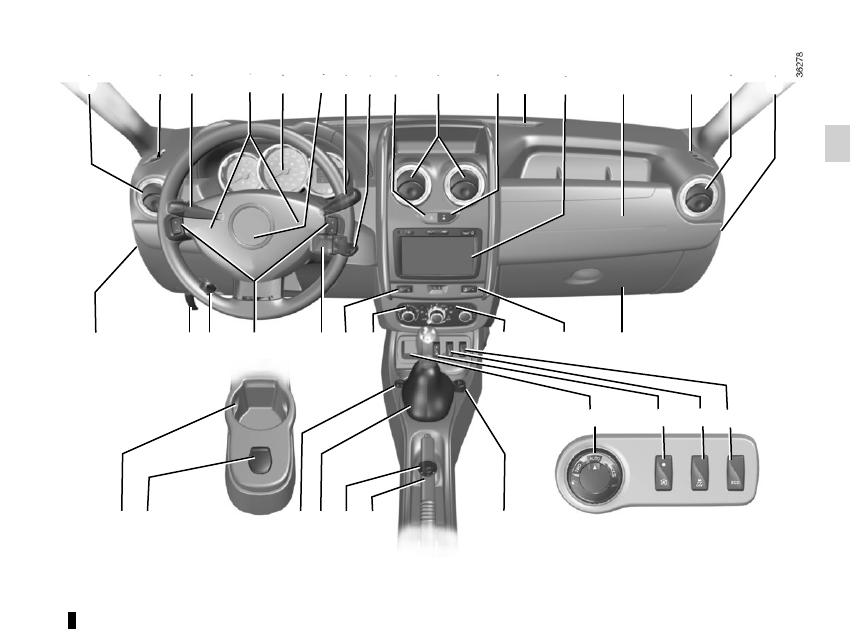

DRIVER’S POSITION, LEFT-HAND DRIVE

(2/2)

The fittings described DEPEND ON THE VEHICLE VERSION AND COUNTRY.

1  Side air vent.
2  Side demister outlet.
3  Stalk for:

–  direction indicator lights,
– exterior lights,
–  front fog lights,
–  rear fog light,
– horn.

4 Audible warning
5 Instrument panel.
6 Location for driver’s airbag.
7 –

Steering column stalk for winds-

creen and rear screen wash/

wiper.

–

On-board computer information

readout control.

8 Ignition switch.
9 Hazard warning lights switch.
10 Centre air vents.
11 Electric central locking switch.

12 Central demister outlet.
13 Location for radio, navigation system

or storage compartments.

14  Location for passenger airbag.
15  Side demister outlet.
16  Side air vent.
17  Passenger airbag activation/deacti-

vation switch.

18 Glove compartment
19 Activation/deactivation control for

the parking distance control.

20 Rear screen and door mirror de-

icing control

21  ECO mode switch.
22  ESC control (4x4 (4WD) version).
23  Activation/deactivation controls for

the Stop and Start function.

24 4x2 (2WD), 4x4 (4WD) mode selec-

tor or storage compartment.

25 Cigarette lighter or accessories

socket.

26  Handbrake.
27  Door mirror adjustment control.
28  Gearstick.
29  LPG control
30  Accessories socket.
31  Bottle holders.
32  Heating and ventilation controls.
33  Cruise control/speed limiter main

control.

34  Radio remote control.
35  Cruise control/speed limiter controls.
36  Beam height adjustment control.
37  Bonnet release control.
38  Fuse box.

1.39

DRIVING POSITION, RIGHT-HAND DRIVE

(1/2)

9 10

5 6

1.40

DRIVING POSITION, RIGHT-HAND DRIVE

(2/2)

The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.

1 Side air vent.
2 Side demister outlet.
3 Location for passenger airbag or

storage compartment.

4 Activation/deactivation control for the

parking distance control.

5  Hazard warning lights switch.
6  Electric central locking switch.
7  Central demister outlet.
8  Centre air vents.
9  Location for radio, navigation system

or storage compartments.

10 Stalk for:

–  direction indicator lights,
– exterior lights,
–  front fog lights,
–  rear fog light,
– horn.

11  Instrument panel.
12  Cruise control/speed limiter controls.
13  –

Steering column stalk for wind-

screen and rear screen wash/

wiper.

–

On-board computer information

readout control.

14  Side demister outlet.
15  Side air vent.
16  Ignition switch.
17  Bonnet release control.
18  Beam height adjustment control.
19  Radio remote control.
20  Cruise control/speed limiter main

control.

21 ECO mode switch.
22ESC control.
23 Not used.
24 4x2 (2WD), 4x4 (4WD) mode selec-

tor or storage compartment.

25  Gearstick.
26  Door mirror adjustment control.
27  Handbrake.
28  Cigarette lighter or accessories

socket.

29 Heating and ventilation controls.
30 Accessories socket.
31 Bottle holder
32 Rear screen and door mirror de-icing

control

33  Glove compartment
34  Fuse box.
35  Passenger airbag activation/deacti-

vation switch.

1.41

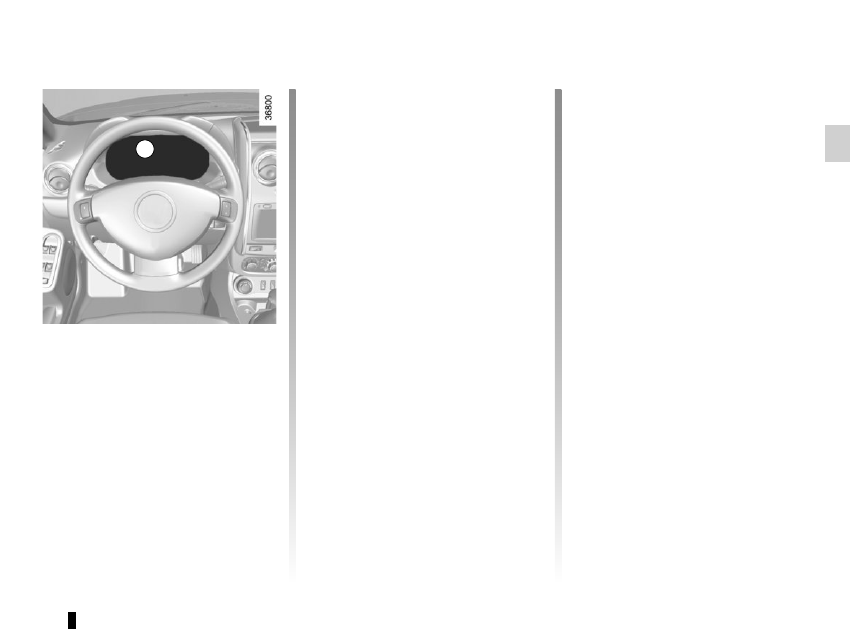

Instrument panel A

WARNING LIGHTS

(1/7)

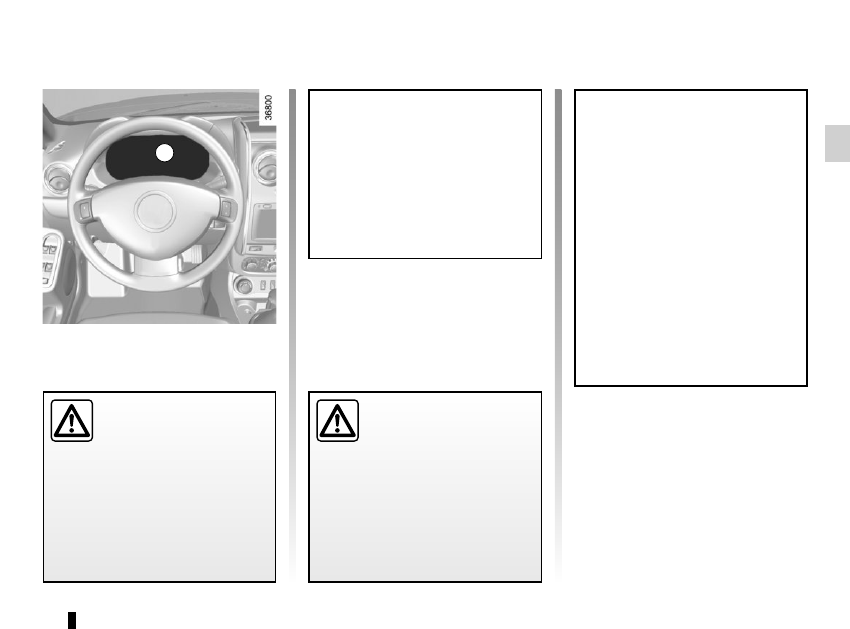

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

If the orange warning light

comes on while you are driving,

drive carefully to an authorised

dealer as soon as possible. Failure

to follow this recommendation risks

damaging your vehicle.

The red warning light

requires you to stop imme-

diately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not

restart it. Contact an Authorised

Dealer.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

These warning lights require you

to stop immediately, for your own

safety, as soon as traffic conditions

allow. Switch off the engine and do

not restart it. Contact an authorised

dealer.

1.42

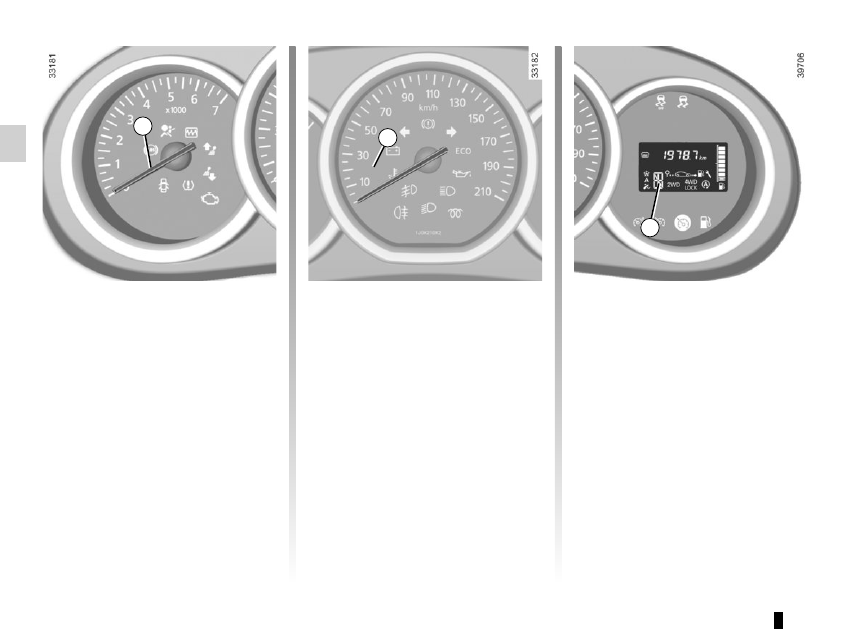

WARNING LIGHTS

(2/7)

Handbrake “on” warning

light and brake circuit inci-

dent warning light
This comes on when the ignition is

switched on. If it comes on during brak-

ing or driving and, depending on the ve-

hicle, is accompanied by a beep, it in-

dicates that the fluid level in the circuit

is low; it may be dangerous to continue

driving – please contact an authorised

dealer.

Warning light malfunction

(red or orange)

Urgent stop warning light (red)

This lights up when the ignition is

switched on and goes out as soon as

the engine is started. It lights up at the

same time as other warning lights, and

is accompanied by a beep.

It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.

Contact an approved Dealer.

Warning light (orange)
This lights up when the ignition is

switched on and goes out as soon as

the engine is started. It may comes on

in conjunction with other warning lights

on the instrument panel.
It means you should drive very care-

fully to an authorised dealer as soon

as possible. If you fail to follow this rec-

ommendation, you risk damaging your

vehicle.

Coolant temperature warn-

ing light

It goes out as soon as the engine starts.
If this remains lit while driving and, de-

pending on the vehicle, is accompanied

by a beep, this means the engine is

overheating. Stop and allow the engine

to run at idle speed for a minute or two.

The temperature should drop. If not,

stop the engine. Let it cool down before

checking the coolant level. Contact an

authorised dealer if necessary.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

1.43

WARNING LIGHTS

(3/7)

Oil pressure warning light

This lights up when the ignition

is switched on and goes out after a few

seconds.

If it lights up on the road and, depend-

ing on the vehicle, is accompanied by

a beep, stop immediately and cut the

ignition.

Check the oil level (refer to “Engine oil

level: general information” in Section 4).

If the level is normal, the light has come

on for another reason: Consult an au-

thorised dealer straight away.

Preheating warning light (on

diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation. It goes

out after preheating is sufficient and the

engine can be started.

Airbag warning light

This lights up when the igni-

tion is switched on and goes out after

a few seconds. If it does not light up

when the ignition is switched on, if it

lights up when the engine is running,

or if it flashes, it indicates a fault in the

system.

Contact an approved Dealer as soon as

possible.

Battery charge warning light

It should go out as soon as the

engine starts.
If it comes on when you are driving, it

indicates that the circuit is overcharged

or has discharged. Stop and consult an

authorised dealer as soon as possible.

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it does not go out after the ignition is

switched on, or lights up when driving,

there is a fault with the ABS. Braking

will then be as normal, without the ABS

system.

Contact an approved Dealer as soon as

possible.

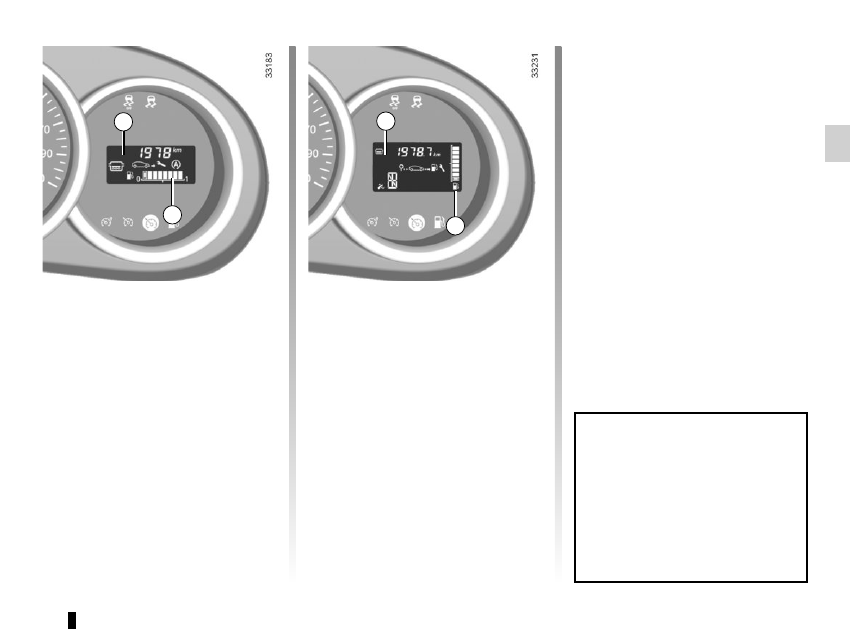

Low fuel level warning light
This comes on when the igni-

tion is switched on and goes out after

a few seconds. If it comes on when

driving and, depending on the vehicle,

is accompanied by a beep, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left after the warning light first

comes on.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

1.44

’

4-wheel drive mode indica-

tor light

Refer to the information on “4WD Lock

mode” in Section 2.

‘

2-wheel drive mode indica-

tor light

Refer to the information on “2WD

mode” in Section 2.

Speed limiter warning light
Refer to the information on the

“Speed limiter” in Section 2.

Water in the diesel filter

warning light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it remains lit or comes on while driv-

ing, it indicates that water is present in

the diesel.
Contact your approved Dealer as soon

as possible.



Indicator light ESC
Refer to the information on

“Driving correction devices and aids” in

Section 2.

Door status warning light

This indicates the status of the doors

(or tailgate).

WARNING LIGHTS

(4/7)



Warning light for the elec-

tronic stability program

(ESC) and traction control system
There are several reasons for the warn-

ing light to come on: see “Electronic

Stability Program ESC with unders-

teer control and traction control” in

Section 2.

Door(s) open warning light

Refer to “Opening/closing the doors” in

Section 1.



Mode warning light ECO

This comes on when ECO mode ECO

is activated.

Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

Ï¦

Cruise control warning

lights

Refer to the information on “Cruise con-

trol” in Section 2.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

1.45

Main beam headlight tell-tale

light

Dipped beam headlight tell-

tale

Front fog light tell-tale light

Rear fog light tell-tale

Left-hand direction indicator

tell-tale

Right-hand direction indica-

tor tell-tale

Gear change indicator

This lights up to advise

you to change to a higher gear (up

arrow) or lower gear (down arrow).



Excess speed warning light

A beep will sound and the warn-

ing light will come on if the vehicle ex-

ceeds 70 mph (120 km/h).

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Engine oil change warning

light

This lights up on the instrument panel

when an oil change is required.

Change the oil or have it changed as

soon as possible.
Only the distance travelled between two

oil changes is taken into account; the

time interval between two oil changes

is not.

The oil should always be changed

when the first threshold is reached, i.e.

either the distance travelled or the inter-

val specified in your vehicle’s mainte-

nance document. This means you may

have to change the oil before the warn-

ing light comes on.

Refer to the information on the “Oil

change” in Section 4.

Rear screen de-icing/de-

misting indicator light

Direction indicator tell-tale

light

Engine immobiliser system

warning light

This light performs several functions.

Refer to the information on the “Engine

immobiliser” in Section 1.

WARNING LIGHTS

(5/7)

1.46

Electronic fault or diesel

preheating warning light

With the ignition switched on,

this light comes on; it indicates that the

heater plugs are operating.
It goes out after preheating is sufficient

and the engine can be started.
If it remains lit or comes on when you

are driving, it indicates an electrical or

electronic fault. Contact an approved

dealer as soon as possible.

STOP light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It lights up at the

same time as other warning lights, and

is accompanied by a beep.

It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow.

Switch off the engine and do not restart

it.

Consult an approved dealer.

Warning light for monitoring

exhaust gas

It comes on when the ignition is

switched on and then goes out.

– If it lights up continuously, consult an

authorised dealer as soon as possi-

ble;

– If it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Please refer to the information on

“Maintenance and anti-pollution advice”

in Section 2.

Indicator light ESC
See “Electronic Stability

Program ESC with understeer control

and traction control” in Section 2.



Tyre pressure loss warning
Please refer to the information

on the “Tyre pressure loss warning” in

Section 2.



Engine standby warning

light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.



Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

Not used.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

WARNING LIGHTS

(6/7)

1.47

WARNING LIGHTS

(7/7)

Warning lights on console B

]

Front passenger air bag de-

activation warning light.

Refer to the information on “Child

safety: deactivating, activating the front

passenger airbag".

Seat belt reminder light
It comes on when the engine

is started if the driver and/or passenger

seat belt is not fastened (depending on

the vehicle). When the vehicle is being

driven, it comes on and a beep sounds

for approximately 2 minutes until the

driver’s seat belt is fastened.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

1.48

DISPLAY AND INDICATORS

(1/2)

Speedometer 2 (kph or mph)

Rev counter 1 (rpm x 1,000)

Automatic gearbox display 3

This indicates the gear engaged. Refer

to information on the “Automatic gear-

box” in Section 2.

1.49

DISPLAY AND INDICATORS

(2/2)

In 4x4 (4WD) mode on rough ter-

rain, there is a risk that incorrect in-

formation on the fuel level may be

displayed. Wait until you are on flat

ground again for a stable reading of

the oil level indicators.

Fuel gauge warning light 4

or 5

The number of squares lit shows the

fuel level. When it is at minimum, the

squares disappear and the low fuel

level warning light comes on, depen-

ding on the vehicle.

Trip computer and warning

system A or B

Refer to the information on the “Trip

computer and warning system” in

Section 1.

Content .. 1 2 3 4 ..
