Renault Clio (2017 year). Instruction - part 13





5.14

Vehicle fitted with a tyre pressure

loss warning system
If under-inflated (puncture, low pres-

sure, etc.), the warning light

 on

the instrument panel comes on. See

“Tyre pressure loss warning” in

Section 2.

Pressures should be checked when the

tyres are cold; ignore higher pressures

which may be reached in hot weather

or following a fast journey.
If tyre pressures cannot be checked

when the tyres are cold, assume an in-

crease of 0.2 to 0.3 bar (or 3 PSI).
Never deflate a hot tyre.

TYRES

(2/3)

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and lead

to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

Incorrect tyre pressures

lead to abnormal tyre wear

and unusually hot running.

These are factors which

may seriously affect safety and lead

to:
–  poor road holding,
–  risk of bursting or tread separa-

tion.

The pressure depends on the load

and the speed of use. Adjust the

pressure according to the condi-

tions of use (refer to the label affixed

to the edge of the driver’s door).

Tyre pressures

Adhere to the tyre pressures (including

the emergency spare wheel). The tyre

pressures should be checked at least

once a month and additionally before

any long journey (refer to the label af-

fixed to the edge of the driver’s door).

5.15

Emergency spare wheel

Refer to the information on the

“Emergency spare wheel” and in-

structions on “Changing a wheel” in

Section 5.

Changing wheels around

This practice is not recommended.

Fitting new tyres

TYRES

(3/3)

Snow or Winter tyres
We would recommend that these be

fitted to all four wheels to ensure that

your vehicle retains maximum adhe-

sion.
Warning: These tyres sometimes have

a specific direction of rotation and a

maximum speed index which may be

lower than the maximum speed of your

vehicle.
Studded tyres
This type of equipment may only be

used for a limited period and as laid

down by local legislation. It is neces-

sary to observe the speed specified by

current legislation.
These tyres must, at a minimum, be

fitted to the two front wheels.

Chains may only be fitted

to tyres of the same size

as those originally fitted to

your vehicle.

In all cases, we would recommend

that you contact an approved dealer

who will be able to advise you on

the choice of equipment which is

most suitable for your vehicle.

18” wheels cannot be

fitted with chains.
If you wish to fit snow

chains, you must use spe-

cial equipment.
Consult an approved Dealer.

Use in winter

Chains
For safety reasons, fitting snow

chains to the rear axle is strictly for-

bidden.
Chains cannot be fitted
 to tyres which

are larger than those originally fitted to

the vehicle.

For safety reasons, this op-

eration must be carried out

by a specialist.
Fitting different tyres may

change your vehicle as follows:
–  it may mean that your vehicle no

longer conforms to current regu-

lations;

–  it may change the way it handles

when cornering;

–  it may cause the steering to be

heavy;

–  it may affect the use of snow

chains.

5.16

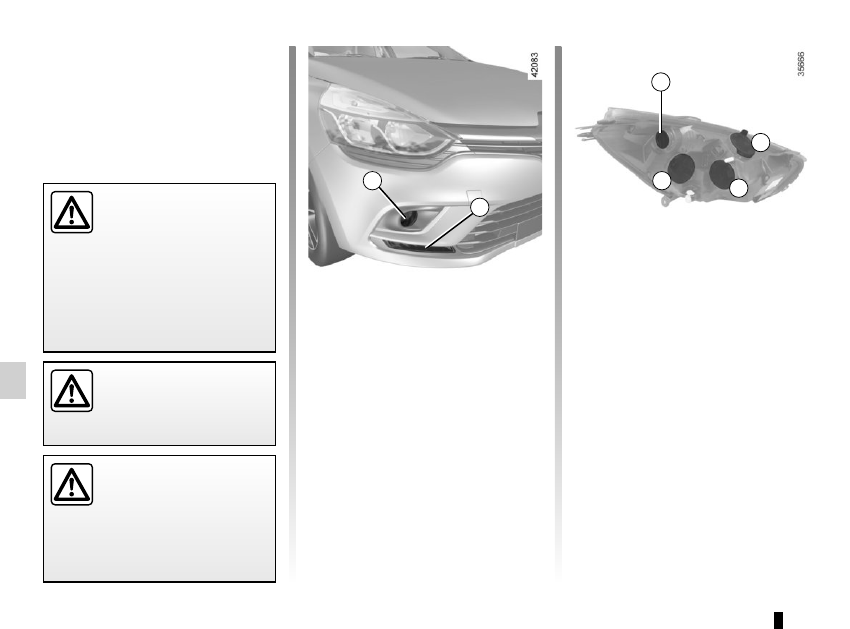

FRONT HEADLIGHTS: replacing the bulbs

(1/3)

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

B

C

Direction indicator lights

Turn bulb holder 3 a quarter of a turn

and take out the bulb.
Bulb type: PY24W.
Once the bulb has been replaced,

check that it is properly secured.

3

A

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

1

2

Halogen front fog lights 1

(depending on the vehicle)
The front bumper needs to be removed;

consult an approved Dealer.
Type of bulb: H11L or H11L+.

Daytime running lights and

side lights 2

(depending on the vehicle)
Please see an authorised dealer.

Before performing any

action in the engine com-

partment, the ignition must

be switched off by pressing

the engine stop button (please see

the information on “Starting, stop-

ping the engine” in Section 2).

5.17

FRONT HEADLIGHTS: replacing the bulbs

(2/3)

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

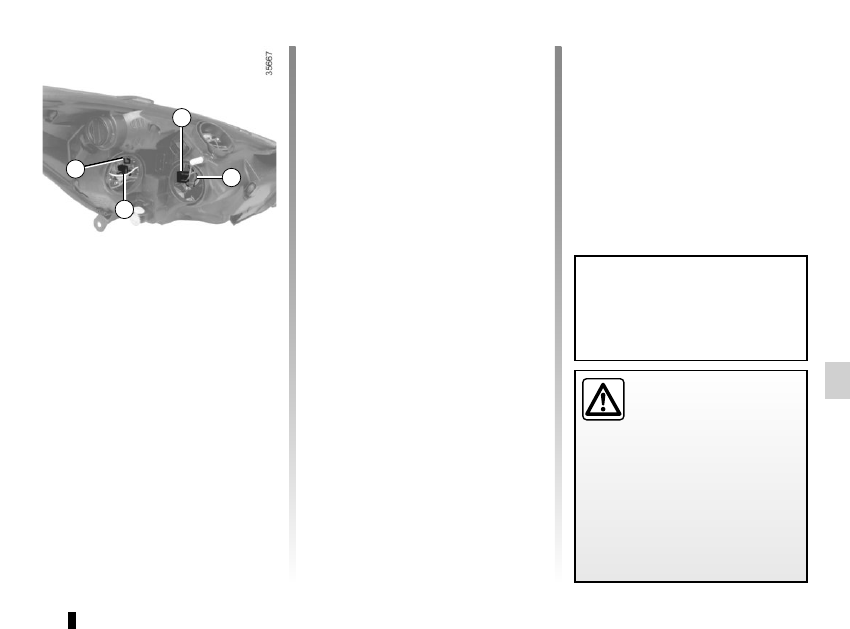

Halogen dipped beam

headlight

(depending on vehicle)
Remove cover A to access the bulb

holder.
To change the bulb:
– remove cover B;

– disconnect wiring 4;

–  unclip the spring 5 and remove the

bulb.

Bulb type: H7

Halogen main beam headlight

(depending on vehicle)
To change the bulb:
– remove cover C;

– disconnect wiring 6;

–  unclip the spring 7 and remove the

bulb.

Bulb type: H1
It is essential to use anti-U.V. 55W

bulbs so as not to damage the plastic

on the headlights.
Do not touch the bulb glass. Hold it

by its base.
When the bulb has been changed,

make sure you refit the cover correctly.

4

6

7

5

To comply with local legislation, or

as a precaution, you can obtain an

emergency kit containing a set of

spare bulbs and fuses from an ap-

proved dealer.

5.18

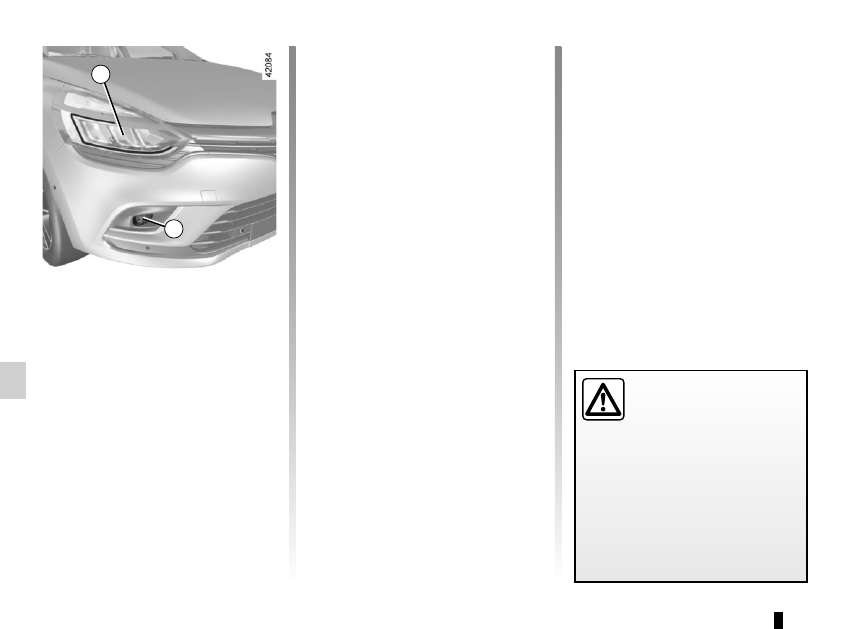

FRONT HEADLIGHTS: replacing the bulbs

(3/3)

Additional lights

If you wish to fit fog lights to your ve-

hicle, please see an authorised dealer.

 LED 8daytime running lights/

side lights/dipped headlights/

main beam headlights

(depending on the vehicle)
Please see an authorised dealer.

 LED 9front fog light

(depending on the vehicle)
Consult an approved dealer

8

9

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

5.19

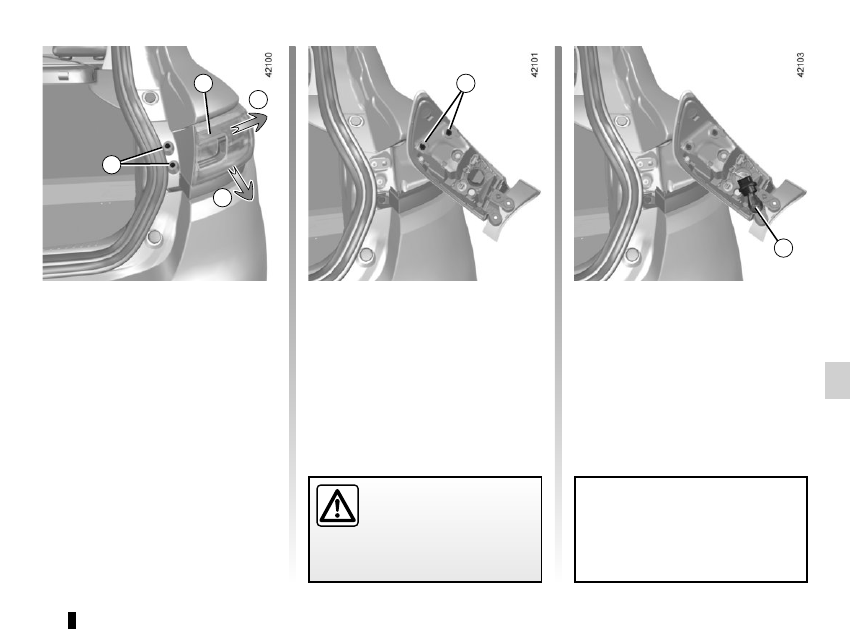

Direction indicator lights
Open the boot lid and remove screws 1.
To release the light unit, start by moving

it away towards the outside (move-

ment A) enough to release the clips 3

then pull the light unit backwards

(movement B).

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

Change the bulb.
Check that the light is properly locked

in position.
Tighten screws 1.
4  Direction indicator lights

Bulb type: PY21W.

Five-door version

Brake lights/side lights 2
Consult an approved dealer

REAR AND SIDE LIGHTS: changing bulbs

(1/4)

4

1

To comply with current legislation, or

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

B

A

2

3

5.20

REAR AND SIDE LIGHTS: changing bulbs

(2/4)

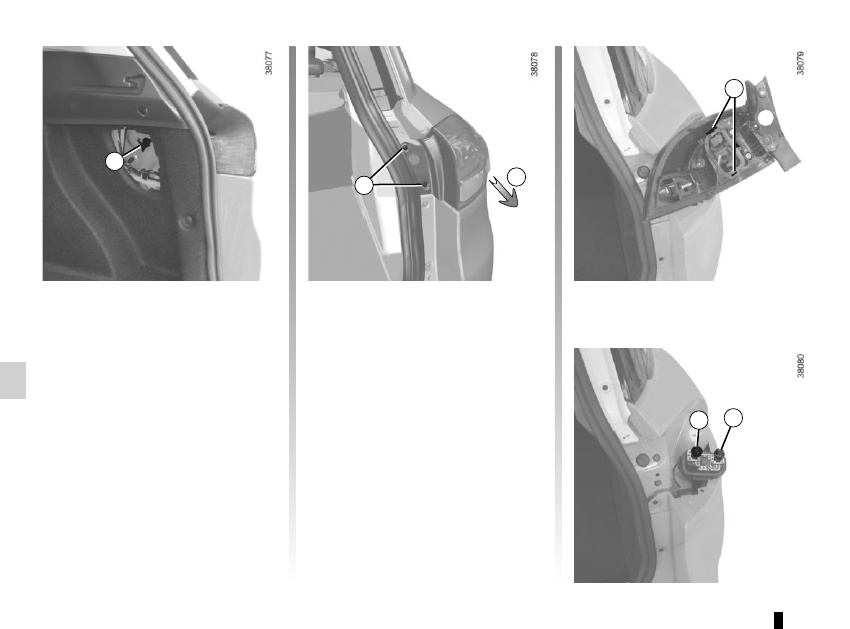

Estate version

Side lights/brake and direction

indicator lights
Unclip the cover to access nut 5.
Unscrew nut 5.
Undo screws 6.
Pull the light unit backwards (move-

ment C).

Remove the bulb holder by carefully re-

leasing clips 7 , and gently pull the bulb

holder.
Change the bulb.
Refit the bulb holder and push the unit

as far as it will go, until it locks into

place.
Check that the light is properly locked

in position.
Tighten the screw 6 and nut 5.
Clip the cover in place.
8  Side light and brake light

Bulb type: P21/5W.

9  Direction indicator lights

Bulb type: PY21W.

5

6

7

8

9

C

5.21

REAR AND SIDE LIGHTS: changing bulbs

(3/4)

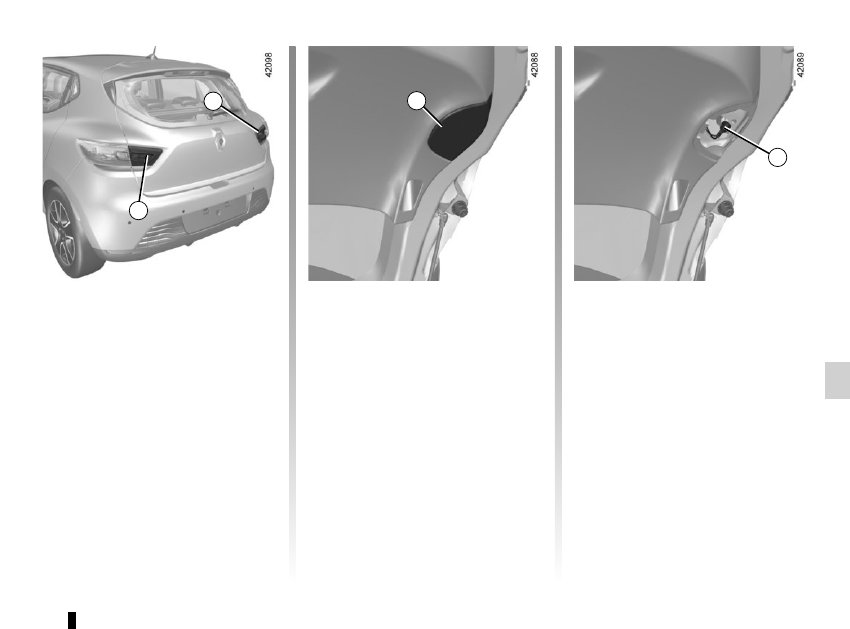

Five door and estate versions

Fog lights 10 and reversing lights 11
Open the boot lid.
Unclip cover 12 and remove it.
Turn bulb holder 13 fully anticlockwise

and change the bulb.
Note: depending on the vehicle, the re-

versing and fog lights are inverted.

To reassemble, proceed in the reverse

order to removal.
When the bulb has been changed,

make sure you refit cover 12 correctly.
Reversing light

Type of bulb: H21W.
Rear fog light

Type of bulb: H21W.

13

12

10

11

5.22

14

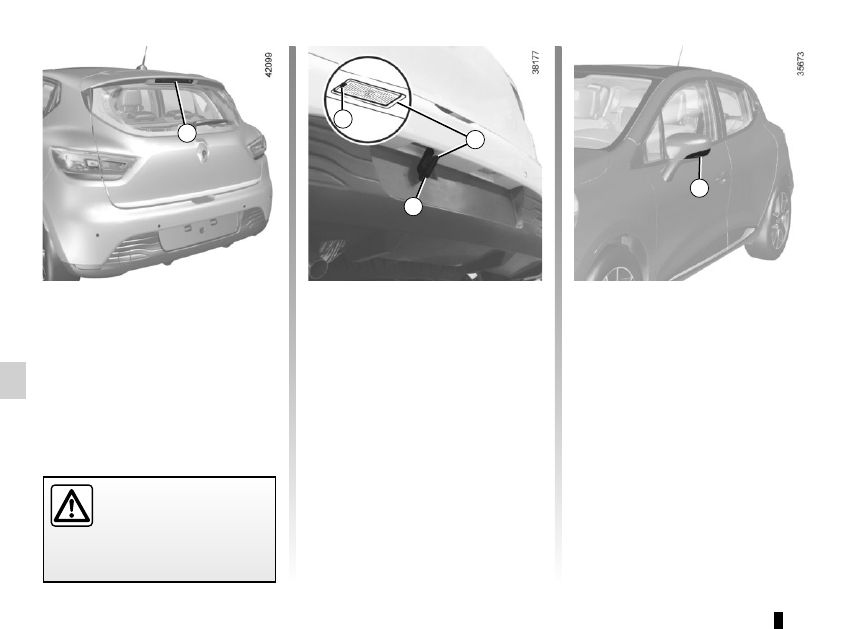

High level brake light 14
Consult an approved dealer.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

REAR LIGHTS AND SIDE LIGHTS: changing bulbs

(4/4)

17

Number plate lights 15
– Unclip light 15 by pressing tab 16;
–  remove the light cover to gain access

to the bulb.

Bulb type: W5W.

Indicator lights 17
Consult an approved dealer.

16

15

16

5.23

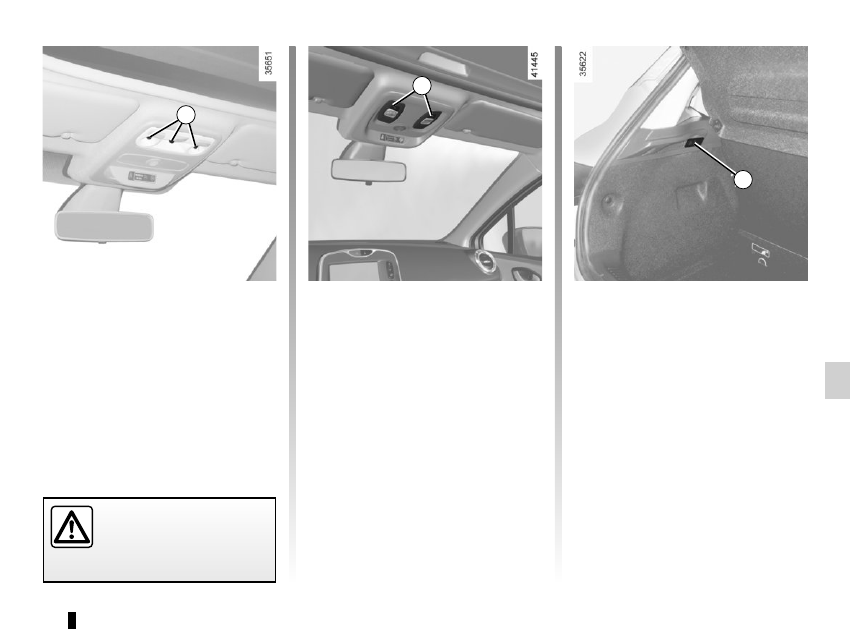

Courtesy light

(depending on vehicle)

Courtesy light fitted with diffusers 1
Unclip the lens (using a flat-blade

screwdriver or similar).
Remove the bulb concerned.
Bulb type: W5W.

INTERIOR LIGHTING: changing bulbs

(1/2)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

1

3

Luggage compartment light

Unclip the light 3 by pressing the tab on

its left side (using a flat-bladed screw-

driver or similar).
Remove the bulb concerned.
Bulb type: W5W.

Courtesy light fitted with diffusers 2
Consult an approved dealer.

2

5.24

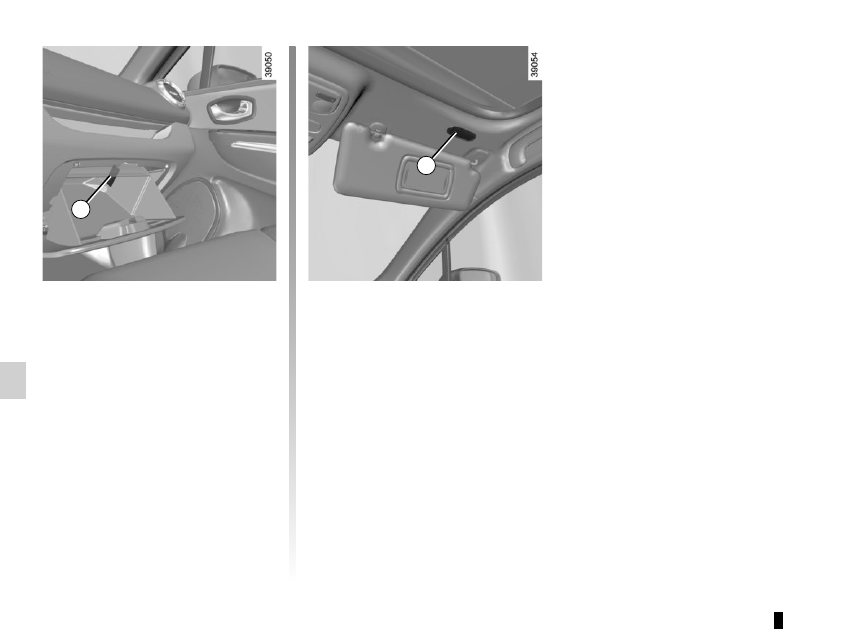

Courtesy mirrors

Unclip the light 5 by pressing the tab on

its left side (using a flat-bladed screw-

driver or similar).
Remove the bulb concerned.
Bulb type: W5W.

INTERIOR LIGHTING: changing bulbs

(2/2)

5

Glovebox light

Unclip the light 4 by pressing the tab on

its left side (using a flat-bladed screw-

driver or similar).
Remove the bulb concerned.
Bulb type: W5W.

Ambient lighting

Please consult an authorised dealer.

4

5.25

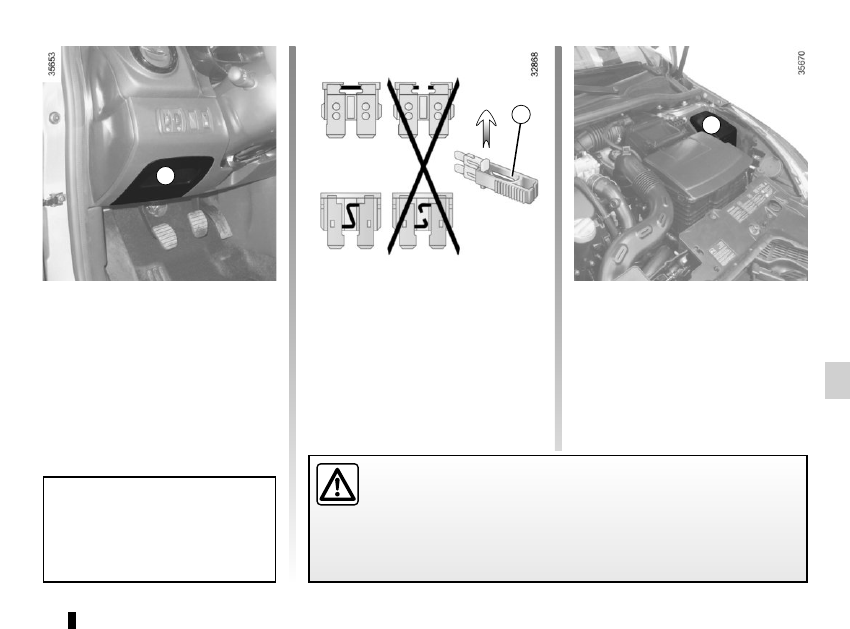

Clip 1
Remove the fuse using tweezers 1, lo-

cated at the back of flap A.

To remove the fuse from the tweezers,

slide the fuse to the side.

It is not advisable to use the free fuse

locations.

Fuses in passenger compartment A

If any electrical component does not

work, check the condition of the fuses.

Unclip the access flap A.

FUSES

(1/5)

Fuses in engine compartment B

Some functions are protected by fuses

located in the engine compartment

(unit B).

However, because of their reduced

accessibility,  we advise you to have

your fuses replaced by an approved

Dealer.

1

A

B

To comply with current legislation, or

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

Check the fuse in question and replace it, if necessary, by a fuse of the

same rating.
If a fuse is fitted with too high a rating, it may cause the electrical circuit

to overheat (risk of fire) in the event of an item of equipment using an ex-

cessive amount of current.

5.26

FUSES

(2/5)

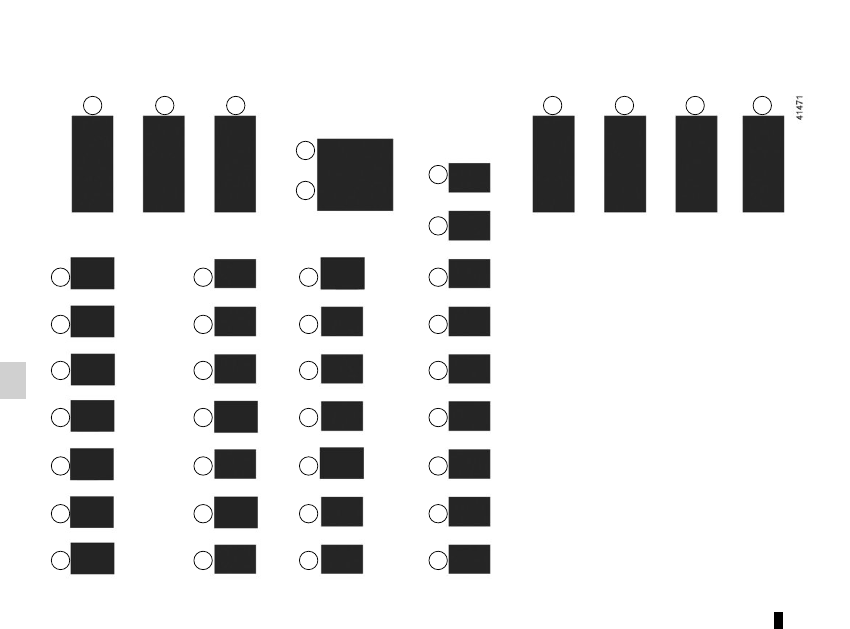

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)

1

8

15

24

2

9

16

25

3

10

17

26

4

11

18

27

5

12

19

28

29

6

13

20

22

30

7

14

21

23

32

31

33

34

35

36

37

38

39

5.27

Number

Allocation

1

Front windscreen wiper,

controls under steering

wheel

2

Front left-hand daytime

running lights,

right-hand side lights,

left-hand main beam

headlight,

right-hand dipped beam

headlight,

front fog lights

3

Interior lighting,

registration plate lighting,

fog lights

4

Right-hand side lights,

rear side lights

5

Left-hand side lights,

front side lights

6

Dipped beams,

front right-hand daytime

running light,



left-hand side lights,

right-hand main beam

headlight

FUSES

(3/5)

Number

Allocation

7

Left-hand dipped beam

headlight

8

Right-hand main beam

headlight

9

Left-hand main beam

headlight,

steering column controls

10

Steering column controls,

speed limiter/cruise control,

interior rear-view mirror,

belt warning module,

Parking sensor,

additional heating,

electric headlight beam

adjustment,

rear screen de-icer

11

Central door locking,

rain and light sensor,

steering wheel angle

sensor,

vehicle start button,



electric rear windows

Number

Allocation

12

Courtesy light,

luggage compartment light,

air conditioning,

electric windows

13

ABS-ESC,

brake switch

14

Steering column controls,

brake switch

15

Horn

16

Rear fog lights

17

Cigarette lighter

18

Radio and multimedia,



diagnostic socket

19

Power-assisted steering

20

GPL

5.28

FUSES

(4/5)

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)

1

8

15

24

2

9

16

25

3

10

17

26

4

11

18

27

5

12

19

28

29

6

13

20

22

30

7

14

21

23

32

31

33

34

35

36

37

38

39

5.29

Number

Allocation

21

Airbag,

electric locking of steering

column

22

Injection,

starting,

fuel pump

23

Brake switch,

rear screen wiper,

passenger compartment

ECU

24

Daytime running lights

25

Electric headlight beam

adjustment,

rear screen,

heating,

parking sensor,

cruise control,

radio,

heated seat,



seat belt warning

26

Automatic gearbox

FUSES

(5/5)

Number

Allocation

27

Reversing lights, rear wiper,

passenger compartment

ECU, automatic gearbox

28

Instrument panel

29

Steering column controls,

Alarm

30

Air conditioning,

steering column controls,

energy ECU

31

Wipers,

rear reversing lights,

energy ECU

32

Central locking of opening

elements

33

Direction indicator lights

34

Passenger compartment

ECU,

hands-free access

Number

Allocation

35

interior lighting, electric

windows, air conditioning,

electric door mirrors, brake

lights,

ABS,

passenger compartment

ECU

36

Towbar socket

37

Heated seats

38

Heated rear screen

39

Electric door mirror















Content   ..  11  12  13  14   ..
