Renault Clio (2017 year). Instruction - part 10





3.13

One-touch mode

Depending on the vehicle, this mode

works in addition to the operation of the

electric windows described previously.

It is only fitted to the driver’s window.

Briefly press or pull switch 1 fully: the

window is fully lowered or raised.

Pressing the switch again stops the

window moving.
Note: If the driver’s window detects re-

sistance when closing (e.g. tree branch,

etc.), it stops and then lowers again by

a few centimetres.

ELECTRIC WINDOWS

(2/2)

Manual window winder

controls

Turn handle 7.

7

Operating faults

In case of a fault when closing a window,

the system reverts to normal mode:

pull the switch concerned up as often

as necessary to fully close the window

(the window will close gradually), hold

the switch (still on the closure side) for

one second then lower and raise the

window fully to reinitialise the system.
If necessary, contact your authorised

dealer.

When closing the windows,

ensure that no part of the

body (arm, hand, etc.) is

protruding from the vehicle.

Risk of serious injury.

3.14

FIXED SUNROOF/SUN VISOR

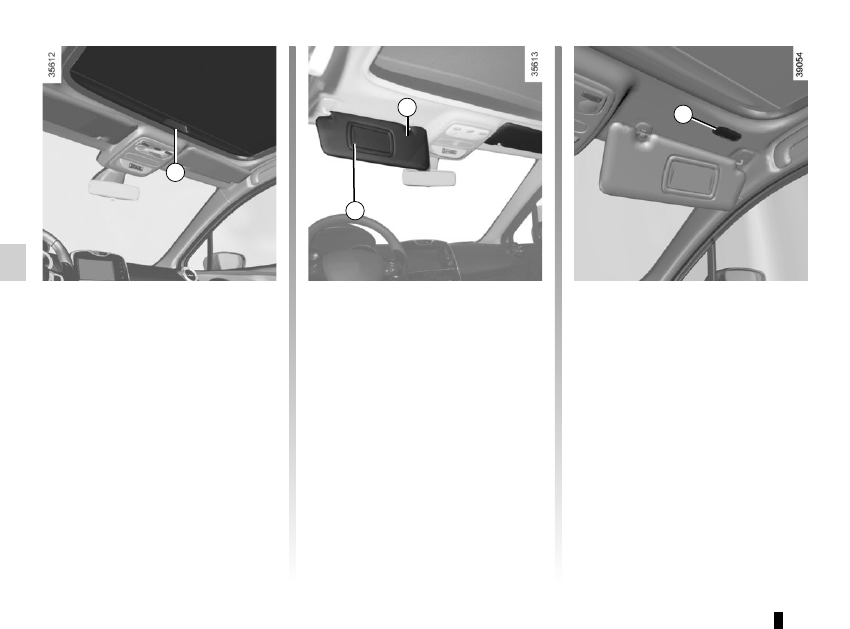

Front sun visor

Lower sun visor 2.

Courtesy mirrors

Slide cover 3.
Depending on the vehicle, the light 4

comes on automatically.

2

3

Fixed sunroof blind

–  Opening: push handle 1 upwards,

then guide it until it opens fully;

–  Closing: pull the handle 1 until it

clicks into the catch.

If the blind becomes skewed when

opening or closing, close fully and then

fully open the blind.

1

4

3.15

Unlocking and opening the doors

or tailgate switches on the timed

courtesy lights and lights.

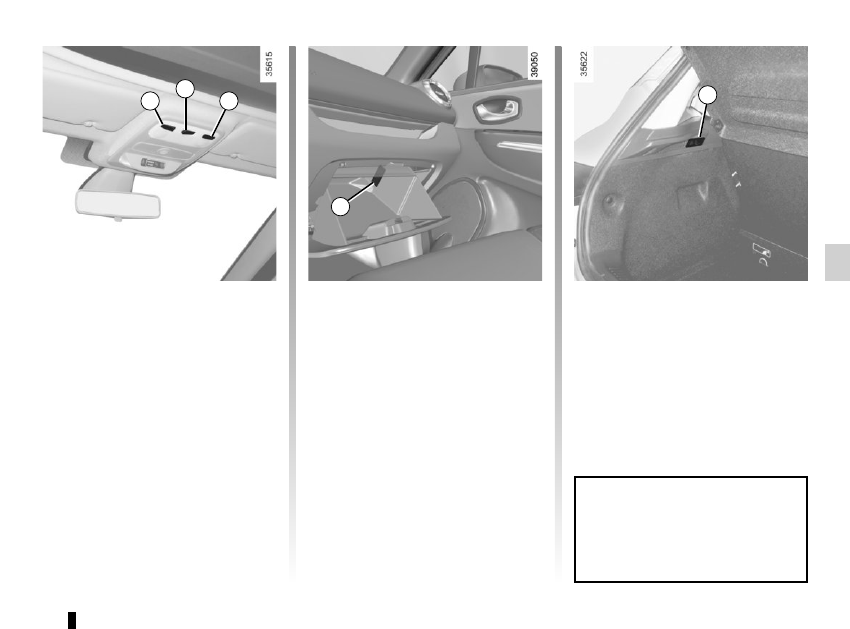

Boot light 5

Light  5 comes on when the boot is

opened.

Courtesy light

Press switch 2 for:
– permanent lighting;
–  intermittent lighting, which comes

on when a door is opened. It only

switches off after a time delay and

when the doors concerned have

been closed correctly;

–  lighting switches off immediately.

Map reading lights

Press switch 1 for the driver, 3 for the

front passenger.

INTERIOR LIGHTING

1

2

3

5

Glovebox light 4

Light  4 comes on when the cover is

opened.

4

3.16

Nothing should be placed

on the floor area in front of

the driver as such objects

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

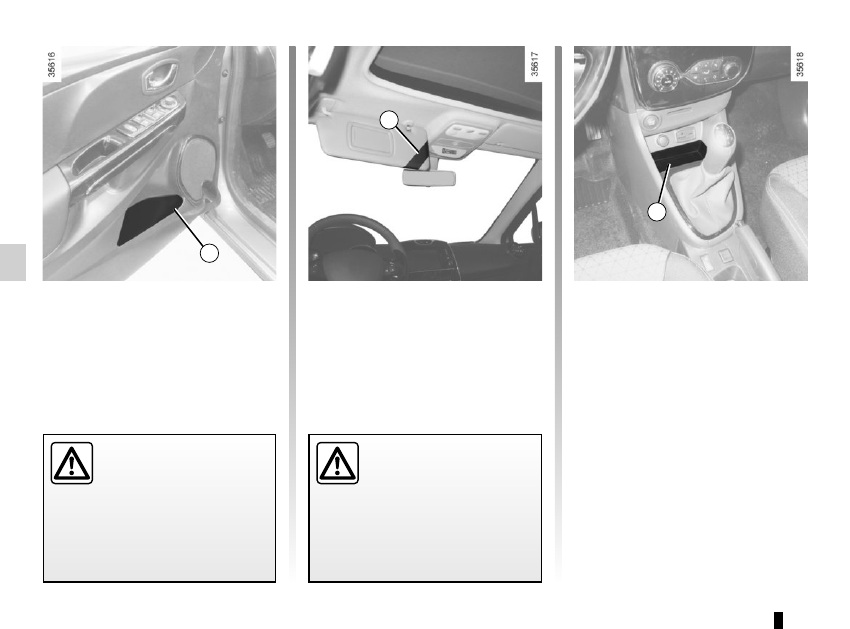

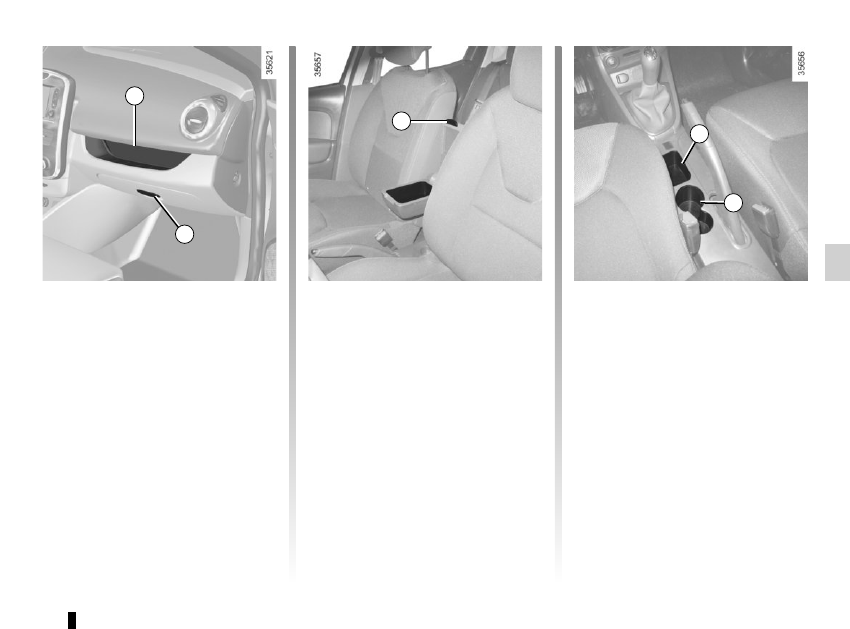

Front door storage pockets 1

They can hold a 1.5 litre bottle.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(1/4)

1

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

2

Sun visor storage 2

This can be used for storing motorway

tickets, cards, etc.

Centre console storage

compartment 3

3

3.17

Passenger storage

compartment 4

Passenger storage

compartment 5

Pull handle 5 to open it.

5

PASSENGER COMPARTMENT STORAGE, FITTINGS

(2/4)

Armrest storage

compartment

With the armrest in its lowered position,

press button 6 and lift armrest cover.

6

4

Storage compartment 7

Cup holders 8

This can be used for storing a mobile

ashtray, cup holder, etc.

7

8

3.18

PASSENGER COMPARTMENT STORAGE, FITTINGS

(3/4)

9

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of injury if hot liquid

escapes.

Rear centre console storage

compartment 9

This can be used for storing a mobile

ashtray, cup holder, etc.

Front seat storage pockets 10

10

3.19

11

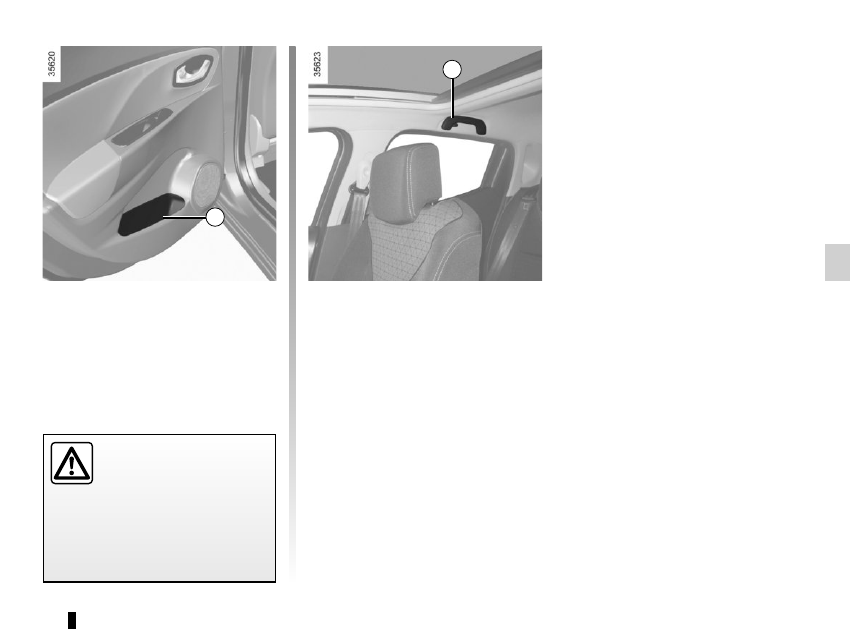

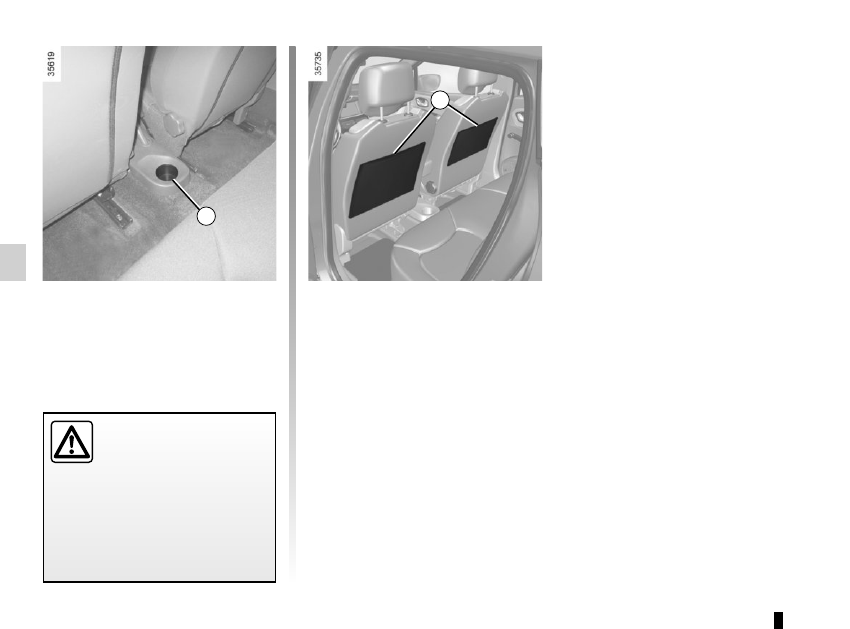

Rear door storage

compartment 11

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

12

Grab handle 12

This offers support and can be held

when the vehicle is being driven. Do

not use it for getting into or out of the

vehicle.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(4/4)

3.20

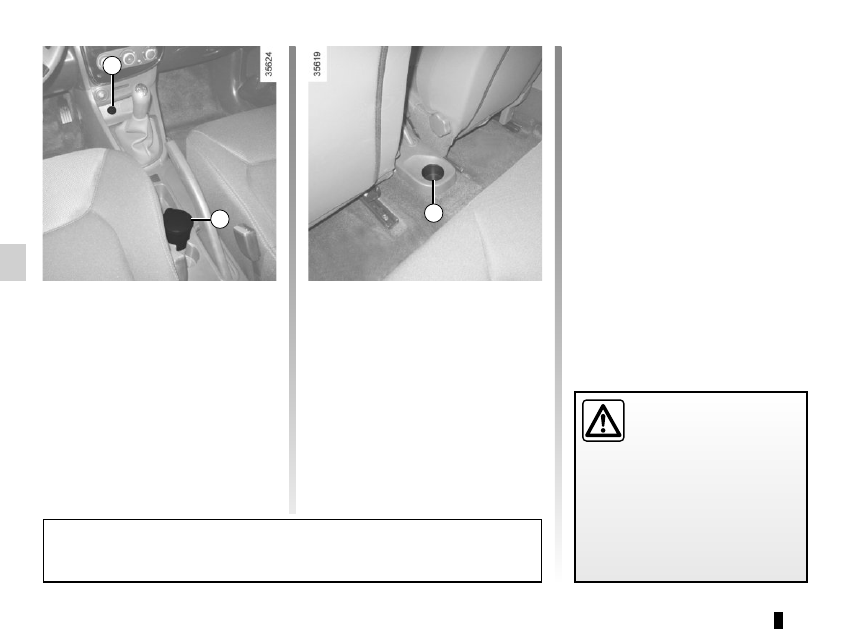

Accessories socket 1

It is provided for connecting accessories

approved by our Technical Department.

Cigarette lighter 1

With the ignition on, push in the ciga-

rette lighter 1. It will spring back with a

click when it is ready. Pull it out to use.
After use, replace it without pushing it

all the way in.

Ashtray

It can be housed in either position 2

or 3.

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET

3

Connect accessories with

a maximum power of

120 watts (12 V) only.

When several accessory

sockets are used at the same time,

the total power of the connected

accessories must not exceed

180 watts.

Fire hazard.

If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-

tained from an authorised dealer.

1

2

3.21

The headrest is a safety

component; check that it is

fitted and in the correct po-

sition. The top of the head-

rest should be as close as possible

to the top of the head.

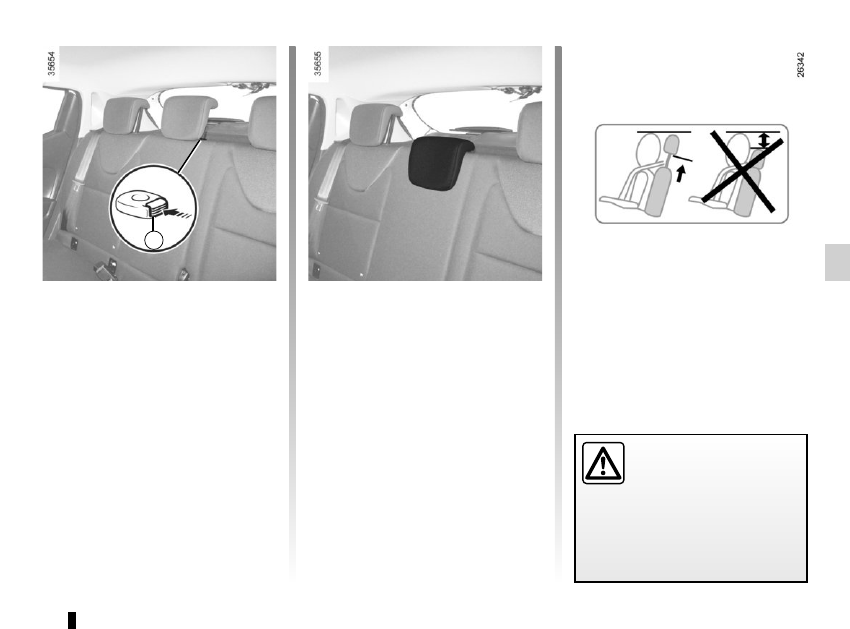

To raise the headrest

Raise the headrest as far as it will go,

then press button A and remove the

headrest.

To refit the headrest

Enter the rods in their housing and

push down the headrest until it locks to

use it in the high position. Check that it

is correctly locked.

Position for use

Raise the headrest as far as possible to

use it in the high position. Check that it

is correctly locked.

Storage position

Press button A and lower the headrest

completely.
When the headrest is set at the

lowest position, this is for storage

only. It should not be in this position

when a seat is occupied.

REAR HEAD RESTS

A

3.22

To fold down the seatback
Ensure that the front seats are far

enough forward.
Lower the headrests fully.
Place the seat belts in their guides A.
Press button 1 and lower the seat-

back B.

Before moving the seatback, put

the seat belt in belt guide A to avoid

damaging it.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

The configuration of the two-seat

bench with the small seatback B

pulled down, does not allow the

central seat to be used as it would

be impossible to buckle the seat belt

(belt buckles inaccessible).

REAR BENCH SEAT: functions

B

A

1

To replace the seatback, proceed in

the reverse order to removal.
Refit the seatback and click it back into

place.

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

3.23

The attaching of any carry-

ing device (bike rack, lug-

gage box etc.) resting on

the luggage compartment

lid is prohibited. To install a carrying

device on your vehicle, contact an

Approved Dealer.

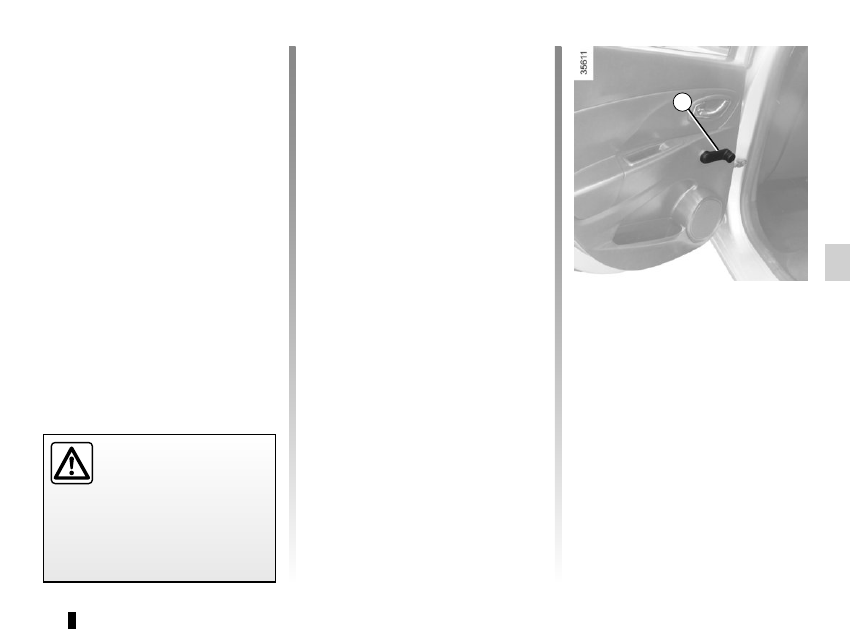

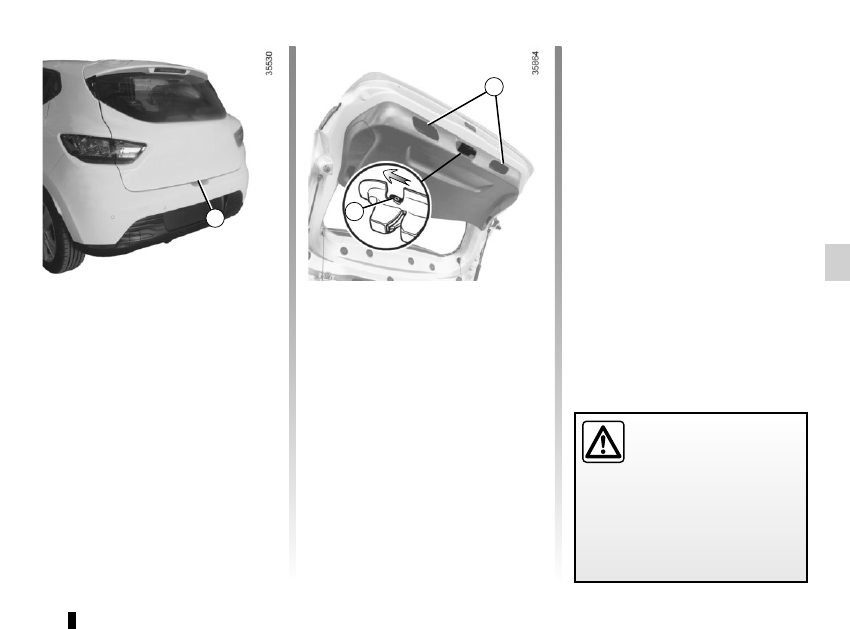

Opening the doors manually

from the inside

If it is impossible to unlock the tailgate,

it can be done manually from inside:
–  access the luggage compartment by

tilting the rear bench seatback(s),

–  insert a pencil or similar object in

recess 3 and slide the unit as shown

in the illustration;

–  push the tailgate to open it.

BOOT

To open

Press button 1 and lift the tailgate.

To close

Lower the tailgate using the handles 2

inside the tailgate to help you.

1

3

2

3.24

Utility version

Unclip mountings 3 on either side of the

parcel shelf, then remove it via the boot.
To refit it, proceed in the reverse order

to removal.

Do not place any heavy or

hard object on the parcel

shelf. These may pose a

risk to the vehicle occu-

pants if the driver has to brake sud-

denly or if the vehicle is involved in

an accident.

3

REAR PARCEL SHELF

A

1

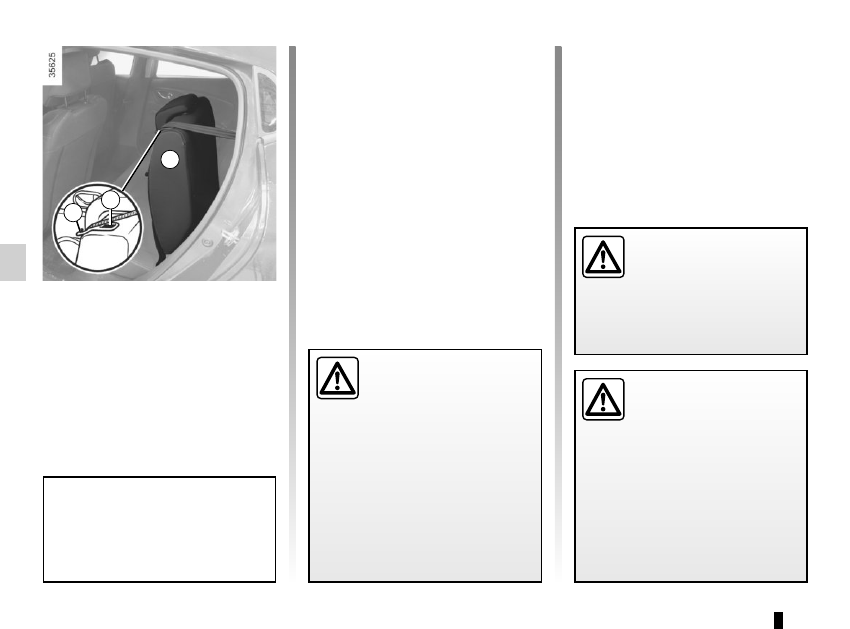

Removal

–  Lower the rear headrests;
–  unhook the two cords 1 from the boot

door;

–  lift the parcel shelf 2 to half height in

order to unclip it (movement A);

–  push the shelf in (B movement) and

turn it;

–  pull the shelf towards you.
To refit, proceed in the reverse order to

removal.

A

2

2

B

3.25

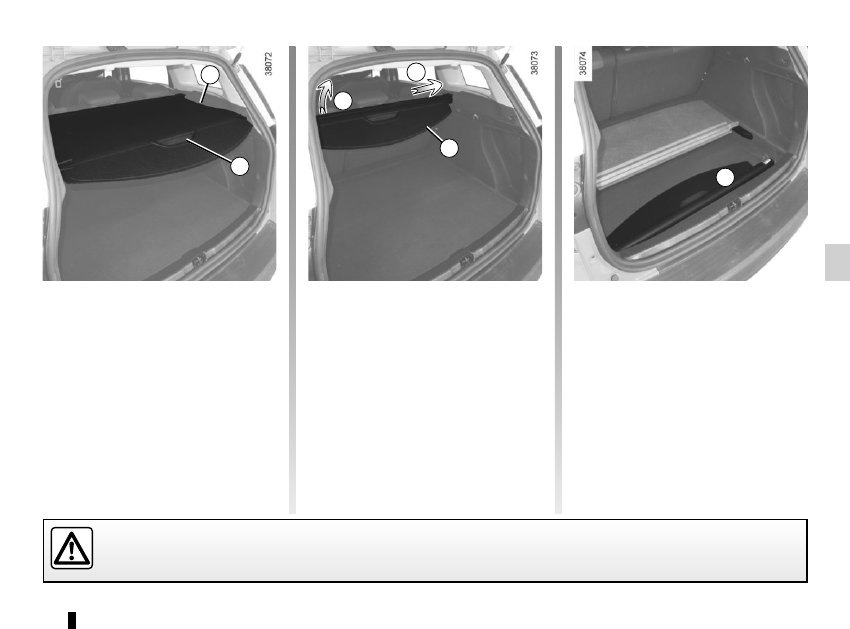

To remove the flexible

section of the luggage

compartment cover 1

Pull handle 2 gently to release the pins

from their mounting points located on

each side of the luggage boot.
Guide the luggage cover onto the roller.

LUGGAGE COMPARTMENT COVER: estate version

Removing the luggage

compartment cover

Using the handle 2, push the luggage

cover to the right (movement A) and lift

the left-hand side (movement B) in the

inertia reel.
To refit the luggage cover, insert the

right-hand side, then push it to the right

(movement A) and lower the left-hand

side of the inertia reel into its housing.

Luggage compartment cover

storage 1

Lift the mobile floor (please refer to the

information on “Boot storage space and

fittings” in section 3).
Store the luggage compartment cover

by inserting it, one side at a time.
Replace the mobile floor.

1

2

B

A

1

1

Do not place any heavy or solid objects on the luggage cover. These may pose a risk to the vehicle occupants if the

driver has to brake suddenly or if the vehicle is involved in an accident.

3.26

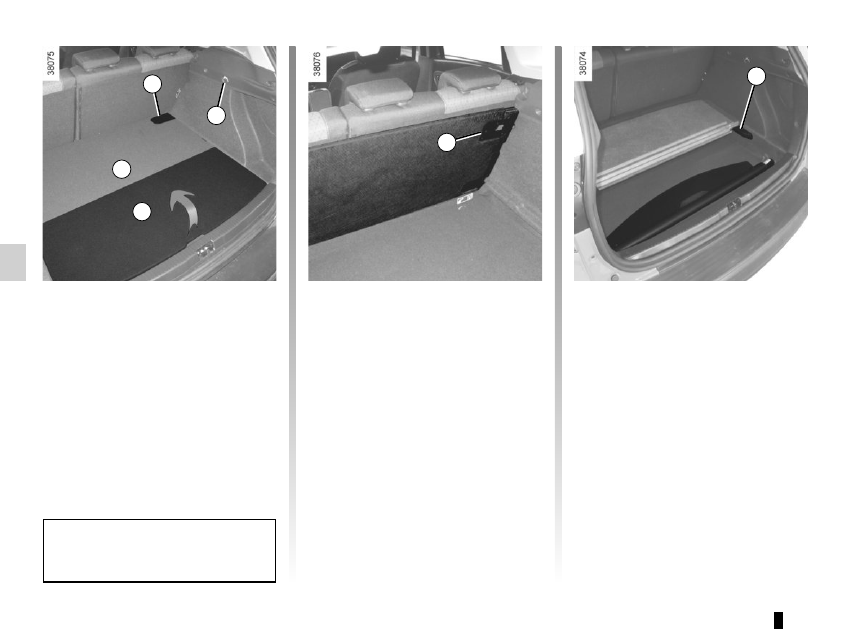

Mobile floor

When fitted to the vehicle, it can be

used to make loading easier.
Note: if you need to access the ISOFIX

ring and/or the net ring at the bottom of

the boot, open flap 3.

BOOT ARRANGEMENTS

Maximum weight for the mobile

floor: 100 kg evenly distributed.

Movable floor storage
– Lower section 1 onto section 2;
– lift the assembly and position it

against the back of the rear bench

seat;

–  push the catch 5 to lock the mobile

floor in the folded position.

Removing the mobile floor
– Lower section 1 onto section 2;
–  remove the assembly.

Repositioning the mobile floor
Position it in the boot, using the 6 run-

ners provided.

Bag hooks 4

Maximum weight per hook: 5 kg.

2

5

6

3

1

4

3.27

Always position the heavi-

est items directly on the

floor. Use the lashing

points 1 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such a

way that no items will be thrown for-

ward and strike the occupants if the

driver has to brake suddenly. Fasten

the rear seat belts, even if the seats

are not occupied.

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT

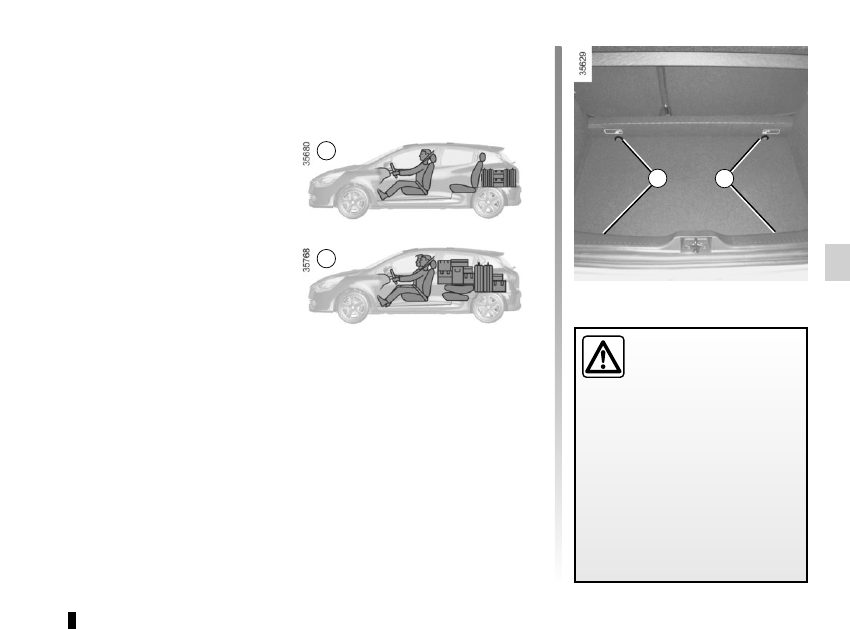

Always position the objects transported

so that the largest surface is against:

–  The rear bench seatback for normal

loads (example A).

– The front seatbacks with the rear

seatbacks folded down, as is the case

for maximum loads (example B).

If you have to place objects on the folded

seatback, it is necessary that you lower

the headrests before folding the seat-

back so that it can be folded as flat as

possible against the seat.

1

1

B

A

3.28

Permissible nose weight, maxi-

mum permissible towing weight,

braked and unbraked: refer to

the information on “Weights” in

Section 6.
Choice and fitting of towing

equipment
Maximum weight of towing equip-

ment:

–  18 kg (5-seater and utility ver-

sions);

–  21 kg (estate version).
For fitting and conditions of use,

refer to the equipment’s fitting in-

structions.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

TRANSPORTING OBJECTS towbar

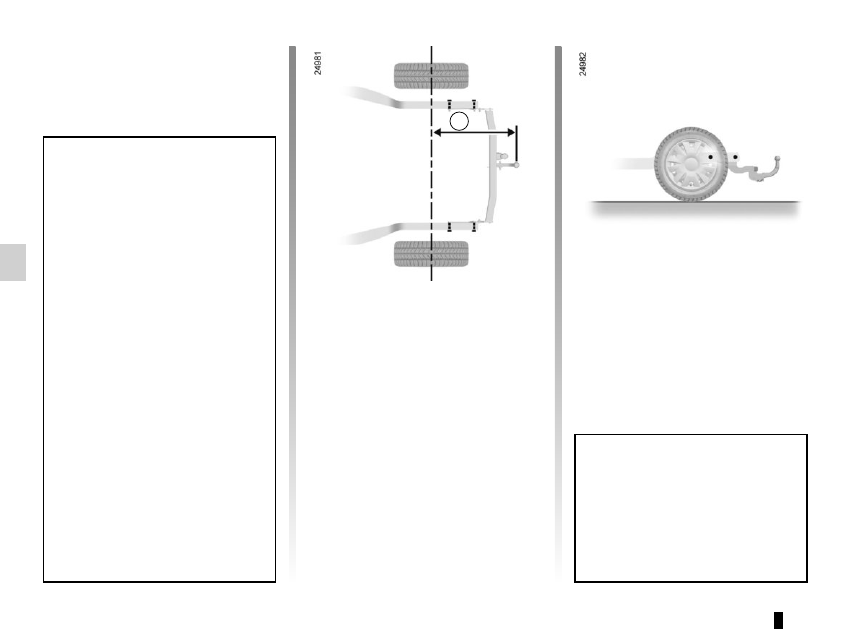

A

A: 747 mm (5-door and utility versions).
A: 951 mm (estate version).

If the towbar ball obscures the regis-

tration plate or the rear fog lights, it

should be removed when not in use.
In all cases, comply with local leg-

islation.















Content   ..  8  9  10  11   ..
