1.34

CHILD SAFETY: choosing a child/baby seat mounting

(1/2)

There are two ways of attaching child

seats: via the seat belt or using the

ISOFIX system.

Attachment via the seat belt

The seat belt must be adjusted to

ensure that it is effective in the event of

harsh braking or an impact.

Ensure that the strap paths indicated

by the child seat manufacturer are re-

spected.

Always check that the seat belt is cor-

rectly fastened by pulling it up, then

pulling it out fully whilst pressing on the

child seat.

Check that the seat is correctly held by

moving it from side to side and back

to front: the seat should remain firmly

fixed.

Check that the child seat has not been

installed at an angle and that it is not

resting against a window.

Do not use the child seat

if it may unfasten the seat

belt restraining it: the base

of the seat must not rest on

the buckle and/or catch of the seat

belt.

The seat belt must never

be twisted or the tension

relieved. Never pass the

shoulder strap under the

arm or behind the back.

Check that the seat belt has not

been damaged by sharp edges.

If the seat belt does not operate nor-

mally, it will not protect the child.

Consult an approved dealer. Do not

use this seat until the seat belt has

been repaired.

No modifications may be

made to the component

parts of the restraint system

(seat belts, ISOFIX and

seats and their mountings) originally

fitted.

Attachment using the ISOFIX

system
Authorised ISOFIX child seats are ap-

proved in accordance with regulation

ECE-R44 in one of the three following

cases:

–  ISOFIXuniversal 3-point forward-fac-

ing seat;

–  ISOFIXsemi-universal 2-point seat;

– specific.
For the latter two, check that your child

seat can be installed by consulting the

list of compatible vehicles.
Attach the child seat with the ISOFIX

locks, if these are provided. The ISOFIX

system allows quick, easy, safe fitting.
The ISOFIX system consists of 2 rings

and, in some cases, a third ring.

Before using an ISOFIX

child seat that you pur-

chased for another vehicle,

check that its installation is

authorised. Consult the list of ve-

hicles which can be fitted with the

seat from the equipment manufac-

turer.

1.35

CHILD SAFETY: choosing a child/baby seat mounting

(2/2)

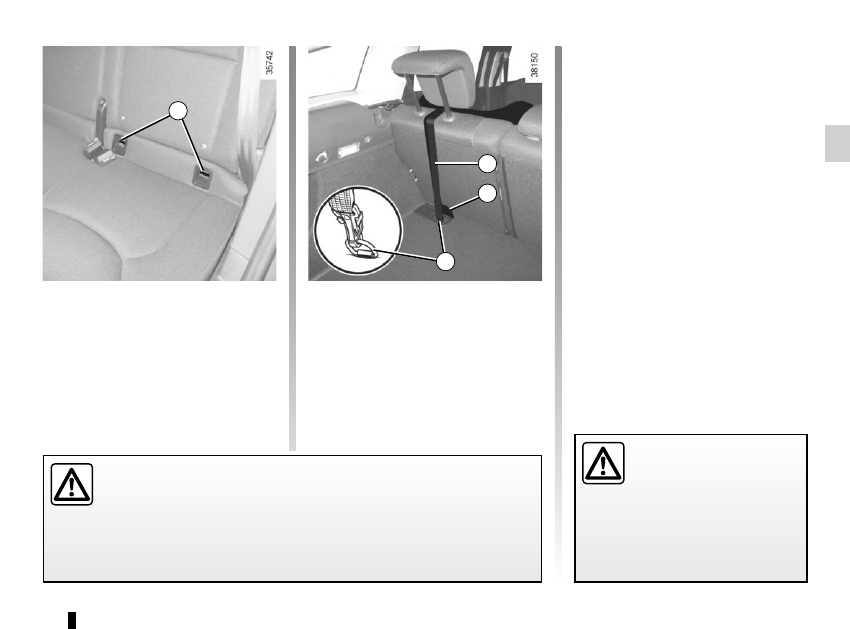

The two rings 1 are located between

the seatback and the seat base of the

seat and are identified by a marking.
The third ring 4 is used to attach the

upper strap on some child seats.

Rear seats

The  2 belt should be positioned be-

tween the seatback and the rear parcel

shelf. To do this, remove the rear parcel

shelf (refer to the information on the

“Rear parcel shelf” in Section 3). Attach

the hook to one of the 4 rings, identi-
fied using the

 symbol. Depending

on the vehicle, unclip cover 3 from the

mobile floor to access the ring.

2

Check that the seatback

of the forward-facing child

seat is in contact with the

back of the vehicle seat.

In this case, the child seat may not

always rest on the base of the vehi-

cle seat.

1

The ISOFIX anchorage points have been exclusively designed for child

seats with the ISOFIX system. Never fit a different type of child seat, seat

belt or other objects to these anchorage points.

Check that nothing is obstructing the anchorage points.

If your vehicle has been involved in a road accident, have the ISOFIX anchorage

points checked and replace your child seat.

Pull the belt 2 so that the back of the

child seat comes into contact with the

vehicle seatback.

3

4

1.36

CHILD SAFETY: fitting a child seat, general information

(1/2)

Some seats are not suitable for fitting

child seats. The diagram on the follow-

ing page shows you how to attach a

child seat.
The types of child seat indicated may

not be available. Before using a differ-

ent child seat, check with the manufac-

turer that it can be fitted.

Ensure that the child seat

or the child’s feet do not

prevent the front seat from

locking correctly. Refer to

the information on the “Front seat”

in Section 1.

Check that when installing the child

seat in the vehicle it is not at risk of

coming loose from its base.

If you have to remove the headrest,

check that it is correctly stored so

that it does not come loose under

harsh braking or impact.

Always attach the child seat to the

vehicle even if it is not in use so that

it does not come loose under harsh

braking or impact.

RISK OF DEATH OR

SERIOUS INJURY: Before

installing a child seat on the

front passenger seat, check

that the airbag has been deacti-

vated (please refer to “Child safety:

front passenger airbag deactivation

and activation” in Section 1).

In the front seat
The laws concerning children travel-

ling in the front passenger seat differ in

every country. Consult the legislation in

force and follow the indications on the

diagram on the following page.
Before fitting a child seat in this seat (if

authorised):
–  lower the seat belt as far as possible;
–  move the seat as far back as possi-

ble;

–  gently tilt the seatback away from

vertical (approximately 25°);

–  on equipped vehicles, raise the seat

base as far as possible.

In all situations, reinsert the headrest to

its full extent so that it does not interfere

with the child seat (see the information

on “Front headrests” in Section 1);

After installing the child seat, if neces-

sary, the seat may be advanced (so as

to leave enough space in the rear seats

for passengers or other child seats).

For a rear-facing child seat, do not let

it touch the dashboard or move it to the

furthest forward position.
Do not change other settings after in-

stalling the child seat.

1.37

Rear centre seat
Check that the belt is suitable for secu-

ring your child seat. Consult an appro-

ved dealer.

Fit the child seat in a rear

seat wherever possible.

In the rear side seat
A carrycot can be installed across the

vehicle and will take up at least two

seats.

Position the child with their feet nearest

the door.

Move the front seat as far forward as

possible to install a rear-facing child

seat, then move back the seat in front

as far as it will go, although without al-

lowing it to come into contact with the

child seat.
For the safety of the child in the for-

ward-facing seat, do not move the seat

in front back past the middle of the

runner, do not tilt the seatback too far

(maximum of 25°) and raise the seat as

much as possible.
In all situations, remove the rear head-

rests (refer to the information on the

“Rear headrests” in Section 3). This

must be done before fitting the child

seat.
Check that the forward-facing child seat

is resting against the back of the vehi-

cle seat.

CHILD SAFETY: fitting a child seat, general information

(2/2)

A child seat with floor sup-

ports must never be ins-

talled on the rear centre

seat. RISK OF DEATH OR

SERIOUS INJURY.

1.38

CHILD SEATS: attachment by seat belt

(1/5)

(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that

the airbag has been deactivated (please refer to “Child safety: front passenger airbag deactivation and activation” in

Section 1).

Five door and estate versions

Type of child seat

Weight of the child

Front passenger

seat (1) (2)

Rear side seats (6)

Rear centre seat

C a r r y c o t   f i t t e d

across the vehicle

Group 0

< 10 kg

X

U (3)

X

Rear-facing shell

seat

Groups 0 or 0 +

< 10 kg and < 13 kg

U

U (4)

U (4)

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to 18 kg

U

U (4)

U (4)

Forward-facing seat

Group 1

9 to 18 kg

X

U (5)

U (5)

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to

36 kg

X

U (5)

U (5)

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

1.39

CHILD SEATS: attachment by seat belt

(2/5)

X =  Seat not suitable for fitting child seats of this type.
U  =  Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(2)  Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(3)  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(4)  Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(5)  Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not

recline the seatback more than 25°.

(6)  Make sure that the child seat or the child’s feet do not prevent the front seat from locking correctly. Refer to the information on

the “Front seat” in Section 1.

1.40

CHILD SEATS: attachment by seat belt

(3/5)

³

  Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

²

Seat not suitable for fitting

child seats.

Child seat attached using the belt

¬

  Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY: Before

installing a child seat on the

front passenger seat, check

that the airbag has been deacti-

vated (please refer to “Child safety:

front passenger airbag deactivation

and activation” in Section 1).

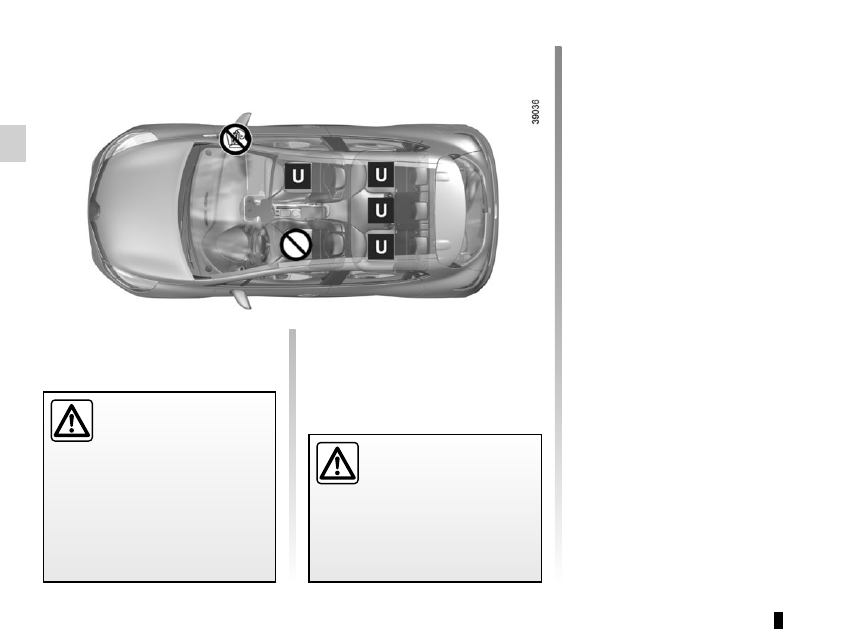

Visual installation of five door and estate versions

1.41

³

  Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

²

Seat not suitable for fitting

child seats.

Child seat attached using the belt

¬

  Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY: Before

installing a child seat on the

front passenger seat, check

that the airbag has been deacti-

vated (please refer to “Child safety:

front passenger airbag deactivation

and activation” in Section 1).

CHILD SEATS: attachment by seat belt

(4/5)

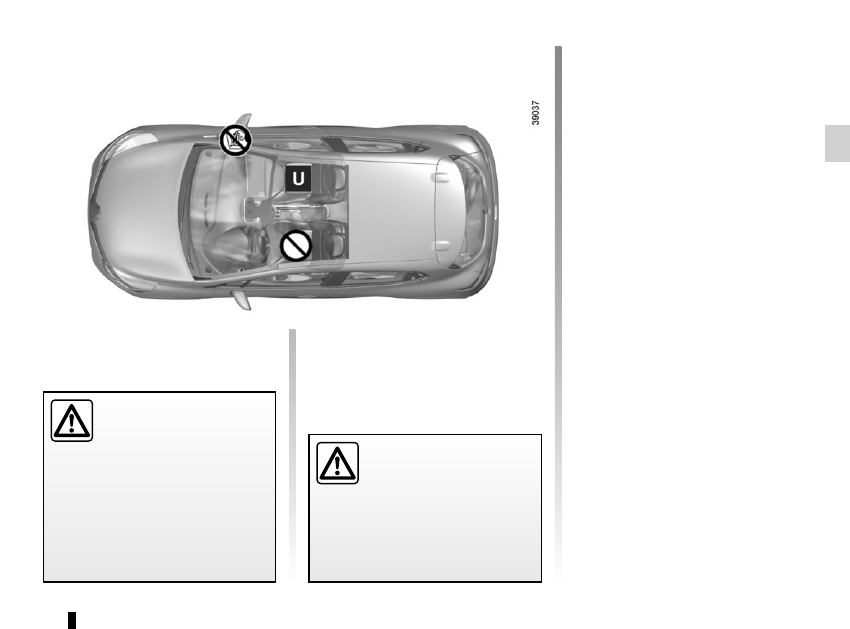

View of the utility version installation

1.42

Utility version

Type of child seat

Weight of the child

Front passenger

seat (1) (2)

R e a r - f a c i n g   s h e l l

seat

Groups 0 or 0 +

< 10 kg and < 13 kg

U

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to 18 kg

U

Forward-facing seat

Group 1

9 to 18 kg

U

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to 36 kg

U

(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child

seat on the front passenger seat, check that the airbag has been deacti-

vated (please refer to “Child safety: front passenger airbag deactivation

and activation” in Section 1).

The table below summarises the information already shown on the diagram on

the previous page, to ensure the regulations in force are respected.

U  =  Seat which allows a child seat with

“Universal” approval to be installed

using a seat belt; check that it can

be fitted.

(2)  Raise the seat to the maximum and

position it as far back as possible,

tilting the seatback slightly (approxi-

mately 25°).

CHILD SEATS: attachment by seat belt

(5/5)

1.43

CHILD SEATS: attachment using the ISOFIX system

(1/5)

Child seat fitted using the  ISOFIX

mounting

ü

 Seat which allows a ISOFIX child

seat to be attached.

±

 The rear seats are fitted with

an anchorage point which allows a for-

ward-facing ISOFIX child seat with uni-

versal approval to be attached. The an-

chorage points are located in the boot

for the rear seats, and on the seat back

for the front seat.
The size of the ISOFIX child seat is in-

dicated by a letter:
–  A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

–  C and D: shell seat or rear-facing

seats in group 0+ (less than 13 kg)

or group 1 (9 to 18 kg);

–  E: rear-facing shell seats in group 0

(less than 10 kg) or 0+ (less than

13 kg);

–  F and G: cots in group 0 (less than

10 kg).

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

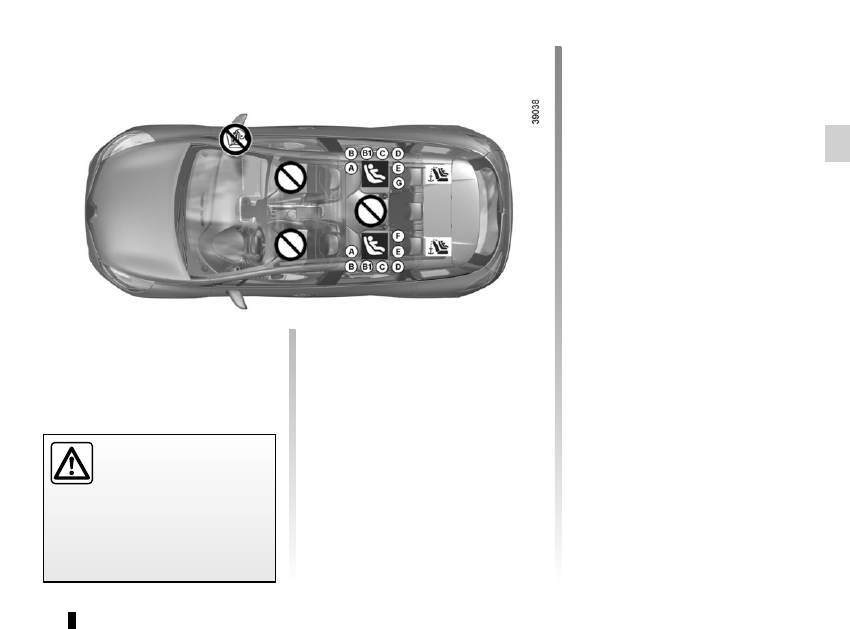

Visual installation of five door and estate versions

²

Seat which does not allow a

child seat to be fitted.

1.44

Five door and estate versions

Type of child seat

Weight of

the child

Seat size ISOFIX

Front passenger

seat

Rear side seats (4)

Rear centre seat

C a r r y c o t   f i t t e d

across the vehicle

Group 0

< 10 kg

F, G

X

IL (1)

X

Rear-facing shell

seat

Groups 0 or 0 +

< 10 kg and

< 13 kg

E

X

IL (2)

X

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to

18 kg

C, D

X

IL (2)

X

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

X

IUF - IL (3)

X

Booster seat

Groups 2 and 3

15 to 25 kg and

22 to 36 kg

X

X

X

CHILD SEATS: attachment using the ISOFIX system

(2/5)

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

1.45

CHILD SEATS: attachment using the ISOFIX system

(3/5)

X =  Seat not suitable for fitting child seats ISOFIX.
IUF/IL =   On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

(1)  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(2)  Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(3)  Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not

recline the seatback more than 25°.

(4)  Make sure that the child seat or the child’s feet do not prevent the front seat from locking correctly. Refer to the information on

the “Front seat” in Section 1.

1.46

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

CHILD SEATS: attachment using the ISOFIX system

(4/5)

²

Seat which does not allow a

child seat to be fitted.

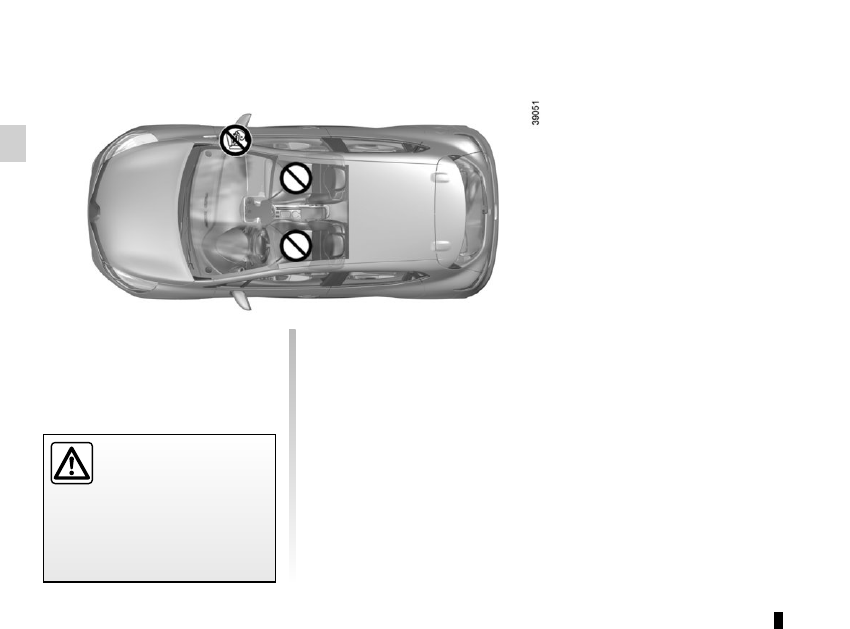

View of the utility version installation

1.47

Utility version

Type of child seat

Weight of the child

Seat size ISOFIX

Front passenger seat

Rear-facing shell seat

Groups 0 or 0 +

< 10 kg and < 13 kg

E

X

Shell seat/rear-facing seat

Groups 0+ and 1

< 13 kg and 9 to 18 kg

C, D

X

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

X

Booster seat

Groups 2 and 3

15 to 25 kg and 22 to 36 kg

X

X =  Seat not suitable for fitting child seats ISOFIX.

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

CHILD SEATS: attachment using the ISOFIX system

(5/5)

1.48

CHILD SAFETY: deactivating/activating the front passenger air bag

(1/3)

Deactivating the front

passenger airbags

(on equipped vehicles)
You  must deactivate the passenger

airbag before fitting a child seat on the

front passenger seat.

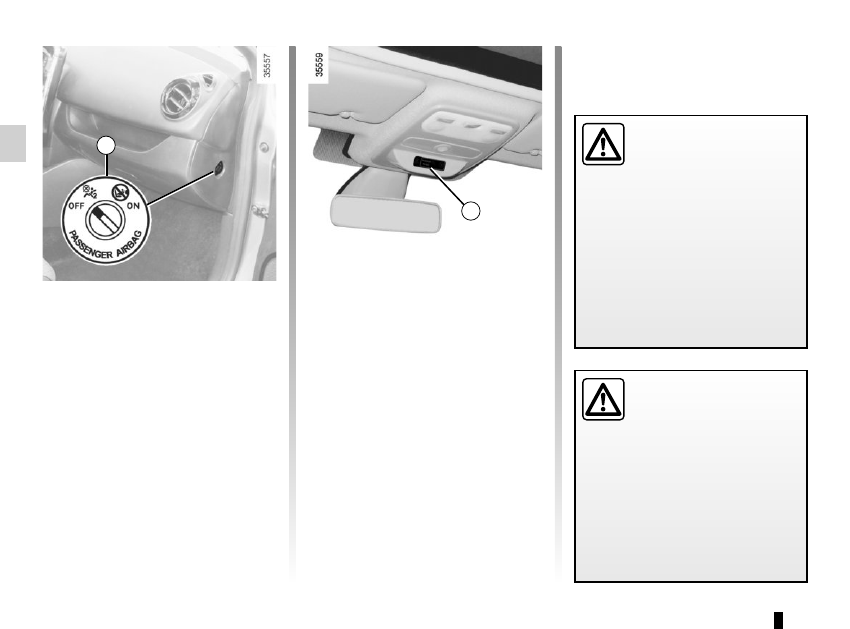

To deactivate the  airbags: with the

vehicle stopped and the ignition off

push and turn lock 1 to the OFF posi-

tion.
With the ignition on, you must check

that the warning light

¹

 on the dis-

play 2 is lit up and, depending on the

vehicle, that the message “airbag pas-

senger deactivated” is displayed.
This light remains permanently lit to

let you know that you can fit a child

seat.

1

2

The passenger air bag must

only be deactivated or acti-

vated with the ignition off.

If it is interfered with when

the vehicle is being driven, indicator

lights

å

 and

©

 will come

on.

Switch the ignition off then on again

to reset the air bag in accordance

with the lock.

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

1.49

3

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

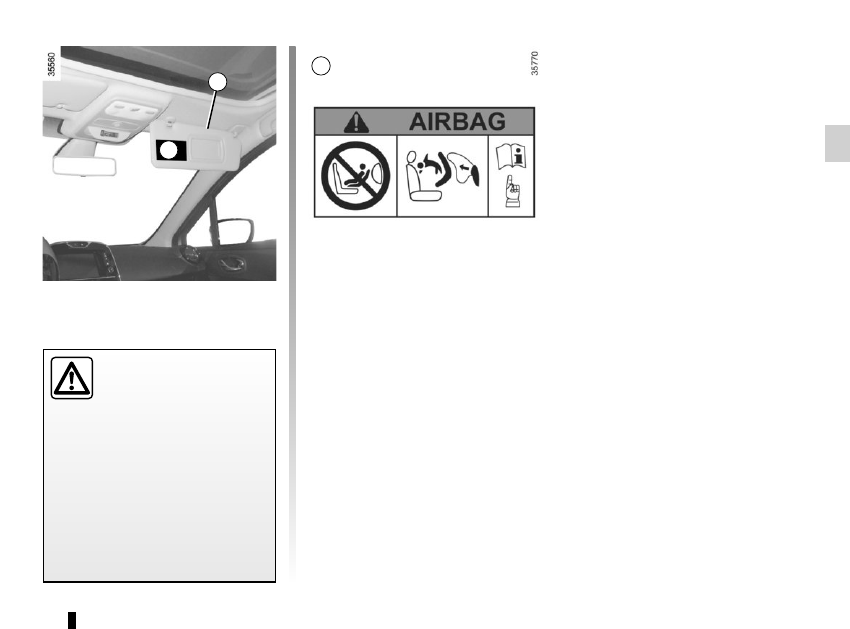

The markings on the dashboard and

labels A on each side of passenger sun

blind 3 (example: label shown above)

remind you of these instructions.

A

A

CHILD SAFETY: deactivating/activating the front passenger air bag

(2/3)















Content   ..  1  2  3  4   ..
