Renault Captur (2018 year). Instruction - part 10





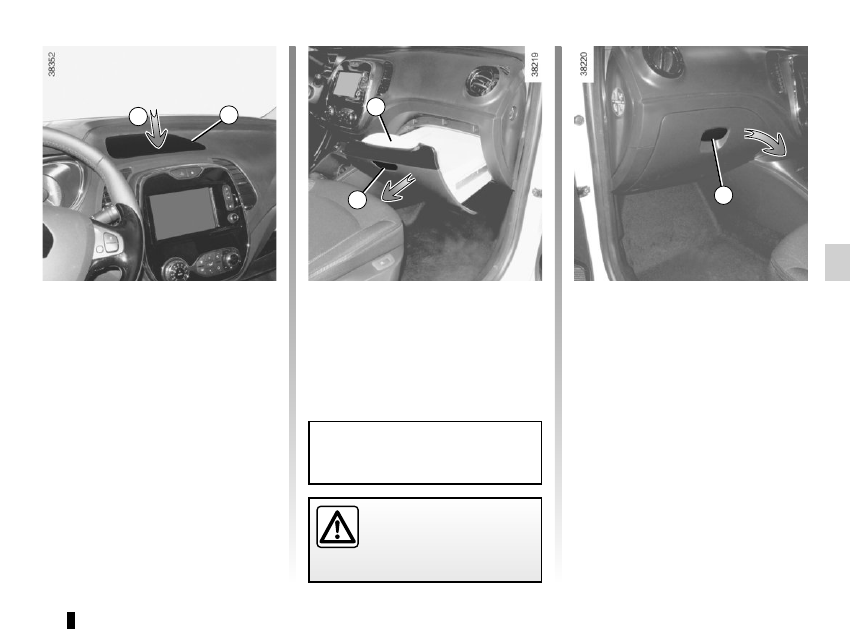

3.19

Passenger storage drawer

To open, press the button 7 to unlock

the drawer and pull the handle 6

PASSENGER COMPARTMENT STORAGE, FITTINGS

(2/5)

Maximum load allowed in the pas-

senger storage compartment: 6 kg,

evenly distributed.

Glovebox

To open the glovebox, lift catch 8.

8

Dashboard storage

compartment 5

To open it, press the lid 4.

5

7

6

When driving, ensure

that the storage drawer is

closed. Risk of injury.

4

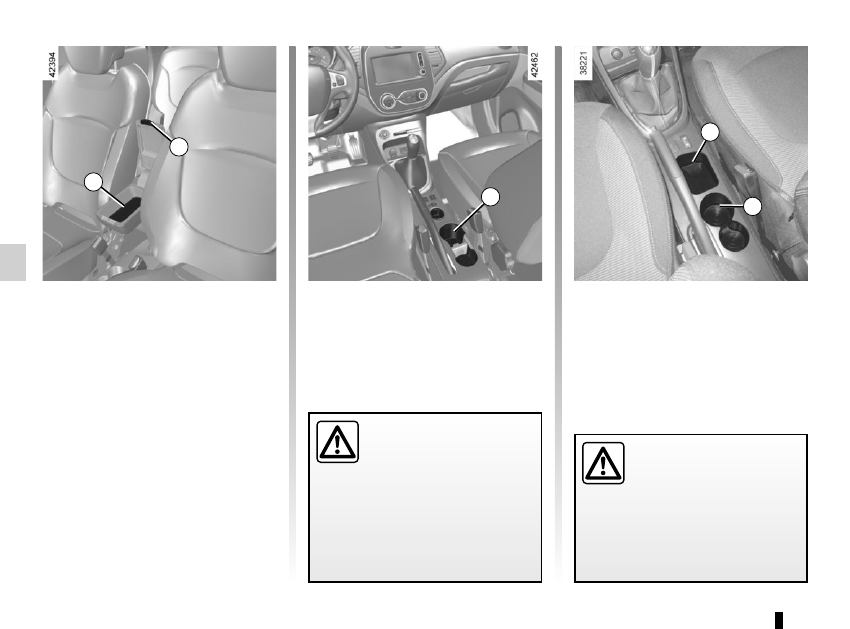

3.20

PASSENGER COMPARTMENT STORAGE, FITTINGS

(3/5)

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of injury if hot liquid

escapes.

Storage compartment 12

(depending on vehicle)

Cup holders 13

(depending on vehicle)
This can be used for storing a mobile

ashtray, cup holder, etc.

Cup holders 11

This can be used for storing a mobile

ashtray, cup holder, etc.

12

13

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

Armrest storage

compartment 9

With the armrest in its lowered position,

press button 10 and lift armrest cover.

9

10

11

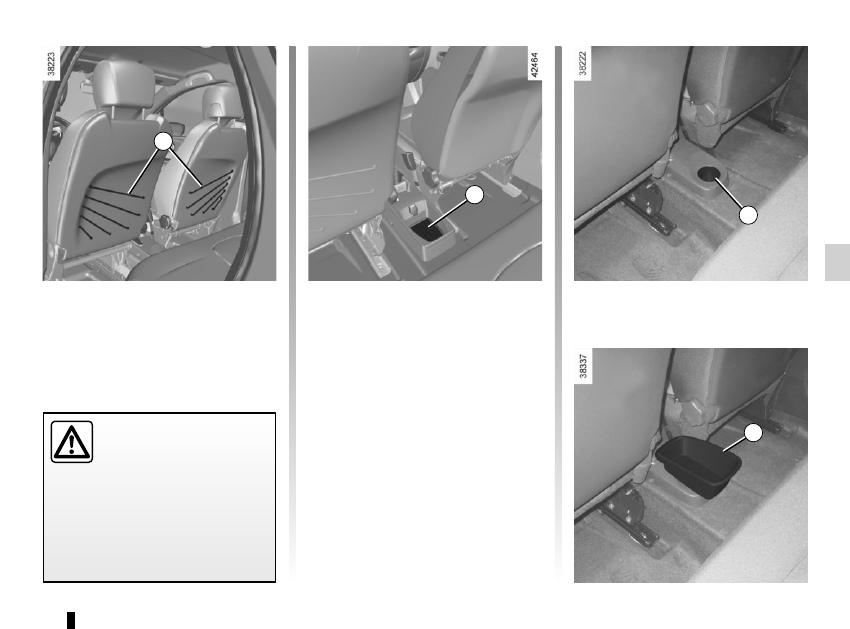

3.21

PASSENGER COMPARTMENT STORAGE, FITTINGS

(4/5)

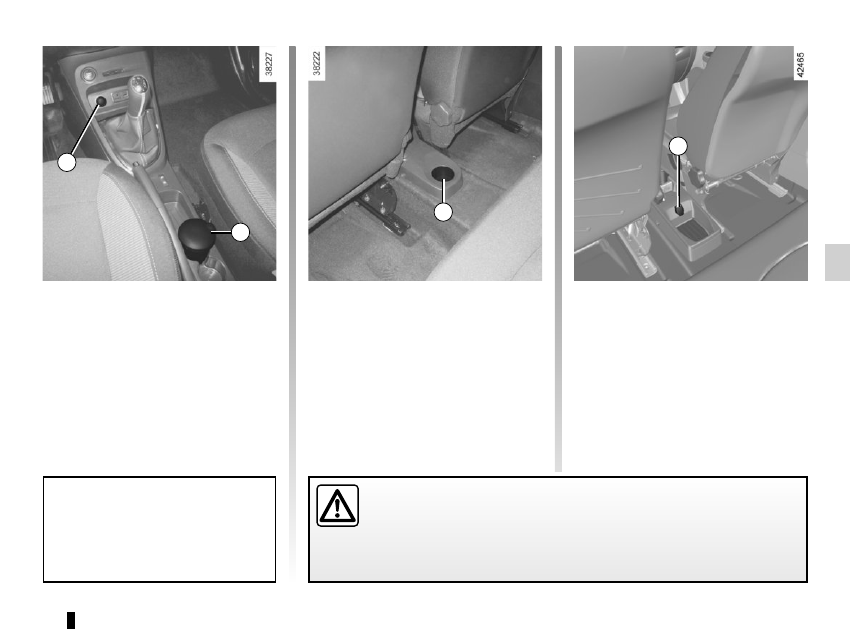

16

Rear centre console storage

compartment 15

Rear centre console storage

compartment 16

(depending on vehicle)
This can be used for storing a mobile

ashtray, cup holder, etc.

Removable rear central

storage compartment 17

It is fixed on the rear central storage

console 16.

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of injury if hot liquid

escapes.

17

Front seat storage net 14

14

15

3.22

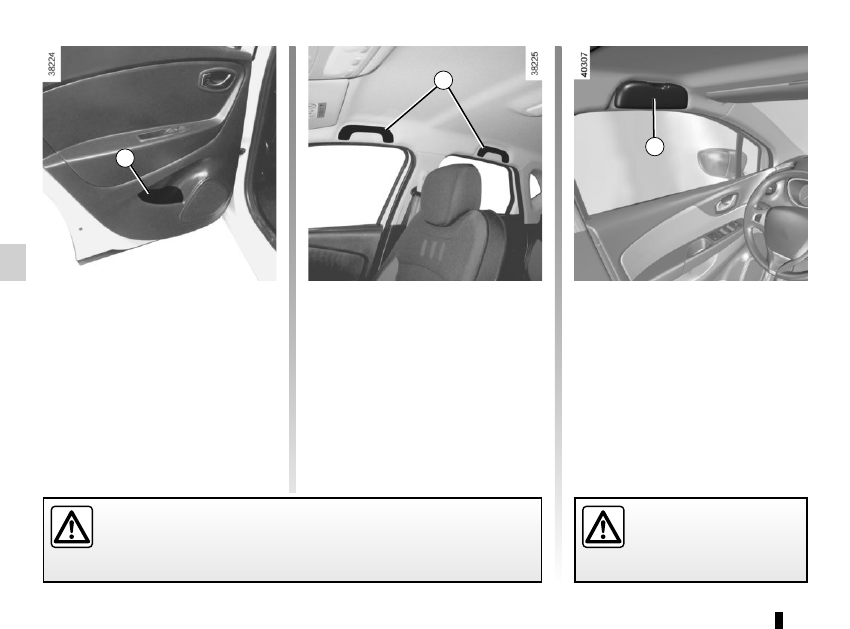

Sunglasses holder 20

Rear door storage

compartment 18

They can hold a 0.5-litre bottle.

Grab handle 19

This offers support and can be held

when the vehicle is being driven. Do

not use it for getting into or out of the

vehicle.

PASSENGER COMPARTMENT STORAGE, FITTINGS

(5/5)

When driving, ensure the

courtesy mirror cover is

closed.
Risk of injury.

19

18

Ensure that no hard, heavy or pointed objects are placed in the “open”

storage compartments in such a way that they may fall onto passengers

during sudden turning, braking or in the event of an accident.

20

3.23

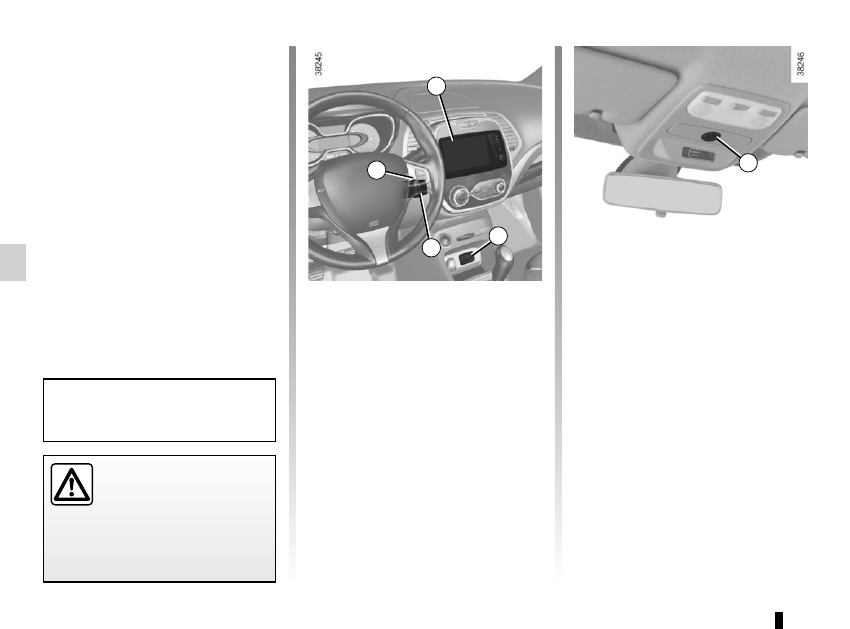

Accessories socket 1 and 4

They are provided for connecting ac-

cessories approved by our Technical

Department.

Ashtray

It can be housed in either position 2

or 3.

Cigar lighter 1

With the ignition on, push in the ciga-

rette lighter 1. It will spring back with a

click when it is ready. Pull it out to use.
After use, replace it without pushing it

all the way in.

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET

3

Connect accessories with a maximum power of 120 watts (12 V) only.

When several accessory sockets are used at the same time, the total

power of the connected accessories must not exceed 180 watts.

Fire hazard.

If your vehicle is not fitted with a

cigar lighter and an ashtray, these

can be obtained from an approved

Dealer.

2

1

4

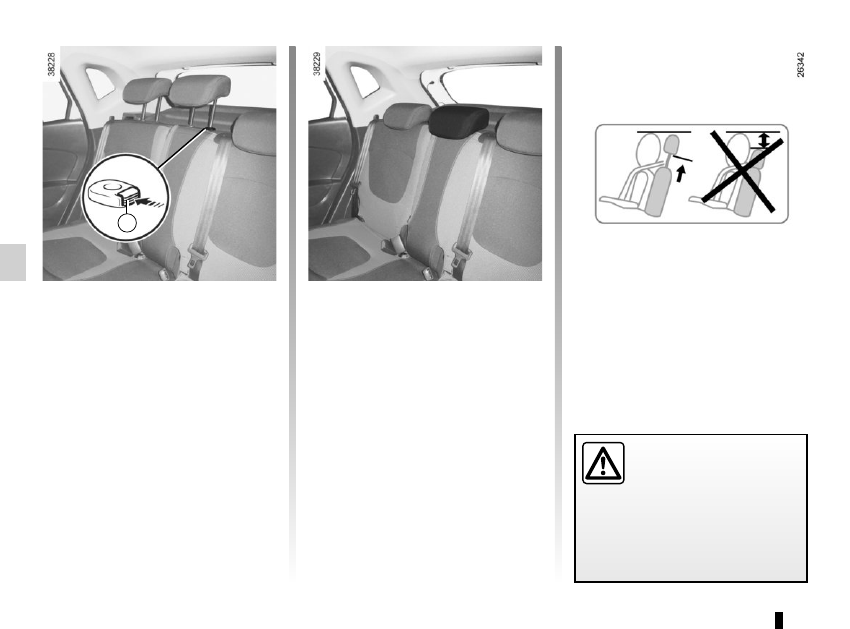

3.24

The headrest is a safety

component; check that it is

fitted and in the correct po-

sition. The top of the head-

rest should be as close as possible

to the top of the head.

To raise the headrest

Raise the headrest as far as it will go,

then press button A and remove the

headrest.

If necessary, fold the seatback down

to take out the headrest (see the infor-

mation on “Sliding rear bench seat” in

Section 3).

To refit the headrest

Enter the rods in their housing and

push down the headrest until it locks to

use it in the high position. Check that it

is correctly locked.

Position for use

Raise the headrest as far as possible to

use it in the high position. Check that it

is correctly locked.

Storage position

Press button A and lower the headrest

completely.
When the headrest is set at the

lowest position, this is for storage

only. It should not be in this position

when a seat is occupied.

REAR HEAD RESTS

A

3.25

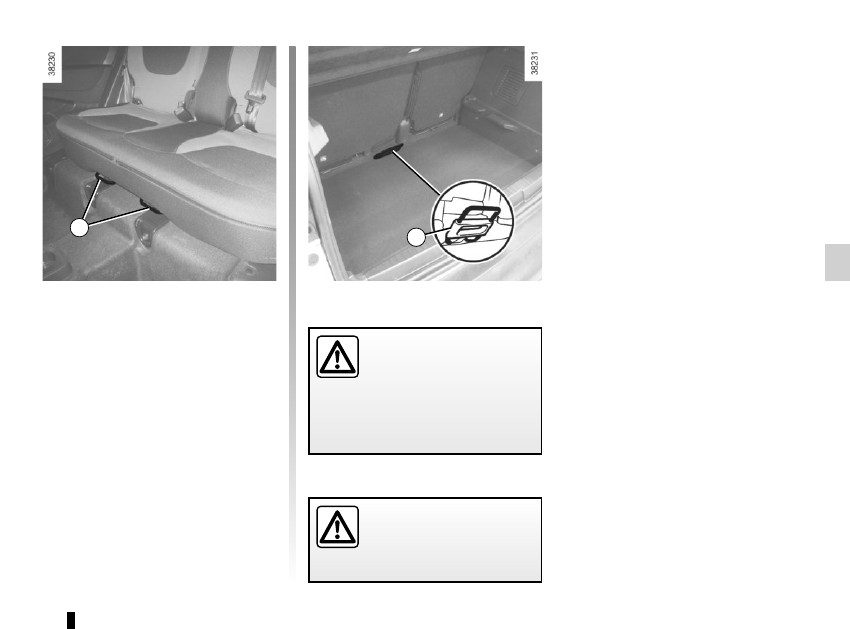

SLIDING REAR BENCH SEAT

(1/2)

To move forwards or

backwards

To unlock the seat:
–  in the rear, lift the two levers 1 simul-

taneously;

–  from the boot, pull the handle 2.
Move the seat forwards or back to the

required position.
Release lever 1 or handle 2 and make

sure that the seat is locked correctly in

position.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

1

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

2

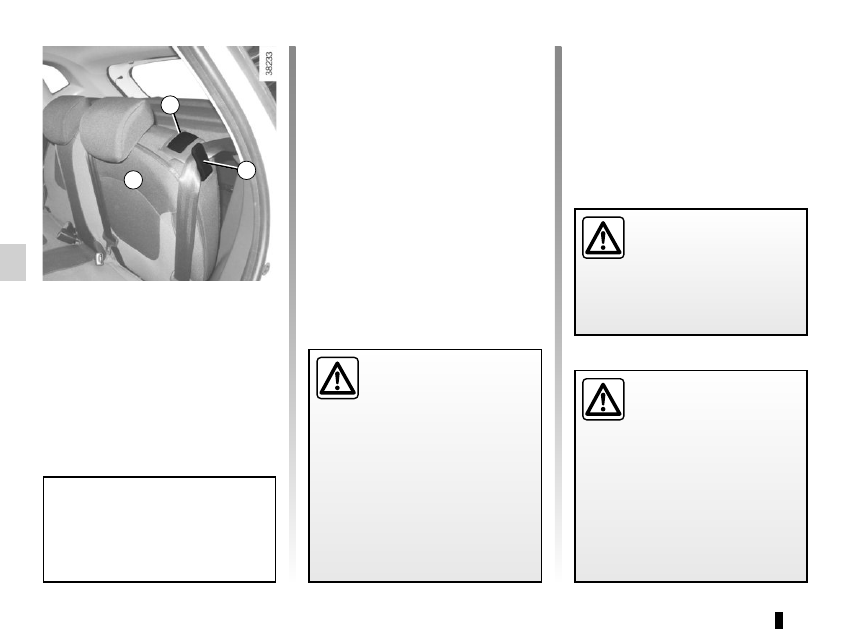

3.26

B

To fold down the seatback
Ensure that the front seats are far

enough forward.
Lower the headrests fully.
Place the seat belts in their guides A.
Lift the handle 3 and lower the seat-

back B.

Before moving the seatback, put

the seat belt in belt guide A to avoid

damaging it.

To replace the seatback, proceed in

the reverse order to removal.
Refit the seatback and click it back into

place.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

The configuration of the two-seat

bench with the small seatback B

pulled down, does not allow the

central seat to be used as it would

be impossible to buckle the seat belt

(belt buckles inaccessible).

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

SLIDING REAR BENCH SEAT

(2/2)

A

3

3.27

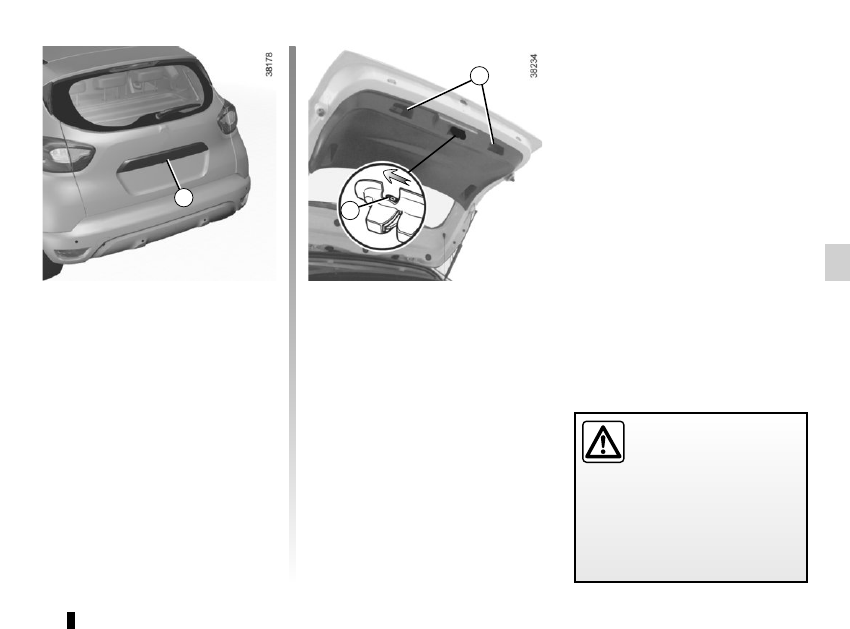

Opening the doors manually

from the inside

If it is impossible to unlock the tailgate,

it can be done manually from inside:
–  access the luggage compartment by

tilting the rear bench seatback(s),

–  insert a pencil or similar object in

recess 3 and slide the unit as shown

in the illustration;

–  push the tailgate to open it.

BOOT

To open

Press button 1 and lift the tailgate.

To close

Lower the tailgate using the handles 2

inside the tailgate to help you.

1

3

2

The attaching of any carry-

ing device (bike rack, lug-

gage box, etc.) resting on

the luggage compartment

lid is prohibited. To install a carrying

device on your vehicle, contact an

Approved Dealer.

3.28

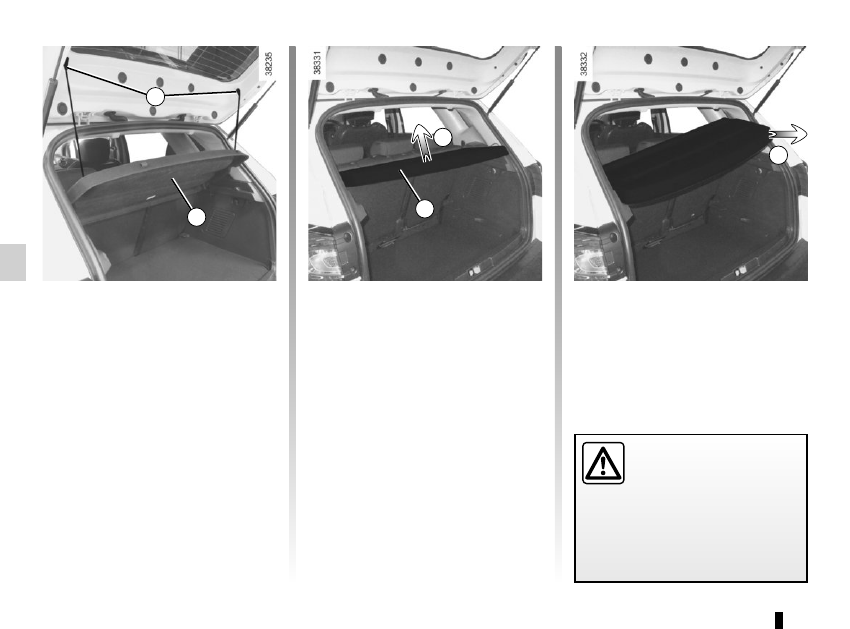

–  lift one side of the parcel shelf;
–  pull the parcel shelf towards you

(movement  B), beginning with the

part most raised.

To refit, proceed in the reverse order to

removal.

REAR PARCEL SHELF

1

Removal

–  Unhook the two straps 1 of the door

of the boot;

–  lift the parcel shelf 2 to half height in

order to unclip it (movement A);

B

A

2

Do not place any objects,

especially heavy or hard

objects, on the parcel shelf.

These may pose a risk to

the vehicle occupants if the driver

has to brake suddenly or if the vehi-

cle is involved in an accident.

2

3.29

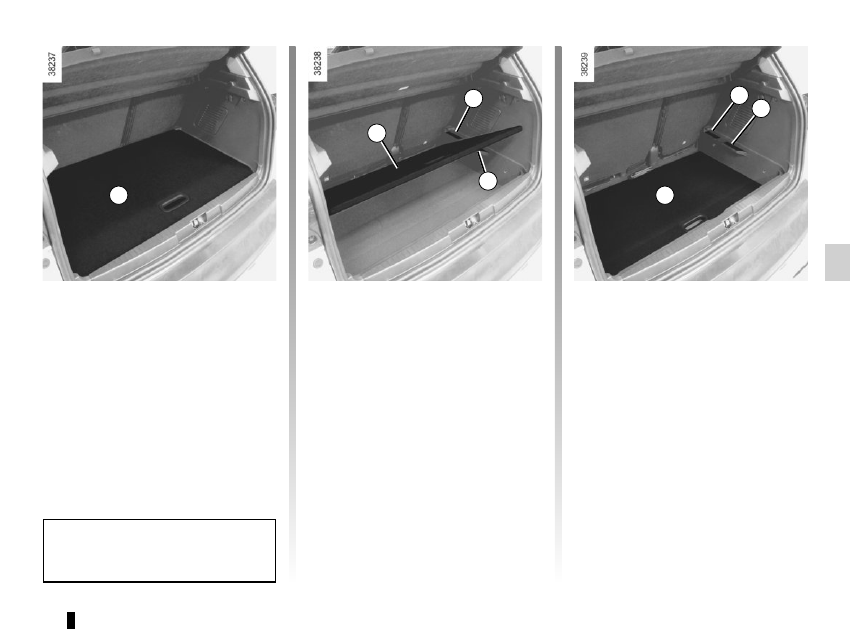

BOOT FITTINGS

(1/2)

1

Mobile floor 1

Depending on the vehicle, the mobile

floor is reversible.

Flat position
It allows you to have a flat floor by fold-

ing down the back of the rear bench-

seat and to compartmentalise the boot

into two distinct spaces.
The mobile floor is positioned on the

runners (2 and 3).

Maximum load allowed on the

mobile floor: 120 kg, evenly distrib-

uted.

Storage position
This allows for more space to store

things in the boot.
–  Remove the mobile floor 1
–  place it in the boot under the runners

(2 and 3).

2

Intermediate position
In the blocked position, it allows you to

access the tools stored under the boot

carpet.
–  Remove the mobile floor 1
– place it in the boot, letting it be

guided by the runners (2 and 3).

1

2

1

3

3

3.30

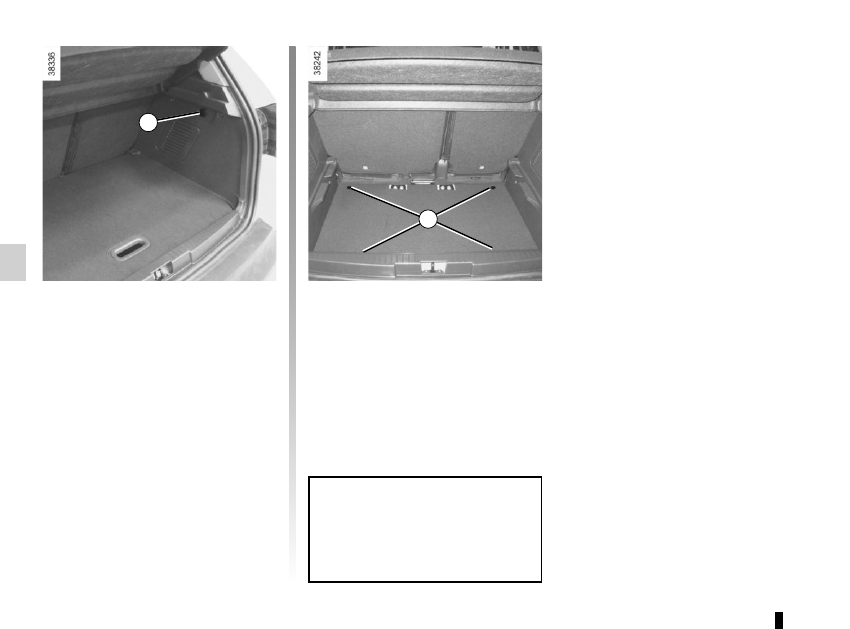

BOOT FITTINGS

(2/2)

Hook 4

You can use this to secure a bag.

Anchorage points

Attachment points 5

If your vehicle is not equipped with

anchorage points, you can get them

from an authorised dealer.

4

5

3.31

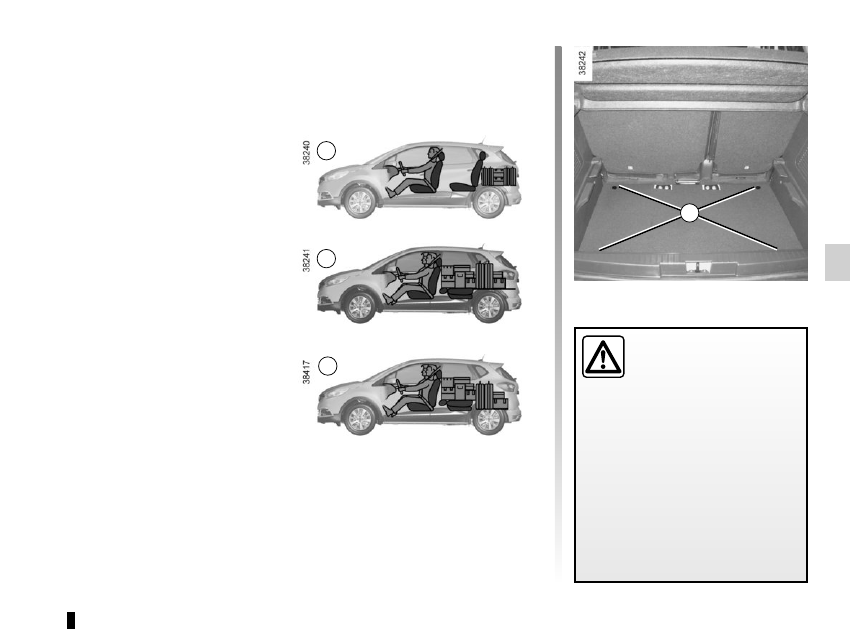

Always position the heavi-

est items directly on the

floor. Use the lashing

points 1 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such a

way that no items will be thrown for-

ward and strike the occupants if the

driver has to brake suddenly. Fasten

the rear seat belts, even if the seats

are not occupied.

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT

Always position the objects transported

so that the largest surface is against:

–  The rear bench seatback for normal

loads (example A).

– The front seatbacks with the rear

seatbacks folded down, the mobile

floor in the flat-floor position (exam-

ple B).

– The front seatbacks with the rear

seatbacks folded down, the mobile

floor in the stored-away position, as is

the case for maximum loads (exam-

ple C).

If you have to place objects on the folded

seatback, it is necessary that you lower

the headrests before folding the seat-

back so that it can be folded as flat as

possible against the seat.

B

A

1

C

3.32

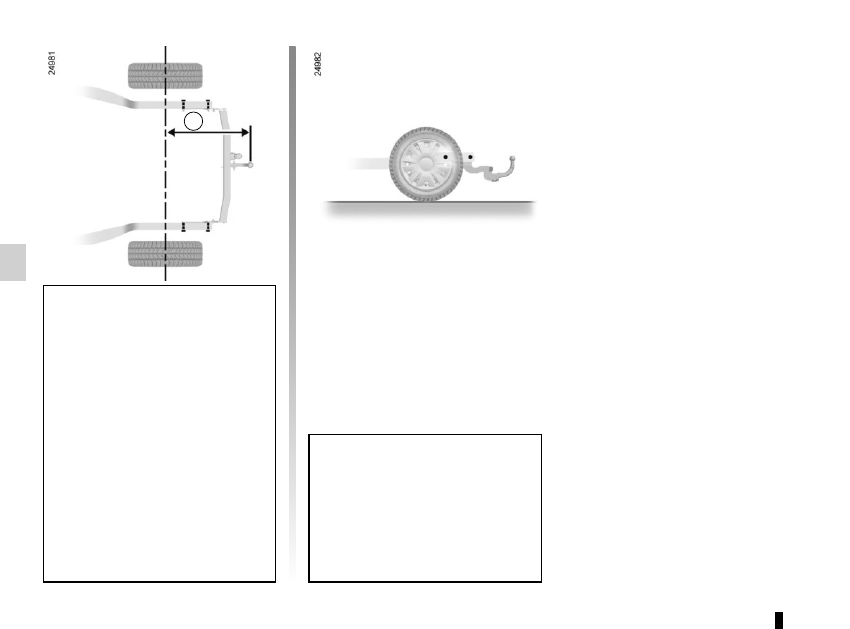

Permissible nose weight, maxi-

mum permissible towing weight,

braked and unbraked: refer to

the information on “Weights” in

Section 6.
Choice and fitting of towing

equipment
Maximum weight of towing equip-

ment: 15 kg
For fitting and conditions of use,

refer to the equipment’s fitting in-

structions.
Please keep these instructions with

the rest of the vehicle documenta-

tion.

TRANSPORTING OBJECTS towbar

A

Maximum dimension A: 775 mm.

If the towbar ball obscures the regis-

tration plate or the rear fog lights, it

should be removed when not in use.
In all cases, comply with local leg-

islation.

3.33

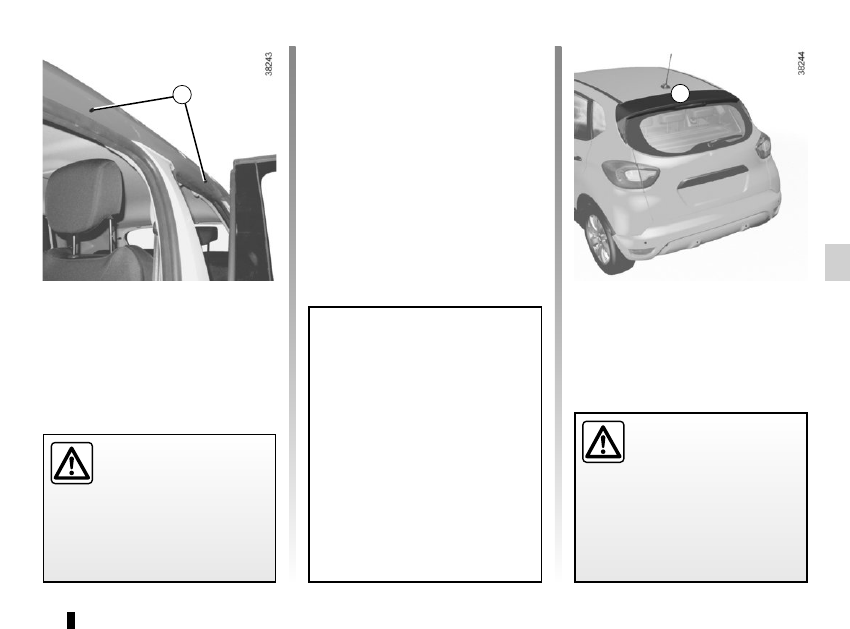

Spoiler A

Accessing the mounting

points

Open the doors to access the mount-

ing points 1.

For information on the range of

equipment adapted to your vehi-

cle, we advise you to consult an ap-

proved Dealer.
Refer to the manufacturer’s instruc-

tions for information on how to fit

and use the roof rack bar.
Please keep these instructions with

the rest of the vehicle documenta-

tion.
Maximum permissible load on

roof rack: 80 kg (including the car-

rying device).

Precautions during use

Handling the tailgate
Before handling the tailgate, check the

objects and/or accessories (bike rack,

roof box, etc.) fitted to the roof bars:

these must be correctly positioned and

secured, so as not to hinder the opera-

tion of the tailgate.

ROOF BARS/SPOILER

If original roof bars, ap-

proved by our Technical

Department, are supplied

with screws, only use these

screws for attaching the roof bars to

the vehicle.

A

1

The attaching of any carry-

ing device (bike rack, lug-

gage box etc.) resting on

the spoiler is prohibited. To

install a carrying device on your ve-

hicle, contact an Approved Dealer.

3.34

The presence and location of this equip-

ment depends on the vehicle version.
1 Multimedia touchscreen;

2 Multimedia sockets;

3  Steering column control;

4 Voice commands;

5 Microphone.

Refer to the equipment instructions

for information on how to operate

this equipment.

Using the telephone
We remind you of the need

to conform to the legislation

in force concerning the use

of such equipment.

MULTIMEDIA EQUIPMENT

1

5

3

2

4















Content   ..  8  9  10  11   ..
