33

REAR AXLES ELEMENTS

33 - 14

Bearing

REMOUNTING

By means of a tube with the outer diameter

Ö51mm

 and a press, mount the bearing up to the

contact with the drum support surface (carefully not to damage the sealing ring and to ensure a
constant pushing force during this operation).

Remount:

- a new lock;
- the drum on the steering knuckle, previously greased with grease;
- a new nut M20 x 1.5 and tighten to the required moment;
- the drum plug.

Adjust:

- the shoes by applying a repeated pressure on the brake pedal;
- hand brake (see chapter  37-“Mechanical Elements Controls”).

33

REAR AXLES ELEMENTS

33 - 15

Bearing

33

3

3 000

0

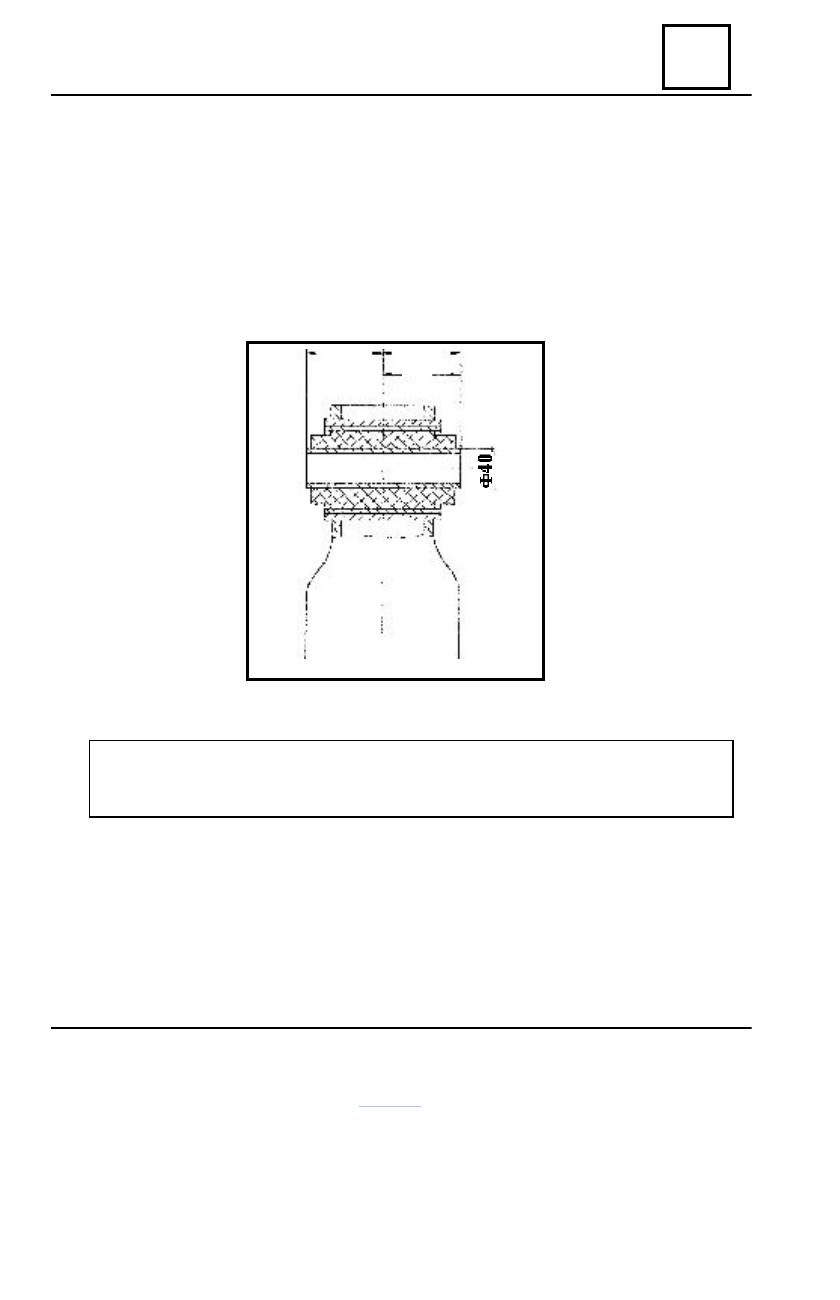

ELASTIC BUSHING REPLACEMENT

Dismount by means of a press, the worn bushing, using a sleeve with the outer diameter

D=39mm.

Press the new bushing.
When pressing, observe the value : A=30mm.

       Remark:
       For the elastic bushing mounting, use the PS701 device, and for dismounting the
extractor PS700.

35

WHEELS AND TIRES

35 - 1

Characteristics

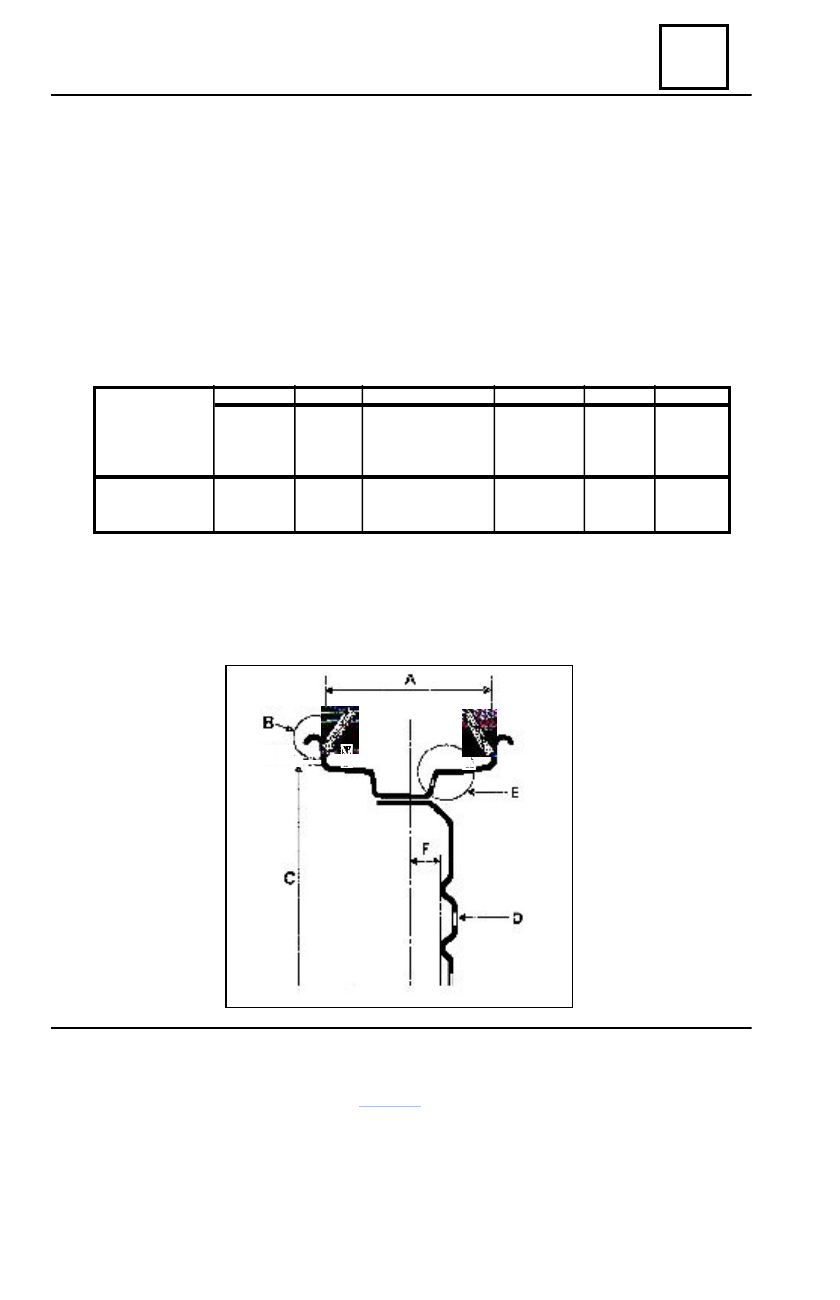

WHEELS

The wheels identification marking is represented in two ways:

- engraved marking for steel rims
- cast marking for aluminum rims

The marking enables acknowledgment of the main wheels dimensions criteria.
This marking may be:

           - Complete

Example :  5.5 J 14 4 CH 43 , or

           - Simplified

Example: 5.5 J 14

The wheel attachment holes are situated on a diameter of 100 mm.
Maximum axial runout :  to be measured in points P1 and P2.
Maximum radial runout :  to be measured in points G1 and G2.

A

B

C

D

E

F

Rim width

Rim

Rim nominal

Number of

Tire

Offset

Rim type

( in inches)

edge

diameter

  attachment

staffing

( in mm)

profile

(in inches)

 points

profile

5.5 J 14 4CH 43

5.5

J

14

4

CH

43

5.5 B 13 4CH 46

5.5

B

13

4

CH

46

G

1

P

1

P

2

G

2

WHEELS AND TIRES

35

35 - 2

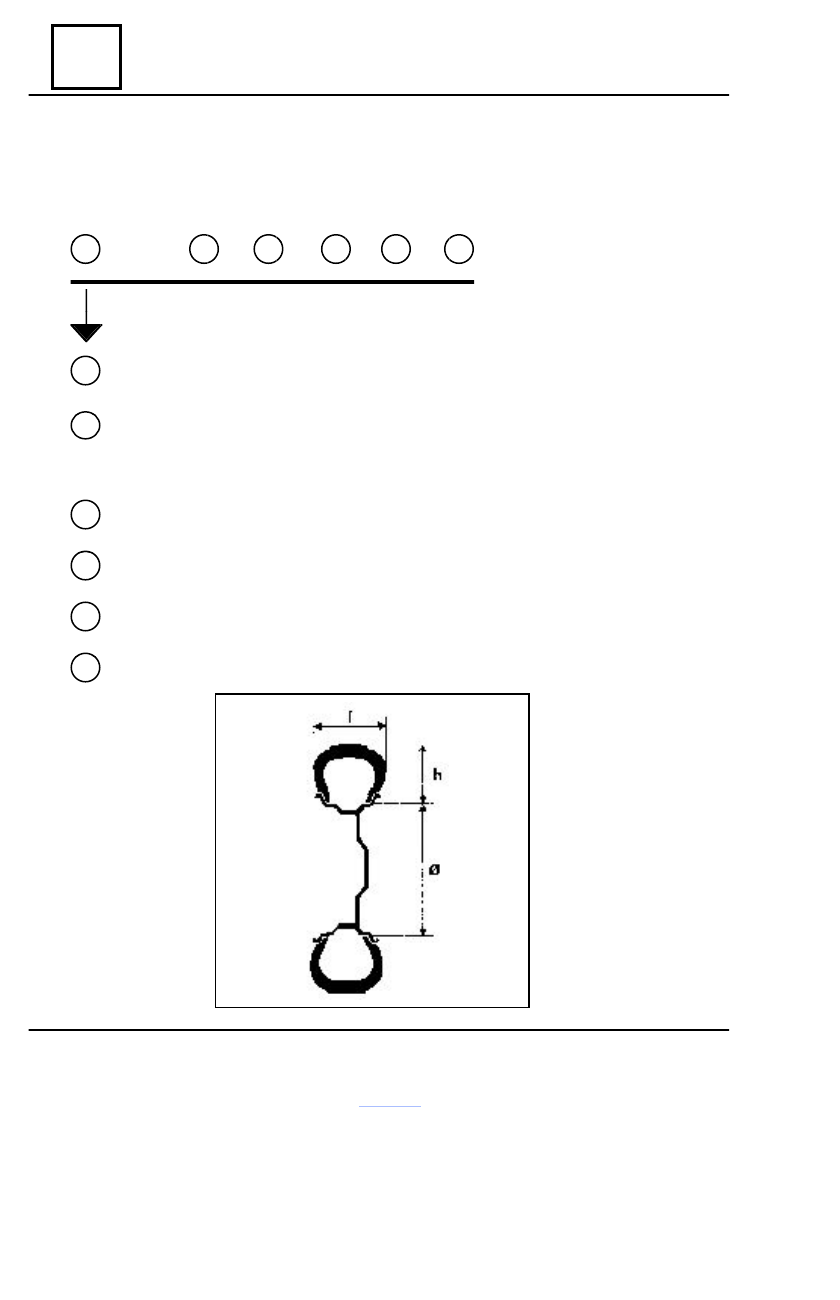

TIRES

 Identification marking examples: 165 / 65  R 14 79 T

165

65

R

4

79

T

1

2

4

5

6

3

1

2

6

5

4

3

Characteristics

- 165  -  Tire width in mm (1)

-  65 -   h / l height / width ratio, percentage;

- R -  Radial structure

- 14 - Inner diameter in inches (

→); this is corresponding with the rim diameter

– 79 – Charging index

– T – Speed index  max. 190 km/ h
