Dacia Solenza (engine E7J). Manual - part 2

01 - 5

 APV IDENTIFICATION DATA

1.1Code type auto APV
1.2Manufacturing number

2.1 Equipping level code
2.2 Additional code for limited serial

definition

2.3 Additional code for special serial

definition

3.1 Carriage body color code
3.2 Seats upholstery code
3.3 Interior matching code.

4.1 Technical definition code
4.2 Optional equipping code.

A

C
D

F

B

H

G

I

J

E

MANUFACTURER’S

IDENTIFICATION DATA

A. Manufacturer’s name
B. Community reception number or

homologation

number.

C. Identification number.
D.  Total authorized weight of the

loaded vehicle.

E. Total authorized running weight
F. Total weight on front axle.
G. Total weight on rear axle.
H. Additional inscription.
I. Manufacturing date inscription
J. Consignment number.

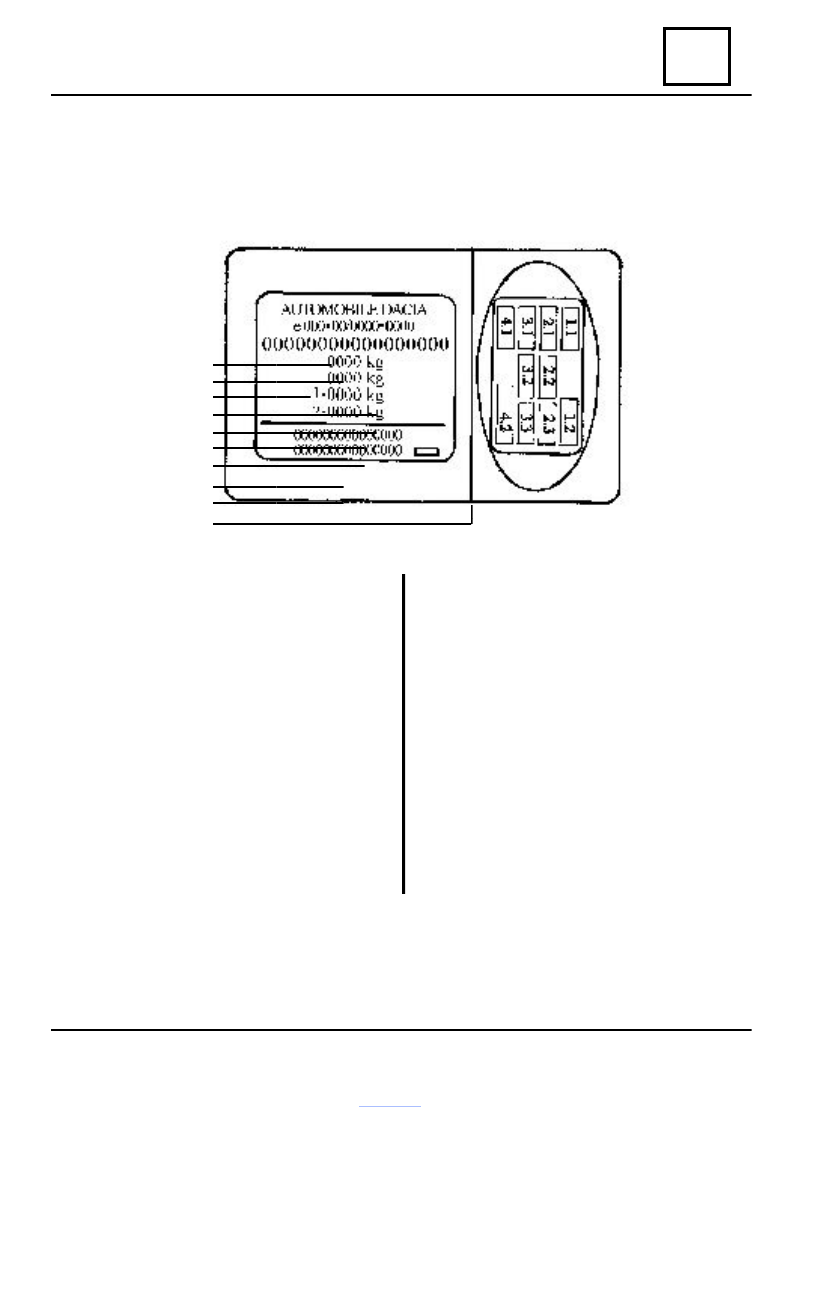

The MANUFACTURER PLATE, self-adhesive type, has the bellow presented con-

figuration, with two distinctive areas, presenting :manufacturer’s identification data and
APV type identification data.

01

CHARACTERISTICS

STARTING WITH THE DATE OF 26.06.2003

Vehicle identification

02 - 1

02

LIFTING    MEANS

Safety sign (particularly cautions to be observed in case of an intervention)

SPECIAL TOOLS

Cha 280-02 Adequate support on mobile jack
Cha 408-01 Adjusting support on mobile jack
Cha 408-02 Adjusting support on mobile jack

Mobile jack – Adjustable supports

The use of a mobile jack implies the
obligatory use of adjustable supports.
It is forbidden the vehicle lifting using

other supporting points (suspension arms, etc)
than the ones provided by manufacturer.

LATERAL MOBILE JACK

In order to lift vehicle front or rear part,

the same supporting points provided for the
vehicle jack are to be used.

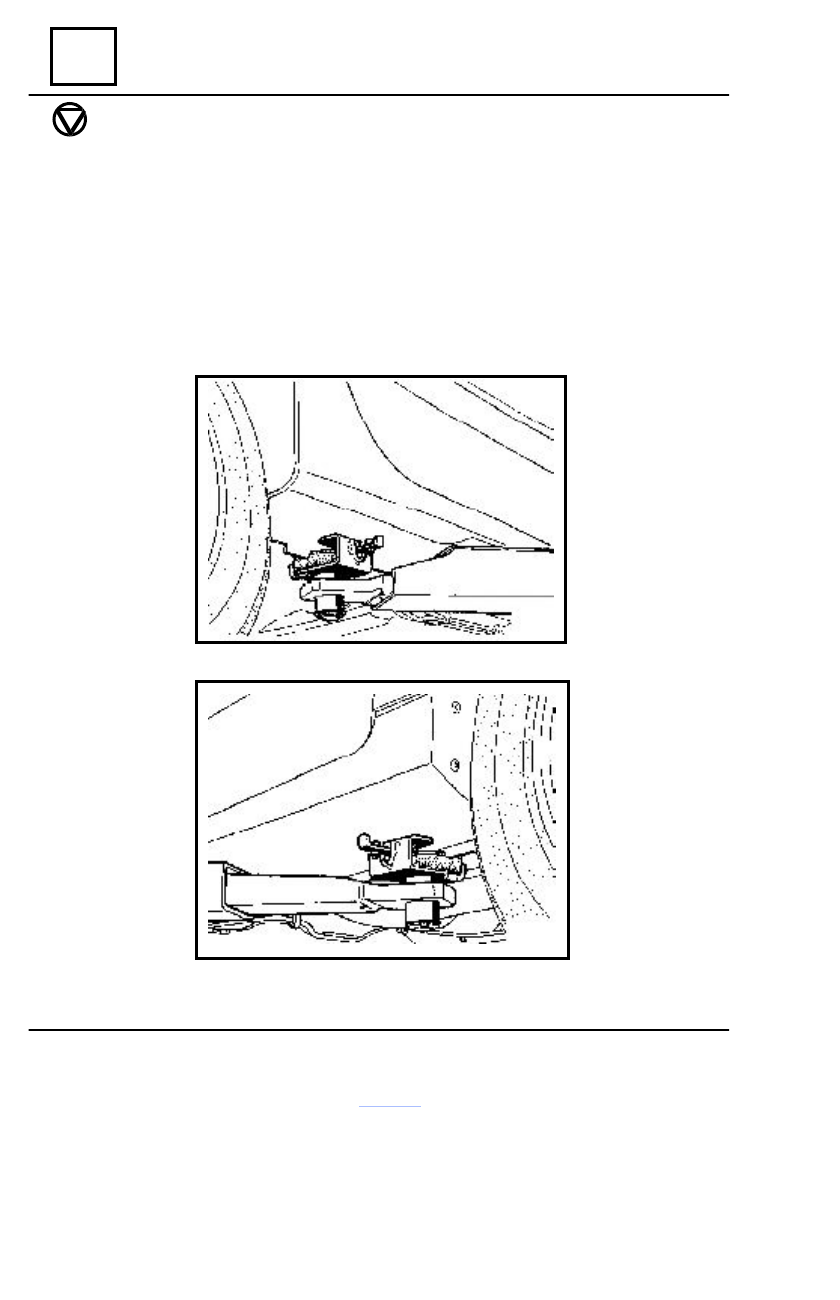

This t ype of jack, is using sockets

(supports)  Cha 408-01  or Cha 408-02,
equipped with the support Cha 280-02.

Place it on under the threshold at the front

door level and the floor closing plate shall be
positioned in the channel of the support.

ADJUSTABLE SUPPORT S

The adjustable supports, may be placed under

the carriage body, in two ways:

-

under the reinforcements provided for the

lifting vehicle with the vehicle jack;

-

under the supports placed behind the

reinforcements.

The positioning of the adjustable supports in

the vehicle rear areas is performed by lateral lift-
ing of the vehicle, by means of a mobile jack.

02 - 2

LIFTING    MEANS

FRONT

02

Elevator positioned under vehicle body

SAFETY SIGN

Situations to be considered:
1. SITUATION OF VEHICLE COMPONENTS DISMOUNTING

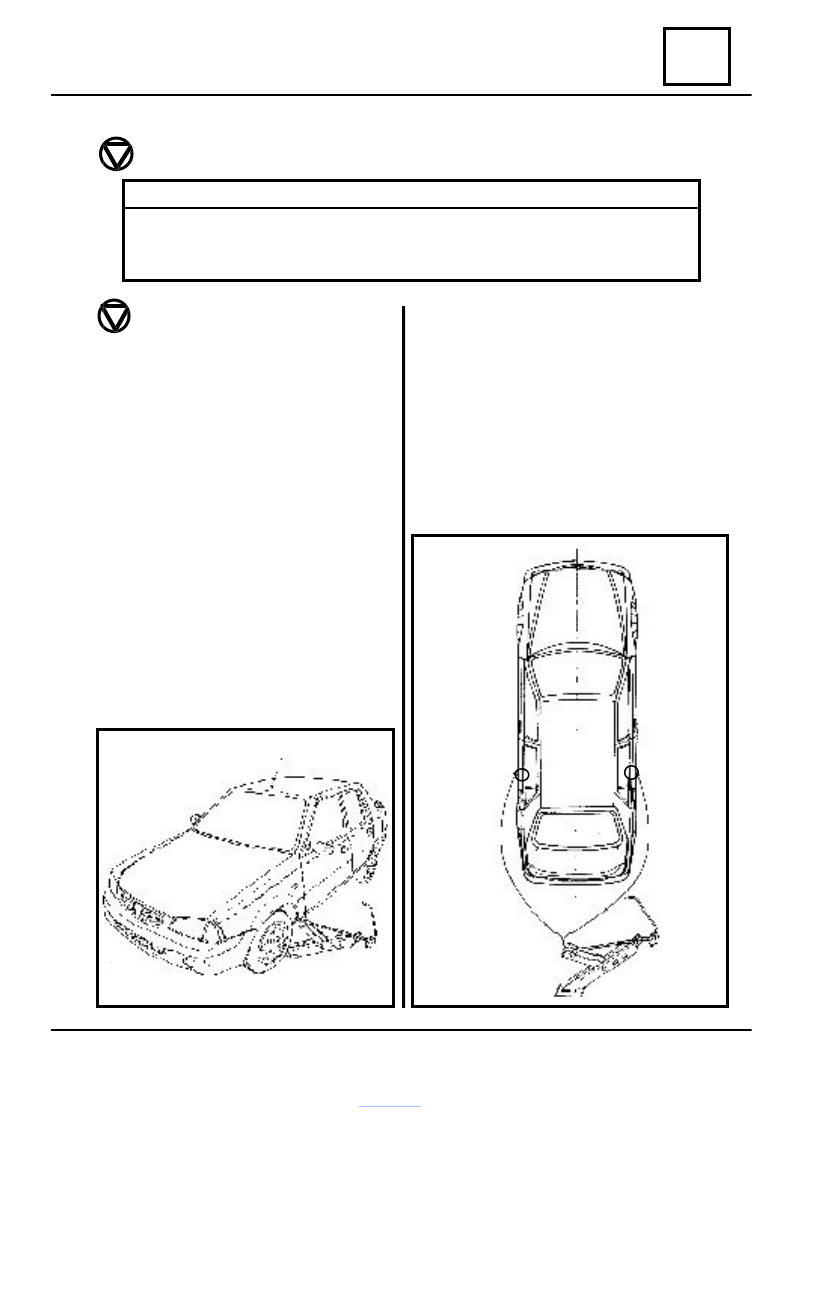

When there are not available four columns elevators, two columns elevators may be used, in

this case, lifting slides shall be placed under the floor closing plate, at the supporting points level
of the vehicle jack

2. PARTICULARLY SITUATION OF POWER-TRAIN DISMOUNTING – RE-

MOUNTING

In this s pecific case, the vehicle carriage body shall be consolidated with the  two columns

elevator arms using special slides.

REAR

These must be obligatory placed at the right of the supporting points of the vehicle jack and

must be locked in the holes/windows made in the floor closing plate.

03 - 1

03

TOWING

ATTENTION !
NEVER USE AS TOWING POINTS, THE TRANSMISSION AXLES (PLAN-

ETARY SHAFTS).

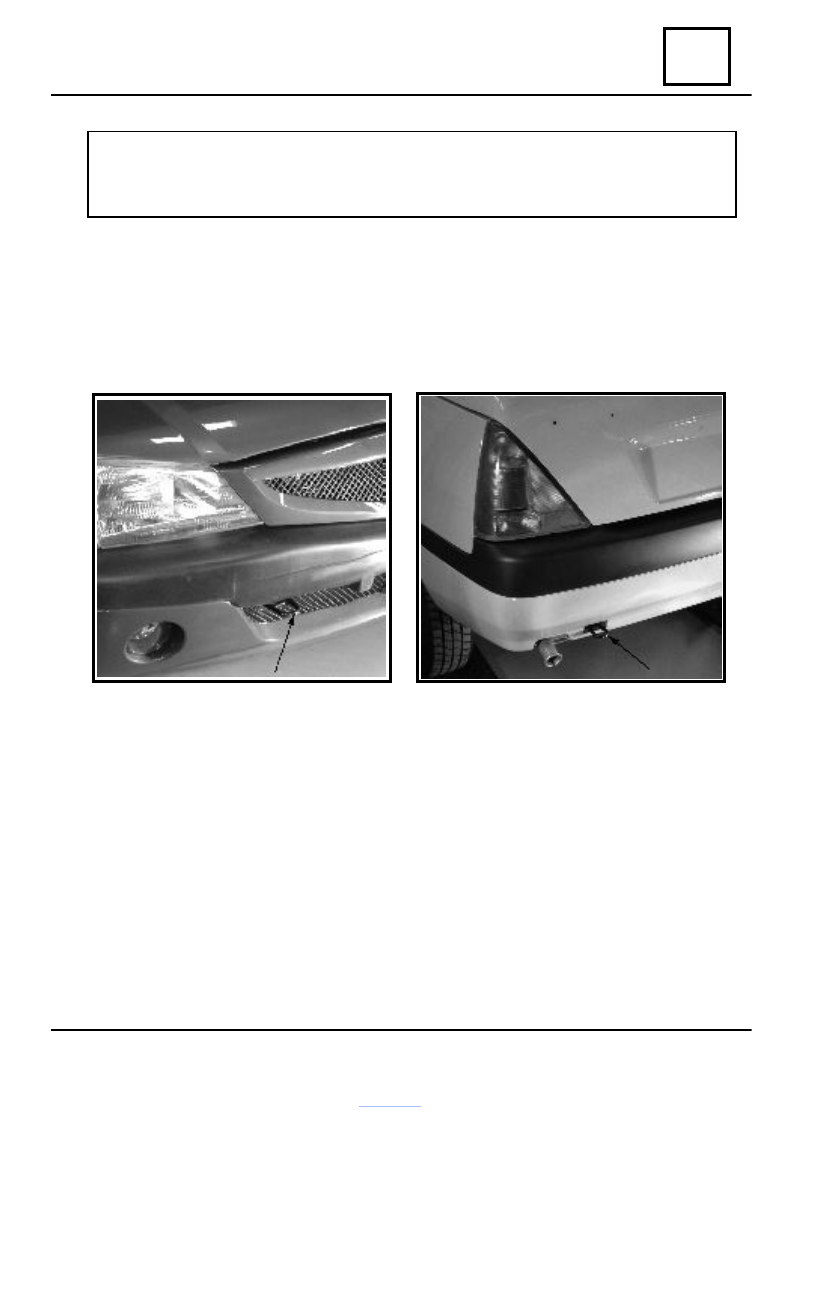

The towing points, front, or rear, are to be used only for vehicles towing on  wheels.
These points cannot be anyhow used for drawing out the damaged vehicle from a trench

(hole), or for direct or indirect vehicle lifting on a transport platform.

FRONT (right)                                                      REAR  (left)

All types
