Dacia Pick-Up 1304/1305/1307. Manual - part 117

  HEATING

61

61 - 2

( for the commercials with dashboard type 1325 )

D

ISMO UNTING

Disconnect the battery.
Dismount the switch knob (1), the climate control switch and the luminous plate (2).
Disconnect the connections of the luminous plate and the vacuum hoses.
Dismount the attachment screws (3) of the climate control.
Take out the climate control block from its housing.
Disconnect the climate control valve cable (4) and the climate control cable.

R

EMO UNTING

Perform the dismounting operations in the reverse order.

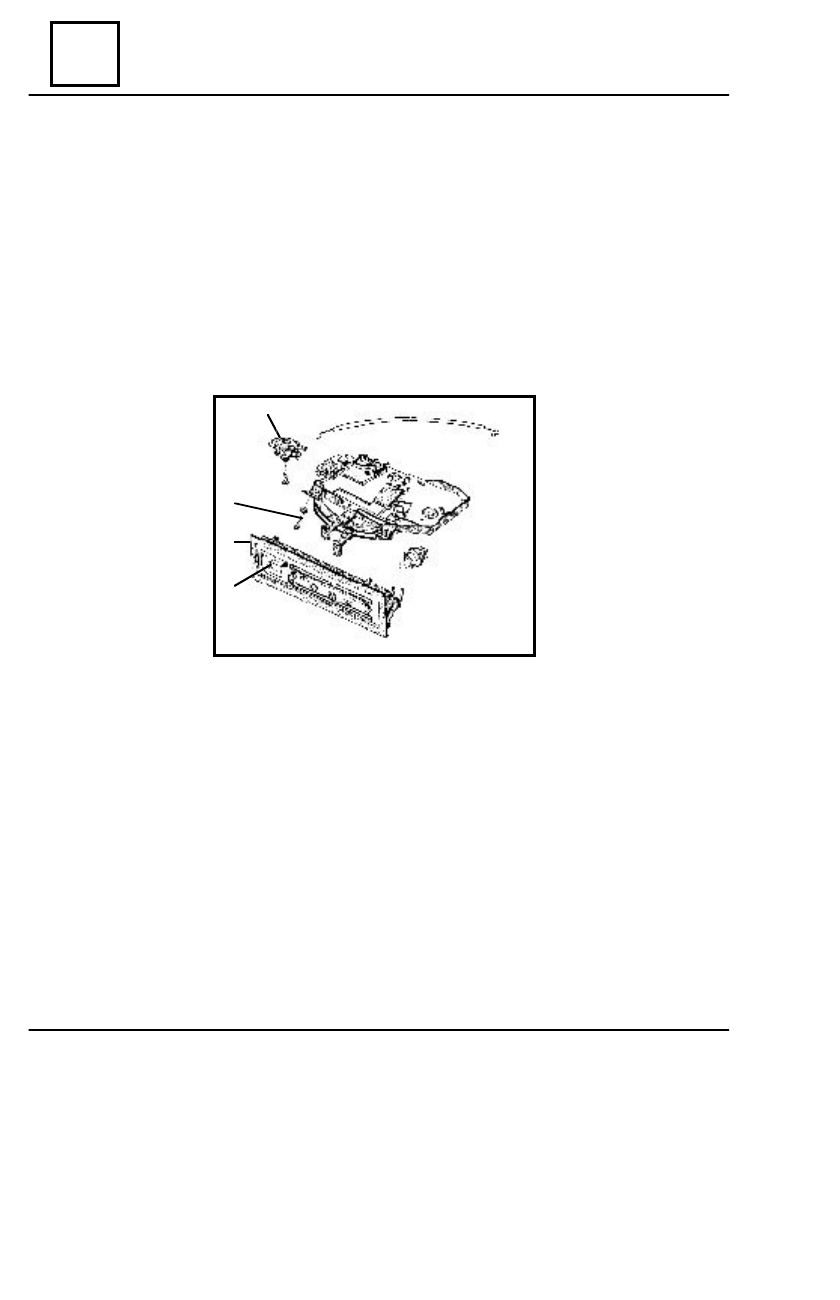

  CLIMATE CONTROL BLOCK

1

2

3

4

61

HEATING

61 - 3

D

ISMO UNTING

In case AC system can not be used, the classis climate control system may be used

according to necessities.

Dismount the dashboard.
Disconnect the wires from the dashboard wiring.
Dismount the control cables of the distribution flaps and mixing flaps from the control

levers and the recycling flaps cable from the climate control panel.

Dismount the ducts of the heating valve and the aeration connection.
Dismount the attachment nuts of the climate control unit (4) - positions (1),(2) and (3).
Detach the climate control unit through inside cockpit, together with the ducts, through

the iron plate shutter.

R

EMO UNTING

Perform the dismounting operations in the reverse order.

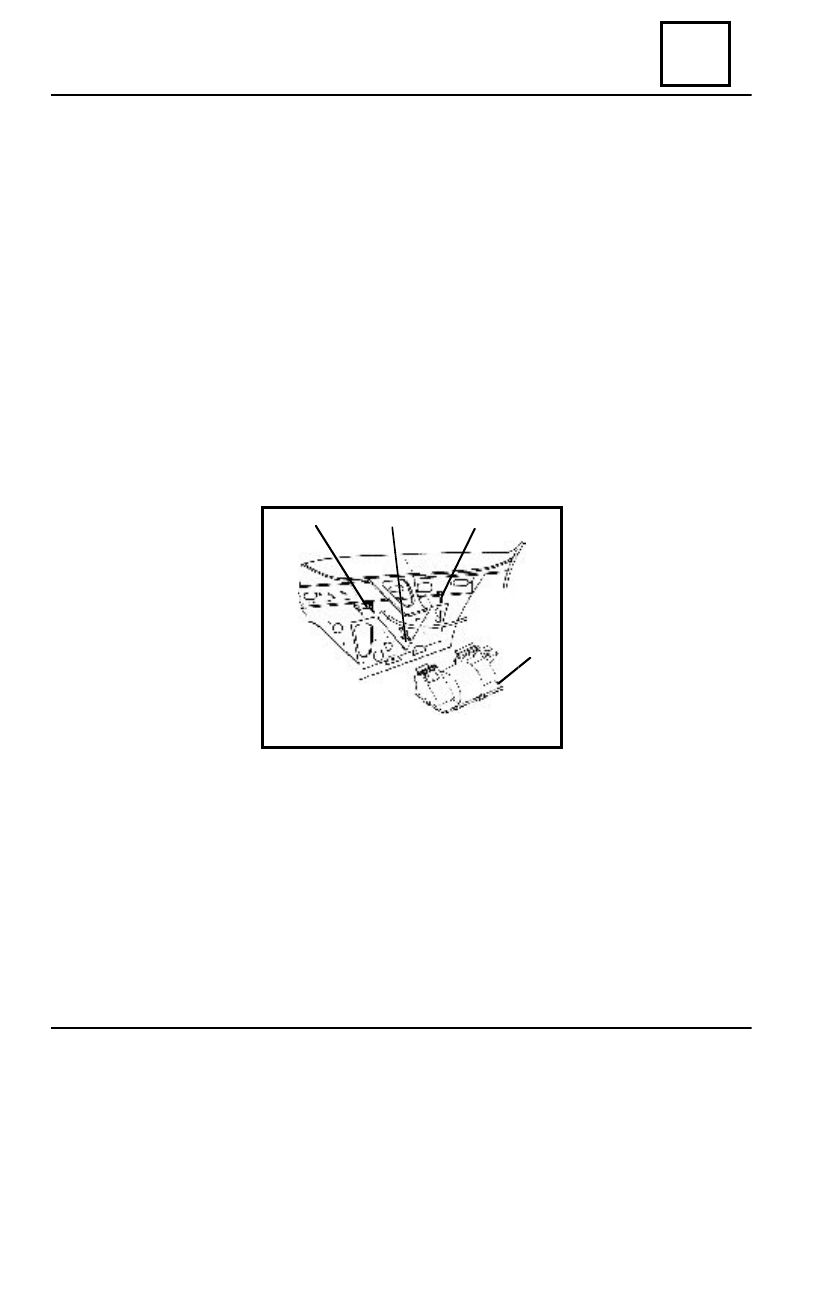

 CLIMATE CONTROL UNIT

1

2

3

4

  HEATING

61

61 - 4

D

ISMO UNTING

Clamp the heating hoses (1) , (2) by means of the clamp (3) – MOT 453 and dismount

the hoses from the valve.

Dismount the control cable (4) of the valve (5) and bring the valve in the OFF position.
Dismount the climate control valve.

NOTE: The valve cannot be repaired.

R

EMO UNTING

Valve remounting is to be done by performing the dismounting operations in the

reverse order, observing the following conditions:

- the valve control cable is mounted at the valve control lever so that valve is set in

open position and the control lever is moved to the right, leaving a clearance of 3-4 mm.
In this position attach the cable sheath by means of clip, than check the correct operation
of the lever and valve closing;

- after remounting the climate control valve, the purging of the cooling system and

the checking of the cooling fluid in the expansion vessel must be obligatory performed.

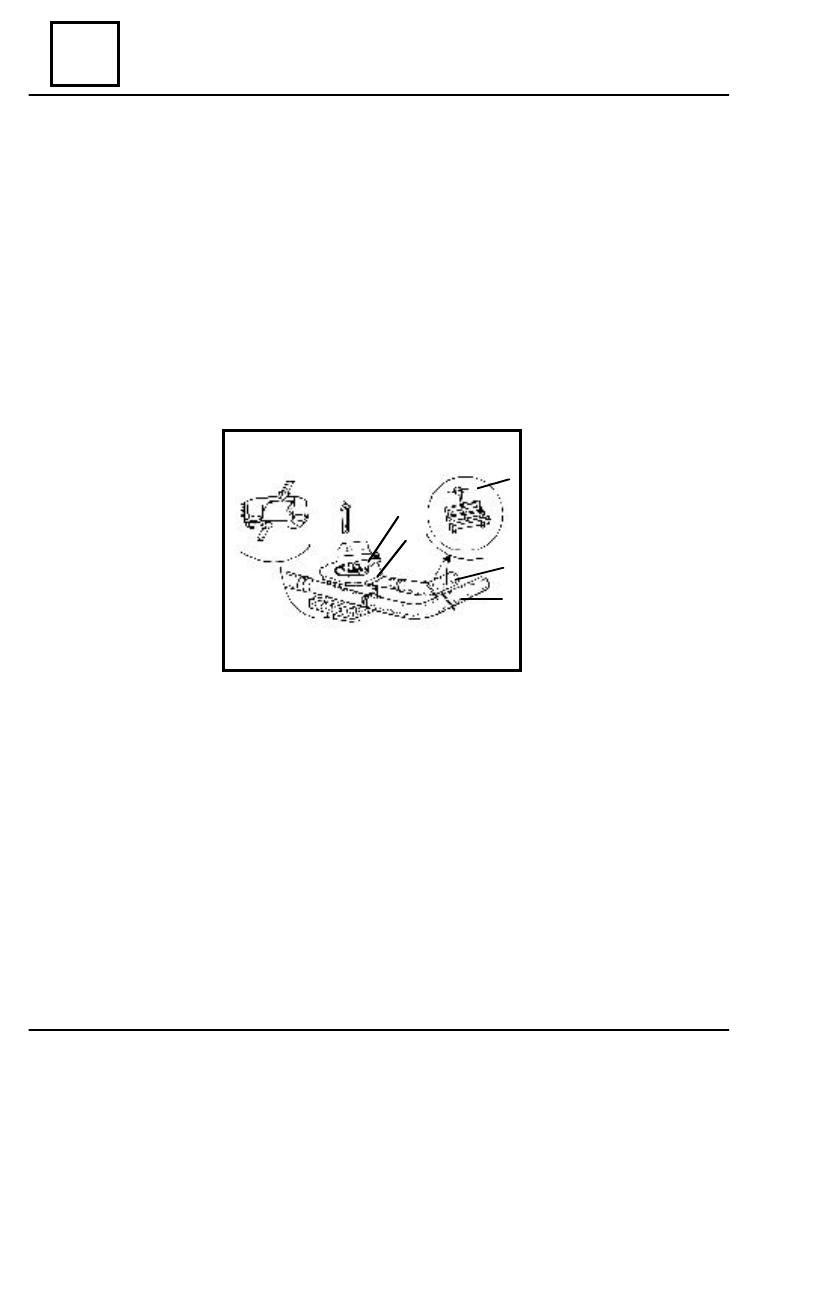

 CLIMATE CONTROL VALVE

1

2

3

4

5

61

HEATING

61 - 5

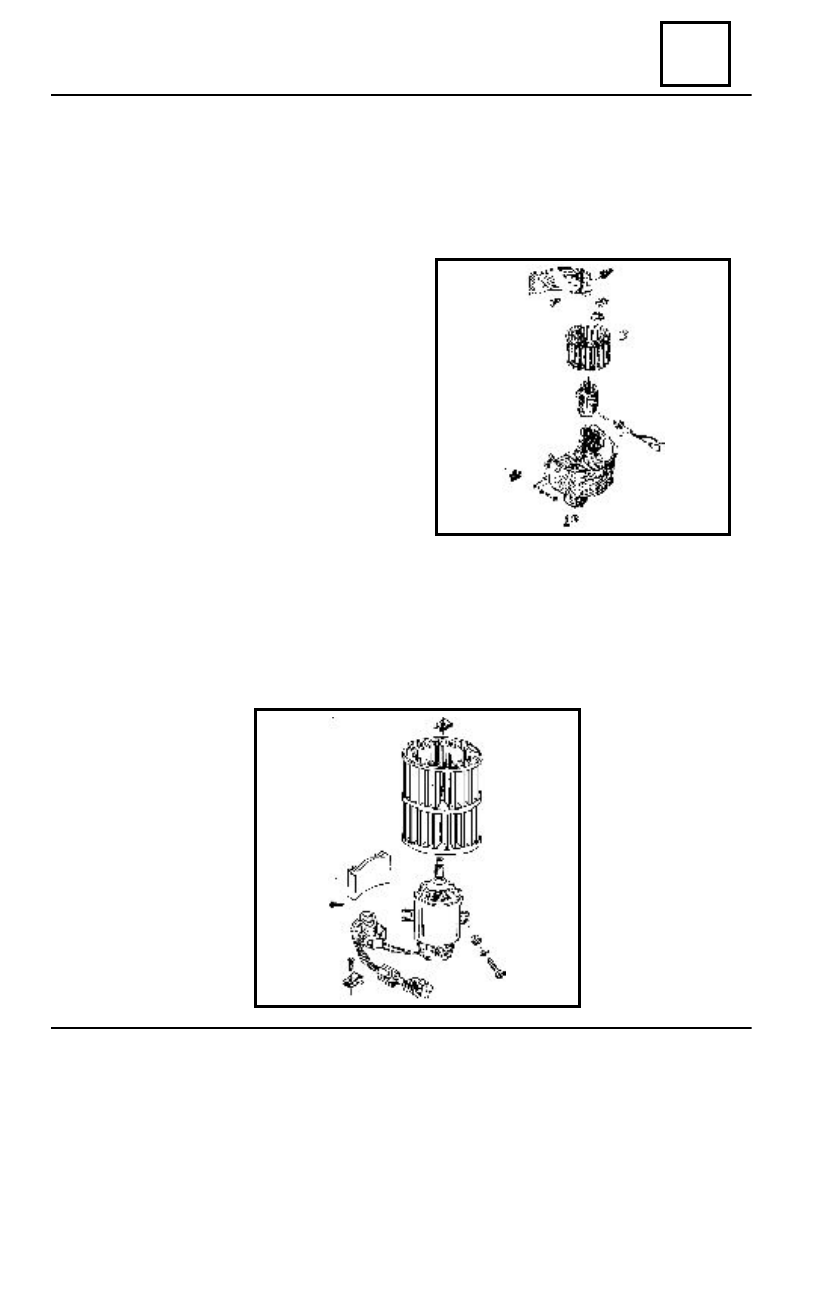

 CLIMATE CONTROL G.M.V.

A.COMMERCIALS EQUIPPED WITH DASH BOARD TYPE SERIES

Climate control GMV  is located under the dashboard, in the right side and can be with

one or two rotation steps.

D

ISMO UNTING

Disconnect the battery.
Disconnect the GMV connectors from

the right connection plate (+DC).

Dismount the attachment screws of the

GMV on the iron plate.

R

EMO UNTING

Perform the dismounting operations in

the reverse order.

B

.COMMERCIALS EQUIPPED WITH DASHBOARD TYPE 1325

The climate control GMV is mounted in the climate control unit. It is located under

the dashboard, in the central zone, being attached on the iron plate and it has 4 rotation
steps. Dismount the GMV, after previously the climate control unit has been dismounted
from the vehicle.
