52

NON SIDE OPENING ELEMENTS MECHANISMS

D

ISMO UNTING

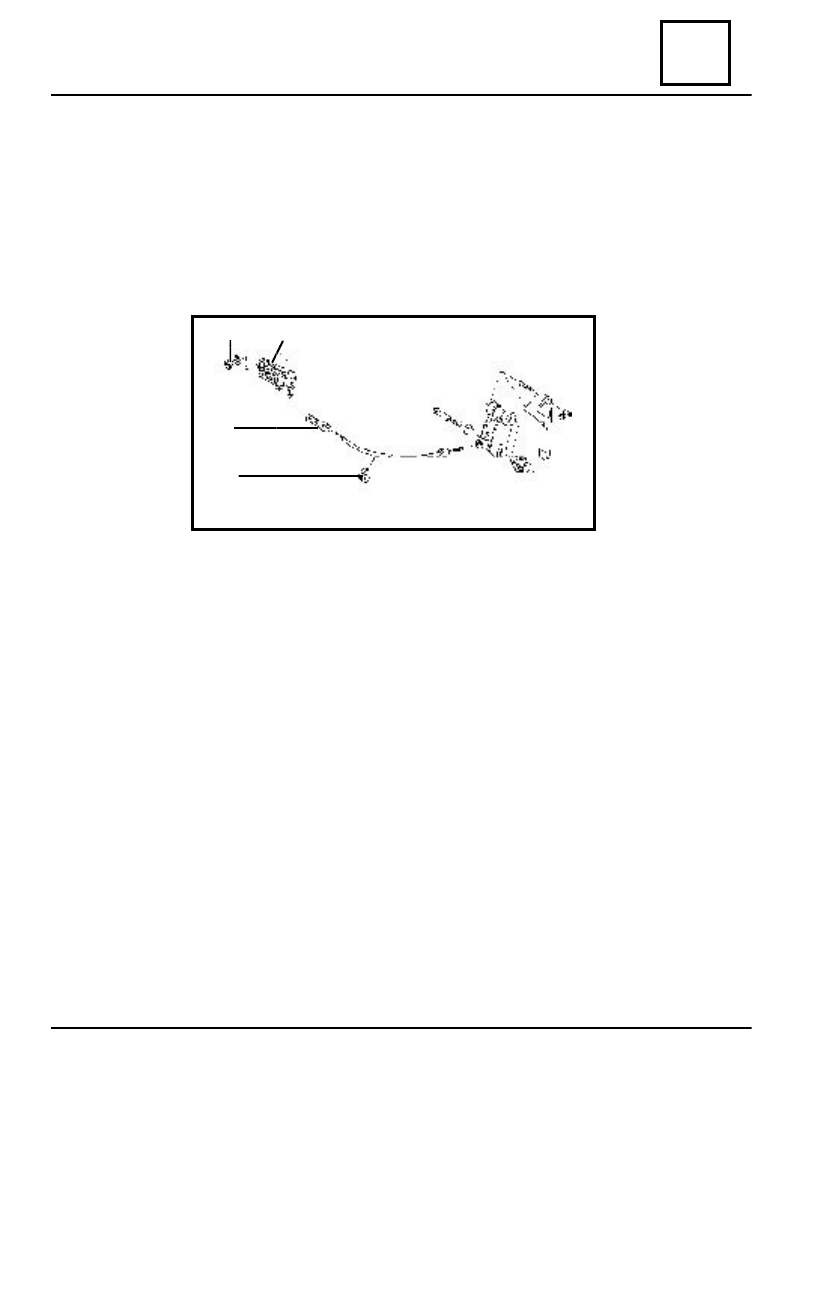

Release the cable of front hood (1) from the connection  with lock (3) and take out by

lock hook rod (4).

Dismount the attachment front hood lock nuts (2).

R

EMO UNTING

Perform in the reverse order the dismounting operations.





 FRONT  HOOD  LOCK

52 - 1

3

2

1

4

NON SIDE OPENING ELEMENTS MECHANISMS

52

D

ISMO UNTING

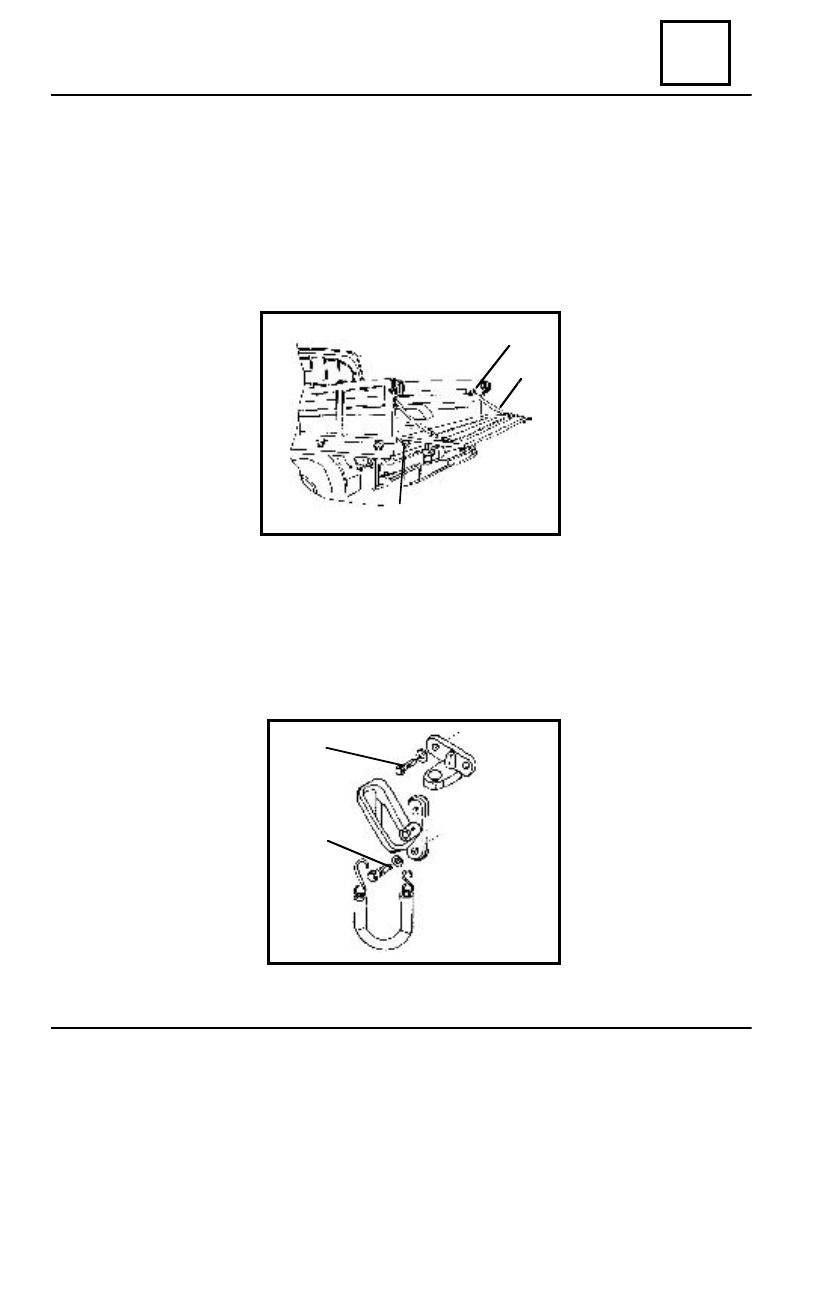

  To dismount the rear drop side lock (1) unscrew the screws (2) of the closing hook

(3) and the screws (4) of the assembled lock (5).

52 - 2

REAR DROP SIDE LOCKING SYSTEM DACIA 1304 Pk, 1307

R

EMO UNTING

Perform in the reverse order the dismounting operations.

1

4

3

2

REAR DROP  SIDE LOCKING SYSTEM

52

NON SIDE OPENING ELEMENTS MECHANISMS

R

EMO UNTING

 Perform the dismounting operations in the reverse order.

52 - 3

D

ISMO UNTING

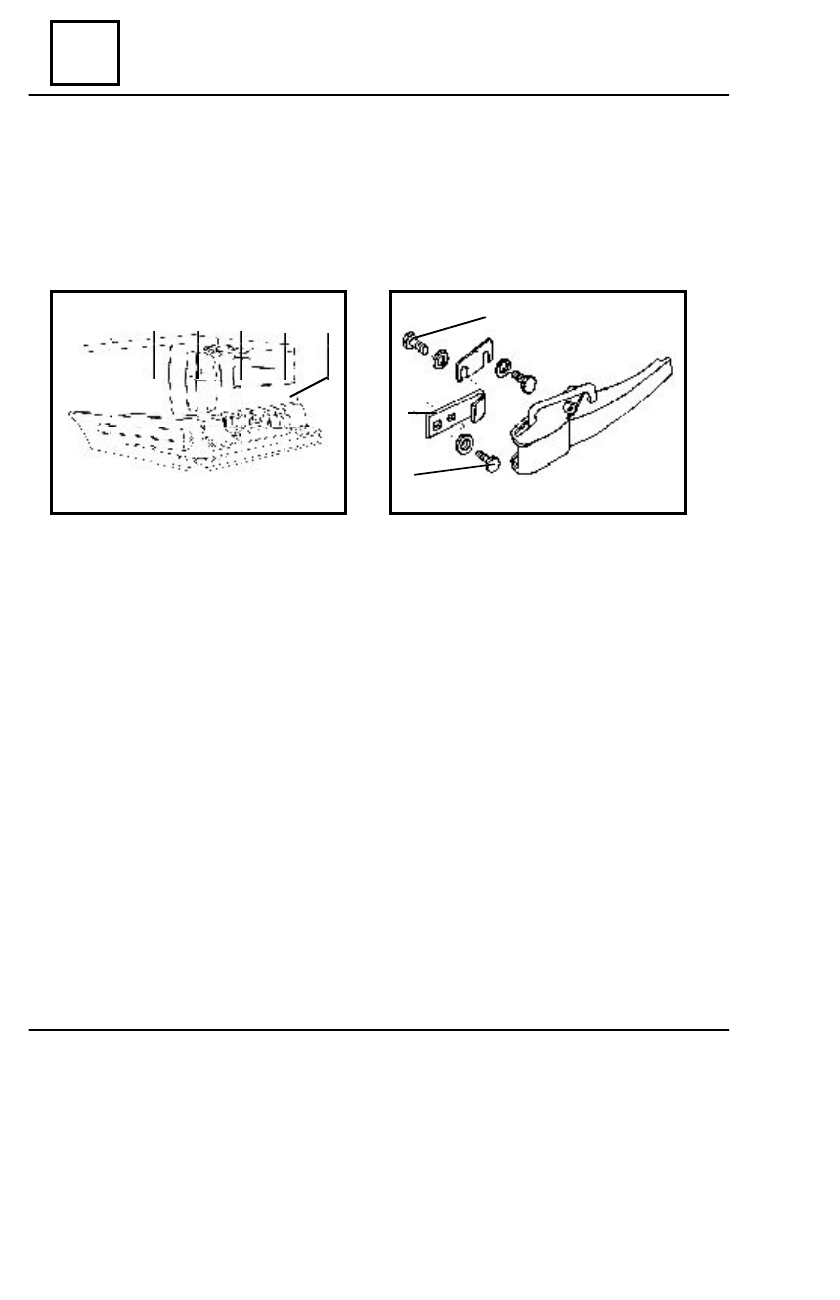

Dismount :

- the screws (1) and (2) of the end of the stopper chain (3);
- the lock attachment screws (4) of the side panel the lock attachment screws (5)

of the rear drop side panel.

REAR DROP SIDE LOCKING SYSTEM DACIA 1304 platform

5

4

1

2

3

REAR DROP  SIDE LOCKING SYSTEM

54

WINDOWS

WINDSCREEN AND CAB REAR WINDOW

The replacement of these windows is performed in case they are broken, when they are

not according to the required overall dimensions or have manufacturing defects (image
distortions,cracks, etc).

DISMOUNTING OF A BROKEN WINDOW

   If  the window or part of it did not fall, the window gasket shall be dismounted and the
pieces of broken window shall be removed from it easier by sticking a sheet of paper on
each surface.

PREPARING FOR MOUNTING

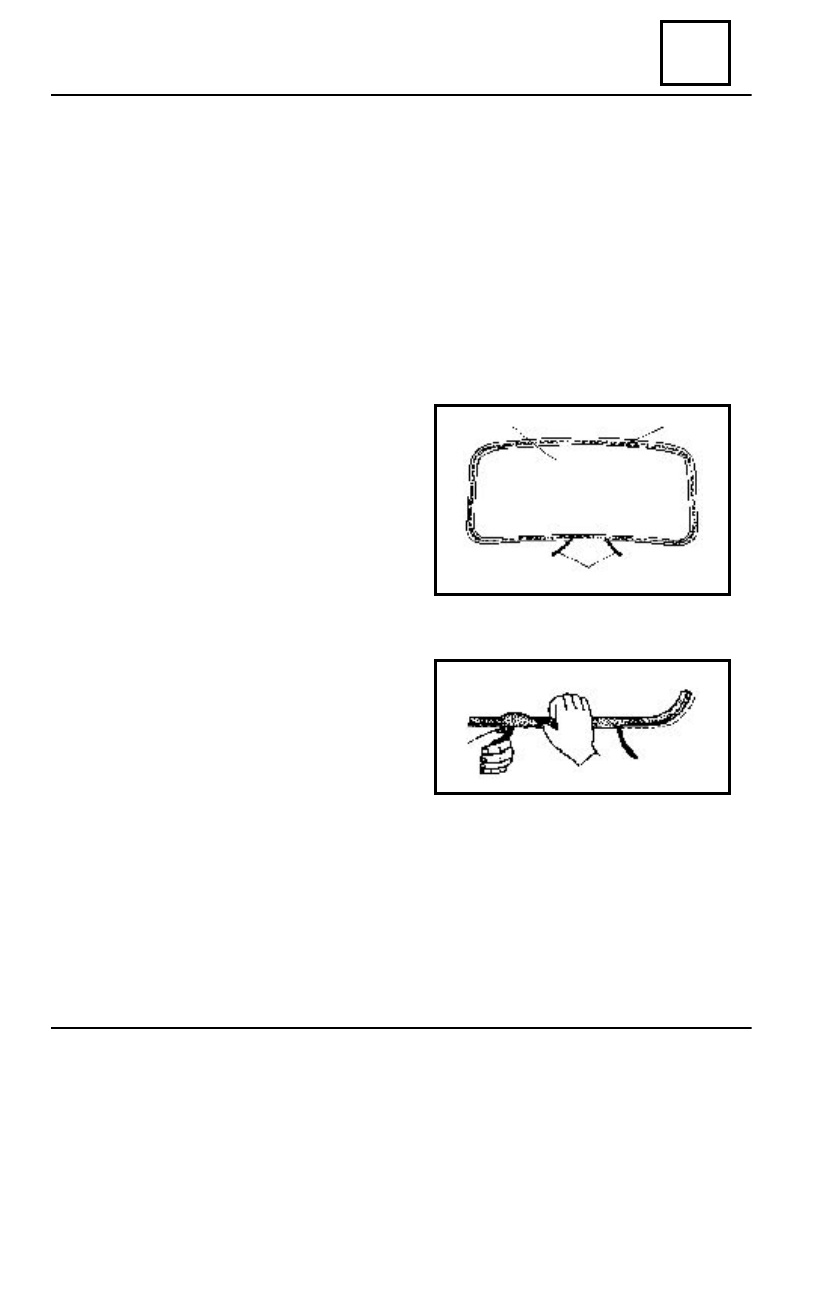

Position the gasket (2) around the

 window (1) and place the assembly on a
protection plate.

Place in the gasket channel all around

the gasket frame; a cotton cord (4) of
3 – 4 mm diameter, so that at its ends (3)
to have some more 20 cm of cord, and
between the ends , the distance shall not
be more than 10 cm.

MOUNTING OF WINDSCREEN AND REAR WINDOW

The windscreen – gasket – cord assembly

is placed on the frame, for mounting, so
that the cord ends are placed towards the
inside of carriage body.

54 - 1

From the inside of the vehicle, successively draw the ends of the cord, beginning with

the lower parts, in this way the window gasket edge is lifted and then lowered on the
frame. At the outside , the window gasket is seated by slightly pressing it on window, so
that the tightening is uniform on the whole windscreen contour and frame.

The cord is always removed through the upper part of the windscreen.
Each time a windscreen or rear window is mounted, ensure the uniform setting of the

whole  assembly on the carriage body by tapping several times with a rubber hammer, on
the edge of the window frame.

1

4

3

2

WINDOWS
