 The exhaust assembly ensure the evacuation of the burnt gases issued during the

engine running and reduction of both noise level and dangerous emissions.
     The assembly is composed of :

- downtake pipe (1);
- pipe and expansion chamber (8);
- intermediate pipe (4);
- silencer (7).

For vehicles equipped with injection system the downtake pipe is equipped with catalyst (11)

which has the purpose of pollution emissions reduction.

D

ISMO UNTING

To dismount the  silencer assembly perform the following operations :
Loosen the collar (6) between the intermediate pipe (4) and the silencer (7).
Dismount the two elastic rings (5) for attaching the back part of the silencer.
Dismount the silencer by trow it towards back.

     To dismount the intermediate pipe (3) perform the following operations:

Loosen the collar (4) of fixing the intermediate pipe with the expansion chamber (8).
Dismount the two elastic rings (5) for attaching the intermediate pipe and take it out by turning

and pulling it back.

To dismount the  expansion chamber assembly perform the following operations:
Loosen the collar (9) between the expansion chamber assembly (8) and the primary

downtake pipe (1).

To dismount the downtake pipe perform the following operations:

Dismount the engine shield.
Unscrew the  right crossbar fixing screw, loosen the fixing screw in the left part and rotate

the crossbar.

Dismount the fixing half collars (2) of the downtake pipe (1).
Dismount the attachment nuts of the downtake pipe on the exhaust manifold flange.
Dismount the elastic buffer RON (10).
Take out the  downtake pipe.

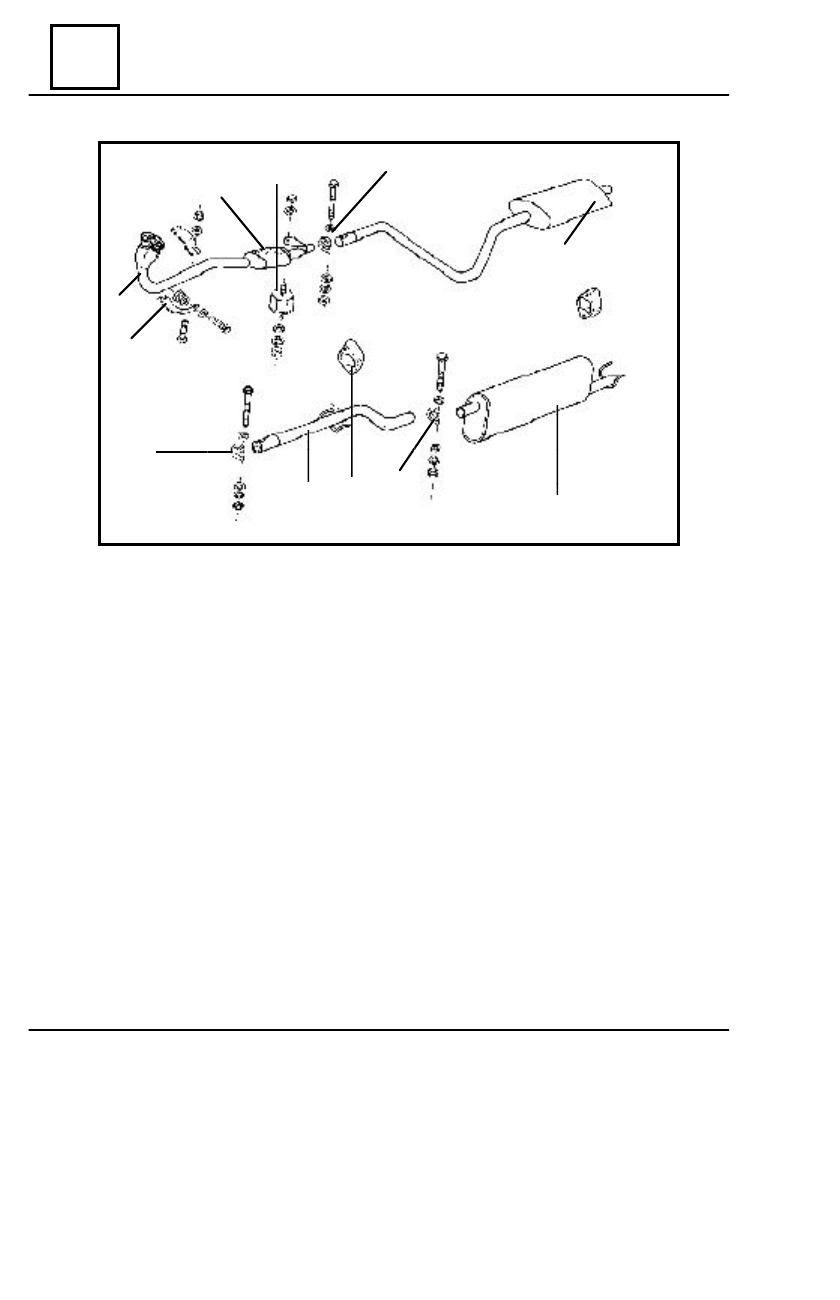

EXHAUST ASSEMBLY

COOLING - EXHAUST - FUEL TANK

19

19 - 14

R

EMOUNTING

 Perform in reverse order the dismounting operations.

9

10

11

8

7

6

5

4

3

1

2

EXHAUST ASSEMBLY

19

COOLING - EXHAUST - FUEL TANK

19 - 15

D

ISMO UNTING

In order to dismount the fuel tank the following operations are to be performed:
Disconnect the battery.
Drain the fuel tank (1).
Disconnect the rear wiring from the tank cap.
Dismount the fuel pump (2).
Dismount the hose fixing ring (3) on the air exhaust duct (4) for Dacia 1304 Pick-up,

respectively the sealing gasket (8) for Dacia 1304 Dropside.

Dismount the fixing collar (5) of the fuel duct on the lower filling hole.
Dismount the anti-turning valve (6 ).
Dismount the fixing washers (7) of the fuel tank on the car body.

R

EMOUNTING

Perform in reverse order the dismounting operations.

Dacia 1304 Pk.

Dacia 1304 Pl.

4

5

3

6

2

1

7

4

5

8

6

2

7

1

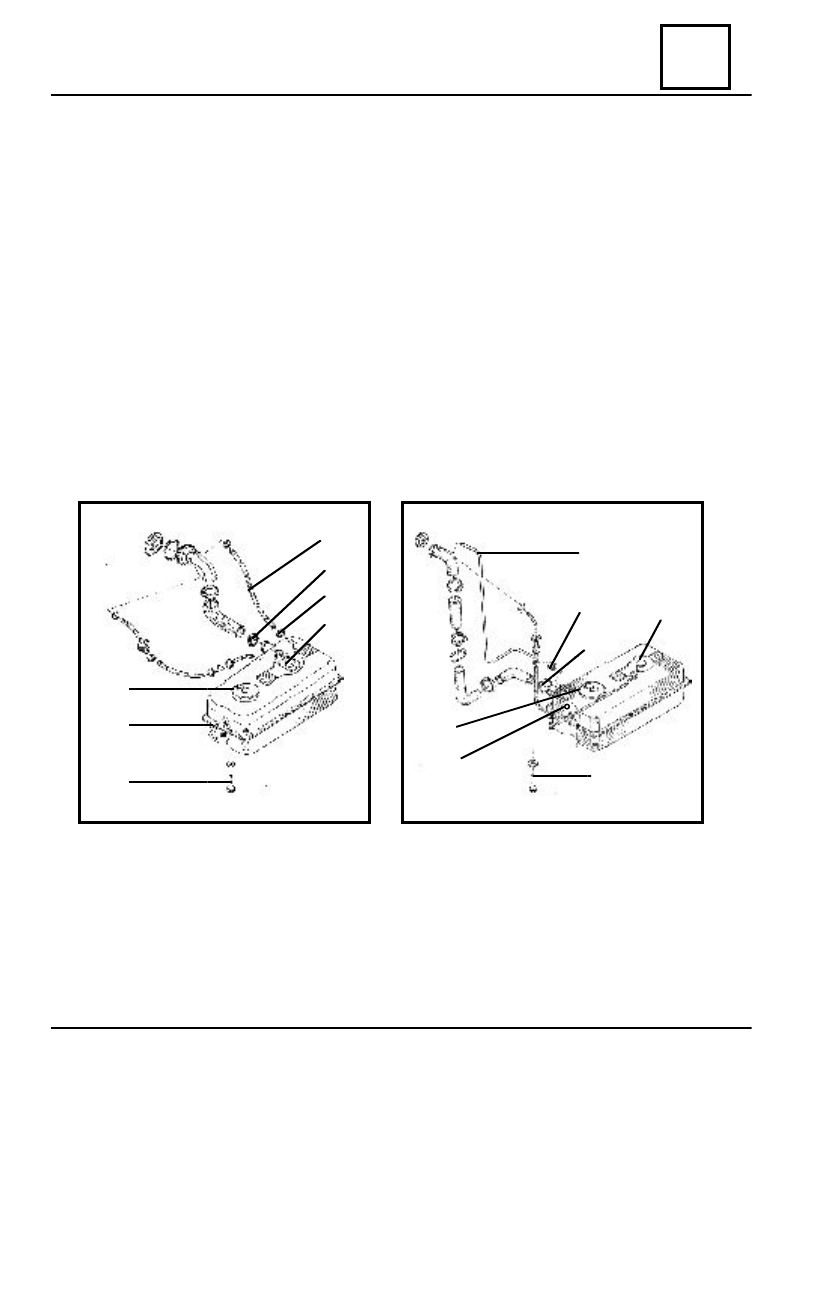

FUEL TANK ASSEMBLY

COOLING - EXHAUST - FUEL TANK

19

19 - 16

PARTICULARITIES

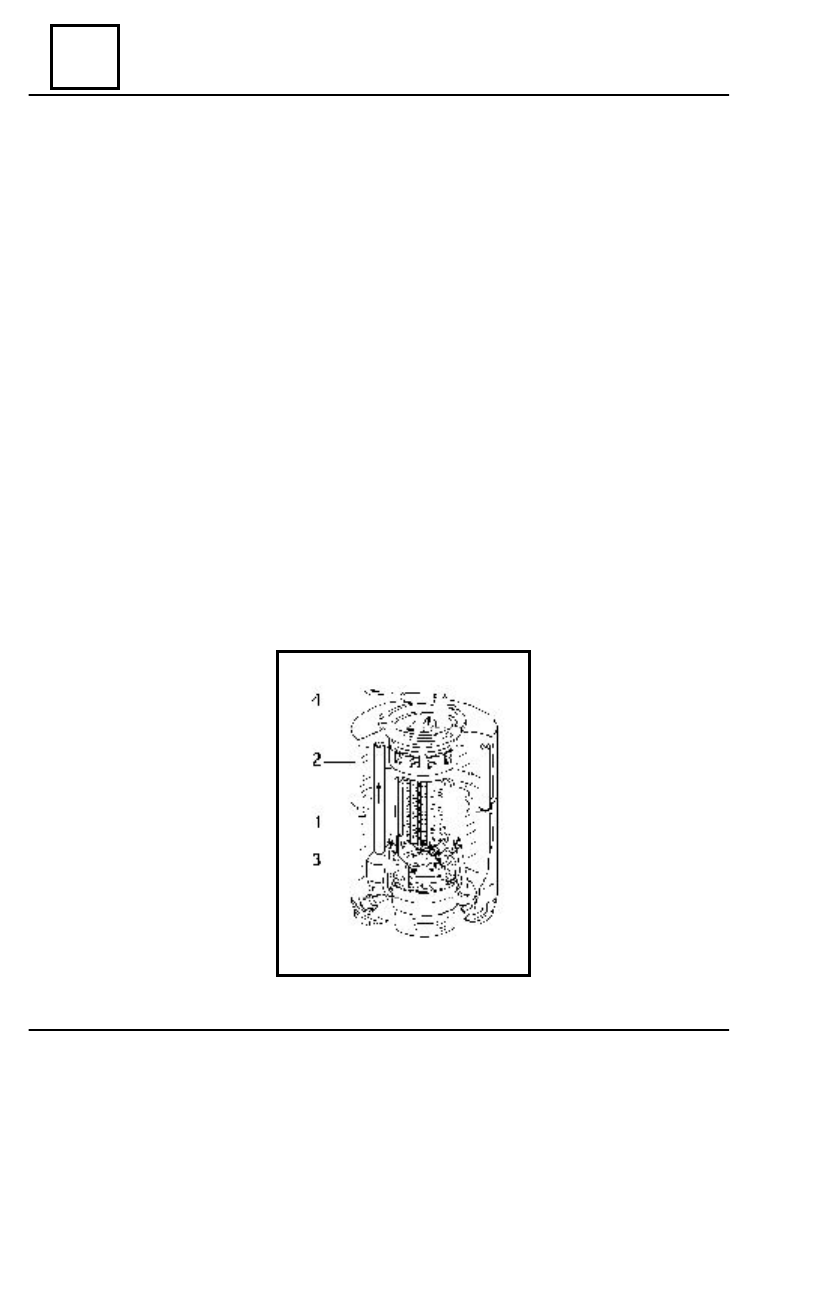

The electric fuel pump (picture 2) is fixed on the tank,being immersed in fuel and is commended

by the computer,by means of the fuel pump relay (R1). When contact is on,with the key in the
position M (engine),but without starting the engine,the pump will be fed with electricity only for
3-4 sec.The pump will permanently flow only when the computer is receiving signal from the
rpm sensor and must ensure a minimum flow of
1 - 1,1  l/min.and a pressure of 1-1,1 bars at 12 V. The cause of an insufficient flow may be the
low feeding tension of the pump or a dirty fuel filter.
  In case it is defective the pump is not to be repaired but replaced.

ATTENTION!

In the feeding system,the fuel remains under pressure even after stopping of the

engine; in case of hoses disconnecting,place a cloth material next to the connection so
that fuel does not reach the hot areas of the engine.

    The flow measurement is done as follows:

- connect the return from the injector valve body to a hose which will flow fuel in a

gauged vessel of 2000 ml;

- feed directly the pump during 1 minute,starting the engine or by  by-passing the connector

30 and 87 of the fuel pump replay (R1),with the engine stopped and contact off.

 ELECTRIC FUEL PUMP
