MECHANICAL COMPONENT CONTROLS

Master cylinder

F4R or F9Q or K4J or K4M or K9K

37A

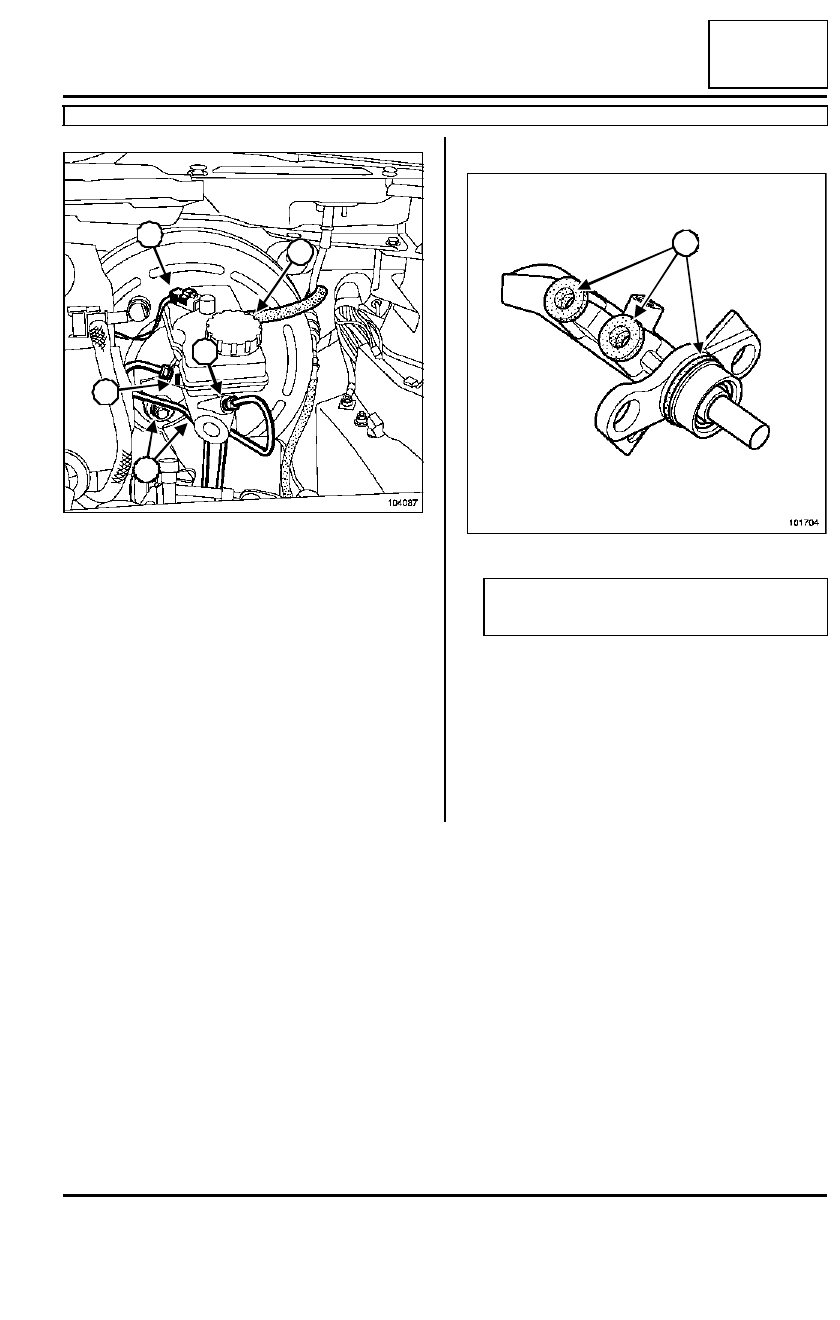

Disconnect the electrical connector (9) from the mas-
ter cylinder reservoir.

Drain the master cylinder reservoir with a syringe.

Remove:

- the clutch master cylinder pipe (10),

- the brake pipes (11) from the master cylinder,

- the master cylinder - brake servo mounting nuts

(12),

- the « master cylinder - master cylinder reservoir »

assembly,

- the master cylinder reservoir mounting bolts (13),

- the master cylinder reservoir.

REFITTING

Clip the master cylinder reservoir onto the master cy-
linder properly.

Refit the master cylinder reservoir - master cylinder
mounting bolts.

Torque tighten the master cylinder reservoir
mounting bolts (0.85 daNm).

104087

11

10

9

13

12

101704

WARNING

Be sure to replace the master cylinder seals (14).

14

14

37A

-

4

MECHANICAL COMPONENT CONTROLS

Master cylinder

F4R or F9Q or K4J or K4M or K9K

37A

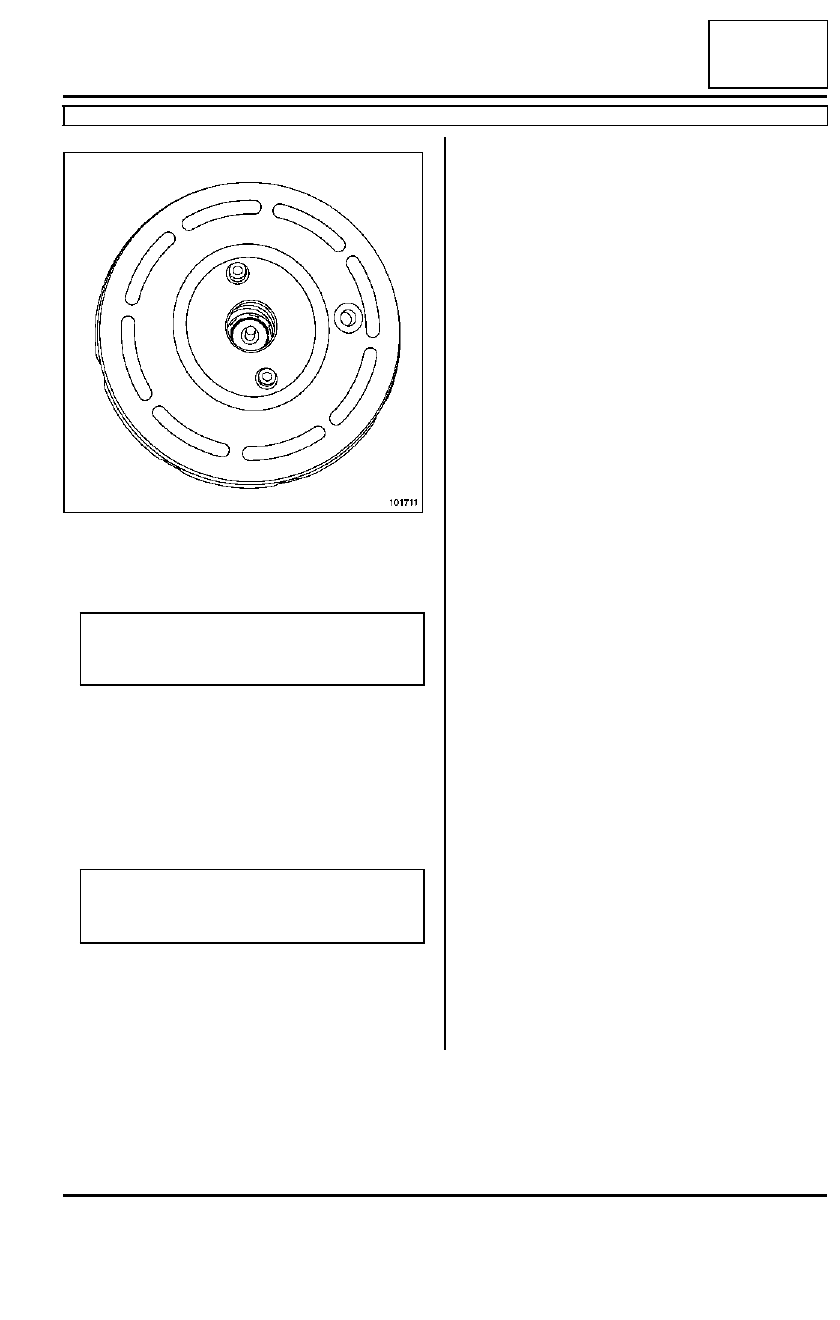

Line up the master cylinder with the brake servo so
that the pushrod goes into the master cylinder hou-
sing.

Refit the master cylinder - brake servo mounting
nuts.

Torque tighten the master cylinder - brake servo
mounting nuts (5 daNm).

Proceed in the reverse order to removal.

Torque tighten the brake pipe - master cylinder
nuts (1.7 daNm).

Bleed the braking circuit (Section General Vehicle
Information, Braking circuit bleed,  page 30A-5).

Adjust the brake pedal position switch (Section Me-
chanical component controls, Brake light switch,
page 37A-24).

101711

WARNING

When refitting the master cylinder, be sure that
the cup is centred in the brake servo.

WARNING

Connect the battery; carry out the necessary pro-
gramming (Section Electrical equipment).

37A

-

5

MECHANICAL COMPONENT CONTROLS

Brake servo

F4R or F9Q or K4J or K4M or K9K

37A

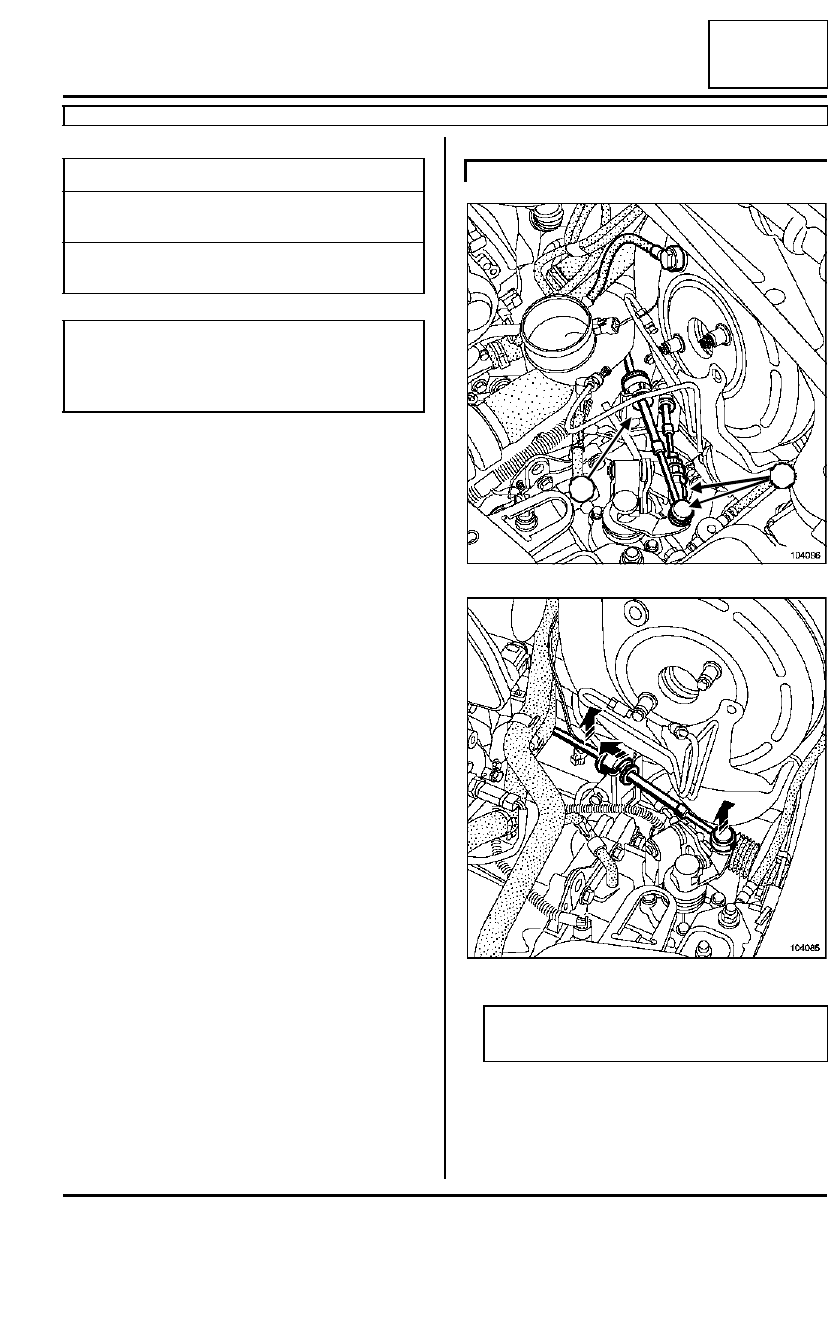

REMOVAL

Remove the master cylinder (Section Mechanical
component controls, Master cylinder,  page 37A-1).

Remove:

- the gearbox control ball joints (1),

- the control cables from the sheath stops

- the sheath stop support mounting bolts,

Tightening torques

m

brake servo mounting
bolts

2.1 daNm

gearbox  control sheath
support mounting bolts

2.1 daNm

WARNING

Prepare for brake fluid outflow, to prevent damage
to the mechanical parts and bodywork around the
braking system.

F4R or F9Q

104086

104085

WARNING

Do not touch the gearbox control rack.

2

1

37A

-

6

MECHANICAL COMPONENT CONTROLS

Brake servo

F4R or F9Q or K4J or K4M or K9K

37A

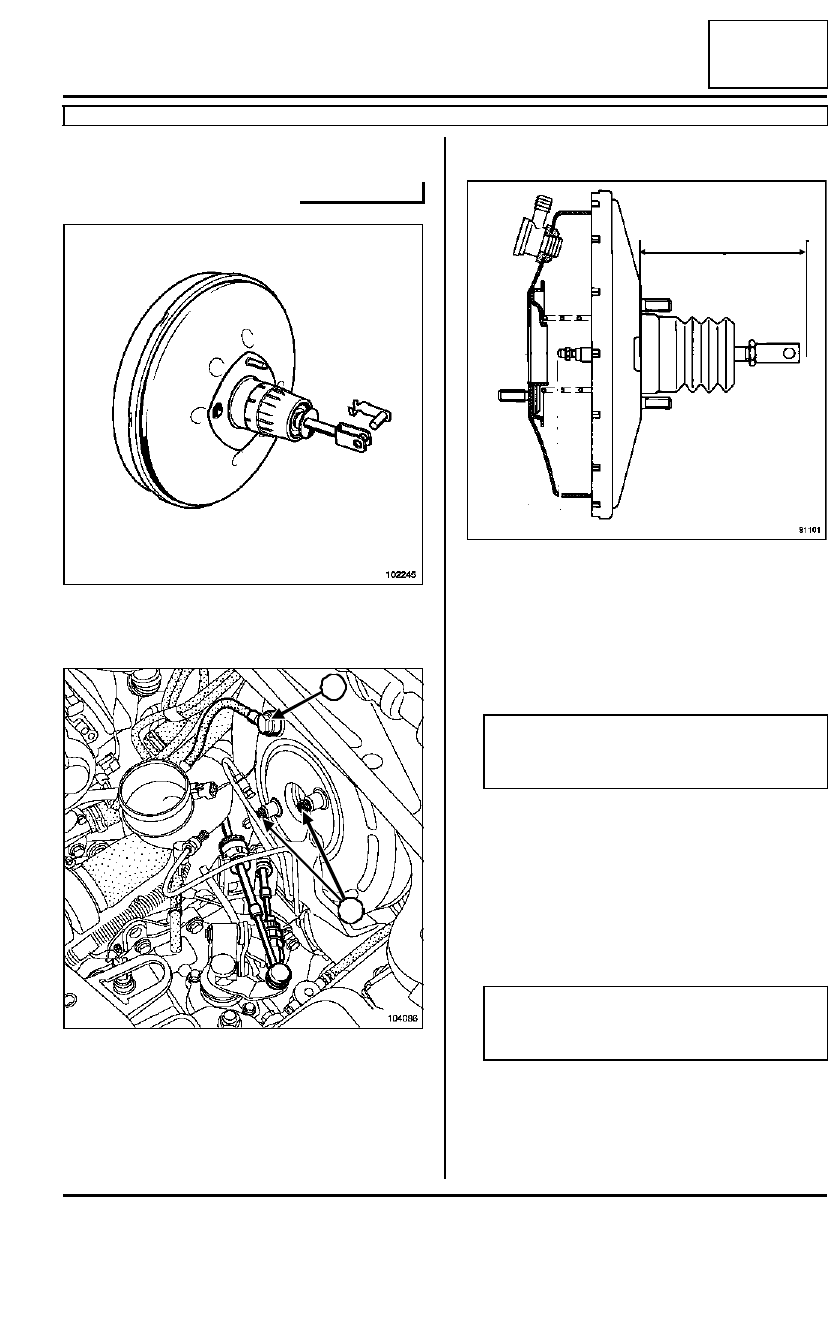

- the sheath stop support (2).

Remove the brake servo pushrod - brake pedal con-
necting shaft from the passenger compartment side.

Remove:

- the brake servo valve (3),

- the brake servo mounting bolts (4) from the engine

compartment side,

- the brake servo.

REFITTING

Check the following dimension before refitting:

- for left-hand drive vehicles: (X1) = 163.7 mm,

- for right-hand drive vehicles: (X1) = 133.2 mm.

Proceed in the reverse order to removal.

Torque tighten:

- the brake servo mounting bolts (2.1 daNm),

- the gearbox control sheath support mounting

bolts (2.1 daNm).

Refit the master cylinder (Section Mechanical com-
ponent controls, Master cylinder,  page 37A-1).

Bleed the braking circuit (Section General Vehicle
Information, Braking circuit bleed,  page 30A-5).

Adjust the brake pedal position switch (Section Me-
chanical component controls,  Brake light switch,
page 37A-24).

102245

104086

4

3

91101

IMPORTANT

Check that the brake servo pushrod - brake pedal
connecting shaft is locked in place.

WARNING

Connect the battery; carry out the necessary pro-
gramming (Section Electrical equipment).
