Changing a wiper blade

Partner2VP_en_Chap08_Aide-rapide_ed02-2016

Placing the windscreen wiper

blades in the special position

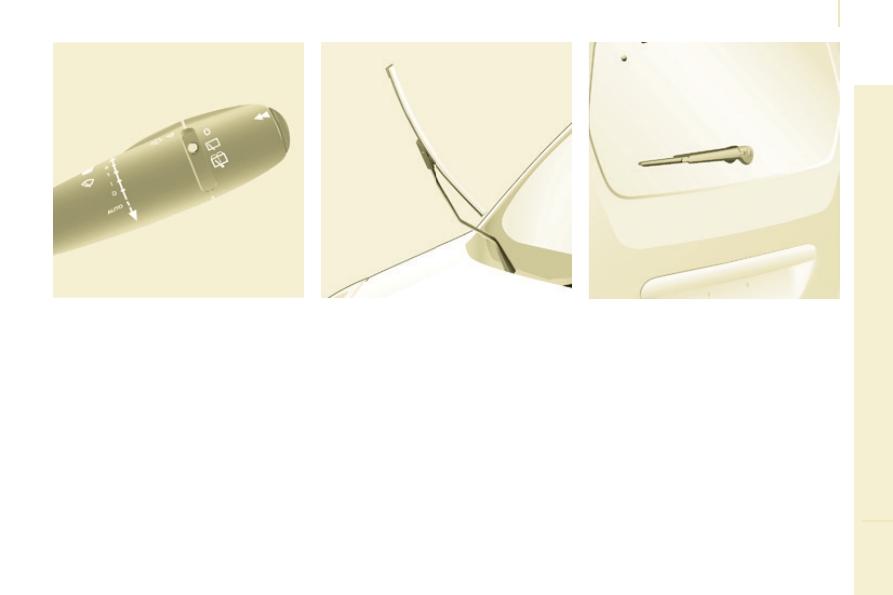

Changing a front wiper blade

Lift the wiper arm.

Unclip the blade and remove it.

Fit the new blade.

Push back the wiper arm.

Changing the rear wiper blade

Lift the wiper arm, then unclip the
blade and remove it.

Fit the new blade and push back
the wiper arm.

CHANGING A WIPER BLADE

Within a minute after switching off
the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).

To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.

192

Partner2VP_en_Chap08_Aide-rapide_ed02-2016

Having your vehicle towed

Partner2VP_en_Chap08_Aide-rapide_ed02-2016

Without lifting (4 wheels on the

road)

You should always use a towing arm.

BEING TOWED

This procedure involves the use of
the towing eye supplied with the tools
for changing a wheel.

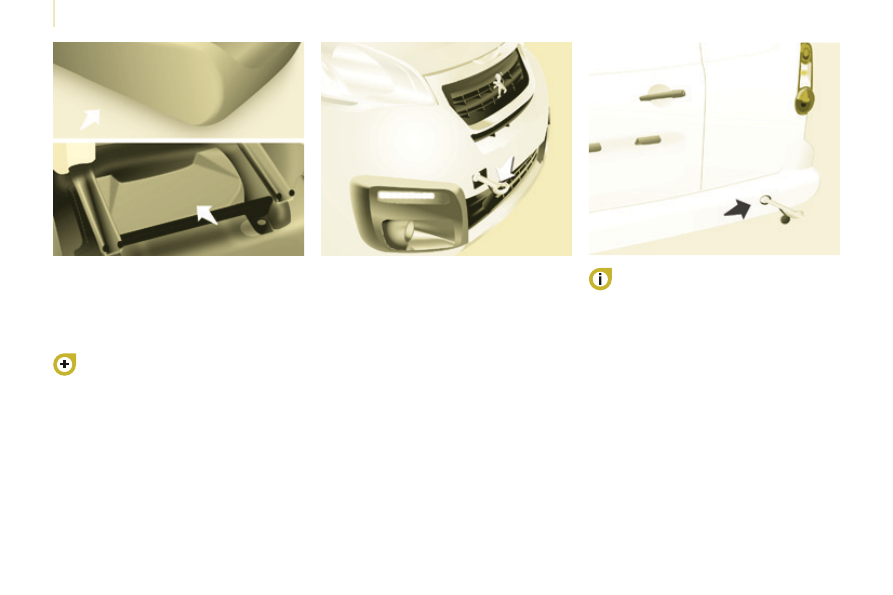

From the front

Unclip the cover by pressing the
bottom part.

Fully screw in the removable towing
eye.

From the rear

Unclip the cover using a coin or the

flat part of the towing eye,

Fully screw in the removable towing
eye.

When towing with the engine
switched off, there is no braking or
steering assistance.

Lifting (only 2 wheels on the

road)

It is preferable to raise the vehicle
using professional lifting equipment.

Vehicles fitted with a manual

gearbox (Diesel version)

In the case of vehicles fitted with

a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.

Section 8, "Changing a wheel".

194

Dimensions

Partner2VP_en_Chap09_Caract-technique_ed02-2016

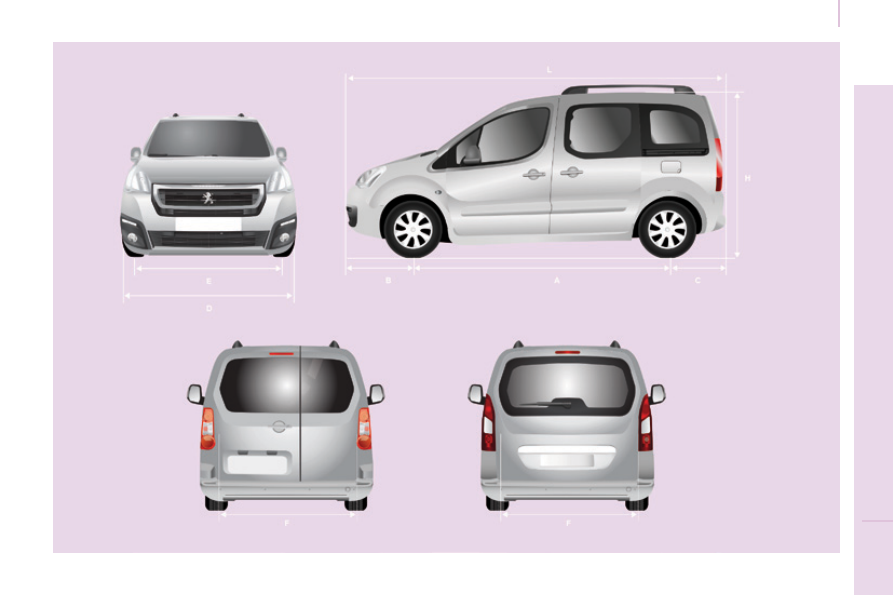

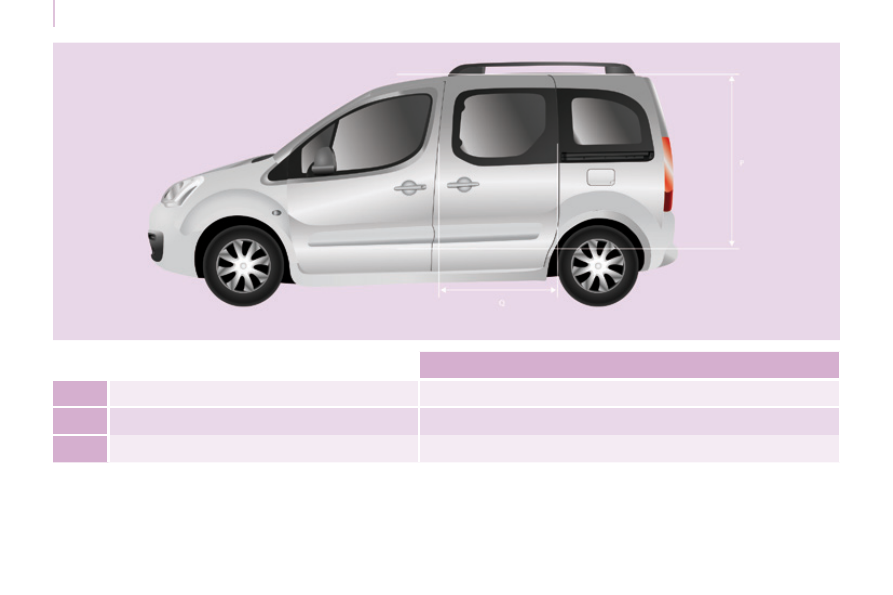

DIMENSIONS (MM)

Overall length

4380

Overall height

1801-1862

Wheelbase

2728

Front overhang

925

Rear overhang

727

Width over panels:

without mirrors

1810

with mirrors

2112

Width of front tracks

1505-1507

Width of rear tracks

1554-1556

Length of the loading surface to
the seat

Row 2

990

Row 2, seat fully folded

1343

With front passenger seat folded

3000

195

Dimensions

TECHNICAL

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Max sill height with 205/65 R15 tyres and tailgate
trim

582

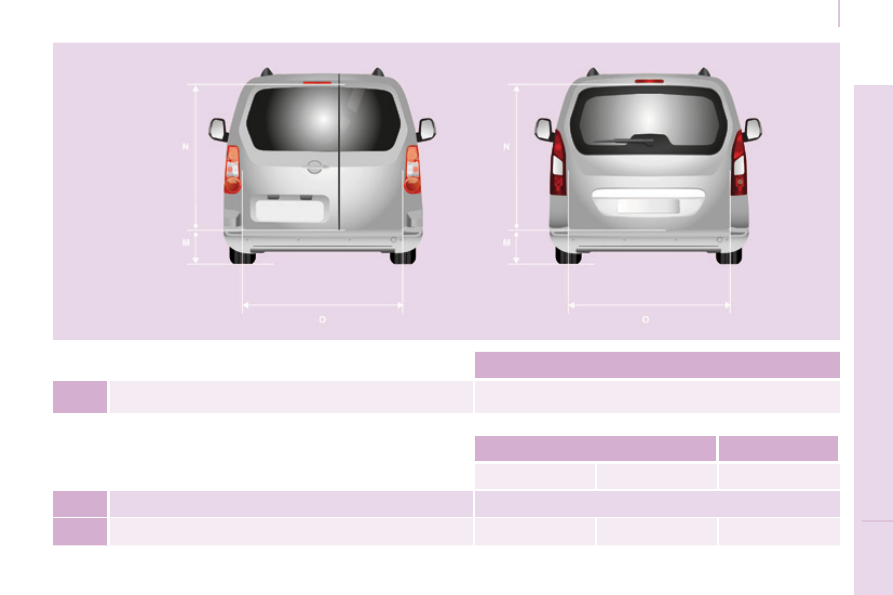

Hinged doors

Tailgate

Small

Large

Aperture height (under panel)

1118

Aperture width

495

543

1582

Rear doors (mm)

197

TECHNICAL

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Weights

Partner2VP_en_Chap09_Caract-technique_ed02-2016

ENGINE CHARACTERISTICS

The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO

emissions...) for your

vehicle are given in the registration

certificate.
These characteristics correspond
to the values type-approved
on a test bed, under conditions

defined in European legislation

(Directive 1999/99/EC).

For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact

a PEUGEOT dealer or a qualified

workshop.

WEIGHTS AND TOWED LOADS

These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on

the vehicle's registration certificate.

The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank

filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded.

High ambient temperatures
may result in a reduction in the
performance of the vehicle in

order to protect the engine. When the
ambient temperature is higher than
37 °C, limit the towed weight.

Towing with a lightly loaded
vehicle can adversely affect road
holding.

Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).

The recommended nose weight is
the downward force on the towball
(removable with or without tools).

GVW: gross vehicle weight, the

maximum authorised weight.
GTW: gross train weight, the maximum

weight for vehicle plus trailer.

The location of the manufacturer's
plate is given in chapter 9,

"Identification markings" section.

In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied

with. To find out your vehicle's towing

capacities and its gross train weight,
consult a PEUGEOT dealer.

198

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Weights

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Petrol Engines / Weights

5-seat

Engine

Gearbox

Engine oil

capacity with filter

replacement (litres)

Unbraked

trailer (kg)

Recommended nose

weight (kg)

1.6 110 hp

5-speed manual

3.25

750

1.6 VTi 100 hp

5-speed manual

4.25

600

1.6 VTi 120 hp

5-speed manual

4.25

690

1.6 VTi 120 hp

Euro 6

5-speed manual

4.25

600

1.2 PureTech S&S

110 hp Euro 6

5-speed manual

3.45

600

7-seat

Engine

Gearbox

Engine oil

capacity with filter

replacement (litres)

Unbraked

trailer (kg)

Recommended nose

weight (kg)

1.6 110 hp

5-speed manual

3.25

750

199

TECHNICAL

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Weights

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Diesel Engines / Weights

5-seat

Engine

Gearbox

Engine oil

capacity with filter

replacement (litres)

Unbraked

trailer (kg)

Recommended nose

weight (kg)

1.6 HDi 75 hp

5-speed manual

600

1.6 HDi 75 hp FAP

5-speed manual

715

BlueHDi 75 hp

Euro 6

5-speed manual

720

1.6 HDi 90 hp

5-speed manual

3.75

735

1.6 HDi 92 hp FAP

5-speed manual

3.75

715

1.6 e-HDi 92 hp FAP

5-speed manual

3.75

690

1.6 BlueHDi 100 hp

Euro 6

5-speed manual

3.75

600

1.6 BlueHDi 100 hp

S&S

5-speed manual

3.75

600

6-speed electronic

600

1.6 HDi 115 hp FAP

5-speed manual

3.75

735

1.6 BlueHDi 120 hp

Euro 6

6-speed manual

3.75

600

FAP: particle filter.

e-HDi: model equipped with Stop & Start.

200

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Weights

Partner2VP_en_Chap09_Caract-technique_ed02-2016

7-seat

Engine

Gearbox

Engine oil

capacity with filter

replacement (litres)

Unbraked

trailer (kg)

Recommended nose

weight (kg)

1.6 HDi 92 hp FAP

5-speed manual

3.75

750

1.6 BlueHDi 100 hp

Euro 6

5-speed manual

3.75

600

1.6 BlueHDi 100 hp

Euro 6 S&S

5-speed manual

3.75

600

1.6 HDi 115 hp FAP

5-speed manual

3.75

750

1.6 BlueHDi 120 hp

Euro 6

6-speed manual

3.75

600

FAP: particle filter.

e-HDi: model equipped with Stop & Start.

201

TECHNICAL

Partner2VP_en_Chap09_Caract-technique_ed02-2016

Identification markings

Partner2VP_en_Chap09_Caract-technique_ed02-2016

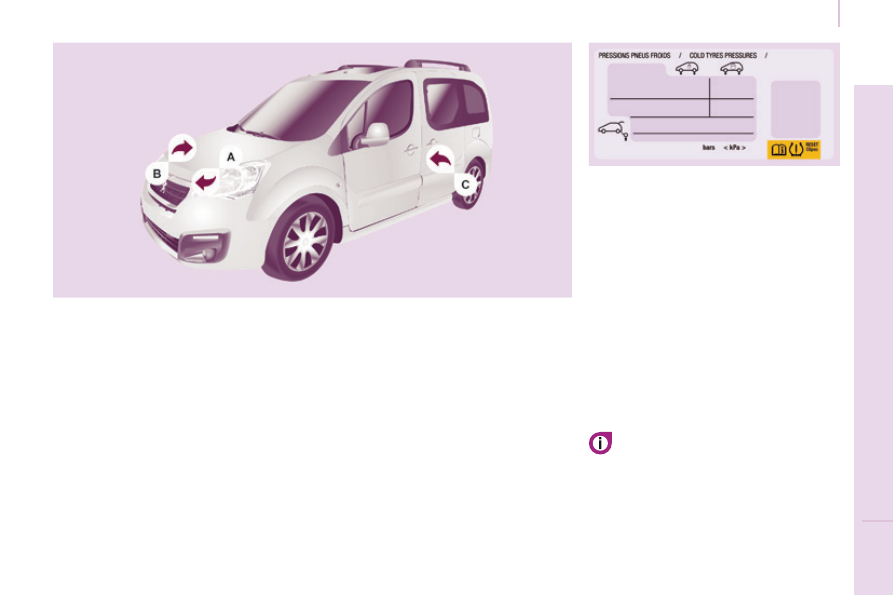

IDENTIFICATION MARKINGS

A. Manufacturer's plate.

C. Tyres and paint colour code.
The label

C, on the front door

gives:
-

the wheel and tyre sizes,

the tyre pressures, laden and
unladen,

the tyre pressure of the spare
wheel,

the paint colour code.

The tyre pressures should be checked
when cold, at least once a month.

B. Serial number.
This is engraved on the front right
wheelarch.

If your vehicle is fitted with the

system, refer to the "Under-

inflation detection" section in

Chapter 3.

Audio and Telematics

203

TECHNOLOGY

BOARD

Partner2VP_en_Chap10a_SMEGplus_ed02-2016

7-inch touch screen

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

204

Steering mounted controls

206

Menus 207
Navigation 208
Navigation - Guidance

Radio 228
DAB (Digital Audio Broadcasting) radio

230

Media 232
Settings 234
Connected services

Telephone 248
Frequently asked questions

256

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

Audio and Telematics

205

TECHNOLOGY

BOARD

Partner2VP_en_Chap10a_SMEGplus_ed02-2016

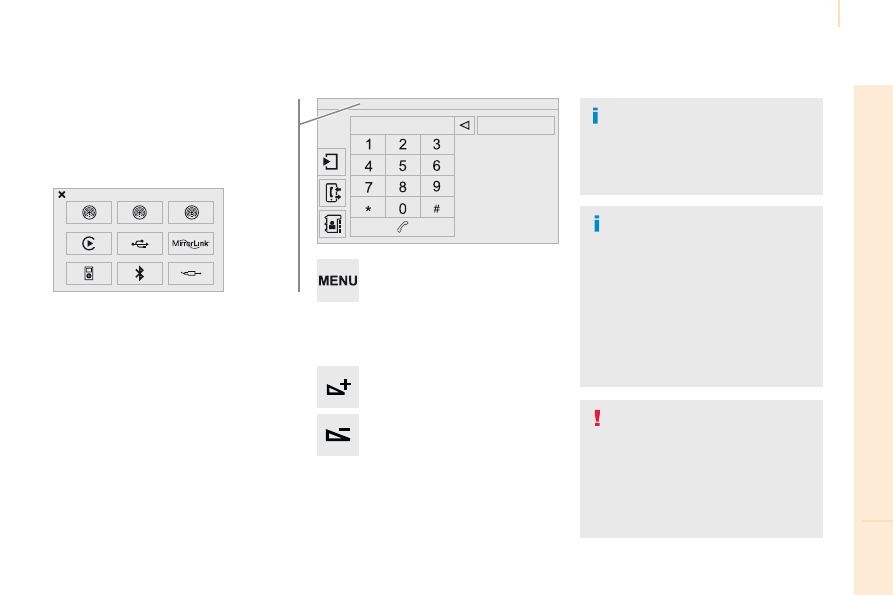

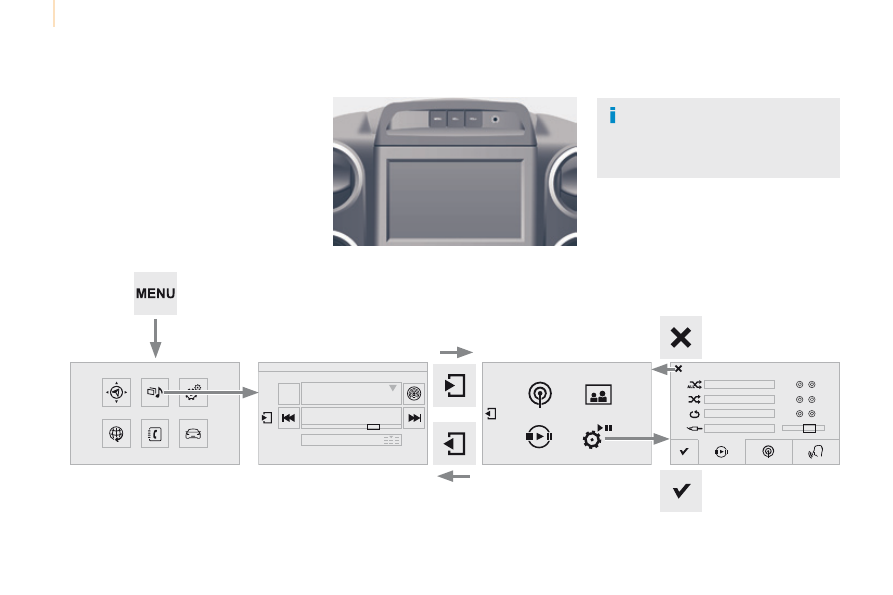

Volume adjustment (each source is independent,
including traffic announcements (TA) and
navigation instructions).

Mute the sound by pressing simultaneously on
the volume increase and reduce buttons.
Unmute the sound by pressing one of the
two volume buttons.

Press

Menu to display the menu

carousel.

Increase volume.

Reduce volume.

Selecting the audio source (depending on
version):
-

"FM" / "DAB"* / "AM"* stations.

"USB" memory stick.

Smartphone via MirrorLink

or CarPlay

Telephone connected by Bluetooth

* and

Bluetooth

* audio streaming.

Media player connected to the auxiliary
socket (jack, cable not supplied).

* Depending on equipment.

Short-cuts: using the touch buttons in the upper
band of the touch screen, it is possible to go
directly to the selection of the audio source or
the list of stations (or titles, depending on the
source).

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

In very high temperatures, the volume
may be limited to protect the system.
The return to normal takes place when
the temperature in the passenger
compartment drops.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Audio and Telematics

206

Partner2VP_en_Chap10a_SMEGplus_ed02-2016

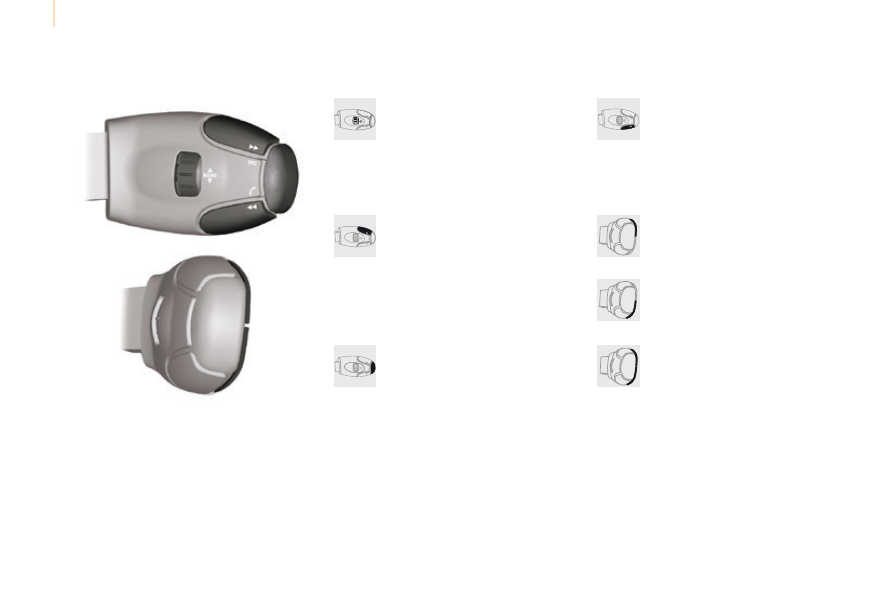

Steering mounted controls

Radio: select the previous/next
preset station.
Media: select a genre / artist / folder
from the list.
Select the previous/next entry in a
menu.

Decrease volume.

Radio: automatic search for a higher
frequency.
Media: Select next track.
Media, press and hold: fast forward.
Jump in the list.

Mute: cut the sound by pressing
the volume increase and decrease
buttons simultaneously.
Restore the sound by pressing one of
the two volume buttons.

Radio: automatic search for a lower
frequency.
Media: select previous track.
Media, press and hold: fast back.
Jump in the list.

Change the audio source.
Confirm a selection.
Call/end call on the telephone.
Press for more than 2 seconds:
access to the telephone menu.

Increase volume.

Peugeot Partner Tepee (2017 year). Instruction - part 13
