Peugeot Partner Tepee (2017 year). Instruction

143

SAFETY

Partner2VP_en_Chap05_Securite_ed02-2016

143

Child safety

Partner2VP_en_Chap05_Securite_ed02-2016

ISOFIx MOUNTINGS

Your vehicle has been approved in
accordance with the latest ISOFIX
regulation.
The mountings comprise three rings for
each seat.

Two front rings

A, located between

the vehicle seat backrest and cushion,
indicated by a marking.

A rear ring

B, located on the back

of the vehicle's seat backrest, for
securing the upper strap referred to as
the Top Tether.

The Top Tether is used to secure the
upper strap of child seats that have
one. This arrangement limits the
forward tipping of the child seat in the
event of a frontal impact.
This ISOFIX mounting system
guarantees you fast, reliable and safe

fitting of the child seat in your vehicle.

The ISOFIX child seats are fitted with

two latches which are secured on the
two front rings

Some also have an upper strap which
is attached to the rear ring

Follow strictly the instructions for

fitting child seats contained in the

manufacturer's installation guide.

To secure the child seat to the
Top Tether:
-

remove and stow the head restraint
before installing the child seat in

this seating position (refit it once

the child seat has been removed),

pass the upper strap of the child
seat over the top of the seat
backrest, between the apertures for
the head restraint rods,

secure the hook on the upper strap
to the rear ring,

tighten the upper strap.

The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of an accident.

Refer to the table for information on
the installation of ISOFIX child seats in
your vehicle.

144

Partner2VP_en_Chap05_Securite_ed02-2016

144

Child safety

Partner2VP_en_Chap05_Securite_ed02-2016

This child seat can also be used on seats which are not fitted with ISOFIX

mountings.
In this case, it must be attached to the vehicle seat using the three point seat
belt.
Follow the instructions for fitting the child seat given in the seat

manufacturer's installation guide.

Recommended ISOFIx seat

"ISOFIx RÖMER DUO plus"

(size category

B1)

Group 1: from 9 to 18 kg

Installed only in the forward facing position.

Secured to rings

A, as well as ring B,

called the Top Tether, using an upper strap.

Three seat body angles: sitting, reclining, lying.

145

SAFETY

Partner2VP_en_Chap05_Securite_ed02-2016

145

Child safety

Partner2VP_en_Chap05_Securite_ed02-2016

LOCATIONS FOR CHILD SEATS ISOFIx

* In the 7 seat version, all three seats

in row 2 must be present when child
seats are installed.

** A child seat with support leg must

never be installed on an outer
passenger seat in row 2, unless you
are able to install it in line with the
recommendations under "Installing a
child seat with a support leg".

In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the

vehicle seats fitted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from

A to G, is indicated on the child seat next to the logo ISOFIX.

Weight of the child / indicative age

Less than

10 kg

(group 0)

Up to 6 months

approx

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

Type of ISOFIx child seat

Infant car seat

rearward facing

rearward

facing

forward facing

ISOFIx size category

Row 2
(5 and 7* seats)

Outer seats**

IL-SU

IUF, IL-SU

Centre seat

Not ISOFIx

Row 3
(7 seats)

All seats

Not ISOFIx

IUF: seat suitable for the installation

of an

ISOFIX Universal child seat,

Forward facing and secured with an

upper strap.
IL-SU: seat suitable for the installation

of a

ISOFIX Semi-Universal child seat,

either.
-

rearward facing equipped with an
upper strap or a support leg,

forward facing equipped with a
support leg,

Remove and stow the head
restraint before installing a
child seat with a backrest on a
passenger seat.

Refit the head restraint once the child

seat has been removed.

a cot equipped with an upper strap
or a support leg.

To attach the upper strap, refer to
chapter 5, "ISOFIX mountings" section.

146

Partner2VP_en_Chap05_Securite_ed02-2016

146

Child safety

Partner2VP_en_Chap05_Securite_ed02-2016

ADVICE ON CHILD SEATS

At the rear, always leave sufficient

space between the front seat and:
-

a rearward facing child seat,

the feet of a child seated in a
forward facing child seat.

For this, move the front seat forward
and, if necessary, straighten its
backrest as well.

The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Check that there is no seat belt or seat
belt buckle under the child seat, as this
could destabilise the seat.
Remember to fasten the seat belts or
the child seat harnesses

keeping the

slack relative to the child's body to a

minimum, even for short journeys.
For the installation of a child seat using
the seat belt, ensure that the seat belt
is well tensioned on the child seat
and that it is holding the child seat

firmly against the vehicle's seat. If the

passenger seat is adjustable, move it
forward if necessary.

For the optimum installation of a
forward facing child seat, ensure that
the back of the child seat is as close as
possible to the backrest of the vehicle's
seat, or in contact if possible.
The head restraint must be removed
before installing a child seat with a
backrest on the passenger seat.
Ensure that the head restraint is
stowed or attached securely so that it
is not thrown around the vehicle in the
event of sharp braking.
Refit the head restraint as soon as the

child seat is removed.

Children at the front

The legislation on carrying a child on

the front passenger seat is specific to

each country. Refer to the legislation in
force in your country.
Deactivate the passenger's airbag
when a rearward facing child seat is
installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.

Installing a booster seat

The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a

booster seat which has a back, fitted

with a seat belt guide at shoulder level.

As a safety precaution, never leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays

of the sun, fit side blinds to the rear

windows.

For an installation in row 3, put the
backrests of the outer and centre
seats in row 2 in the table position, or
remove these seats in row 2, so that
the child seat or the child's legs do not
touch the seats in row 2.

147

SAFETY

Partner2VP_en_Chap05_Securite_ed02-2016

147

Child safety

Partner2VP_en_Chap05_Securite_ed02-2016

CHILD LOCK

This prevents opening of the siding
side doors from the inside.

Manual

Electric

With the ignition on, press
this button in the middle of
the dashboard.
Indicator lamp on = child lock
on.

Please note: this system is
independent of the central locking
control.

Always remove the ignition key
when leaving the vehicle, even for
a short time.

It is advisable to check the state of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.

A label indicates the position of the
lever and the state of the child lock.
-

Open fully past the point of
resistance.

Tilt the lever, located on the rear
section of the door.

148

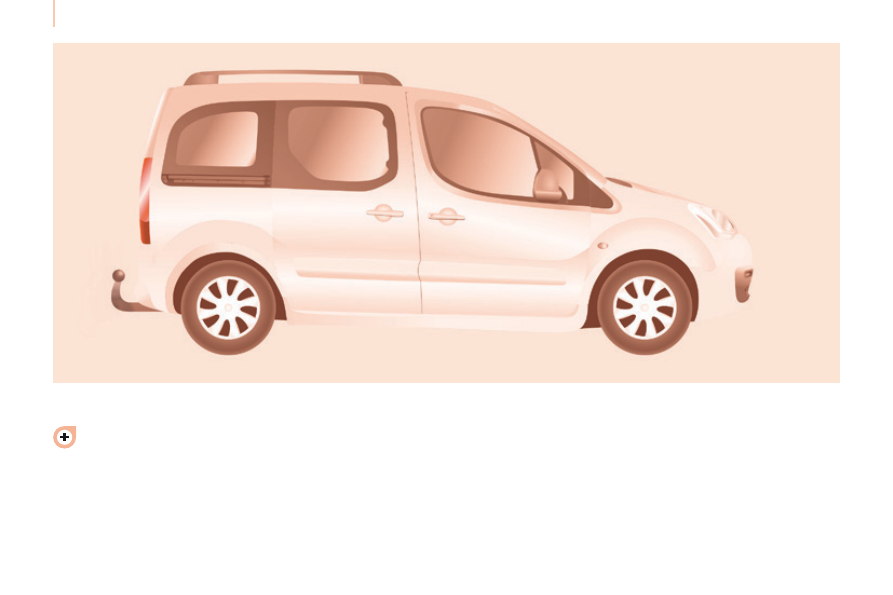

Towing a trailer

Partner2VP_en_Chap06_Accessoire_ed02-2016

For more information about
weights and towed loads, refer to
chapter 9, "Weights" section.

TOWING A TRAILER, A CARAVAN...

Distribution of loads
Distribute the load in the trailer so
that the heaviest objects are as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases
the coolant temperature.

As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
You should therefore use a high gear
to lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.

Driving advice

A towed vehicle must free wheel:
gearbox in neutral.

149

Towing a trailer

ACCESSORIES

Partner2VP_en_Chap06_Accessoire_ed02-2016

Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power.
In this case, the air conditioning is
automatically cut off to save engine
power.

Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.

Chapter 7, "Levels" section.

If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible.

Brakes
Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually.

Towbar

We recommend the use of genuine
PEUGEOT towbars and their wiring
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the

fitting of this equipment to a PEUGEOT

dealer.
If this equipment is not fitted by a

PEUGEOT dealer, it is imperative that

it is fitted using the electrical pre-

equipment installed at the rear of the
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
attention to the risk associated with

fitting a towbar or electrical accessory

not recommended by PEUGEOT.
Fitting such equipment could result in
the failure of your vehicle's electronic
system. Please obtain information from

the Manufacturer before fitting this type

of equipment.

Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.

ABS/DSC
The ABS or DSC systems only control
the vehicle, not the trailer or caravan.

Parking sensors
The rear parking sensors system does
not function while the vehicle is towing.

Chapter 9, "Identification

markings" section.

150

Towing a trailer

Partner2VP_en_Chap06_Accessoire_ed02-2016

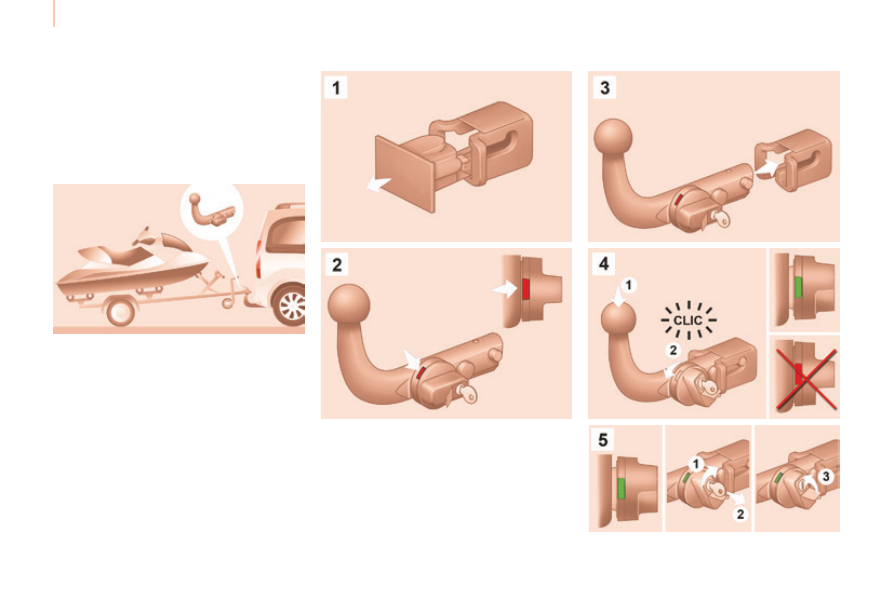

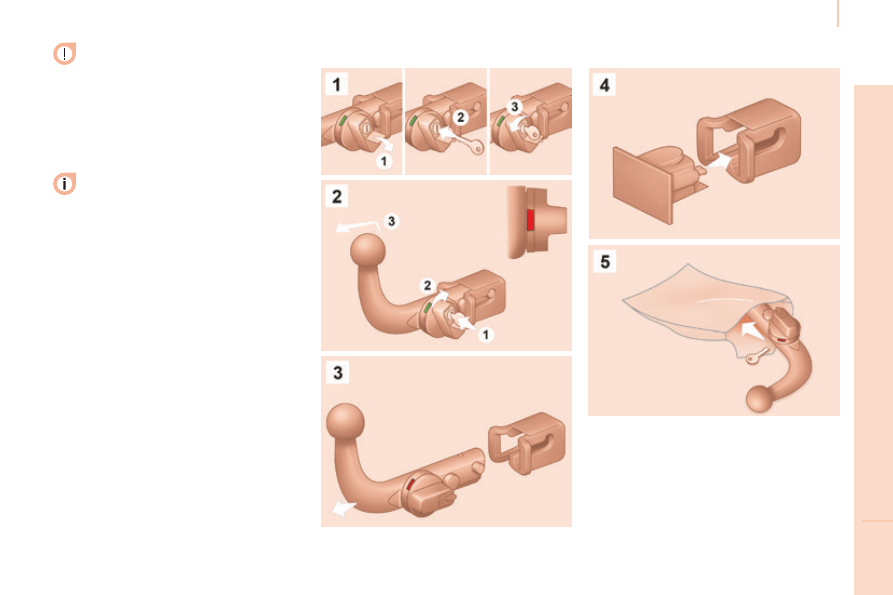

TOWBAR WITH SWAN NECK TOWBALL,

LOCKABLE AND QUICKLY

DETACHABLE

Presentation

This swan neck towbar, delivered

assembled, can be removed and fitted

easily. No tools are needed.

Instructions for fitting and before

every use
Check that the swan neck is correctly
locked by verifying the following points:
-

the green mark on the locking
wheel is visible,

the safety lock on the locking wheel
is directed toward the rear,

the safety lock is closed and the
key removed; the locking wheel can
no longer be operated,

the swan neck must no longer
move at all in its carrier.

When hooking up the trailer, don't
forget to connect the trailer harness.

Fitting

151

Towing a trailer

ACCESSORIES

Partner2VP_en_Chap06_Accessoire_ed02-2016

During use
Never unlock the device when

a trailer or load carrier is fitted to the

swan neck.

After use
For journeys made without a trailer

or load carrier, the swan neck must
be removed and the blanking plug
inserted in the carrier. This measure
applies particularly if the swan neck
could hinder visibility of the number
plate or lighting.

Removal

Maintenance

Correct operation is only possible if the
swan neck and its carrier remain clean.

Before cleaning the vehicle with a high
pressure jet wash, the swan neck must
be removed and the blanking plug
inserted in the carrier.

152

Partner2VP_en_Chap06_Accessoire_ed02-2016

Equipment

Partner2VP_en_Chap06_Accessoire_ed02-2016

OTHER ACCESSORIES

These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and genuine parts is
available.
A further range is also available,
structured around comfort, leisure and
maintenance:

Anti-theft alarm, window etching, first

aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels, ...

Seat covers compatible with airbags
for the front seats, bench seat, rubber
mats, carpet mats, snow chains, blinds,
tailgate bicycle carrier, ...
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat and its fixings

are positioned correctly,

- never fit one mat on top of another.

Audio equipment, hands-free kit,
speakers, CD changer, satellite
navigation system, USB box, Video kit, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints associated with

the fitting of equipment of these product

groups mean that the special features
of the equipment and its compatibility
with the capacities of your vehicle's
standard equipment must be taken into
account. Please ask a PEUGEOT dealer

for more information before fitting such

equipment.
Maximum weights on bars
-

Transverse bars on longitudinal
bars: 75 Kg (these bars are not

compatible with the Zénith roof).

Installing radiocommunication

transmitters
You are advised to contact a
PEUGEOT dealer before installing
accessory radiocommunication
transmitters with external aerial on
your vehicle.
The PEUGEOT dealer network

will inform you of the specification

(frequency band, maximum output

power, aerial position, specific

conditions of installation) of the

transmitters which can be fitted, in

accordance with the Motor Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).

Front mud flaps, rear mud flaps,

15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...

Screenwash, interior and exterior
cleaning and maintenance products,
spare bulbs, ...

The fitting of electrical equipment

or accessories which are not
recommended by PEUGEOT

may result in a failure of your vehicle's
electronic system. Please note this

specific warning. You are advised

to contact a dealer to be shown the
range of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory
to have a high visibility vest, warning
triangle and spare bulbs available in
the vehicle.

153

CHECKS

Partner2VP_en_Chap07_Verification_ed02-2016

Maintenance with TOTAL

Partner2VP_en_Chap07_Verification_ed02-2016

PEUGEOT & TOTAL,

A PARTNERSHIP TO DELIVER

BETTER PERFORMANCE!

2015 was marked by PEUGEOT's return to Rally-

Raid, one of the most difficult motorsport disciplines

in the world. To obtain the best performance in these

trials, PEUGEOT Sport chose TOTAL QUARTZ for the

PEUGEOT 2008 DKR, a lubricant of high technology

which protects the engine in the most severe conditions.

TOTAL QUARTZ protects your engine against the

effects of time.

TOTAL QUARTZ Ineo First is a high performance

lubricant, the result of work done together by PEUGEOT

and TOTAL R&D. Specially formulated for the engines

in PEUGEOT vehicles, its innovative technology

significantly reduces CO

emissions and keeps your

engine clean.

RECOMMENDS

154

Opening the bonnet

Partner2VP_en_Chap07_Verification_ed02-2016

OPENING THE BONNET

Bonnet stay

Secure the stay in its location,

identified by a sticker on the right-hand

side of the vehicle, to hold the bonnet
open.
Before closing the bonnet, put the stay
back in its clip without using excessive
force.

On the outside

Raise the bonnet slightly by reaching

in a flat hand, palm down, to make

access to the lever easier.
With this hand, push the safety catch
to the left. Raise the bonnet.

On the inside

Pull the lever below the dashboard
towards you. The bonnet is released.

To close

Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is secure.
Avoid opening the bonnet in strong
winds.

155

CHECKS

Partner2VP_en_Chap07_Verification_ed02-2016

Under the bonnet

Partner2VP_en_Chap07_Verification_ed02-2016

PETROL ENGINE

1. Screenwash fluid reservoir.

2. Fusebox.

3. Engine coolant header tank.

Battery connections:

+ Positive terminal.
-

Negative point (earth).

Take care when working under the bonnet.

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Engine oil dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

156

Partner2VP_en_Chap07_Verification_ed02-2016

Under the bonnet

Partner2VP_en_Chap07_Verification_ed02-2016

DIESEL ENGINE

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Engine oil dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

9. Priming pump

(except BlueHDi engines).

1. Screenwash fluid reservoir.

2. Fusebox.

3. Engine coolant header tank.

Battery connections:

+ Positive terminal.
-

Negative point (earth).

Take care when working under the bonnet.

157

CHECKS

Partner2VP_en_Chap07_Verification_ed02-2016

Levels

Partner2VP_en_Chap07_Verification_ed02-2016

LEVELS

Oil change

This must be carried out at

the intervals specified in the

manufacturer's servicing schedule. Ask
for advice from a PEUGEOT dealer.
Remove the dipstick before filling.

Check the level after filling (never

exceed the max mark).
Refit the oil filler cap before closing the

bonnet.

Changing the brake fluid

The brake fluid must be changed at

the intervals stated, according to the
manufacturer's servicing schedule.
Use fluids recommended by the

manufacturer, which meet the
DOT4 standard.
The level must be between the MIN
and MAX marks on the reservoir.
If fluid has to be added frequently,

this indicates a fault which must be
checked by a PEUGEOT dealer or

a qualified workshop as soon as

possible.

Warning lamps

If you have to remove / refit the

engine style cover, handle it with

care to avoid damaging the fixing

clips.

Oil level

It is recommended that the oil level be
checked every 3 000 miles (5 000 km)
and topped up if necessary between oil
changes.
Check the level with the vehicle level,
engine cold, using the dipstick.

Dipstick

Viscosity selection
In all cases, the oil selected must

meet the requirements specified in the

manufacturer's service schedule.

These regular maintenance
operations will keep your vehicle
in good working order. Ask for

advice from a PEUGEOT dealer or
refer to the warranty and maintenance
record in the handbook pack.

Checks using the warning
lamps in the instrument panel
is described in chapter 3,
"Instruments and controls"
section.

There are two marks on
the dipstick:
A = maximum

If you fill past this mark,

contact a PEUGEOT

dealer or a qualified

workshop.
B = minimum
Never allow the level to
fall below this mark.
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is prohibited.

158

Partner2VP_en_Chap07_Verification_ed02-2016

Levels

Partner2VP_en_Chap07_Verification_ed02-2016

Cooling system

Only use the fluid recommended by the

manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
If fluid has to be added frequently,

this indicates a fault which must be
checked by a PEUGEOT dealer as
soon as possible.

Power steering fluid level

The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.

In order to regenerate the filter, you

are advised to drive at a speed higher

than 40 mph (60 km/h) for at least five

minutes as soon as possible, when

traffic conditions permit (until the

message disappears and the service
warning lamp goes off).
During regeneration of the particle

emission filter, the noise of a relay

operating may be heard under the
dashboard.
If the message is still displayed and
if the service warning lamp remains
on, contact a PEUGEOT dealer or a

qualified workshop.

Topping up
The level must be between the MIN
and MAX marks on the expansion

bottle. If more than 1 litre of fluid is

required to top up the level, have
the system checked by a PEUGEOT

dealer or a qualified workshop.

Screenwash level

For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
For optimum cleaning and to avoid

freezing, this fluid must not be topped

up or replaced with plain water.
Capacity of the screenwash reservoir:
approximately 3 litres.

Diesel additive level

(Diesel with particle

filter)

Topping up
This additive must be topped up by

a PEUGEOT dealer or a qualified

workshop without delay.

Waste products

Avoid prolonged contact of used oil
with the skin.
Brake fluid is harmful to health and

very corrosive.
Do not dispose of used oil, brake fluid

or coolant into drains or into the ground
but into the containers dedicated to this
use at a PEUGEOT dealer (France) or
an authorised waste disposal site.

The minimum level of this additive
is indicated by lighting of the service
warning lamp, accompanied by an
audible signal and a message in the
screen.
When this occurs with the engine
running it is due to the start of

saturation of the particle filter

(exceptionally prolonged urban type
driving conditions: low speed, long

traffic jams, ...).

Peugeot Partner Tepee (2017 year). Instruction - part 10
