REAR FITTINGS

Stowing rings
For greater safety, always en-

sure that the loads transported

are secured fi rmly.

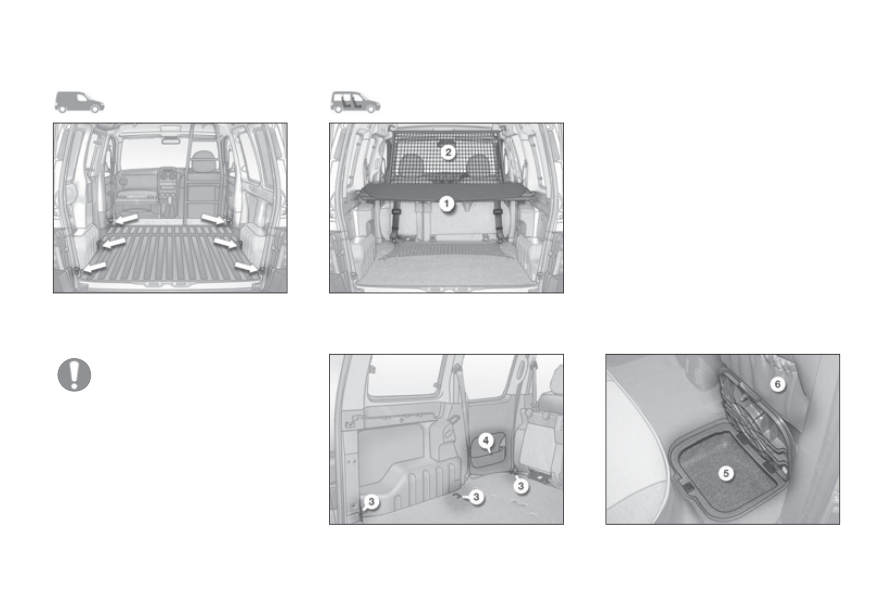

1. Load space cover.

2. High load retaining net.

3. Stowing rings.

4. Side door storage compartment.

5. Trays between the front and rear

seats.

6. Seat back storage pockets.

62-63

FAMILIARISATION

16 -

This operation must be carried out

with the engine switched off .
) Insert the key then turn it to the

left.

) Remove the fi ller cap.
A label indicates which type of fuel to

use.
When you fi ll your tank, do not con-

tinue after the third cut-off of the

pump. This could cause engine mal-

functions.
The capacity of the tank is approx-

imately 55 litres for petrol engines

and 60 litres for Diesel engines.

From the time this light comes on,

you have enough fuel left to cover

approximately 30 miles (50 km) .
Note: the right-hand sliding side door

cannot be opened while the fuel fi ller

cap is removed.

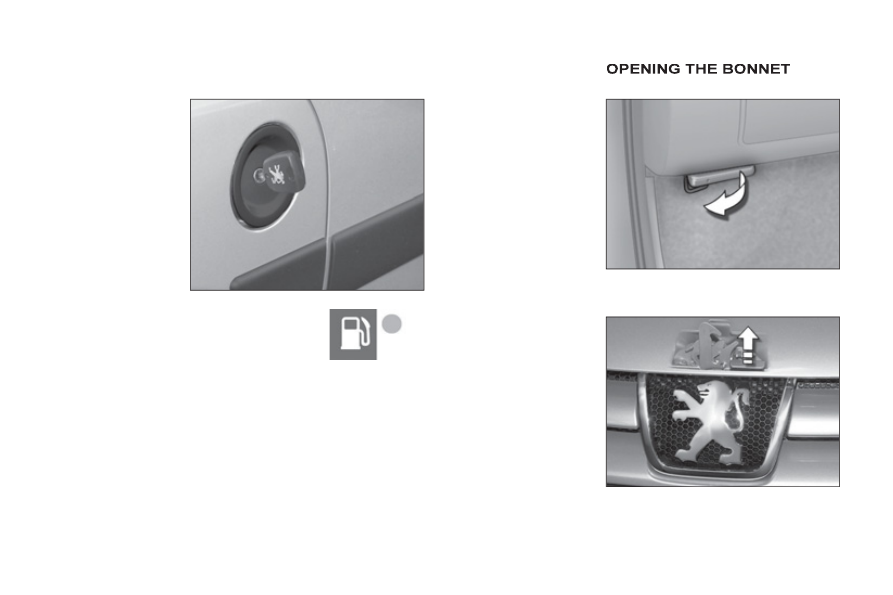

Outside the vehicle: Lift the safety

catch, raise the bonnet and secure

the stay to hold the bonnet open.

Inside the vehicle: Pull the lever on

the left-hand side, under the dash-

board.

Low fuel level

warning lamp

REFUELLING

FAMILIARISATION -

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off

gently, change up without waiting

and drive by changing up quite soon.

If your vehicle has the system, the

gear effi ciency indicator invites you

to change up; it is displayed in the

instrument panel, follow its instruc-

tions.

With an automatic or electronic gear-

box, stay in Drive "D" or Auto "A" ,

according to the type of gearbox,

without pressing the accelerator ped-

al heavily or suddenly.

Drive smoothly

Maintain a safe distance between vehi-

cles, use engine braking rather than the

brake pedal, and press the accelerator

progressively. These practices contrib-

ute towards a reduction in fuel consump-

tion and CO

emissions and also helps

reduce the background traffi c noise.

If your vehicle has cruise control,

make use of the system at speeds

above 25 mph (40 km/h) when the

traffi c is fl owing well.

Control the use of your

electrical equipment

Before moving off, if the passenger

compartment is too warm, ventilate it

by opening the windows and air vents

before using the air conditioning.
Above 30 mph (50 km/h), close the

windows and leave the air vents

open.
Remember to make use of equipment

that can help keep the temperature

in the passenger compartment down

(sunroof and window blinds...).
Switch off the air conditioning, unless

it has automatic digital regulation, as

soon as the desired temperature is at-

tained.
Switch off the demisting and defrosting

controls, if not automatic.
Switch off the heated seat as soon as

possible.

Switch off the headlamps and front

foglamps when the level of light does

not require their use.

Avoid running the engine before moving

off, particularly in winter; your vehicle will

warm up much faster while driving.

As a passenger, if you avoid con-

necting your multimedia devices

(fi lm, music, video game...), you will

contribute towards limiting the con-

sumption of electrical energy, and so

of fuel.
Disconnect your portable devices be-

fore leaving the vehicle.

FAMILIARISATION

18 -

Limit the causes of excess

consumption

Spread loads throughout the vehicle;

place the heaviest items in the bot-

tom of the boot, as close as possible

to the rear seats.
Limit the loads carried in the vehicle

and reduce wind resistance (roof bars,

roof rack, bicycle carrier, trailer...).

Use a roof box in preference.
Remove roof bars and roof racks after

use.

At the end of winter, remove snow

tyres and refi t your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly,

when cold, referring to the label in the

door aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Don't forget the spare wheel and the

tyres on any trailer or caravan.

Have your vehicle serviced regularly

(engine oil, oil fi lter, air fi lter...) and

observe the schedule of operations

recommended by the manufacturer.

When refuelling, do not continue after

the 3 rd cut-off of the nozzle to avoid

any overfl ow.

At the wheel of your new vehicle,

it is only after the fi rst 1 800 miles

(3 000 kilometres) that you will see

the fuel consumption settle down to

a consistent average.

INSTRUMENTS, CONTROLS and DISPLAYS

20 -

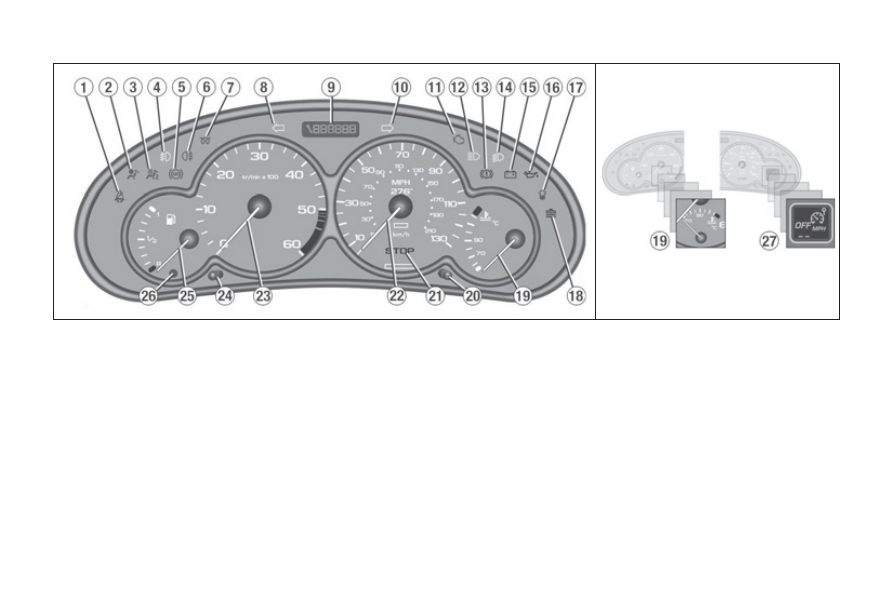

1. Seat belt not fastened warning

lamp

2. Passenger’s airbag deactivated

warning lamp

3. Front and lateral airbags warning

lamp

4. Front foglamps warning lamp
5. Anti-lock braking system (ABS)

warning lamp

  6.   Rear foglamp warning lamp
  7.   Diesel pre-heater warning lamp
  8.   Left hand direction indicator

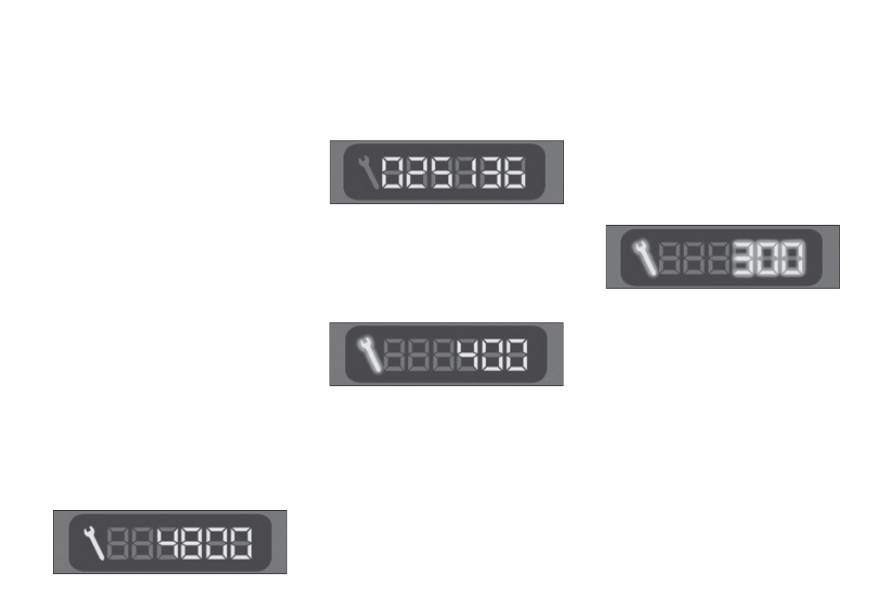

9. Total distance recorder, service

indicator and engine oil level

indicator

10. Right hand direction indicator
11. Emission control system warning

lamp

12. Main beam headlamps warning lamp
13. Parking brake, low brake fl uid

level and electronic brake force

distribution fault warning lamp

14. Dipped beam headlamps

warning lamp

15. Battery charge warning lamp
16. Engine oil pressure and

temperature warning lamp

17. Water in Diesel fi lter warning

lamp

  18.  Low coolant level warning lamp
  19.  Coolant temperature indicator
  20.  Total distance recorder button
  21.  Central (STOP) warning lamp
  22.  Speedometer *
  23.  Rev  counter
  24.  Lighting dimmer button
  25.  Fuel  gauge
  26.  Low fuel level warning lamp
  27.  Speed limiter/cruise control screen

INSTRUMENT PANEL: PETROL - DIESEL

* Version indicating in miles or kilometres

according to country of sale.

INSTRUMENTS, CONTROLS and DISPLAYS -

MONITORING OPERATION

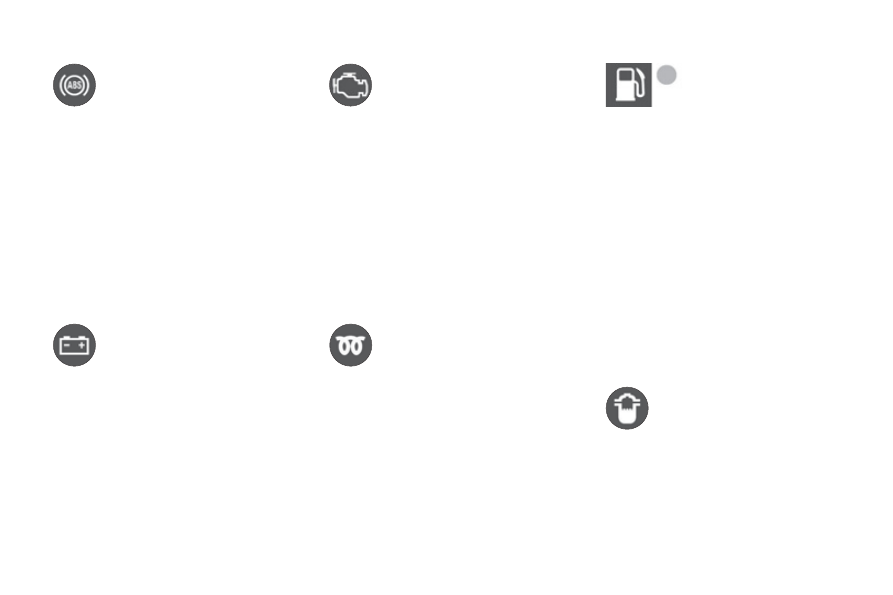

A warning lamp on fi xed or fl ash-

ing, with the engine running, in-

dicates an fault in the operation

of the unit concerned. The illumi-

nation of certain warning lamps

may be accompanied by an audi-

ble signal and a message in the

screen. Do not ignore this warn-

ing: consult a PEUGEOT dealer

as soon as possible.
If the central STOP warning lamp

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

Central (STOP)

warning lamp

Engine oil pressure

and temperature

warning lamp

Linked to the central (STOP) warn-

ing lamp.
You must stop.
This warning lamp indicates one of

the following:
- low oil pressure indicated by the

message "Oil pressure insuffi -

cient" in the screen.

- low engine oil level. Top up the

level.

oil temperature too high. To lower

the oil temperature, reduce your

speed.

Illumination of the warning lamp is

accompanied by an audible signal.
Consult a PEUGEOT dealer.

Low engine coolant

level warning lamp

Linked to the central (STOP)

warning lamp.
This comes on for a few seconds

when the ignition is switched on.
Illumination of this warning lamp is

accompanied by an audible signal

and the message

"Top up engine

fl uid level" in the screen.
You must stop as soon as it is safe

to do so.
Wait for the engine to cool before

topping up the level.
The cooling system is pressurised.

Parking brake, low

brake fluid level and

Electronic Brake Force

Distribution system

fault warning lamp

Linked to the central (STOP) warning

lamp.
This comes on each time the ignition

is switched on.
Illumination of this warning lamp is

accompanied by an audible signal

and a message in the screen indicat-

ing the cause of the warning:
-

"Handbrake on", if the parking

brake is applied or not fully re-

leased.

"Brake fl uid level low" if there is

an excessive drop in brake fl uid

level (if the warning lamp remains

on even when the parking brake

is released).

"Braking fault" is displayed to-

gether with the ABS warning

lamp, indicating a fault with the

Electronic Brake Force Distribu-

tion system. You must stop as

soon as it is safe to do so.

Consult a PEUGEOT dealer.

If a check is required, to

prevent

any risk of burns unscrew the cap

by two turns to allow the pressure to

drop.
When the pressure has dropped, re-

move the cap and top up the level.
Consult a PEUGEOT dealer.

Linked to the warning lamps for:
- ''engine oil pressure and temper-

ature'',

''low coolant level'',

- "parking

brake'',

- ''low

brake

fl uid level'',

- ''electronic brake force distribu-

tion system fault''.

Linked with the "coolant tempera-

ture" gauge.
You must stop if the lamp fl ashes

with the engine running.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS

22 -

Battery charge warning

lamp

This comes on for a few sec-

onds when the ignition is

switched on. Illumination of this warn-

ing lamp, when the engine is running,

accompanied by an audible signal

and the message

"Battery charge

fault" in the screen, indicates one of

the following:
- malfunction of the charging

circuit,

loose battery or starter terminals,

a cut or loose alternator belt,

an alternator failure.

Consult a PEUGEOT dealer.

Emission control

system warning lamp

This comes on for a few sec-

onds each time the ignition is

switched on.

If it comes on with the engine run-

ning, accompanied by an audible sig-

nal and the message in the screen:
-

"Antipollution fault", this indi-

cates a fault with the emission

control system

"Catalytic converter fault", this

indicates a fault with the injection

or ignition system. There is a risk

of damage to the catalytic con-

verter (petrol engine only).

Consult a PEUGEOT dealer.

Diesel engine

pre-heater warning

lamp

Wait until the warning lamp goes out

before starting the engine.
If the temperature is high enough,

the warning lamp comes on for less

than one second. You can start the

engine without waiting.

Low fuel level

warning lamp

This comes on for a few

seconds when the igni-

tion is switched on.

When the ignition is on, it is accom-

panied by an audible signal and the

message

"Fuel level low" in the

screen.
If it fl ashes with the fuel gauge nee-

dle in the lowest position, when the

ignition is on, this indicates a fault

with the fuel gauge.
When this warning lamp comes on,

you have enough fuel left to drive ap-

proximately 30 miles (50 km) .
Capacity of the tank:
- approximately 55 litres for petrol

engines,

- approximately 60 litres for Diesel

engines.

Water in Diesel filter

warning lamp *

There is a risk of damage to the in-

jection system.
Contact a PEUGEOT dealer as soon

as possible.

Anti-lock braking

system (ABS) warning

lamp

This comes on for a few seconds each

time the ignition is switched on.
If the warning lamp remains on or

comes on above 8 mph (12 km/h),

this indicates an ABS fault.
However, the vehicle retains conven-

tional servo-assisted braking.
Illumination of this warning lamp,

accompanied by an audible signal

and the message "ABS fault" in the

screen, indicates an ABS fault.
Consult a PEUGEOT dealer.

* According to country.

INSTRUMENTS, CONTROLS and DISPLAYS -

Seat belt not fastened

warning lamp *

When the ignition is switched

on, this warning lamp comes

on if the driver has not fastened their

seat belt.
Above 12 mph (20 km/h), the warn-

ing lamp fl ashes for two minutes.

Once the two minutes have elapsed,

the warning lamp remains on until

the driver fastens their seat belt.

Coolant temperature indicator

- needle in zone (A) , the tempera-

ture is correct,

- needle in zone (B) , the tempera-

ture is too high. The central STOP

warning light fl ashes, accompa-

nied by an audible signal and the

message "Engine coolant temp.

too high" on the display.

You must stop.
Consult a PEUGEOT dealer.

* According to country.

Passenger's airbag

deactivated warning

lamp *

Illumination of this warning lamp

is accompanied by the message

"Passenger airbag deactivated" in

the screen.
If the passenger's airbag is deacti-

vated, the warning lamp comes on

when the ignition is switched on and

it remains on.
Always consult a PEUGEOT dealer if

the warning lamp fl ashes.

Front and lateral

airbags warning lamp

This comes on for a few sec-

onds when the ignition is

switched on.

With the engine running, illumination

of this warning lamp accompanied by

an audible signal and the message

"Airbag fault" in the multifunction

screen, indicates a fault with the air-

bags.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS

24 -

Service indicator

This is a visual reminder of when the

next service is due. This service is to

be carried out according to the man-

ufacturer's servicing schedule.

seconds after the ignition is

switched on, the total distance re-

corder resumes normal operation

and the screen shows the total or trip

distances.

The distance remaining before the next

service is less than 1 000 km (600 miles).
Example: 900 km (560 miles) remain before

the next service is due.
When switching on the ignition and for 5 sec-

onds, the screen shows:

5 seconds after the ignition is

switched on, the total distance re-

corder resumes normal operation

and the symbol remains on.
This indicates that a service should

be carried out shortly. The screen

shows the total or trip distances.

The service is overdue.
Each time the ignition is switched on

and for 5 seconds, the symbol and

the excess distance fl ash.
Example: the service is overdue

by 300 km (186 miles). The service

should be carried out very shortly.
When the ignition is switched on and

for 5 seconds, the display shows:

5 seconds after the ignition is

switched on, the total distance re-

corder resumes normal operation and

the symbol remains on. The screen

shows the total or trip distances.
Note: the spanner comes on if the

two-year interval has been exceeded.

INSTRUMENT PANEL

DISPLAY

After switching on the ignition, three

functions are shown in succession:
- service

indicator,

engine oil level indicator,

- total distance recorder/total and

trip distances.

Note : the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver's door, as well as on lock-

ing and unlocking the vehicle.

Example: 4 800 km (2 980 miles) re-

main before the next service is due.

When the ignition comes on and for

5 seconds the display shows:

Operation
As soon as the ignition is switched on

and for 5 seconds, the spanner sym-

bolising ''service operation'' comes on.

The trip recorder display shows the

distance remaining (in round fi gures)

before the next service.

INSTRUMENTS, CONTROLS and DISPLAYS -

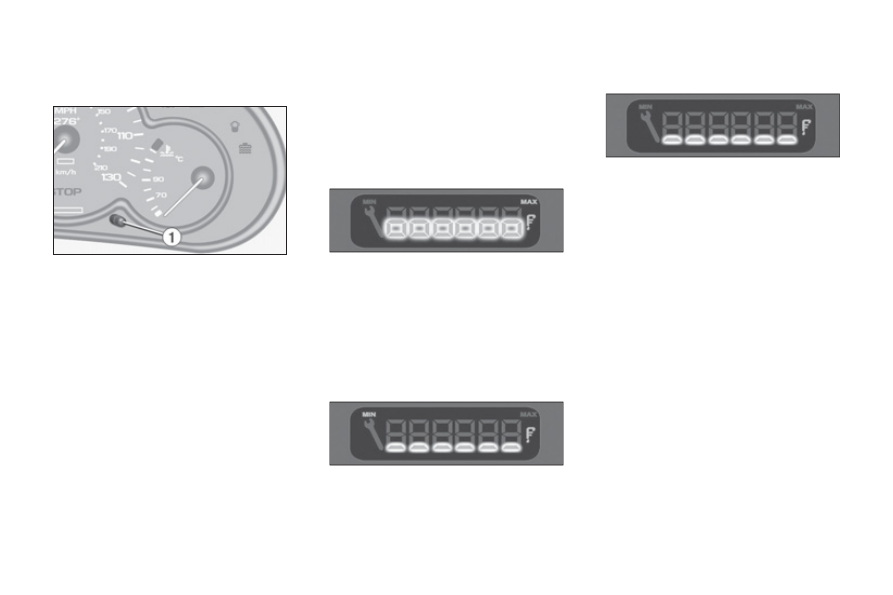

Engine oil level indicator

When the ignition is switched on,

the engine oil level is indicated for

approximately 10 seconds, after the

service information.

Flashing of the six squares and the

display of "max" indicate that the oil

level is too high, which could damage

the engine.
If the excess oil is confi rmed by a

check using the dipstick, contact a

PEUGEOT dealer without delay.

Your PEUGEOT dealer carries out

this operation after each service.
The reset procedure is as follows:
-

Switch off the ignition.

Press and hold button 1 .

Switch on the ignition.

The display begins a 10 second count-

down.
-

Keep button 1 pressed for 10 seconds.

The display shows [=0] and the span-

ner disappears.

Flashing of the six bars and the dis-

play of "min" indicate that the oil level

is too low, which could damage the

engine.
If the lack of oil is confi rmed by a

check using the dipstick, it is essen-

tial that the level is topped up.

Flashing of the six bars indicates a

malfunction of the oil level indicator.
There is a risk of damage to the

engine.
Consult a PEUGEOT dealer.
The level read on the dipstick or on

the indicator will only be correct if

the vehicle is on level ground and

the engine has been off for more

than 30 minutes.

Resetting the service indicator

Oil level too high

Oil level too low

Oil level indicator fault

INSTRUMENTS, CONTROLS and DISPLAYS

26 -

Briefl y pressing button

1 alternates

between the total and trip distance

displays.
To reset the trip recorder to zero,

when it is displayed press button 1

until zeros appear.

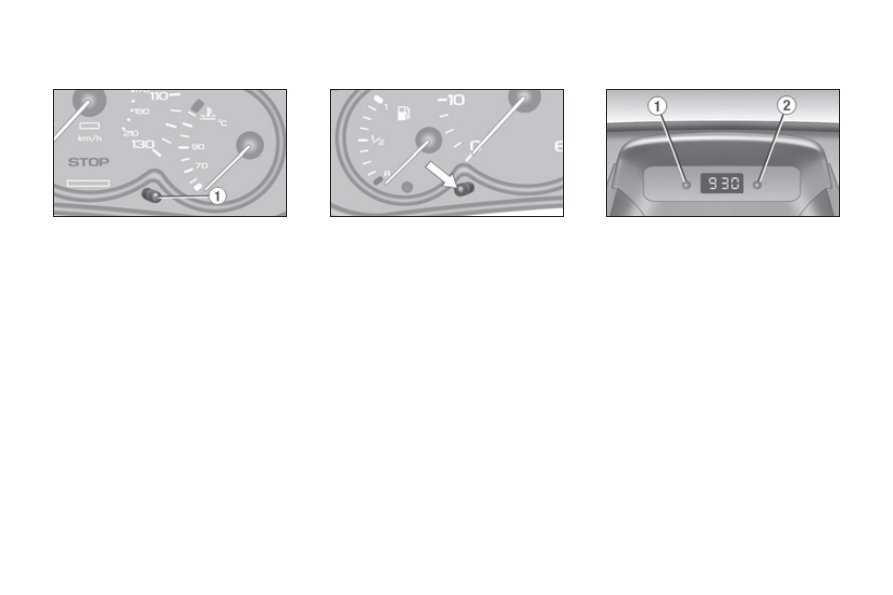

Total distance recorder

With the lights on, press the button

to vary the intensity of the lighting of

the instruments and controls. When

the lighting reaches the minimum (or

maximum) setting, release the button

then press it again to increase (or re-

duce) the brightness.
As soon as the lighting is of the re-

quired brightness, release the button.

LIGHTING RHEOSTAT CLOCK

Button 1 : hour adjustment
Button 2 : minute adjustment
Press and hold the button for rapid

advance.

INSTRUMENTS, CONTROLS and DISPLAYS -

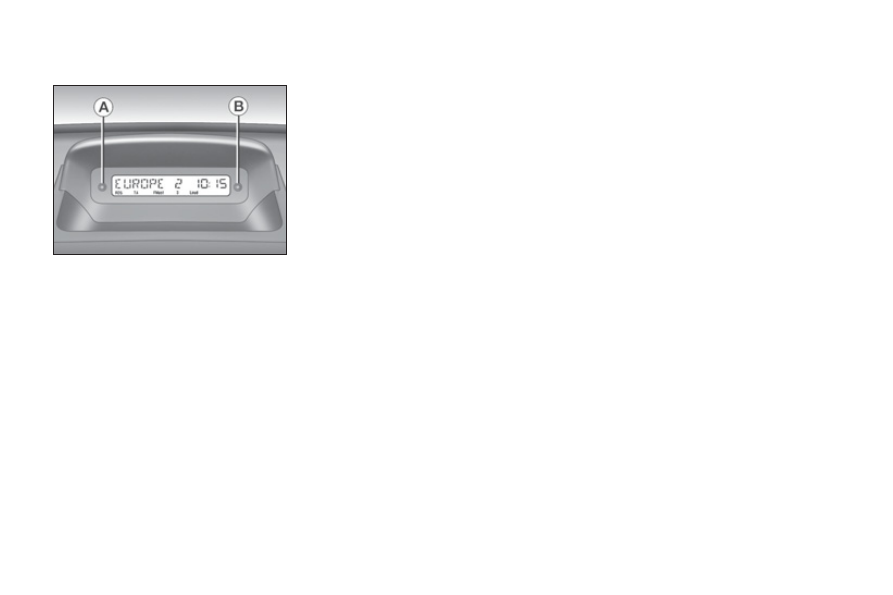

DISPLAY A

This displays the following information:
- the

time,

- the

date,

the audio system displays,

a door check (e.g.: ''left front door

open''),

- warning messages (e.g. ''remote

control battery fl at'') or information

messages (e.g. ''economy mode

active''), displayed temporarily.

Adjusting the parameters display A
Press and hold button

A for two

seconds to access the settings; the

data fl ashes, indicating it is ready to

be modifi ed.
Then, each press of button A scrolls

through the various data in the fol-

lowing order:
-

language of information displayed,

hours (12 then 24 hour mode),

  -  minutes,
  -  year,
  -  month,
  -  day.

Pressing button B alters the value of

the parameter selected. Press and

hold for rapid advance (return to start

after the last possible value).
After 7 seconds with no action, the

standard display returns; the modifi ed

data is now recorded.

COMFORT

28 -

COMFORT -

VENTILATION

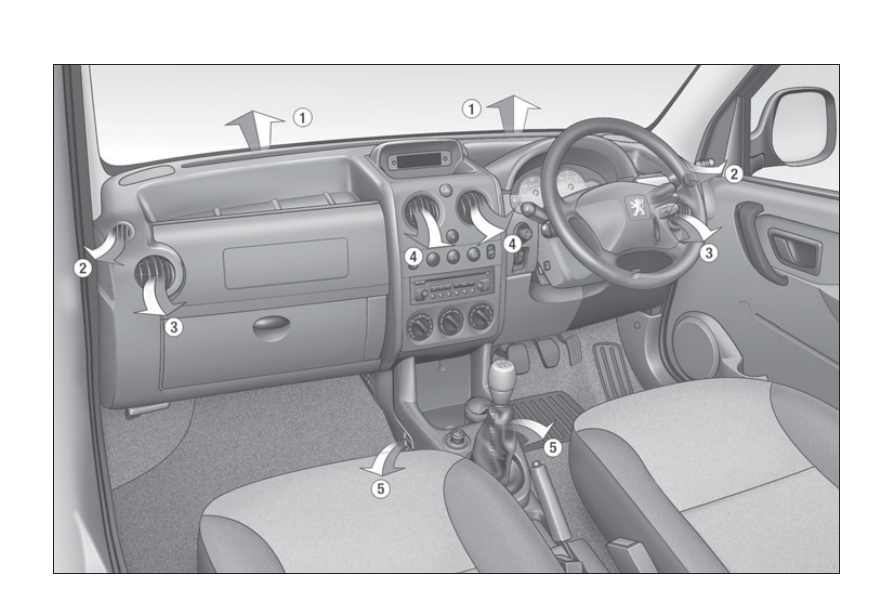

1. Windscreen de-icing or

demisting vents.

2. Front window de-icing or

demisting vents.

  3.  Side vents.
  4.  Centre vents.
  5.   Air outlets to front footwells.

The air conditioning system does not

contain chlorine and does not present

any danger to the ozone layer.
Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month, to keep it in perfect working

order.
The water created by the air condi-

tioning condensation is discharged

via an opening provided for this pur-

pose. Therefore, a puddle of water

may form underneath the vehicle

when stationary.
If the system does not produce

cold air, do not use it and contact a

PEUGEOT dealer.

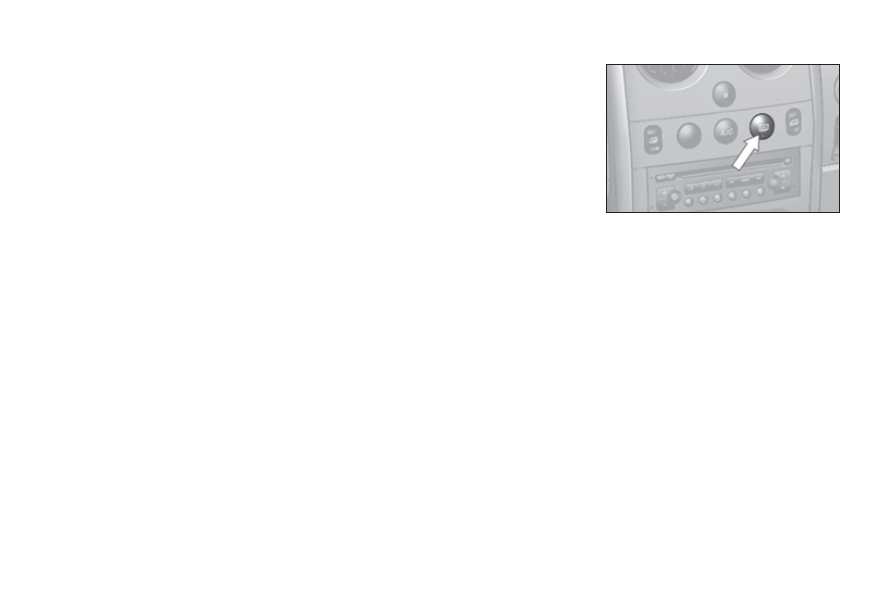

De-icing the rear windows and

mirrors
With the engine running, pressing

the control de-ices the rear windows

and mirrors.
It switches off automatically after

approximately twelve minutes.
Pressing the control again switches

the de-icing system on again for

twelve minutes.
It is possible to switch off the de-

icing by pressing the control before

the twelve minutes have elapsed.

Advice on operation

Select the air distribution most suited

to your requirements and the climatic

conditions.
Gradually adjust the temperature

setting for your comfort.
Position the air control in the ''Outside

Air'' position.
For perfectly even air distribution,

take care not to obstruct the exterior

air intake grille and the vents. Check

that the passenger compartment fi lter

is in good condition.
When the engine is cold, to prevent

too great a distribution of cold air, the

ventilation will increase to its opti-

mum level gradually.
In order to be effective, the air condi-

tioning ( A/C button), should only be

used with the windows closed.
If the interior temperature remains

very high following a prolonged period

parked in the sun, do not hesitate to

ventilate the passenger compartment

for a few minutes.

COMFORT

30 -

Intake of exterior air.

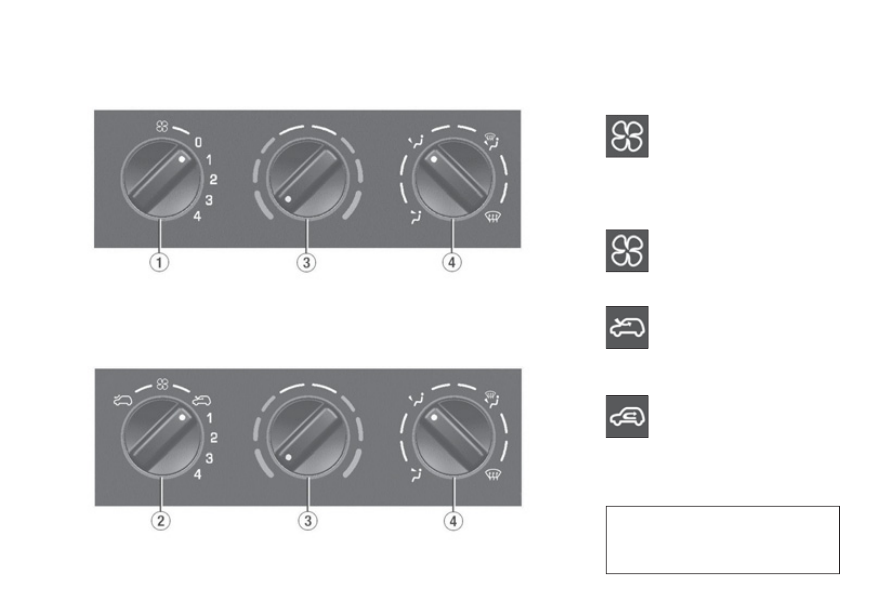

HEATING

Turn the control from position 1

to position

4 to obtain an air

fl ow suffi cient to ensure your

comfort.

2. Air fl ow adjustment and air

intake control

Turn the control from position 1

to position

4 to obtain an air

fl ow suffi cient to ensure your

comfort.

As soon as possible, position the

control in the exterior air intake

position to prevent the formation of

mist on the windows.

This is the normal operating position.

Passenger compartment isolation.

This position prevents exterior odours

and smoke entering the passenger

compartment.

1. Air fl ow adjustment

Content .. 1 2 3 ..
