Peugeot Expert VU (2016 year). Instruction

303

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Changing a bulb

Halogen bulb: turn the bulb anti-clockwise.

Type A

Bayonet bulb: press on the bulb then turn it
anticlockwise.

Type B

Type C

Type D

All glass bulb: pull gently as it is fitted by
pressure.

Halogen bulb: release the retaining spring from
its housing.

Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not
touch the bulb directly with your fingers,
use lint-free cloths.

When each operation has been completed,
check the operation of the lighting.

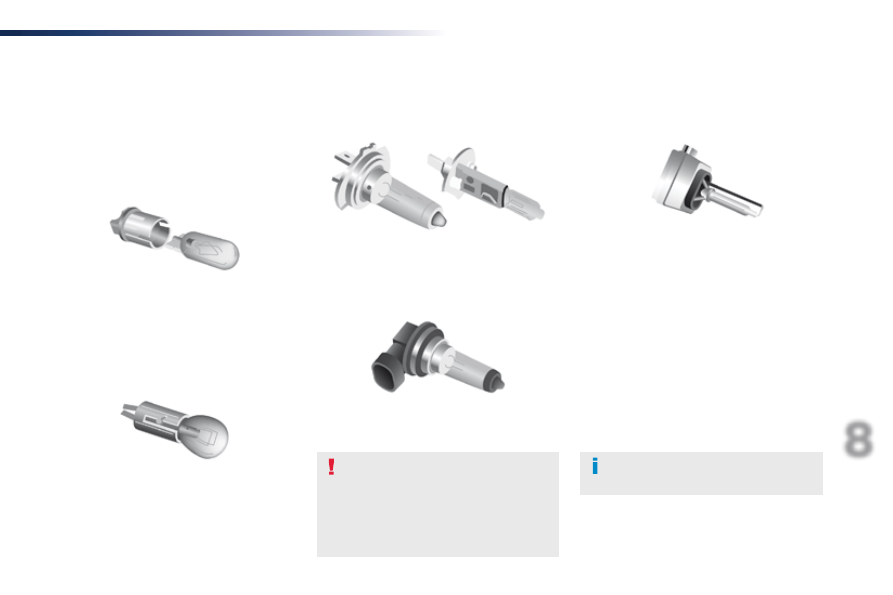

Types of bulb

Various types of bulb are fitted to your vehicle.
to remove them:

Xenon bulb: xenon bulbs must be changed by
a PEugEot dealer or a qualified workshop as
there is a risk of electrocution.

Type E

304

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Front lamps

Xenon headlamps

For more information on Changing a bulb
and in particular the types of bulb, refer to the
corresponding section.

Halogen headlamps

For more information on Changing a bulb
and in particular the types of bulb, refer to the
corresponding section.

For H7 type bulbs with lugs... take care
to observe their correct installation
so as to ensure the best lighting
performance.

Front fog lamps

Type D, H11-55W

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

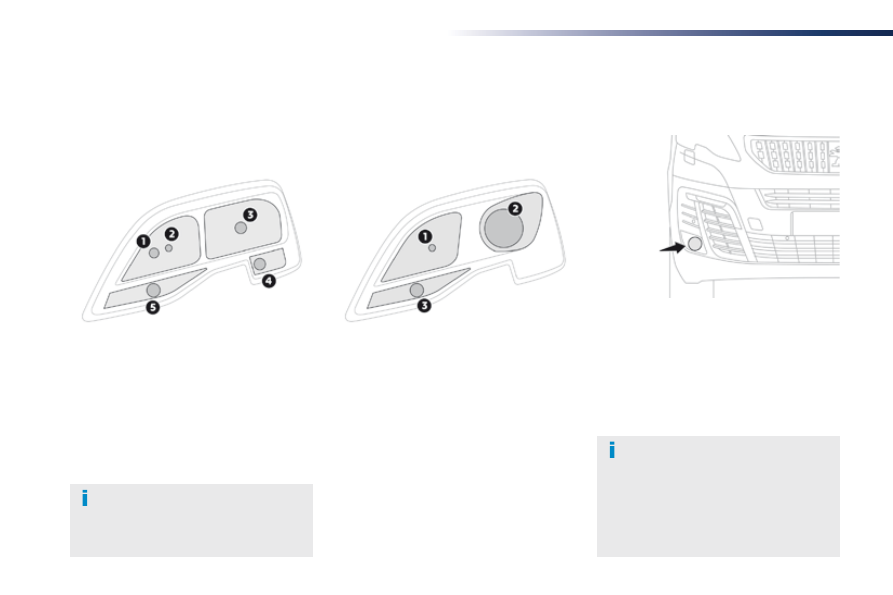

1. Main beam headlamps.

Type C, H1-55W.

2. Dipped beam headlamps.

Type E, D8S 25W

3. Direction indicators.

Type B, PY21W-21W (amber)

1. Sidelamps.

Type A, W5W-5W.

2. Main beam headlamps.

Type C, H1-55W

3. Dipped beam headlamps.

Type C, H7-55W

4. Daytime running lamps.

Type A, W21W LL-21W

5. Direction indicators.

Type B, PY21W-21W (amber)

305

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Direction indicator side
repeater

Type A, WY5W-5W (amber)

Daytime running lamps /
sidelamps

If fitted to your vehicle, contact a PEugEot
dealer or a qualified workshop for the
replacement of this type of LED lamp and light
guide.
A replacement kit for the LEDs is available from
PEugEot dealers.

the headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

F use a sponge and soapy water or a

pH neutral product,

F when using a high pressure washer

on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is imperative to use only anti-
ultraviolet (uV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

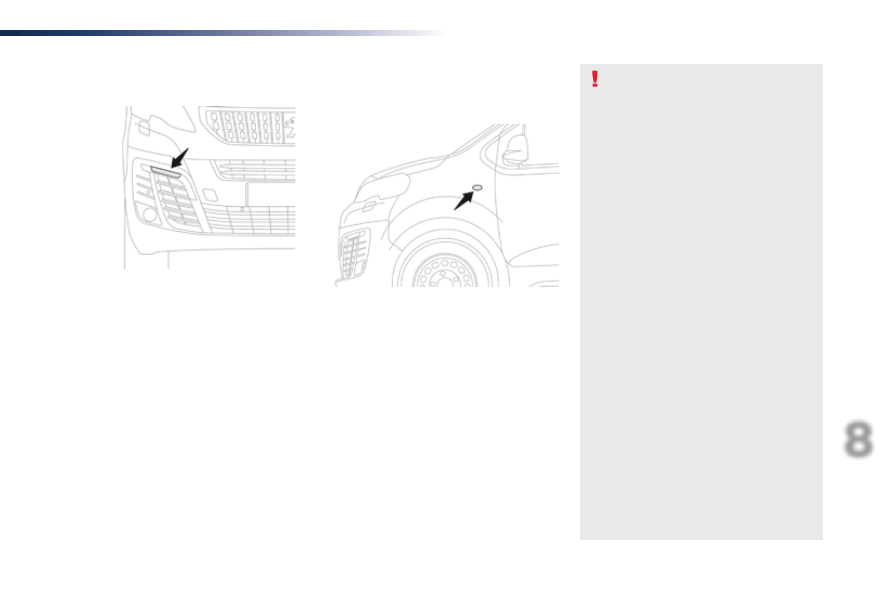

Push the repeater towards the rear and
disengage it.

When refitting, engage the repeater
towards the front and then bring it towards
the rear.

Amber coloured bulbs (direction indicators and
side repeaters) must be replaced with bulbs of
identical specification and colour.

306

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.

Dipped beam headlamps
(halogen headamps)

Type C, H7-55W

Daytime running lamps
(halogen headlamps)

Type A, W21W LL-21W

Sidelamps
(halogen headlamps)

Type A, W5W

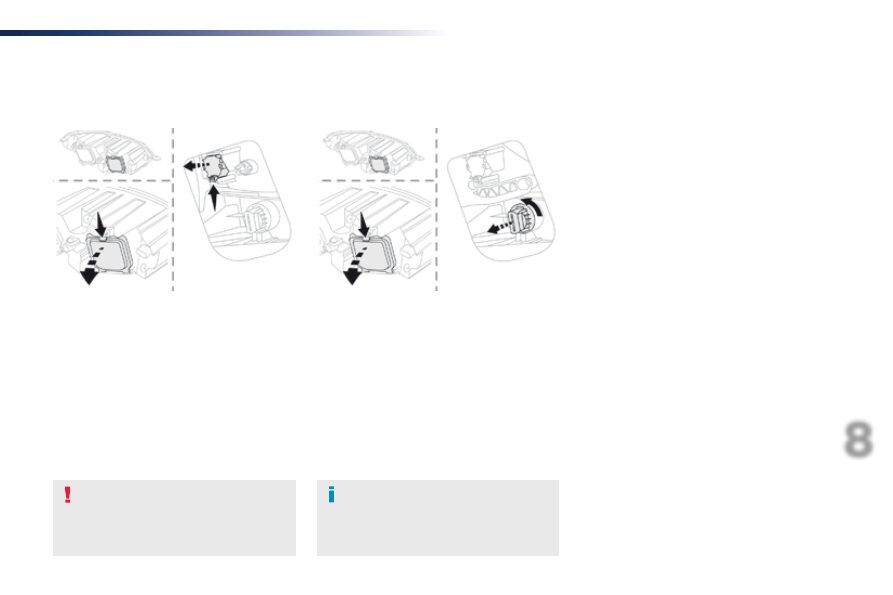

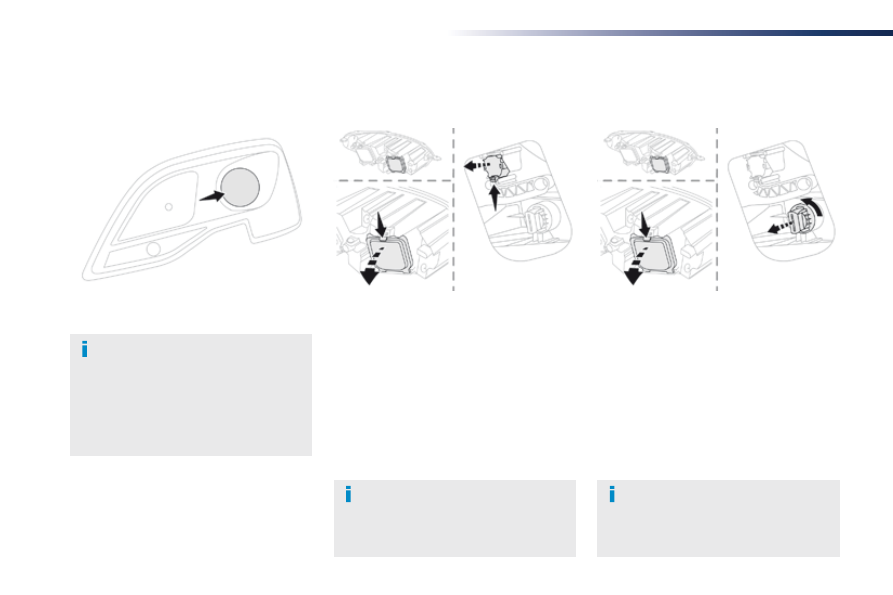

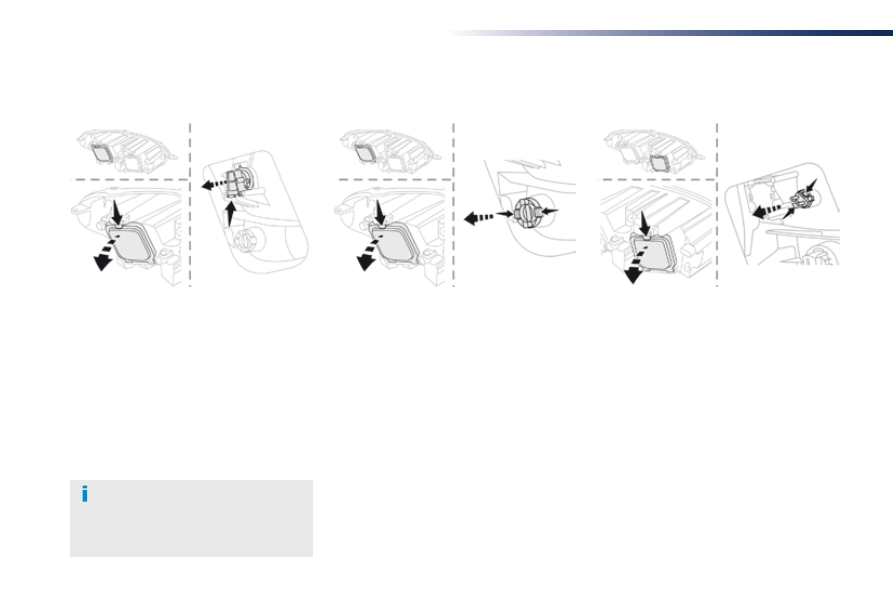

F Press the upper clip on the cover then tip it

rearwards to remove it.

F Press the lower clip on the electrical

connector and remove the assembly of
connector and bulb.

F Pull the bulb out and change it.
to refit, carry out these operations in reverse
order.

F Press the upper clip on the cover then tip it

rearwards to remove it.

F Press the two side clips on the electrical

connector and remove the assembly of
connector and bulb.

F Pull out the bulb and change it.
to refit, carry out these operations in reverse
order.

F Press the upper clip on the cover then tip it

rearwards to remove it.

F Press the two side clips on the electrical

connector and remove the assembly of
connector and bulb.

F Pull the bulb out and change it.
to refit, carry out these operations in reverse
order.

307

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Be aware that the area behind the right-
hand headlamp (facing forwards) may
be hot, with the risk of burns (overflow
pipe).

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.

Direction indicators
(halogen headlamps)

Type B, PY21W-21W (amber)

Main beam headlamps
(halogen headlamps)

Type C, H1-55W

F Press the upper clip on the cover then tip it

rearwards to remove it.

F Press the lower clip on the electrical

connector and remove the assembly of
connector and bulb.

F Pull the bulb out and change it.
to refit, carry out these operations in reverse
order.

F Press the upper clip on the cover then tip it

rearwards to remove it.

F turn the bulb holder a quarter turn anti-

clockwise.

F Remove the bulb holder.
F Change the failed bulb.
to refit, carry out these operations in reverse
order.

308

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Dipped beam headlamps
(xenon headlamps)

Type E, D8S 25W

F Press the upper clip on the cover then tip it

rearwards to remove it.

F turn the bulb holder a quarter turn anti-

clockwise.

F Change the failed bulb.
to refit, carry out these operations in reverse
order.

Replacement of D8S xenon bulbs must
be done by a PEugEot dealer or a
qualified workshop as there is a risk of
electrocution.
It is recommended that both D8S bulbs
be replaced at the same time, in the
event of the failure of one of them.

Main beam headlamps
(xenon headlamps)

Type C, H1-55W

When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.

Direction indicators
(xenon headlamps)

Type B, PY21W-21W (amber)

F Press the upper clip on the cover then tip it

rearwards to remove it.

F Press the lower clip on the electrical

connector and remove the assembly of
connector and bulb.

F Pull the bulb out and change it.
to refit, carry out these operations in reverse
order.

309

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Front foglamps

Type C, H11-55W

F Press the locking clip and disconnect the

connector.

F turn the bulb holder a quarter turn anti-

clockwise.

F Remove the bulb holder.
F Change the failed bulb.
to refit, carry out these operations in reverse
order.

You can also go to a PEugEot
dealer or a qualified workshop for the
replacement of these bulbs.

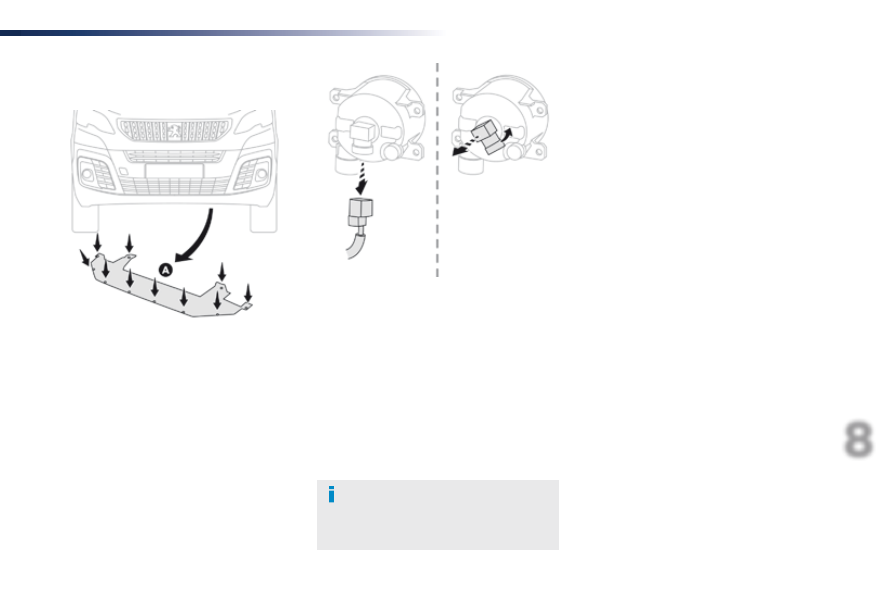

F Below the front bumper, unscrew the fixing

screws for the deflector A.

F Remove the deflector A.

310

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Rear lamps
(side-hinged rear doors)

For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.

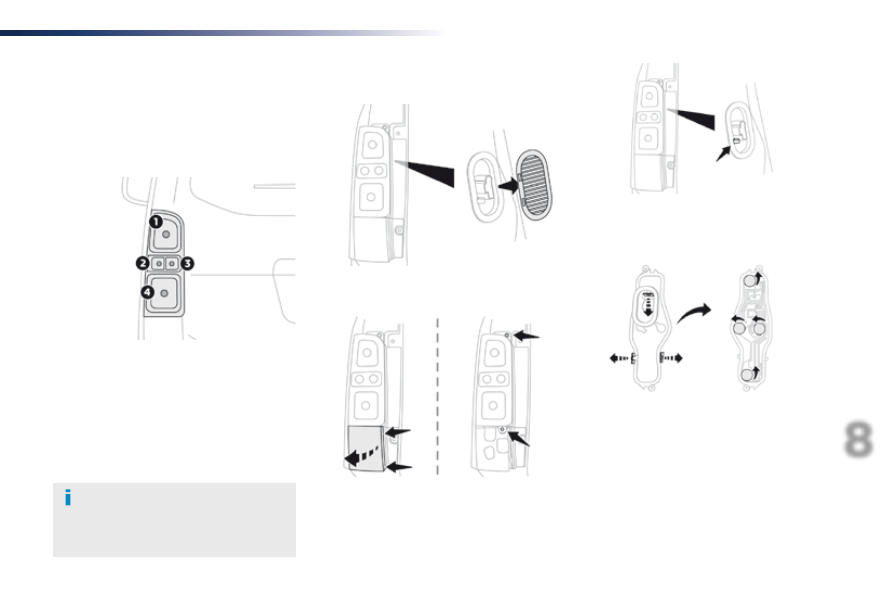

F While holding the lamp in place, press the

clip on the inside then carefully remove the
lamp.

F Disconnect the electrical connector.

For vehicles with interior trim, contact
a PEugEot dealer or a qualified
workshop to have the work done.

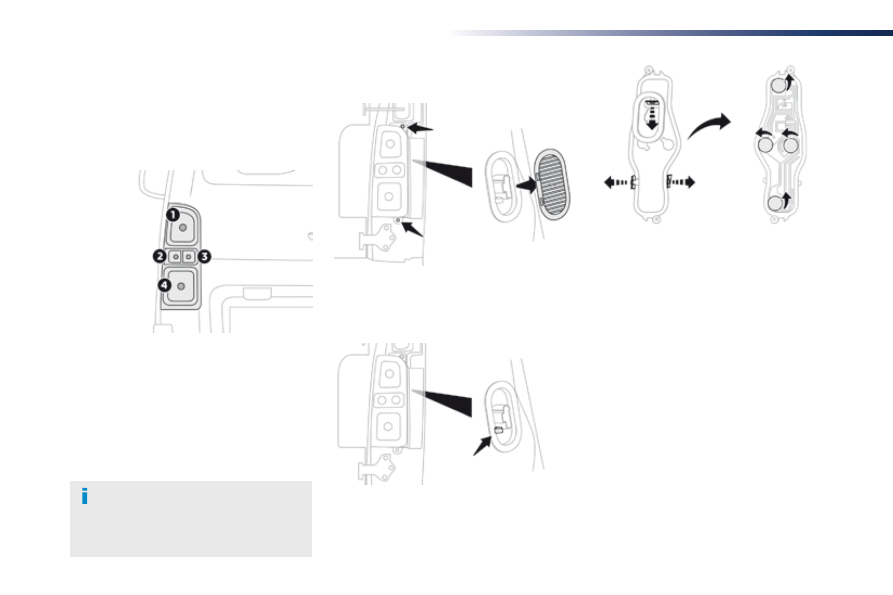

1. Brake lamps / sidelamps.

Type B, P21/5W-21/5W

2. Direction indicators.

Type B, PY21W-21W (amber)

3. Reversing lamps.

Type B, P21W-21W.

4. Foglamps / sidelamps.

Type B, P21/4W-21/4W.

F Identify the failed bulb then open the rear

doors.

F Spread the three lugs slightly, then extract

the bulb holder.

F Remove the failed bulb by pressing

lightly on it, then turning it a quarter turn
clockwise.

F Change the bulb.
to reassemble, carry out these operations in
reverse order.

F From inside, remove the ventilation grille, if

your vehicle has one.

F From outside, unscrew the two lamp fixing

screws.

311

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Number plate lamps
(side-hinged doors)

Type A, W5W-5W

F Remove the plastic cover using a small

screwdriver.

F using a screwdriver through the aperture,

push the lamp towards the outside.

F  Disconnect the electrical connector.
F  Remove the lamp.
F  turn the bulb holder a quarter turn anti-

clockwise.

F Change the failed bulb.
to refit, press on the lamp to clip it in place.

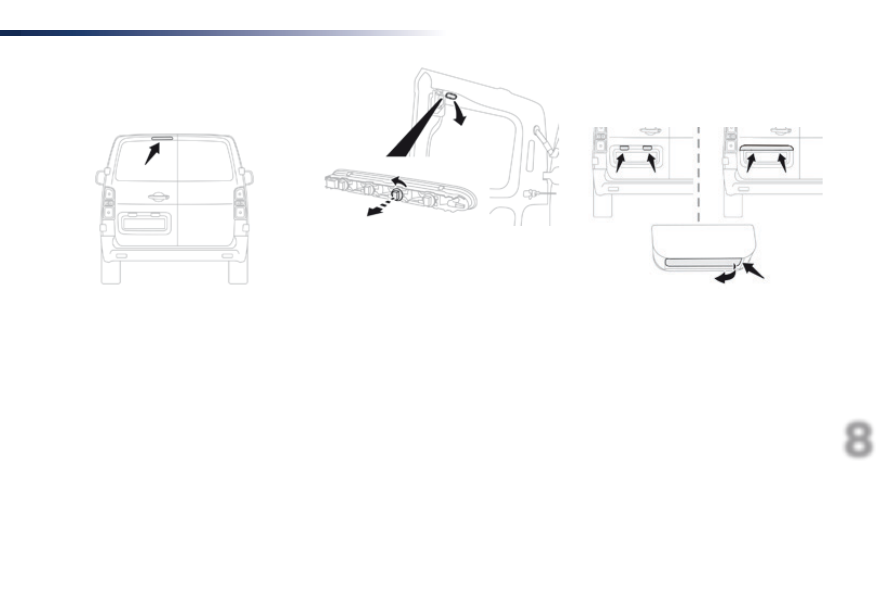

Third brake lamp
(side-hinged doors)

Type A, W5W-5W

to refit, press on the lens to clip it in place.

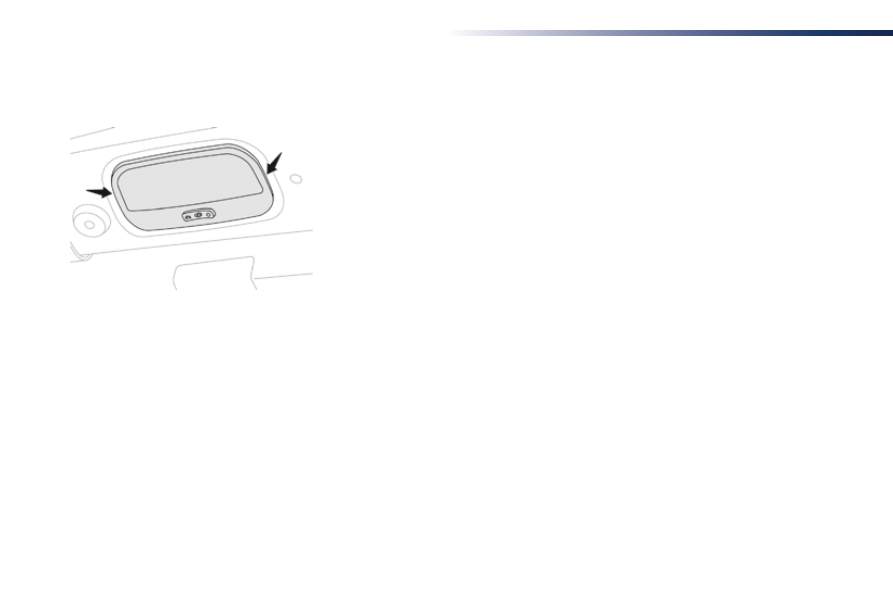

F open the left hand rear door.

F Insert a thin screwdriver into one of the cut-

outs in the lens.

F  Push it outwards to unclip it.
F  Remove the lens.
F  Change the failed bulb.

313

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Rear lamps
(tailgate)

For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.

F While holding the lamp in place, press the

clip on the inside then carefully remove the
lamp.

F Disconnect the electrical connector.

F Identify the failed bulb then open the boot.

For vehicles with interior trim, contact
a PEugEot dealer or a qualified
workshop to have the work done.

1. Brake lamps / sidelamps.

Type B, P21/5W-21/5W.

2. Direction indicators.

Type B, PY21W-21W (amber)

3. Reversing lamps.

Type B, P21W-21W

4. Foglamps / sidelamps.

Type B, P21/4W-21/4W.

F From inside, remove the cover, if your

vehicle has one.

F From the outside, press on the inner clips

on the plastic finisher then tip it towards the
outside to remove it.

F unscrew the two lamp fixing screws.

F Spread the three lugs slightly, then extract

the bulb holder.

F Remove the failed bulb by pressing

lightly on it, then turning it a quarter turn
clockwise.

F Change the bulb.

to reassemble, carry out these operations in
reverse order.

314

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

to refit, press on the lens to clip it in place.

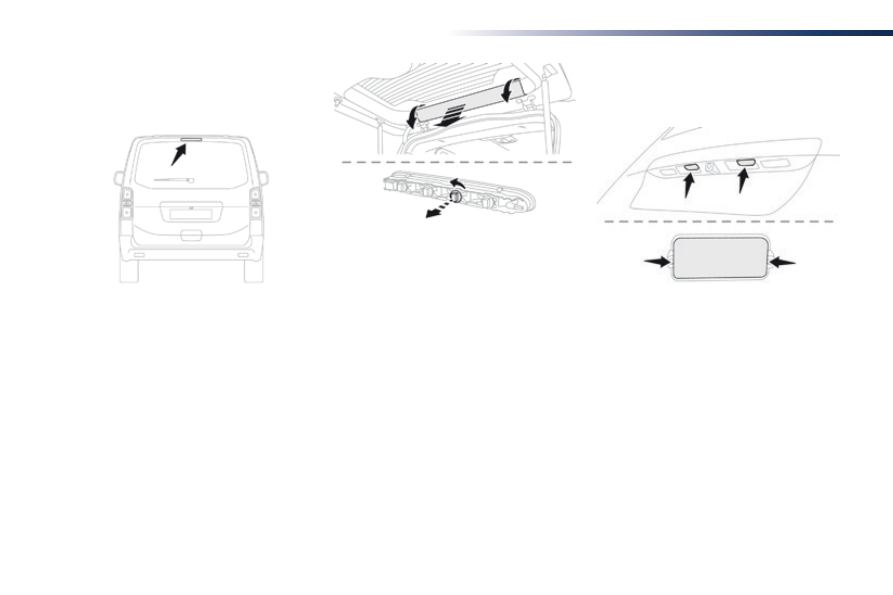

F unclip the trim at each end by turning it

upwards.

F Pull on the trim to disengage the central

clips, then remove it.

F using a screwdriver through the aperture,

push the lamp towards the outside.

F  Disconnect the electrical connector.
F  Remove the lamp.
F  turn the bulb holder a quarter turn anti-

clockwise.

F Change the failed bulb.

to refit, carry out these operations in reverse
order.
to refit the lamp and trim, press on them to clip
them in place.

Third brake lamp
(tailgate)

Type A, W5W-5W

Number plate lamps
(tailgate)

Type A, W5W-5W

F open the tailgate.

F Insert a thin screwdriver into one of the cut-

outs in the lens.

F  Push it outwards to unclip it.
F  Remove the lens.
F  Change the failed bulb.

315

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Courtesy lamps
(front and rear)

For the replacement of this type of LED lamp
and light guide, contact a PEugEot dealer or
a qualified workshop.
A replacement kit for the LEDs is available from
PEugEot dealers.

Rear lamps

For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.

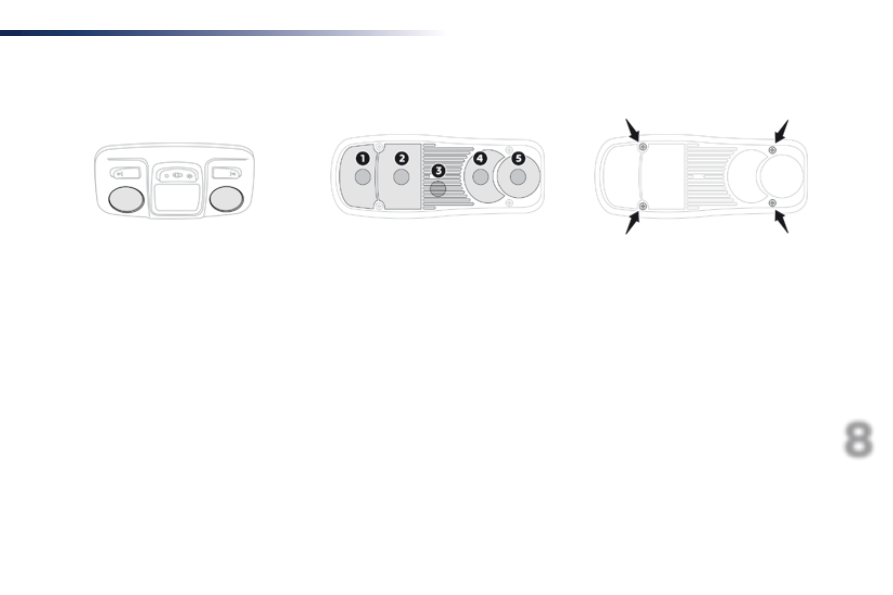

Platform cab

F  Identify the failed bulb.
F  Remove the four screws securing the lens.
F  Pull the lens towards you.
F  Remove the failed bulb by pressing lightly

on it and then turning it a quarter turn
clockwise.

F Change the bulb.

1. Direction indicators.

Type B, P21W-21W

2. Brake lamps.

Type B, P21W-21W

3. Sidelamps.

Type B, R10W-10W

4. Reversing lamps.

Type B, P21W-21W

5. Foglamps.

Type B, P21W-21W

to reassemble, carry out these operations in
reverse order.

316

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

F unclip the cover by pulling at the top left, then right.
F Disengage the cover completely and turn it over,

Good

Failed

Tweezer

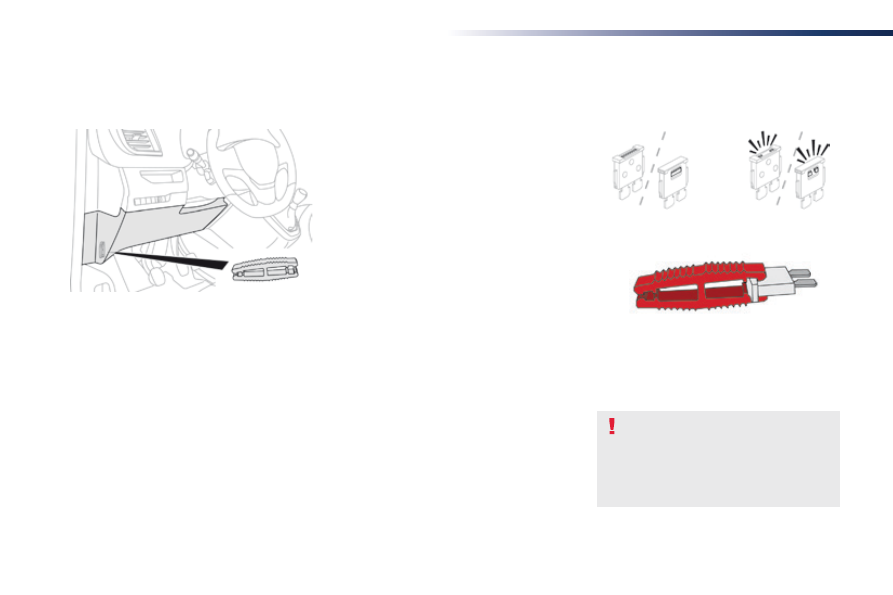

Access to the tools

F take the tweezer from its housing.

the extraction tweezer is located behind the
fusebox cover, on the dashboard pillar.

Before changing a fuse:
F the cause of the failure must be identified

and rectified,

F all electrical consumers must be

switched off,

F the vehicle must be immobilised with the

ignition off,

F identify the failed fuse using the tables and

layout drawings in the following pages.

Changing a fuse

to replace a fuse, you must:
F use the special tweezer to extract the fuse

from its housing and check the condition of
its filament.

F always replace the failed fuse with a fuse

of the same rating (same colour); using a
different rating could cause faults (risk of
fire).

If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEugEot dealer or a qualified workshop.

the replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PEugEot dealer or a qualified
workshop.

Changing a fuse

317

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

PEugEot will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEugEot and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEugEot dealer or
a qualified workshop.

For more information on installing a
towbar or equipment of the tAXI type,
contact a PEugEot dealer.

Dashboard fuses

the fusebox is placed in the lower dashboard
(left-hand side).

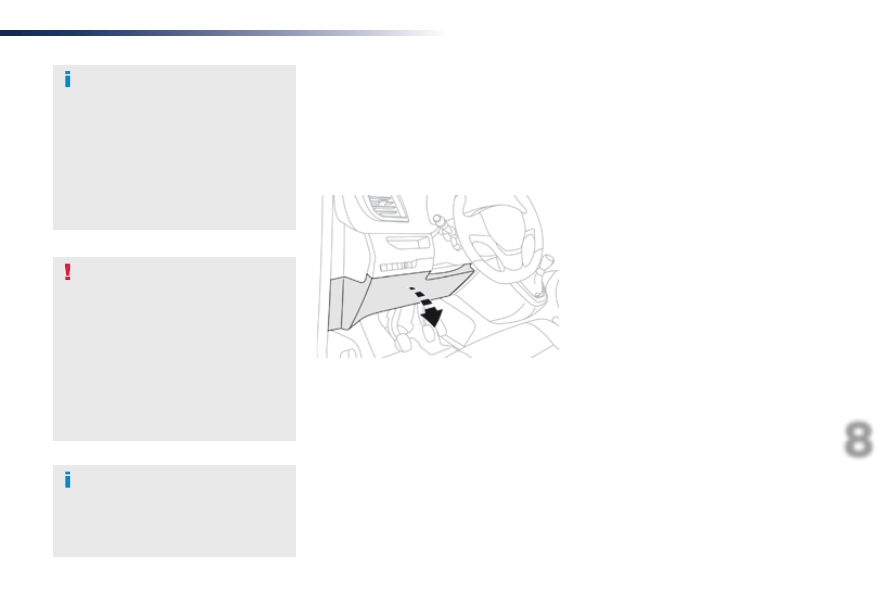

Access to the fuses

F unclip the cover by pulling at top left, then

right.

318

In the event of a breakdown

Expert_en_Chap08_En-cas-de-panne_ed01-2016

Fuse

N°

Rating

(A)

Functions

Electric power steering, clutch switch

Horn.

Front/rear screenwash pump.

Rear 12 V accessory socket.

Single or double rear wipers.

F10/F11

Front and rear, exterior, interior locks.

F13

Front air conditioning controls, radio controls, gear lever, head-
up display.

F14

Alarm, emergency and assistance calls.

F17

Instrument panel.

F19

Steering mounted controls.

F21

"Keyless Entry and Starting" system or ignition switch.

F22

Rain and sunshine sensor, multifunction detection camera.

F23

Seat belt unfastened or not fastened display screen.

F24

touch screen, reversing camera and parking sensors.

F25

Airbags.

F29

Audio system, touch screen, CD player, navigation.

F31

Audio system (battery +).

F32

Front 12 V accessory socket.

F34

Blind spot monitoring system, door mirror electric controls.

F35

Heated washer jets, headlamp beam height control.

F36

torch charger, rear courtesy lamp.

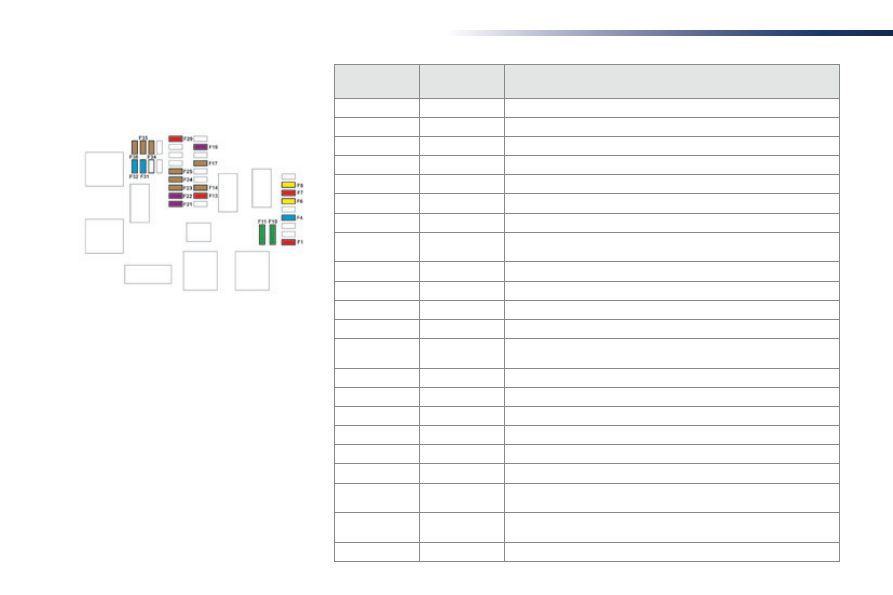

Version 1 (Eco)

the fuses described hereafter vary according
to the equipment in your vehicle.

Peugeot Expert VU (2016 year). Instruction - part 20
