Peugeot Expert VU (2016 year). Instruction

223

Driving

Expert_en_Chap06_conduite_ed01-2016

F With the engine running, adjust the

brightness of the information displayed
using buttons 3:
- the "sun" to increase the brightness,
- the "moon" to decrease the brightness.

Brightness adjustment

Height adjustment

In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary interference.
Some sunglasses may hamper reading
of the information.
to clean the blade, use a clean, soft
cloth (such as a spectacles cloth or
microfibre cloth). Do not use a dry or
abrasive cloth or detergent or solvent
products as these could scratch the
blade or damage the non-reflective
coating.

We recommend that adjustments are
made using these buttons only when
the vehicle is stationary.
When stationary or while driving, no
objects should be placed around the
blade (or in its recess) so as to not
impede deployment of the blade and its
correct operation.

this system operates when the engine
is running and the settings are stored
when the ignition is switched off.

F With the engine running, adjust the display

to the desired height using buttons 4:
- up to move the display up,
- down to move the display down.

224

MEM

Driving

Expert_en_Chap06_conduite_ed01-2016

Memorising speeds

Programming

This function allows speeds to be saved,
which can then be offered to set the two
systems: the speed limiter (to limit the
speed of the vehicle) or the cruise control
(for a vehicle cruising speed).
You can memorise up to six speed settings for
each of the two systems.

As a safety measure, the driver should
carry out these operations when
stationary.

F Select the system for which you want to

memorise new speed settings:

● speed limiter

F Press the button corresponding to the

speed setting you want to modify.

● cruise control.

Memorised speeds are
recalled by pressing this
button.

the speed settings can be adjusted in the
touch screen.

F In the Driving menu, select "Adjust speed

settings".

F Enter the new value using the numerical

keypad and confirm.

F Confirm to save the modification and quit

the menu.

225

Driving

Expert_en_Chap06_conduite_ed01-2016

Speed limit recognition

this system allows the speed limit detected by
the camera to be displayed in the instrument
panel.
Specific speed limits, such as those for heavy
goods vehicles, are not displayed.
the display of the speed limit in the instrument
panel is updated as you pass a speed limit sign
intended for cars (light vehicles).

Principles

Depending on equipment, the
system takes account of speed limit
information from the navigation system
mapping.

the units for the speed limits (mph or
km/h) depend on the country you are
driving in.
It should be taken into account so that
you observe the speed limit.
For the system to operate correctly
when you change country, the units for
speed in the instrument panel must be
those for the country you are driving in.

Depending on equipment, using a camera at
the top of the windscreen, this system detects
and reads speed limit and end of speed limit
signs.

Depending on equipment, the system takes
account of the camera and information from the
navigation system mapping.

to maintain correct operation of the
system: regularly clean the area in front
of the camera.

the automatic reading of road signs is a
driving assistance system and does not
always display speed limits correctly.
the speed limit signs present on the
road always take priority over the
display by the system.
the system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
the driver must observe the driving
regulations and must adapt the speed
of the vehicle to suit the weather and
traffic.
It is possible for the system to not
display the speed limit if it does not
detect a speed limit sign within a preset
period.
the system is designed to detect signs
that conform to the Vienna Convention
on road signs.

For the speed limit information given
by the navigation system to be correct,
your mapping software must be
regularly updated.

226

Driving

Expert_en_Chap06_conduite_ed01-2016

the system is active but is not detecting speed
limit information.

the driver can, if desired, adjust the
speed of the vehicle according to the
information given by the system.

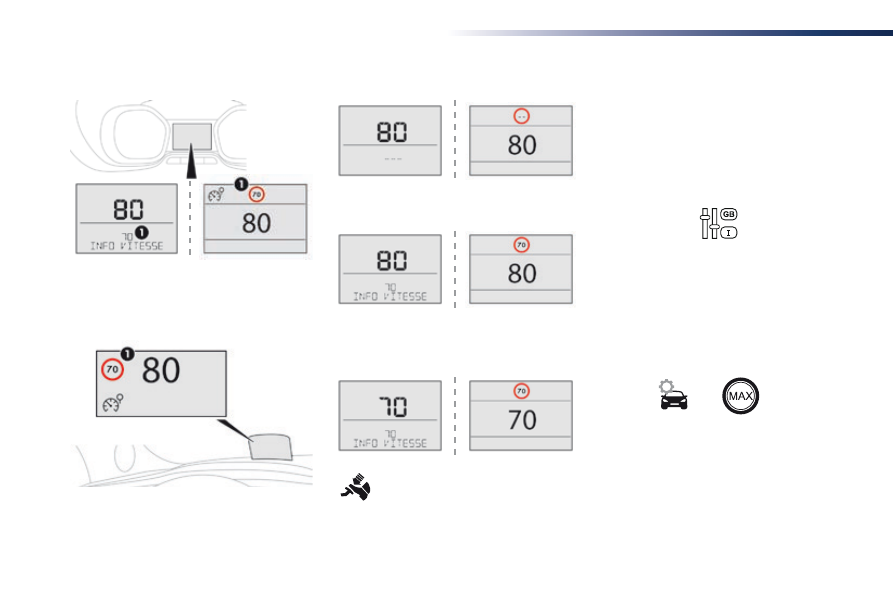

Display of the speed

1. Indication of the speed limit.

Head-up display

Activation / Deactivation

the system is activated or deactivated via the
vehicle configuration menu.

Display in the instrument panel

on detection of speed limit information, the
system displays the figure.

With the audio system

In the "Personalisation-configuration" menu,
activate/deactivate "Speed recommendation".

With the touch screen

In the vehicle settings menu, activate/
deactivate "Displaying of the recommended
speed.".

227

Driving

Expert_en_Chap06_conduite_ed01-2016

Memorising the speed
setting

this memorisation is in addition to the display
of Speed limit recognition.

the driver can choose to adapt the speed
setting to the speed limit suggested, by
pressing the memorisation button at the speed
limiter controls, with the standard cruise control
or the dynamic cruise control.
this speed setting then replaces the previous
speed setting for the speed limiter and/or
dynamic cruise control.

For more information on the
Speed limiter, Cruise control or
Dynamic cruise control, refer to the
corresponding sections.

Steering mounted controls

1. Select speed limiter/cruise control mode.
2. Memorise a speed setting.

Operating limits

the legislation on speed limits is specific to
each country.
the system does not take account of reduced
speed limits in the following cases:
-

poor weather (rain, snow),

atmospheric pollution,

trailer, caravan,

driving with snow chains fitted,

puncture repair using the temporary repair
kit,

young drivers.

operation of the system may be disrupted or it
may not work at all in the following situations:
-

poor visibility (inadequate street lighting,
falling snow, rain, fog),

windscreen area ahead of the camera dirty,
misty, frosty, covered with snow, damaged
or masked by a sticker,

fault with the camera,

obsolete or incorrect mapping,

hidden road signs (other vehicles,
vegetation, snow),

speed limit signs that do not conform to the
standard, are damaged or distorted.

Clean the area of the windscreen in
front of the camera regularly.

228

MEM

Driving

Expert_en_Chap06_conduite_ed01-2016

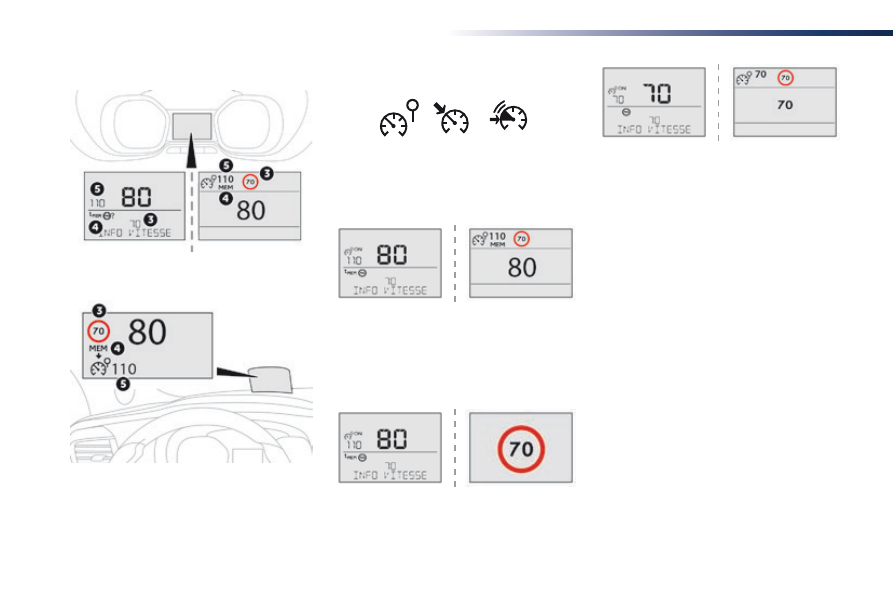

3.  Speed limiter indication.
4.  Memorise the speed.
5.  Current speed setting.

Display in the instrument panel

Head-up display

Memorising

F When the speed limiter/cruise control is

switched on, the corresponding information
is displayed.

on detection of a speed limit sign, the system
displays the speed limit value and offers to
make it the speed setting.
"MEM" flashes in the screen for a few seconds.

F Make an initial press on this

button to display the suggested
limit speed.

F Press this button again to

confirm the new speed setting.

229

GAP

MEM

Driving

Expert_en_Chap06_conduite_ed01-2016

Steering mounted controls

6.  Speed limiter on/pause indication.
7.  Speed limiter mode selection indication.
8.  Speed value setting.

Speed limiter ("LIMIt")

System which prevents the vehicle from exceeding the speed programmed by the driver.

the speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.

once the programmed speed limit is reached,
additional pressure on the accelerator pedal
has no effect.

1.  Select speed limiter mode.
2.  Lower the programmed speed.
3.  Raise the programmed speed.
4.  Speed limiter on / pause.
5.  If fitted to your vehicle, display the list of

memorised speeds or memorise the speed
suggested by the speed limit recognition
system.

Display in the instrument panel

the programmed speed remains in the
memory when the ignition is switched off.

For more information on this button
and the Dynamic cruise control,
refer to the corresponding section.

For more information on
Memorising speeds, refer to the
corresponding section.

Head-up display

For more information on Speed limit
recognition and memorising them in
particular, refer to the corresponding
section.

230

Driving

Expert_en_Chap06_conduite_ed01-2016

Switching on / Pause

F turn thumbwheel 1 to the "LIMIT" position:

the speed limiter mode is selected but is
not switched on (Pause).

F Switch the speed limiter back on by

pressing button 4, if the speed displayed
is suitable (by default, the last speed
programmed).

F You can temporarily stop the speed limiter

by pressing button 4 again: the display
confirms that it has been stopped (Pause).

You do not have to switch the speed limiter on
in order to set the speed.
once the function is selected, you can modify
the speed setting by:
-

using buttons 2 and 3, raising or lowering
the speed displayed:
F by successive short presses, to modify

by + or - 1 mph (km/h),

F by a maintained press, to modify in steps

of + or - 5 mph (km/h).

pressing button 5, if your vehicle has speed
memorisation:
F the six speeds memorised are displayed

in the touch screen,

F press the button corresponding to the

speed limit chosen.

the value is then displayed in the instrument
panel.
the selection screen closes after a few
moments.

Adjusting the speed limiter
setting

Switching on the speed limiter requires a
programmed speed of at least 20 mph (30 km/h).
the speed limiter is paused by operation of the
control.

the programmed speed can be
exceeded temporarily by pressing
the accelerator firmly beyond the
point of resistance.

to return to the programmed speed,
simply release the accelerator
pedal until the vehicle returns to the
programmed speed limit.

231

MEM

Driving

Expert_en_Chap06_conduite_ed01-2016

on sharp acceleration, as when
descending a steep hill, the speed
limiter will not be able to prevent
the vehicle from exceeding the
programmed speed.
the limiter is temporarily deactivated
and the displayed programmed speed
flashes.
An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver.

Flashing of the dashes indicates a fault with the
speed limiter.
Have it checked by a PEugEot dealer or a
qualified workshop.

Operating fault

Temporarily exceeding the
programmed speed

Switching off

F Press

firmly on the accelerator pedal,

going beyond the point of resistance, to
exceed the programmed speed limit.

the speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
An audible signal accompanies the flashing
of the programmed speed when exceeding
the speed is not due to an action by the driver
(steep hill...).
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again.

F turn thumbwheel 1 to the "0" position.

the display of speed limiter information
disappears.

by pressing button 5, if your vehicle has
speed limit recognition:
F the speed to be memorised is displayed

in the instrument panel,

F press button 5 again to save the speed.

the value is then displayed in the instrument
panel.

For more information on Speed
limit recognition, refer to the
corresponding section.

the use of mats not approved by
PEugEot may interfere with the
operation of the speed limiter.
to avoid any risk of jamming of the
pedals:
-

ensure that the mat is secured
correctly,

do not fit one mat on top of another.

232

MEM

Driving

Expert_en_Chap06_conduite_ed01-2016

Cruise control ("CRuISE")

System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.

Steering mounted controls

1. Select cruise control mode.
2. Programme a speed setting/Lower the

speed setting.

3. Programme a speed setting/Raise the

speed setting.

4. Pause-resume cruise control.
5. If fitted to your vehicle, display the list of

memorised speeds or memorise the speed
offered by the speed limit recognition
system.

the cruise control system cannot, in
any circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
You are advised to keep your feet near the
pedals at all times.

For more information on Speed
limit recognition, refer to the
corresponding section.

Switching off the ignition cancels any
programmed speed value.

For more information on
Memorising speeds, refer to the
corresponding section.

233

Driving

Expert_en_Chap06_conduite_ed01-2016

If your vehicle has a manual gearbox, third or
fourth gear, or higher, must be engaged.

If your vehicle has an automatic or electronic
gearbox, second gear or higher must be
engaged.

6.  Cruise control pause/resume indication.
7.  Cruise control mode selection indication.
8.  Speed value setting.

Display in the instrument panel

Head-up display

Switching on

F turn thumbwheel 1 to the

"CRUISE" position: the cruise control
mode is selected but is not switched on
(Pause).

F Press on button 2 or 3: your vehicle's

current speed becomes the cruise speed.

the cruise control is activated (oN).

It is possible to exceed the programmed
speed temporarily by pressing the
accelerator pedal.
to return to the programmed speed,
simply release the accelerator pedal
until the programmed cruise speed is
reached again.

the cruise control is switched on manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h).

234

Driving

Expert_en_Chap06_conduite_ed01-2016

Pause

The cruise control is paused manually or
by pressing the brake or clutch pedal or
on triggering of the ESC system for safety
reasons.

by pressing on button 5, if your vehicle is
equipped with speed memorisation:
F the speed to be memorised is displayed

in the instrument panel,

F press on button 5 again to save the

speed.

the value is then displayed in the instrument
panel.

once switched on, you can pause the cruise
control at any time by pressing button 4: the
screen confirms the pause.

If the cruise control is switched on, you can then
modify the initial speed in one of the following ways:
-

using buttons 2 or 3:
F by successive short presses, to modify

the speed by + or - 1 mph (km/h),

F by a long press, to modify the speed in

steps of + or - 5 mph (km/h),

Modification of the initial
speed setting

by pressing on button 5, if your vehicle is
equipped with speed memorisation:
F the six memorised speeds are displayed

in the touch screen,

F select a value: it is displayed in the

instrument panel.

the selection screen closes after a few
moments.
the modification is then accepted.

For more information on Speed limit
recognition, refer to the corresponding
section.

235

Driving

Expert_en_Chap06_conduite_ed01-2016

Exceeding the programmed
speed

If the programmed speed is exceeded, the
displayed speed flashes.
once the vehicle returns to the programmed
speed, the display becomes steady again.

Switching off

F turn thumbwheel 1 to the "0" position.

the display of information related to the
cruise control disappears.

Flashing of the dashes indicates a fault with the
cruise control.
Have it checked by a PEugEot dealer or a
qualified workshop.

Operating fault

When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.

on a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
on steep climbs or when towing,
the programmed speed may not be
achieved or maintained.

the use of mats not approved by
PEugEot may interfere with the
operation of the cruise control.
to avoid any risk of jamming of the
pedals:
-

ensure that the mat is secured
correctly,

never fit one mat on top of another.

236

Driving

Expert_en_Chap06_conduite_ed01-2016

Dynamic cruise control ("CRuISE")

This systems allows the vehicle's speed to
be maintained at a value set by the driver.
In addition it allows (when circumstances
permit) an inter-vehicle distance that you
have selected to be maintained between
your vehicle and the vehicle in front.

In the Driving menu, activate/deactivate
"Dynamic cruise control".

the state of the system is memorised on
switching off the ignition.

Activation / Deactivation

the cruise control selection
thumbwheel must be at the
"CRuISE" position, otherwise the
selection is not taken into account.
Activation or deactivation of
the system is via the vehicle
configuration menu.

With the touch screen

1. Select cruise control mode.
2. Programme a speed setting/Reduce the

speed setting.

3. Programme a speed setting/Increase the

speed setting.

4. Pause / Resume cruise control.
5. If fitted to your vehicle, display the list of

memorised speeds or memorise the speed
suggested by the speed limit recognition
system.

6. Select the inter-vehicle distance ("Close",

"Normal", "Distant")

Steering mounted controls

By default, the inter-vehicle distance is
set at "Normal".
otherwise, the last setting made will be
used when switching on the system.

237

Driving

Expert_en_Chap06_conduite_ed01-2016

If your vehicle has an automatic or electronic
gearbox, second gear or higher must be
engaged.

If your vehicle has a manual gearbox, third or
fourth gear, or higher, must be engaged.

7. Indication of cruise control pause/resume.
8. Indication of selection of cruise control

mode, or vehicle speed adjustment phase.

9. Cruise speed setting.

Display in the instrument panel

Head-up display

the dynamic cruise control is switched on
manually, it requires that the speed of the
vehicle be between 25 mph (40 km/h) and
90 mph (150 km/h).
If the cruise speed setting is above 90 mph
(150 km/h), the dynamic cruise control switches
to normal cruise control mode (without
automatic regulation of the safe inter-vehicle
distance).

Switching on

For more information on the Head-up
display, refer to the corresponding
section.

For more information on the Cruise
control, refer to the corresponding
section.

the dynamic cruise control must be selected in
the "Driving" menu.

F turn the thumbwheel 1 to the "CRUISE"

position: cruise control mode is selected,
but not started (Pause).

F Press one of the buttons 2 or 3: the current

speed of your vehicle becomes the cruise
speed setting.

the cruise control is activated (oN).

238

MEM

Driving

Expert_en_Chap06_conduite_ed01-2016

If the cruise control is on, you can then modify
the initial speed:
-

using button 2 or 3:
F by successive short presses, to modify

by steps of + or - 1 mph (km/h),

F by a maintained press, to modify in steps

of + or - 5 mph (km/h).

Modification of the cruise
control speed only

by pressing button 5, if your vehicle has
speed memorisation:
F the six memorised settings are displayed

in the touch screen,

F choose a speed setting: it is displayed in

the instrument panel.

the selection screen closes after a few
moments.
the modification is then taken into account.

For more information on Speed
limit recognition and in particular
its memorisation, refer to the
corresponding section.

As a precaution, it is recommended that
you select a cruise speed setting close
to the current speed of your vehicle.

by pressing button 5, if your vehicle has
speed limit recognition:
F the speed to memorise is displayed in

the instrument panel,

F press button 5 again to save the speed.

the setting is then displayed in the instrument
panel.

Inter-vehicle distance

using a radar with a range of about 100 metres,
located at the front of the vehicle, this system
detects a vehicle running in front of your
vehicle.
It automatically adapts the speed of your
vehicle to that of the vehicle in front.
If the vehicle in front is running more slowly,
the system progressively reduces the speed of
your vehicle using just engine braking (as if the
driver had pressed the "-" button).
If your vehicle is too close to, or approaching
too quickly the vehicle in front, the dynamic
cruise control is automatically deactivated.
the driver is then alerted by an audible signal,
accompanied by a message.
If the vehicle in front accelerates or changes
lane, the dynamic cruise control progressively
accelerates your vehicle to return to the
programmed speed.
If the driver operates a direction indicator to
overtake a slower vehicle, the dynamic cruise
control allows your vehicle to temporarily
approach the vehicle in front to assist the
overtaking manoeuvre, though never exceeding
the programmed speed.

Peugeot Expert VU (2016 year). Instruction - part 15
