Peugeot Expert Dag (2006 year). Instruction

Practical information -

N°

Rating

Functions

Not used.

10 A

Diagnostic socket - ABS control unit - Reversing lights - Heated mirrors.

Not used.

5 A

Instrument panel - Overspeed buzzer - Speed sensor - Water in diesel ﬁlter detector.

15 A

Cruise control - Brake switch - Clutch switch - Automatic gearbox - Brake lights.

5 A

Courtesy light - Instrument panel - Audio equipment.

30 A

Heated rear screen.

30 A

Passenger compartment protection unit.

5 A

Passenger compartment protection unit.

Not used.

5 A

Fan assembly relay - Compressor relay.

10 A

Electric windows - Air blower relay - Heated seats relay - Heated rear screen switch -

Air conditioning - Pressostat.

15 A

Hazard lights.

30 A

Electric windows.

Not used.

20 A

Heated seats.

20 A

Horn.

10 A

Rear fog lamp.

Practical information

90 -

N°

Rating

Functions

5 A

Cruise control - Lights on buzzer - Heated seats switch - Instrument panel lighting - Audio

equipment - Heated rear screen switch - Automatic gearbox lever - Hazard lights switch -

Air conditioning control panel.

5 A

Headlamp height adjustment switch - Front left and front right side lights.

5 A

Rear left and rear right side lights - Headlamp wash timer - Number plate lights.

Not used.

20 A

Lighter.

10 A

Audio equipment.

10 A

Lights on buzzer - Automatic gearbox buzzer - Electric mirrors - Direction indicators.

30 A

Windscreen wipers timer - Windscreen wipers - Wash-wipe pump.

Not used.

5 A

Instrument panel - Electric windows relay.

Practical information

94 -

- Never disconnect a ter-

minal when the engine is

running.

- Never charge a battery without ﬁrst

disconnecting the terminals.

- After every reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to allow

the electronic systems to be initial-

ised. If slight difﬁculties are experi-

enced after this, please contact a

PEUGEOT dealer.

BATTERY

To charge the battery using a

battery charger:

- Disconnect the battery,

- Follow the instructions for use

given by the battery charger manu-

facturer,

- Reconnect starting with the nega-

tive (-) terminal,

- Check that the terminals and connec-

tors are clean. If they are covered with

sulphate (white or greenish deposit),

disconnect them and clean them.

To start the vehicle from a

battery on another vehicle:

- Switch off the engine on the gener-

ating vehicle,

- Connect the red cable to the positive

(+) terminals of the two batteries,

- Connect one end of the green

or black cable to the negative (-)

terminal of the slave battery,

- Connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery,

- Switch on the generating vehicle,

- Let it run at a slightly accelerated

engine speed for approximately one

minute,

- Start the receiving vehicle,

- Operate the starter, let the engine run,

- Wait for the engine to return to idle,

then disconnect the cables.

It is advisable to disconnect the

battery if the vehicle is not to be

used for a period of more than

one month.

Practical information -

Contact a PEUGEOT dealer

before ﬁtting audio equip-

ment or speakers in your

vehicle.

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-ﬁtted audio equipment:

- coaxial aerial cable,

- basic interference suppression,

- supply to front speakers,

- two 8-way connectors.

FITTING SPEAKERS

The factory-ﬁtted equipment allows

the ﬁtting of 165 mm diameter speak-

ers in the front doors.

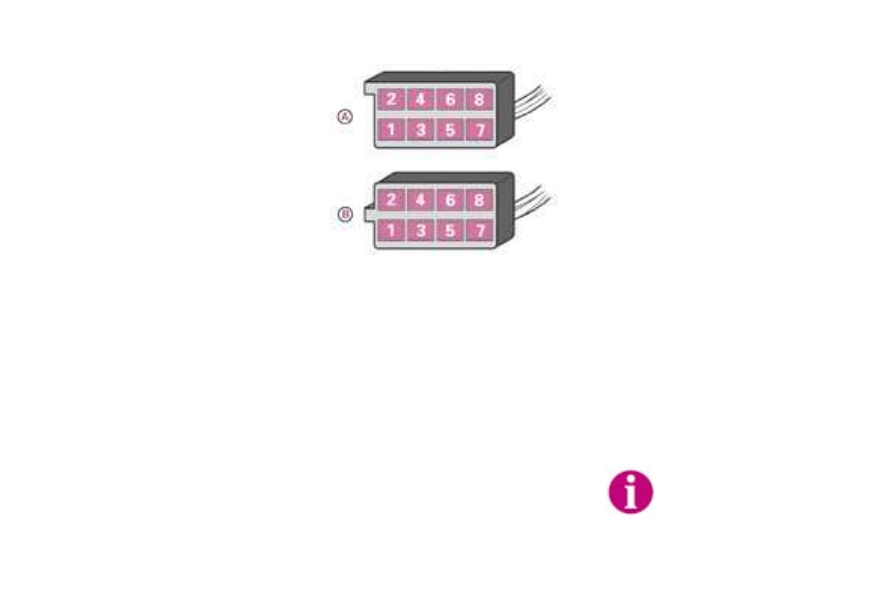

Making the connections

A1 : -

A2 : -

A3 : -

A4 : -

A5 : -

A6 : (+ve) Accessories

A7 : (+ve) Permanent

A8 : (-ve) Earth

B1 : (+)

B2 : (-)

B3 : (+)

Front right speaker

B4 : (-)

Front right speaker

B5 : (+)

Front left speaker

B6 : (-)

Front left speaker

B7 : (+)

B8 : (-)

Practical information

96 -

When towing with the en-

gine switched off, there is

no braking or steering as-

sistance.

TOWING YOUR VEHICLE

Without lifting

(4 wheels on the ground)

You must always use a tow bar.

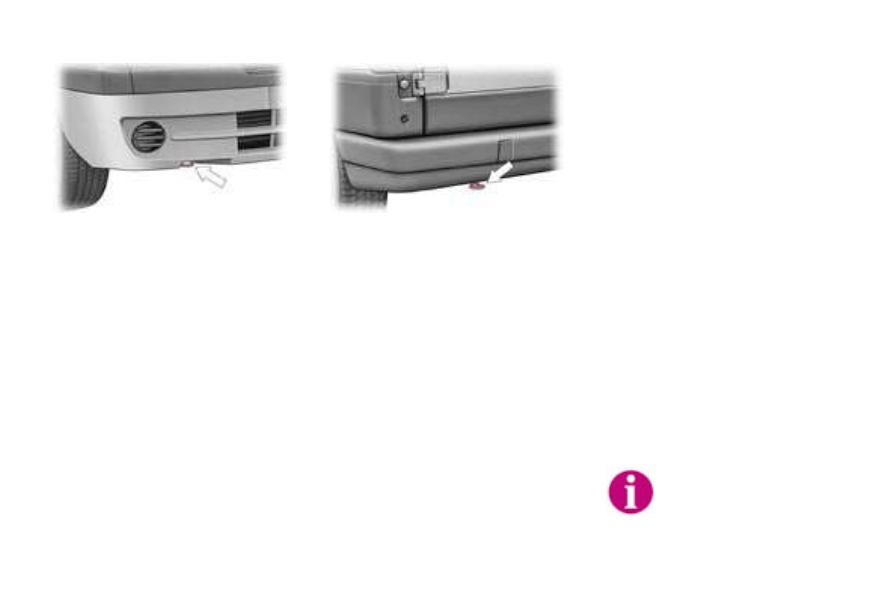

The towing eyes are located at the

front and the rear under the vehicle's

bumpers.

Lifting

(2 wheels only on the ground)

It is preferable to raise the vehicle

with a professional lifting device.

Never use the radiator crossmember.

Special features of the

automatic gearbox

When towing with four wheels on the

ground, the following rules must be

obeyed:

- lever in position

- tow the vehicle at less than 30 mph

(50 km/h) over a maximum distance

of 30 miles (50 km),

- do not add oil to the gearbox.

Practical information -

TOWING A TRAILER,

CARAVAN, BOAT, etc.

We recommend the use of original

PEUGEOT towbars that have been

tested and approved from the design

stage of your vehicle and that the ﬁt-

ting of the towbar is entrusted to a

PEUGEOT dealer.

Your vehicle is primarily designed

for transporting people and luggage

but it may also be used for towing a

trailer.

Driving with a trailer subjects the tow-

ing vehicle to more signiﬁcant stress

and its driver must be particularly

careful.

Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of

altitude.

Driving advice

Distribution of loads: Distribute the

load in the trailer so that the heaviest

items are as close as possible to the

axle and the nose weight approach-

es the maximum permitted without

exceeding it.

Cooling: Towing a trailer on a slope

increases the temperature of the

coolant.

As the fan is electrically controlled,

its cooling capacity is not dependent

on the engine speed.

On the contrary, use a high gear to

lower the engine speed and reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the

coolant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres: Check the tyre pressures of

the towing vehicle and of the trailer,

observing the recommended pres-

sures.

Braking: Towing increases the

braking distance.

Lights: Check the electrical signal-

ling on the trailer.

Side wind: Take into acount the

increased sensitivity to side wind.

Practical information

98 -

Before installing any elec-

trical accessory on your ve-

hicle, contact a PEUGEOT

dealer.

ACCESSORIES FOR YOUR

EXPERT

For your PEUGEOT only use acces-

sories and original parts approved by

the manufacturer.

These accessories and parts are all

adapted to your PEUGEOT, after be-

ing tested and approved for reliability

and safety, which PEUGEOT cannot

guarantee for other products.

A wide choice of original accessories,

approved by PEUGEOT, is available

through the dealer network. They all

carry the PEUGEOT guarantee.

* According to version.

- Communication: Audio systems,

audio-telephone, speakers, CD

changer...

- Customising: Ladder, mud ﬂaps,

front fog lamps kit*...

- Leisure: Towbar, roof bars, snow

chains...

- Children: Booster seats and child

seats...

- Maintenance products: Screen-

wash, interior and exterior mainte-

nance and cleaning products...

- Safety: Window protectors, anti-

theft alarm, wheel locks, signalling

triangle, ﬁrst aid kit, safety jacket...

- Comfort: Rear and side windows,

audio-telephone console, seat

covers compatible with side air

bags, mats, strap-guide...

- Loading: Roof bars, thermoformed

interior protectors, wooden interior

ﬁttings, loading roller...

Technical data -

Model codes

PETROL

BARFNC/IF

BBRFNC/IF - BCRFNC/IF

BDRFNC/IF - BERFNC/IF

BARFNE

BBRFNE - BJRFNE

BDRFNE - BERFNE

ENGINES

2 litre 16V

Cubic capacity (cm

)

1 997

Bore x stroke (mm)

85 x 88

EU standard maximum power (kW)

100

Maximum power engine speed (rpm)

6 000

EU standard maximum torque (Nm)

190

Maximum torque engine speed (rpm)

4 100

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual

(5-speed)

Automatic

(4-speed)

Oil capacity (in litres)
Engine (with cartridge replacement)

4.25

Gearbox-Final drive

ENGINES AND GEARBOXES

Technical data

100 -

ENGINES AND GEARBOXES

Model codes

DIESEL

BAWJYB - BBWJYB

BDWJYB - BEWJYB

BARHXB

BARHZB

BBRHXB

BBRHZB

BCRHXB

BCRHZB

BDRHXB

BDRHZB

BERHXB

BERHZB

BARHWB - BBRHWB

BCRHWB - BDRHWB

BERHWB

ENGINES

1.9 litre

2 litre Turbo HDI

(95 bhp/110 bhp)

2 litre Turbo HDI 16V

Cubic capacity (cm

)

1 868

1 997

Bore x stroke (mm)

82.2 x 88

85 x 88

EU standard maximum power (kW)

Maximum power engine speed (rpm)

4 600

4 000

EU standard maximum torque (Nm)

125

215

250

270

Maximum torque engine speed (rpm)

2 500

1 750

Fuel

Diesel

Catalytic converter

Yes

Gearbox

Manual

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Oil capacity (in litres)
Engine (with cartridge replacement)

4.5

5.5

4.75

Gearbox-Final drive

101

Technical data -

CONSUMPTION

In accordance with EC Directive 80/1268 (as amended) mpg (litres/100 km)

Engines

Gearbox

Model codes

BA... BB... BC...

BD... BE... BJ...

Urban driving

Inter-urban

driving

Mixed driving

Emission of

by weight

(g/km)

2 litre 16V

Manual

RFNC/IF

23.5 (12.0)

38.7 (7.3)

31.1 (9.0)

216

2 litre 16V

Automatic

RFNE

20.9 (13.5)

37.2 (7.6)

29.1 (9.7)

232

1.9 litre Diesel

Manual

WJYB

27.9 (10.1)

42.8 (6.6)

35.8 (7.9)

211

2 litre Turbo

HDI (95 bhp)

Manual

RHXB

32.4 (8.7)

47.9 (5.9)

40.4 (7.0)

187

2 litre Turbo

HDI (110 ch)

Manual

RHZB

32.4 (8.7)

50.4 (5.6)

42.2 (6.7)

180

2 litre Turbo

HDI 16V

Manual

RHWB

31.7 (8.9)

47.1 (6.0)

40.4 (7.0)

186

The consumption values presented here correspond to the values communicated at the time of printing. These consumption values

were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of driving, trafﬁc

conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the accessories.

Technical data

102 -

WEIGHTS AND TOWED LOADS (IN KG)

(1) 5-seat Combi - (2) 9-seat Combi.

* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).

2 litre 16V

Van

Combi

5-6-7-8-9

Platform

cab

Gearbox

Manual

Auto.

Manual

• Payload

1 060 (1) - 1 002 (2)

834 (1) - 776 (2)

• Kerb weight

1 412

1 520 (1) - 1 578 (2)

1 561 (1) - 1 619 (2)

1 263

• Weight without load

1 397

1 445 (1) - 1 503 (2)

1 486 (1) - 1 544 (2)

1 188

• Gross vehicle weight (GVW)

2 185

2 505

2 320

2 185

• Gross train weight (GTW)*

3 485

3 595

3 620

3 485

• Unbraked trailer

706

750

631

• Braked trailer (within GTW)

1 300

• Recommended nose weight

103

Technical data -

WEIGHTS AND TOWED LOADS (IN KG)

1.9 litre Diesel

Van

Extended

van

Combi

5-6-8-9

Platform

cab

Extended

platform

cab

• Payload

743 (1) - 695 (2)

• Kerb weight

1 429

1 469

1 537 (1) - 1 595 (2)

1 280

1 310

• Weight without load

1 174

1 394

1 462 (1) - 1 520 (2)

1 205

1 235

• Gross vehicle

weight (GVW)

2 205

2 205 (1) - 2 215 (2)

2 205

• Gross train weight (GTW)*

3 305

• Unbraked trailer

715

735

750

640

655

• Braked trailer (within GTW)

1 100

1 300

1 100

• Recommended nose weight

(1) 5-seat Combi - (2) 9-seat Combi.

2 litre Turbo HDI 95 bhp

Van

Extended

van

Combi

5-6-8-9

Platform

cab

Extended

platform

cab

• Payload

997 (1) - 939 (2)

• Kerb weight

1 476

1 516

1 583 (1) - 1 641 (2)

1 327

1 360

• Weight without load

1 401

1 441

1 508 (1) - 1 566 (2)

1 252

1 285

• Gross vehicle weight (GVW)

2 250/2 330

2 330

2 505

2 330

• Gross train weight (GTW)*

3 550/3 630

3 630

3 640

3 630

• Unbraked trailer

738

750

664

680

• Braked trailer (within GTW)

1 300

• Recommended nose weight

* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).

Technical data

104 -

WEIGHTS AND TOWED LOADS (IN KG)

2 litre Turbo HDI 110 bhp

Van

Extended

van

Combi

5-6-7-8-9

Platform

cab

Extended

platform

cab

• Payload

993 (1) - 935 (2)

• Kerb weight

1 480

1 520

1 587 (1) - 1 645 (2)

1 331

1 361

• Weight without load

1 405

1 445

1 512 (1) - 1 570 (2)

1 256

1 286

• Gross vehicle weight (GVW)

2 330

2 505

2 330

• Gross train weight (GTW)*

3 630

3 640

3 630

• Unbraked trailer

740

750

665

680

• Braked trailer (within GTW)

1 300

• Recommended nose weight

(1) 5-seat Combi - (2) 9-seat Combi.

2 litre Turbo HDI 16V

Van

Extended

van

Combi

5-6-7-8-9

Platform

cab

Extended

platform

cab

• Payload

• Kerb weight

1 491

1 532

1 598 (1) - 1 656 (2)

1 342

1 372

• Weight without load

1 416

1 457

1 523 (1) - 1 581 (2)

1 267

1 297

• Gross vehicle weight (GVW)

2 250

2 505

2 250

• Gross train weight (GTW)*

3 550

3 640

3 550

• Unbraked trailer

746

750

671

686

• Braked trailer (within GTW)

1 300

• Recommended nose weight

* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).

105

Technical data -

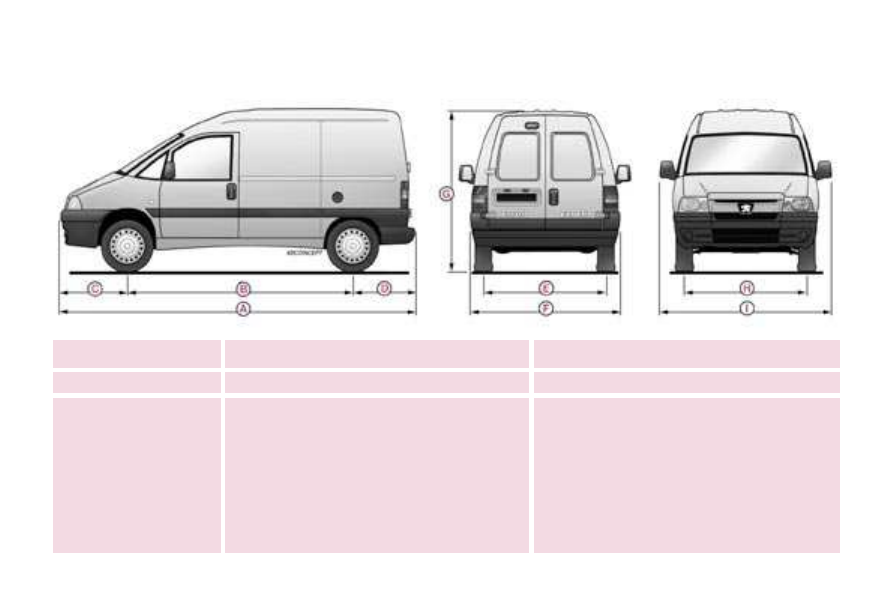

EXTERIOR DIMENSIONS (in mm)

Version

Van - Combi

Platform cab

Wheelbase

Normal

Extended

Normal

Extended

4 522

4 922

4 503

4 903

2 824

3 224

2 824

3 224

919

779

760

1 540

1 844

1 919 to 1 994

1 932 to 1 950 (1)

1 907 to 1 935

1 540

2 130

(1) Panel van.

Technical data

106 -

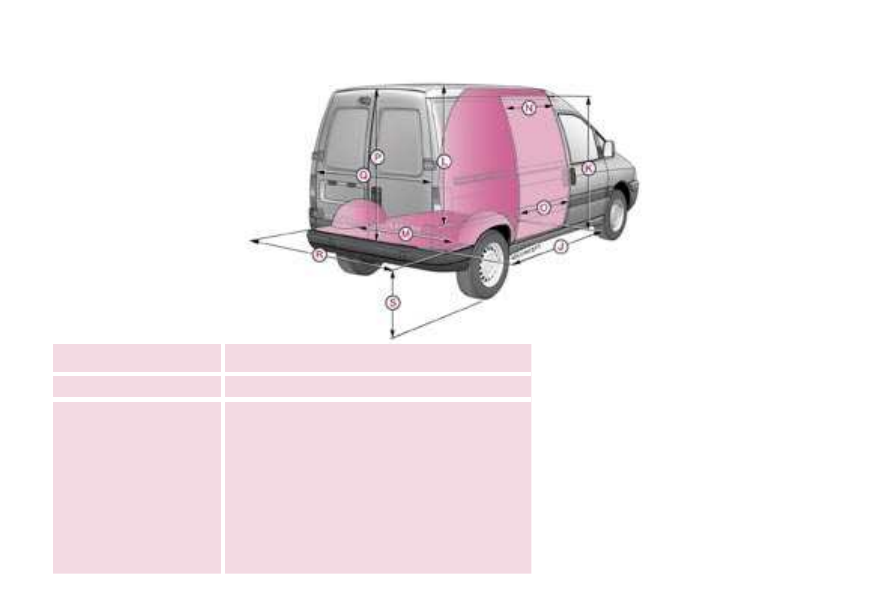

INTERIOR DIMENSIONS (in mm)

Version

Van

Wheelbase

Normal

Extended

2 050

2 450

1 290

1 410

1 220

850

810

1 260

1 060 min to 1 360 max

1 430 min to 1 600 max

590

107

Technical data -

INTERIOR DIMENSIONS (in mm)

Version

Combi

Number of seats

5-6

7-8-9

Dimensions of the loading space (in mm)

Rear door/top of bench seat back useful length

980

250

Rear door/bench seat feet useful length

1 220

490

Min width between wheel arches

1 190

Max width between wheel arches

1 200

Rear doors sill height

580

Loading volume (in dm

)

Top of bench seat back

1 164

445

Bench seat folded

1 590

955

3rd row bench seat removed

1 325

Toal volume to roof (in dm

)

Top of bench seat back

2 060

600

Bench seat folded

3 380

1 870

3rd row bench seat removed

2 250

Peugeot Expert Dag (2006 year). Instruction - part 7
