Instruments and controls

Bipper_en_Chap03_pret-a-partir_ed02-2014

Warning lamp

indicates

Solution - action

Sidelamps

on.

a manual selection.

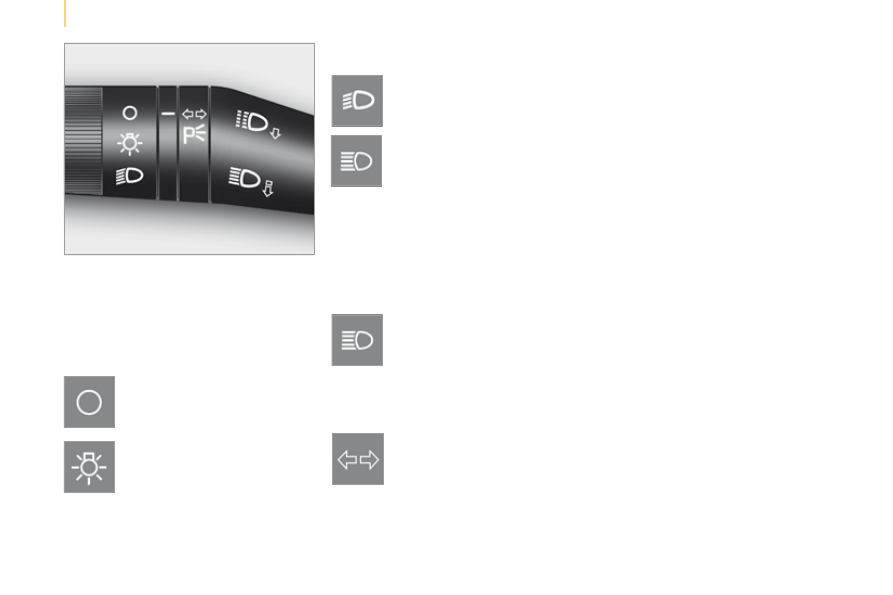

turn the ring on the lighting control stalk to the
first position.

Dipped beam
headlamps

on.

a manual selection.

turn the ring on the lighting control stalk to the
first position.

Main beam headlamps

a pull on the control stalk.

Pull the lighting control stalk to return to dipped
beam.

Direction indicators

flashing with an
audible signal.

a change of direction
using the lighting control
stalk.

to the Right: press the stalk upwards.
to the left: press the stalk downwards.

Hazard warning lamps

flashing with an
audible signal.

the hazard warning lamp switch,
located in the middle of the
dashboard, has been pressed.

the left and right direction indicators, and the
associated warning lamps, flash simultaneously.

Front foglamps

on.

that the button on the
dashboard has been
pressed.

Manual selection.
the foglamps only operate if the sidelamps or
dipped beam headlamps are on.

Rear foglamps

on.

that the button on the
dashboard has been
pressed.

Manual selection.
the foglamps only operate if the dipped beam headlamps are
on. When visibility is normal, switch the foglamps off.

Instruments and controls

Bipper_en_Chap03_pret-a-partir_ed02-2014

Warning lamp

indicates

Solution - action

Cruise control

on.

activation of the cruise
control.

Manual selection.
"Ready to set off - Steering mounted controls" section.

Intelligent traction
control

on.

activation of the intelligent
traction control section.

Manual selection.
"Safety - Driving safety" section.

READY

O SET OFF

Instruments and controls

Bipper_en_Chap03_pret-a-partir_ed02-2014

Display

displays

indicates

Solution - action

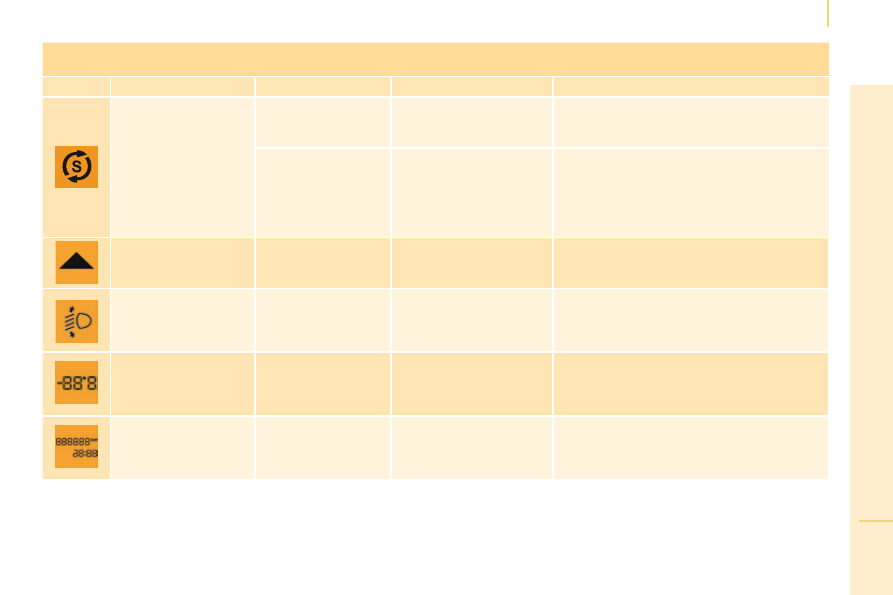

Stop & Start

on.

engine StOP mode
invoked following a stop of
the vehicle.

As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in StARt mode.

flashes for a few
seconds then goes
off.

temporary unavailability
of StOP mode or
StARt mode invoked
automatically.

Particular case with StOP mode and StARt
mode.
"Ready to set off - Starting and stopping"
section.

gear shift indicator

the arrow pointing up.

a suggested change up.

"Ready to set off - gearbox and steering
wheel" section.

Headlamp beam height

adjustment of the
headlamps.

a position from 0 to 3
according to the load in
the vehicle.

Adjust using the buttons in the side control panel.
"Ready to set off - Steering mounted controls
section".

Ambient temperature

(°C /°F)

the temperature, flashing
and accompanied by a
message in the screen.

weather conditions which
could result in the presence
of ice on the road.

Be especially vigilant and do not brake sharply.
"Safety - Driving safety" section.

Date (YYYY/MM/DD)
time (HH:MM)

a setting:
of the Date.
of the time.

a configuration via the
SET / Back button on the
side control panel.

"technology on board - Vehicle configuration"
menu.

Instruments and controls

Bipper_en_Chap03_pret-a-partir_ed02-2014

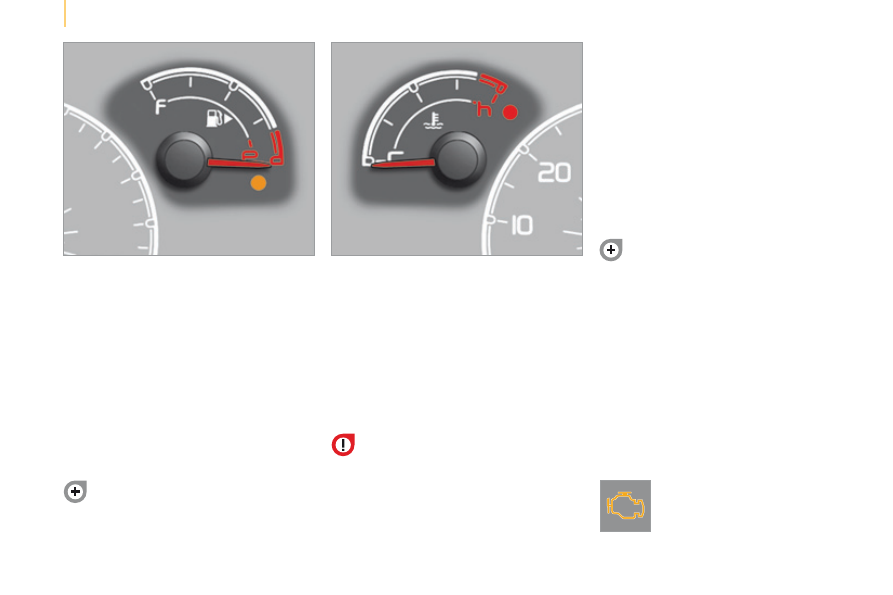

FUEL GAUGE

the fuel level is tested every time the
ignition is switched on.
If the gauge is positioned on:
- f (full): the capacity of the fuel tank is

approximately 45 litres.

- e (empty): the reserve is now being

used, the warning lamp comes on
continuously.

the low fuel warning first comes on when
approximately 6 litres of fuel is left.

COOLANT TEMPERATURE

- wait approximately 15 minutes to allow

the engine to cool down in order to check
the level and top it up if necessary. the
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.

When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone, contact
a PEUGEOT or a qualified workshop.

EMISSION CONTROL

eOBD (european On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:
- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrous oxides) or particles detected

by oxygen sensors placed upstream and
downstream of the catalytic converters.

Refer to the "Checks - levels" section.

the driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.

If the needle enters the red zone, or
if the warning lamp comes on:

The needle is positioned between c (cold)
and h (hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.

- stop immediately, switch off the ignition.

the cooling fan may continue to operate
for a certain time up to approximately
10 minutes.

READY

O SET OFF

Instruments and controls

Bipper_en_Chap03_pret-a-partir_ed02-2014

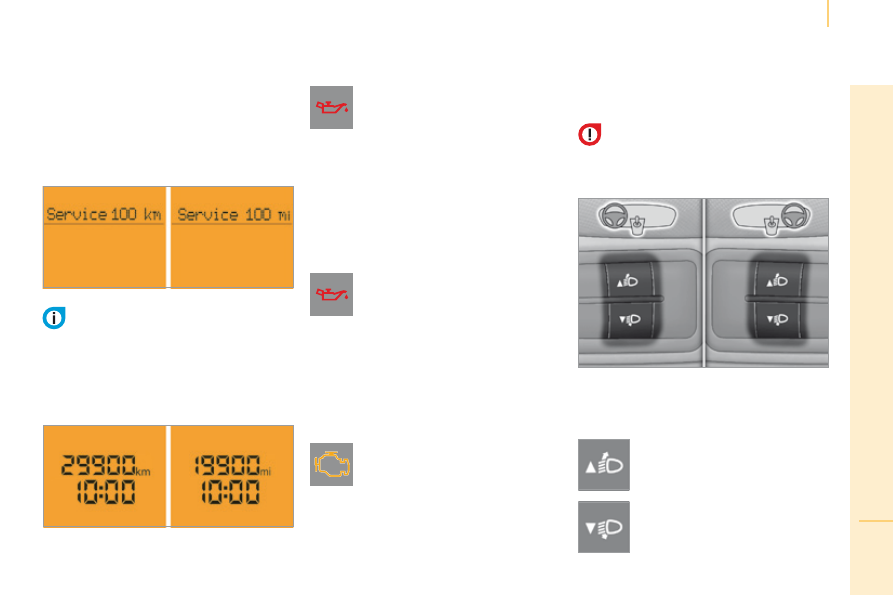

SERVICE INDICATOR

ENGINE OIL WARNING LAMP

LIGHTING DIMMER

the dimmer is active when the sidelamps
are on.

Refer to the list of checks in the
warranty and maintenance record
which was given to you on delivery of
the vehicle.

After a few seconds, the screen returns to its
usual functions.

use these controls to adjust the
brightness of the instrument
panel and the audio system panel
lighting.

the screen in the instrument panel
informs you when the next service is due,
in accordance with the Manufacturer's
servicing schedule indicated in the warranty
and maintenance record. this information
is determined in relation to the distance
travelled since the previous service.

Low engine oil pressure

Oil deterioration (1.3 HDi 75 hp engine only)

the warning lamp comes on
continuously, accompanied by a
message in the instrument panel
screen, when the system detects
that the oil pressure is too low.

the warning lamp flashes,
accompanied by a message in the
instrument panel screen, when the
system detects deterioration of the

engine oil. the flashing of this warning lamp
should not be considered as a fault wit the
vehicle, but rather as an indication to the
driver that the normal use of the vehicle now
requires that the oil be changed.

If the oil is not changed, when a
second level of deterioration is
reached, the emissions warning
lamp comes on in the instrument

panel and the engine speed is restricted to
3000 rpm.

to avoid damaging the engine, it is
recommended that the oil be changed

on flashing of the engine oil warning lamp.

Stop as soon as it is safe to do so: park,
switch off the ignition and contact a
PEUGEOT

dealer or a qualified workshop.

If the oil is still not changed, when a third
level of deterioration is reached, the engine
speed is restricted to 1500 rpm, so as to
avoid any damage.

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

Central locking

Folding/unfolding the key

Unlocking of the vehicle

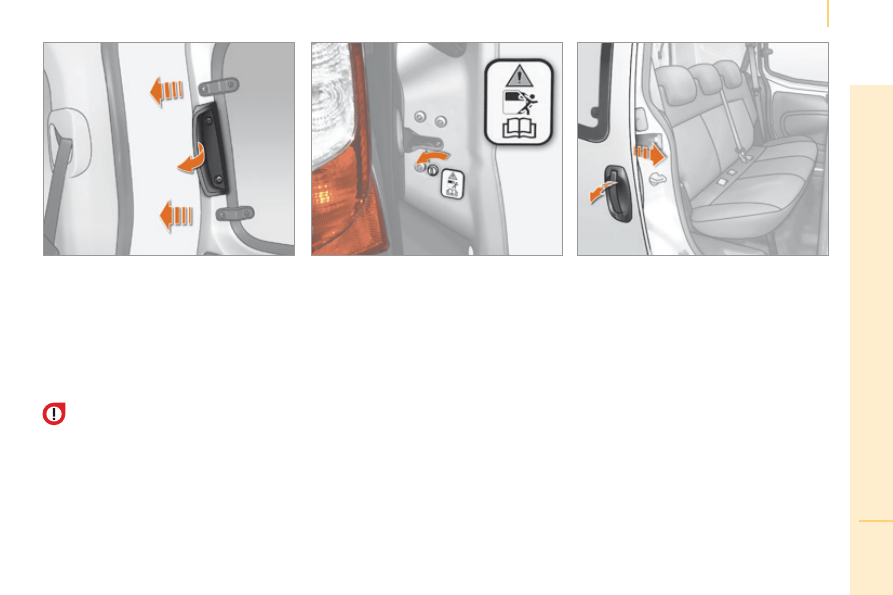

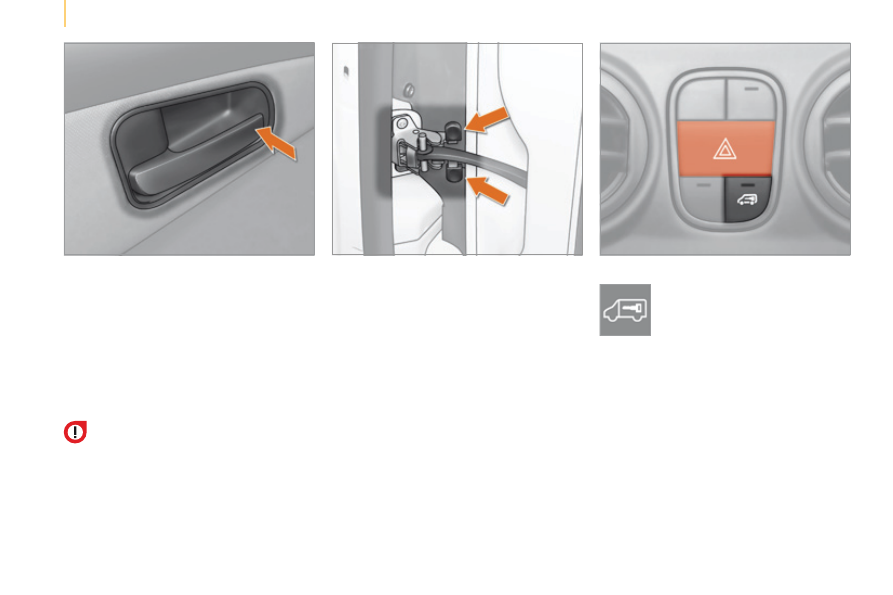

Unlocking the hinged rear doors or
the tailgate

Press this button to release the
key from its housing.
to fold the key, press the button
then fold the key into the housing.

Deadlocking

the deadlocking is deactivated:
- by carrying out the door opening

operation,

- by turning the ignition key to

the RUNNING position.

REMOTE CONTROL

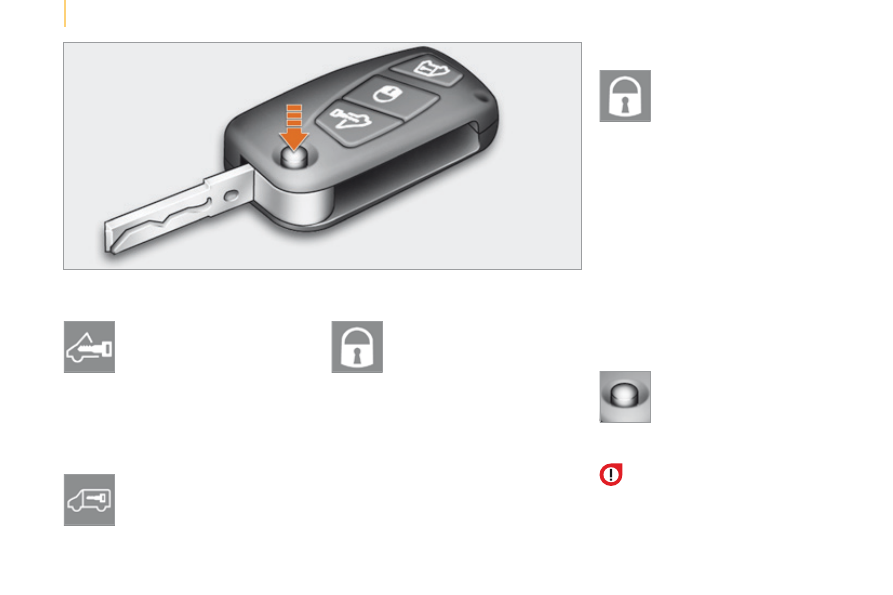

Press this button to unlock the
front doors only (light van) or all
of the doors (Combi).

unlocking is confirmed by two flashes of the
direction indicators.

Press this button to unlock the
load space (light van) or the
hinged rear doors or the tailgate
only (Combi).

Press this button briefly to lock all
of your vehicle's doors. locking
is confirmed by a flash of the
direction indicators.

If one of the doors is open or is not closed
correctly, the central locking will not work. In
this case, the failed locking is indicated by
three flashes of the direction indicators.

Press this button twice to change
locking to deadlocking.
Deadlocking renders the exterior
and interior door opening handles

inoperative. Do not leave anyone inside the
vehicle when it is deadlocked. Deadlocking
is confirmed by a flash of the direction
indicators.

If you do not press the button, the
mechanism may be damaged.

O SET OFF

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

Opening the windows with the remote
control

Closing the windows using the remote
control

When closing the windows using the
remote control you must ensure that

nothing prevents their correct closing. the
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.

Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are

in the desired position. the windows stop as
soon as you release the button.

this closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel.

this opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.

Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are

in the desired position. the windows stop as
soon as you release the button.

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

KEY

this locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.

REMOTE CONTROL BATTERY

Reference: CR 2032/3 volts.

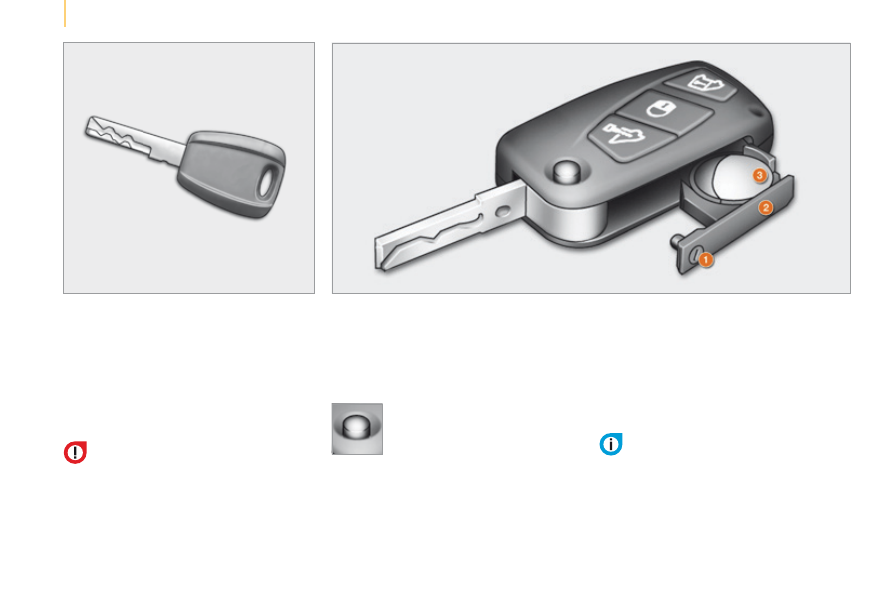

- use the screwdriver as a lever to extract

the battery holder housing 2,

- remove the housing and change the

battery 3 observing the polarities,

- put the battery holder housing 2 back

inside the key and secure it by turning the
screw 1.

Changing the remote control
battery

there is a risk of damage if
the replacement battery does not
conform.

Only use batteries which are identical or of
an equivalent type to those recommended
by a PeugeOt dealer. take used batteries
to an approved collection point.

- press the button to eject the

key,

- turn the screw 1 from the

closed padlock to the open
padlock using a screwdriver
with a thin tip,

Switching off the engine leads to a loss
of braking assistance.

O SET OFF

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
this device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.

this warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.

If the key is not recognised, the engine
cannot be started. use another key and
have the faulty key checked by a PeugeOt
dealer.

Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
the simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.

When purchasing a second-hand vehicle:
- ensure that you are given the confidential

card,

- have the keys memorised by a PeugeOt

dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.

CONFIDENTIAL CARD

this is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PeugeOt
dealer on the electronic immobiliser system.
this code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

Driving with the doors locked may
make access to the passenger

compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

ALARM

this provides:
- exterior perimeter protection by means of

detectors on the doors and bonnet and
on the electrical supply,

- interior protection,

- anti-tilt protection,

- protection against the unauthorised

insertion of a key in the starter.

the equipment includes a siren.

Activation of the alarm

First ensure that all of the accesses are
closed correctly.

the alarm is activated by pressing
this control, the protection is
active after a few seconds.
While the alarm is monitoring, any

intrusion triggers the siren for approximately
30 seconds, accompanied by illumination of
the direction indicators.
the alarm then returns to monitoring mode.
the alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.

Deactivation using the remote control

Deactivation using the key

unlock the doors using the key and enter
the vehicle. Switch on the ignition to the
RUNNING position, identification of the key
code will switch off the alarm.

Deactivation of the volumetric and
anti-tilt protection

Good practice

to quickly deactivate the siren following
unwanted triggering, unlock the vehicle
using the remote control.
to avoid setting the alarm, before washing
the vehicle for example, lock the vehicle
using the key.

When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.

Signalling of attempted intrusion

When you return to your vehicle,
flashing of the electronic engine
immobiliser warning lamp or
the appearance of a warning

message in the instrument panel display
indicates an attempted intrusion during your
absence.

to deactivate the volumetric
and anti-tilt protection, press the
button located in the vehicle's
courtesy lamp. to be effective,

this operation must be repeated every time
the ignition is switched off.

O SET OFF

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

OPENING FROM THE OUTSIDE
Driver's door

use the remote control to unlock from the
outside.
Pull the handle towards you.
If the remote control does not work, insert
the metal part of the key in the lock on the
driver's side.

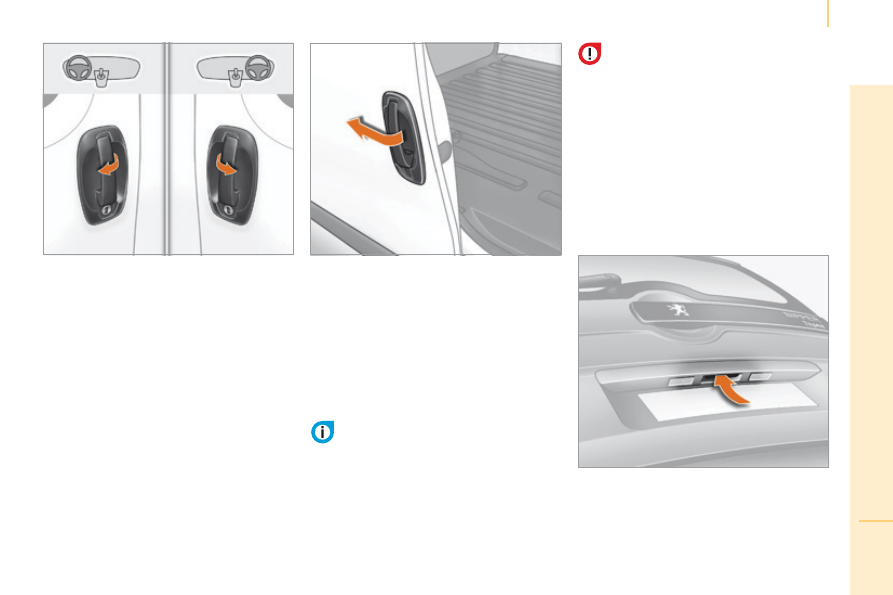

Sliding side door

Pull the handle towards you then towards
the rear.
Slide the door fully to pass the point of
resistance in the open position.

When the fuel filler flap is open, a
safety system checks the sliding of the
side door (Combi).

Tailgate (Combi)

After unlocking the vehicle using the remote
control or the key, pull the central handle
and lift the tailgate.

If your vehicle is parked on a slope,
guide the side door as it slides. the

door could open or close more quickly due
to the incline of the ground, risking injury.
As a safety precaution and to guarantee
correct operation, do not drive with the
sliding side door open.

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

OPENING FROM THE INSIDE

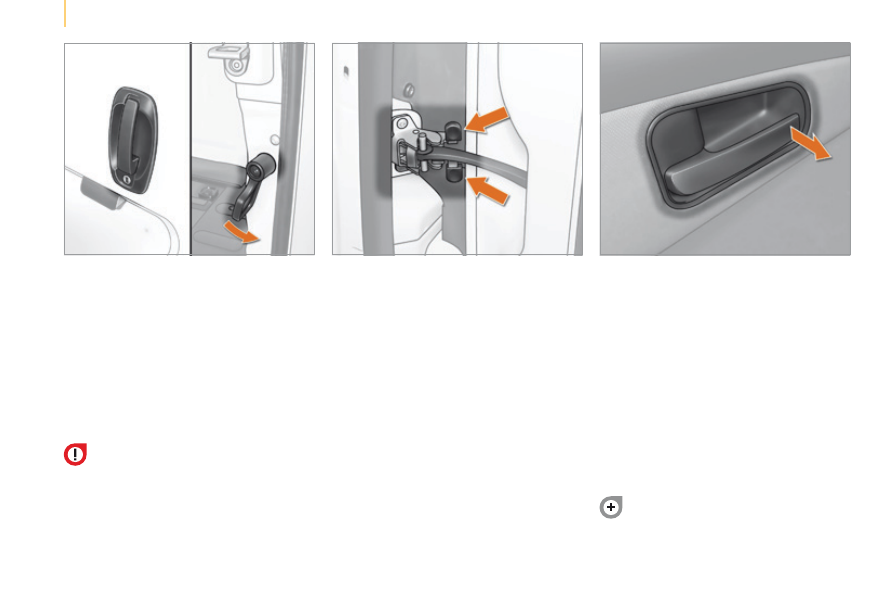

Driver's door

Pull the interior handle to unlock.
Anti-intrusion security: as soon as the
vehicle speed reaches about 12 mph
(20 km/h), a characteristic locking noise
indicates that your vehicle has been locked
automatically.
this function can be set in the configuration
menu; Select "Autoclose", then "ON" or
"OFF".
It is deactivated when the vehicle is
delivered.

Opening to 180°

Press the catch while opening the door to
increase the opening angle of the door.

Side-hinged rear doors

the 60/40 type asymmetrical hinged rear
doors have four closing points, including a
central closing point.
Pull the handle towards you.
Start by opening the large hinged door, then
unlock by pulling the lever to release and
open the small hinged door.
The two hinged doors open to 90°.

Driving with the small hinged door open
is permitted to make the transportation

of long loads easier. Observe the customary
safety indications, to attract the attention of
other drivers.

Refer to the "technology on board -
Vehicle configuration" section.

O SET OFF

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

Good practice

When opening, take care not to obstruct the
guide space on the floor to allow the door to
slide correctly.
Do not block traffic.

Load space

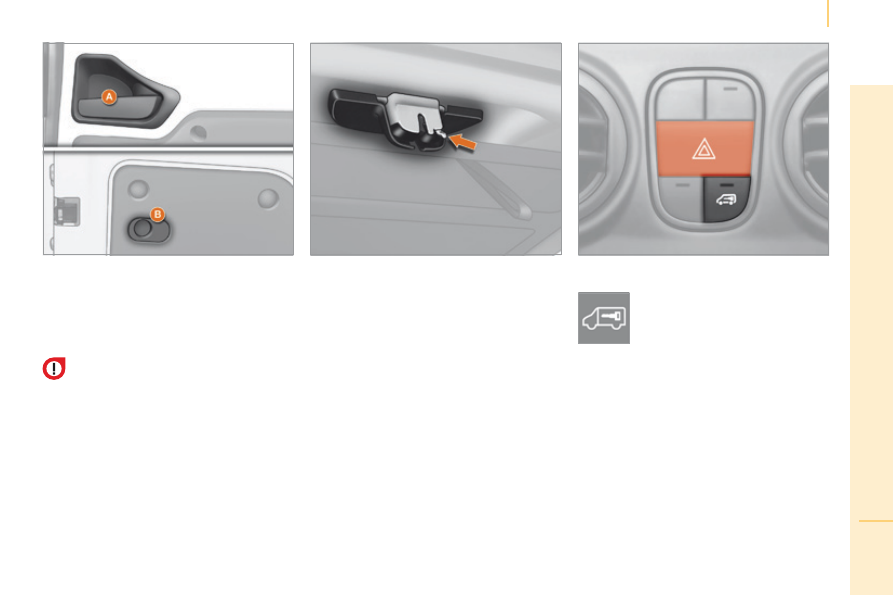

Sliding side door (Combi)

Pull the handle A towards the rear, slide the
door fully to pass the point of resistance in
the open position.

Side-hinged rear doors

to open, slide the control B to the right.

If your vehicle is parked on a slope,
guide the side door as it slides. the

door could open or close more quickly due
to the incline of the ground, risking injury.
As a safety precaution and to guarantee
correct operation, do not drive with the
sliding side door open.

Press once to unlock the sliding
side doors and the rear doors
(light van) from the driving
position.

Tailgate (Combi)

In the event of a battery or central
locking fault, the tailgate can be released
mechanically from inside the boot.
Open the sliding side door and fold the rear
seats fully.
From inside the boot, press the lever to
release the tailgate.

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

CLOSING FROM INSIDE

Central locking

Push the interior handle to lock the entire
vehicle or the door concerned. However,
if one of the doors is open or is not closed
correctly, the central locking does not work.

Always remove the key from the
ignition when leaving the vehicle,
even for a short time.

Closing from 180°

the check strap will re-attach automatically
when the hinged doors are closed, the small
door being closed first.

Load space

Press to lock the sliding side
doors and the rear doors (light
van) from the driving position.

Anti-intrusion security

When moving off, this system locks the side
doors and load space doors automatically
when you reach approximately 12 mph
(20 km/h).
If none of the doors are opened during the
journey, the locking remains active.
This function is set in the configuration menu;
select "Autoclose", then "ON" or "OFF".
It is deactivated when the vehicle is
delivered.

O SET OFF

Access

Bipper_en_Chap03_pret-a-partir_ed02-2014

Sliding side door (Combi)

use the grab handle to pass the point of
resistance and start the movement. then
use the handle to guide the door closed.

Child safety

this prevents either of the rear doors being
opened from inside.
F turn the switch on each rear door a

quarter of a turn using the ignition key.

CLOSING FROM THE OUTSIDE

Sliding side door

Pull the handle towards you then towards
the front to pass the point of resistance
(light van) or to release the door retaining
device (Combi).
Slide the door fully until it is closed.

Hinged rear doors

Start by closing the small hinged door, this is
secured automatically when closed.
Close the large door using its handle.

Tailgate (Combi)

lower the tailgate using the interior grab
handle.

If your vehicle is on a slope, guide the
sliding door all the way until closed.

this is because the door could open or close
itself more quickly because of the incline
and result in injuries.

Steering mounted controls

Bipper_en_Chap03_pret-a-partir_ed02-2014

LIGHTING STALK

Selection is by rotation of the white mark
on the ring, when the ignition key is in the
RUNNING position.

All lamps off

Sidelamps on

this is indicated on the instrument panel
by illumination of the warning lamp.

Dipped / main beam headlamps on

Dipped / main beam headlamps
change

Pull the lighting stalk fully towards you.

Headlamp flash

Direction indicators

"Motorway" function

System which indicates a change of lane on
high-speed roads.
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times.

Pull the lighting stalk towards you
gently, regardless of the position
of the ring.

Left: push downwards. the green
direction arrow warning lamp
flashes in the instrument panel.
Right: push upwards. the green

direction arrow warning lamp flashes in the
instrument panel.

turn the ring into position.

Parking lamps

Side markers for the vehicle by illumination
of the sidelamps on the traffic side only.
Ignition key in the STOP position or removed
from the ignition switch:
F turn the ring to the "lighting off" position,

then to the "Sidelamps" position,

F operate the lighting control stalk up

or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).

this is confirmed by illumination of the
sidelamps warning lamp in the instrument
panel.
to switch off the parking lamps, return the
lighting control stalk to the middle position
and the ring to the "lighting off" position.

Peugeot Bipper (2015 year). Instruction - part 3
