TECHNICAL DATA

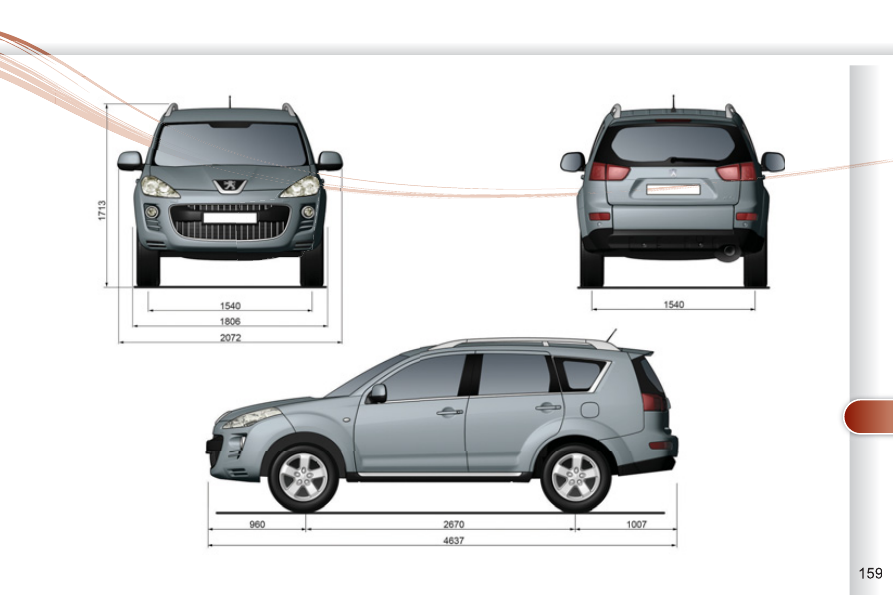

DIMENSIONS (IN MM)

DIM

TECHNICAL DATA

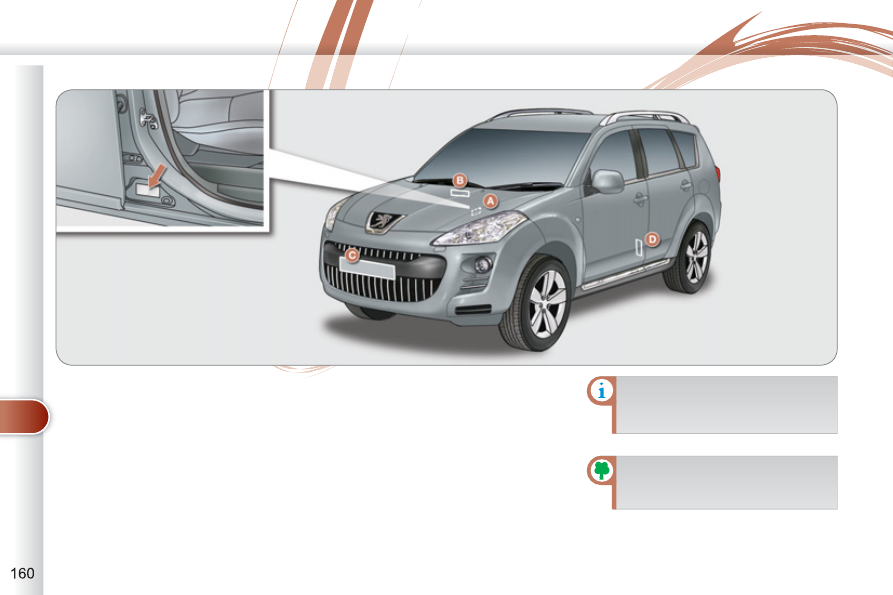

A. Manufacturer's plate.
The Vehicle Identifi cation Number

(VIN) is indicated on a plate on the

centre pillar, on the passenger's side.

B. Serial number under the bonnet.

The VIN is engraved on the body-

work near the windscreen.

C. Front number plate.

D. Tyres/paint label.

This label is affi xed to the driver's

door centre pillar.

It indicates the following informa-

tion:

tyre pressures, laden and unladen,

wheel rim and tyre sizes,

tyre pressure for the spare wheel,

paint colour code.

The tyre pressures must be

checked when cold at least once

a month.

IDENTIFICATION MARKINGS

Low tyre pressures increase fuel

consumption.

TECHNICAL DATA

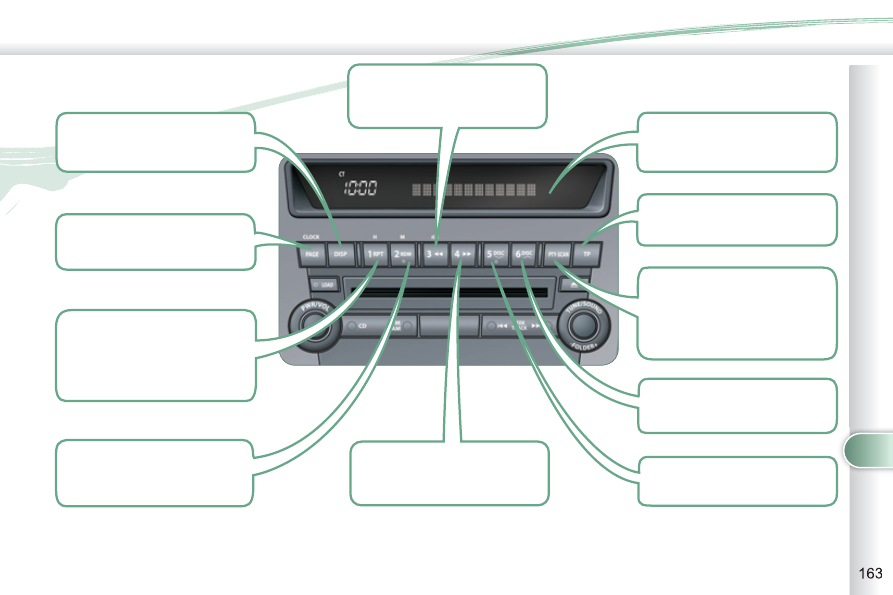

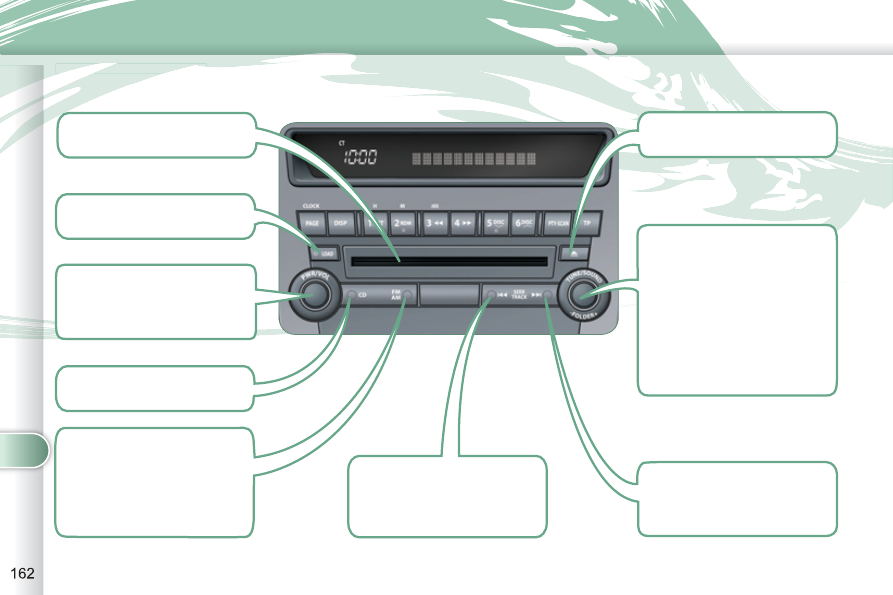

AUDIO EQUIPMENT and TELEMATICS

Audio system On/Off.

Decrease/Increase volume.

Selection of CD/

Changer mode.

Automatic search for a

lower radio frequency .

Search for the previous

track.

Selection and adjustment of

audio settings (BASS,

TREBLE, ...).

Manual search for a lower

or higher radio frequency/

PTY.

Functions setting mode

(AF, REG, TP, SCV, ...).

Search for the previous or

next MP3 folder.

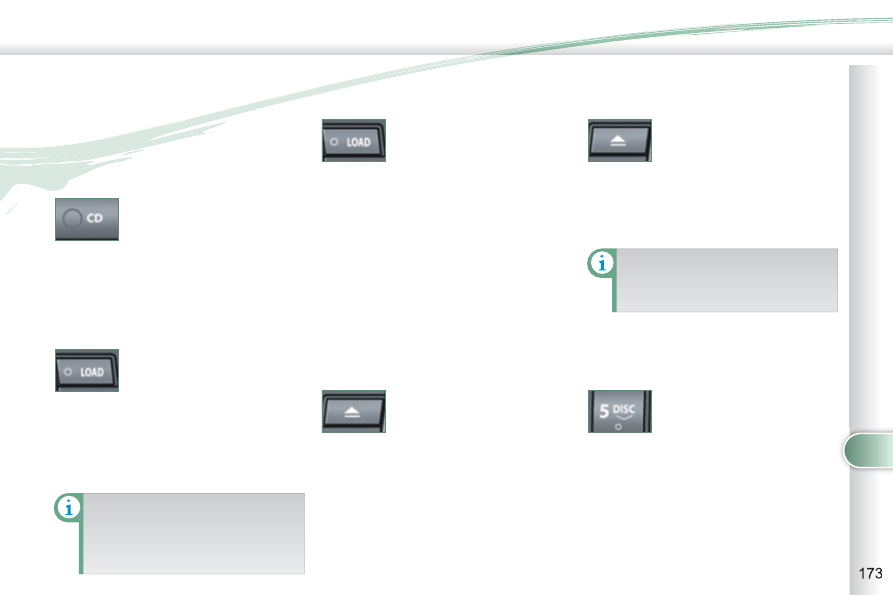

Eject one or more

CDs.

CD slot.

Load one or more discs.

AUDIO CD SYSTEM

Selection of radio mode.

Selection of waveband

(FM, MW, LW).

Automatic station storing

(autostore).

Automatic search for a

higher radio frequency.

Search for the next track.

AUDIO EQUIPMENT and TELEMATICS

Scroll information by page.

Display CD-Text/MP3/Tag ID3

information.

Repeat (track/

MP3 folder/disc).

Manual storing and recall

of radio stations/

PTY (12 to 17).

Random play (tracks/MP3

folder/disc).

Multifunction screen.

Fast backwards play.

Fast forwards play.

Search for TP traffi c

information.

Activation/

Deactivation of PTY.

Play the beginning of each

track (MP3 folder/disc).

Selection of the previous disc.

Selection of the next disc.

AUDIO EQUIPMENT and TELEMATICS

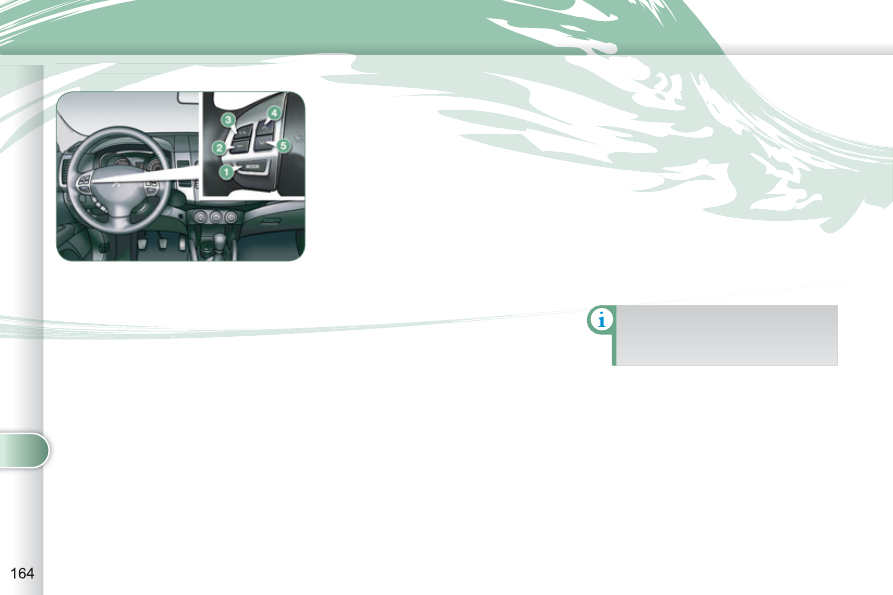

STEERING MOUNTED CONTROLS

STEERING MOUNTED CONTRO

1. On/Off and selection of radio or

CD mode

  2.    Volume decrease
  3.    Volume increase
  4.    Search for a higher radio

frequency/Next track/Fast

forwards play

5. Search for a lower radio frequency/

Previous track/Fast backwards play

They can be used when the ignition

switch is in the "ON" or "ACC" position.

Switching on
Press button 1 for more than two seconds.
The last source selected before switching

off comes back into operation.

Selecting the source
Press button 1 .
The source changes in the following order:

FM1/FM2/FM3/MW/LW/CD/FM1...

Searching in radio mode
Press button 4 or 5 to search for a higher

or lower radio frequency respectively.

While a track is being played,

press button 5 once to return to

the beginning of this track.

Adjusting the volume
Press and hold button 2 or 3 to decrease

or increase the volume respectively.

Switching off
Press button 1 for more than two seconds.

Searching in CD mode
Press button 4 or 5 to select the next or

previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-

wards or fast backwards playing of the

current track of the CD respectively.

AUDIO EQUIPMENT and TELEMATICS

GENERAL FUNCTIONS

Switching on

Press the "PWR" button.
The last source selected be-

fore switching off resumes

operation.
The audio equipment func-

tions can be used when the ignition

switch is in the "ON" or "ACC" position.

Adjusting the volume

Turn the "VOL" dial respec-

tively to the left to decrease

the volume or to the right to

increase it.

Switching off

Press the "PWR" button again.

Setting the audio modes

Press the "SOUND" but-

ton several times; the audio

modes change in the following

order:
SUB PUNCH/TYPE/FIELD/

BASS/MID/TREBLE/FAD-

ER/BALANCE/OFF.

Quick access mode

To access the personalised sound func-

tions quickly, press and hold this button,

then turn it to reach the personalised

sound setting of your choice.
Release the button to store the setting.

"Hold" mode

If you press this button for more than

2 econds in the audio setting mode, the

system switches to "Hold" mode. The

audio mode selected will be retained

until you press this button again for

more than 2 seconds.

Selecting the musical ambience

"TYPE"

Turn the "SOUND" dial; the

musical ambiences change

in the following order:
C L A S S I C / J A Z Z / P O P /

ROCK/HIP-HOP.

Once the ambience has been selected,

press the "SOUND" button to confi rm.

"CLASSIC": optimises the acoustics to

obtain perfect equalisation of the sound

for classical music.
"JAZZ": optimises the acoustics to ob-

tain an ambient sound with specifi c

modulations in the bass, mid tone and

treble for jazz.
"POP": optimises the acoustics to ob-

tain clear vocals and modulation of the

bass and treble for pop music.
"ROCK": optimises the acoustics to ob-

tain a sound in harmony with the rhythm

which places the emphasis on the mid

tone for rock music.
"HIP-HOP": optimises the acoustics to

obtain a powerful sound and accentua-

tion of the bass for hip-hop music.

If the "TYPE" is changed, the

sound cuts out briefl y.

The audio setting mode is deacti-

vated when the radio is operated

or a CD is played or after approxi-

mately 10 seconds without any

action.

AUDIO EQUIPMENT and TELEMATICS

Selecting the surround effect

"FIELD"

Turn the "SOUND" dial; the

surround effects change in

the following order:
N O R M A L / S TA G E / L I V E /

HALL.

"NORMAL": produces a sound in which

the voices are at the front and the in-

struments surround the listener.
"STAGE": produces a sound in which

the voices are immediately facing the

listener, as on a stage.
"LIVE": produces a sound similar to

that of a live show, in which the sound

reaches the listener from all directions.
"HALL": produces a sound similar to

that of a concert hall with defl ection of

the sound.

Setting the bass "BASS"

Turn the "SOUND" dial to

set the required bass value.

Setting the mid tone "MID"

Turn the "SOUND" dial to set the re-

quired mid tone value.

Setting the treble "TREBLE"

Turn the "SOUND" dial to set the re-

quired treble value.

Setting the front/rear sound

distribution "FADER"

Turn the "SOUND" dial to set the bal-

ance of the volume of the front and rear

speakers.

Setting the right/left sound

distribution "BALANCE"

Turn the "SOUND" dial to set the bal-

ance of the volume of the right and left

speakers.

If the "FIELD" is changed, the

sound cuts out briefl y.

If the value "0" is set, an audible

signal will be heard.

Automatic volume adjustment

"SCV"

This permits automatic adjustment of

the "VOLUME", "BASS", "MID" and

"TREBLE" settings in relation to the ve-

hicle speed.

Press the "SOUND" button

for more than two seconds

to gain access to the func-

tions setting mode.
Then, press this same button

several times; the functions

setting mode changes in the following

order:
AF/CT/REG/TP-S/PTY (languages)/

SCV/PHONE/OFF.
Turn the "SOUND" dial respectively to

the left to deactivate the function or to

the right to activate it.

If the "SUB PUNCH" is changed,

the sound cuts out briefl y.

Setting the volume of the bass

unit "SUB PUNCH"

Turn the "SOUND" dial to set the volume

of the bass unit.
Only vehicles fi tted with the "Premium

Sound" system can offer the "SUB

PUNCH" setting.

Once the surround effect has been se-

lected, press the "SOUND" button to

confi rm.

AUDIO EQUIPMENT and TELEMATICS

RADIO

Selecting radio mode

Press the "PWR" button

or the "AM/FM" button to

switch on the radio.

Disconnecting the battery terminals

clears the stored radio stations.

Selecting the waveband

Press the "AM/FM" button

several times in succession

to select the waveband; it

changes in the following

order: FM1/FM2/FM3/MW/

LW/FM1...

Automatic station search

Press the "SEEK " or

"SEEK

" button to search

the lower frequencies or the

higher frequencies respec-

tively.

Manual station search

Turn the "TUNE" dial re-

spectively to the left to

search the lower frequen-

cies or to the right to search

the higher frequencies.

Manual station storing

Press one of the six buttons "1" to "6"

until an audible signal is heard.
The sound cuts out then becomes au-

dible again when the station has been

stored.
The number of the button and the as-

sociated radio frequency appear on the

screen.

Automatic station storing

Press the "AM/FM" button

for more than two seconds.

Recalling stored stations

Press one of the six buttons "1" to "6".

The station corresponding to the wave-

band selected appears on the screen.

The search begins automatically and

stops at the fi rst station found.

The six stations offering the best recep-

tion are stored and classifi ed from the

weakest to the strongest on the six cor-

responding buttons.

You can store up to six stations on each

waveband.
Storing a new station replaces the pre-

vious station.

Stations can only be stored automati-

cally on wavebands FM3, MW and LW.
Storing new stations replaces the previous

stations.
This storing can be activated automatically

irrespective of the waveband selected.

To recall the pre-set stored set-

ting, press the button and release

it within two seconds.

AUDIO EQUIPMENT and TELEMATICS

"RDS"

Alternative frequencies "AF"

Your radio automatically checks and

selects the best frequency for the radio

station to which it is tuned (if the station

broadcasts on several transmitters or

frequencies).

The frequency of a radio station covers

approximately 30 miles (50 km). The

change from one frequency to another

explains the temporary loss of recep-

tion during a journey.

If the station to which you are listening

does not have several frequencies in

the region in which you are currently lo-

cated, you can deactivate the alternative

frequency following.

Traffic information "TP"

The "Traffi c Program" (TP) function per-

mits automatic and temporary switc-hing

to an FM station broadcasting traffi c infor-

mation.
The radio station or the source that you

are listening to at this point is paused.
Once the traffi c information has ended,

the system switches back to the radio

station or the source that you were lis-

tening to initially.

Regional following mode "REG"

Some stations are organised in a net-

work.
In different regions, they broadcast diffe-

rent or shared programmes depending on

the time of day.
You can follow:
-

a regional station only,

the entire network, with the possibility

that you will be listening to a different

programme.

The "AF", "REG" and "TP"

functions can be deacti-

vated or activated via the

"TUNE" button functions

setting mode.

Press the "TP" button.
"TP" appears on the display.

If the station is compatible,

"RDS" also appears.

If the radio detects traffi c information,

"TRAF INF" appears on the display, fol-

lowed by the frequency of the broadcasting

station, then its name.
The volume is different from that of the

previous source.
Following the broadcasting of the traffi c

information, the volume returns to that

of the source prior to the interruption.

When "TP" appears on the dis-

play, the radio stops solely at

RDS stations broadcasting traffi c

information.

On long distance journeys, when

the stored station becomes

weak, the radio searches fi rst for

another frequency for the same

station (AF). Then, if this fails, it

searches for a frequency broad-

casting the regional programme

(REG). If this also fails, the radio

returns to the stored station.

The "Radio Data System" (RDS) func-

tion on the FM waveband permits:
-

access to the display of information,

such as the name of the station, ...

- tuning to the same station while

travelling through different regions,

- temporary tuning to traffi c informa-

tion announcements.

Most FM stations use RDS. These stations

transmit non-audible data in addition to

their programmes.
The data transmitted in this way allows

you access to various functions, mainly

displaying of the name of the station,

automatic station following or temporary

tuning to traffi c information announce-

ments.
The RDS allows you to continue liste-

ning to the same station by means of

the alternative frequency following.

However, in certain conditions, this

RDS frequency following cannot be

provided throughout the country. Radio

stations do not cover the whole country,

which explains the loss of reception of

the station during a journey.

AUDIO EQUIPMENT and TELEMATICS

Themed type of programme

"PTY"

Some stations offer the option of liste-

ning to a themed type of programme as

a priority, selected from the list avail-

able below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,

DRAMA, CULTURE, SCIENCE, VARIED, POP M,

ROCK M, EASY M, LIGHT M, CLASSICS,

OTHER M, WEATHER, FINANCE, CHILDREN,

SOCIAL, RELIGION, PHONE

IN, TRAVEL,

LEISURE, JAZZ, COUNTRY, NATION

OLDIES, FOLK M, DOCUMENT.

Emergency broadcasts

"ALERT"

An emergency broadcast automatically

and temporarily interrupts the FM station

or the source that you are listening to.
The message "ALERT" appears on the

display and the volume is different from

that of the previous source.
Following the emergency broadcast,

the message disappears and the vol-

ume returns to that of the source prior

to the interruption.

Search for a "PTY" broadcast

Press the "PTY" button.
Turn the "TUNE" dial to se-

lect the type of programme

required.

Two seconds later, the radio searches

for a broadcast which corresponds to

your selection; the type of PTY selected

fl ashes on the display.
Once the station has been found, its

name appears on the display.
You can press the "SEEK " or "SEEK "

buttons to fi nd another station.

If no station is found corre-

sponding to your selected type

of programme, "NONE" appears

on the display for fi ve seconds

and the radio returns to the pre-

vious station.

Storing a "PTY" programme
You can store up to six PTY programmes.
Each new programme stored replaces

the previous one.

To recall the pre-set memory

setting, press the button and re-

lease it within two seconds.

Changing the display language of

the "PTY" programme

Press the "TUNE" button for

more than two seconds to

access the functions setting

mode.

Then, press this button several times in

succession; the functions setting mode

changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/

PHONE/OFF.
Turn the "TUNE" dial to the left or to the

right to select the language (ENGLISH,

FRANCAIS, DEUTSCH, SVENSK,

ESPAGNOL, ITALIANO).

The sound cuts out then becomes au-

dible again when the programme has

been stored.
The number of the button and the associat-

ed PTY programme appear on the display.

Turn the "TUNE" dial to set

the PTY programme to be

stored.
Press one of the six but-

tons "1" to "6" for more than

two seconds.

AUDIO EQUIPMENT and TELEMATICS

CD PLA

PLAYER

This can play audio CDs (CD-DA, CD-

Text, CD-R/RW) or MP3 CDs.

If the player already con-

tains a disc, press the "CD"

button.

"CD", the track number and the playing

time appear on the screen.

Functions setting mode

This permits activation or deactivation

of the functions below.

Press the "TUNE" button for

more than two seconds to

access the functions setting

mode.
Then, press this button

several times in succession;

the functions setting mode changes in

the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/

PHONE/OFF.
Turn the "TUNE" dial respectively to the

left to deactivate the function ("OFF") or

to the right to activate it ("ON").

The "PHONE" is not operational

at present.
The functions setting mode is

deactivated after approximately

10 seconds without any action.

Selecting CD mode

After inserting a disc, printed face up-

wards, the player starts automatically.

Ejecting a disc

Press this button to remove

the disc from the player.

The system automatically

switches to radio mode.

Fast search

Press and hold button " "

or " " to carry out a fast

backwards or forwards

search respectively.

Play begins when the button is re-

leased.

Selecting a track

Press button " " or " " to

select the previous or next

track respectively.

Repeating a track

Press the "RPT" button to

repeat the play of the cur-

rent track. "RPT" appears

on the screen.

To exit this mode, press this button

again.

Random playing of a disc

Press the "RDM" button

to start random play of the

tracks on the disc. "RDM"

appears on the screen.

To exit this mode, press this button

again.

Insert circular compact discs

only.
8 cm compact discs must be in-

serted in the centre of the player

slot.

Once ejected, if the compact

disc is not removed within fi f-

teen seconds, it is reloaded into

the player.

Audio CDs

AUDIO EQUIPMENT and TELEMATICS

MP3/TAG ID3 CD

Playing the beginning of each track

Press the "SCAN" button to

start playback of the fi rst ten

seconds of each track on

the disc. "SCAN" appears

on the screen and the corresponding

track number fl ashes.
To exit this mode, press this button

again.

The CD player and the CD changer

are compatible with the playing of MP3

fi les.
These must be recorded in ISO9660

Level 1/Level 2, Joliet or Romeo format

on CD ROMs, CD-Rs or CD-RWs. The

CDs can contain a maximum of 255 fi les

and 100 folders on 16 levels.
The Tag ID3 version 1 can be displayed

while playing MP3 fi les.

In the case of compact discs

containing both CD-DA and MP3

fi les, play automatically begins

with the CD-DA fi les.
To switch play between the two

types of fi le, press the "CD" but-

ton for more than two seconds

until an audible signal is heard.
While using these compact

discs, the "Repeat", Random

play" and "Playing of the begin-

ning of the tracks" functions are

only applied to fi les of the same

format.

Selecting an MP3 folder

Turn the "FOLDER" dial

respectively to the right to

select a folder in ascending

order or to the left to select a

folder in descending order.

Press the "DISP" button

several times in succession;

the CD-Text information ap-

pears in the following order:

DISC NAME/TRACK NAME/NORMAL

DISPLAY MODE.

CD-TEXT DISPLAY

XT DISPLAY

If the information exceeds

12 characters, press the

"PAGE" button to see the

rest.

In the absence of CD-Text information

to be displayed, "NOTITLE" appears on

the screen.

The CD player and the CD changer are

compatible with the display of CD-Text

information.

On CD-R/RWs, the quality of the

playback sound depends on the

encoding software, the burning

device and the burning speed

used.

AUDIO EQUIPMENT and TELEMATICS

When play begins, "READING" appears

in the screen then disappears to make

way for the folder number, the track

number, the playing time and "MP3".

Playing the beginning of each track

Press the "SCAN" button

to start playing the fi rst ten

seconds of each track in

all of the folders. "SCAN"

appears in the screen and the corre-

sponding track number fl ashes.
To exit this mode, press this button

again.

MP3/Tag ID3 display

Press the "DISP" button sev-

eral times in succession; the

MP3 information appears in

the following order:

FOLDER NAME/TRACK NAME/NORMAL

DISPLAY MODE.

If the information exceeds

12 characters, press the

"PAGE" button to see the

rest.

In the absence of MP3 or Tag ID3 in-

formation to be displayed, "NOTITLE"

appears in the screen.

Press the "DISP" button for

more than two seconds to

activate the Tag ID3 infor-

mation. "TAG" appears in

the screen.

Press the "DISP" button several times

in succession; the Tag ID3 information

appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST

NAME/NORMAL DISPLAY MODE.

To deactivate this information, press

the "DISP" button again for more than

two seconds.

Repeating the tracks in a folder

Press the "RPT" button for

more than two seconds to re-

peat the playing of the tracks

contained in the current folder.

"D-RPT" appears in the screen.
To exit this mode, press this button

again.

Random playing of a folder

Press the "RDM" button to

start random playing of the

tracks in the current folder.

"RDM" appears in the screen.

To exit this mode, press this button

again.

Random playing of a disc

Press the "RDM" button for

more than two seconds to

start random playing of the

tracks in all of the folders.

"D-RDM" appears in the screen.
To exit this mode, press this button

again.

On CD-R/RWs, the quality of the

playing sound depends on the

encoding software, the burning

device and the burning speed

used.
Depending on the fl ow chart of

the MP3 folders and fi les on the

disc, play may not begin imme-

diately.

AUDIO EQUIPMENT and TELEMATICS

Selecting changer mode

If the changer already con-

tains a disc, press the "CD"

button.
"CD", the disc and track

numbers and the playing time appear

in the screen.

After inserting at least one disc, printed

face upwards, the changer starts auto-

matically.

Ejecting a disc

Press this button briefl y to

remove the current disc

from the changer.

Once ejected, if the compact

disc is not removed within fi f-

teen seconds it is re-loaded into

the changer.

Loading a disc

Press the "LOAD" button

briefl y. "WAIT" appears on

the display.
When the changer is ready,

the indicator lamp on the "LOAD" button

comes on and "LOAD DISC N° (1-6)"

appears in the screen.
If several slots are empty, select one

using one of the "DISC" buttons.

The CD changer can hold up to 6 CDs.

Insert circular compact discs

only.
8 cm compact discs cannot be

played by the changer.

Loading all of the discs

Ejecting all of the discs

Press this button for more than

two seconds. The current disc

is ejected.
Once this disc has been

removed, the next disc is ejected auto-

matically in its turn.
Repeat these steps until unloading is

complete.

Selecting a disc

Press one of the "DISC" buttons

several times in succession un-

til you reach the disc required.

The symbol of the disc selected

appears in the screen.
