Peugeot 2008 (2016 year). Instruction - part 14





207

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

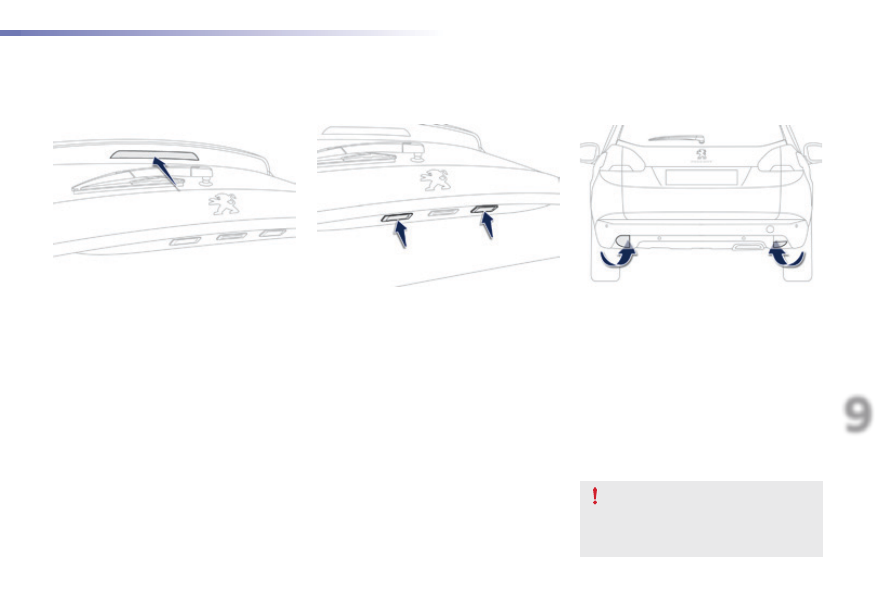

Changing the third brake lamp
(light-emitting diodes - LEDs)

Contact a PEUGEOT dealer or a qualified
workshop.

Number plate lamps

To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F  Insert a thin screwdriver into the lens

cutout.

F  Push it outwards.
F  Remove the lens.
F  Change the faulty bulb.
To refit, press on the lens to clip it in place.

Access is by passing a hand under the bumper.
F  Turn the bulb holder an eighth of a turn and

pull it out.

F  Change the failed bulb.
To refit, carry out these operations in reverse
order.

Changing a foglamp or reversing
lamp bulb

On the left hand side, take care to not
touch the exhaust silencer; risk of burns
if changing a bulb after stopping the
engine.

208

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Changing a fuse

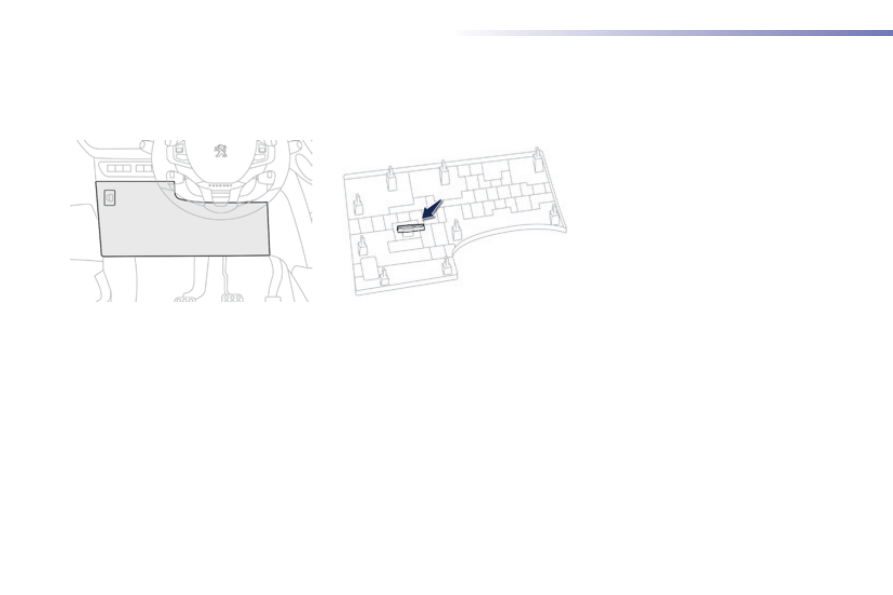

The extraction tweezer is fitted to the back of the dashboard or glove box fusebox cover.

Access to tools

For the dashboard:
F  Unclip the cover by pulling at the top left,

then right.

F  Disengage the cover completely and turn it

over.

F  Remove the carrier on which the tweezer is

fitted.

For the glove box:
F  Open the glove box lid.
F  Unclip the fusebox cover by pulling at top

right.

F  Disengage the cover fully and turn it over.
F  Remove the back of the carrier on which

the tweezer is fitted.

209

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

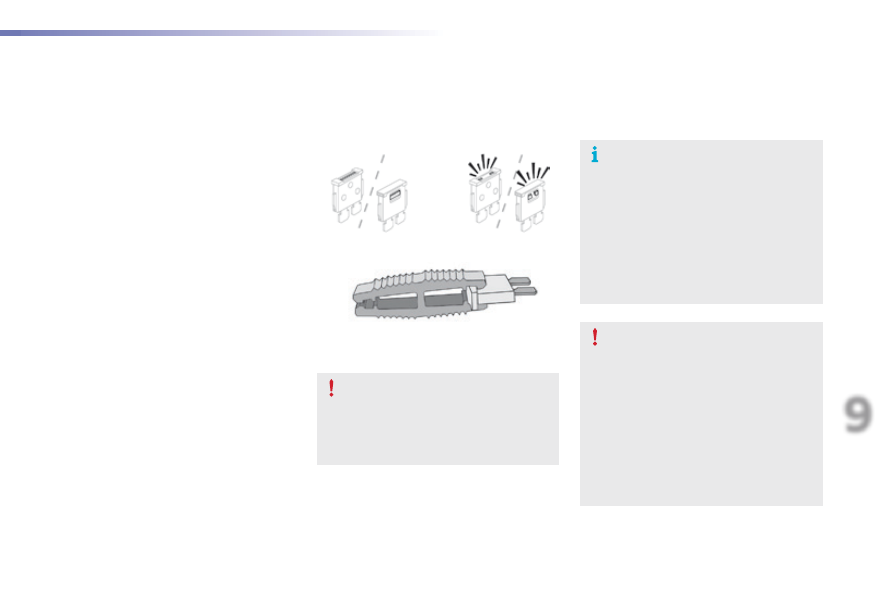

To replace a fuse, you must:
F  use the special tweezer to extract the fuse

from its housing and check the condition of
its filament.

F  always replace the failed fuse with a fuse

of the same rating (same colour); using
a different rating could cause faults (risk
of fire).

If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop.
Professional repairers: for full information
on the fuses and relays, consult the wiring
information and diagrams available at a
PEUGEOT dealer.

Before changing a fuse:
F  the vehicle must be immobilised with the

ignition off,

F  all electrical consumers must be

switched off,

F  identify the failed fuse using the tables and

layout drawings in the following pages.

Good

Failed

PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.

The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PEUGEOT dealer or a qualified
workshop.

Tweezer

210

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

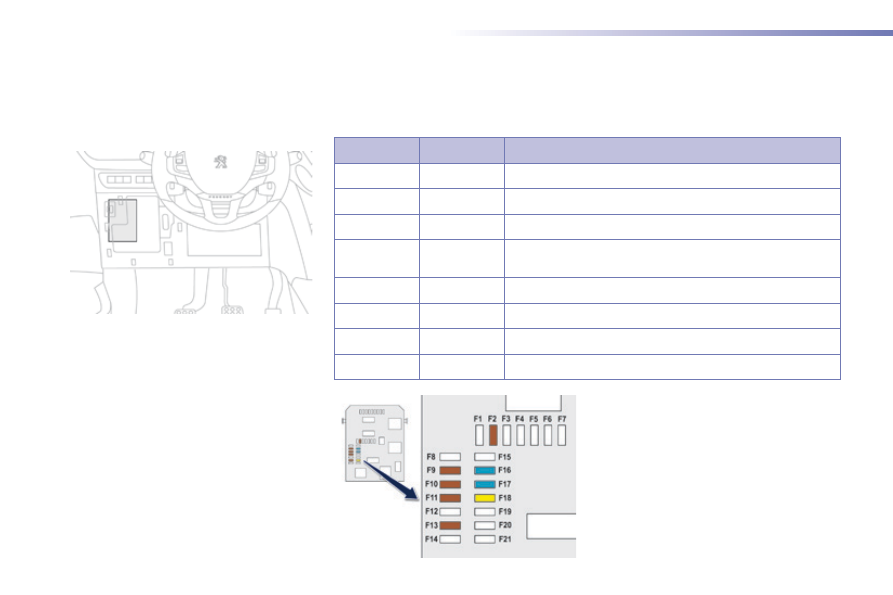

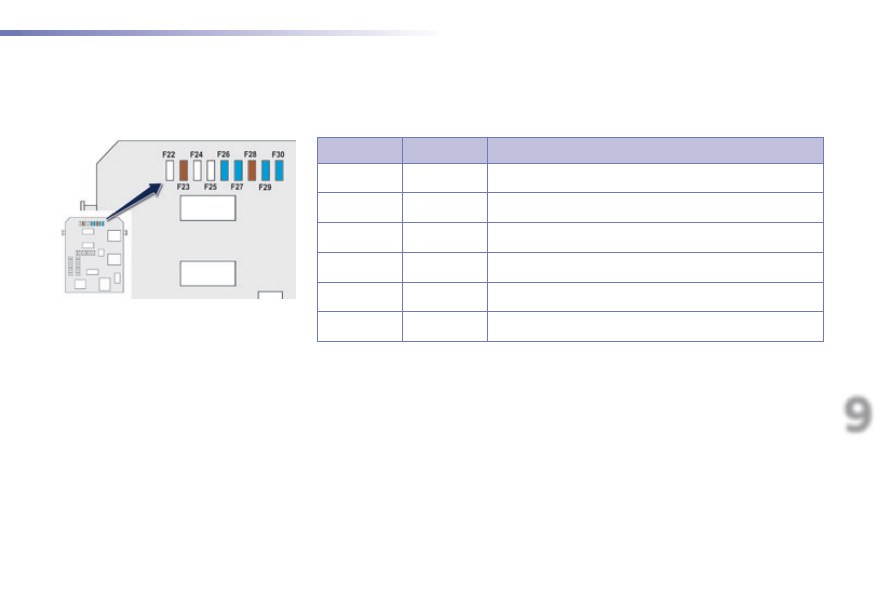

Fuse N°

Rating

Functions

F2

5 A

Door mirrors, headlamps, diagnostic socket.

F9

5 A

Alarm.

F10

5 A

Independent telematic unit.

F11

5 A

Electrochrome rear view mirror, additional heating, Active City
Brake.

F13

5 A

Hi-Fi amplifier, parking sensors, reversing camera.

F16

15 A

Front 12 V socket.

F17

15 A

Audio system (without touch screen).

F18

20 A

Touch screen, radio (if touch screen).

On the left

211

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Fuse N°

Rating

Functions

F23

5 A

Vanity mirror, map reading lamps.

F26

15 A

Horn.

F27

15 A

Screenwash pump.

F28

5 A

Anti-theft.

F29

15 A

Air conditioning compressor.

F30

15 A

Rear wiper.

212

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Fuse N°

Rating

Functions

F01

40 A

Heated rear window.

F02

10 A

Heated door mirrors.

F03

30 A

Front one-touch windows.

F04

-

Heated front seats.

F05

30 A

Rear one-touch windows.

F06

10 A

Folding door mirrors.

F07

10 A

Folding door mirrors.

F08

-

Not used.

F09

15 A

Front heated seats, front electric windows (not one-touch).

F10

20 A

Hi-Fi amplifier.

F11

-

Not used.

F12

-

Not used.

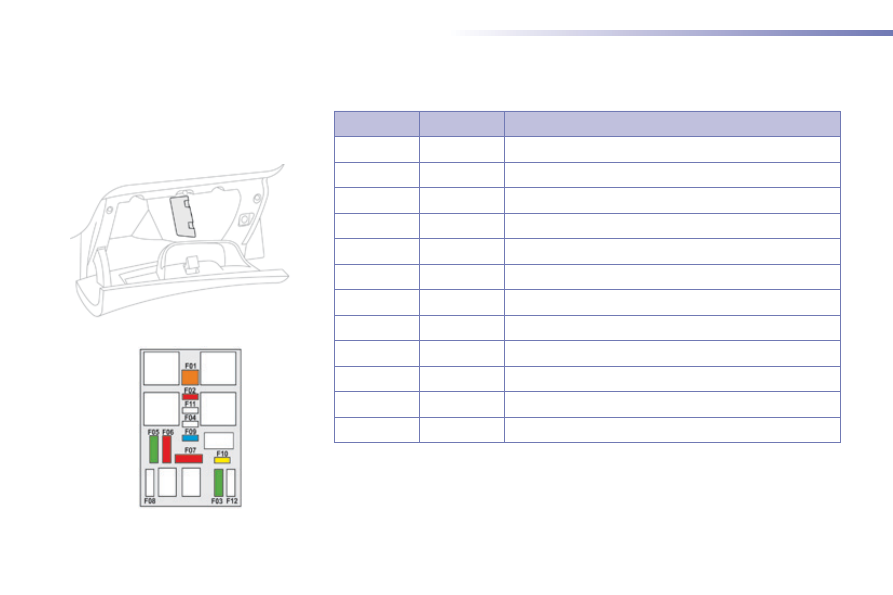

On the right

213

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Fuse N°

Rating

Functions

F16

15 A

Daytime running lamps.

F18

10 A

Right hand main beam headlamp.

F19

10 A

Left hand main beam headlamp.

F25

30 A

Headlamp wash relay (accessory).

F29

40 A

Front wiper motor.

F30

80 A

Pre-heater plugs (Diesel).

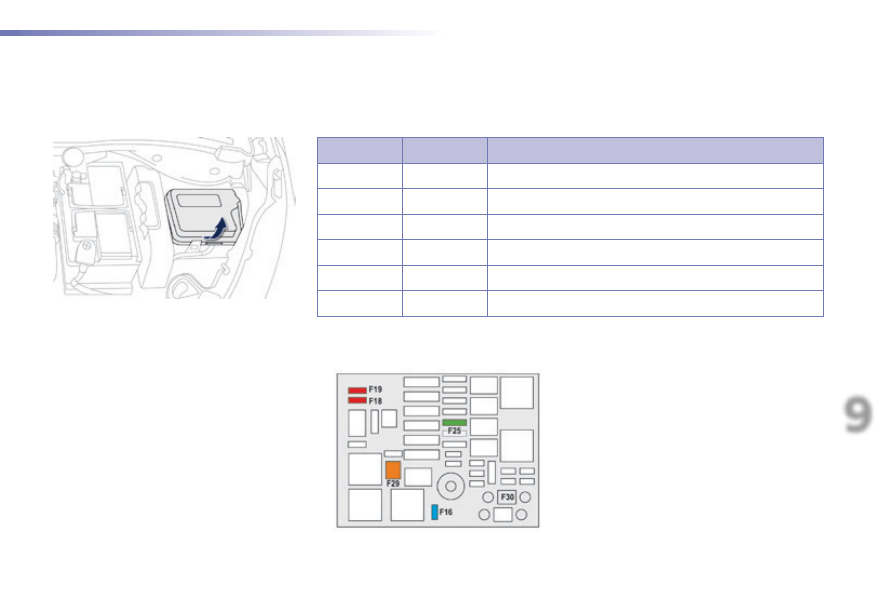

Engine compartment

The fusebox is placed in the engine
compartment near the battery (left-hand side).

Access to the fuses

F  Unclip the cover.
F  Change the fuse (see corresponding

paragraph).

F  When you have finished, close the cover

carefully to ensure correct sealing of the
fusebox.

214

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

12 V battery

Procedure for starting the engine using another
battery or charging a discharged battery.

General points

Lead-acid starter batteries

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a PEUGEOT dealer or a
qualified workshop.

If you have an electronic or automatic
gearbox, never try to start the engine by
pushing the vehicle.

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

215

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

Starting using another
battery

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

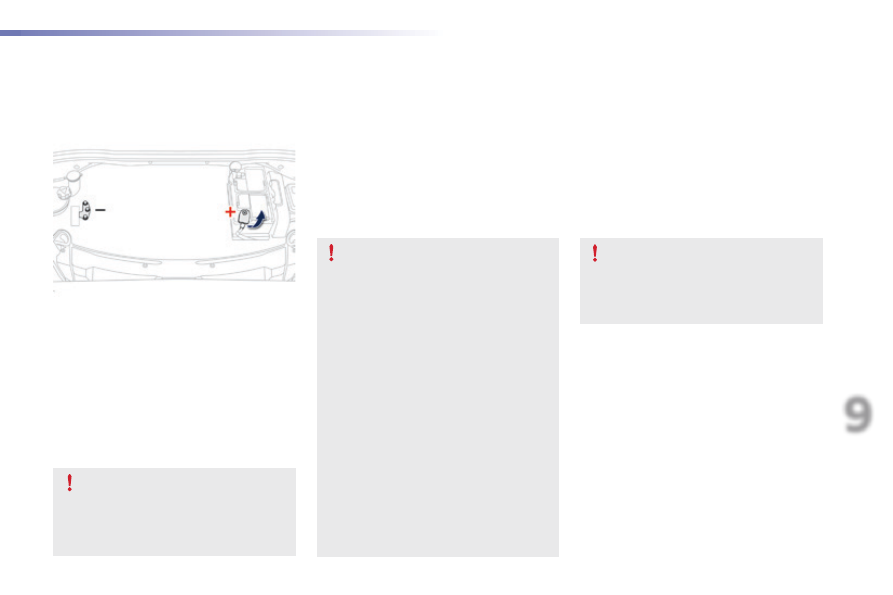

The battery is located under the bonnet.
To gain access to it:
F  open the bonnet using the interior release

lever, then the exterior safety catch,

F  secure the bonnet stay,
F  lift the plastic cover on the (+) terminal.

Access to the battery

The (-) battery terminal is not
accessible.
A remote earth point is located on the
front left-hand wheel arch.

216

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

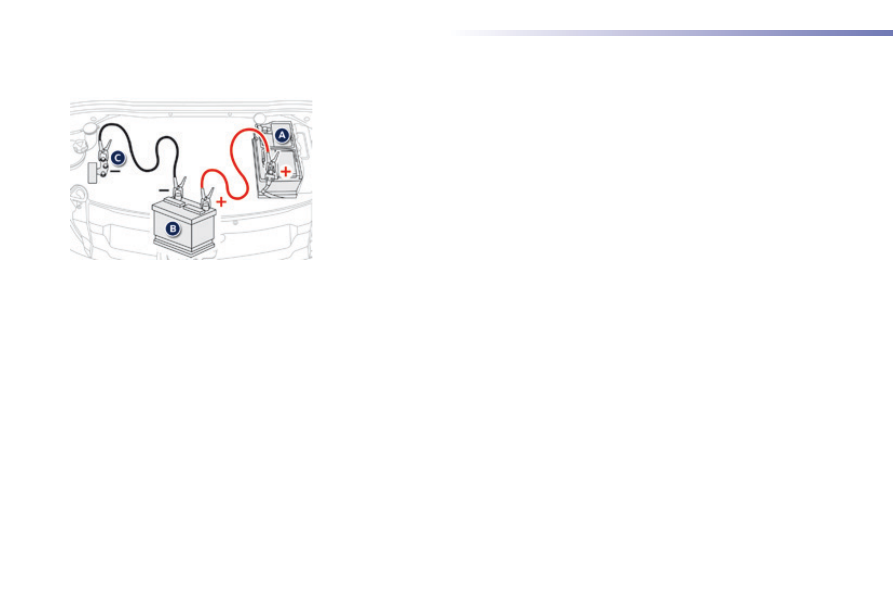

F  Raise the plastic cover on the (+) terminal,

if your vehicle has one.

F  Connect the red cable to the positive

terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal (+) of the slave battery B or the
booster.

F  Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).

F  Connect the other end of the green or black

cable to the earth point C on the broken
down vehicle.

F  Start the engine of the vehicle with the

good battery and leave it running for a
few minutes.

F  Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.

F  Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

F  Refit the plastic cover to the (+) terminal, if

your vehicle has one.

F  Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

Charging the battery using
a battery charger

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:

if you use your vehicle essentially for short
journeys,

if the vehicle is to be taken off the road for
several weeks.

Contact a PEUGEOT dealer or a qualified
workshop.

217

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.

It is not necessary to disconnect the
battery.

F  Switch off the ignition.
F  Switch off all electrical consumers (audio

system, lighting, wipers, ...).

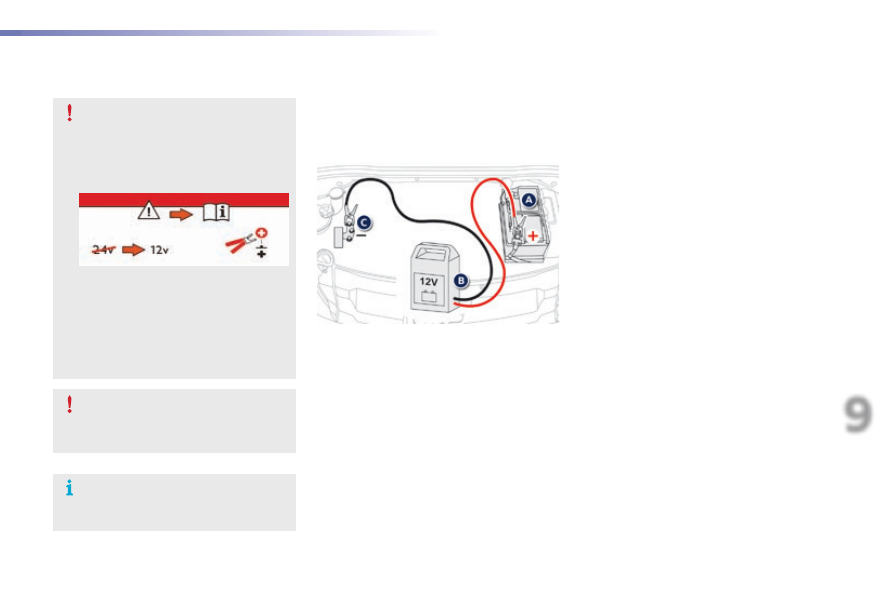

F  Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

F  Ensure that the charger cables are in good

condition.

F  Raise the plastic cover, if your vehicle has

one, on the (+) terminal.

F  Connect the charger B cables as follows:

-  the positive (+) red cable to the (+)

terminal of the battery A,

-  the negative (-) black cable to the earth

point C on the vehicle.

F  At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A.

Disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery:
F  close all openings (doors, boot, windows,

roof),

F  switch off all electrical consumers (audio

system, wipers, lighting, ...),

F  switch off the ignition and wait for

4 minutes.

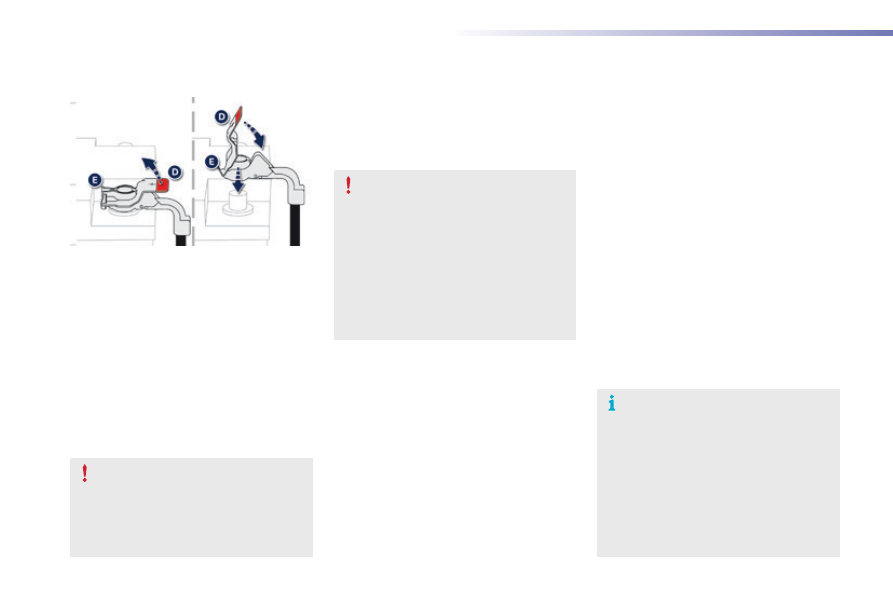

Having exposed the battery, it is only
necessary to disconnect the (+) terminal.

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.

If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.

218

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PEUGEOT dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

Quick-release terminal

Disconnecting the (+) cable

F  Raise the lever D fully to release the cable

terminal clamp E.

Do not apply excessive force on the
lever as locking will not be possible if
the clamp is not positioned correctly;
start the procedure again.

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the
battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:

the remote control key,

the on-board satellite navigation system.

Reconnecting the (+) cable

F  Position the open clamp E of the cable on

the positive post (+) of the battery.

F  Press vertically on the clamp E to position

it correctly on the battery.

F  Lock the clamp by spreading the

positioning lug and then lowering the
lever D.

219

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

System which manages the duration of use of certain functions to retain a sufficient level of charge
in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
combined duration of about 30 minutes.

Electrical energy economy mode

Switching to economy
mode

Once this time has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.

Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.
F  To restore these functions immediately,

start the engine and let it run for at least
5 minutes.

A flat battery prevents the engine from
starting (refer to the corresponding
section).

Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

220

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

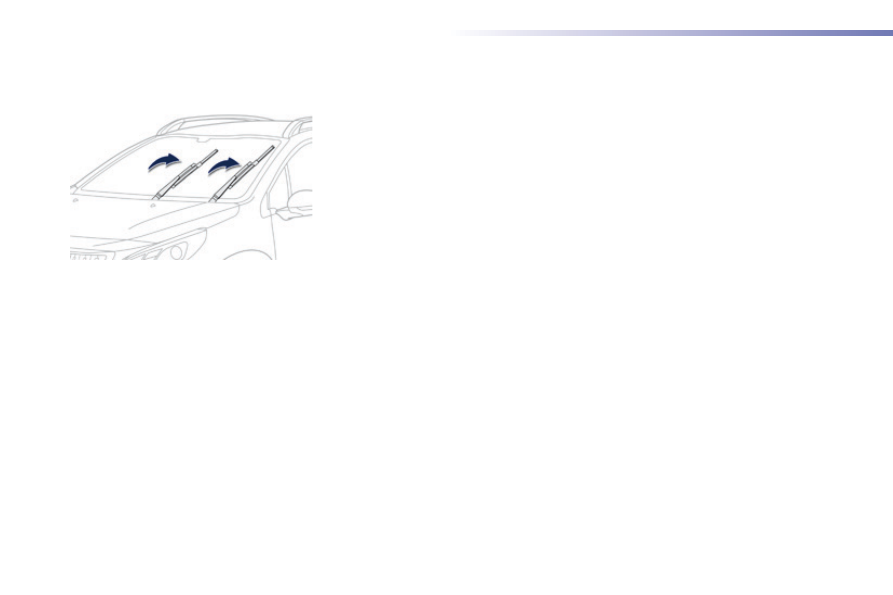

Changing a wiper blade

Before removing a front
wiper blade

F  Within one minute after switching off

the ignition, operate the wiper stalk to
position the wiper blades vertically on
the windscreen.

Removing

F  Raise the corresponding wiper arm.
F  Unclip the wiper blade and remove it.

Fitting

F  Put the corresponding new wiper blade in

place and clip it.

F  Fold down the wiper arm carefully.

After fitting a front wiper
blade

F  Switch on the ignition.
F  Operate the wiper stalk again to park the

wiper blades.

221

9

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

Towing

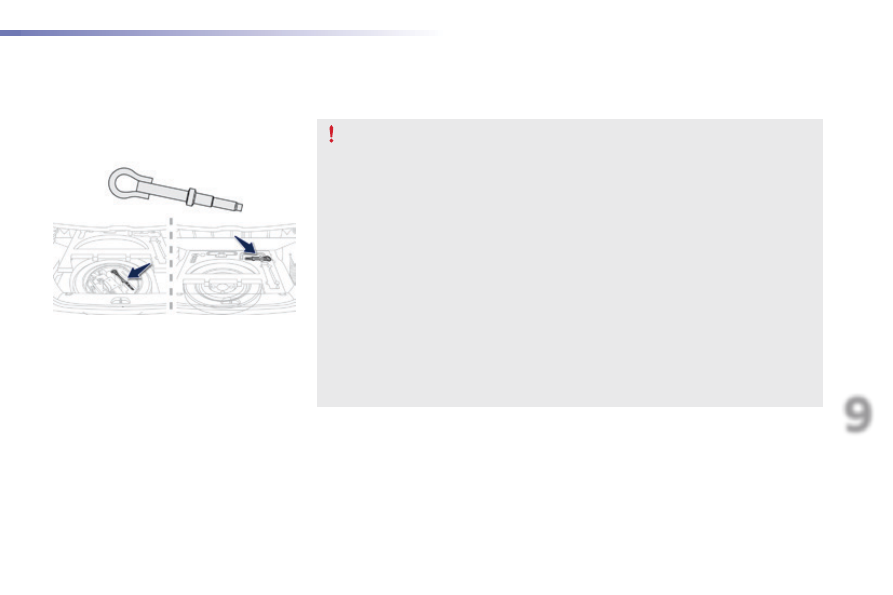

Towing eye

The towing eye is installed in the boot under
the floor.
To gain access to it:
F  open the boot,
F  lift the floor and remove it,
F  remove the towing eye from the holder.

General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.

When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering.
In the following cases, you must always call on a professional recovery service:

vehicle broken down on a motorway or fast road,

four-wheel drive vehicle,

when it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,

towing with only two wheels on the ground,

where there is no approved towing arm available...

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

222

Practical information

2008_en_Chap09_info-pratiques_ed01-2016

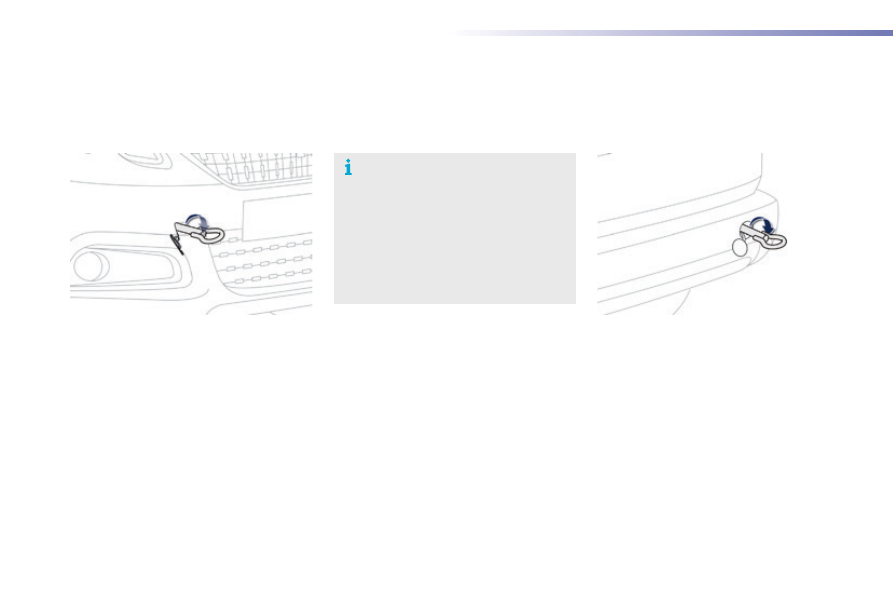

Towing your vehicle

Towing another vehicle

F  On the front bumper, unclip the cover by

inserting the flat end of the towing eye in
the bottom of the cover.

F  Screw the towing eye in fully.
F  Install the towing arm.

F  On the rear bumper, unclip the cover by

pressing at the bottom.

F  Screw the towing eye in fully.
F  Install the towing arm.
F  Switch on the hazard warning lamps on

both vehicles.

F  Move off gently, drive slowly and for a short

distance.

F  Place the gear lever in neutral

(position N on an electronic or
automatic gearbox).



Failure to observe this instruction
could result in damage to
certain components (braking,
transmission...) and the absence
of braking assistance the next time
the engine is started.

F  Unlock the steering by turning the key

in the ignition one notch and release the
parking brake.

F  Switch on the hazard warning lamps on

both vehicles.

F  Move off gently, drive slowly and for a short

distance.















Content   ..  12  13  14  15   ..
